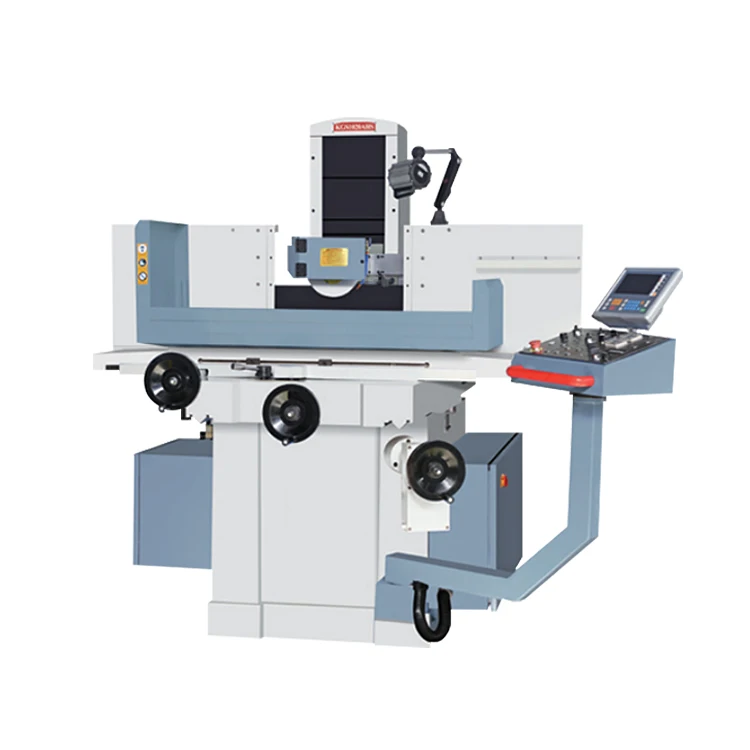

Высокоточный автоматический вертикальный шлифовальный станок с ЧПУ
- Категория товара: Internal Grinding Machines >>>
- Поставщик (Оптовый магазин): SJR,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
This machine is a plain internal grinder capable of grinding cylindrical and conical through holes or blind holes of various of mechanical workpieces in single piece or small batch production. The grinding wheel of the machine is made for cross feed, while the worktable for longitudinal reciprocating movement.
The cross feed of the grinding wheel is performed either manually or hydraulically. In case of hydraulic feed, the wheel makes a fine feed motion(i.e. periodic feed ) with each reciprocation of the table. The feed increment can be adjusted steplessly .
The feed system is provided with a jumping mechanism, with which the grinding wheel can take the jump-in and jump-out movements.
There are two driving chains in feed system: one is used for grinding and the other for adjustment and dressing feed. They are not interfered with each other. During grinding, the handwheel doesn’t advance or retract frequently and the operator doesn’t have to remember the position of the graduation disc so that it is easy to make adjustment and operation.
Specifcation
Grinding diameter | Dia.150-500mm | |
Maximum grinding depth | 450mm | |
Cover turning diameter of workpiece | Dia.510mm | |
Hood turning diameter of workpiece | Dia.750mm | |
Headstock spindle maximum load-bearing | 600kg | |
Maximum travel of working table | 725mm | |
Headstock maximum turning angle | 20° | |
Rotational speed of workpiece | 28~320r/min | |
Speed of grinding wheel spindle | 2450,4200r/min | |
Maximum travel of headstock(horizontal) | 250mm | |
Speed of working table(stepless ) | 0.2~4m/min | |
Maximum travel of feeding slide | 100mm | |
Feeding rate of feeding handwheel per rev | 0.4mm | |
Feeding rate of feeding handwheel per grid | 0.002mm | |
Power of workpiece motor | Y2-100L2-4/3kw | |
Power of grinding wheel motor | J0241-2/5.5kw | |
Power of hydraulic motor | J0212-4/0.8kw | |
Power of cooling motor | AB-50/0.12kw | |
Dimension (length * width * height) | 3760*1650*1650 | |
Weight | 5500kg | |
Roundness 0.003mm Cylindricity 0.005mm Roughness Ra0.32 | ||
