Сетевой кабель Linkwylan Cat7 SFTP 23AWG, сетевой LAN-кабель, прочные провода, экранированный 10G 1200 МГц, высокоскоростной LSZH, поддержка 4PPoE
- Категория товара: Communication Cables >>>
- Поставщик (Оптовый магазин): Dongguan,Lianwei,Communication,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Name | Cat 7 S/FTP Installation Cable |
Material | 23AWG Copper Wires, LSZH Jacket |
Function | 10G 1200MHz Hi-Speed Transmission |
Package | 500m/wooden drum |

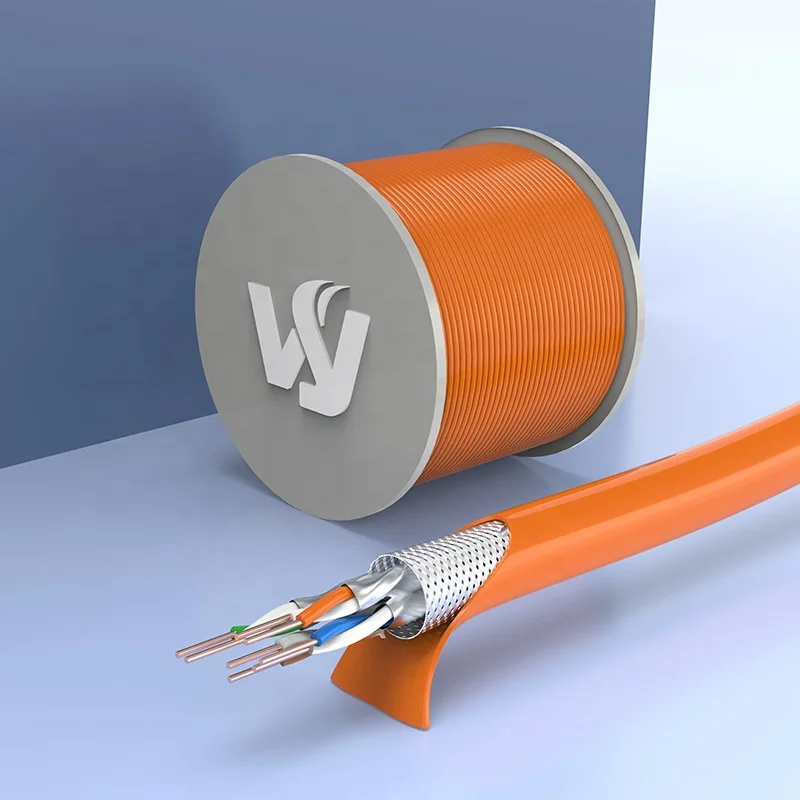

Cat 7 10GBit Installation Cable
S/FTP 23AWG LSZH

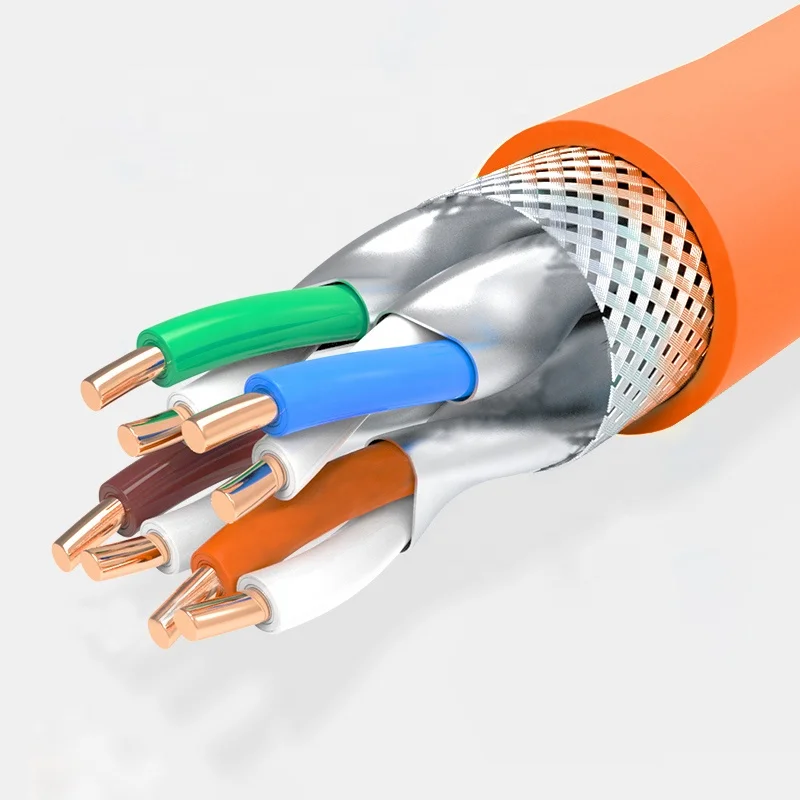

Linkwylan Cat 7 S/FTP installation cable structure 4x2xAWG23/1 and achieves transmission bandwith 10GBit and frequency up to 1200MHz (Test by network analyser+hardware)
The halogen-free material complies with the standards IEC 60332, FRNC, LSZH and CPR Euro class Eca. The cable is not only popular for Data Center and IT room application, it is also suitable for the hi-speed internet bar, game Center, home HDBase 4K TV box and Hi-Fi studioes.
The halogen-free material complies with the standards IEC 60332, FRNC, LSZH and CPR Euro class Eca. The cable is not only popular for Data Center and IT room application, it is also suitable for the hi-speed internet bar, game Center, home HDBase 4K TV box and Hi-Fi studioes.

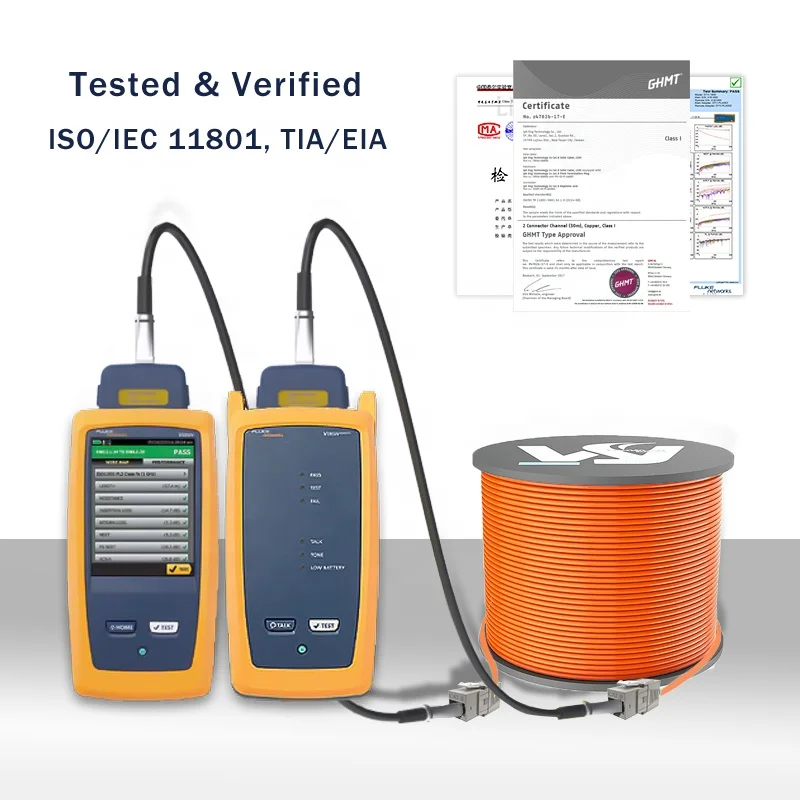

It complies with the standards ISO/IEC 11801, EN 50173, EN 50288-12-1.
Product Usage

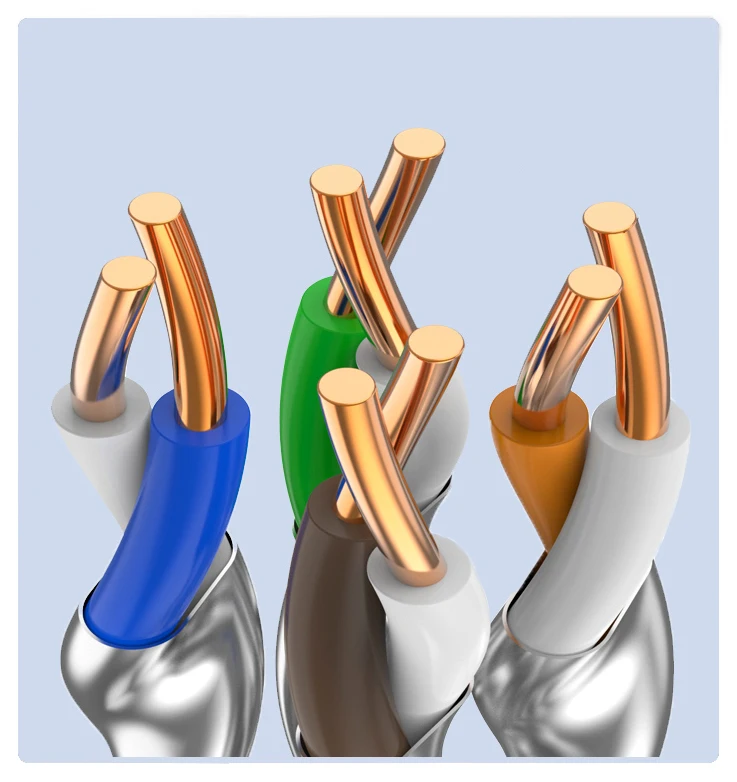

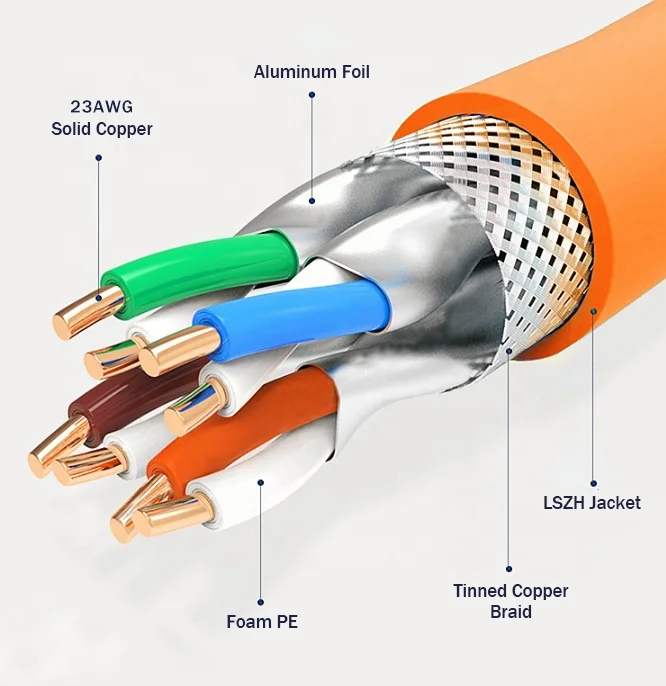

Cable Structure Introduction
The Catagory 7 components supports transmission frequency of 10 GBit per second (10GBase-T) is achieved over a cabling distance of 90 meters in permanent link and 94m in channel link. In the DACH region, the use of shielded cable of category 7 (class F) in LAN building cabling is the future-oriented standard application. We recommend to use it together with the Cat 6A keystone jacks and patch cords in order to reach the 10GBit transmission and support PoE 100 watt as well.
The whole Category 7 copper cabling solution, which includes the LAN cable, keystone jack from Linkwylan® transmit
up to 10 Gigabit per second (90m) in the Permanent Link over the backbone cabling of the IT network room. Additionally, the copper
cabling components transmit 10 Gigabit per second (94m) in the Channel Link (includes 2pcs of 2m Cat 6A patchcords) in accordance
with TIA/EIA, ISO/IEC 11801 Class Ea standards, this means the main backbone usage for LAN cabling in buildings.
up to 10 Gigabit per second (90m) in the Permanent Link over the backbone cabling of the IT network room. Additionally, the copper
cabling components transmit 10 Gigabit per second (94m) in the Channel Link (includes 2pcs of 2m Cat 6A patchcords) in accordance
with TIA/EIA, ISO/IEC 11801 Class Ea standards, this means the main backbone usage for LAN cabling in buildings.
Related Products
Packing&Shipping
Packing

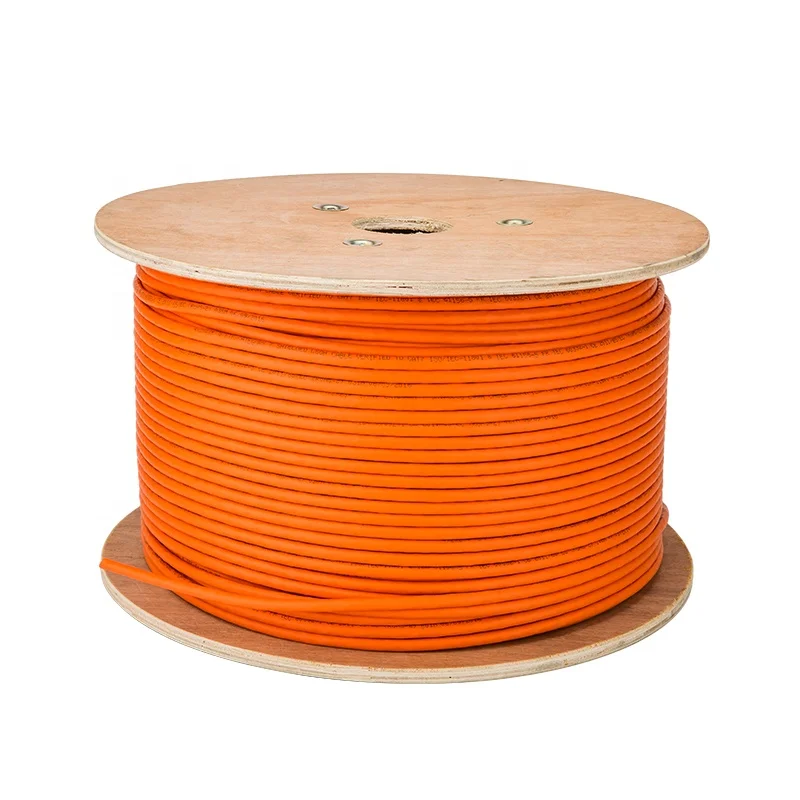

The standard cable in stock is 500m/wooden drum
We can also make 100m/roll, 305m/wooden drum
