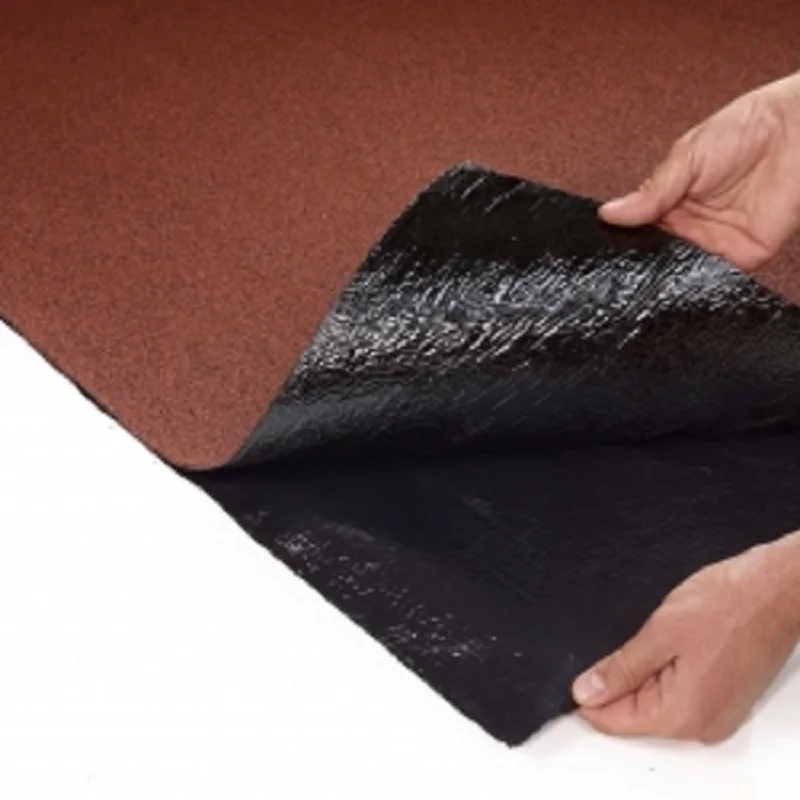

Самоклеящиеся битумные водонепроницаемые мембраны
- Категория товара: Waterproof Membrane >>>
- Поставщик (Оптовый магазин): Shandong,Chenhua,Waterproof,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

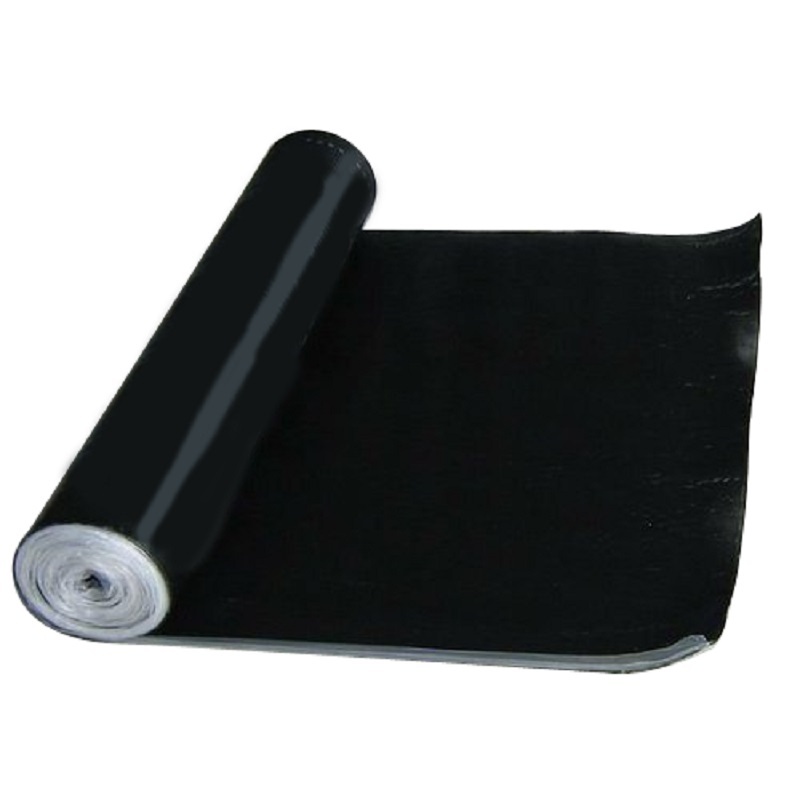

self-adhesive bitumen waterproof membrane is a normal temperature applied ,self-adhesive, flexible bituminous waterproof sheet based on premium rubber bitumen adhesives, and reinforced with glass fiber ,polyester or non-reinforced, bottom surface protected by PE release film, top surfaced coated with mineral slates, aluminum foil,PE film, textiles.
Specification
Self adhesive bitumen waterproof membrane | ||||||||
No. | Top surface | Reinforcement | Thickness | Length /roll | ||||
CH-M | Mineral flakes | Polyester | 4mm/ 5mm | 8m /10m | ||||
CH-PE | PE film | Without/Polyester/Fiberglass | 1mm/1.2mm/1.5mm/2mm/3mm/4mm | 8m / 10m / 15m /20m | ||||

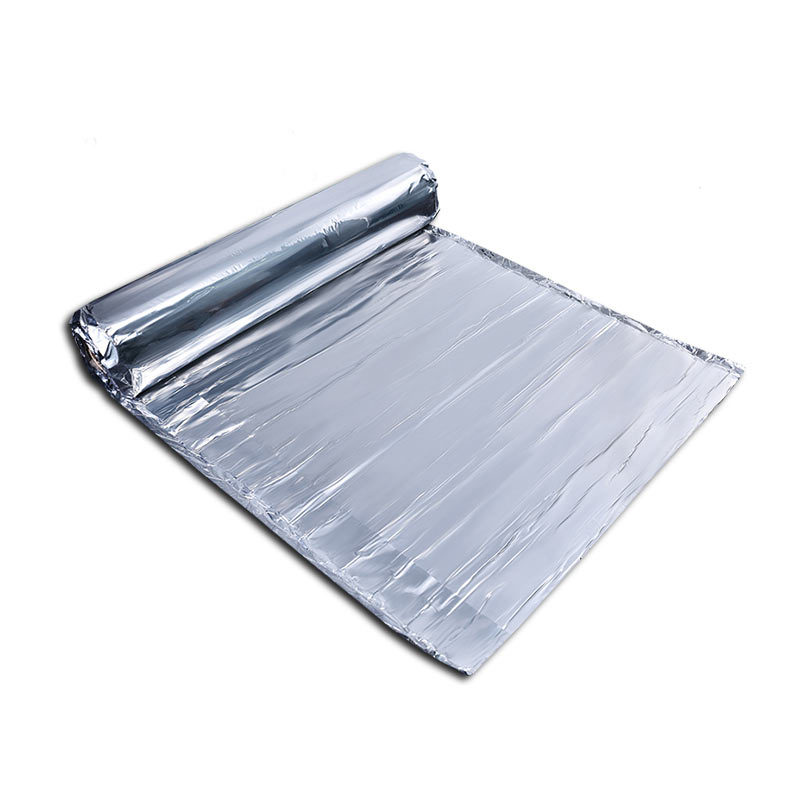

CH-AL | Aluminum foil | Without/Polyester/Fiberglass | 1mm/1.2mm/1.5mm/2mm/3mm/4mm | 8m / 10m / 15m /20m | ||||
CH-T | Textiles | Without/Polyester/Fiberglass | 1mm/1.2mm/1.5mm/2mm/3mm/4mm | 8m / 10m / 15m /20m | ||||
CH-D | Releasing film | Without/Polyester/Fiberglass | 1mm/1.2mm/1.5mm/2mm/3mm/4mm | 8m / 10m / 15m /20m | ||||
Features:
---***---Good resistance to water & vapor
----***--Specially formulated for tropical climates
---***--Good tear and puncture resistance
---***---Excellent tensile strength in both longitudinal and transverse direction
----**---Peel to apply on vertical and horizontal , super easy to install, your time& money saver.
---****----Easy to apply, supper fit for all kinds of structure.
----***--Specially formulated for tropical climates
---***--Good tear and puncture resistance
---***---Excellent tensile strength in both longitudinal and transverse direction
----**---Peel to apply on vertical and horizontal , super easy to install, your time& money saver.
---****----Easy to apply, supper fit for all kinds of structure.
---***----Specific formula, longer service life than usual SBS/APP bitumen membrane.
---**--ISO authorized– Reliable quality, keep your project safe and sound
Application

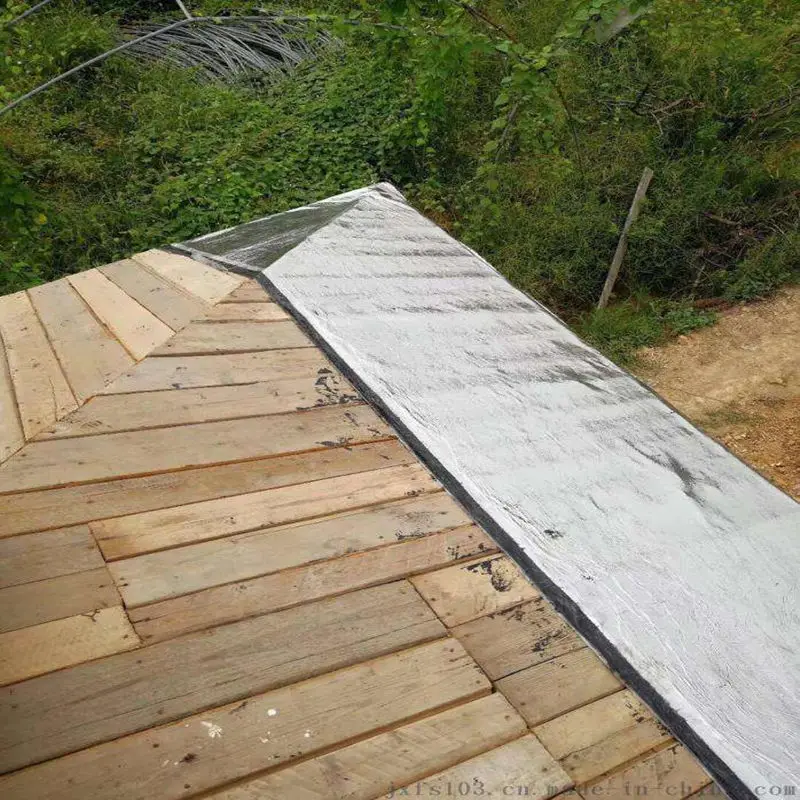

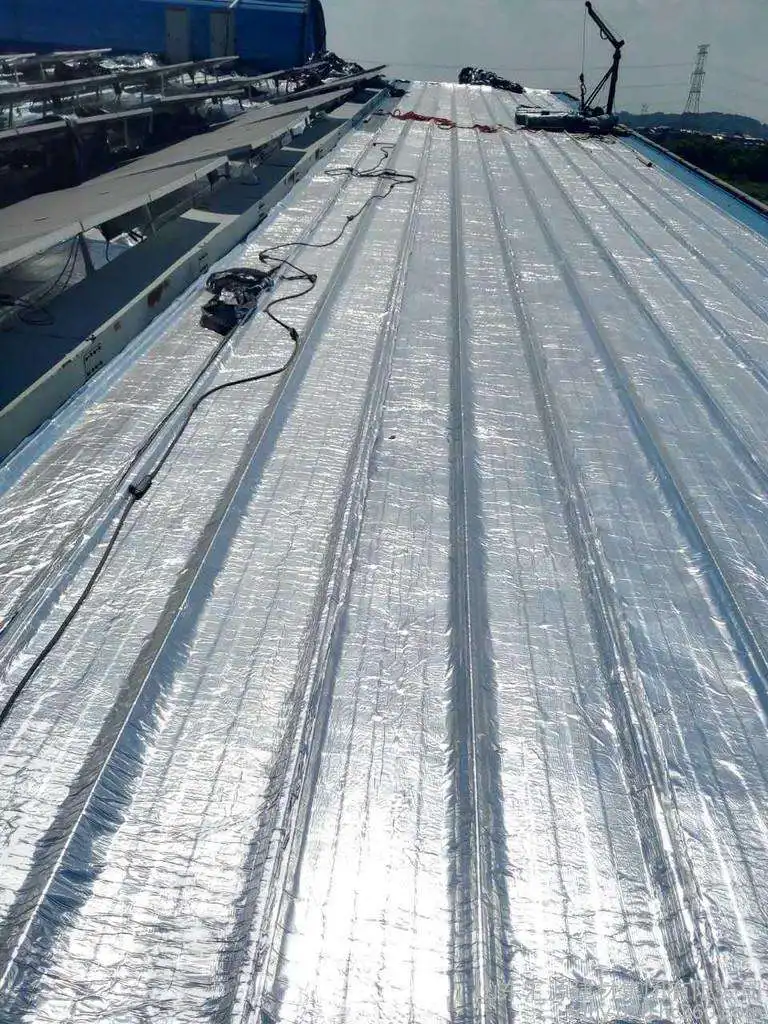

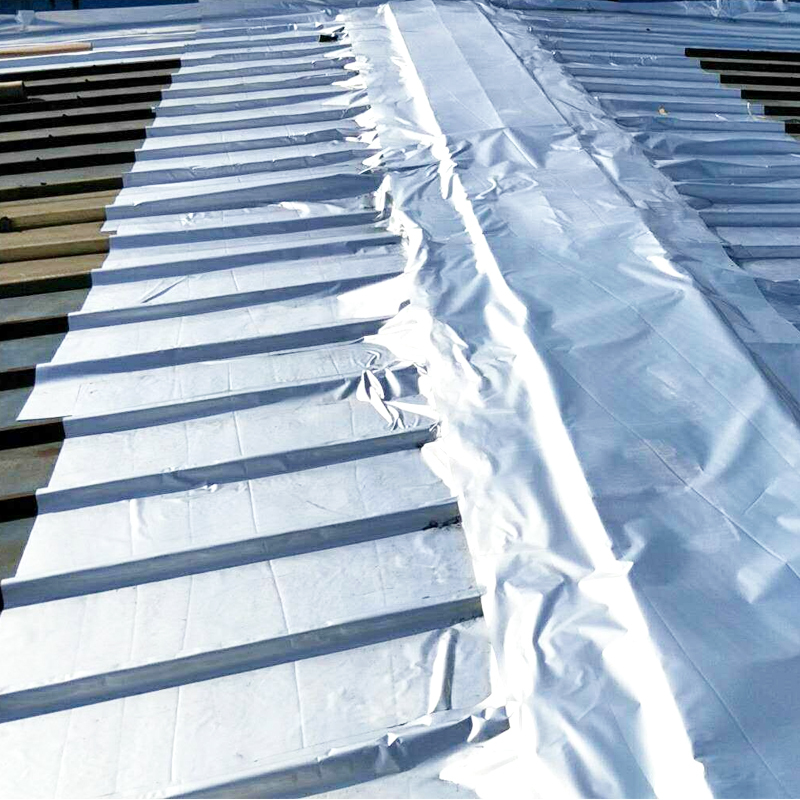

self-adhesive bitumen waterproof membrane can be used as waterproofing layer for the roofing or underground projects, its full adhesive back
makes it pretty easy to apply.
***--Asbestos
-**-Cement concrete
-*-Wood
-***-Mild steel
**--Galvanised Iron
*--FRP
-**-Plastic and more
makes it pretty easy to apply.
***--Asbestos
-**-Cement concrete
-*-Wood
-***-Mild steel
**--Galvanised Iron
*--FRP
-**-Plastic and more

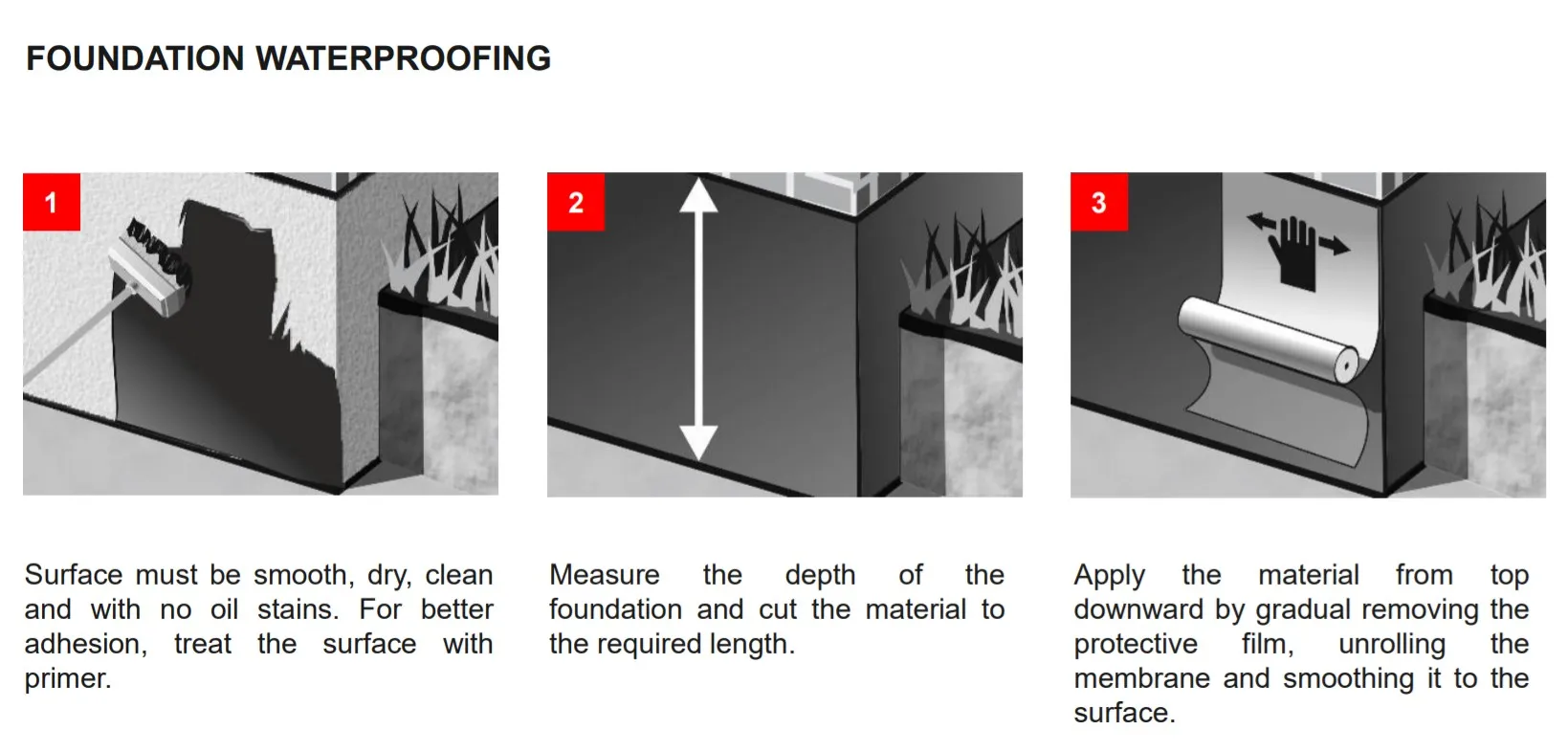

Application method:
Technical standard of membrane without reinforcement：
No. | Technical standard | Items | Testing result |
1 | Reinforcement | Without reinforcement | --- |
2 | Thickness (mm) 1mm ----- 2.0mm | +/-0.2mm | +/-0.1mm |
3 | Tension strength， N/50mm speed:250mm/min | ≥100 | Pass |
4 | Elongation ,% | ≥50 | Pass |
5 | Cold flexibility | -20℃,No crack | -25℃ |
6 | Heat resistance | ≥70℃ | +90℃ |
7 | Water tightness | 0.3MPa，120min, water tightness | Pass |
Technical standard of membrane with polyester reinforced :
No. | Technical standard | Items | Testing result |
1 | Reinforcement | Polyester reinforced | --- |
2 | Thickness (mm) 1.5mm ----- 5.0mm | +/-0.2mm | +/-0.1mm |
3 | Tension strength， N/50mm speed:250mm/min | ≥450 | Pass |
4 | Elongation ,% | ≥30 | Pass |
5 | Cold flexibility | -20℃,No crack | -25℃ |
6 | Heat resistance | ≥70℃ | +90℃ |
7 | Water tightness | 0.3MPa，120min, water tightness | Pass |
Technical standard of membrane with Fiberglass reinforced:
No. | Technical standard | Items | Testing result |
1 | Reinforcement | Fiberglass reinforced | --- |
2 | Thickness (mm) 1.2mm ----- 4.0mm | +/-0.2mm | +/-0.1mm |
3 | Tension strength， N/50mm speed:250mm/min | ≥400 | Pass |
4 | Cold flexibility | -20℃,No crack | -25℃ |
5 | Heat resistance | ≥70℃ | +90℃ |
6 | Water tightness | 0.3MPa，120min, water tightness | Pass |

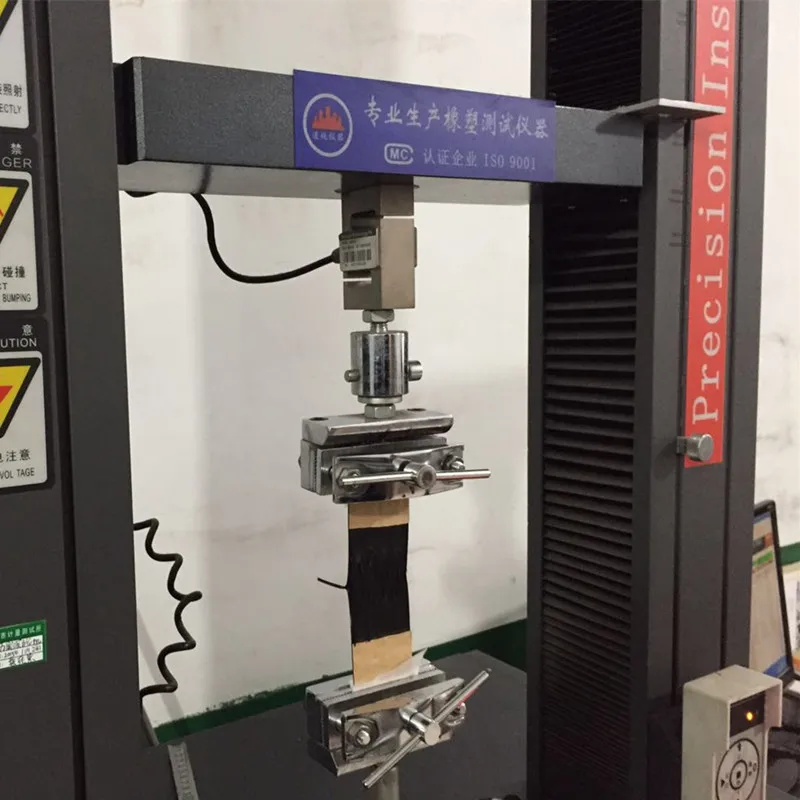

product Features and testing in lab

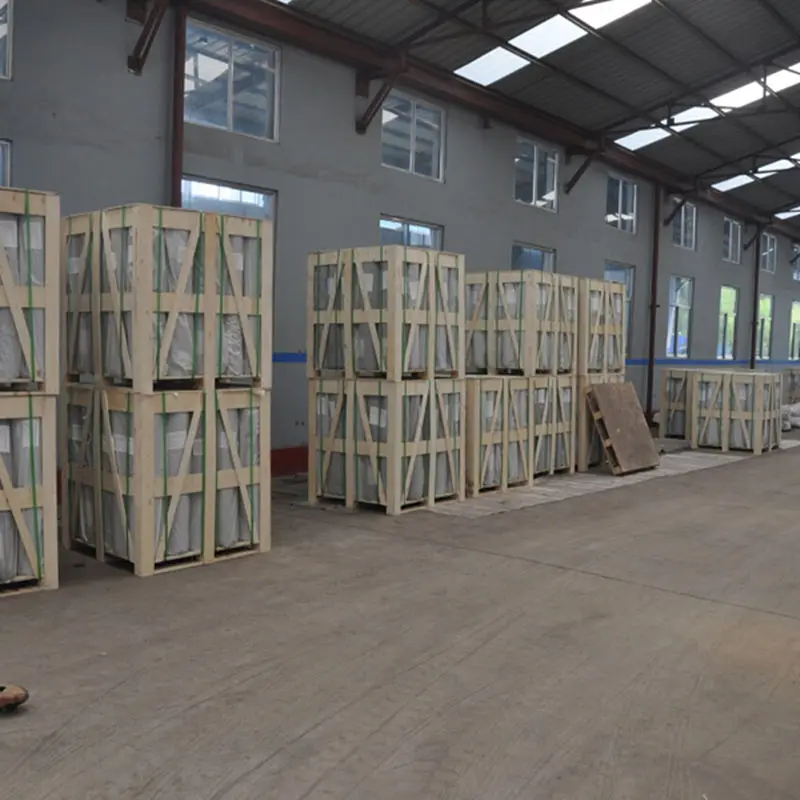

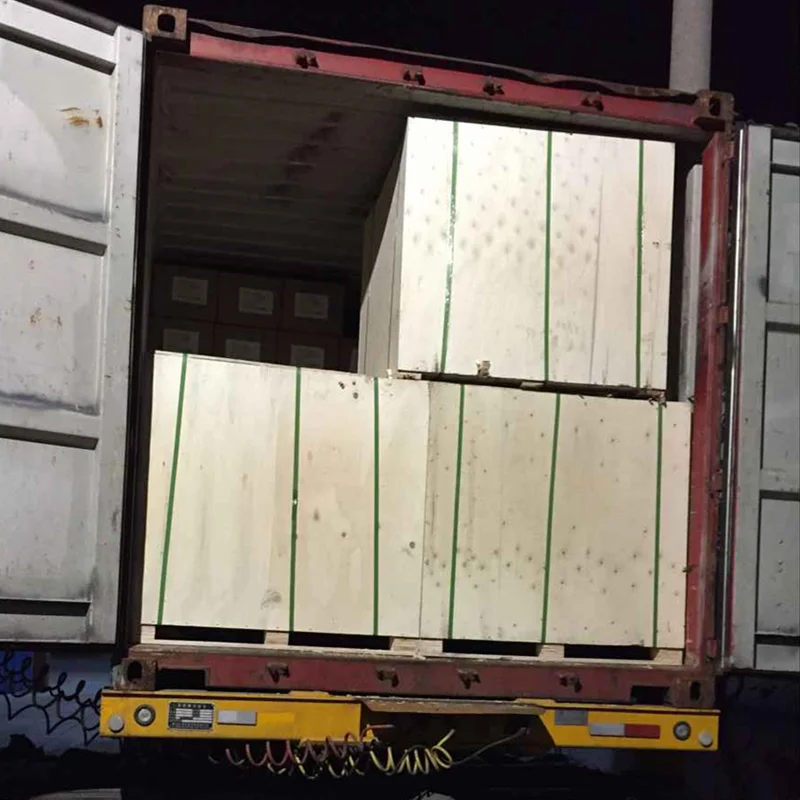

Packing & Delivery
1)Paper tube inside per roll, plastic bag or carton per roll outside
2)With or without seaworthy pallet packing according to customer need
3)Pallet or wooden box packing outside according to container loading requirements.

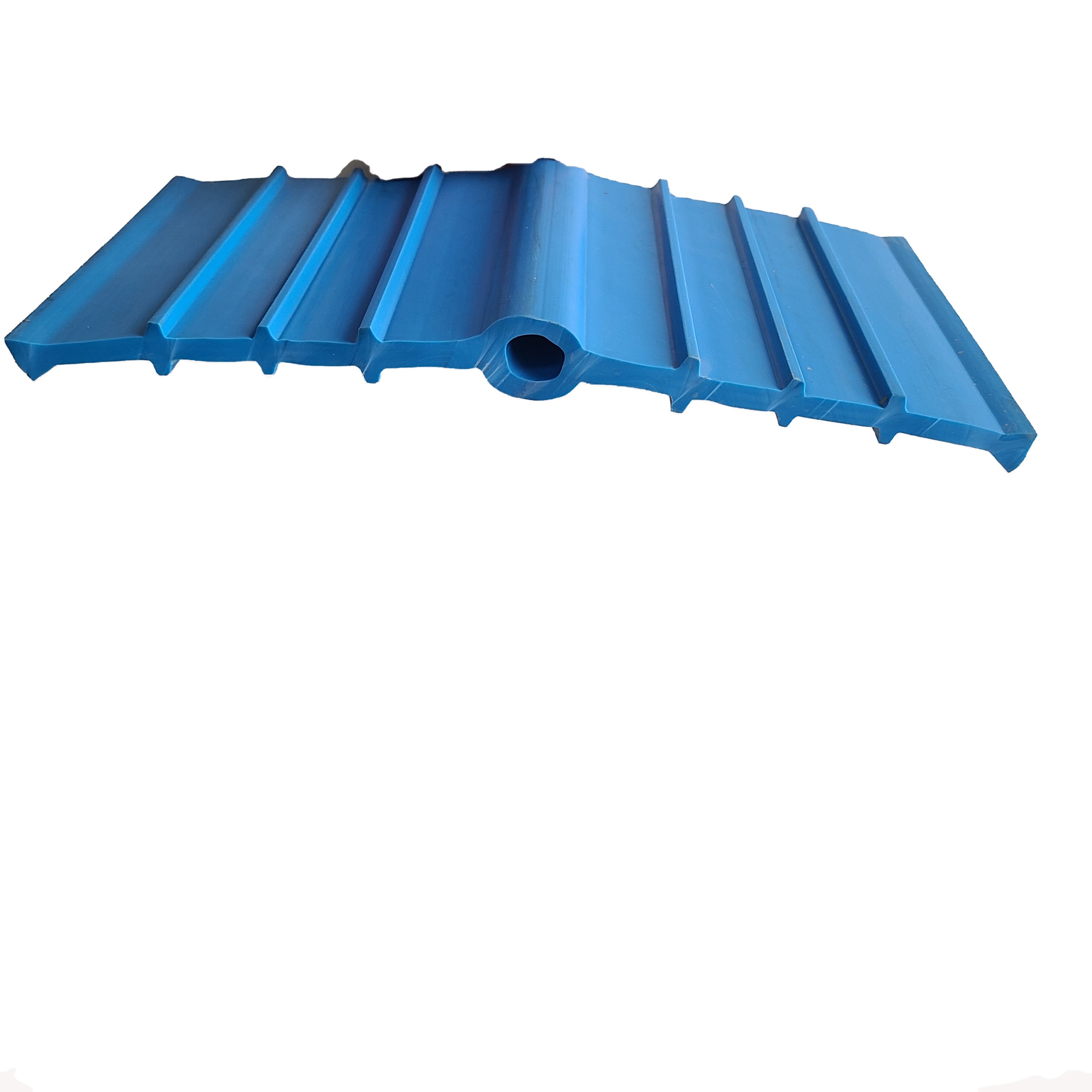

related product

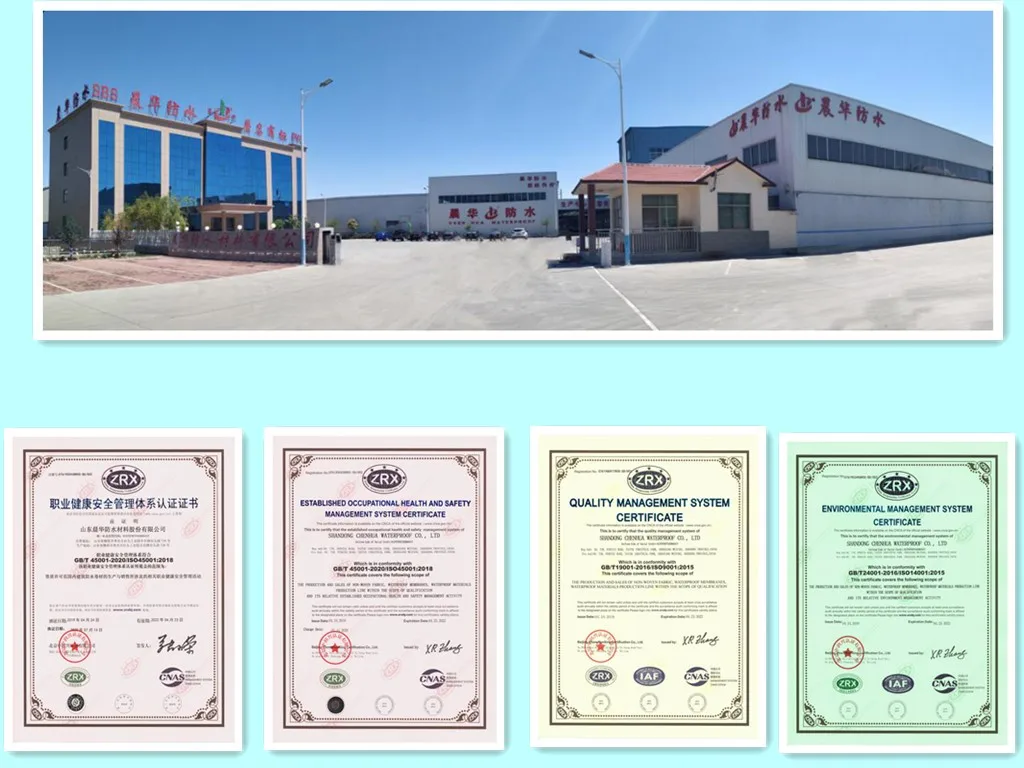

Company Profile

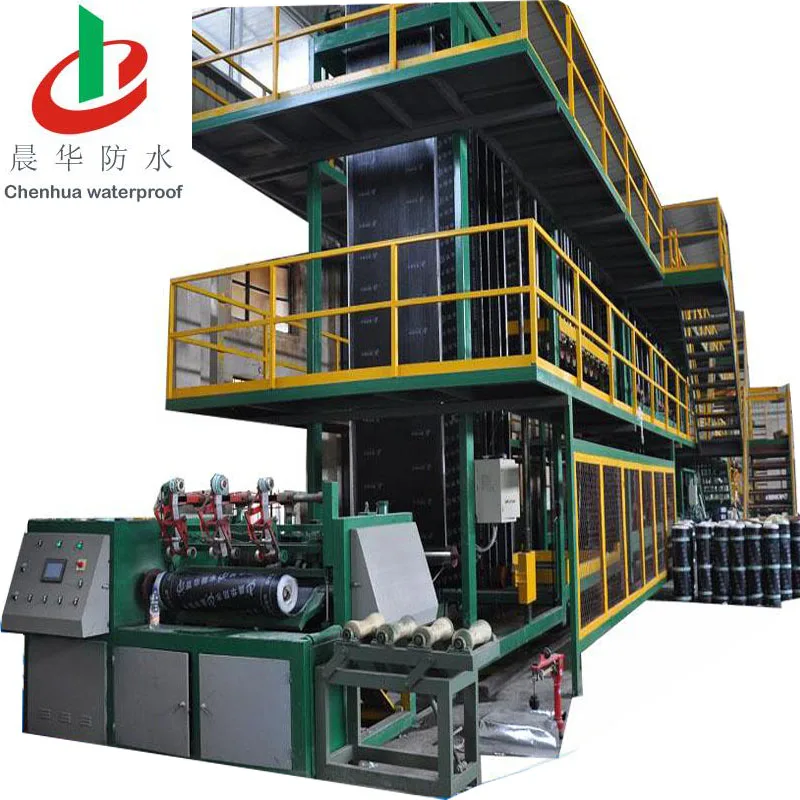

SHANDONG CHENHUA WATERPROOF CO.,LTD was established in 1994, it is a pioneer enterprise in China and specialized in manufacturing and selling a wide range of waterproof materials to suit different waterproofing industry need. Products include from raw materials to the finished waterproof materials and waterproof material production lines. The company has a registered capital of 101,800,000 RMB. The plant covers an area of 50,000 square meters. It has 2 filament polyester mat production lines, with an annual output of more than 50 million square meters, 3 sets of waterproof membrane production lines, with an annual output of more than 30 million square meters, and 4 sets of polymer material production lines, annual output of more than 50 million square meters, 5 sets of polypropylene non-woven fabric production lines, annual output of more than 20,000 tons, 1 slitting packaging production line, annual output of more than 10 million square meters, about 80% of domestic market sales, and about 20% of international exports , With annual sales of more than 50 million RMB.
Main products:
--- Non-woven reinforcement for bitumen membrane production
--- Polyethylene film for bitumen membrane surfaces covering
---self-adhesive bitumen waterproof membrane
After 20years’ exploitation and development,CHENHUA WATERPROOF has formed a comprehensive enterprise,integrating the scientific research,design,manufacturing and international trading into a whole,with advanced management facilities and complete after-sales service system.
By now,CHENHUA WATERPROOF has established the long-term partnerships not only with domestic markets,but also has exported to more than 20countries,such as Saudi Arabia, Algeria, Oman, Egypt, India, Spain, Turkmenistan, Kazakhstan, the United States, Malaysia, Singapore, etc.
The products can be up to various international standards and have won a high admiration and widely trust at home and abroad.
CHENHUA WATERPROOF has been working hard to improve competitiveness of the brand and guarantee top quality and perfect service.
Main products:
--- Non-woven reinforcement for bitumen membrane production
--- Polyethylene film for bitumen membrane surfaces covering
---self-adhesive bitumen waterproof membrane
---SBS APP modified bitumen membrane production line
---High polymer waterproof materials
---PP and PET nonwoven fabric
---Waterproof material production lines
---High polymer waterproof materials
---PP and PET nonwoven fabric
---Waterproof material production lines
After 20years’ exploitation and development,CHENHUA WATERPROOF has formed a comprehensive enterprise,integrating the scientific research,design,manufacturing and international trading into a whole,with advanced management facilities and complete after-sales service system.
By now,CHENHUA WATERPROOF has established the long-term partnerships not only with domestic markets,but also has exported to more than 20countries,such as Saudi Arabia, Algeria, Oman, Egypt, India, Spain, Turkmenistan, Kazakhstan, the United States, Malaysia, Singapore, etc.
The products can be up to various international standards and have won a high admiration and widely trust at home and abroad.
CHENHUA WATERPROOF has been working hard to improve competitiveness of the brand and guarantee top quality and perfect service.
FAQ
Why you choose our Self adhesive bitumen waterproof membrane?
1) Are you factory or trader?
Answer: we are professional in producing waterproof materials since 1994,self adhesive bitumen membrane is one of our main products which have been exported to more than 20countries by now .
2)What's the popular size ?
****- 1.0mm x 100cm x 20m / roll
***- 1.5mm x 100cm x20m / roll
**- 1.5mm x 100cm x 10m / roll
*- 2.0mm x 100cm x 10m / roll
*- 3.0mm x 100cm x 10m / roll
*- 4.0mm x 100cm x 10m / roll
-* 5.0mm x 100cm x 10m / roll
3)Does it need hot torch to melt ?

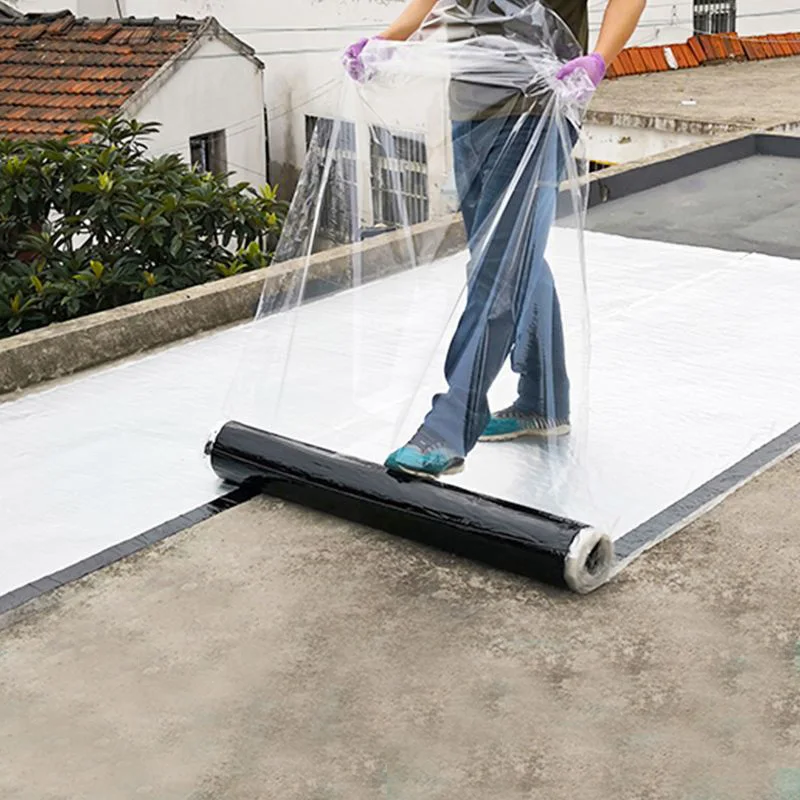

Answer: No flame required, just only peel off the releasing film ,and stick on basement directly.
4)Can print Customerized logo on the packing ?
Answer: OEM is acceptable. Pls send yourself logo ,then we design for you, or you can send us the finished design directly Then,we print on the packing round paper or profile paper ,or carton outside.
1) Are you factory or trader?
Answer: we are professional in producing waterproof materials since 1994,self adhesive bitumen membrane is one of our main products which have been exported to more than 20countries by now .
2)What's the popular size ?
****- 1.0mm x 100cm x 20m / roll
***- 1.5mm x 100cm x20m / roll
**- 1.5mm x 100cm x 10m / roll
*- 2.0mm x 100cm x 10m / roll
*- 3.0mm x 100cm x 10m / roll
*- 4.0mm x 100cm x 10m / roll
-* 5.0mm x 100cm x 10m / roll
3)Does it need hot torch to melt ?
Answer: No flame required, just only peel off the releasing film ,and stick on basement directly.
4)Can print Customerized logo on the packing ?
Answer: OEM is acceptable. Pls send yourself logo ,then we design for you, or you can send us the finished design directly Then,we print on the packing round paper or profile paper ,or carton outside.
