Neofibo FK4-110P 100x optical fiber connector inspection microscope inspection fibre optic connectore fiber scope tester
Products Description
Key Features:
1.full range for X & Y Axis moving (4.0 x 3.0 mm)
2.Able to check all kinds of fiber connector endface.
3.High definition CCD procide sharp image.
4.Easy to find fiber core after changing ferrule adapters.
5.Video signal could input to LCD monitor.
6.Applicable to multi fiber end face inspection
7.Dedicated to MTRJ/MT/MPO/FA ferrules.
8.Customize special ferrule adapter.
2.Able to check all kinds of fiber connector endface.
3.High definition CCD procide sharp image.
4.Easy to find fiber core after changing ferrule adapters.
5.Video signal could input to LCD monitor.
6.Applicable to multi fiber end face inspection
7.Dedicated to MTRJ/MT/MPO/FA ferrules.
8.Customize special ferrule adapter.
Before adjusting
Fiber core is not in the center of the screen
After adjusting
Fiber Core is in the center of the screen.

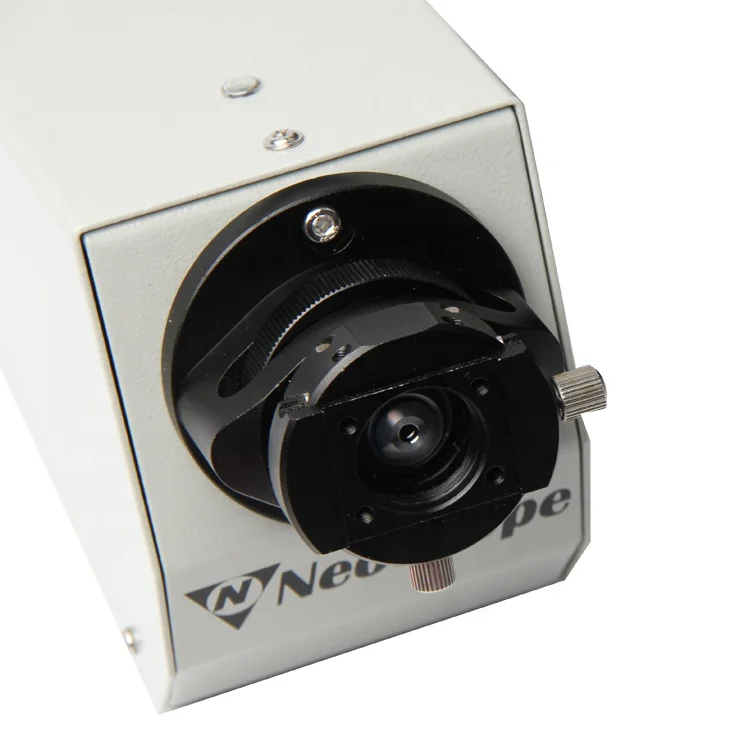

Adjustable Holes
There are three adjustable Holes on the black base edge.
Two of them are frequently used to adjust the fiber core, and make it move to the center of screen.
There are three adjustable Holes on the black base edge.
Two of them are frequently used to adjust the fiber core, and make it move to the center of screen.
PASS
FAIL
fiber microscope can choose the magnification according to the needs, and the magnification includes 400X, 200X, 100X
Application
Adapted Connector：
FC/SC/LC/MT/MTRJ supporting UPC
FC/SC/LC/MT/MPO supporting APC
SMA905/D80/MTRJ supporting Ferrule
FC/SC/LC/MT/MPO supporting APC
SMA905/D80/MTRJ supporting Ferrule
Specification

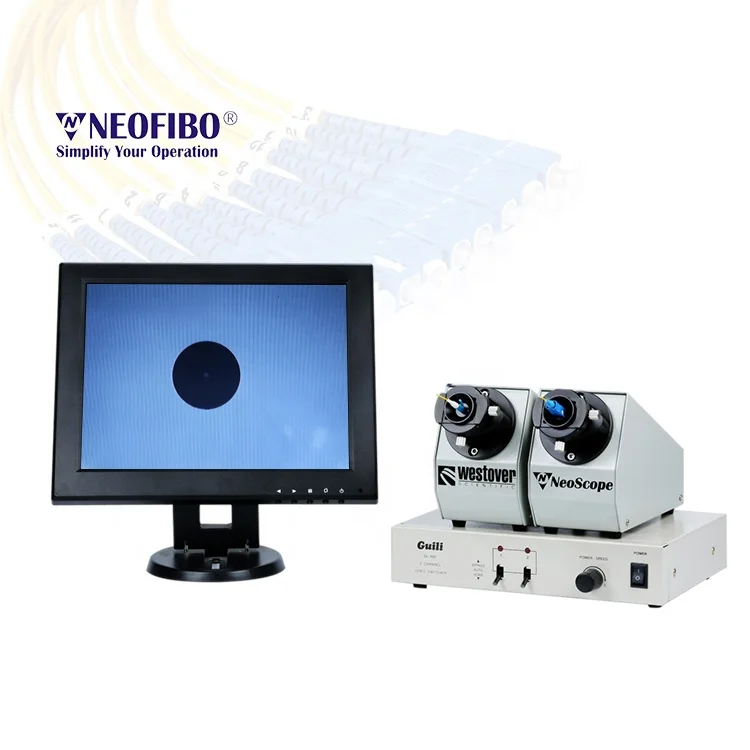

Standard configuration：
Product name and model | Quantity |
fiber optic inspection microscope | 1 |

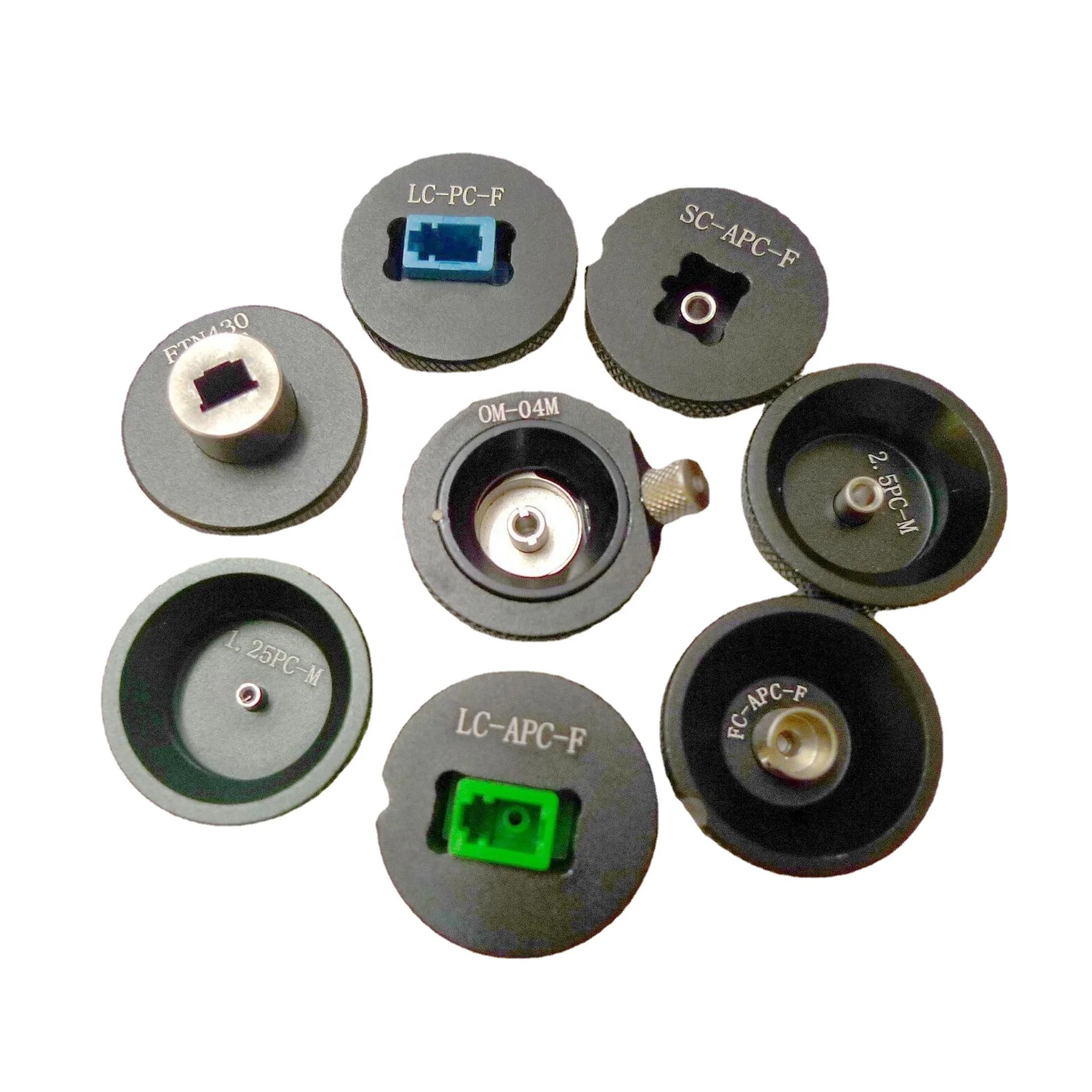

FC/SC/ST interface adapter | 1 |
MU/LC interface adapter | 1 |
BNC signal line | 1 |
AC power adapter | 1 |
8 inch LCD monitor | 1 |
Optional accessories：
Product name and model | Quantity |
SC/APC interface adapter | 1 |
FC/APC interface adapter | 1 |
LC/APC interface adapter，ADPT-L | 1 |
MPO/MTP interface adaptation， ADPT-MPO | 1 |
SMA905 interface adapter, ADPT-SMA | 1 |
Recommend Products
About Us
Shenzhen Neofibo Technology Limited
We has 13 years experience.could provide optic fiber production line and service for you. you can count on us to offer you the best solution.Neofibo is focusing on the field of fiber optic polishing solutions.We specialize in manufacturing fiber optic polishing machine, design various optical fiber connectors polishing fixtures, provide completed polishing process and materials for all kinds of fiber optic connectors.Neofibo can provide not only products, but also technical services and R & D support.
Neofibo : Your Reliable Supplier
① Can provide you with reliable polishing solution；
② 13-year Manufacturing Experience for OEM/ODM polishing program；
③ Independent research and development patent - Neoholder®；
④ Products have CE, ROHS certification；
⑤ Support online video synchronization inspection machine；
⑥ Equipment test report and operation guide can be provided；
⑦ SGS certified factory, delivery speed and secure,50 units in stock；
⑧ 30 days quality problems can be returned；
⑨ Free polishing film sample.
FAQ
1.About the fixture of NEOPL-2000A, does it works perfect with the Seikoh Giken 550 polishing machine ?
Yes, we confirm that it works perfect with the Seikoh Giken 550.
2.Polisher can’t work?
(1)Confirm power, and examine speed adjusting knob.
(2)Whether the timer stop at ZERO.
(3)Whether fuse is OK or not.
3.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn’t be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.
4.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.
5.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;
6.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
