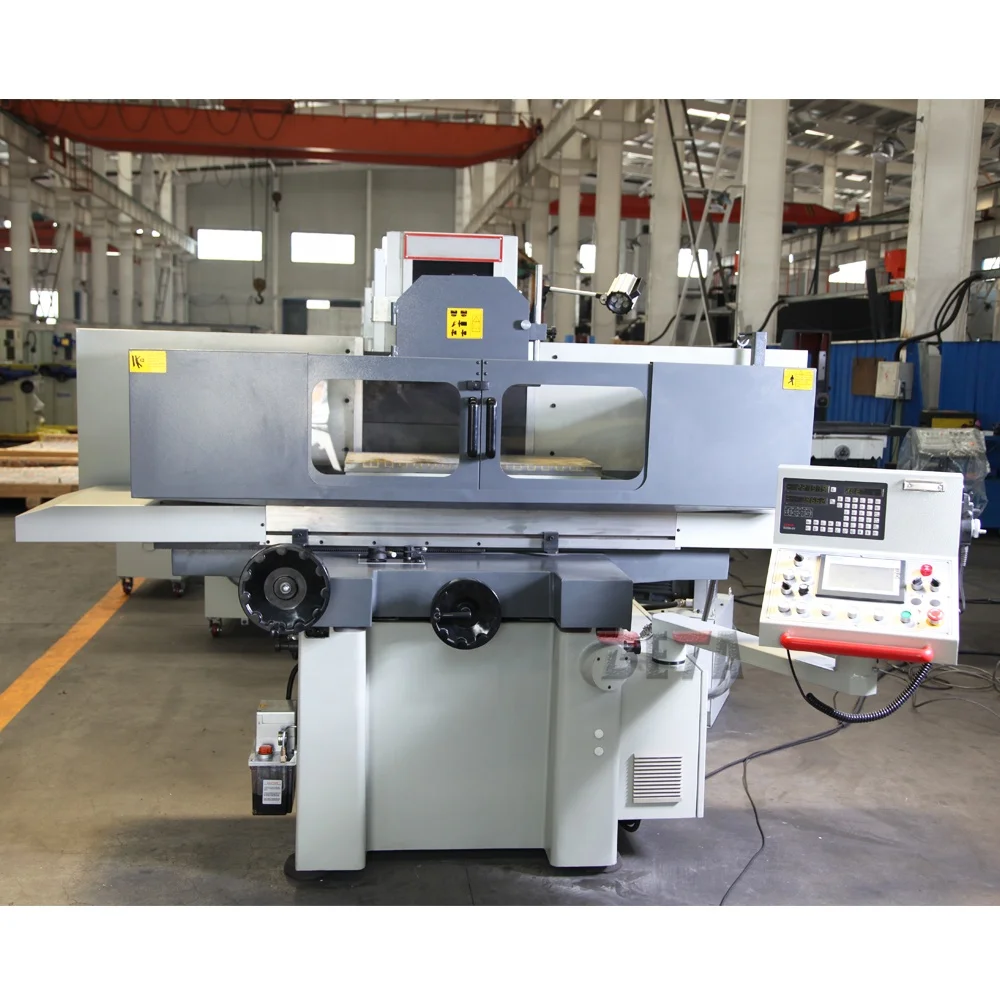

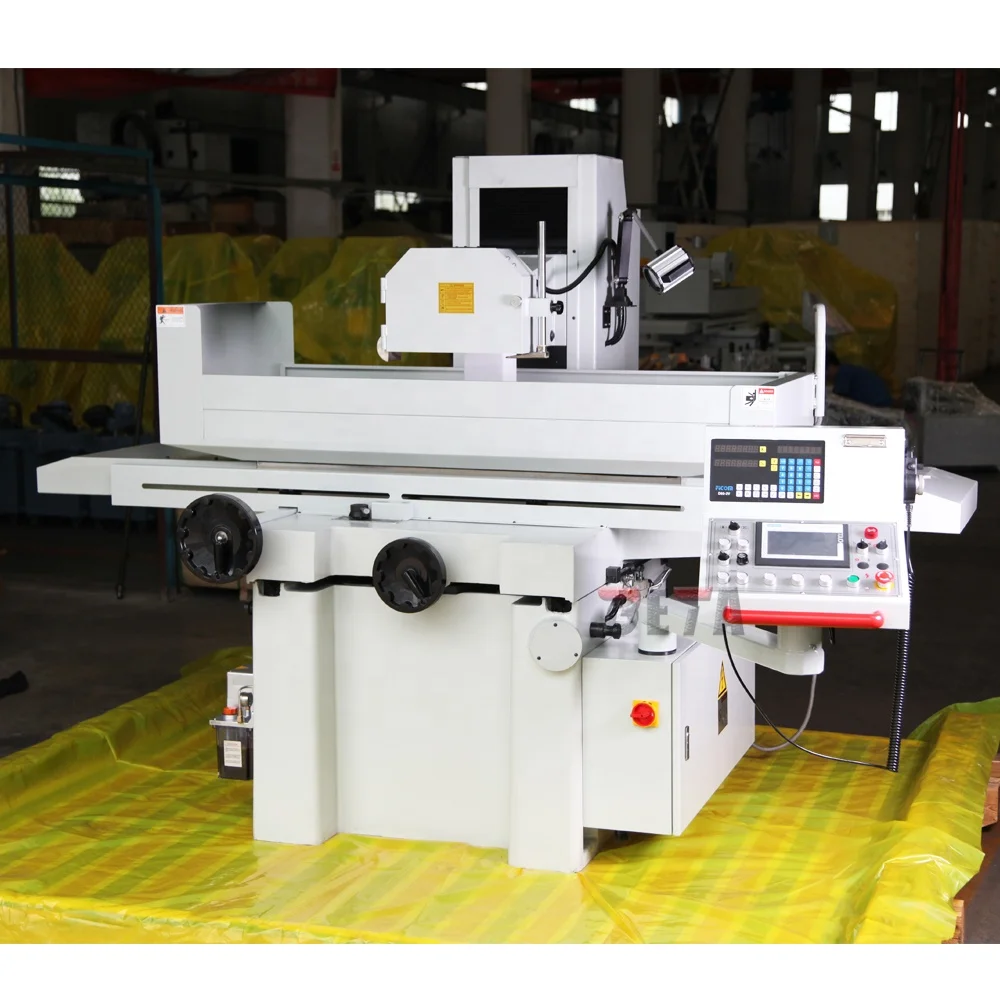

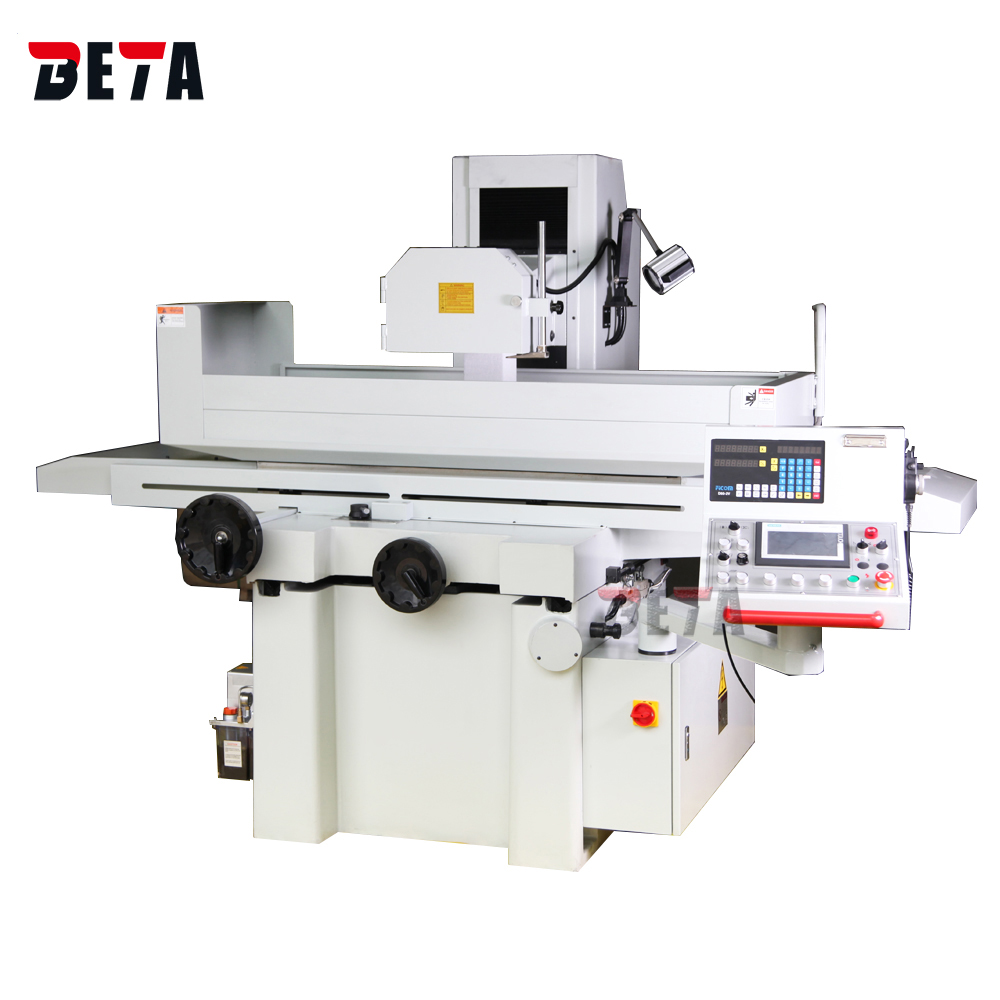

Производитель 1000 мм автоматический CE точный шлифовальный станок
- Категория товара: >>>
- Поставщик (Оптовый магазин): Tengzhou,Beta,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

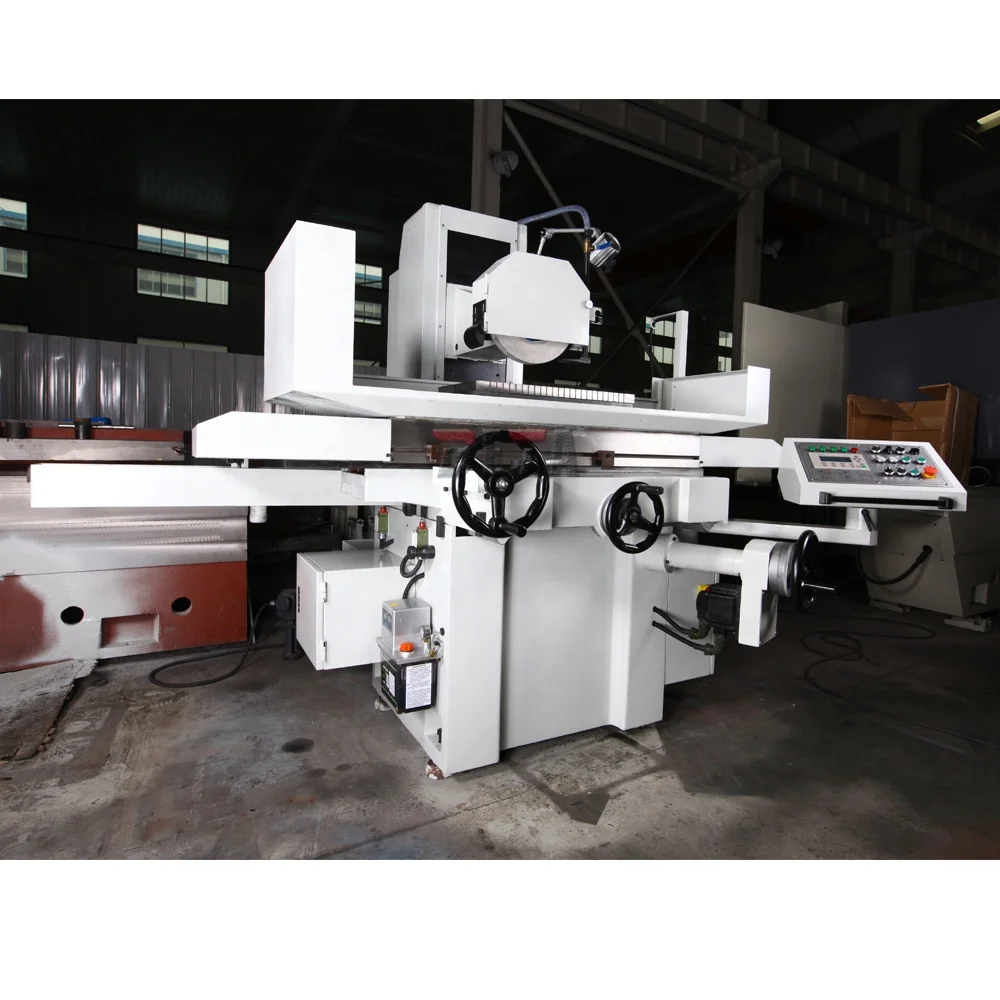

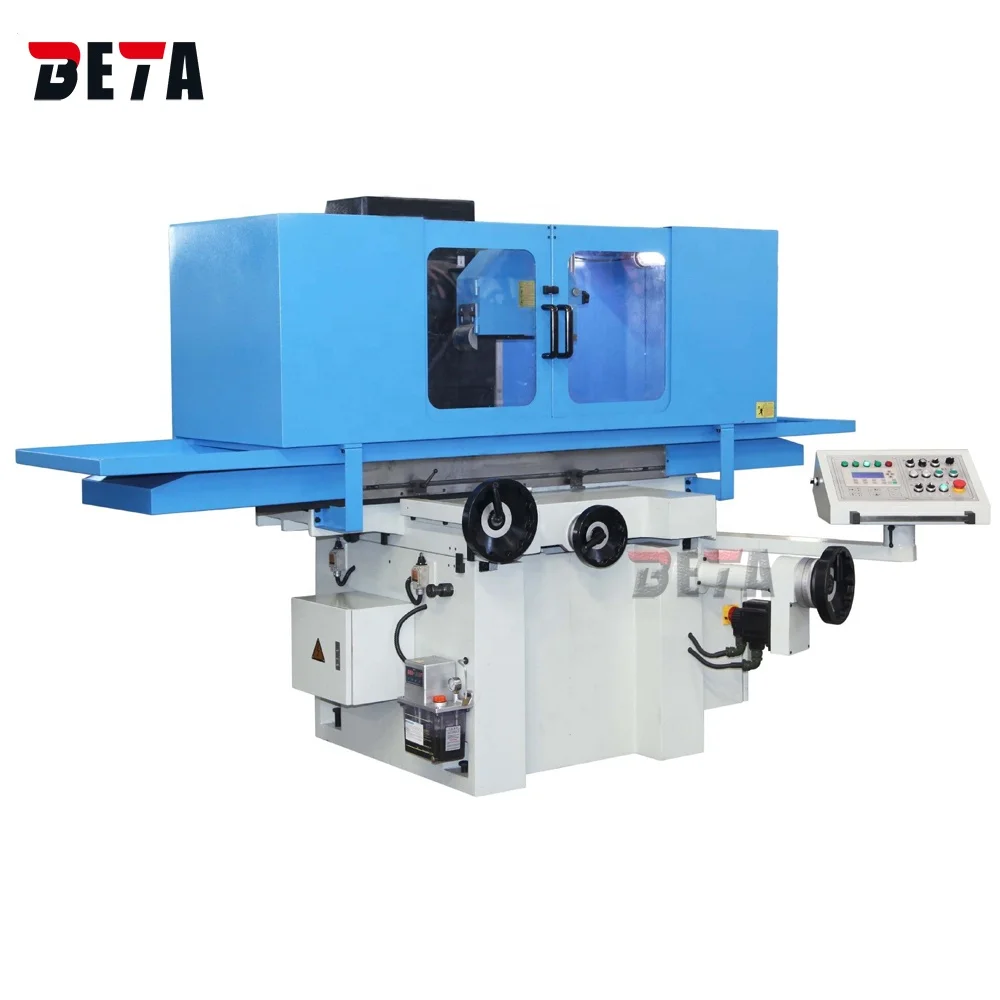

Manufacturer 1000mm automatic CE precision surface grinder grinding machine
Product Parameters
Model | Unit | SGA30100AH | SGA30100AHR | SGA30100AHD | ||
Table size | mm | 305*1020 | 305*1020 | 305*1020 | ||
Magnetic chuck size | mm | 300*1000 | 300*1000 | 300*1000 | ||
Max.distance from spindle center to table | mm | 580 | 580 | 580 | ||
Table cross travel | mm | 340 | 340 | 340 | ||
Table longitudinal travel | mm | 1130 | 1130 | 1130 | ||
Max.loading capacity (include chuck) | kg | 400 | 400 | 400 | ||
Speed of table longitudinal move | m/min | 5~25 | 5~25 | 5~25 | ||
Cross motion | ||||||
intermittent feed rate | mm/t | 0.1~8 | 0.1~8 | 0.1~8 | ||
rapid speed | mm/min | 990 | 990 | 990 | ||
feed of handwheel | mm/div | 0.02 | 0.02 | 0.02 | ||
vertical motion | ||||||
auto down feed rate | mm/t | - | - | 0.005~0.5 | ||
rapid down speed | mm/min | - | 650 | 480 | ||
feed of handwheel | mm/div | 0.005 | 0.005 | 0.005 | ||
spindle rotating speed | r/min | 1450 (50HZ) / 1750 (60HZ) | ||||
grind wheel size | mm | 350*40*127 | ||||
spindle motor power | kw | 4 | ||||
floor space (L*W*H) | mm | 4400*2200*1900 | ||||
Gross weight | kg | 3200 | ||||
Packing size (L*W*H) | mm | 2950*2220*2210 | ||||
Details Images

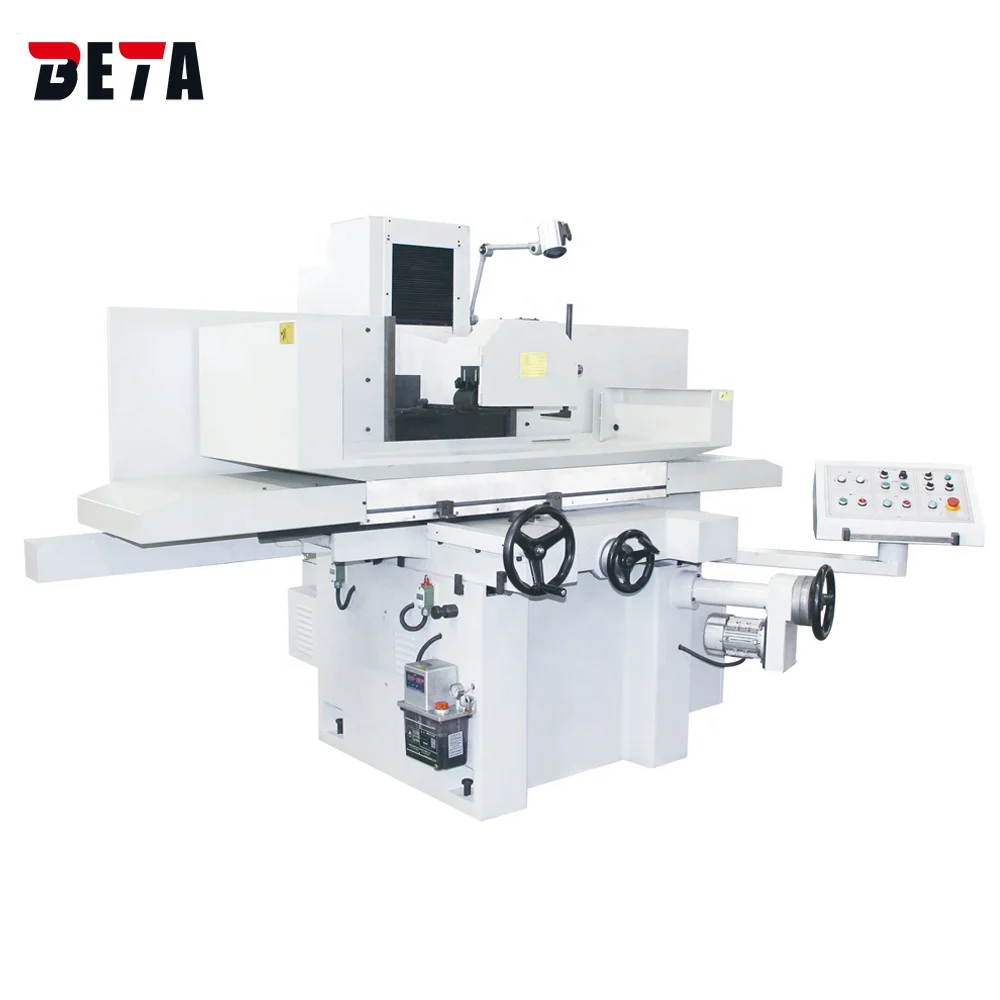

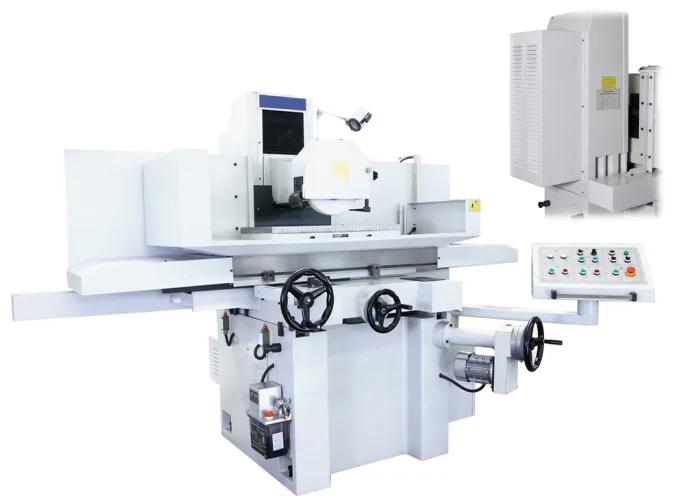

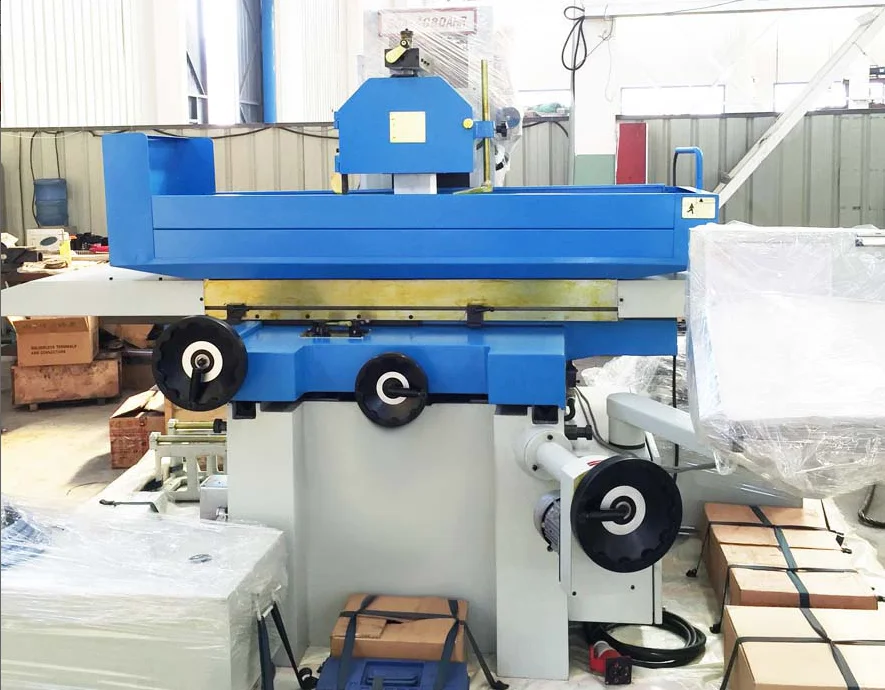

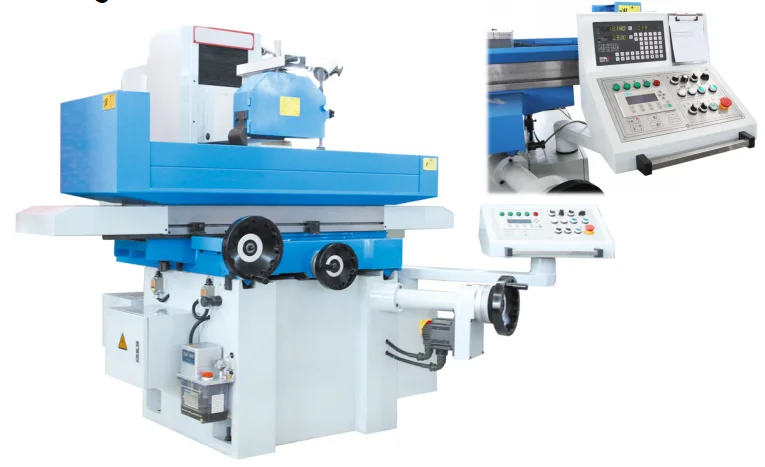

Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement driven by AC motor, work table make reversing movement driven by hydraulic, spindle make elevating movement , there are three different driven types for your choice:
AH series (manual),
AHR series (AC motor),
AHD series (servo motor).

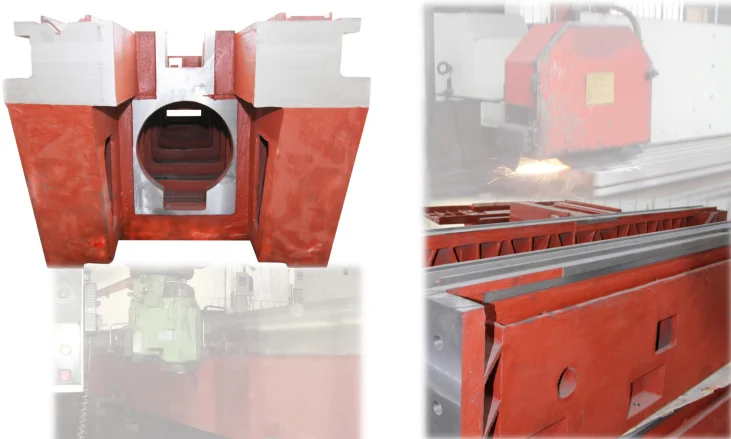

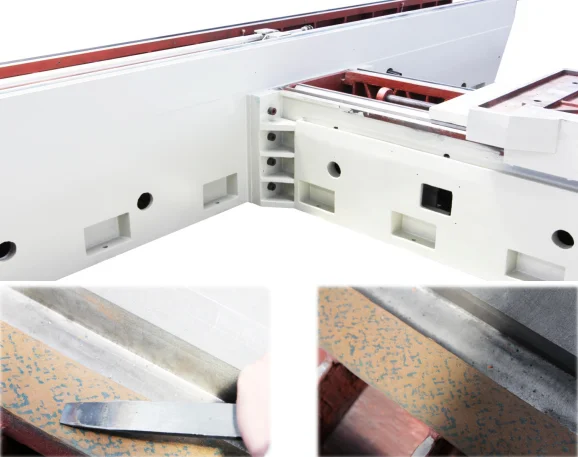

Beta - Outstanding quality casting with high precision machining is the basis of good work.
Beta - Experienced mechanic devotes all him efforts in assemble.

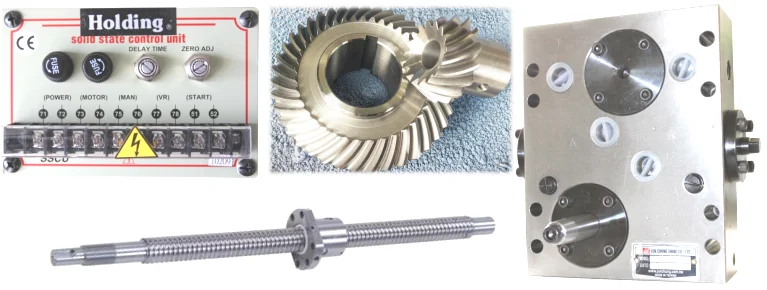

Beta - Better grinding machine never without high quality components! We know who can do this better worldwide. Professional hydro control valves, motor controller, lead screw, Taiwan gets better.

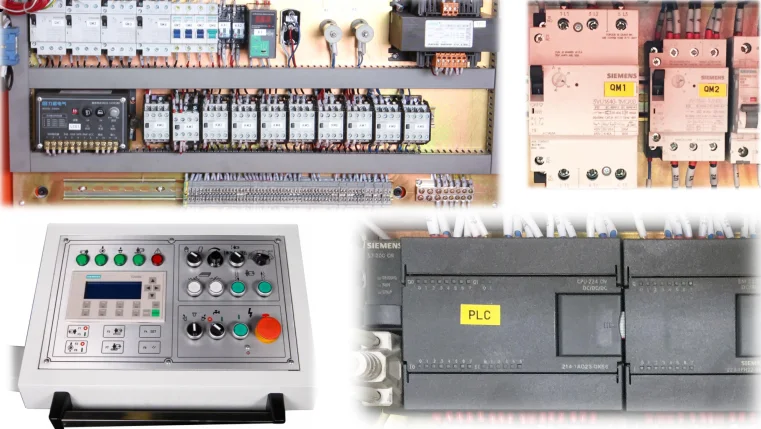

Beta - Better grinder never without suitable designation and reliable elements. SIEMENS knows better.
Beta - Better grinder gets not just quality, but good-looking and convenient for people.

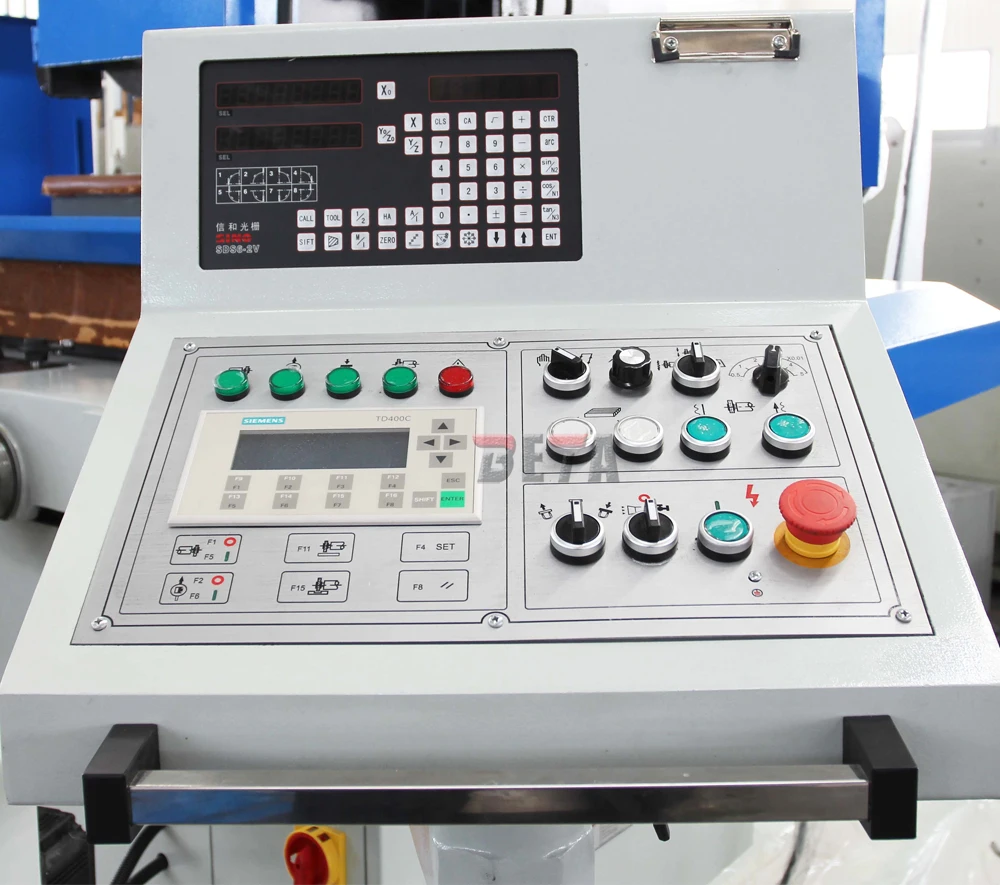

Beta - AHD series grinder equipped with auto down feed servo motor as standard, and controlled by PLC and HMI with built-in program. It is so easy to realize automatic grinding.

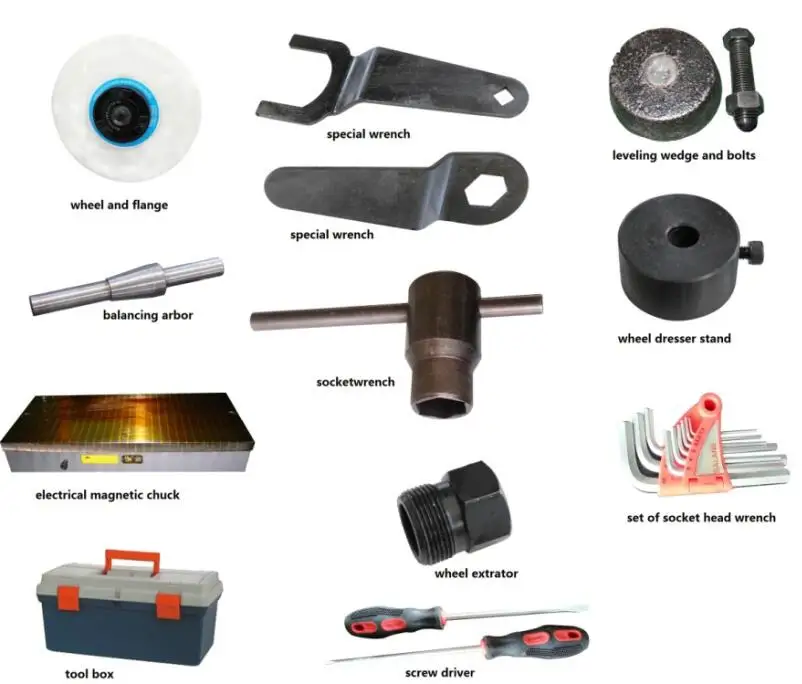

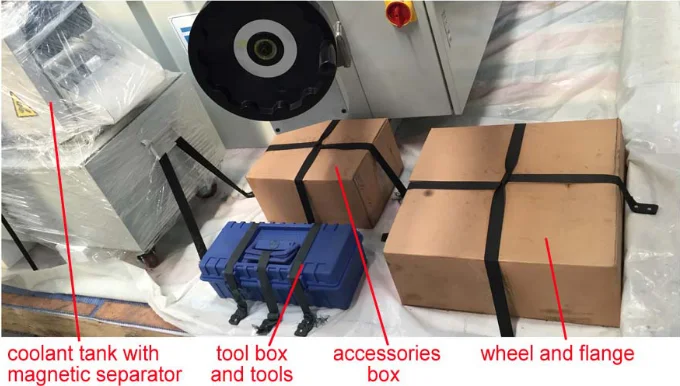

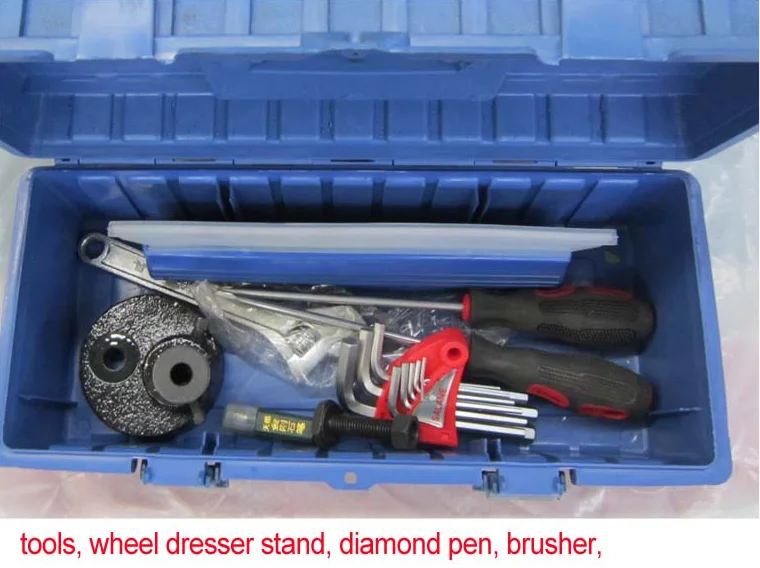

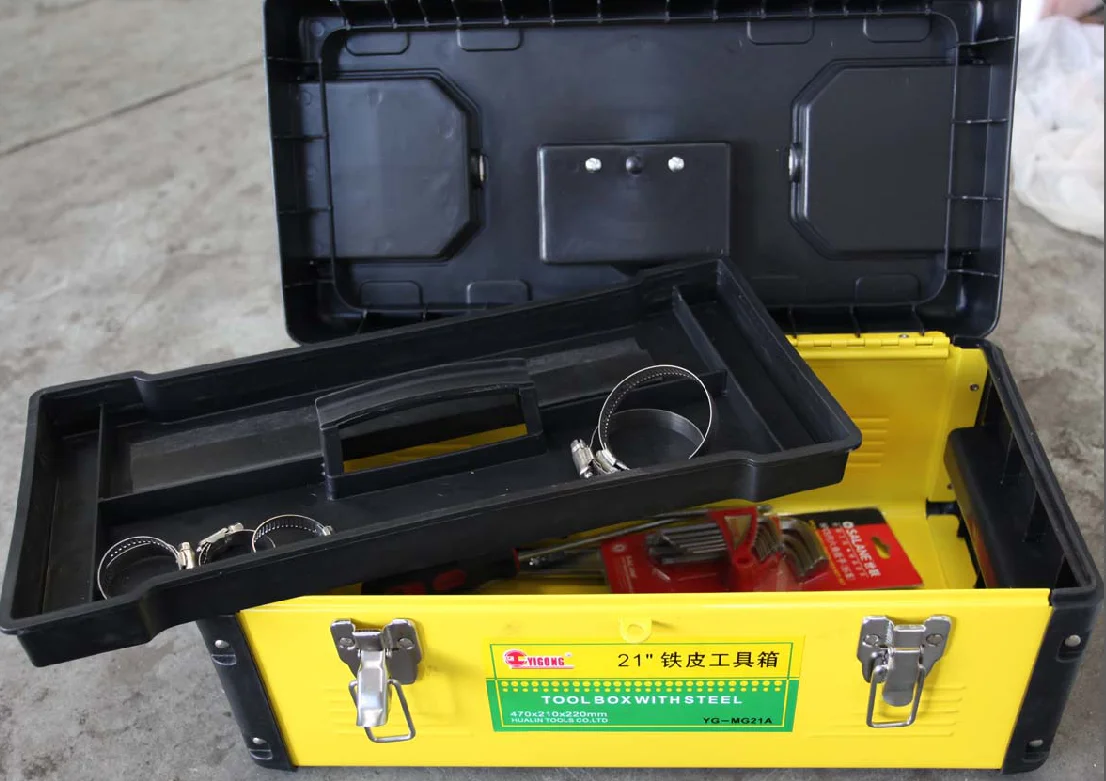

Beta - All accessories of surface grinding machine you need will be packed with the machine together. Delivery is the important way to show our profession.

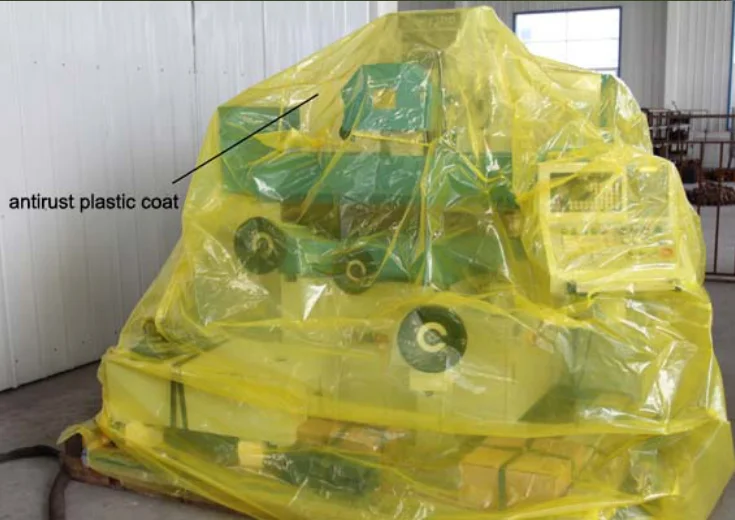

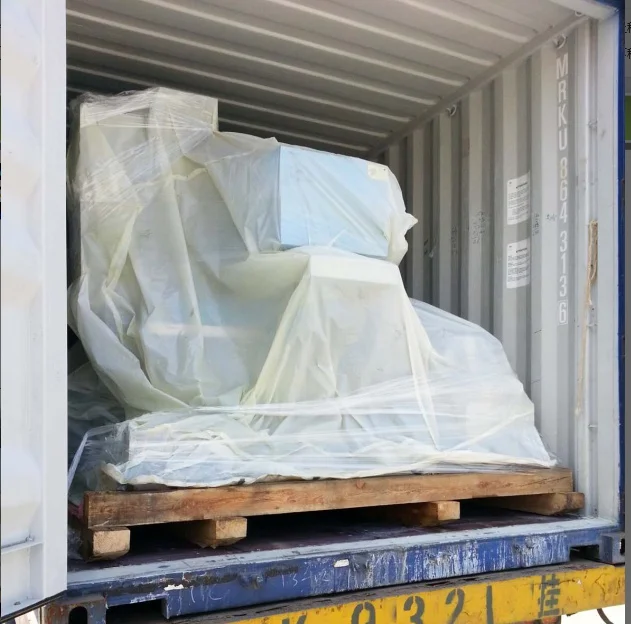

Beta - Antirust plastic coat for grinding machine on the wooden pallet.
Beta - Suitable for LCL and FCL container shipping by sea.
Beta - We are the key guy who want to let your grinder and ours getting better!
