Портативный кромкострогальный станок из нержавеющей стали Wenzhou
- Категория товара: Pipe Cutting Machines >>>
- Поставщик (Оптовый магазин): Shanghai,CHD,Welding,&,Cutting,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Show

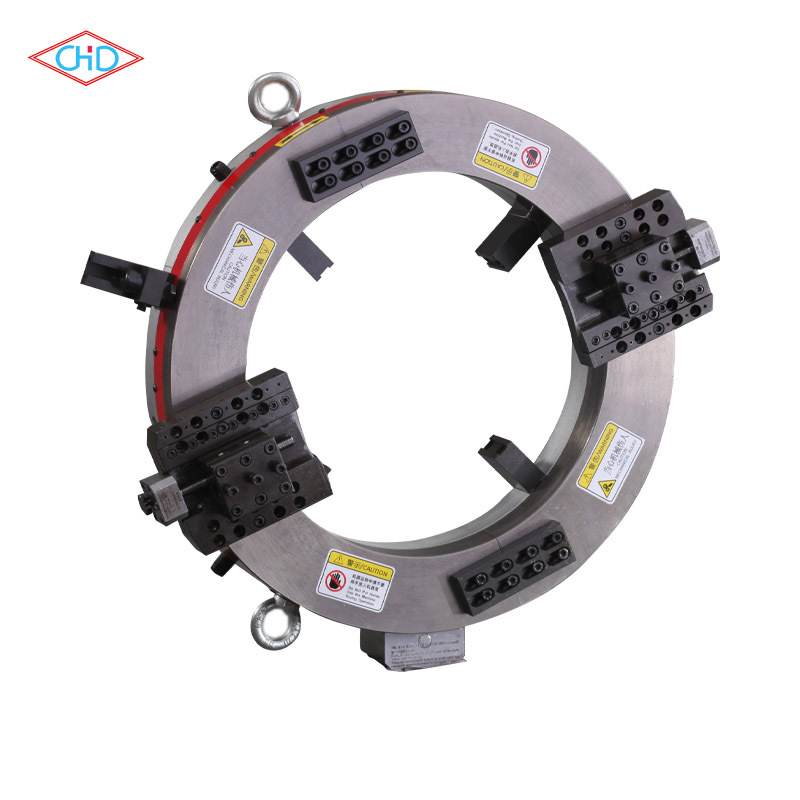

ISD-168 High Quality Steel Cold Pipe Tube Cutting Beveling Chamfering Machines
APPLICATION
Design based on ergonomics, adopt the lastest technology and best material to manufacture.Suitable for pipe beveling before welding materials cover common steel, stainless steel, Nonferrous metal, hard-plastic, etc. Widely used in power plant, shipyard, pertroleum and chemical industry, deal with pipe construction, upkeep and maintenance work. Through constant improvement, the products not only can replace traditional beveling mode by gas cutting and polishing, enhance work efficiency, reduce labor intensity, but also can improve welding quality.
FUNCTION
The installation is simple and convenient, groove assignment is fast. It is applicable to various kinds of materials processing, and available to a wide range of pipe diameter. As it adopts mechnical cutting groove method, it can keep the mechinical properties of material quality well. And it also could do flat-end, V, X, U shape beveling to the pipe. Thus, it could meet with all the requirements for butt welding.
FEATURES

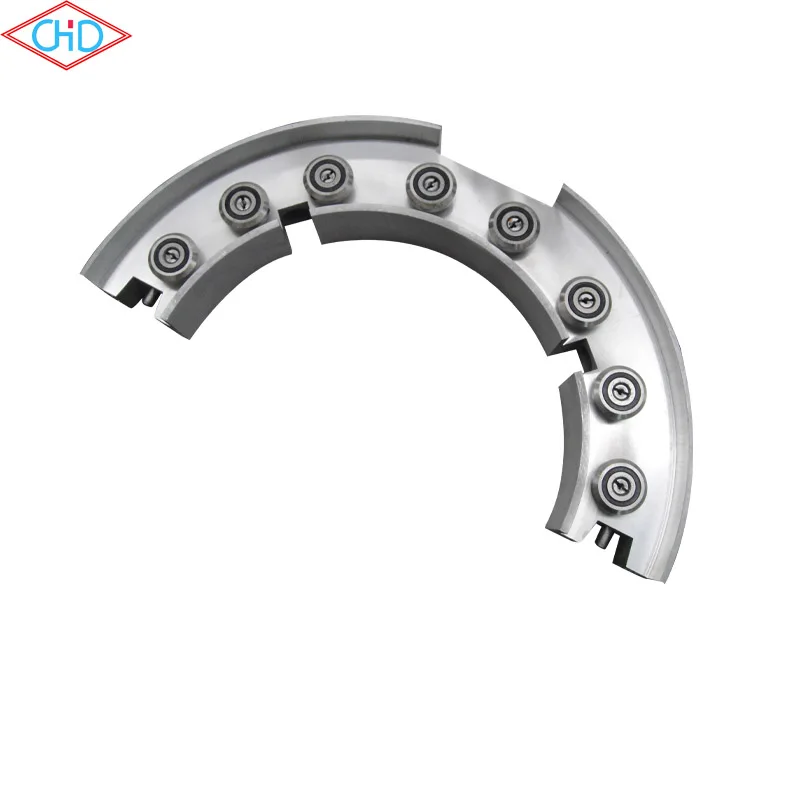

1. Split frame design
2. High-performance electric drive
3. German metabo brand motor as the driving force
4. Strong force and steady rotation
5. Cut and bevel simultaneously
6. Automatic feeding, rapidly finish feeding and retracting knife operation. Easy and quick operation, self-fixed at the pipe center
7. High beveling speed and labour saving
Recommend Products
Product Parameter
ISD-168 High Quality Steel Cold Pipe Tube Cutting Beveling Chamfering Machines | ||||||||
DRIVE TYPE: ELECTRIC | Pipe diameter(O.D.MM): 60-168 | |||||||
VOLTAGE: AC 220V | WALL THICKNESS(MM): 3-25 | |||||||
RATED FREQUENCY: 50/60HZ | NET WEIGHT(KG):40 | |||||||
REATED POWER: 1.1-2.6KW | Dimension(L*W*H/MM): 580*490*260 | |||||||
Notes:
1. If the wall thickness of pipe is less than 1% of pipe diameter, the strengthened swelling blocks is advised.
2. If the pipe diameter is above 450mm, NC servo motor or Hydraulic drive is advised.
3. Above is the standard parameter, please contact us if there is the special requirements.
3. Above is the standard parameter, please contact us if there is the special requirements.
Drawing Design
Details Images
DETAIL IMAGES

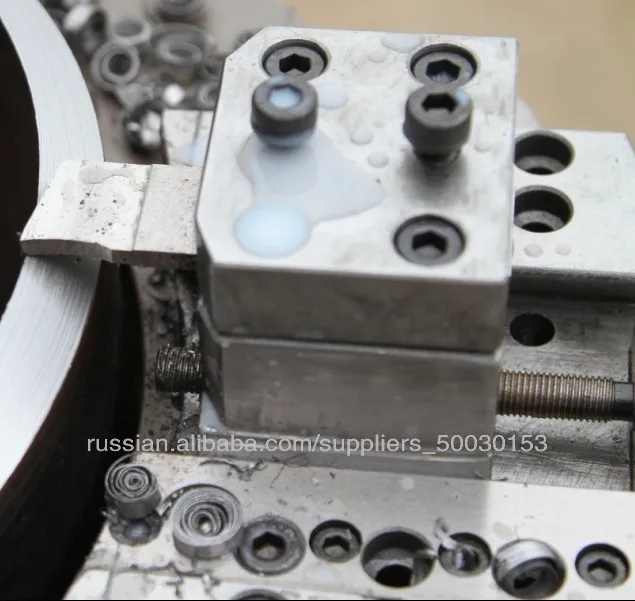

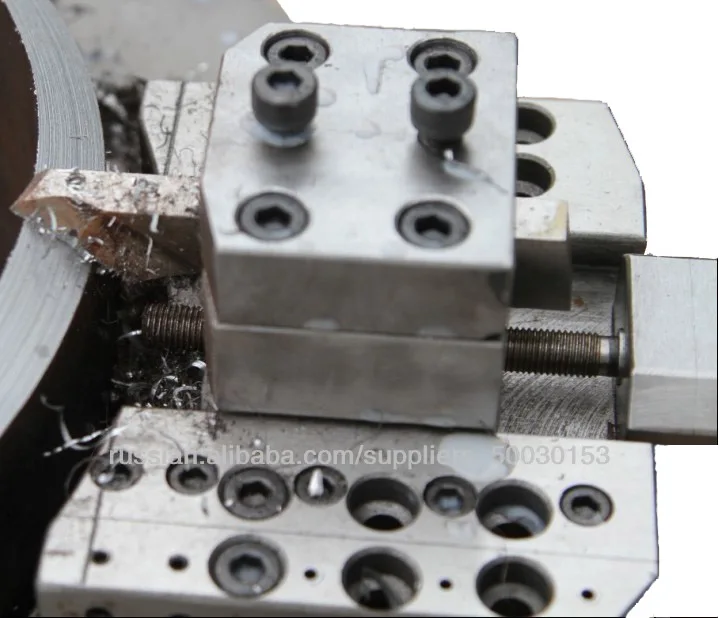

Blades
Different blades could meet with all 0°-37° requirements of butt welding
High Efficiency Surface Card Pipe Cold Cutting Beveling Machine | ||||||||||||
Model | Pipe Diameter(O.D) /mm | Wall Thickness /mm | Net Weight /kg | Gross Weight /kg | Dimension(L*W*H) /mm | |||||||
ISD-80 | φ16-80 | 1/2"-3" | 3-25 | 28 | 41 | 510*420*260 | ||||||
ISD-120 | φ40-120 | 1.5"-4.7" | 3-25 | 35 | 50 | 510*420*260 | ||||||
ISD-168 | φ60-168 | 2"-6" | 3-25 | 40 | 60 | 580*490*260 | ||||||
ISD-219 | φ80-219 | 3"-8" | 3-25 | 60 | 85 | 630*630*260 | ||||||
ISD-273 | φ130-273 | 5"-10" | 3-25 | 70 | 95 | 700*700*260 | ||||||
ISD-325 | φ180-325 | 6"-12" | 3-25 | 80 | 115 | 700*700*260 | ||||||
ISD-377 | φ219-377 | 8"-14" | 3-25 | 85 | 120 | 780*780*260 | ||||||
ISD-406 | φ265-406 | 10"-16" | 3-25 | 90 | 130 | 830*830*260 | ||||||
ISD-457 | φ305-457 | 12"-18" | 3-25 | 95 | 140 | 830*830*260 | ||||||
ISD-508 | φ355-508 | 14"-20" | 3-25 | 115 | 163 | 830*830*260 | ||||||
ISD-560 | φ406-560 | 16"-22" | 3-25 | 125 | 173 | 950*850*260 | ||||||
ISD-610 | φ457-610 | 18"-24" | 3-25 | 135 | 180 | 1030*930*260 | ||||||
ISD-660 | φ508-660 | 20"-26" | 3-25 | 145 | 190 | 1060*960*260 | ||||||
ISD-715 | φ560-715 | 22"-28" | 3-25 | 155 | 200 | 1060*1060*260 | ||||||
ISD-762 | φ610-762 | 24"-30" | 3-25 | 170 | 220 | 1060*1060*260 | ||||||
ISD-813 | φ660-813 | 26"-32" | 3-25 | 190 | 240 | 1110*1110*260 | ||||||
ISD-914 | φ762-914 | 30"-36" | 3-25 | 250 | 300 | 1110*1110*260 | ||||||
ISD-1066 | φ914-1066 | 36"-42" | 3-25 | 280 | 340 | 1350*680*320 | ||||||
ISD-1219 | φ1066-1219 | 42"-48" | 3-25 | 320 | 380 | 1500*750*320 | ||||||

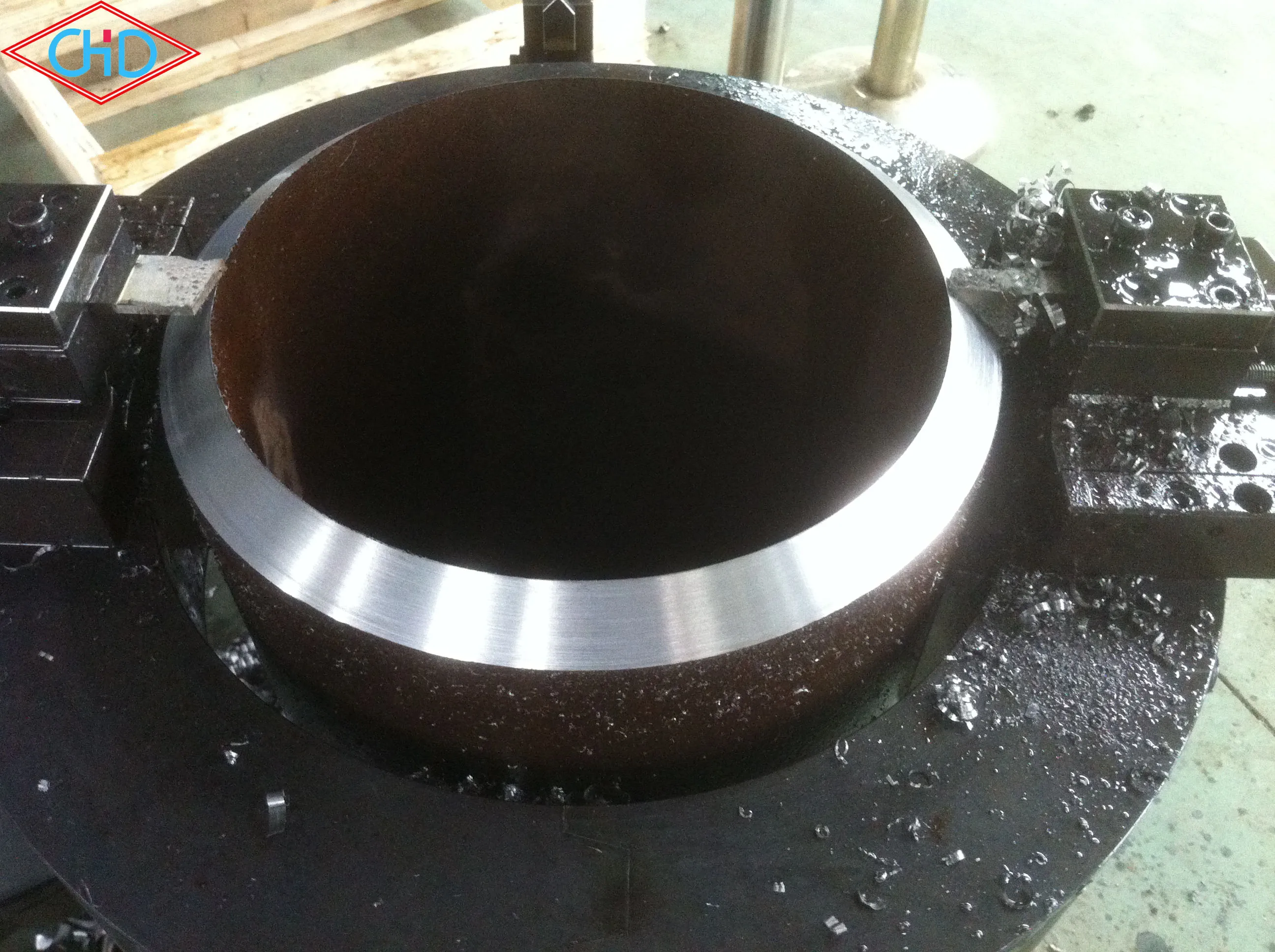

After Cutting and Beveling
Four Driven Ways for you to choose as below:
Electric driven motor by Metabo imported from Germany
Pneumatic driven motor assembly
Servo motor driven assembly
Hydraulic motor driven assembly
Product Package & Delivery process
Why Choose Us
WHY CHOOSE US?
FAQ
1) Are you Manuacturer?RE:Yes.2) How to choose a right model?RE: Please let us know more details about the pipe, such as the I.D, O.D, the materials of the pipe, the environment of the site and the requirement of the end face, etc. These will help us to choose the right model for you immediately.3) Do you have another choice about the driven?RE: Of course. We have many choice for you to choose, such as electric, pneumatic, hydraulic, NC, etc.4) Which type of beveling machine do you have?RE: Internal expansion type, external installed type, plate beveling machine, desktop precision pipe cutting machine.5) Do you support the special needs?RE: Yes, we have many engineers. We could design it according to your need.6) How about the payment term? RE: 30% advance payment and balance payment before the shipment by T/T.
