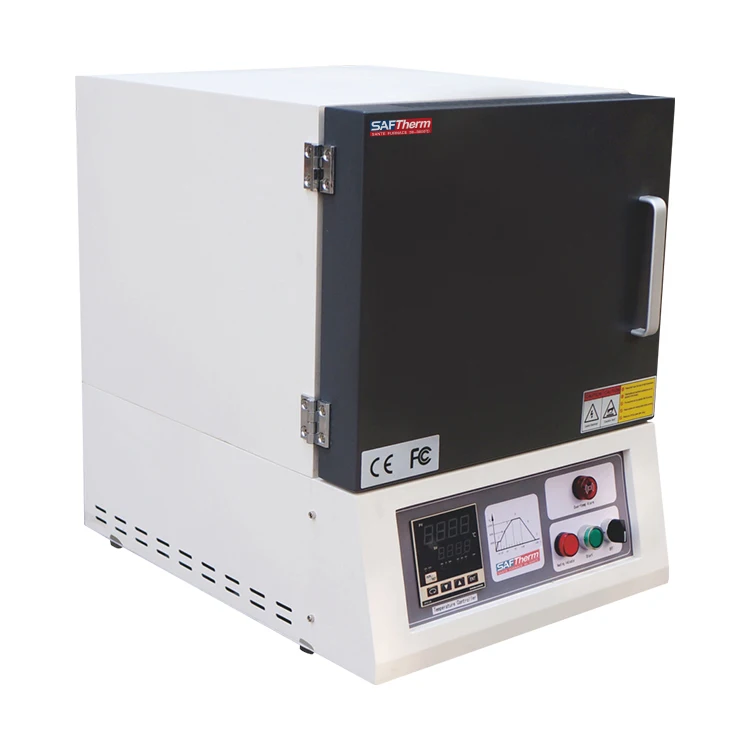

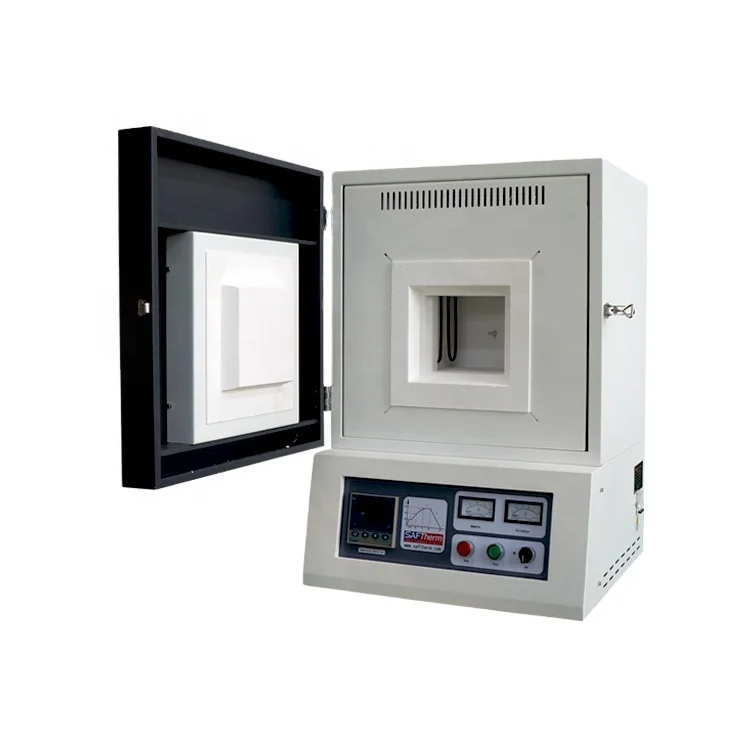

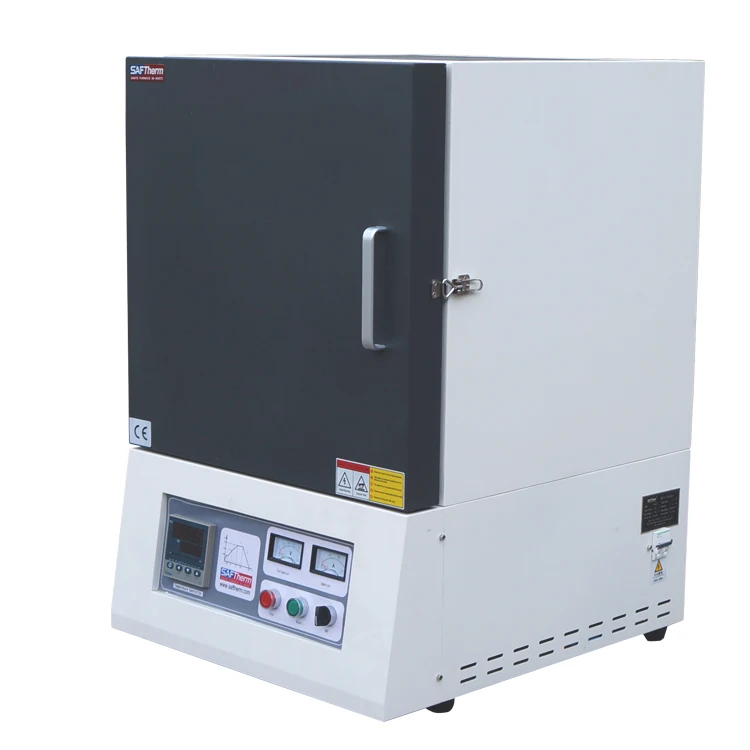

1700 Degree Chamber Muffle Furnace is CE Certified bench-top high-temperature muffle furnace. The furnace consists of high-quality alumina fiber insulation and 1800 grade MoSi2 heating elements and it's controlled by high precision SSR (Solid State Relay, Silicon Controlled Retifier is available) and temperature controller with +/-1 °C accuracy and 30 programmable segments up to 1700 °C (3092 °F). It is an ideal tool for materials annealing and sintering in your research laboratory.

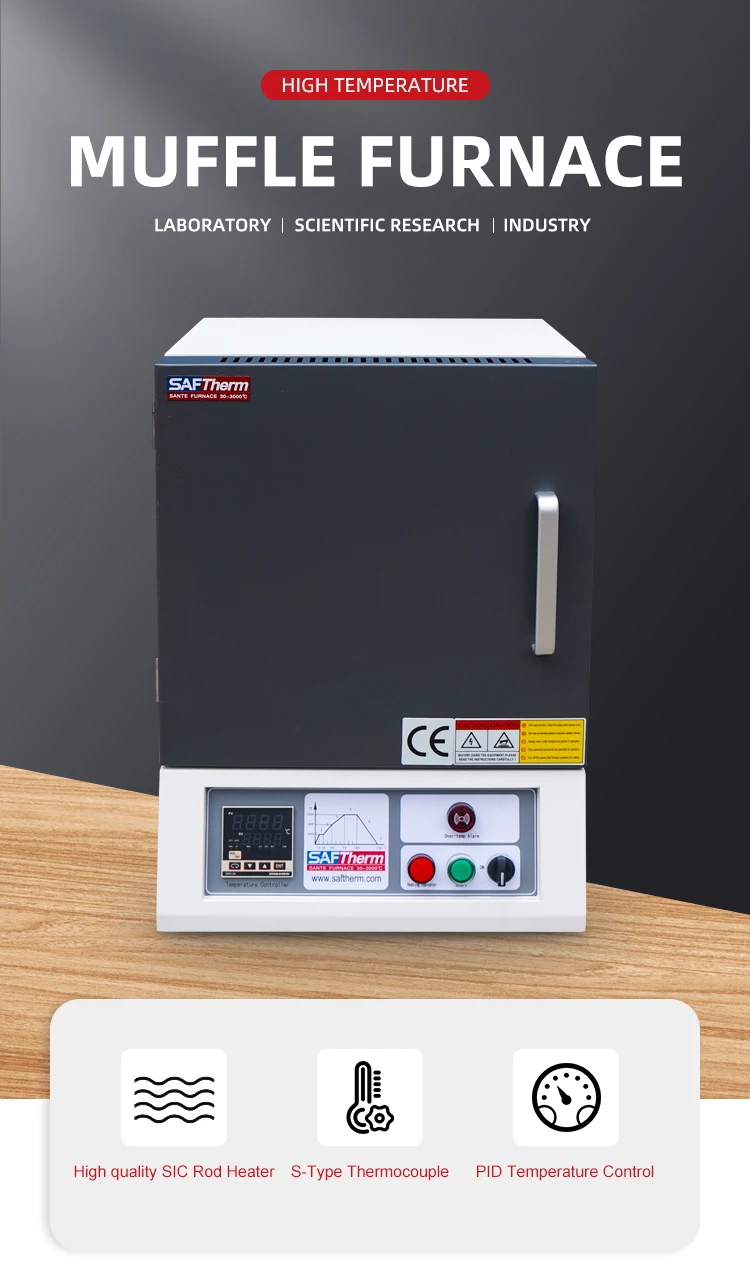

STM 1700 series muffle furnace is ideal for heat treating, reacting studies, sintering processes, and ceramic firing. Our laboratory furnaces feature temperatures up to 1800 degrees Celsius and capacities up to 45 liters. Important specifications to consider when searching for a laboratory furnace include the process temperature, control requirements, dimensions of sample and inner dimensions of chamber or tube, and pressure range.

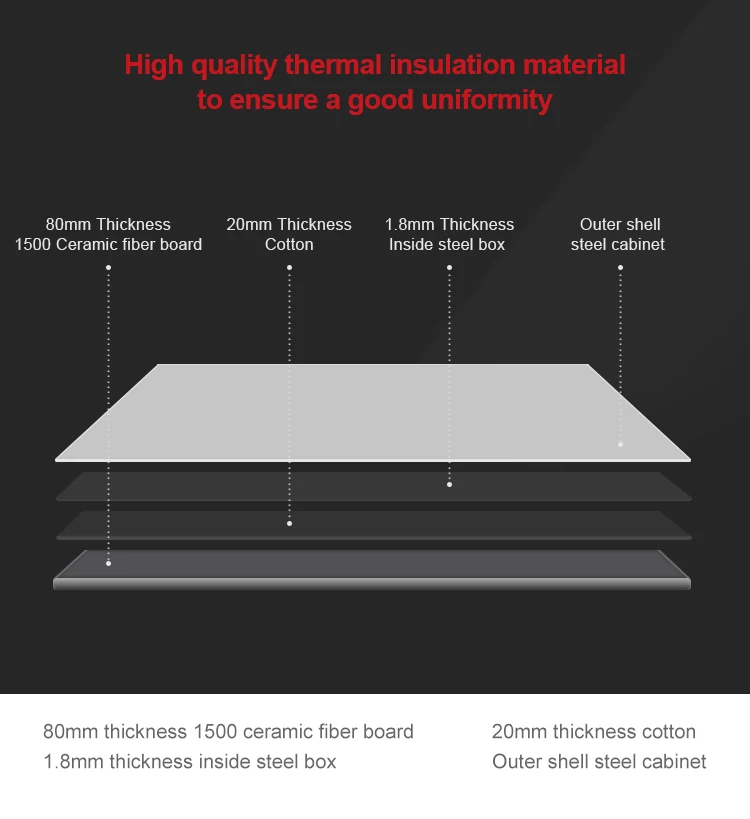

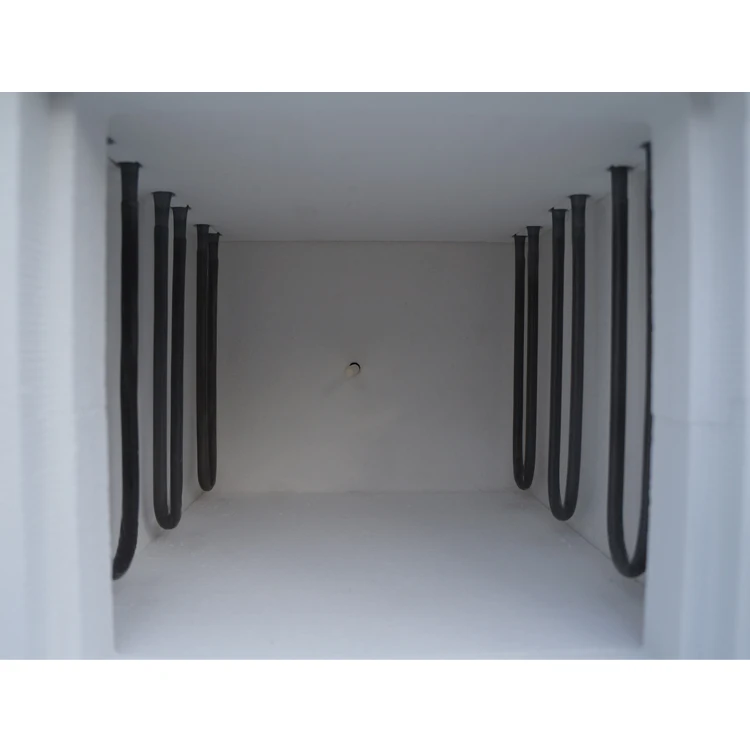

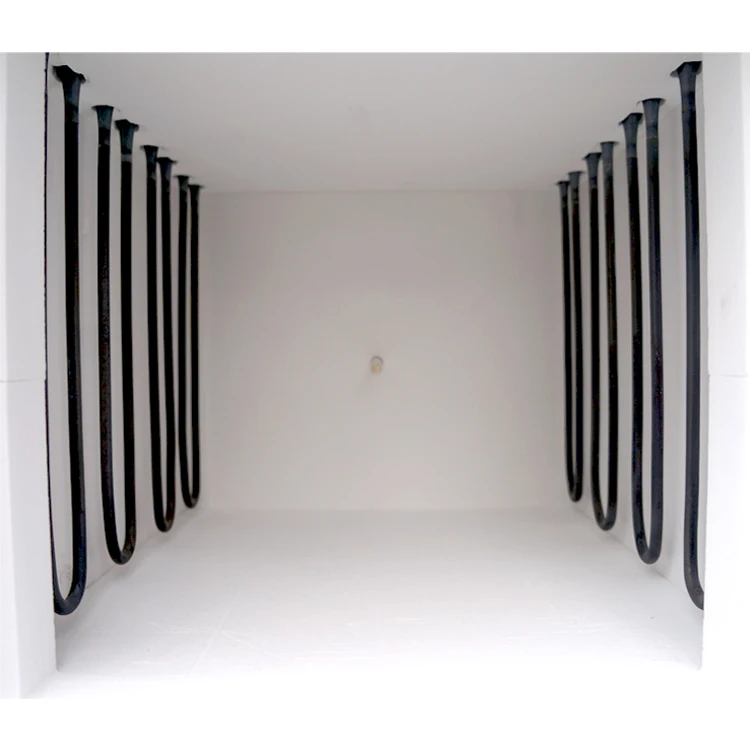

STM 1700 series muffle furnace features high quality MoSi2 rod with Mitsubishi (Japan) high quality alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface, also keep the surface safe to touch. The furnace operation is controlled by 30 segments digital controller with temperature accuracy of +/- 1 C degree. Proper temperature control is vital to the success of your project as well.
STM 1700 series muffle furnace features high quality MoSi2 rod with Mitsubishi (Japan) high quality alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface, also keep the surface safe to touch. The furnace operation is controlled by 30 segments digital controller with temperature accuracy of +/- 1 C degree. Proper temperature control is vital to the success of your project as well.
1700℃ muffle furnace (box-type resistance furnace) is used in sintering and sintering of ceramic materials, nanomaterials,semiconductor materials, powder metallurgy and other new materials in colleges and universities, scientific research institutes,factories and enterprises, petrochemical, aerospace and other industries High temperature heat treatment.
Model | STM-1-17 | STM-3-17 | STM-8-17 | STM-12-17 | STM-20-17 | STM-36-17 | STM-45-17 | ||||||
Chamber size （W xD xH）mm | 100 x120x100 | 150 x150x150 | 200x200x200 | 200x300x200 | 250 x320x250 | 300x400x300 | 300 x500x300 | ||||||
Outer size （W xD xH）mm | 383 x432x660 | 510x560x870 | 600x620x920 | 600x693x920 | 610 x730x970 | 700x840x1500 | 700x940x1500 | ||||||
Max temperature | 1700℃ | ||||||||||||
Working temperature | 1600℃ | ||||||||||||
Power supply | 220V/2KW | 220V/4KW | 220V/5KW | 220V/6KW | 220V/7KW | 380V/15KW | 380V/18KW | ||||||
Heating element | MoSi2 rod | ||||||||||||

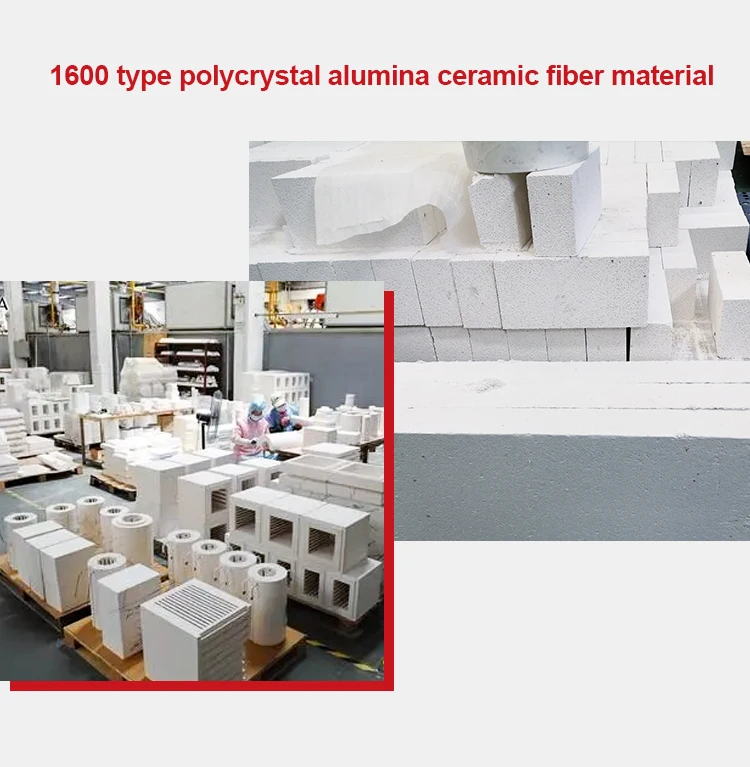

Chamber material | Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration | ||||||||||||
Temp.Precision | ±1℃ | ||||||||||||
Termocouple | B Type termocouple | ||||||||||||

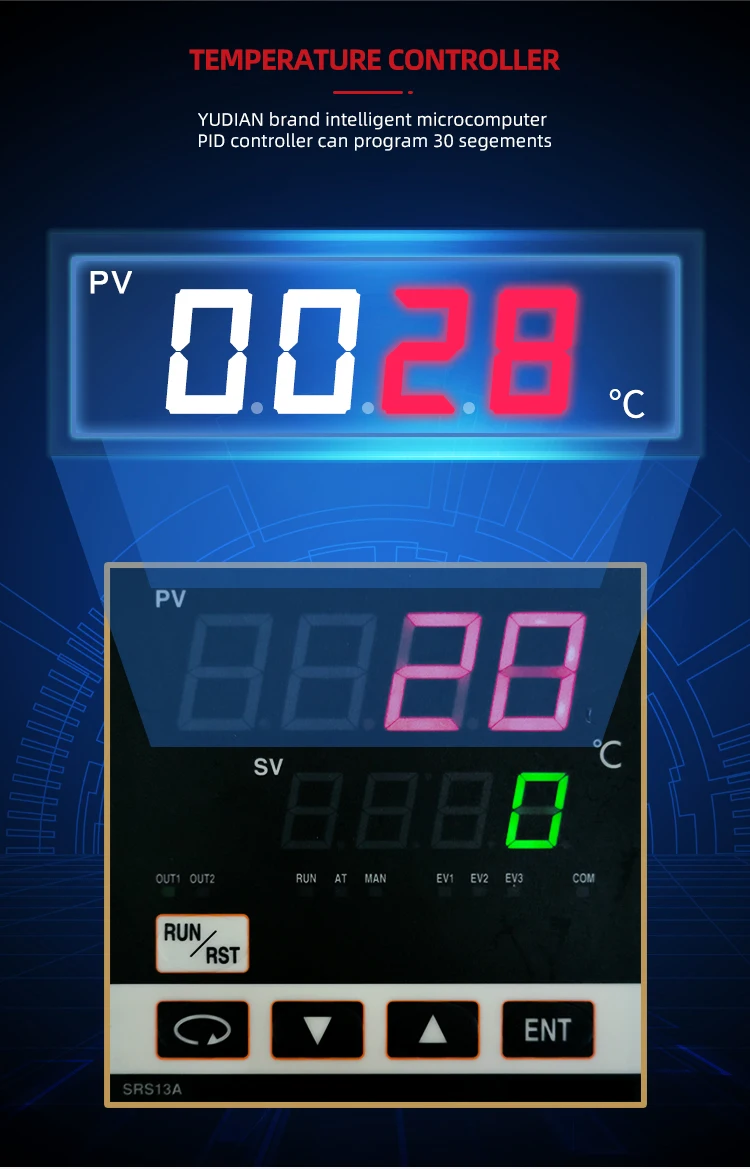

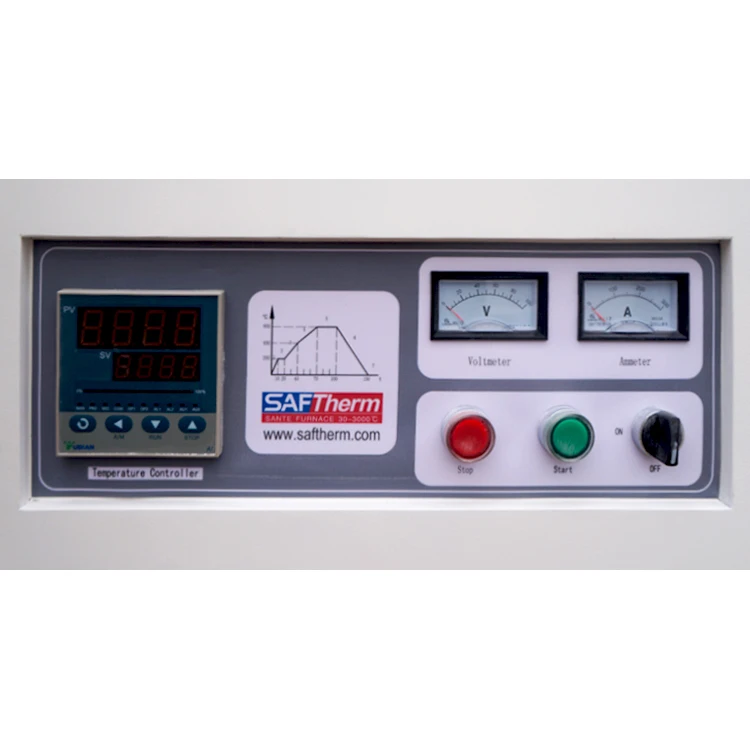

Temperature controller | Intelligent microcomputer PID temperature control instrument, SCR/SSR control, PID parameter self-tuning function; programmable 32 time periods, program heating, program heat preservation, program cooling | ||||||||||||
Heating rate | 1-15℃/min free adjustment | ||||||||||||
Furnace structure | Furnace temperature control integrated structure | ||||||||||||
Equipment protection | Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically | ||||||||||||
Safety protection | The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators | ||||||||||||
Furnace shell | High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder | ||||||||||||
Quality certificate | ISO9001 CE SGS TUV | ||||||||||||
Standard packing | 1. Furnace body 1 set 2. Temperature controller 1 set 3. Power cord 3 meters 4. Thermocouple 1 set 5. Manual 1 copy 6. Crucible pliers 1 set 7. High temperature gloves 1 pair | ||||||||||||
Optional | 1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves | ||||||||||||

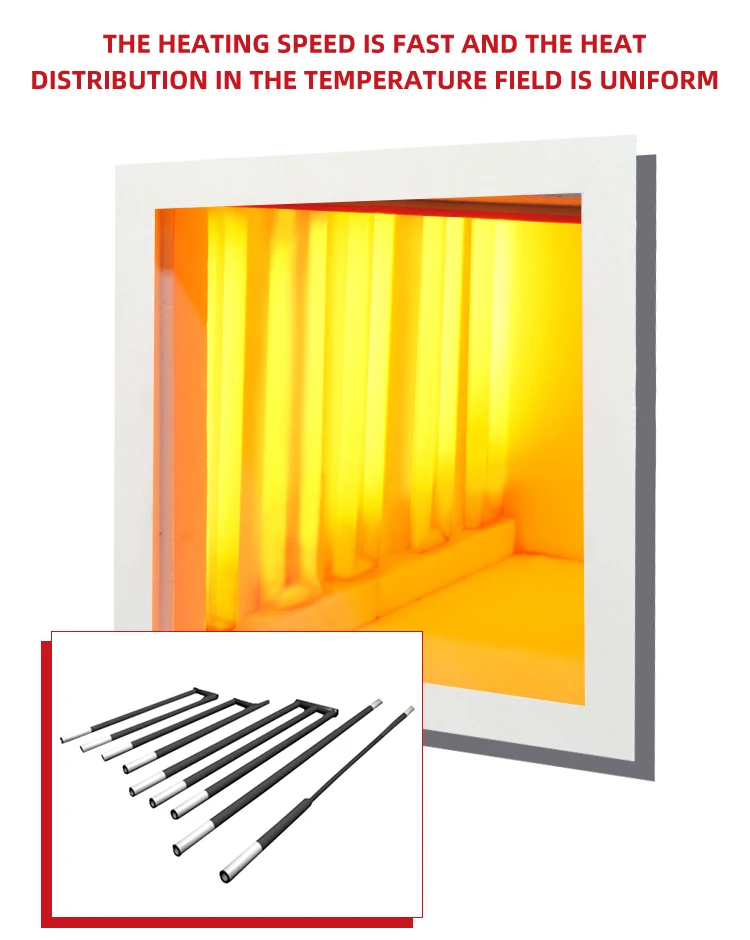

The heating speed is fast and the heat
distribution in the temperature field is uniform
distribution in the temperature field is uniform
SiC Rod Heater
Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan﹒China Free Trade Zone.SAFTHERM products cover 1000℃/1200℃/1300℃/1400℃/1600℃/1700℃/1800℃ Box furnace, Tube furnace, Vacuum furnace, High Temperature Furnace, 2000℃ Ultra-High Temperature Furnace, Dental furnace, Industrial chamber furnace, elevator furnace, Intelligent mobile car bottom furnace, Smelting furnace and so on.
Our goal is to continuously meet the various demands for various kinds of high temperature heating treatment lab furnaces and to be the world first-class enterprise with providing excellent service and high-quality products for our cooperation partners!
