2021 новый дизайн Заводская распродажа Лучшая цена cnc автоматическая толщина до 6 мм листовая сталь 4 рулонная пластина гибочная машина
- Категория товара: Plate Bending Rolls >>>
- Поставщик (Оптовый магазин): Nantong,Yeshun,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

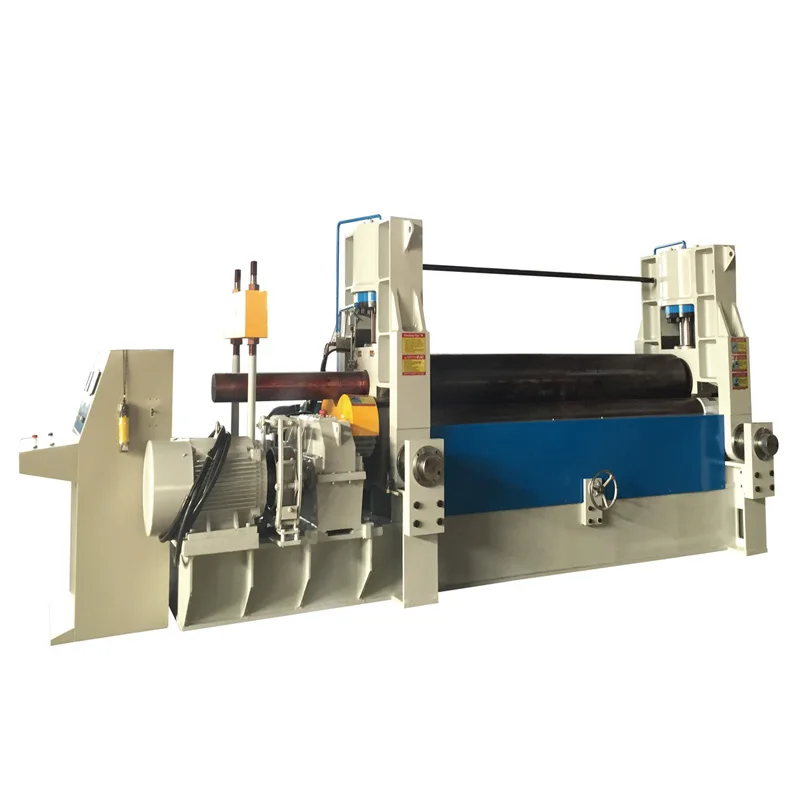

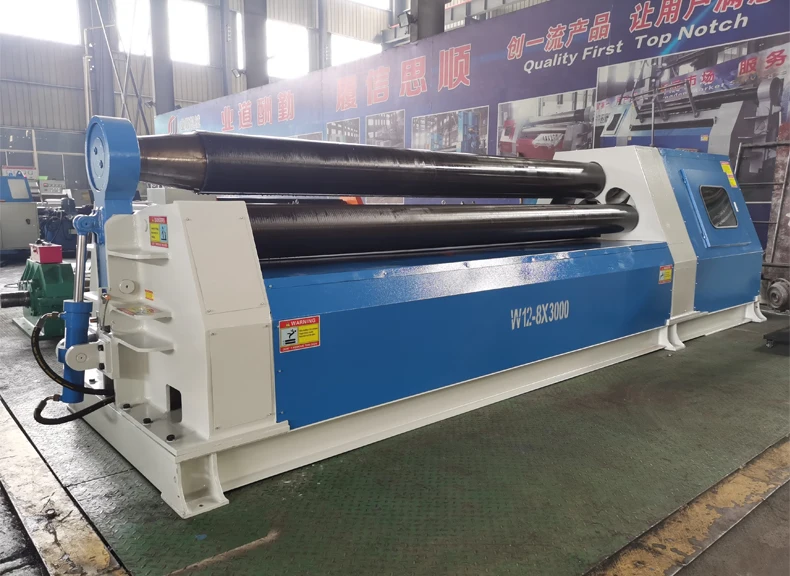

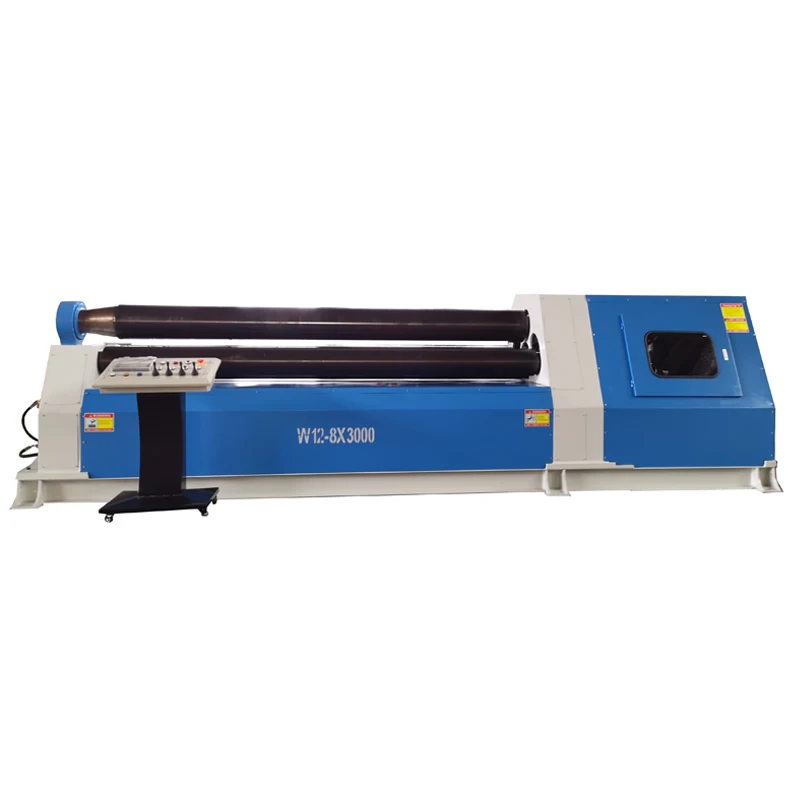

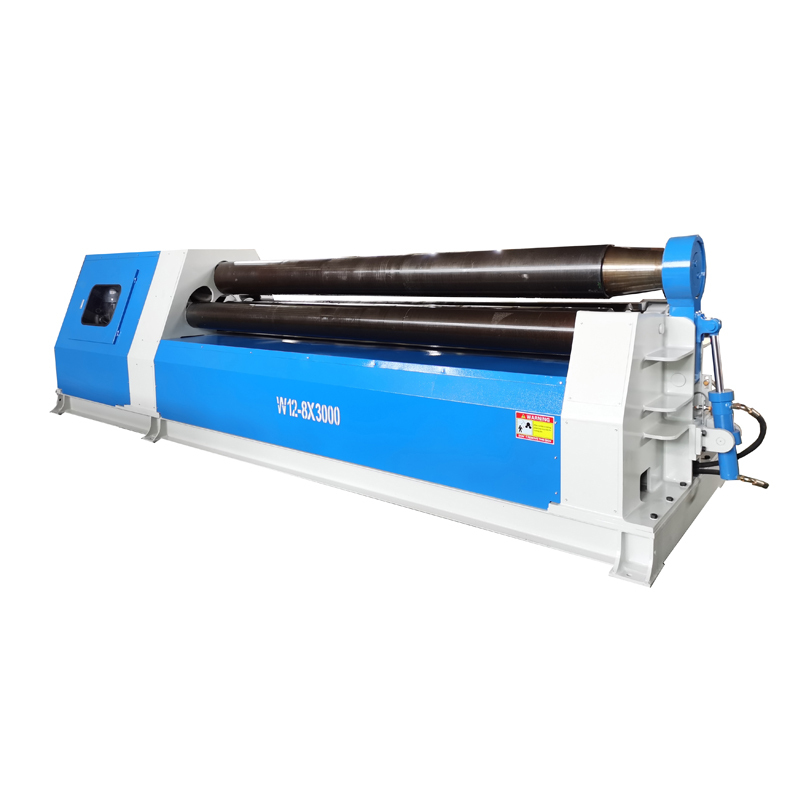

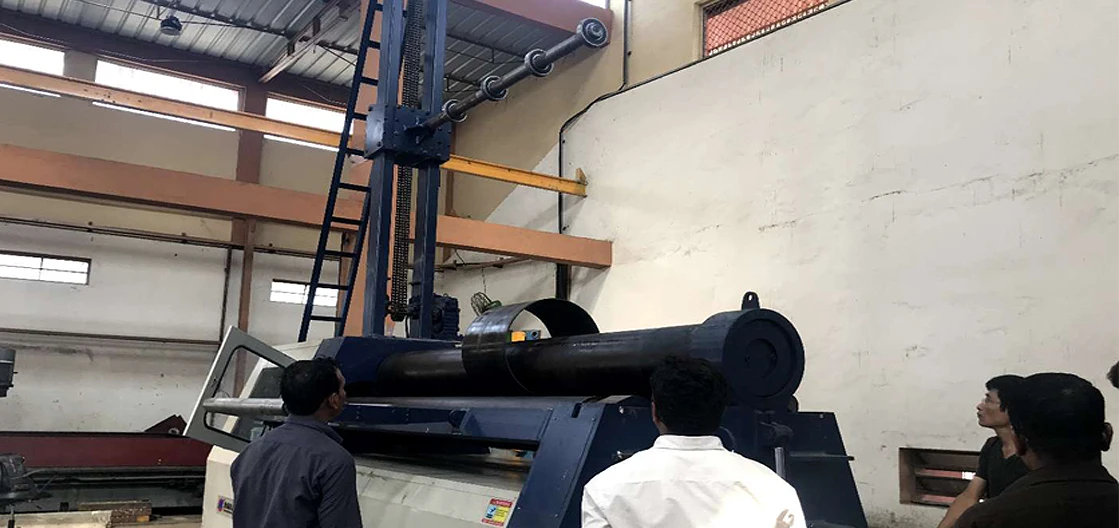

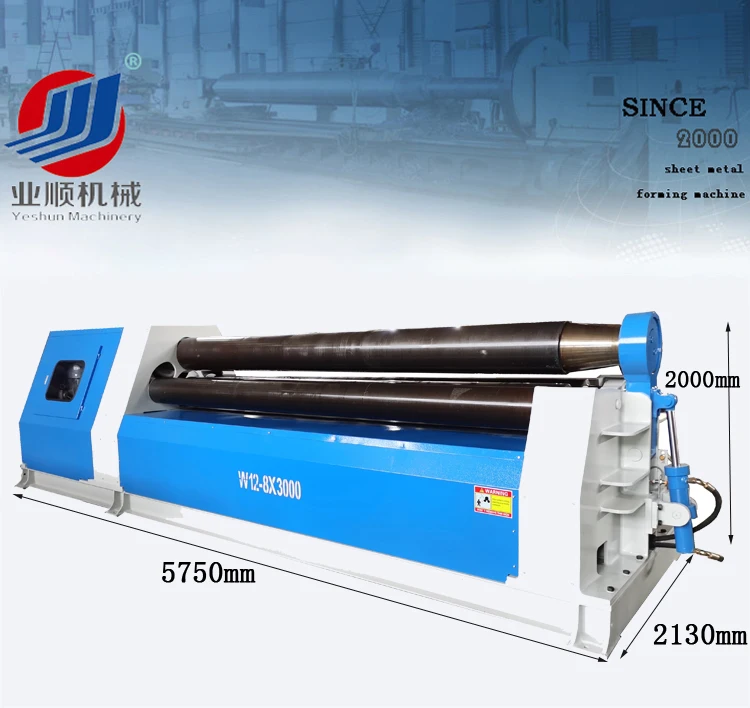

W12 SERIES 4 ROLLS HYDRAULIC PLATE ROLLING MACHINE
Useful length is from 1000mm to 6000mm. Thickness is from 2 to 100mm. With our 4 rolls plate rolling machine, plate can be bent on both sides without return. Full automatic control can be realized by PLC, there’s no need for additional processing steps for bending the ends. Quality certificate such as CE and ISO9001.Technological Advantages
* Easy to operate, rich shape bend.
* CNC control, digital readout for position of each roller, high accuracy.
* Full hydraulic drive, high efficiency and energy saving.
* Productivity is higher 50%-80% than 3 roller plate rolling machine.
* Aligning material is convenient and accurate, avoid misalignment.
* Cone bending device, permanent lubrication.
* Non-slip rolling.
* The surplus flat edge is smaller than any other plate rolling machine when pre-bending.
* CNC control, digital readout for position of each roller, high accuracy.
* Full hydraulic drive, high efficiency and energy saving.
* Productivity is higher 50%-80% than 3 roller plate rolling machine.
* Aligning material is convenient and accurate, avoid misalignment.
* Cone bending device, permanent lubrication.
* Non-slip rolling.
* The surplus flat edge is smaller than any other plate rolling machine when pre-bending.

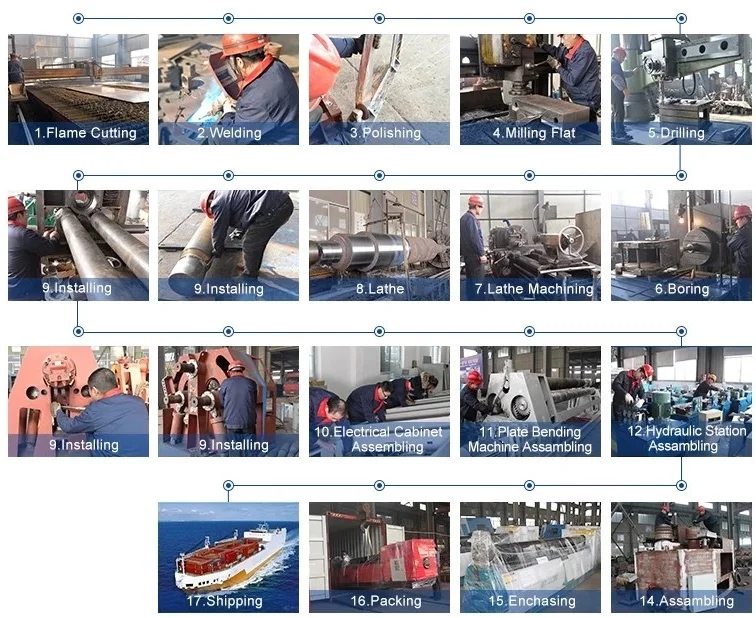

Details Images

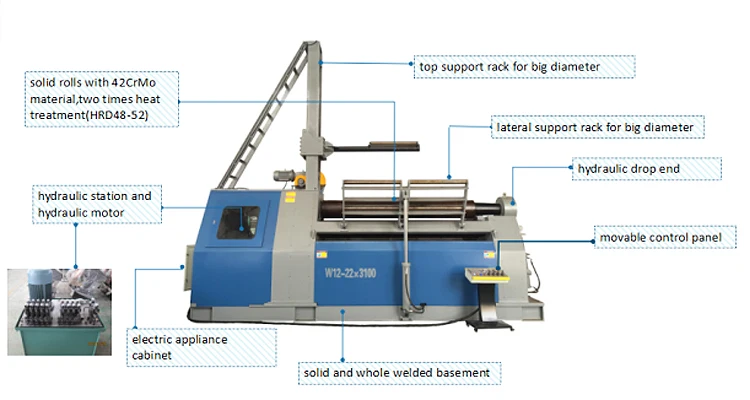

Standard Equipment Parts | ||
Hardened and solid rolls | Hydraulic motor | |
Digital read out for both sides rollers | Hydraulic drop end | |
Machine body is steel construction | All rolls mount bearing | |
Cone bending device | Movable NC control panel | |
Hydraulic station | ||

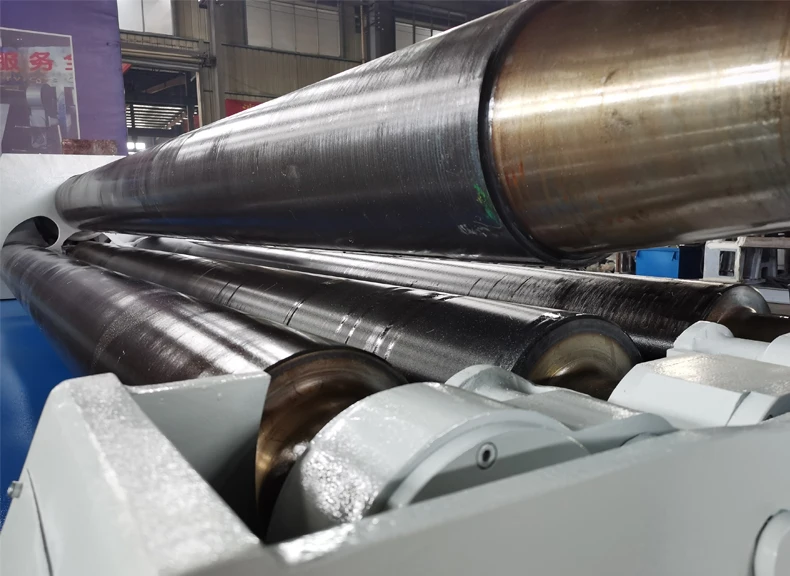

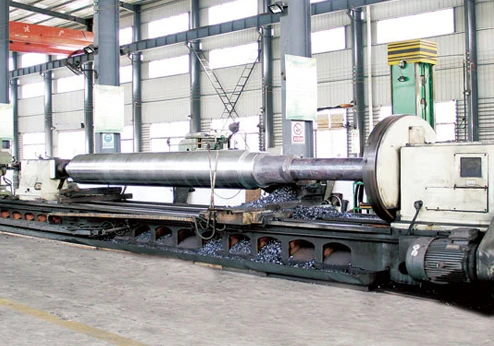

Hardened Rolls
Highly durable carbon steel (C45) rolls are machined by CNC lathes with high precision, without creating notch affect. Working surfaces of the rolls are induction hardened to HRC 48-52.
Crowning Shape
Rolls are designed as crowning shape to compensate the deflections on the rolls during the bending.
Conical Bending Device
With strong body and angular bottom and side rolls, wide angle and small diameter conical parts are easily bend.

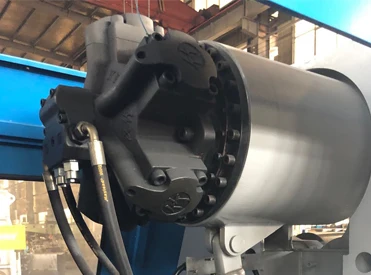

Hydraulic Motor

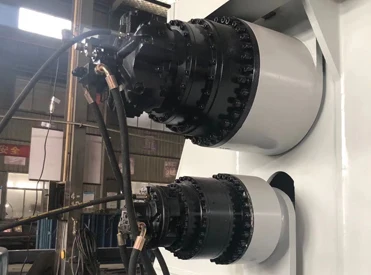

1-Drive (top roller φ120-430mm) Top roller powered by planetary reducer, hydraulic motor and gear system.
2-Drive (top roller φ460-1000mm) Top and bottom roller powered by planetary reducer, hydraulic motor and gear system.
Bearing
Rolls are guided with spherical roller bearings and bronze housings. Guiding system requires less lubrication and keeps its precision in long term.
Machine Body
Machine body is strengthen and lowered to minimize the twists and deformation. Machine body, frame and steel bar connections are stress relieved after the welding operation.
Hydraulic Station
Oil Gauge for Pressure
*Hydraulic pump station uses well-known brand ChangYuan, China.(Sunny, USA is optional)
*Hydraulic valves use world famous brand, Yuken from Japan.
*Pressure safety valves is used against peak pressures and overload, provides protection for motors and other components.
*Machine's movements are triggered by hydraulic components.
Cylinder for Pinch and Lateral Rolls
Encoder for Cylinder

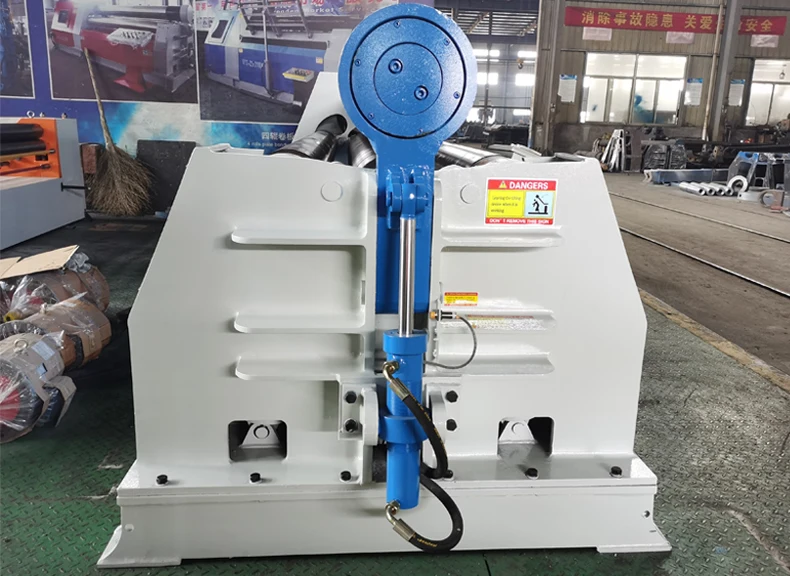

Hydraulic Drop End
Drop end opens and then top roll tilts up sequentially to remove the finished part easily
Limited Switch for Drop End
Limit switch controls machine's limit position with a very good protective effect.

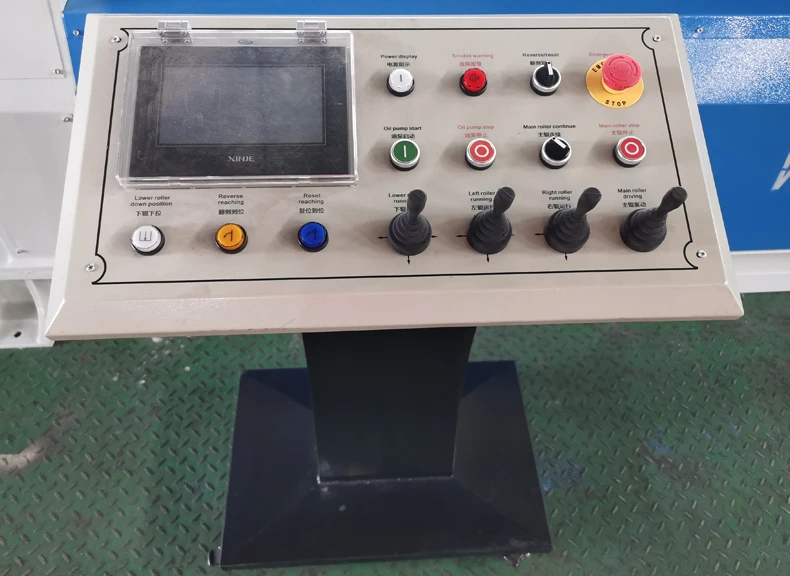

NC Control Panel
Human machine interface, intelligent operation, self compensating, single operate, high efficiency, safe and convenient.
PLC
A PLC control system ensures the machine's bottom and lateral rolls operate synchronously. Up to 8 steps can be programmed with the touch screen.
Main Parts of Electrical Cabinet | Brand |
PLC | Omron, Japan Option 1:Siemens, Germany Option 2:XINJE, China |
Overload relay | Siemens, Germany |
Contactor | Siemens, Germany |
Extended Power Module | Siemens, Germany |
Overload Relay
Siemens Contactor
Siemens Power Module
Optional Equipment Parts | ||||||||
Ground and polished rolls for special job | ||||||||
Hydraulic lateral support rack for large diameter | ||||||||
Top support rack for big diameter | ||||||||
CNC control panel | ||||||||
Feeding table | ||||||||
Ground and Polished Rolls
for Special Job
Chromate or Polyurethane Treatment
Top support rack for big diameter
(up to 2.5M diameter suggest to select)
Lateral support rack for big diameter
(up to 3M diameter suggest to select)
CNC Control Panel
.
