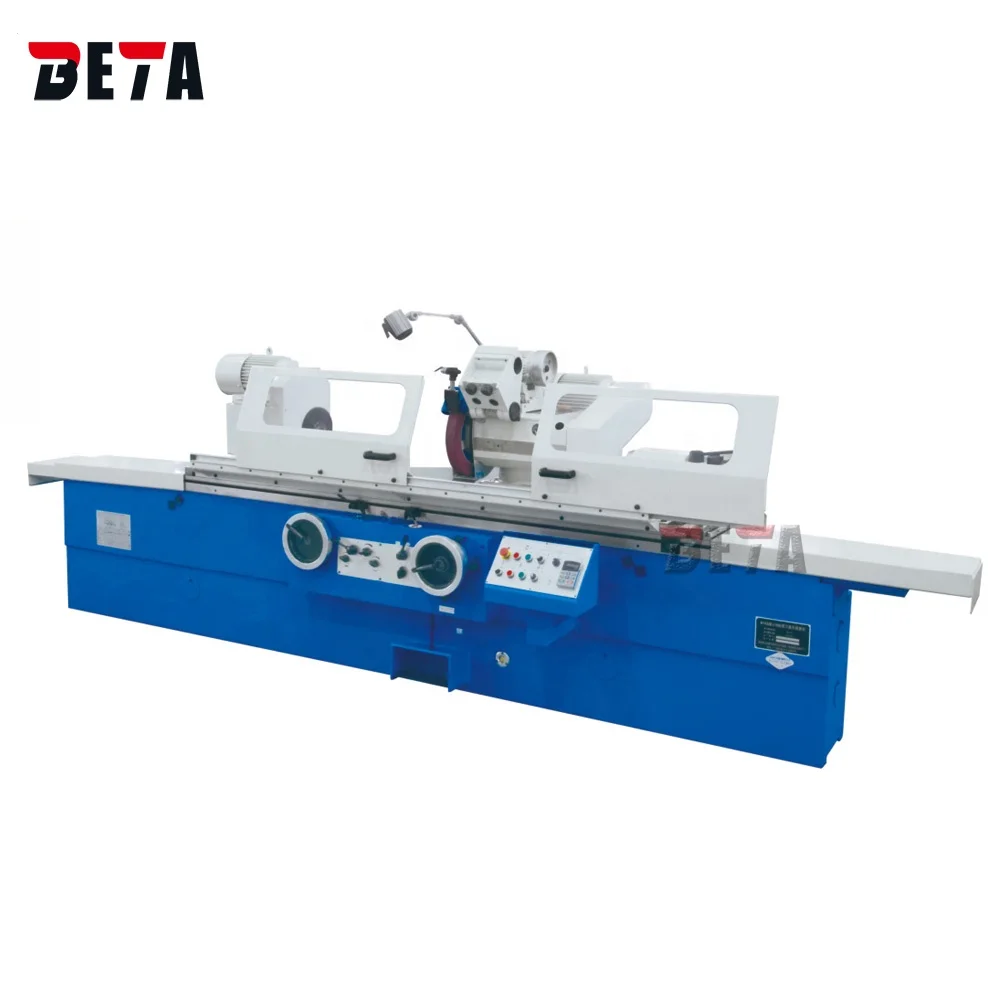

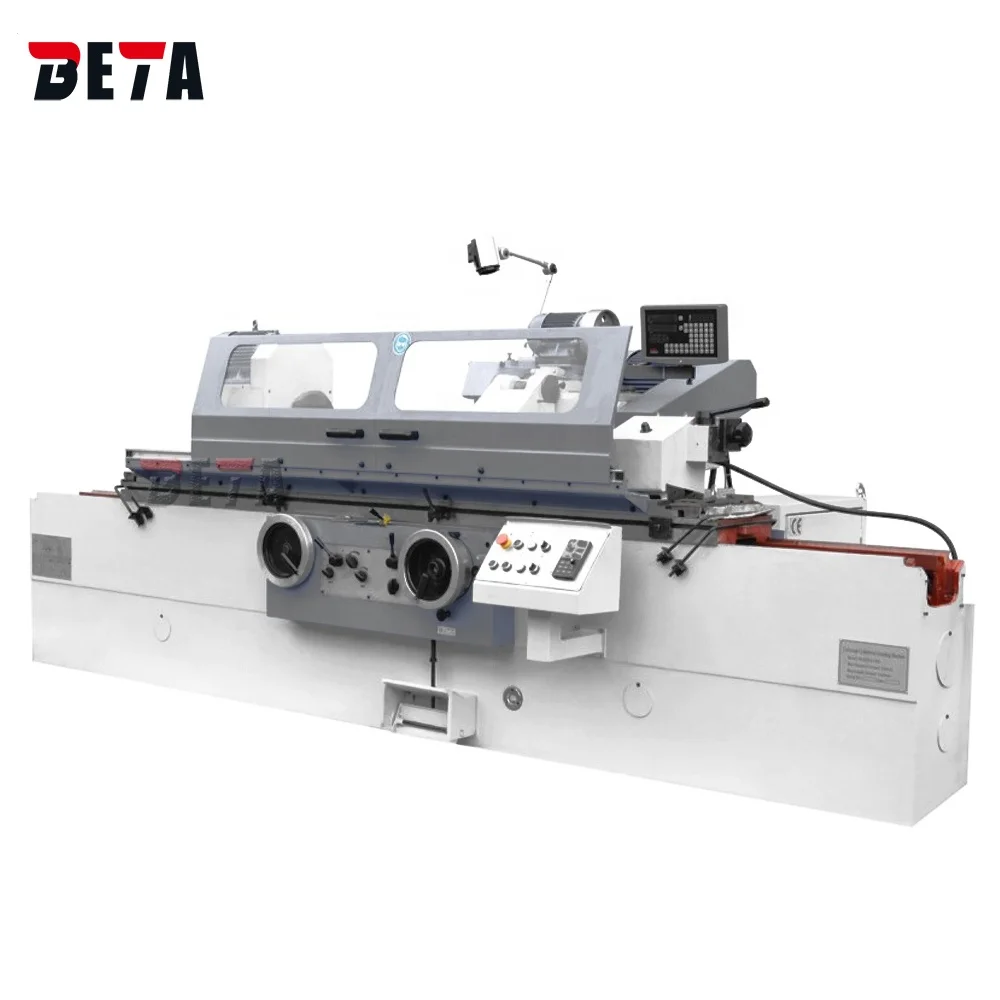

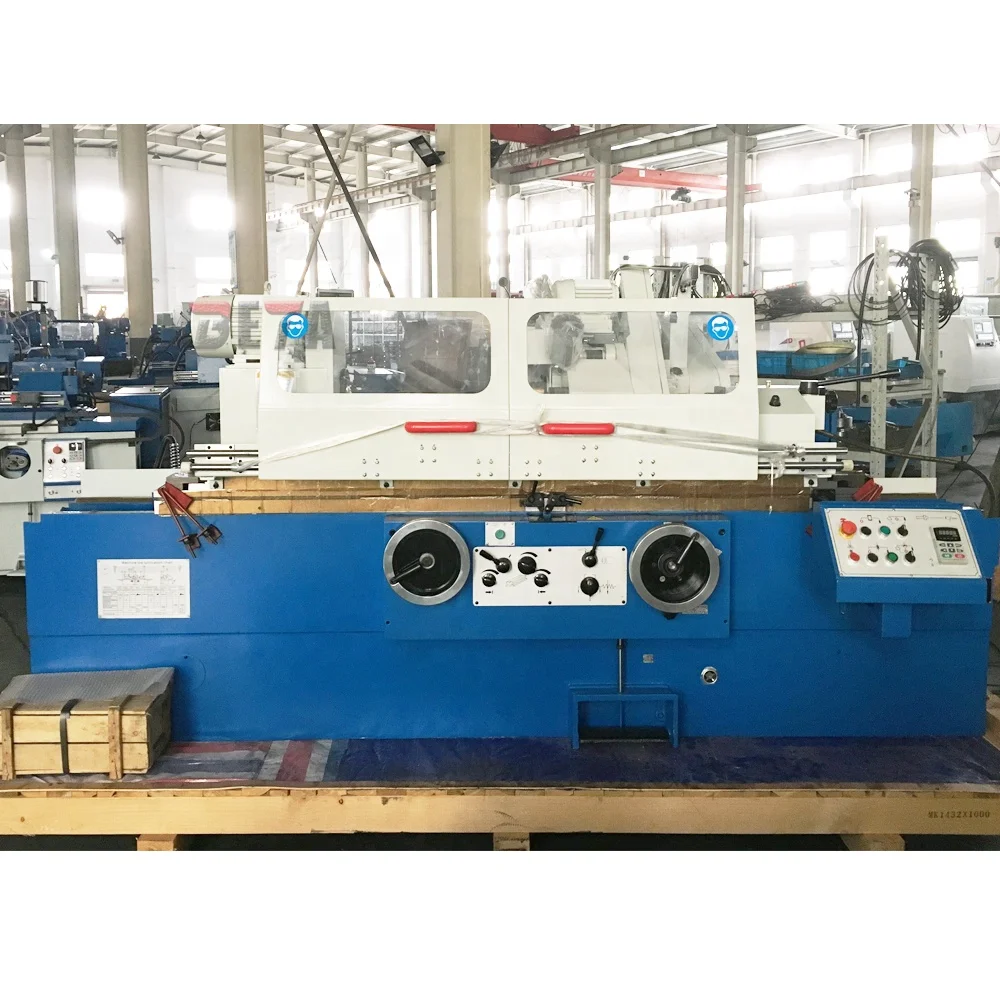

Программируемый универсальный цилиндрический шлифовальный станок M1432B 1432B
- Категория товара: Cylindrical Grinding Machines >>>
- Поставщик (Оптовый магазин): Tengzhou,Beta,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
M1432B Programmable Universal Cylindrical Grinding Machine 1432B
Product Parameters
MAIN SPECIFICATION | UNIT | M1432B | ||||
General capacity | ||||||
Distance between centers | mm | 1000, 1500, 2000, 3000 | ||||
Center height | mm | 180 | ||||
Dia.Ground (O.D) | mm | 8-320 | ||||
Dia.Ground (I.D) | mm | 30-100 | ||||
Max.length ground (O.D) | mm | 1000, 1500, 2000, 3000 | ||||
Max.length ground (I.D) | mm | 125 | ||||
Max.weight of work piece | kg | 150 | ||||
Workhead | ||||||
Swiveling angle | / | +90° | ||||
Center taper (MT) | MT | 4 | ||||
Spindle speed | r/min | 50HZ:25-220 Stepless | ||||
Wheelhead | ||||||
Wheel spindle speed | r/min | 1670 | ||||
Wheelhead rapid travel | mm | 50 | ||||
Max.travel | mm | 246 | ||||
Swiveling angel | / | ±30° | ||||
Hand feed per.rev | mm | rough:2 fine:0.5 | ||||
Hand feed per.gra | mm | rought:0.01 fine:0.0025 | ||||
Wheel size (ODxWxID) | mm | 400x50x203 | ||||
Periphearal velocity | m/s | 35 | ||||
Internal grinding device | ||||||
Spindle speed | r/min | 10000/15000 | ||||
Dimension of wheel | mm | max:50x25x13, min:17x20x6 | ||||
Table | ||||||
Hand feed per.rev | mm | 6 | ||||
Max.swiveling angle of table | Clockwise | / | 3°(1000, 1500), 2°(2000, 3000) | |||
Anticlockwise | / | 7°(1000), 6°(1500), 5°(2000), 3°(3000) | ||||
Longitudinal speed range of table | m/min | 0.1-4 | ||||
Tailstock | ||||||
Center taper (MT) | MT | 4 | ||||
Quil travel | mm | 30 | ||||
Motor | ||||||
Wheelhead motor power | kw | 5.5 | ||||
Internal grinding | kw | 1.1 | ||||
Workhead motor power | kw | 1.5 | ||||
Machine | ||||||
Gross weight | tons | 5.3(1000), 6.1(1500), 7.9(2000), 9.9(3000) | ||||
Packing dimension | cm | 322*200*205, 422*200*205, 540*200*205, 739*200*205 | ||||

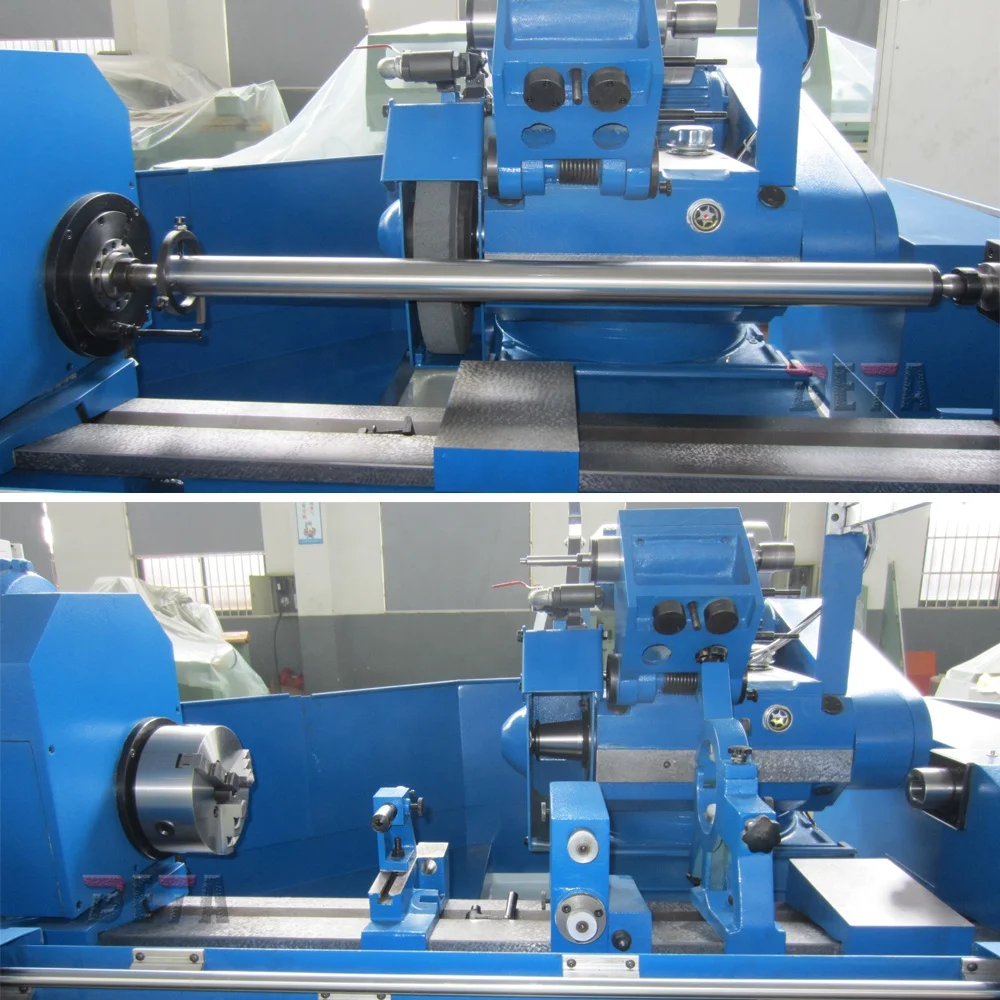

Details Images
Standard accessories:
Machine bed, the upper and lower work surface, headstock, switch，internal cylindrical grinding attachment, tailstock，wheel head, hydraulic lubrication and hydraulic control system，Delixi electric parts，coolant tank ，wheel periphery dresser，balancing arbor，dog plate，center point，leveling wedge，wheel flange，open steady rest
This cylindrical grinder has the characteristics of high precision, strong rigidity and high efficiency, and is suitable for grinding cylindrical and conical workpieces.
Beta - We are the key guy who want to let your grinder and ours getting better!
