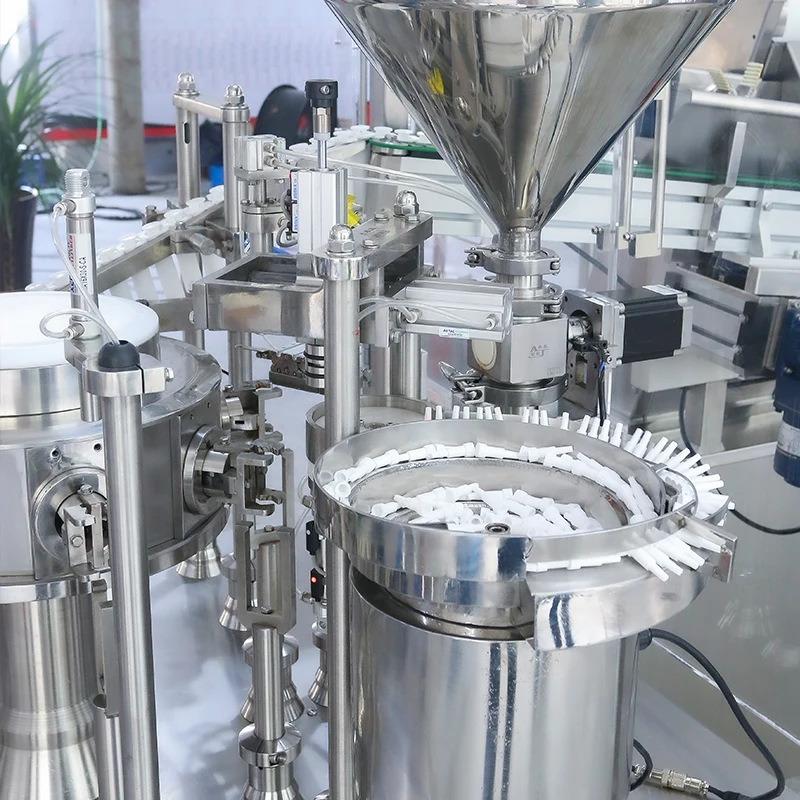

Предварительно заполненный пластиковый промывочный шприц розлива и укупорки для жидких или гель адаптируемые под требования заказчика
- Категория товара: Pharmaceutical Filling Machine >>>
- Поставщик (Оптовый магазин): Ruian,Trustar,Pharma,And,Packing,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

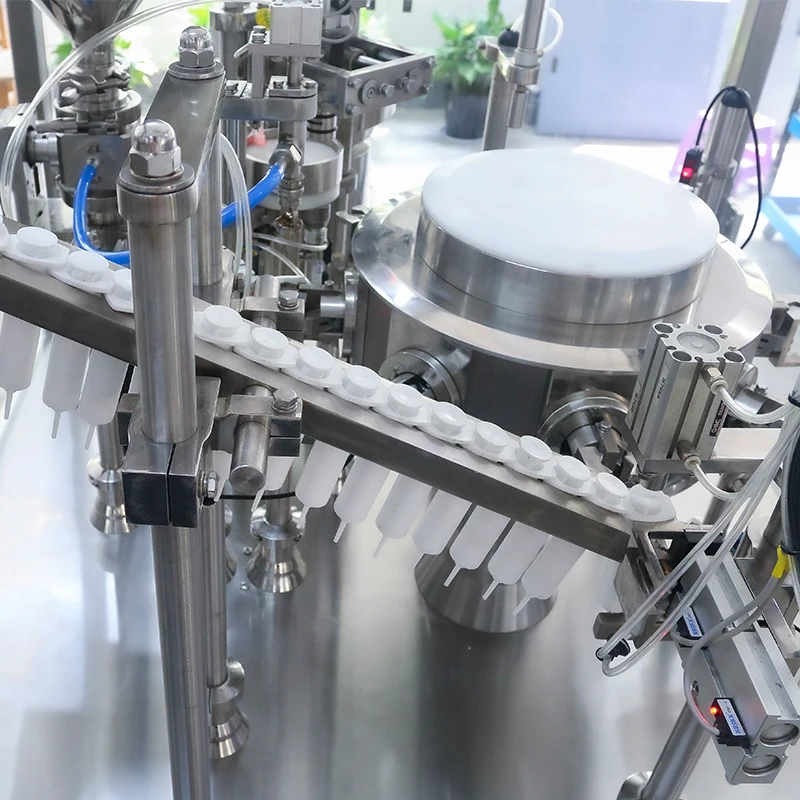

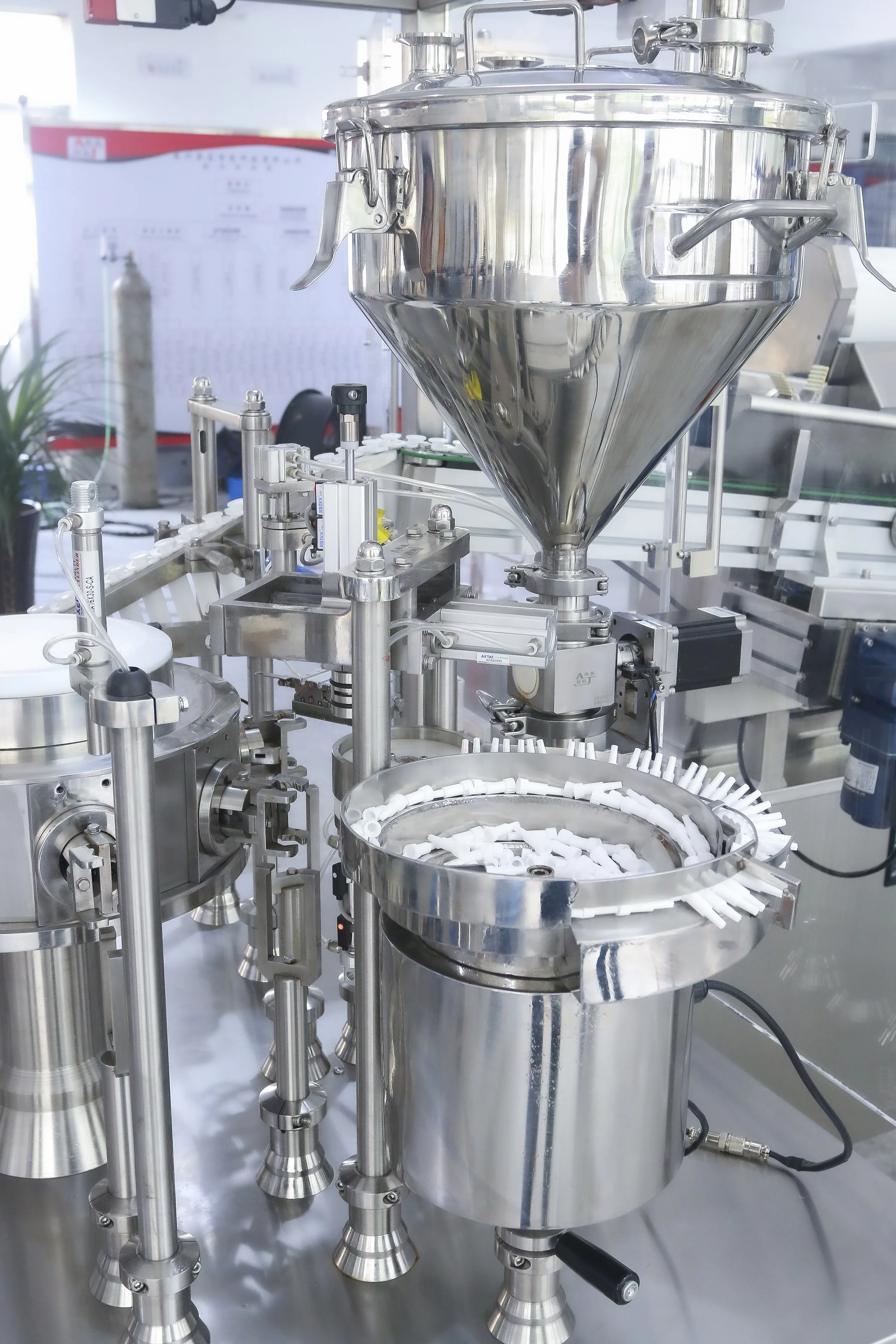

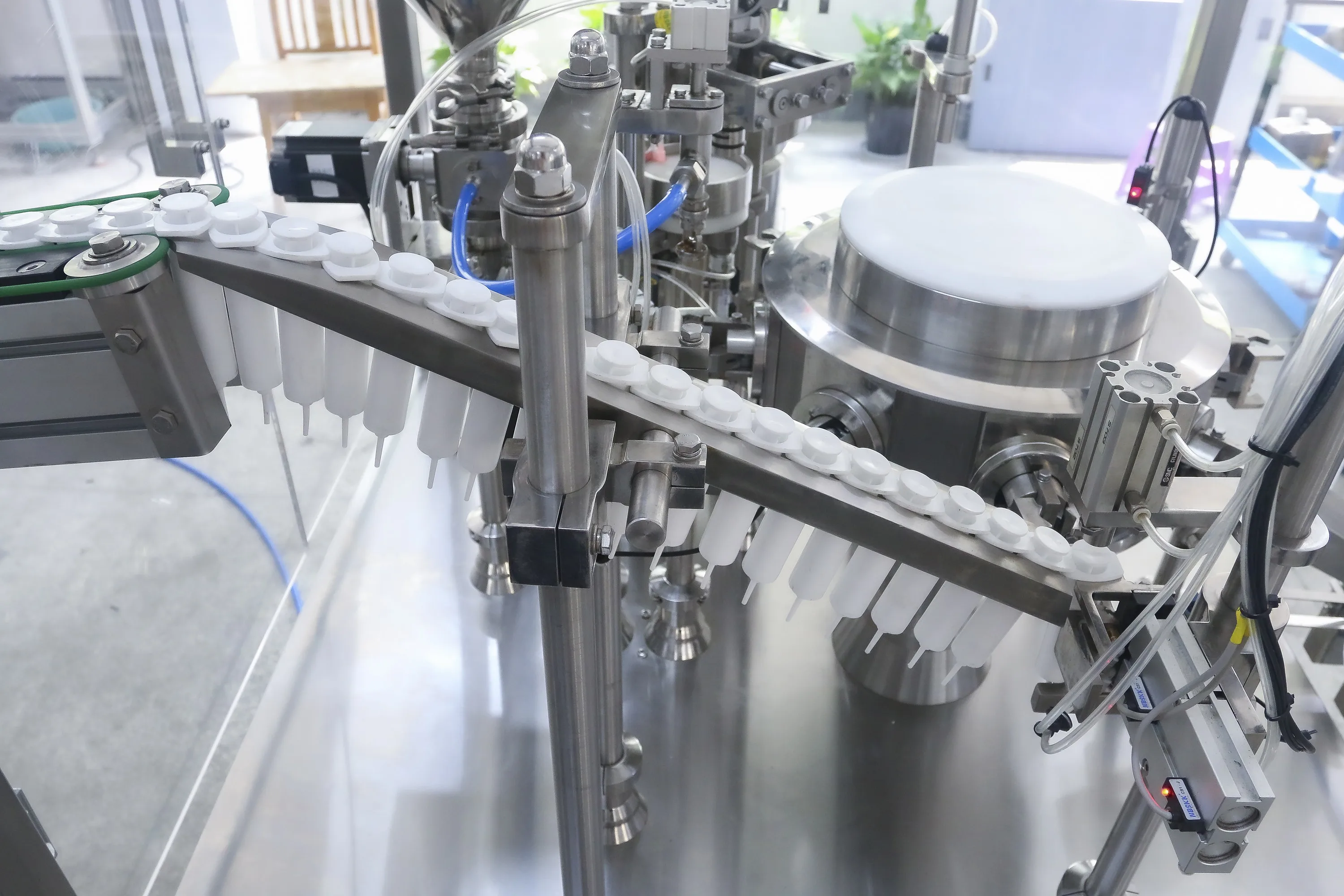

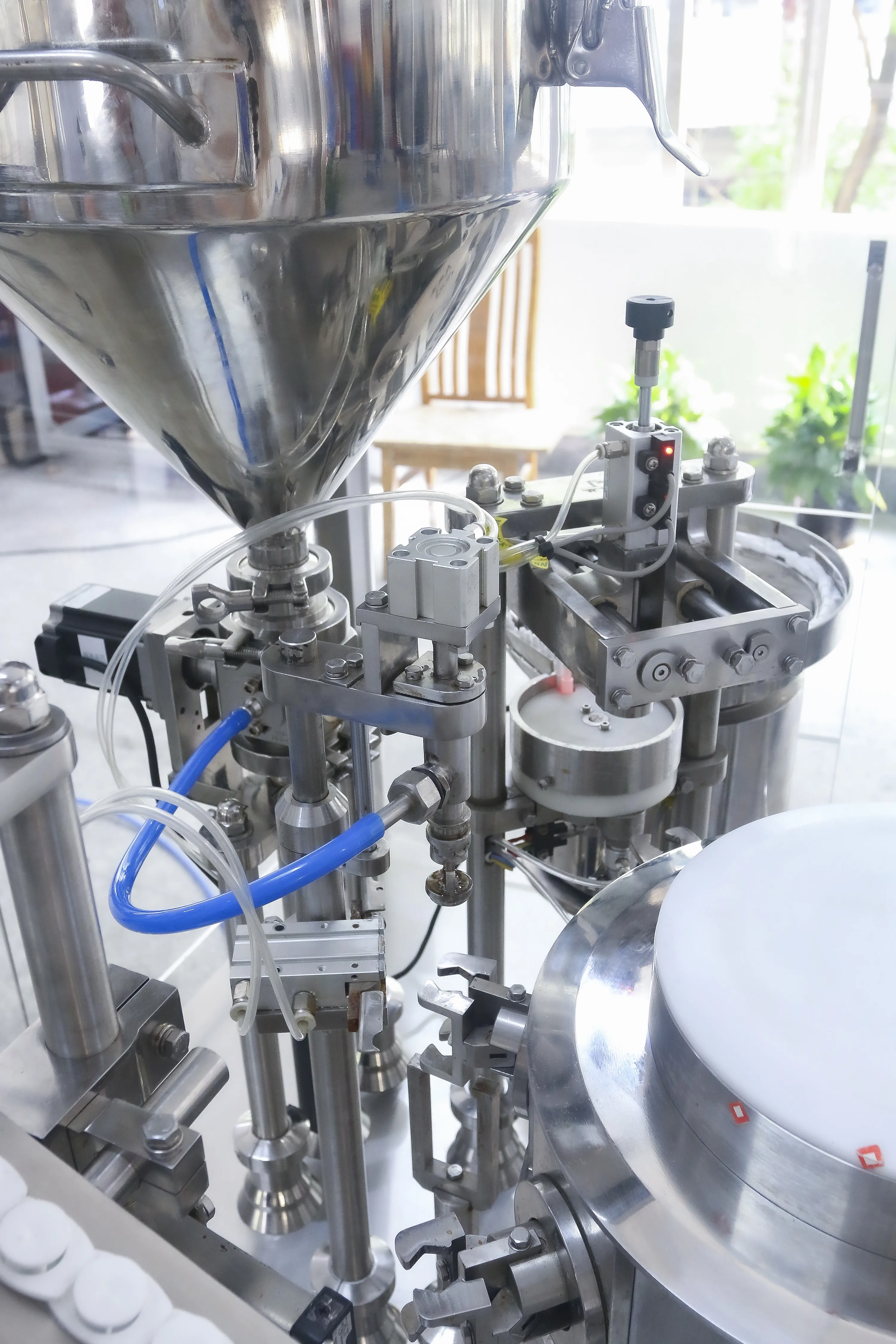

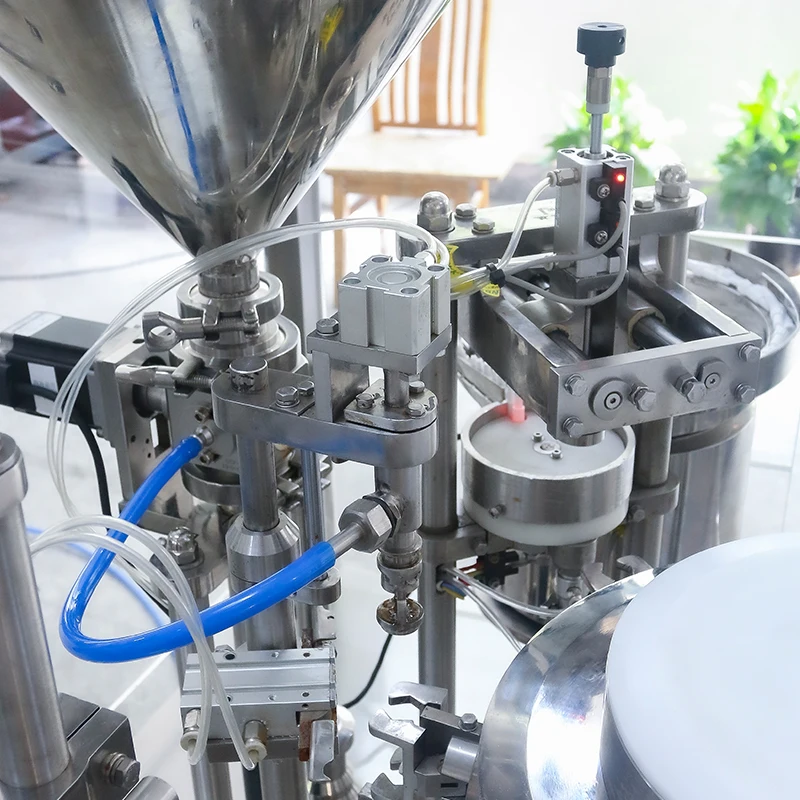

This product is specially designed by our company for the filling of plastic syringes. It is an automatic packaging equipment for aseptic and efficient filling of syringes. The equipment runs smoothly, is simple to operate, and is equipped with intelligent detection devices, with high automation, high work efficiency, convenient maintenance, and the technology can reach the current domestic industry advanced level
Features
●This product is widely used for filling and capping of various types of plastic syringes, and special types can be customized.
●The surface is made of AISI 304 stainless steel, and the parts contacting the material are made of AISI 316L stainless steel and medical silicon rubber. There is no sanitary corner. Fully comply with GMP requirements.
●The ceramic plunger pump realizes quantitative filling, is resistant to acid and alkali corrosion, wear-resisting and high temperature, and has high filling accuracy.
●It adopts internationally renowned electrical components and implements interference-free modular control. Synchronous actions are all controlled by servo motors. Automatic filling and stoppering are implemented, which is accurate, reliable and easy to operate.
●The operation of the motor is controlled by the PLC programming controller. The human-computer interaction interface monitors and displays the working status of each station in real time, and automatically alarms and displays the fault location in real time, and the fault prompts.
●A variety of filling doses and filling methods are available.
●Fully automatic operation, automatic filling, and automatic capping.
●The method of filling the syringe head can eliminate the air in the tube to the greatest extent and improve the qualification rate.
●Modular design, easy to locate, easy to expand, can be used stand-alone or connected.
●Optional one-hundred-level laminar flow hood to achieve high-demand clean production.
●The surface is made of AISI 304 stainless steel, and the parts contacting the material are made of AISI 316L stainless steel and medical silicon rubber. There is no sanitary corner. Fully comply with GMP requirements.
●The ceramic plunger pump realizes quantitative filling, is resistant to acid and alkali corrosion, wear-resisting and high temperature, and has high filling accuracy.
●It adopts internationally renowned electrical components and implements interference-free modular control. Synchronous actions are all controlled by servo motors. Automatic filling and stoppering are implemented, which is accurate, reliable and easy to operate.
●The operation of the motor is controlled by the PLC programming controller. The human-computer interaction interface monitors and displays the working status of each station in real time, and automatically alarms and displays the fault location in real time, and the fault prompts.
●A variety of filling doses and filling methods are available.
●Fully automatic operation, automatic filling, and automatic capping.
●The method of filling the syringe head can eliminate the air in the tube to the greatest extent and improve the qualification rate.
●Modular design, easy to locate, easy to expand, can be used stand-alone or connected.
●Optional one-hundred-level laminar flow hood to achieve high-demand clean production.
Product details
PRODUCT SPECIFICATIONS
Applicable materials | Liquid and ointment |
Applicable syringe specifications | 0.5-80ml |
Filling accuracy | ≤±1% |
Number of injection needles | 1 needle |
Production capacity | 1800-2400 p/h |
Total power | 2.1KW |
Voltage | 380V/220V 50-60Hz |
Compressed air | 0.55-0.75Mpa 20L/S |
Vacuum system | 6×10-2Pa 20L/S |
Dimensions | L1230*W850*H1800mm |
Equipment weight | 500KG |

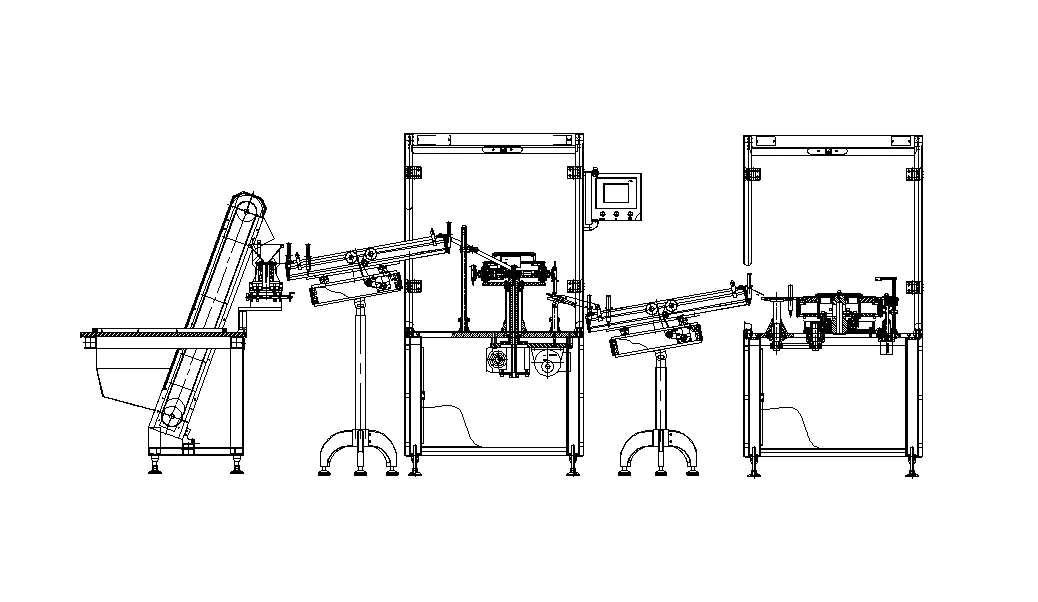

Equipment drawing

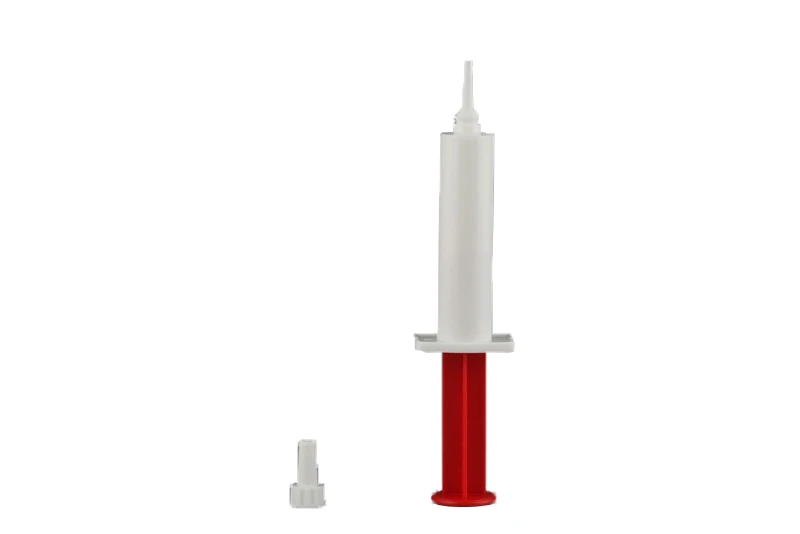

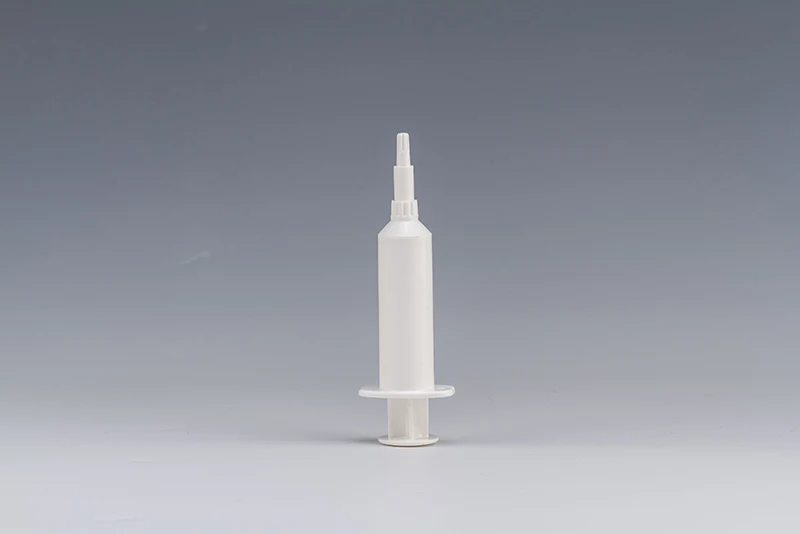

Samples
