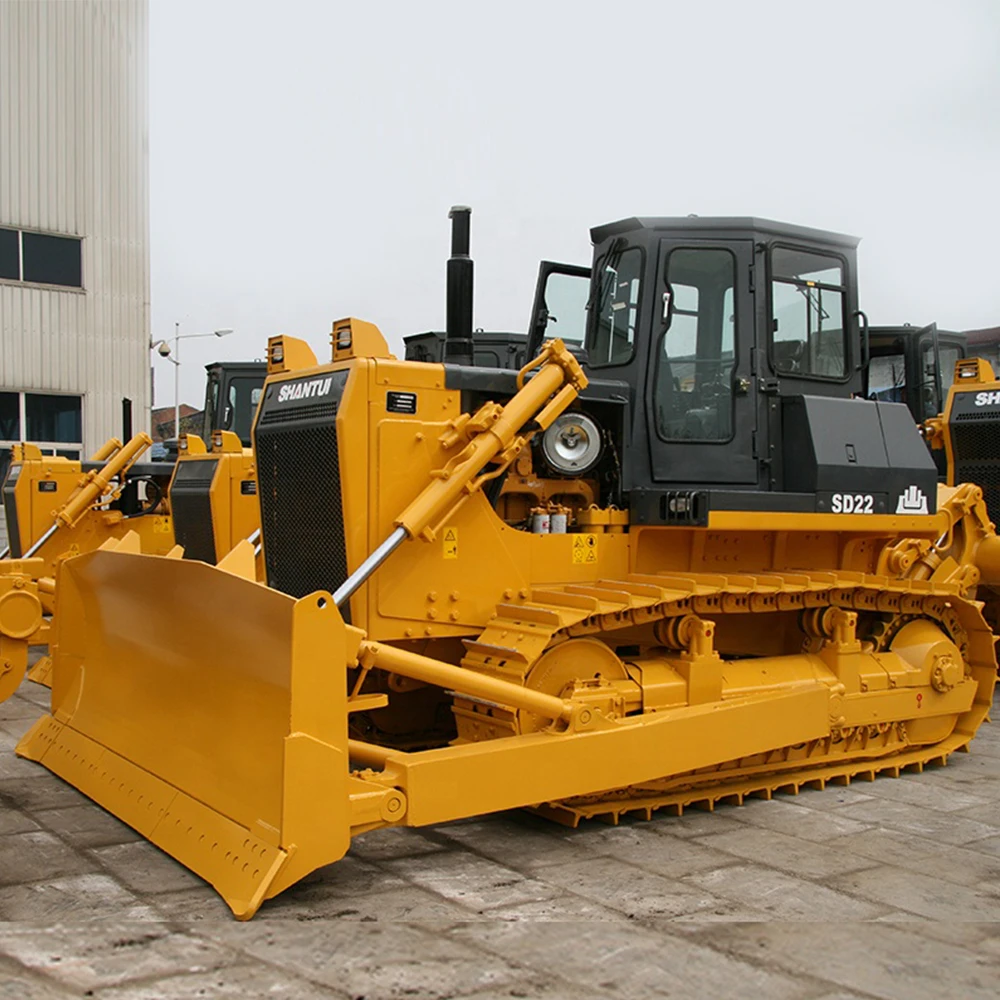

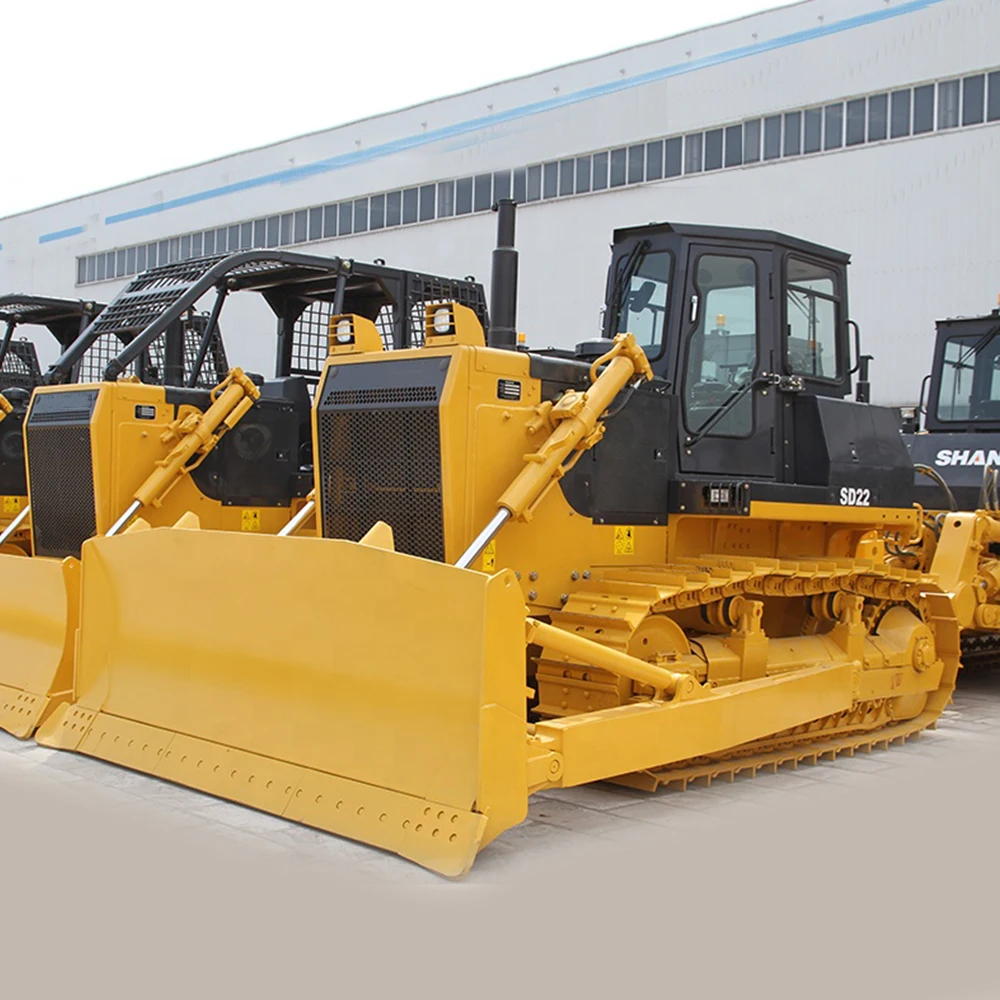

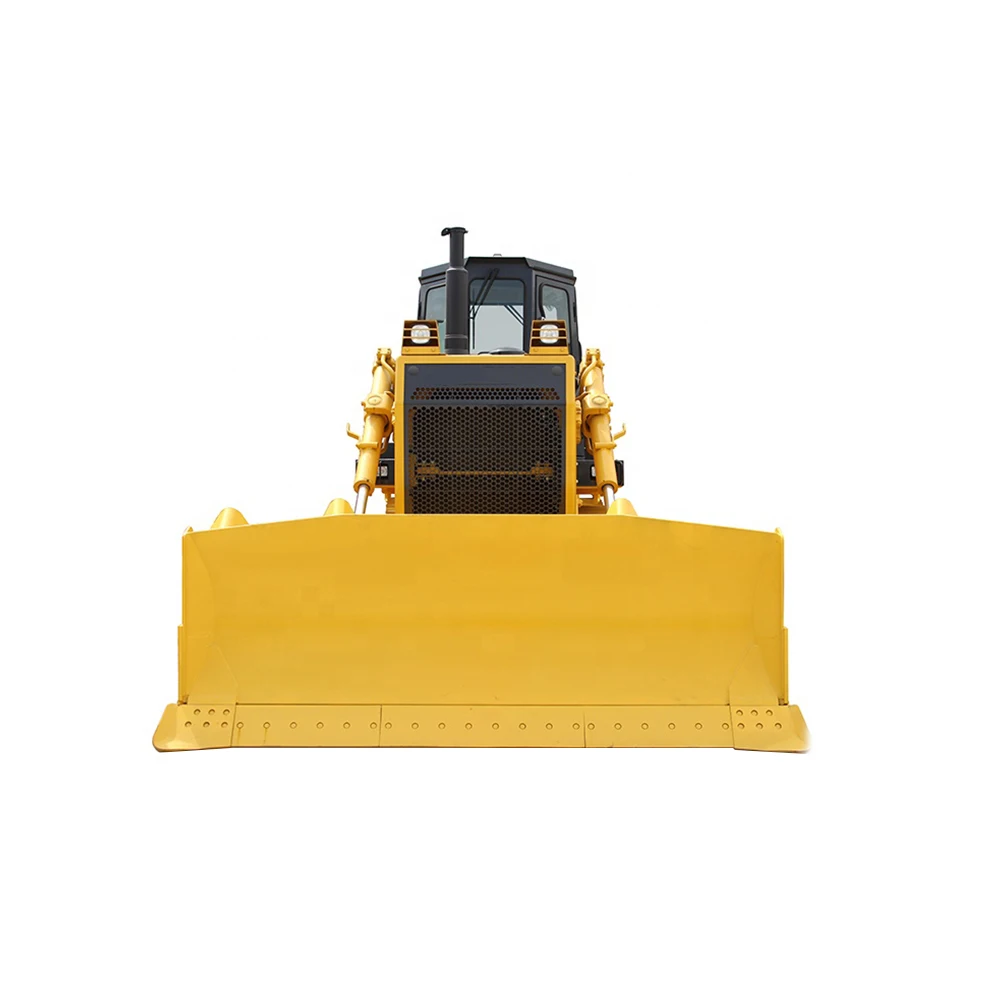

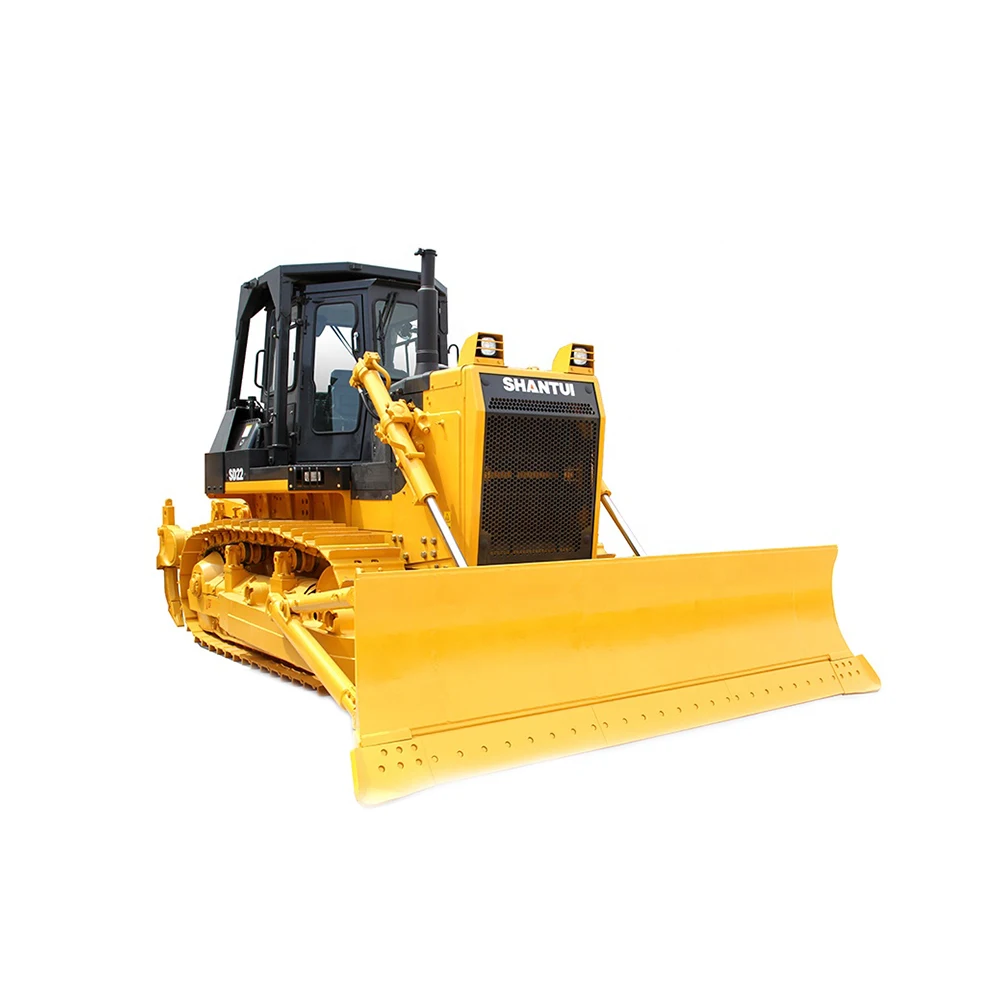

Китайский бренд популярный бульдозер shantui SD22 220Hp по хорошей цене

Поделиться:


Цена:96 666,00-99 900,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики







Product Description

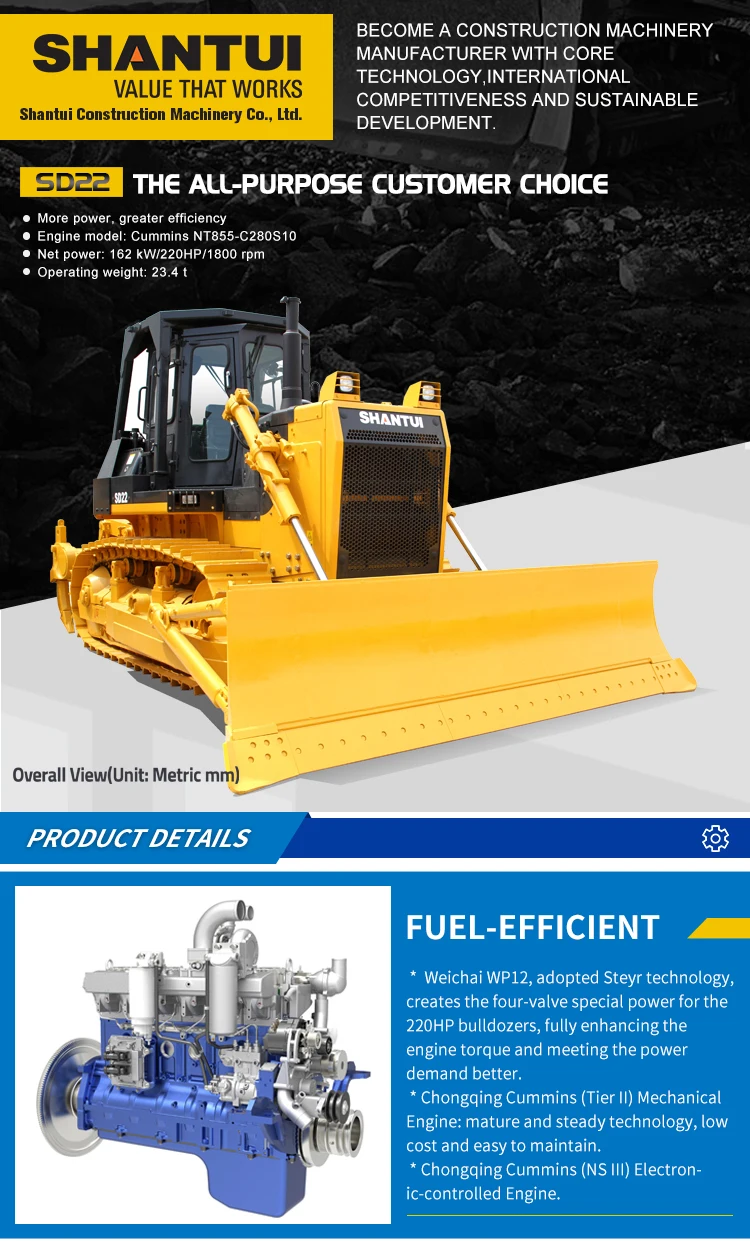

Power System
The installed WP12/QSNT-C235 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.
The rated power reaches 175kW, featuring high torque reserve coefficient.
The radially sealed intake system is applied to effectively prolong the engine life.

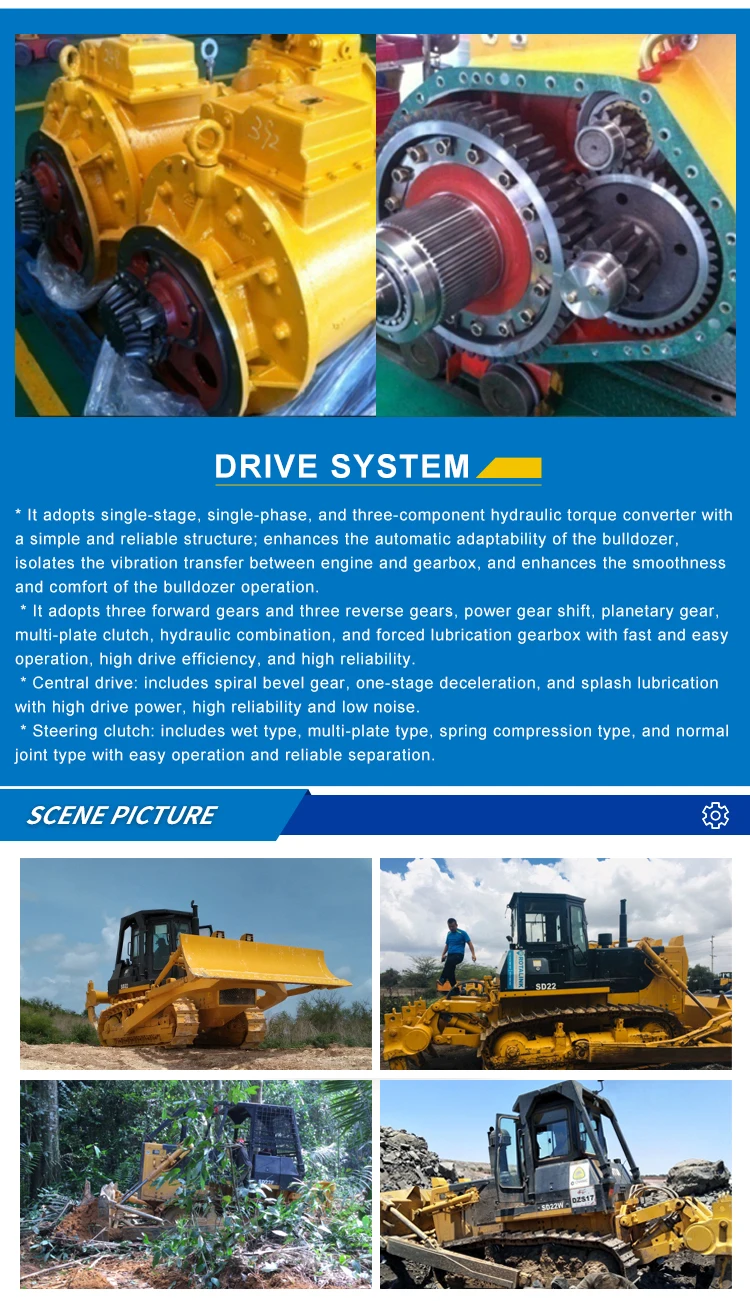

Drive system
The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.
Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.
Driving/Riding Environment
The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.
The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.
The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.
Working adaptability
Shantui’s stable and reliable chassis system is applicable to diversified severe working conditions.
The product features long ground length, high ground clearance, stable driving, and good trafficability.
The straight tilting blade, semi-U blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.

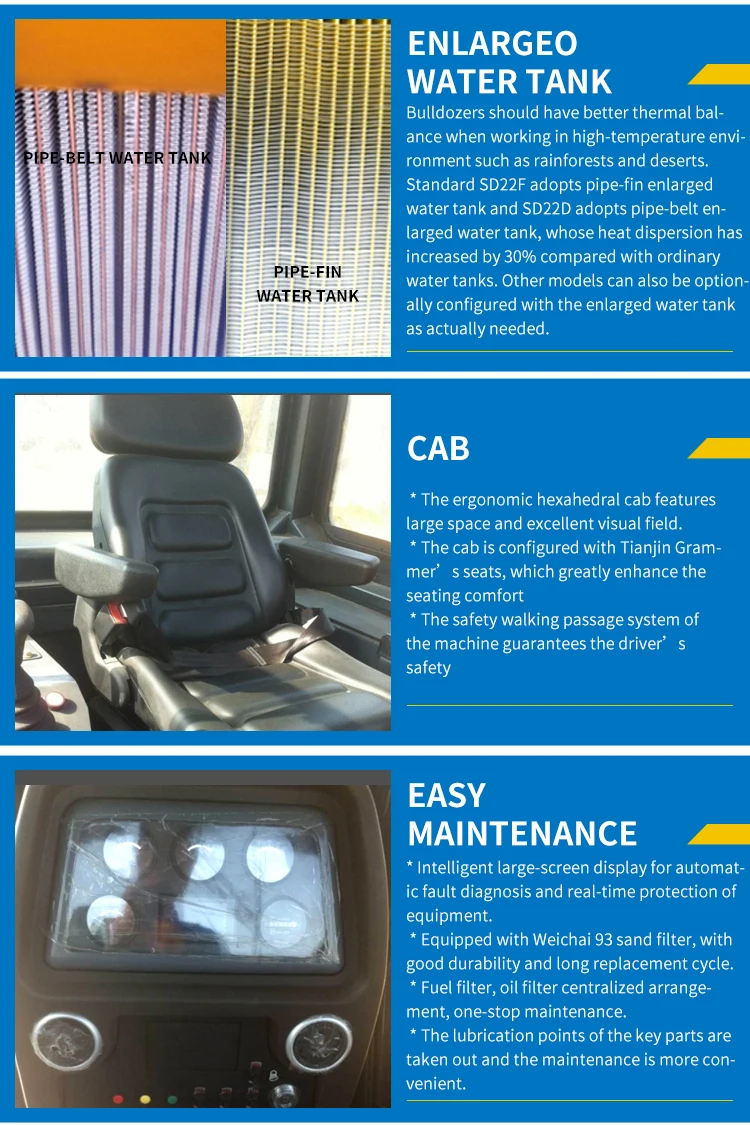

Easy maintenances
The structural parts inherit the excellent quality of Shantui’s mature products;
The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.
The openable large-space side hoods make the repairs and maintenance easier.
All lubricating and maintenance points of machine are directed to the outer side of machine body to achieve convenient and rapid maintenances.

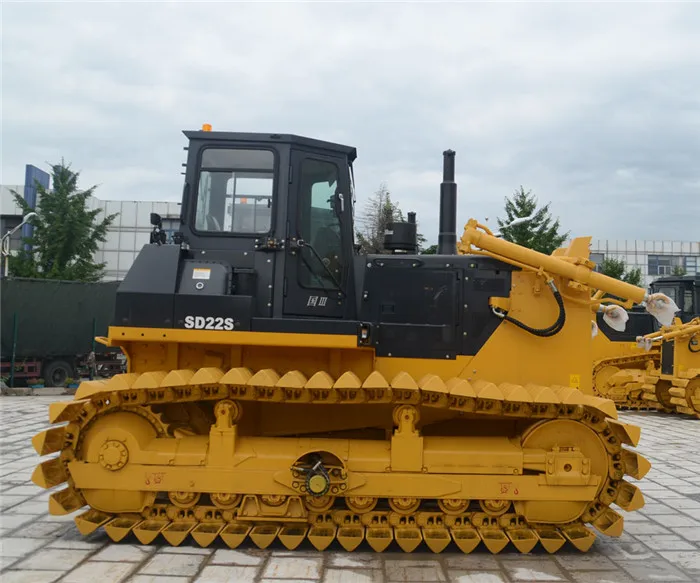

Product pictures












Specification




Parameter name
SD22 (Standard version)
SD22C (Coal version)
SD22W (Rock version)
SD22F (Forestry version)
SD22D (Desert version)
Performance parameters
Operating weight (Kg)
23450
24000
23600
24700
24600
Ground pressure (kPa)
66
57.5
66
64
56
Engine
Engine model
WP12/QSNT-C235
WP12/QSNT-C235
QSNT-C235
QSNT-C235
QSNT-C235
Rated power/rated speed (kW/rpm)
175/1800
175/1800
175/1800
175/1800
175/1800

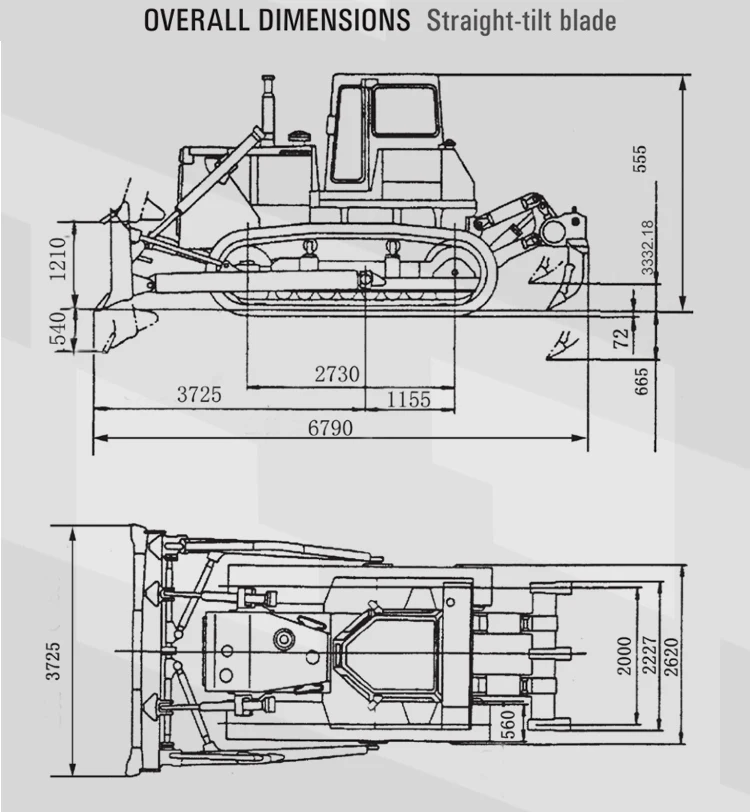

Overall dimensions
Overall dimensions of machine (mm)
5495*3725*3402
5820*4200*3402
5495*3725*3402
5495*3725*3402
5495*3725*3402
Driving performance
Forward speed (km/h)
F1:0-3.6 F2:0-6.5 F3:0-11.2
F1:0-3.6 F2:0-6.5 F3:0-11.2
F1:0-3.6 F2:0-6.5 F3:0-11.2
F1:0-3.6 F2:0-6.5 F3:0-11.2
F1:0-3.6 F2:0-6.5 F3:0-11.2
Reversing speed (km/h)
R1:0-4.3 R2:0-7.7 R3:0-13.2
R1:0-4.3 R2:0-7.7 R3:0-13.2
R1:0-4.3 R2:0-7.7 R3:0-13.2
R1:0-4.3 R2:0-7.7 R3:0-13.2
R1:0-4.3 R2:0-7.7 R3:0-13.2
Chassis System
Center distance of track (mm)
2000
2000
2000
2000
2000
Width of track shoes (mm)
560/610/660
660
560/610/660
610/660
660
Ground length(mm)
2730
2730
2730
2730
3050
Tank capacity
Fuel tank (L)
450
450
450
450
450
Working device
Blade type
Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade
Coal blade
Rock straight tilting blade, rock angle blade, rock U-blade, and rock semi-U blade
Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade
Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade
Digging depth (mm)
540
538
540
540
540
Ripper type
Single-shank three-shank
Single-shank three-shank
Single-shank three-shank
Single-shank three-shank
Single-shank three-shank
Ripping depth (mm)
695 (Single-shank) and 666 (Three-shank)
695 (Single-shank) and 666 (Three-shank)
695 (Single-shank) and 666 (Three-shank)
695 (Single-shank) and 666 (Three-shank)
695 (Single-shank) and 666 (Three-shank)
