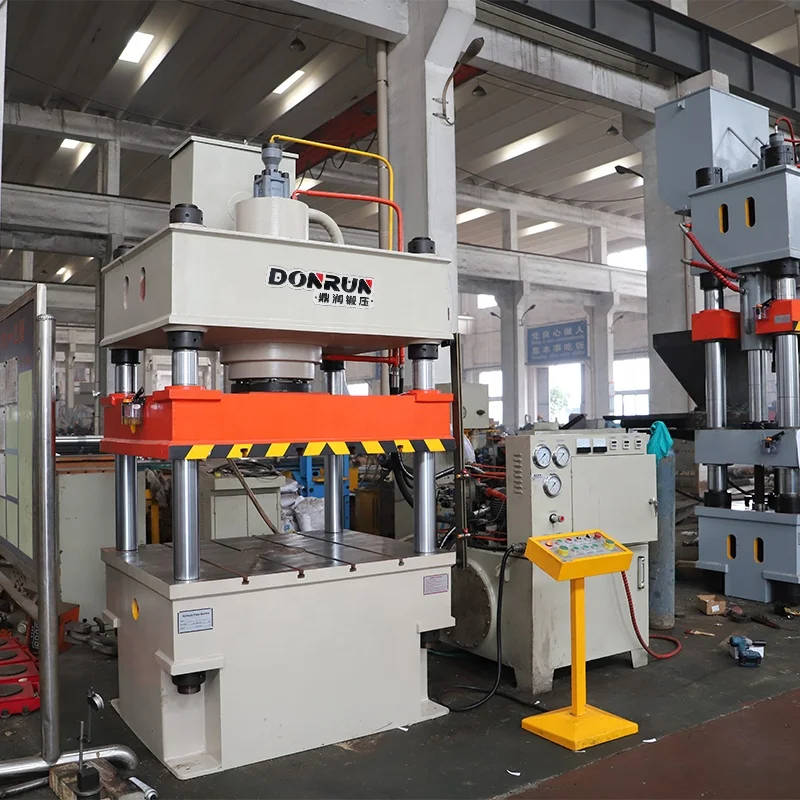

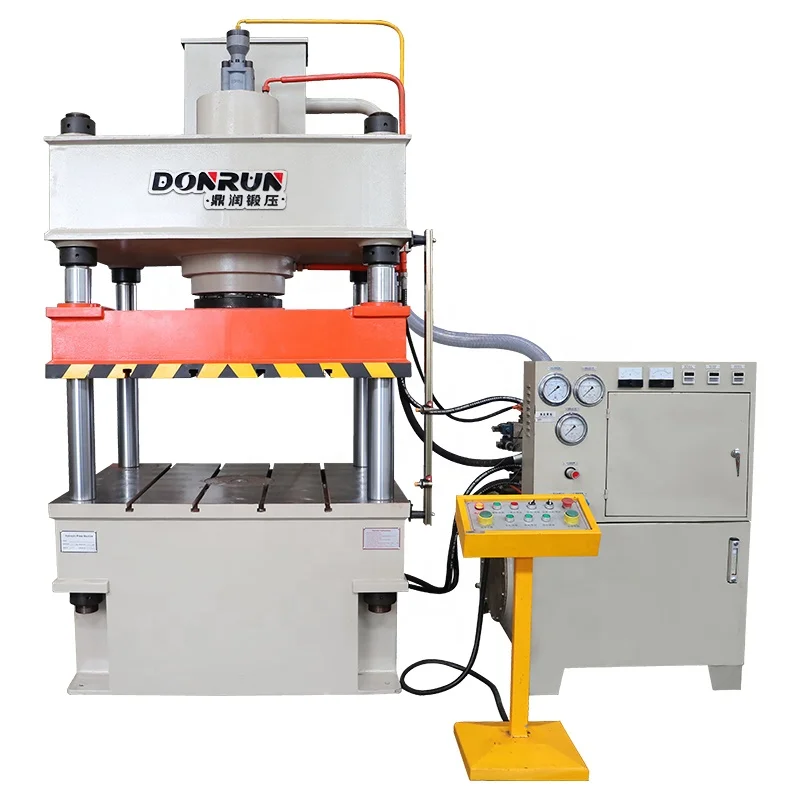

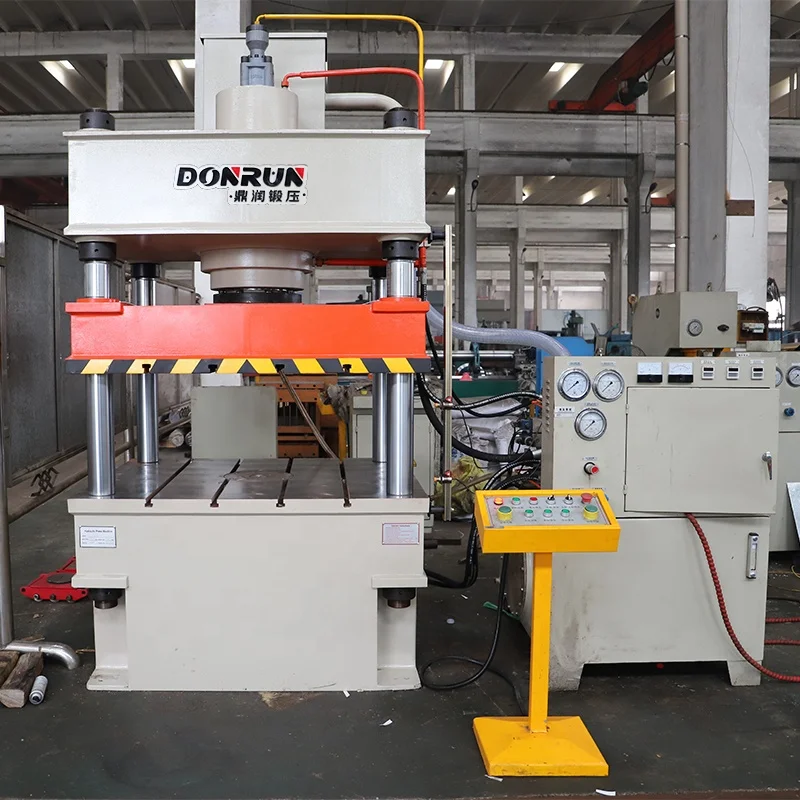

Features:200 ton Manual Workshop deep drawing vertical hydraulic press price Features: The working space is spacious, which is convenient for four-body observation and access to the mold. The structure of the whole machine is simple and the manufacturability is good. , The working cylinder is installed in the upper beam, the movable beam and the piston of the working cylinder are connected as a whole, guided by the upright column, do up and down movement, and drive the force generated in the working cylinder to perform pressure processing on the workpiece
200 ton Manual Workshop deep drawing vertical hydraulic press price is economical and practical. The hydraulic control adopts a cartridge valve integrated system to reduce leakage points, reliable operation and long service life. It can achieve two forming processes of constant pressure and fixed stroke. It can be adjusted within the prescribed range and adopts centralized control of buttons, which can realize three operation modes: manual, semi-automatic and automatic.
1. Various types of hydraulic cylinders can be customized
2. Punching buffer device
3. PLC touch screen control shunt
4. Quick stroke liquid filling device
This series of hydraulic presses is suitable for the pressing process of plastic materials, such as stamping, bending, flanging and thin stretching, etc. It can also be used for the correction, press-fit, plastic products and powder products.
steel door skin press ,car body plate press ,stainless steel kitchen sink press ,steel water tank press ,Stainless steel potty press Air conditioner / range hood press Product main technical specifications:
Specification
Unit
200T-A
200T-B
200T-C
Nominal force
KN
2000
2000
2000
Max. pressure of liquid
MPa
25
25
25
Stroke of slider
mm
500
900
900
Max. opening height
mm
800
900
900
Working table size
mm*mm
660x660
800x800
900x700
Speed of slider
Descent speed
mm/s
100
100
100
Working speed
mm/s
6-12
6-12
6-12
Return speed
mm/s
100
100
100
Motor power
KW
7.5
7.5
7.5
Ejecting force
KN
35
50
50
Ejecting stoke (mm)
mm
250
250
250
Detailed Images

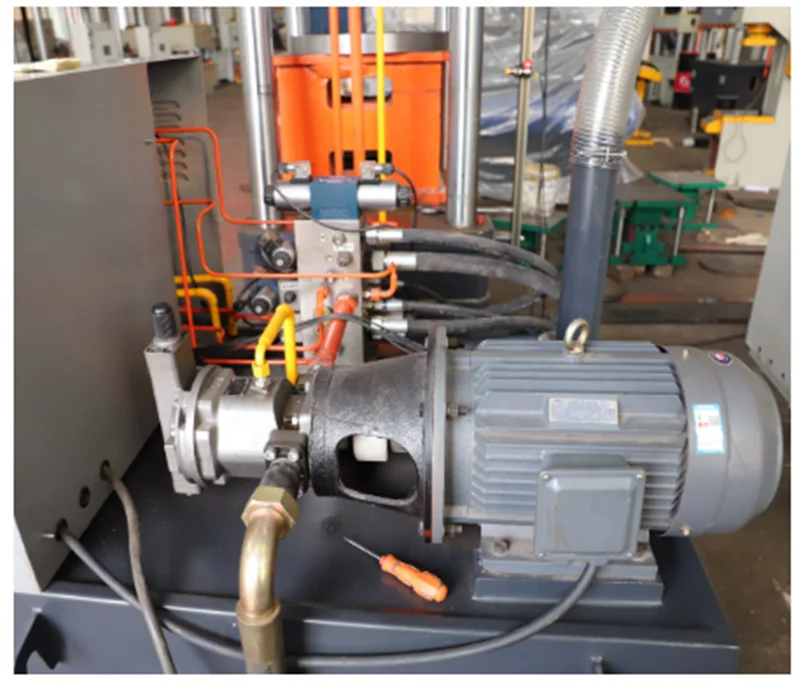

Hydraulic system
The hydraulic system device is arranged on the right side of the press, with cartridge integrated system, flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor, cartridge valves and other components.
Piston Rod
Medium-frequency hardening of 45 steel, deepening the material 2-3 mm, making the surface hardness of the piston rod to 55 ,effective solution to seal ring injury，not easy to scratch.

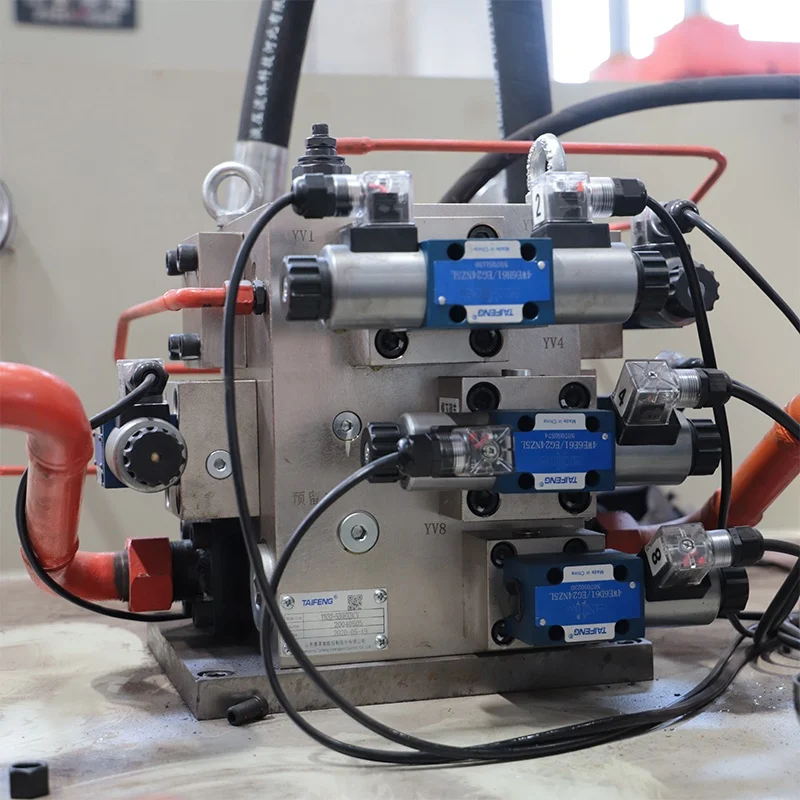

Cartridge Valve System
The cartridge valve is inteqrated into the system to reduce leakagepoints, reliable operation and long service life.
Combination gasket
All oil joints are sealed with a combination of gaskets, internally with rubber, externally with red copper customized by the manufacturer. Compared with the iron used by other manufacturers, the advantages are: 1.The ductility of red copper is strong, making the bond tight;2.In the process of high-pressure washing, red copper can effectively protect the rubber skin from breakage.
Core electrical appliance
It adopts relay control (PLC optional), and it realizes electro-hydraulic control, jog, manual and semi-automatic operation modes together with hydraulic valve.
Hydraulic Station layout
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Hydraulic Tank
Shot blasting combines three new processes of high-pressure vacuuming dough clearance.After the equipment is commissioned, the fuel tank is opened again, and the hydraulic oil flows into the main tank through the high pressure, and the components of each part are cleaned twice.

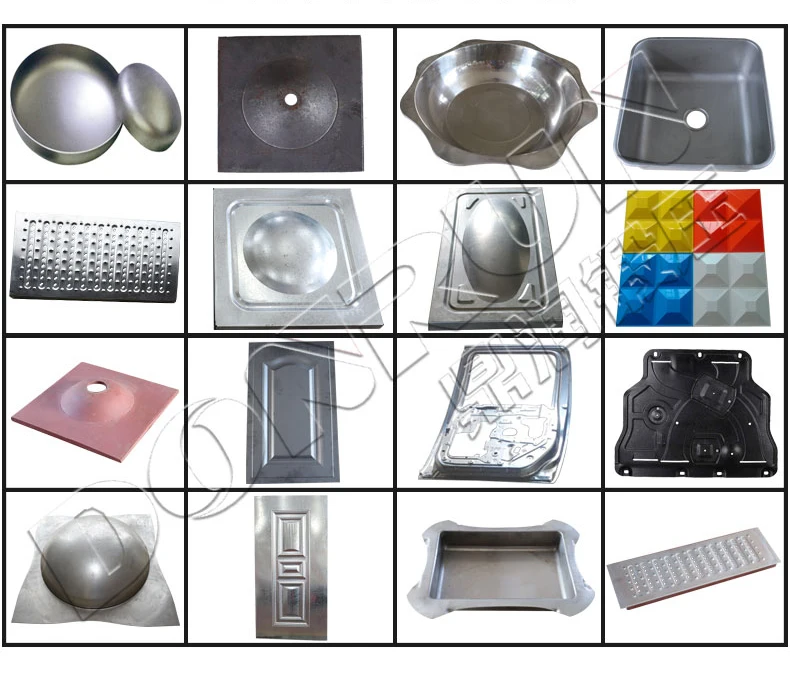

Finished Products
200 ton Manual Workshop deep drawing vertical hydraulic press price According to the user's needs, it can add punching buffer, punching material, moving table and other devices. In addition to forging and forming, it can also be used for straightening, pressing, packing, pressing blocks and pressing plates. Pressing process of shaft parts, calibration of profiles. Withholding and pressing of bearing parts can also be used for bending, shaping,embossing, sleeve molding, drawing and other processes of sheet metal parts.
Related Products

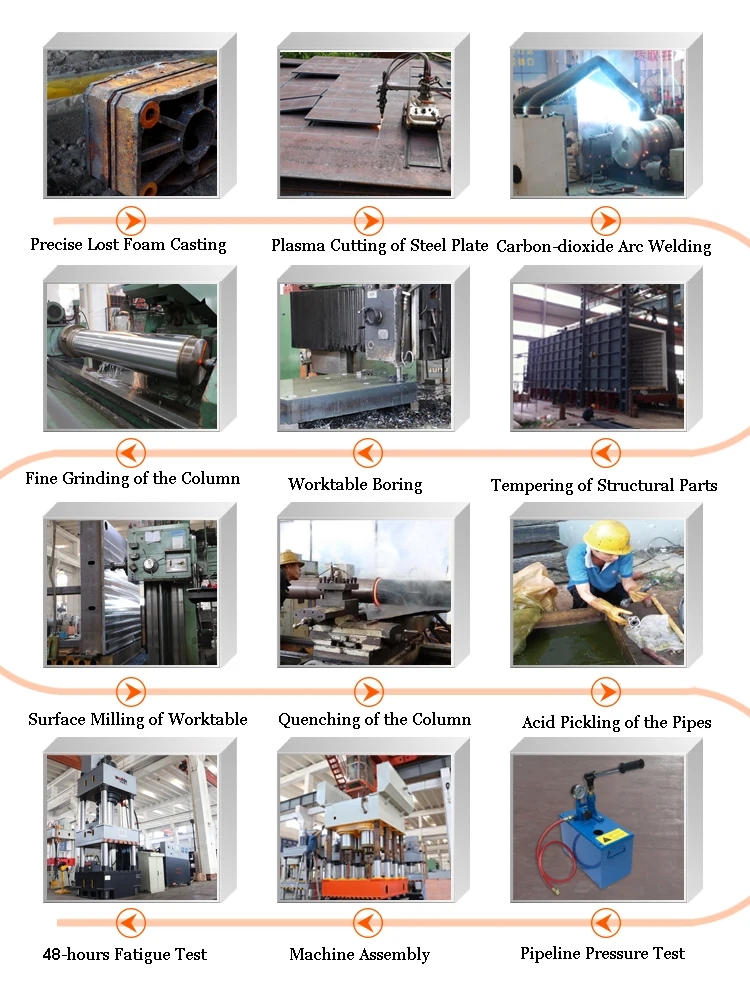

Manufacturing Technique
200 ton Manual Workshop deep drawing vertical hydraulic press price
Medium frequency quenching furnace: 10 m lathe, strength treatment, quenching can reach 50 degrees, thickness 2-3mm
Large precision grinding machine: high precision. Stable and reliable, the automatic guide angle is better fit to the sealing ring, chrome-plated, wear-resistant and rust-resistant
Large-scale gantry milling machine: Multiple milling cutters simultaneously machine surfaces and slots for improved machining accuracy and productivity
Company Introduction
Tengzhou Dingrun Forging Machinery Plant is a manufacturer of hydraulic press, Our company is located in Tengzhou city , Shandong province , China .Our factory covers 2000 square meters. There are so many high quality engineers and experienced workers in our factory. We provide high quality machines at good prices.Welcome to visit our website or contact us for more details. We follow the principle of "satisfy our customers by active innovation; perfect every product; win customers' trust with good credit and high quality". We will perfect our service and adhere to the "higher, faster, newer, stricter" working attitude. We sincerely hope to establish business relationships with your esteemed corporation.
200 ton Manual Workshop deep drawing vertical hydraulic press priceare all in accordance with export standards, and we have obtained relevant export certificates and CE certificates

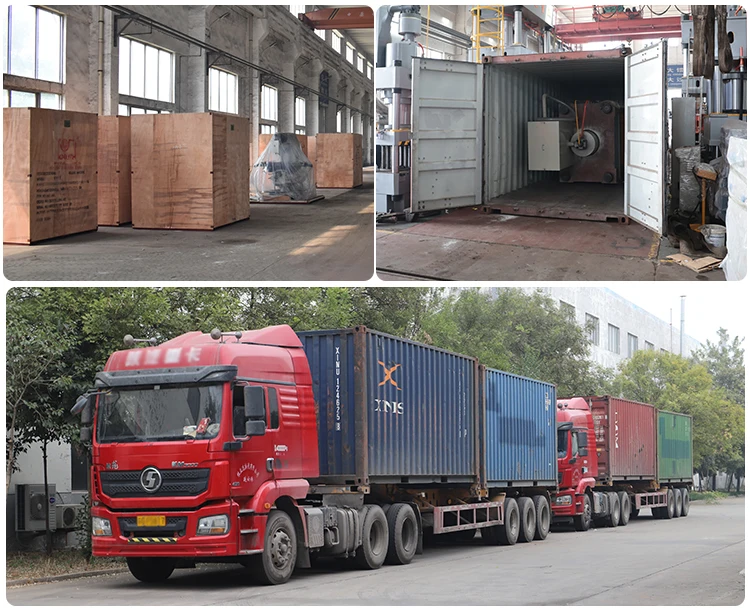

Packing&Shipping
Package
200 ton Manual Workshop deep drawing vertical hydraulic press price
1. The machine adopts export standard packaging to prevent damage such as damage, deterioration and pollution of the goods. 2.Export packaging is adapted to the requirements of various modes of transport. Such as shipping export packaging needs to be strong, anti-extrusion, anti-collision; railway export packaging transportation requires packaging shock.
FAQ
1.What's the price and specification of hydraulic press machine? Re: Dingrun always provide high quality machine, as we know,oversea market is more important and difficult than domestic market because of communication time costing after sales.So always,our machines has enough quality standard to make sure the machine can work more than the real warranty period. In this way ,we will save a lot and think advance for the clients. Please let me know the utensil diameter and height, the pictures and drawing will be better, so that we can check and recommend suitable machine for you.
2. How about your machine quality?We are worry about the quality. Re: Dingrun is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
3. May I send samples to test? Do you have a test fee or not? Re: Yes, if you could send us samples, it will be better. For testing, we have to customize the moulds according to your products, so the moulds cost will be on your account, of course the moulds belong to you.
