Shenzhen Factory Security Access Road Control Product Affordable Car Parking Controller Electronic AC Motor Boom Barrier Gate
AC or DC boom barrier
Product Description
Thank you for purchasing the 2nd generation boom barrier gate from Elefine. This product adopts the latest mold design technology, mold die-casting manufacturing technology, AC control speed technology, and can be quickly interchanged, noclutch design, more reliable quality and more convenient use. The movement adopts two-stage worm gear transmission and curved crank arm three-link structure, and the landing rod is fast and stable. Easy maintenance and long service life.
You can't adjust the speed of this device. If the power goes out, you may lift the lever by hand.
Features:
1.The running speed can be adjusted from 3s to 6s
2.Can be quickly interchanged
3.Open the barrier gate by motor wheel when power off, automatically reset after power on
4.Curved crank arm three-link movement structure, the operation is stable.
5.Wireless remote control control open/close
6.Auto reverse function (force adjustable)
7.Infrared photocells connector is available
8.Loop detector connector is available.
9.Well-integrated with car parking system equipment,with wire control(must be switch signal)
10.Connector for traffic light (AC220V, power less than 120W)
11.Offering dry contact signal for car parking system (COM, NC, NO) 12 Auto-delay when closing(adjustable)
13.RS485 or CAN network communication interface (no need to install module)
14.Counting interface
15.24V backup battery interface (can be charged by using solar energy)
Technical parameters
1.Working temperature (motor): -35℃~+85℃
2.Rated voltage: DC24 V
3.Running speed: 3s~6 s
4.Rated current: 8.58A
5.Rated power: 140W
6.No-load speed: 1850 RPM
7.Rated speed: 1400 RPM
8.Output Power: 56.8 N.M
9.Relative humidity: ≤90%
10.Remote control distance: ≤100M (in the open place)
11.IP Degree: IP44
12.Max length of arm: 6M
Features:
1.The running speed can be adjusted from 3s to 6s
2.Can be quickly interchanged
3.Open the barrier gate by motor wheel when power off, automatically reset after power on
4.Curved crank arm three-link movement structure, the operation is stable.
5.Wireless remote control control open/close
6.Auto reverse function (force adjustable)
7.Infrared photocells connector is available
8.Loop detector connector is available.
9.Well-integrated with car parking system equipment,with wire control(must be switch signal)
10.Connector for traffic light (AC220V, power less than 120W)
11.Offering dry contact signal for car parking system (COM, NC, NO) 12 Auto-delay when closing(adjustable)
13.RS485 or CAN network communication interface (no need to install module)
14.Counting interface
15.24V backup battery interface (can be charged by using solar energy)
Technical parameters
1.Working temperature (motor): -35℃~+85℃
2.Rated voltage: DC24 V
3.Running speed: 3s~6 s
4.Rated current: 8.58A
5.Rated power: 140W
6.No-load speed: 1850 RPM
7.Rated speed: 1400 RPM
8.Output Power: 56.8 N.M
9.Relative humidity: ≤90%
10.Remote control distance: ≤100M (in the open place)
11.IP Degree: IP44
12.Max length of arm: 6M
Specification
Item | Value |
Product name | Boom Barrier Gate System High Speed Drop Arm Barrier Gate with Fence Arm for Car Parking Management |
Size | 325*280*935mm |
Brand Name | Elefine |
Packing | Carton+wooden Box |
Certificate | CE Approved |
Application | High way or boom barrier |
Color | Yellow, orange, black, red, grey or customized |
Usage | For security access control |
Feature | High speed boom barrier |
Arm type | Straight arm or customized |
Arm length | 1m ~ 6m |
Warranty | 12 months |
Detailed Product Description:
1.Humanized clutch
1.Humanized clutch
2.Electronic limit switch
3.Automatic backtrack
4.Water-proof housing
Functions & Features:
1) Manual release
Functions & Features:
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3)
Die-casting aluminum alloy motor, precision and good at thermal radiating
Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of
heat-protection
heat-protection
5) Double safety limit switches (photo-electricity limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
If you are interested in this product, or you are a local agent, you can contact the seller, we can use the best way to shipping it, thank you!
Technical Data:

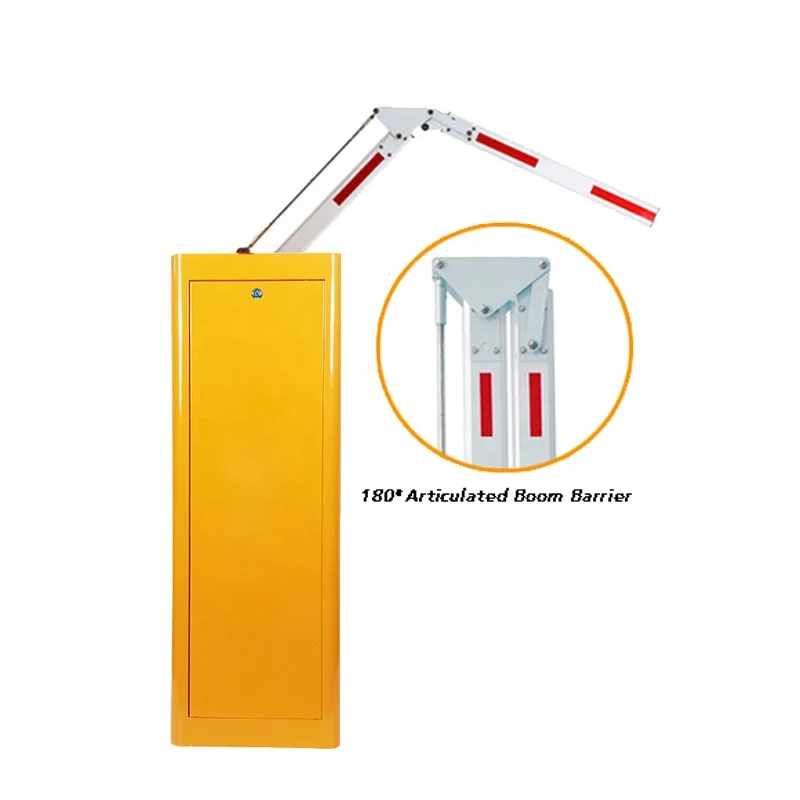

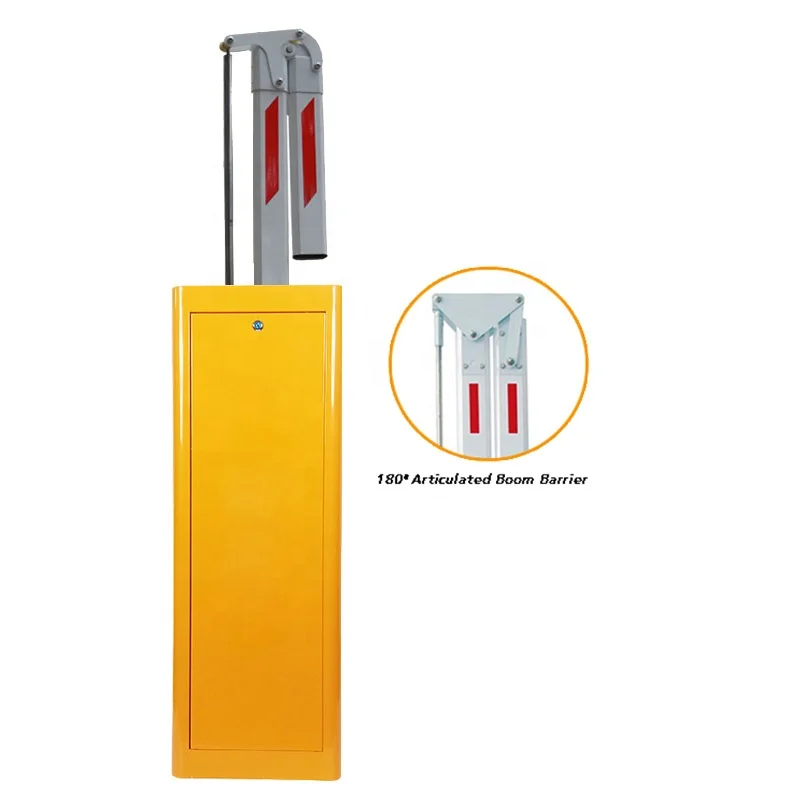

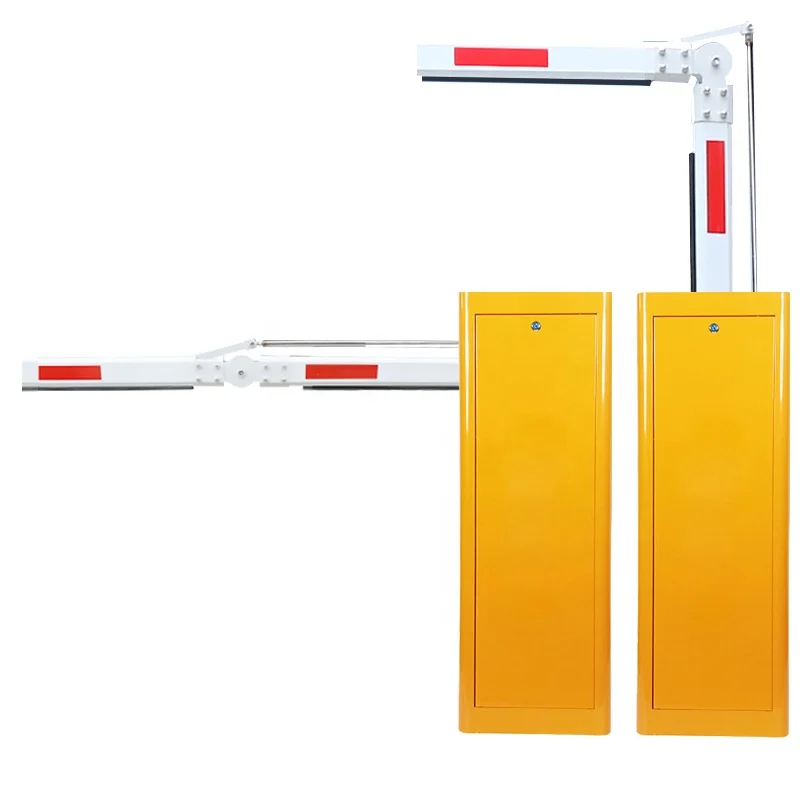

1.Boom type: straight, 90°,180° Optional
Technical Data:
1.Boom type: straight, 90°,180° Optional
2.Running time: 3s, 6s
3.Max Boom length: 3m, 4.5m, 5m, 6m
4.Boom dimension 325*280*935mm
5.Boom weight: 2 - 5 kg
6.Machine core working temperature: -35 °C ~ +85°C
7.Electric cabinet working
temperature: -40°C ~ +75°C
temperature: -40°C ~ +75°C
8.Rating voltage: 220/ 110V±10%, 50/ 60Hz
9.Rating power: 100W
10.Relative humidity: ≤90%
11.Remote control distance: ≥30m
12.Net weight: 65kg
13.Frequency: 418mhz Welding use
14.Protection grade: IP44
Applications:
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
High Speed Traffic Boom Barrier Gate for High Way
Good Quality High Standard Fast Speed Traffic Access Control Red Green Light Boom Barrier Road Gate for High Way and Parking Lot
Packing & Delivery
Company Profile
Shenzhen Elefine Technology Co., Ltd. was founded in 2010, our company produces boom barriers, turnstiles, parking systems, face recognition terminals, parking locks, bollards, reflective vests, cameras and solar road lights. Now our factory covers an area of 3,000 square meters and currently employs more than 100 people, including 20 senior and mid-level engineers and technicians. We have 7 production lines and goods are exporting worldwide and has a good reputation. Shenzhen Elefine intelligent Technology Co., Ltd. has developed into a set of production, management, research and service in one group of key enterprises, is always adhere to the "people-oriented, innovative development" business philosophy, the pursuit of scientific and technological progress.
