Product Description

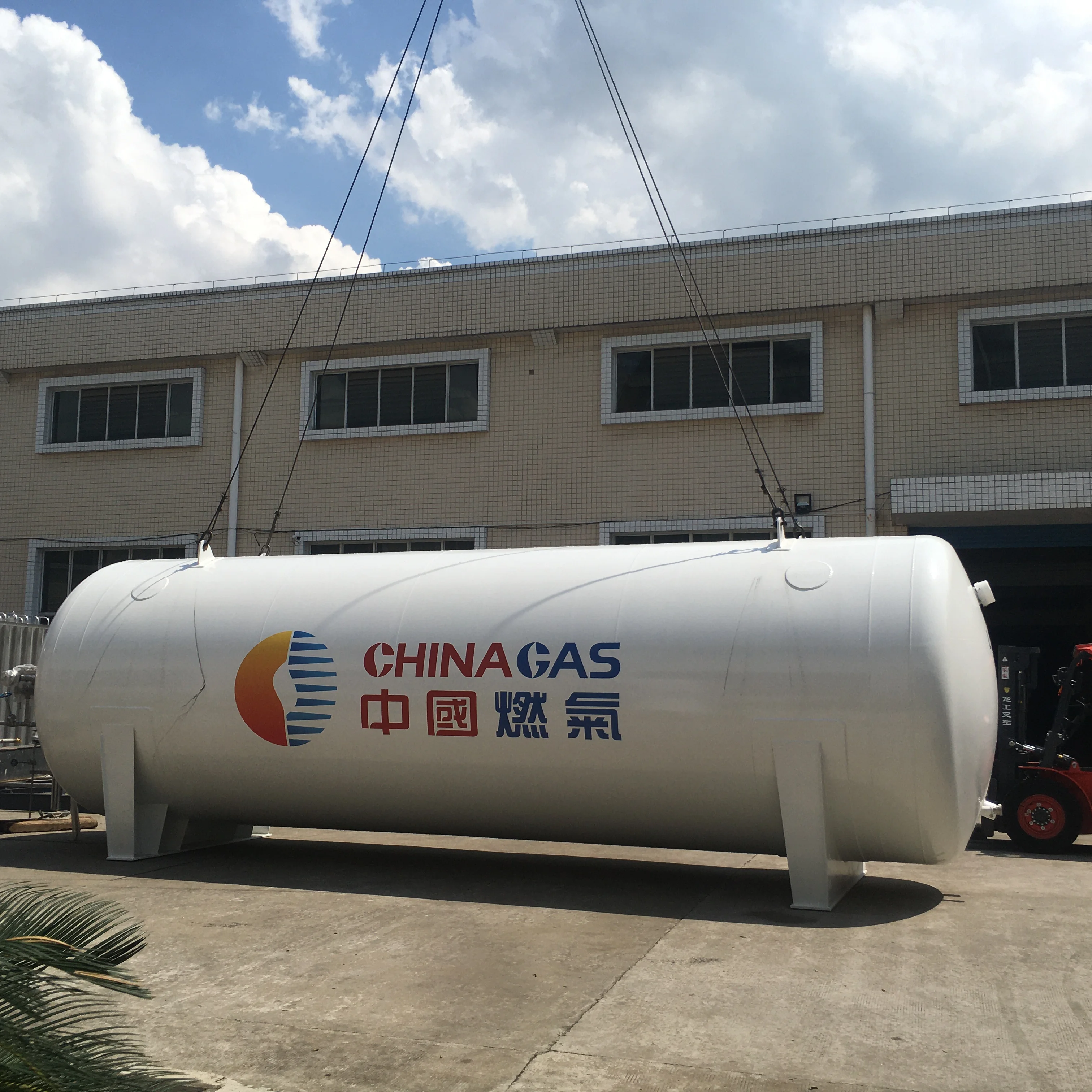

Vacuum cryogenic liquid storage tank is a common and advanced equipment for cryogenic liquid long-term storagen.It has the advantages of compact structure ,small area ,large storage capacity ,adjustable pressure , low evaporation rate, high safety and reliability . It is widely used in the storage of liquid oxygen ,liquid nitrogen,liquid argon,liquid carbon dioxide,ethylene and liquefied natural ges (LNG). Storage tank adopts double-layaer shell structure, with interlayer insulation material and vacuum ,mainly composed of inner and outer shell, insulation structure ,pipeline system and safety accessories.
Product Paramenters
Main Technical Parameters of Cryogenic Storage Tank for LOX,LIN,Lar | ||||||||||||
Model | Working pressure(Mpa) | Insulation Mode | Extemal Dimensions（mm） | Full-Load Weight (KGS) | ||||||||
LOX | LIN | Lar | ||||||||||
CDL-5/0.8、1.6 | 0.8/1.6 | Multilayer vacuum | DN1900x3700 | 9200 | 7550 | 10550 | ||||||
CDL-10/0.8、1.6 | 0.8/1.6 | Multilayer vacuum | DN2100x7200 | 16840 | 13540 | 19540 | ||||||
CDL-15/0.8、1.6 | 0.8/1.6 | Multilayer vacuum | DN2400x6500 | 24270 | 19320 | 28320 | ||||||
CDL-20/0.8、1.6 | 0.8/1.6 | Multilayer vacuum | DN2400x8100 | 31590 | 24990 | 36990 | ||||||
CDL-30/0.8、1.6 | 0.8/1.6 | Multilayer vacuum | DN2400x11100 | 46315 | 34615 | 54415 | ||||||
CDL-50/0.8、1.6 | 0.8/1.6 | Multilayer vacuum | DN2400x12800 | 76995 | 60495 | 90495 | ||||||
CDL-100/0.8、1.6 | 0.8/1.6 | Multilayer vacuum | DN2400x17300 | 150910 | 117910 | 177910 | ||||||
CDL-150/0.8、1.6 | 0.8/1.6 | Multilayer vacuum | DN2400x23300 | 231000 | 181500 | 271500 | ||||||
Main Technical Parameters of Cryogenic Storage Tank for LCO2 | ||||||||
Model | Working pressure(Mpa) | Insulation Mode | Extemal Dimensions（mm） | Full-Load Weight (KGS) | ||||
CDL-5/2.2 | 2.2 | Multilayer vacuum | DN2050x4100 | 9275 | ||||
CDL-10/2.2 | 2.2 | Multilayer vacuum | DN2050x6300 | 16995 | ||||
CDL-15/2.2 | 2.2 | Multilayer vacuum | DN2350x6800 | 24600 | ||||
CDL-20/2.2 | 2.2 | Multilayer vacuum | DN2350x8400 | 31905 | ||||
CDL-30/2.2 | 2.2 | Multilayer vacuum | DN2350x11600 | 46435 | ||||
CDL-50/2.2 | 2.2 | Multilayer vacuum | DN2850x12200 | 79115 | ||||
CDL-100/2.2 | 2.2 | Multilayer vacuum | DN3400x15800 | 156000 | ||||
CDL-150/2.2 | 2.2 | Multilayer vacuum | DN3700x19200 | 192000 | ||||

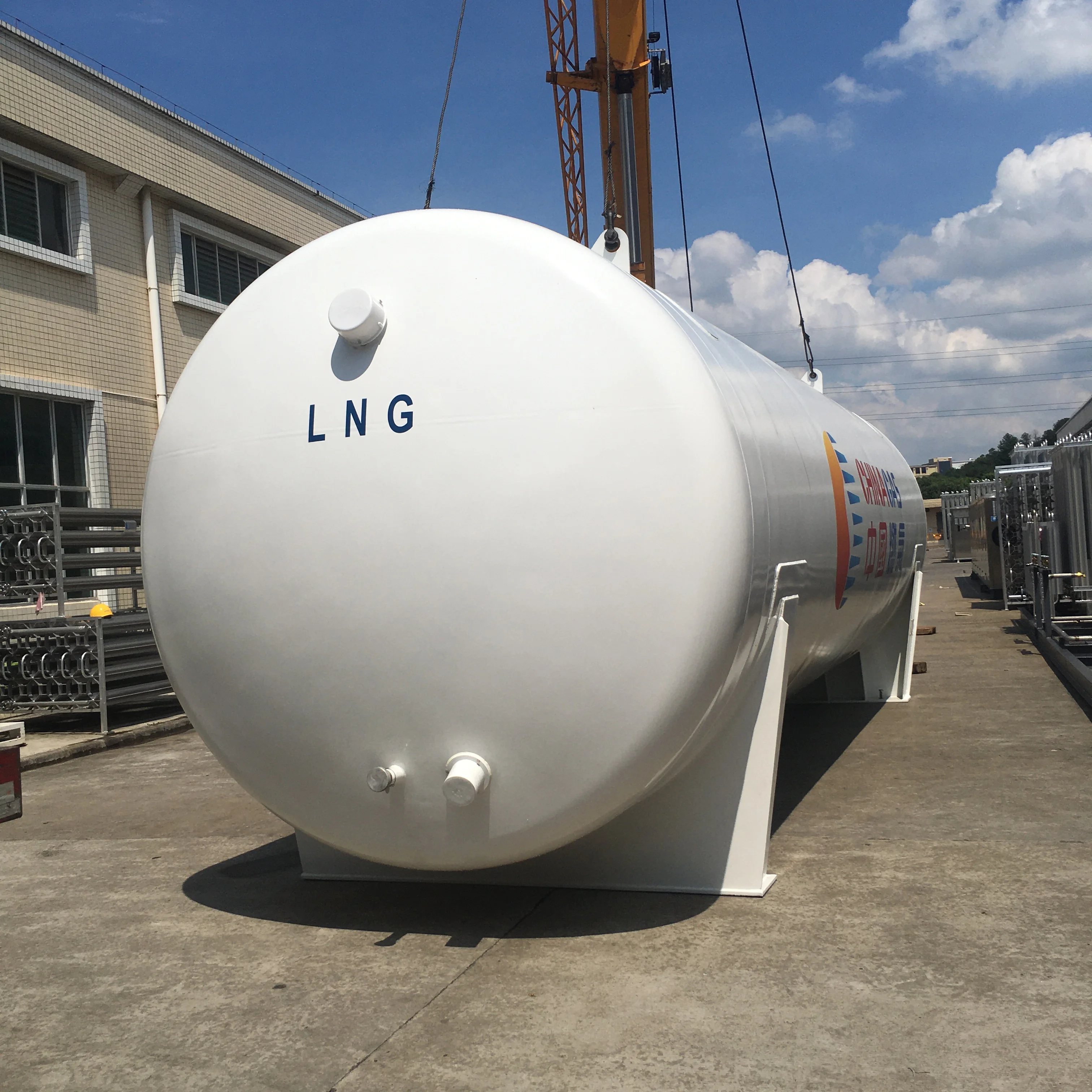

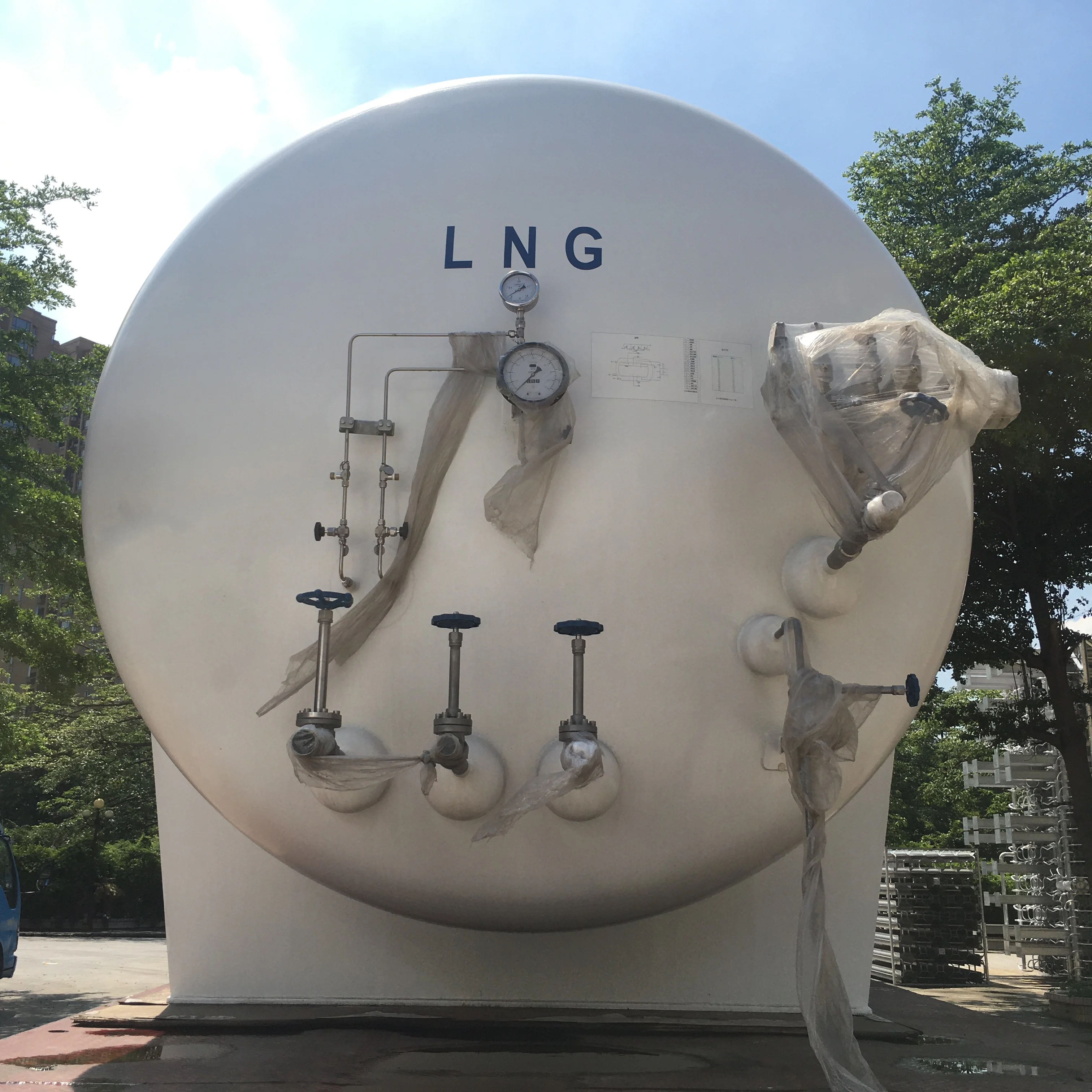

Main Technical Parameters of Cryogenic Storage Tank for LNG | ||||||||
Model | Working pressure(Mpa) | Insulation Mode | Extemal Dimensions（mm） | Full-Load Weight (KGS) | ||||
CDL-20/0.8 | 0.8 | Multilayer vacuum | DN2300x8100 | 16000 | ||||
CDL-30/0.8 | 0.8 | Multilayer vacuum | DN2400x11100 | 23000 | ||||
CDL-60/0.8 | 0.8 | Multilayer vacuum | DN3000x115100 | 36000 | ||||
CDL-100/0.8 | 0.8 | Multilayer vacuum | DN3300x17200 | 82000 | ||||
CDL-150/0.8 | 0.8 | Multilayer vacuum | DN3300x22500 | 120000 | ||||
Flow Chart
Details Images
Metal Sheet Rolling
Inner Tank Longitudinal and girth welding
Non-detecitive testing
Air tightness testing
Vacuumization
Nozzles Assemnling
Pipeline Testing and nitrogen purge
Sea-Climate withstands painting
Finish product Inspection
Project Install Case

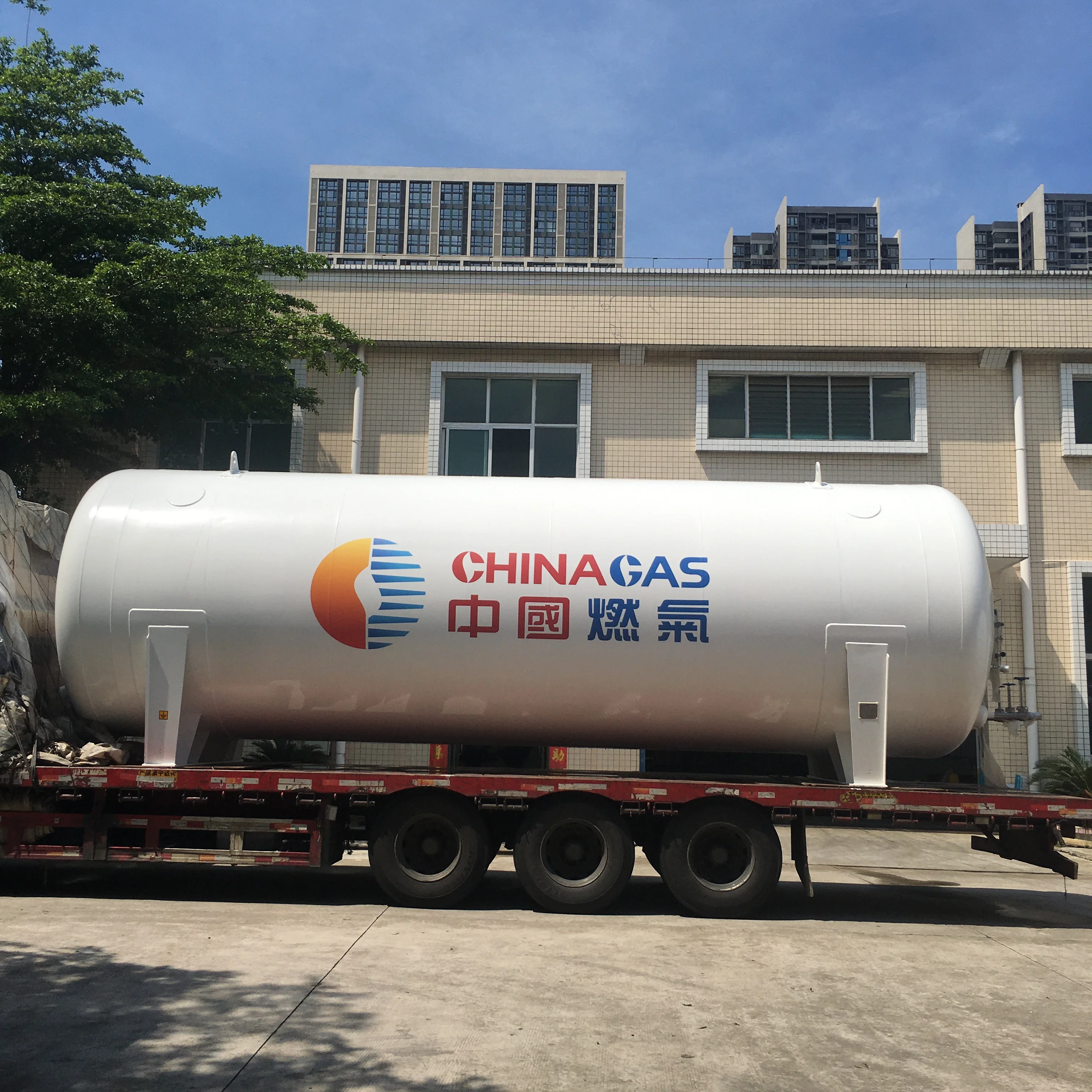

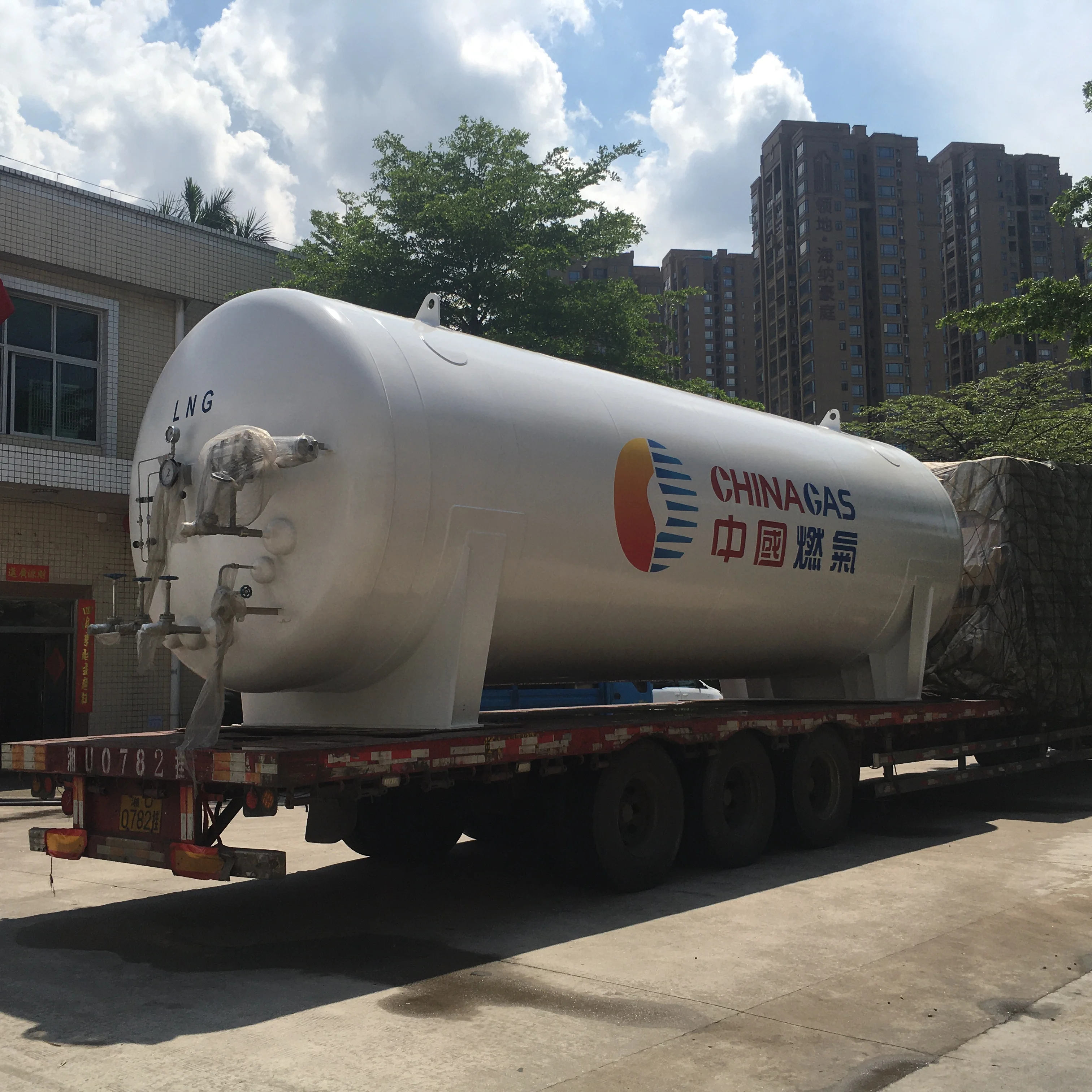

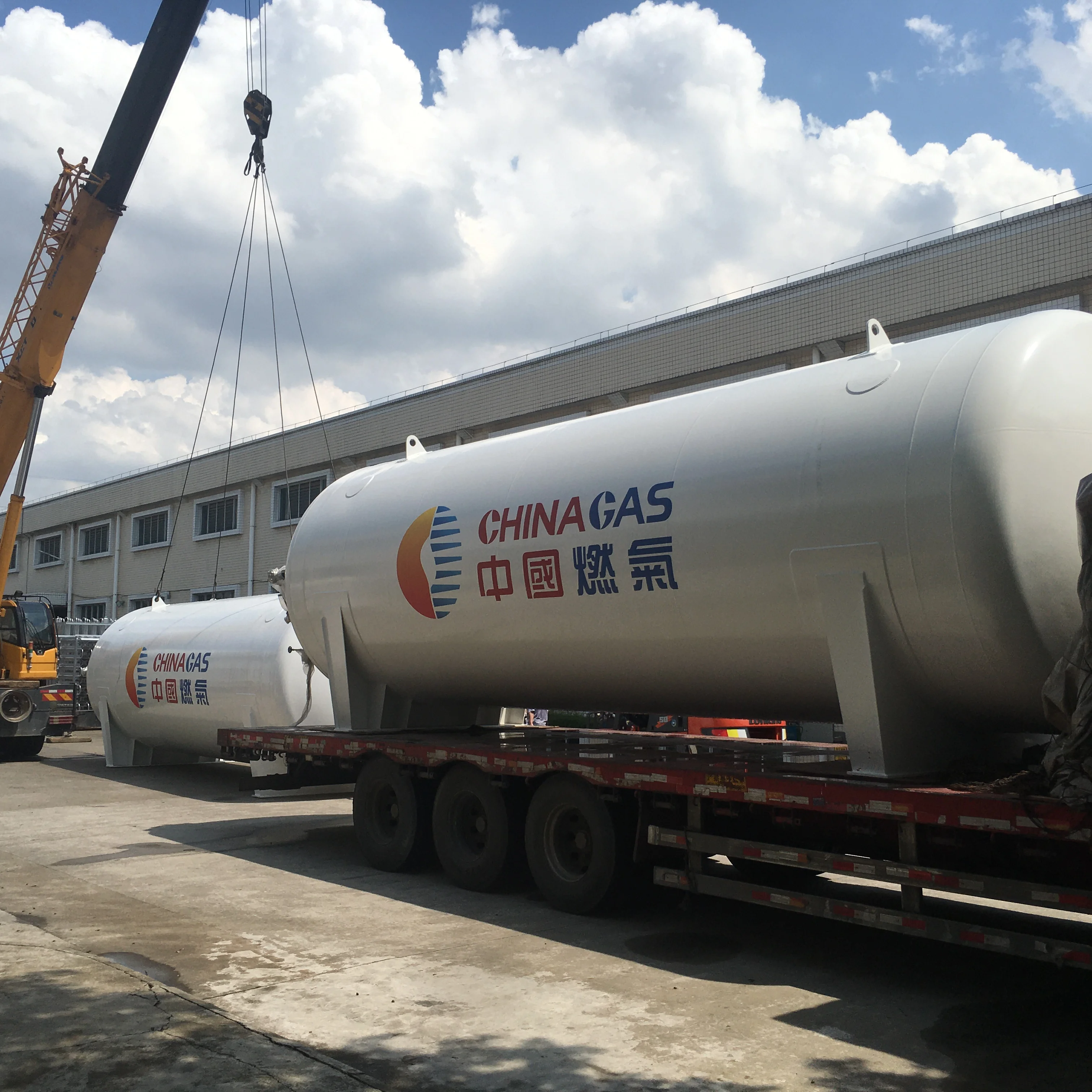

Packing &Shipping
Why Choose Us
Our Trade Show
