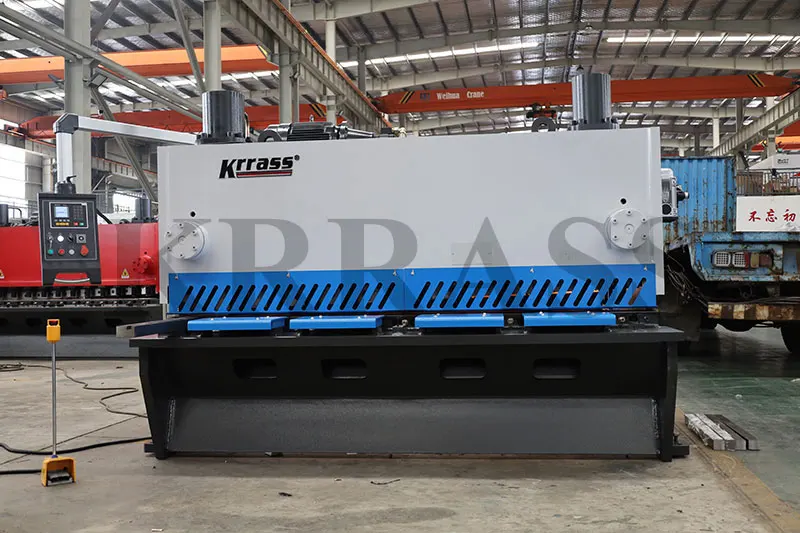

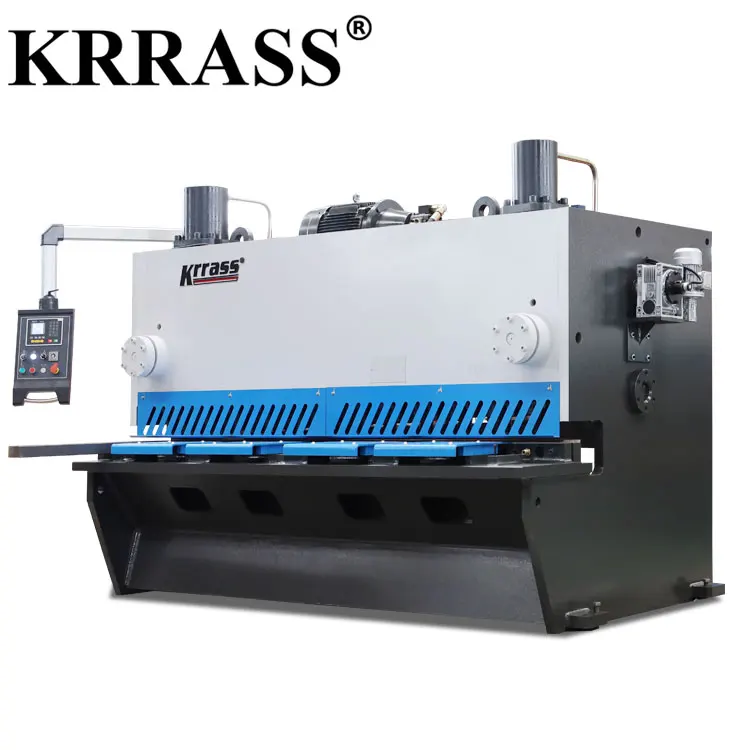

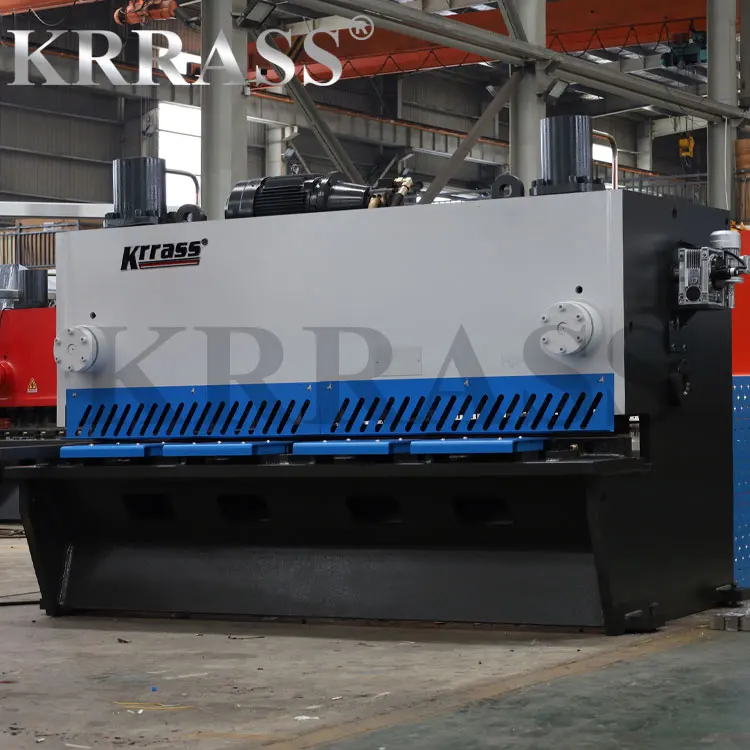

QC11K-4X1600 гидравлические гильотинные ножницы с ЧПУ машина для резки 4 мм из углеродистой стали

Описание и отзывы

Характеристики

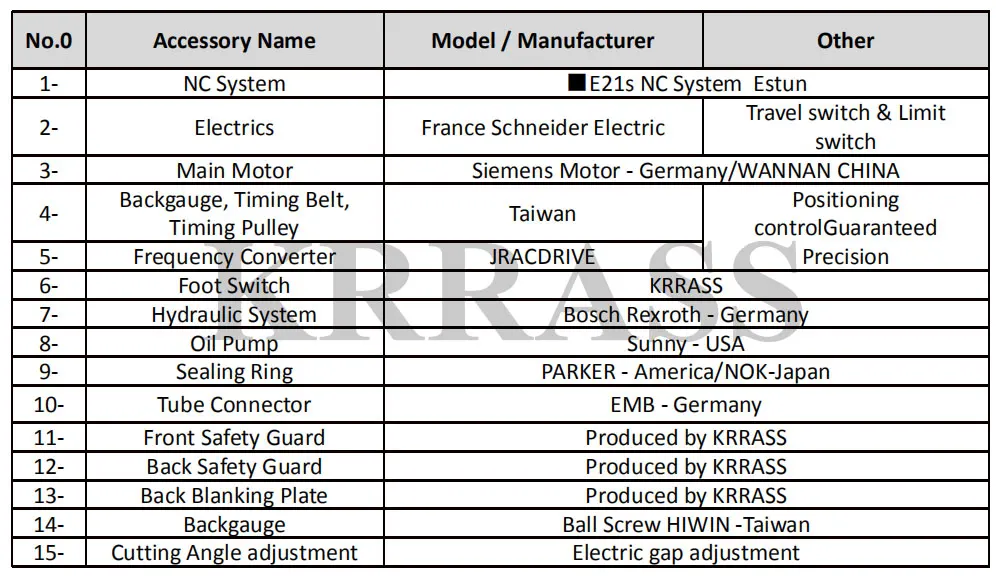

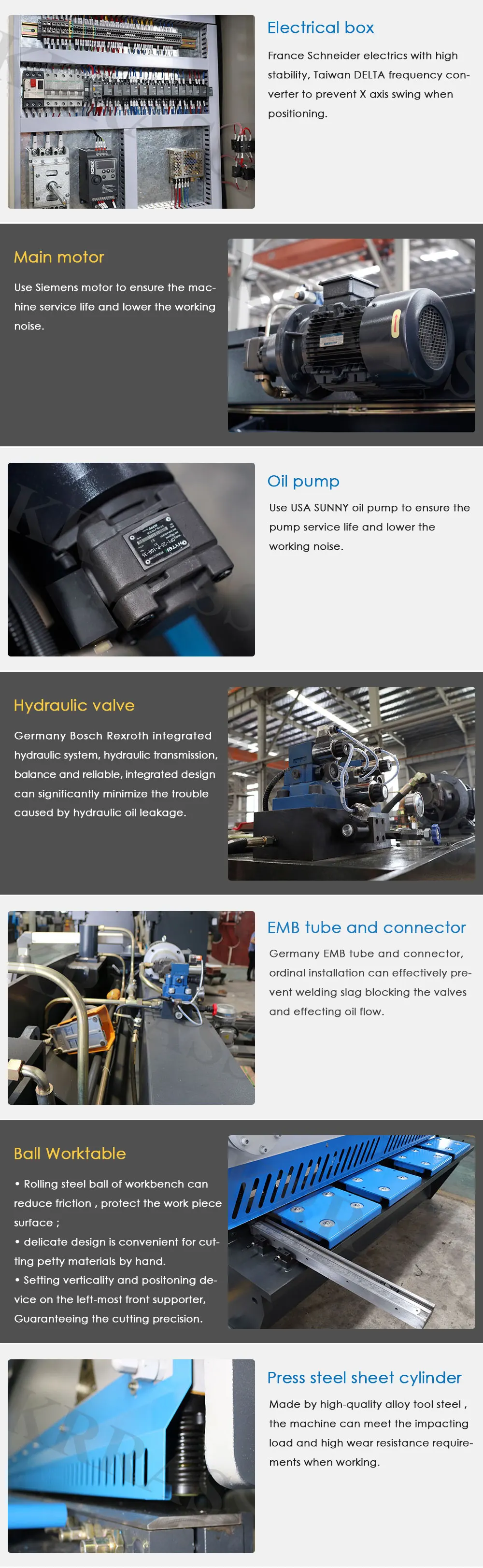

1. Standard Equipment:

• Estun E21s CNC control system


• Backgauge X-axis electric control


• Chint converter controller


• Using HIWIN ball screw and bar ensures the accuracy within 0.05mm


• Controller cantilever and front supporter


• Germany Bosch Rexroth integrated hydraulic valve


• Germany EMB tube connector


• Germany's Siemens main motor


• Germany Schneider electrics


• Hydraulic and electrical overload protection


• Light aligning

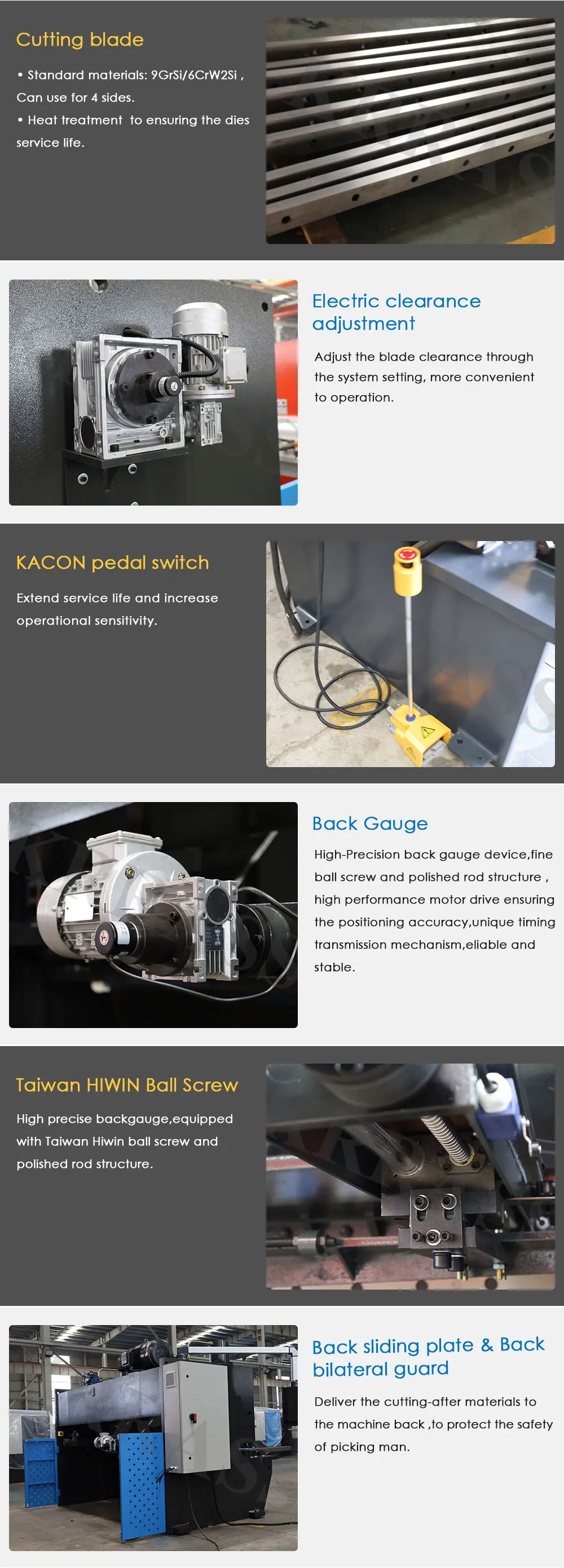

• Blade materials (6CrW2Si)


• South Korea KACON foot switch


• Angle regulator


• Electric rearrange the cutting clearance

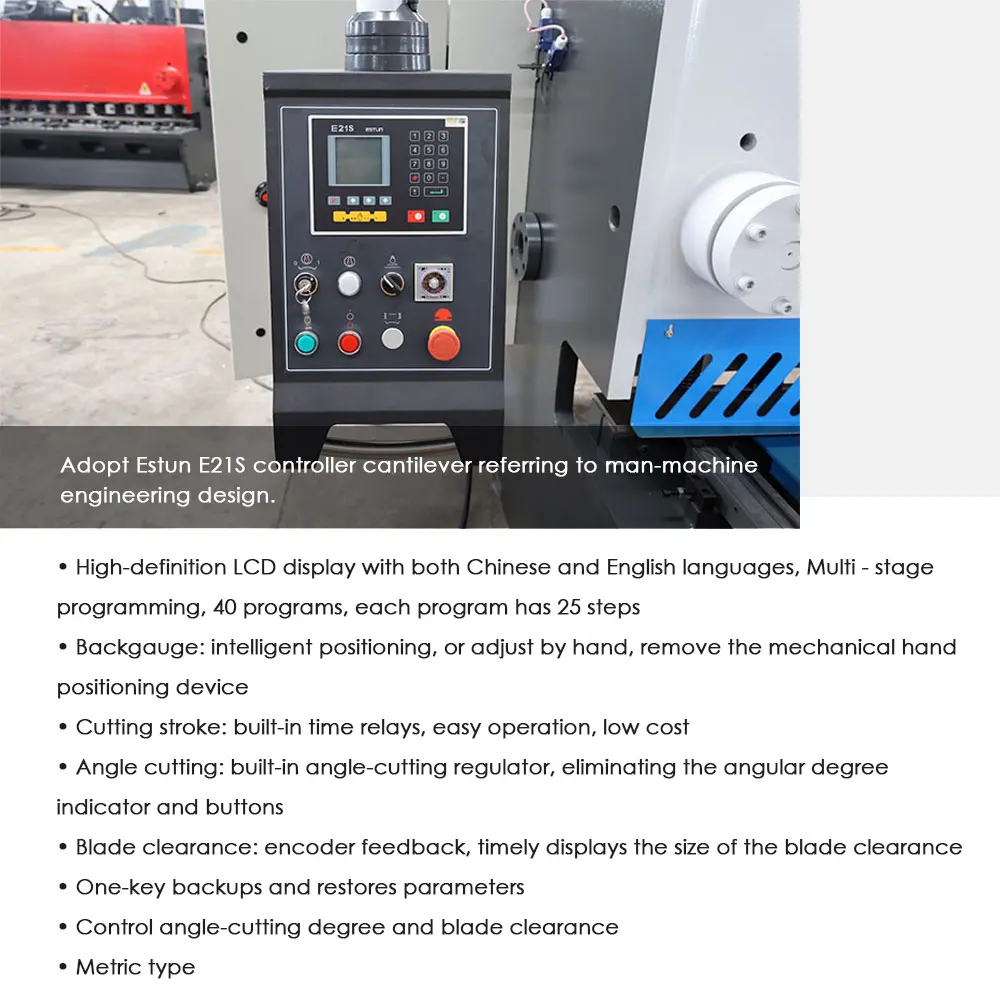

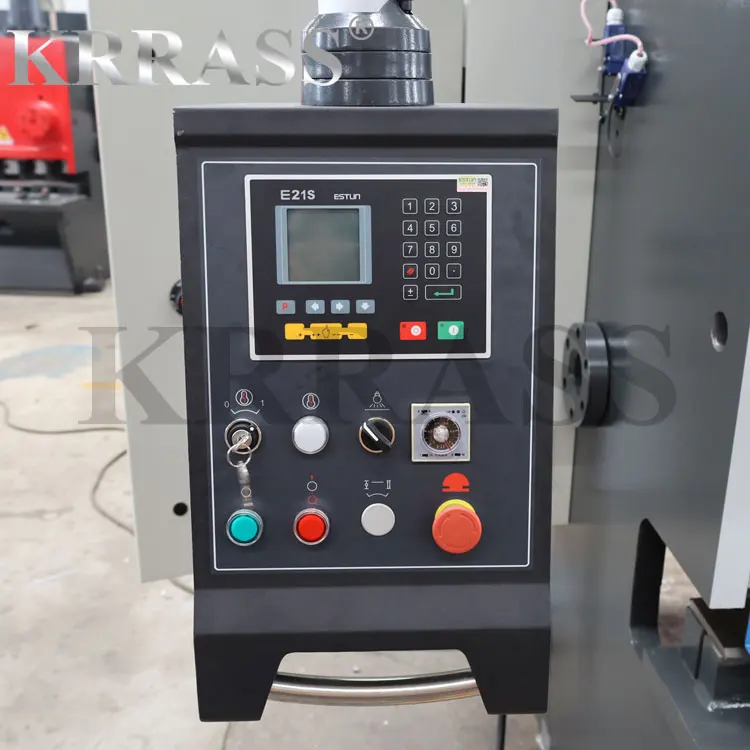

2. Estun E21s NC Control system:

•

  High-definition LCD display with both Chinese and English languages, Multi - stage programming, 40 programs, each program has 25 step




•

  Backgauge: intelligent positioning, or adjust by hand, remove the mechanical hand positioning device




•

  Cutting stroke: built-in time relays, easy operation, low cost




•

  Angle cutting: built-in angle-cutting regulator, eliminating the angular degree indicator and buttons




•

  Blade clearance: encoder feedback, timely displays the size of the blade clearance




•

  One-key backups and restores parameters




•

  Control angle-cutting degree and blade clearance




•

  Metric type



•

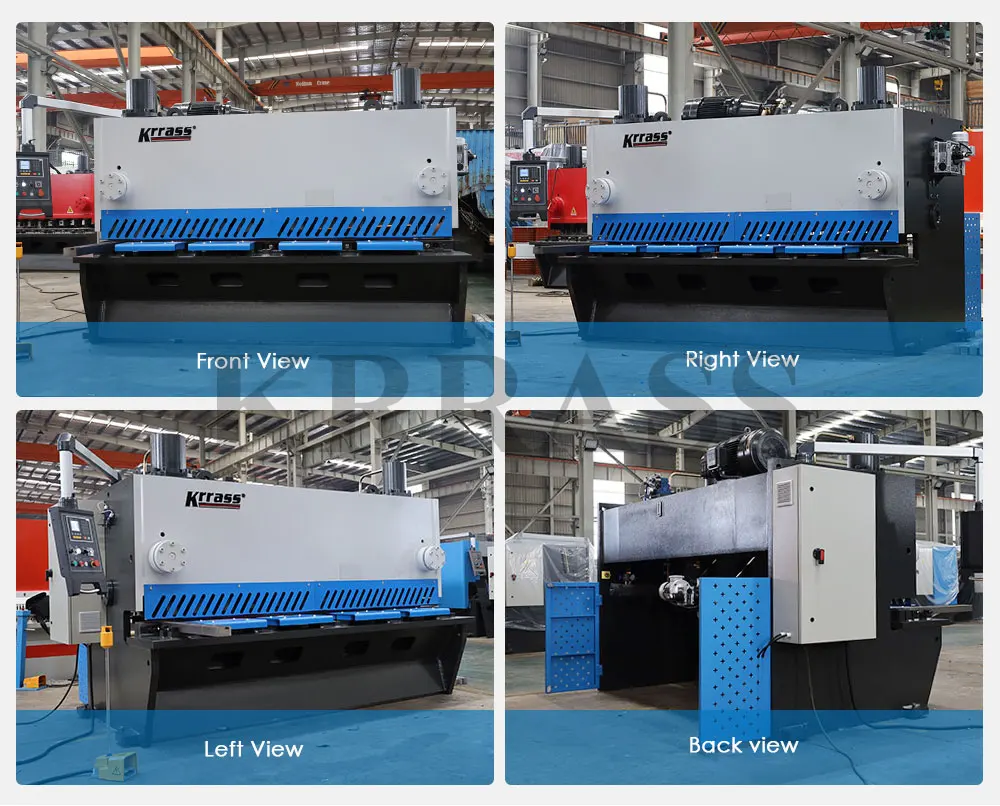

  Streamlined design originated from EU, the kind of machine tool consists of rack, cutter holder, oil cylinder, hydraulic controller,


  backgauge and other components. Finite-element analysis of main parts, welding parts uses tempering, vibration and other processing


  methods to eliminate stress ensuring the structural strength and rigidity of the rack and components;




•

  Cutter holder use three-point support rolling guide rail, reducing the friction to the greatest extent and realizing seamless rolling during


  cutter holder moving.




•

  Leftmost front holder configured with verticality regulator and front positioning device, easy operation and high efficiency;




•

  Simple and effective adjusting mechanism is used to rearrange blade clearance via CNC system, improving the cutting quality.




•

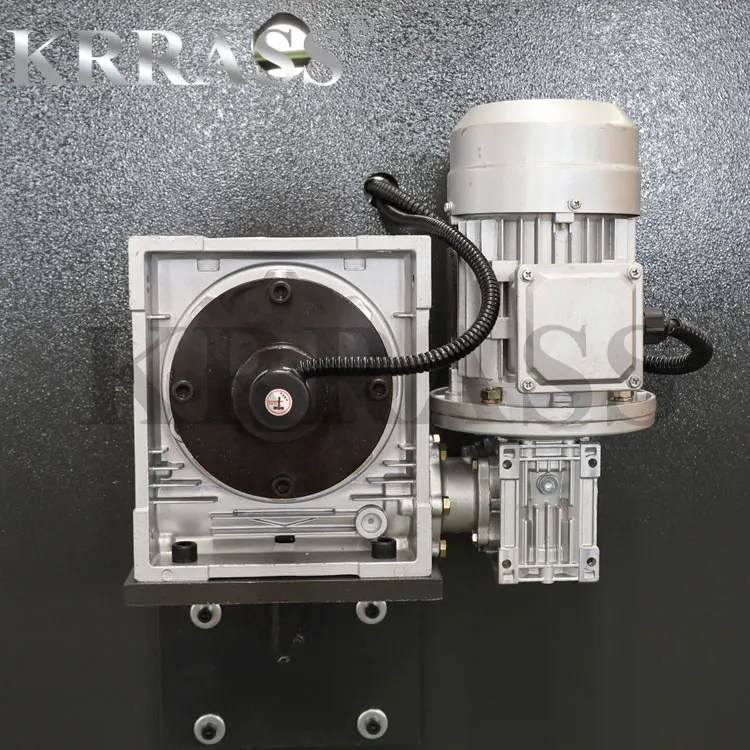

  Fine ball screw and bar structure, good-performance frequency converter is used to positioning X axis to ensure accuracy, unique


  designed timing transmission-mechanism, stable and reliable.




•

  Light and shadow line is conductive to manual scribing for cutting; stable and reliable hydraulic transmission, integrated hydraulic system is able to significantly alleviate problems causing by hydraulic fluid leakage.




•

  Made by high-quality alloy tool steel capable enough to against impact load and high wear resistance when cutting.




•

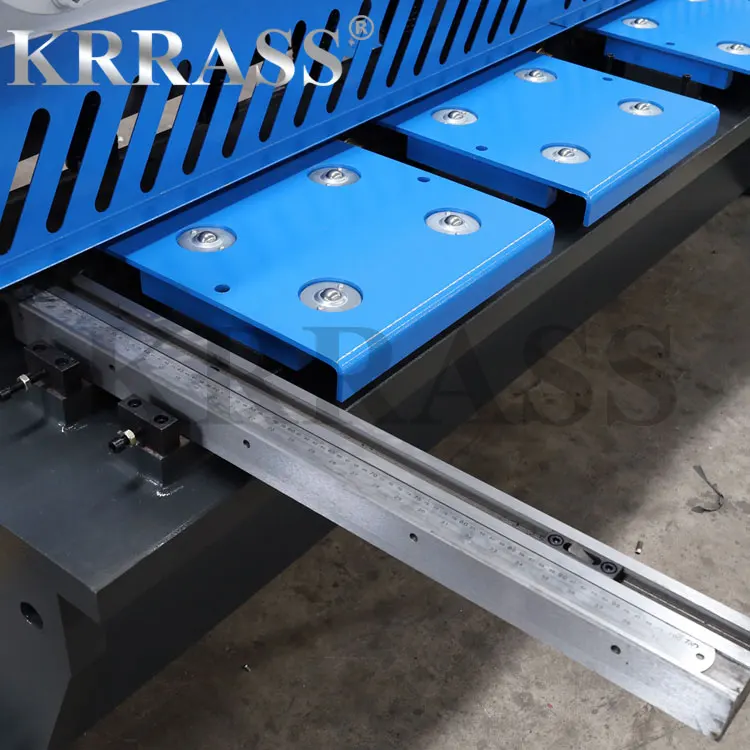

  With reference to ergonomic design, easy CNC system surface, improving the operation precision and comfort; rolling ball worktable to


  reduce friction and prevent work piece from scratching; novel and practical safety guard device, line with safety specification, protect the personal safety; delicate design, petty work piece can be done easily by hand.



 Q1: Why customer choose us?

A: Nanjing Krauss CNC Machinery Co., Ltd. (KRRASS) is a professional, serious and responsible sheet metal machinery manufacturer.
It is precisely because of this attitude that our business continues to grow.
Our factory is one of the largest and best in the local area. Our machines are of good quality and are sold to 92 countries around the world. They are well received by customers.Many customers have become our regular customers.

Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Maanshan,Anhui,China. Both OEM & ODM service can be accepted.

Q3: What's your delivery time?
A: Generally 25 to 35 days, if urgently order, pls contact our sales in advance.

Q4: How long is your machine warranty?
A: 2 years warranty for the main components, 10 years for the whole structure.

Q5: How long could your machine be used?
A: Generally, more than 10 years.

Q6: What's payment term?
A: T/T, L/C, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

Q7: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.

Q8: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable.
