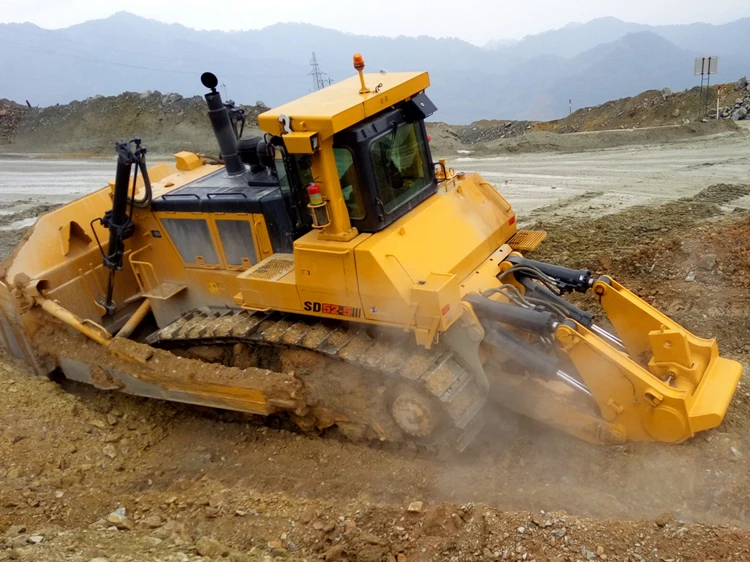

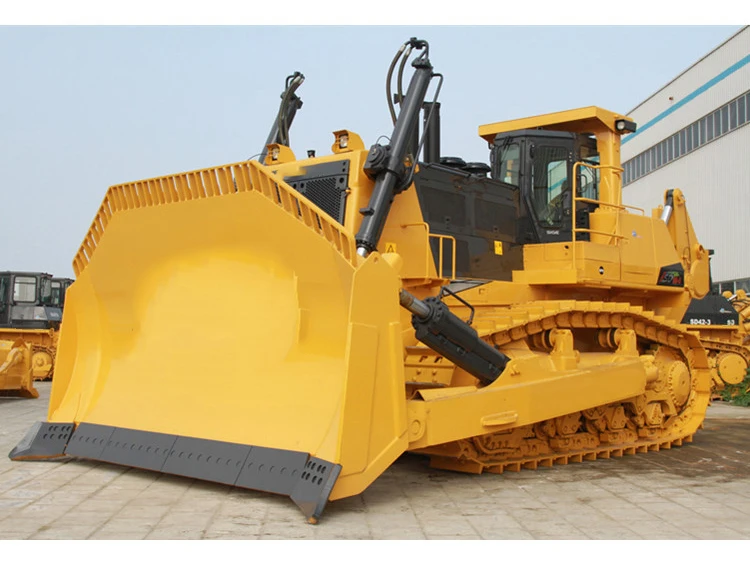

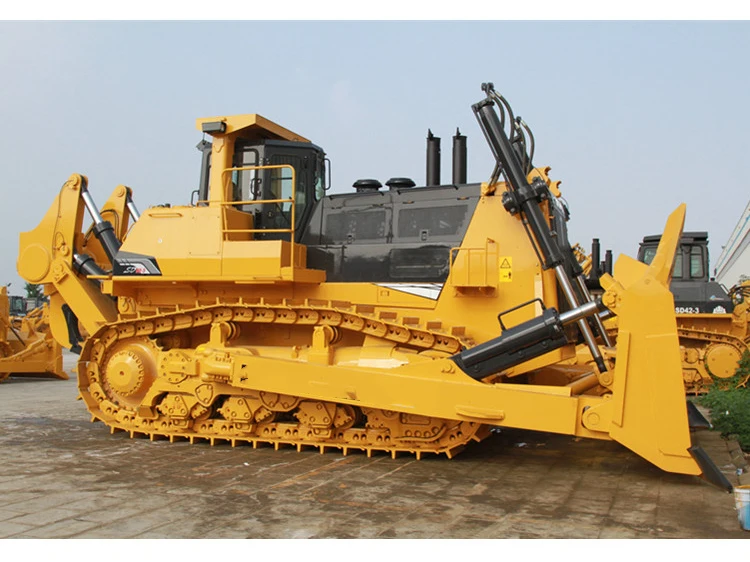

Shantui SD60-C5/SD90 сверхмощный гидравлический гусеничный бульдозер с запасными частями
- Категория товара: >>>
- Поставщик (Оптовый магазин): Maxizm,Construction,Machinery,(Qingdao),Co.,Ltd.Maxizm,Ltd.
Поделиться:
Описание и отзывы
Характеристики

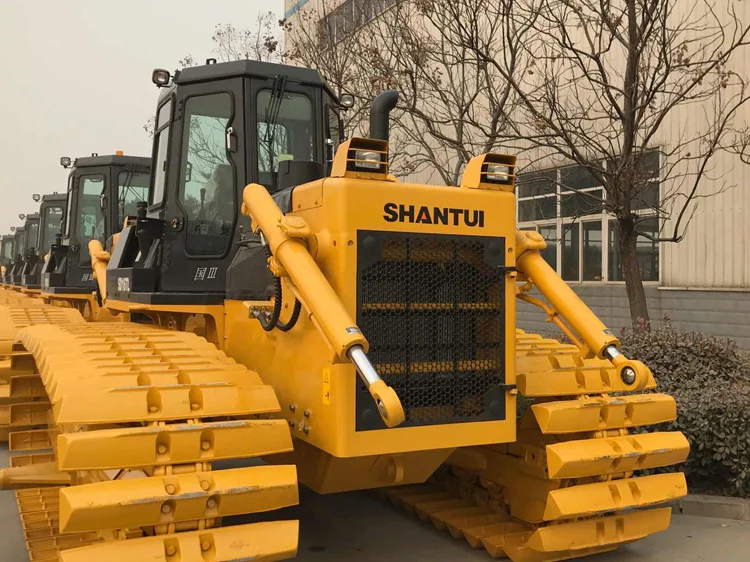

Competitive Price Shantui SD60-C5 Crawler Bulldozer In Stock
Contact way
Name: Hana Che
Phone: +86 17854169033
Company: Maxizm Construction Machinery (Qingdao) Co., Ltd.
Add: Suite 1811, Block A, Yihe International, No. 10 Hong Kong Middle Road, Qingdao, China.
Web: http://www.maxizm.com
Product Description
Power System
* The installed QSK19 electronic control engine features low fuel consumption, strong power, high reliability, and globalized trustworthy services.
* The engine is equipped with advanced modular common rail fuel system (MSRS) to meet the Euro-IIIA/China-III emission regulation.
* Cyclone intake system with double prefilter effectively prevents the earlier malfunctions of engine.
Modular design
* The hydraulic torque converter with locking function is applied to output the torque along with the variation of load, featuring powerful load adaptability (Hydraulic drive at low speed and mechanical drive at high speed) and high fuel economy (Fuel-saving by 10%~15%).
* The normally closed brake plays the parking brake function to effectively prevent the machine gliding on slopes and realize high safety.
* Not relying on the main frame, the final drive adopts modular design and can be assembled independently to ease the repairs.
| Parameter name | SD60-C5 Standard version |
| Performance parameters | |
| Operating weight (Kg) | 70630 |
| Ground pressure (kPa) | 130.2 |
| Engine | |
| Engine model | QSK19 |
| Rated power/rated speed (kW/rpm) | 450/1800 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 10390*4690*4370 |
| Driving performance | |
| Forward speed (km/h) | F1:0-3.8 F2:0-6.8 F3:0-11.8 |
| Reversing speed (km/h) | R1:0-5.1 R2:0-9.2 R3:0-15.8 |
| Chassis System | |
| Center distance of track (mm) | 2500 |
| Width of track shoes (mm) | 610 (Optional 710/810) |
| Ground length(mm) | 3840 |
| Tank capacity | |
| Fuel tank (L) | 1150 |
| Working device | |
| Blade type | Semi-U blade |
| Digging depth (mm) | 715 |
| Ripper type | Single-shank |
| Ripping depth (mm) | 1435 |
