Орбитальная труба с закрытой головкой, сварочный аппарат TIG, цена

1. The equipment is mainly used in electronics, instrument, pharmaceutical, food, engineering installation, military industry and other industries;

2. Suitable for thin-walled carbon steel, stainless steel, titanium alloy and other materials;

3. Welding tongs adopt fully closed and full position welding mode.

1. The main components are polymer insulating materials, aluminum alloy structure, light, compact and durable;

2. Fully enclosed design, the welding holder internal directional multi-channel gas protection is more sufficient, save the filling time, beautiful weld forming;

3. The whole body of the welding holder is water-cooled, and the temporary load rate is high. The welding holder can be used for a long time.

4. No tools, freehand quick fixture, quick installation and positioning, convenient;

5. The equipment itself is equipped with function button, suitable for field pipeline operation;

6. Single side welding and double side forming, stainless steel and other easily oxidized pipe fittings should be filled with protective gas;

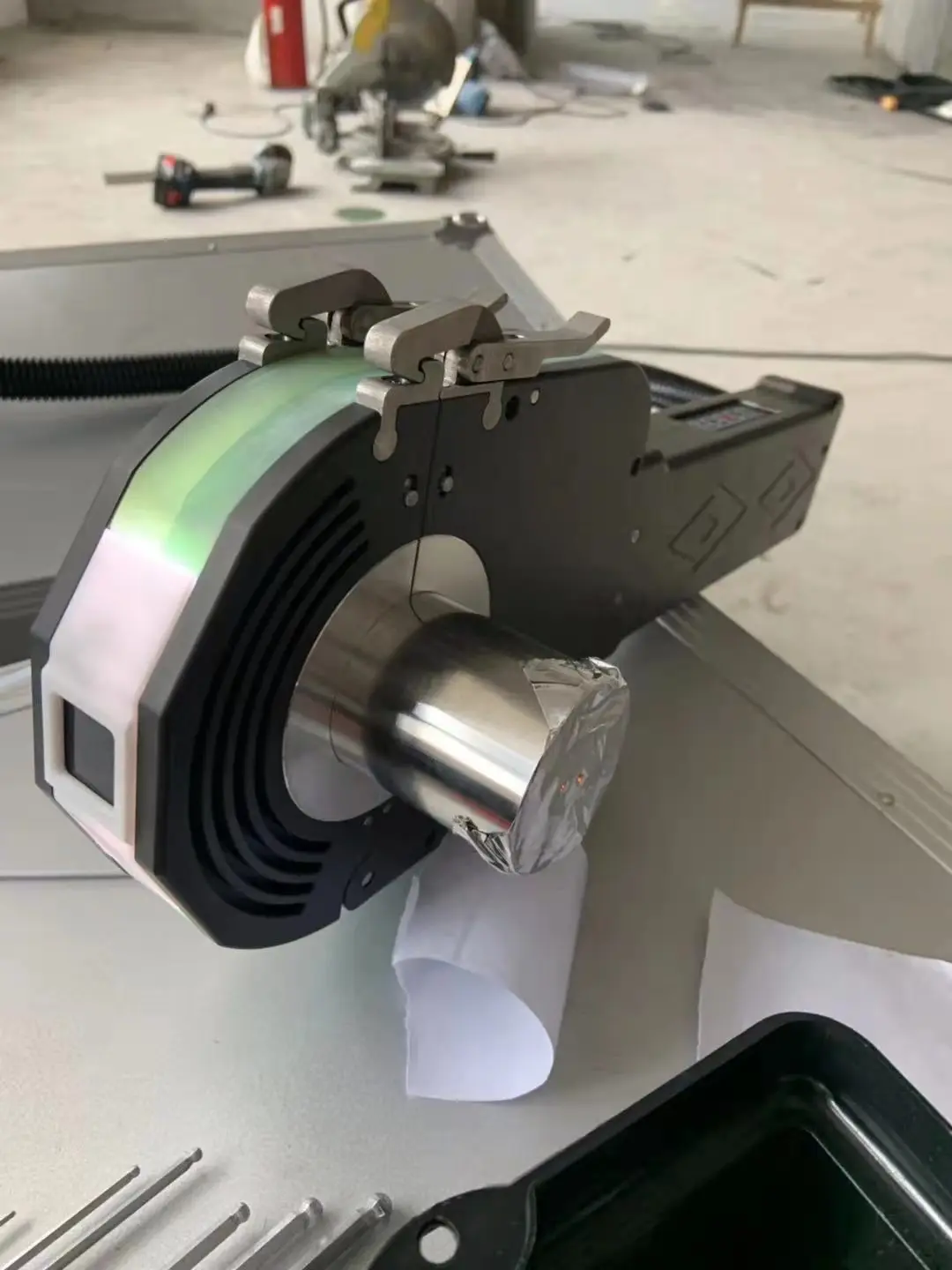

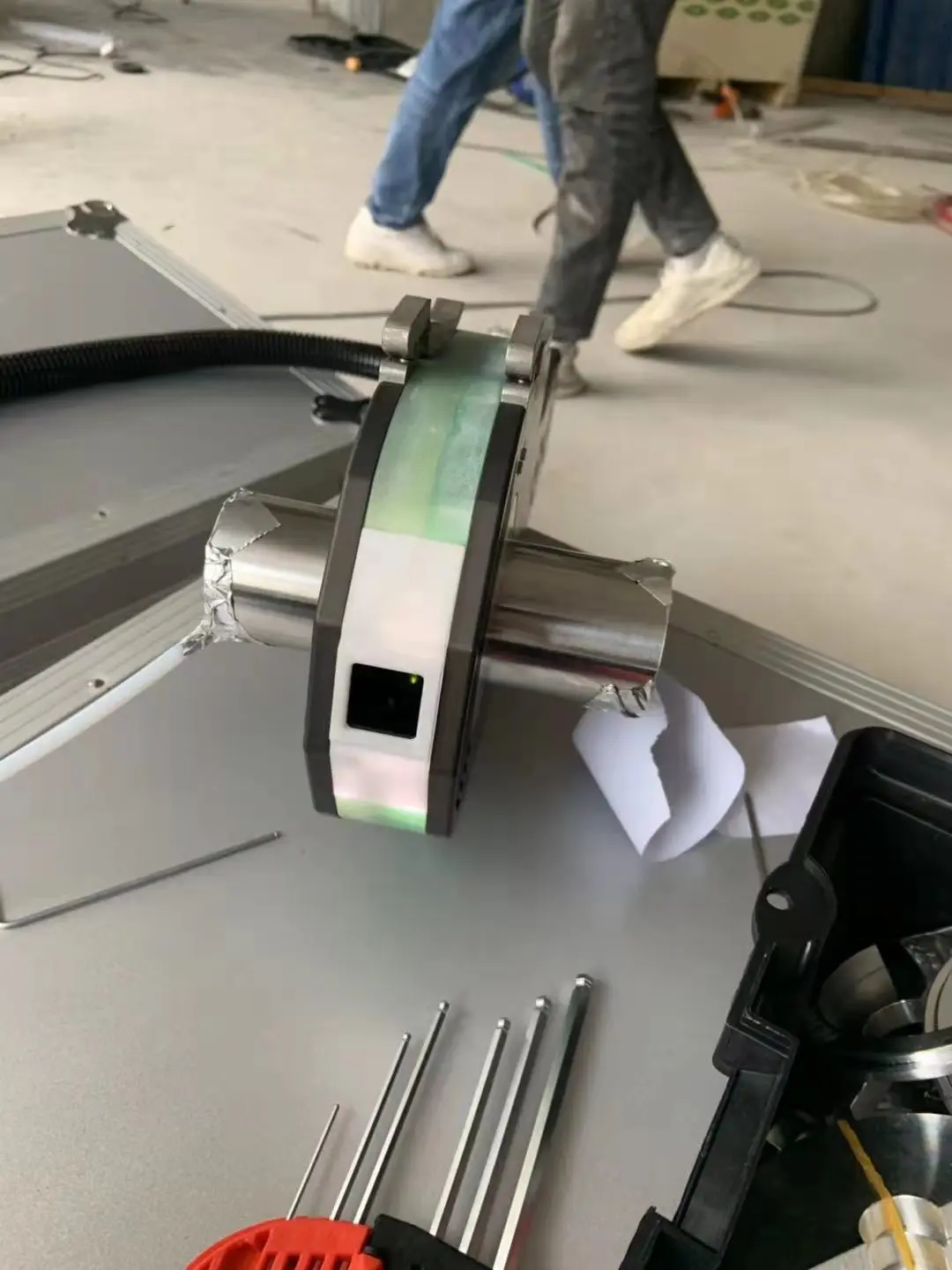

7. The welding head is fixed on the pipe fitting, and the welding tongs are welded in full position along the pipe fitting;

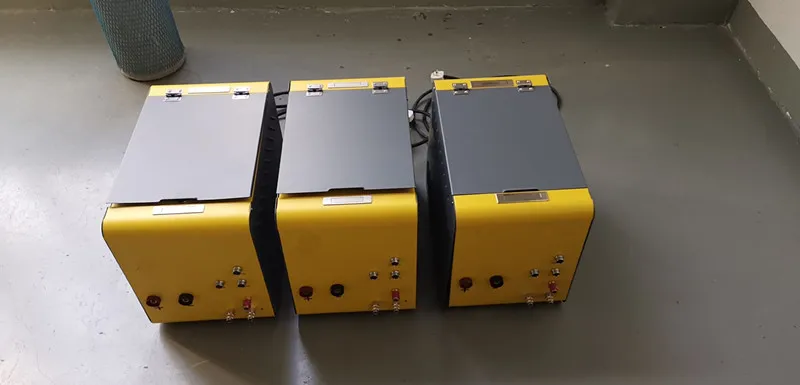

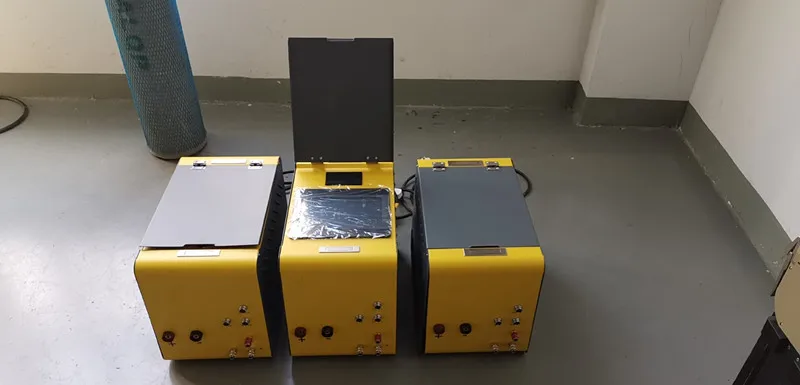

8. Set welding process parameters on the man-machine interface of integrated welding control power supply.

1.Welded pipe diameter: Φ19.05 mm - Φ76.2 mm;

2. Applicable wall thickness: 0.8mm-2.5mm;

 3. The tungsten electrode diameter: Φ2.4 mm;

4. Rotation speed of welding holder: 0.15rpm-4.5rpm;

 5. Welding mode: Rotating non-winding all-position welding mode, and equipped with automatic reset function;

6. Welding pipe fitting form: straight pipe, tee, elbow, chuck, reducer and other butt, no beveling, self-fusion welding;

7. Protective gas: Argon;

8. Cooling method: water circulation cooling;

9. Cooling water flow: 1000ml/min;

10. The handle of the welding holder is equipped with operation button, which is convenient for personnel to operate and improve work efficiency;

11. The welding holder is compatible with PWA-200 integrated control power supply;
