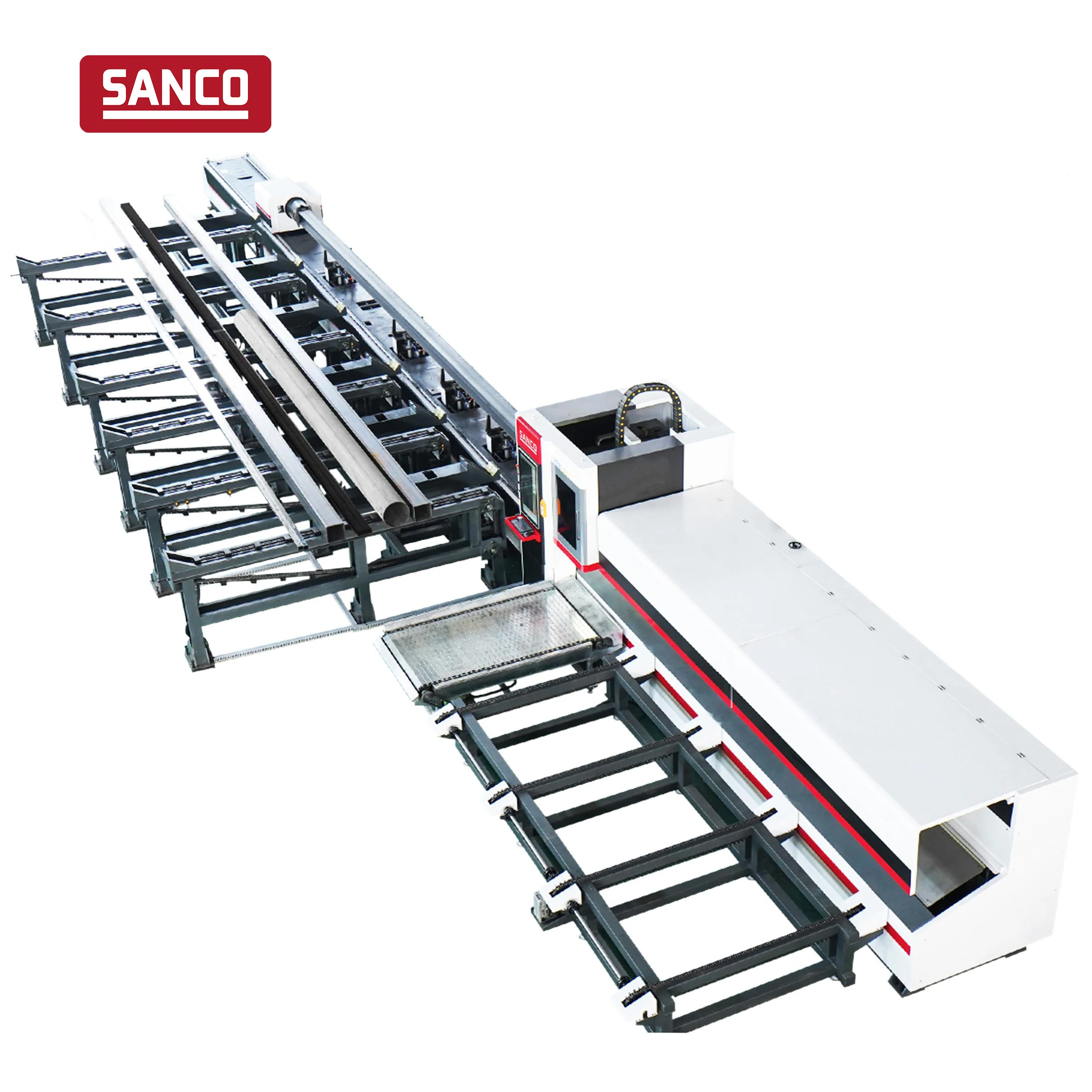

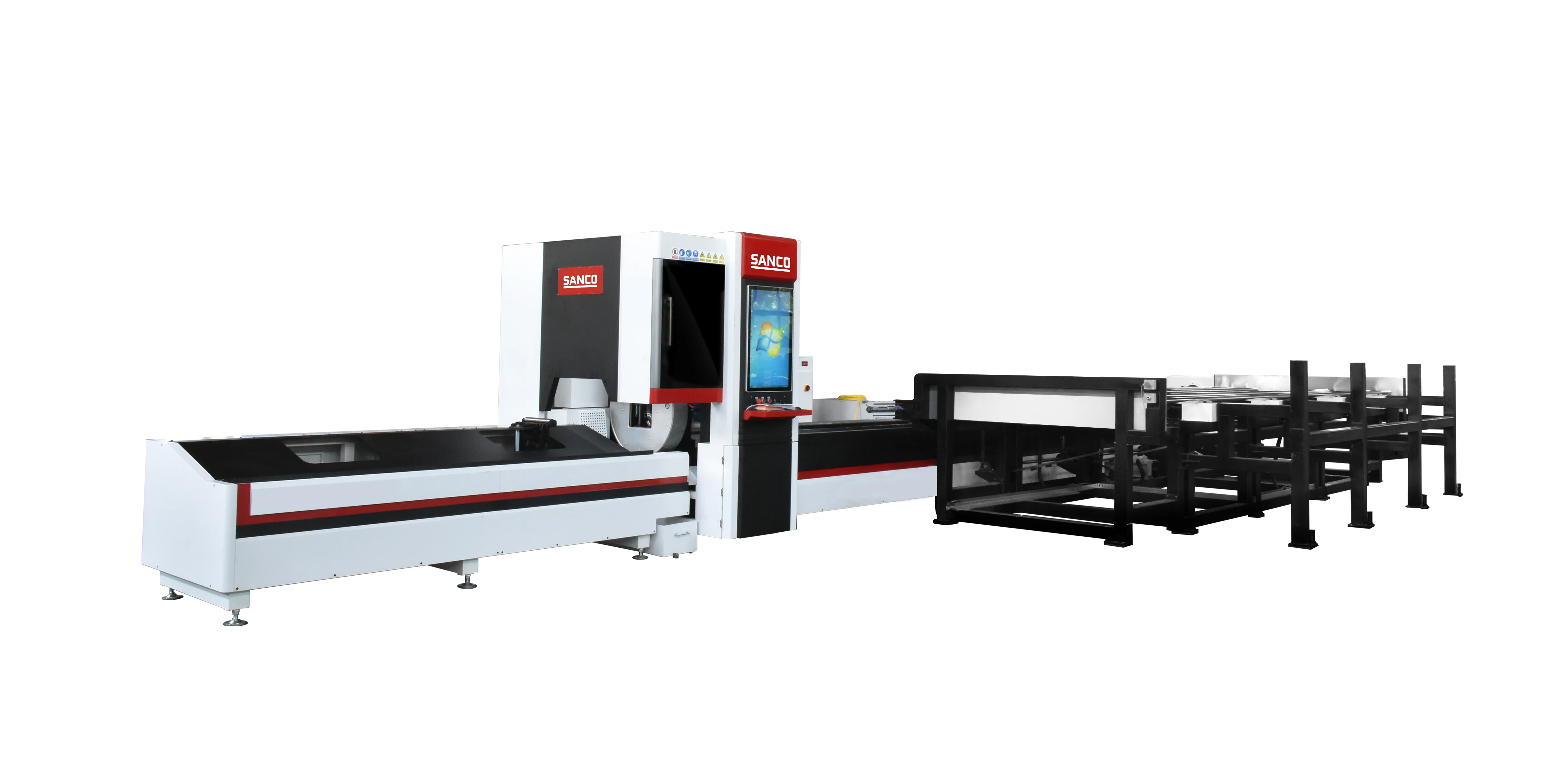

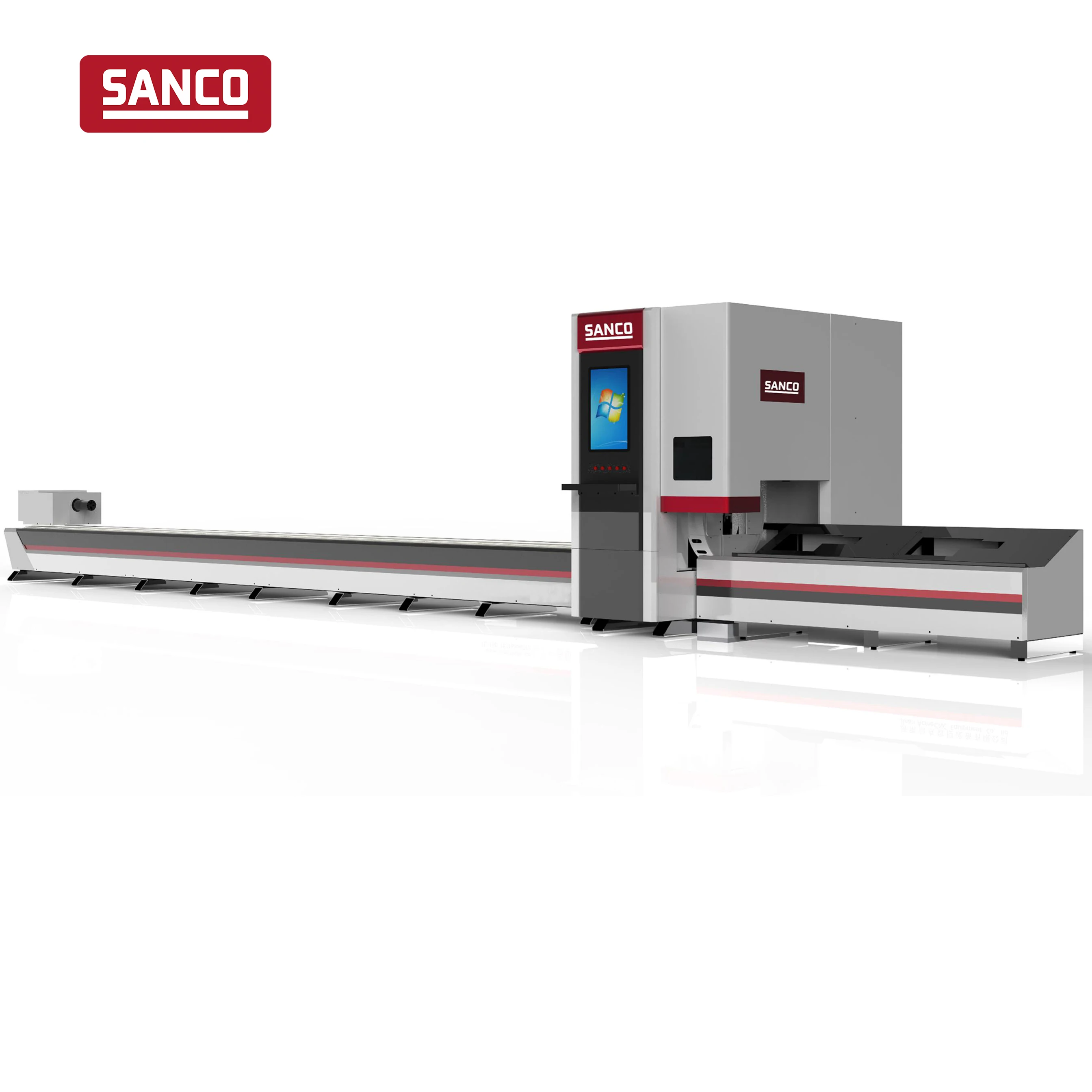

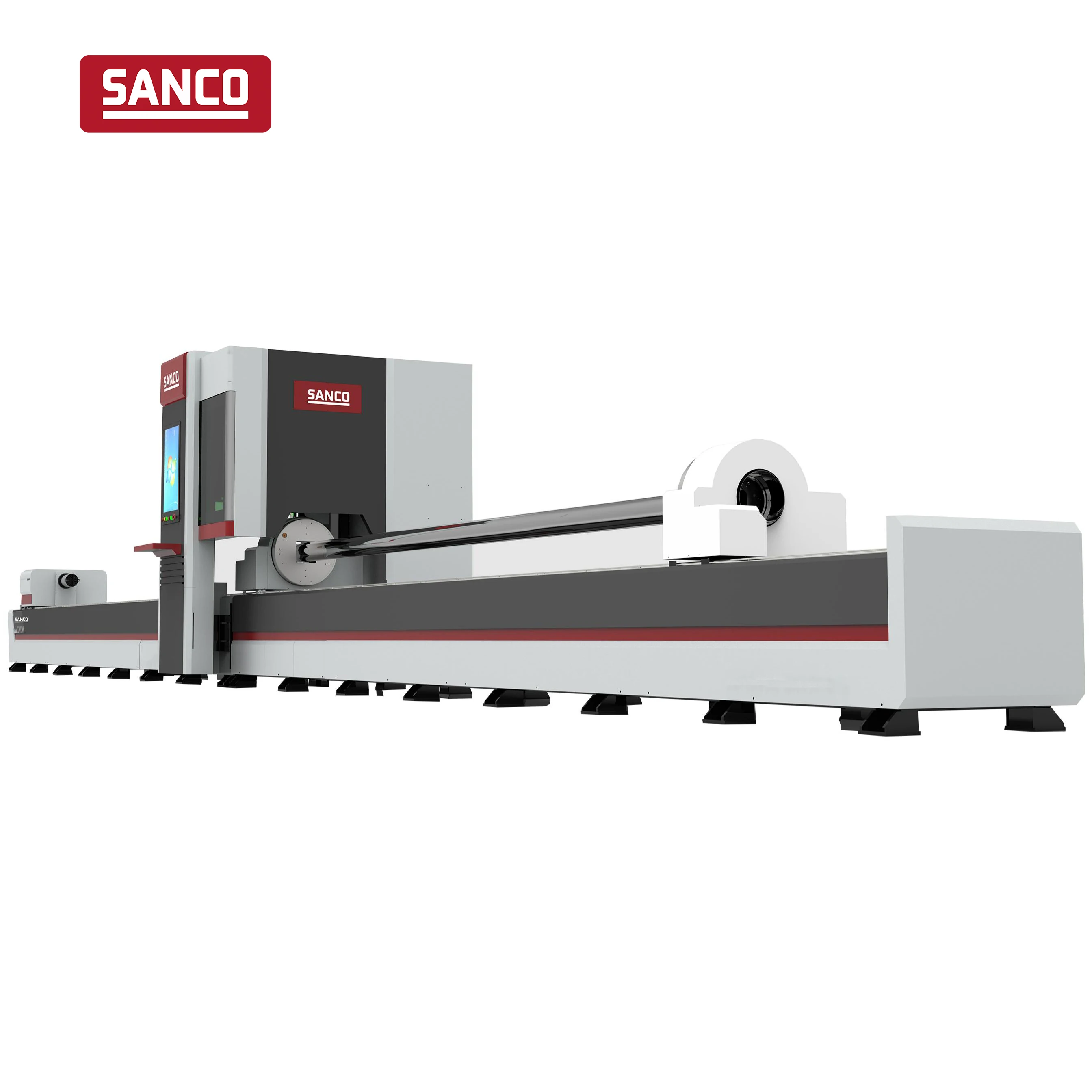

Волоконно-Металлическая стальная лазерная машина для резки
- Категория товара: Laser Cutting Machines >>>
- Поставщик (Оптовый магазин): Zhangjiagang,Sanco,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

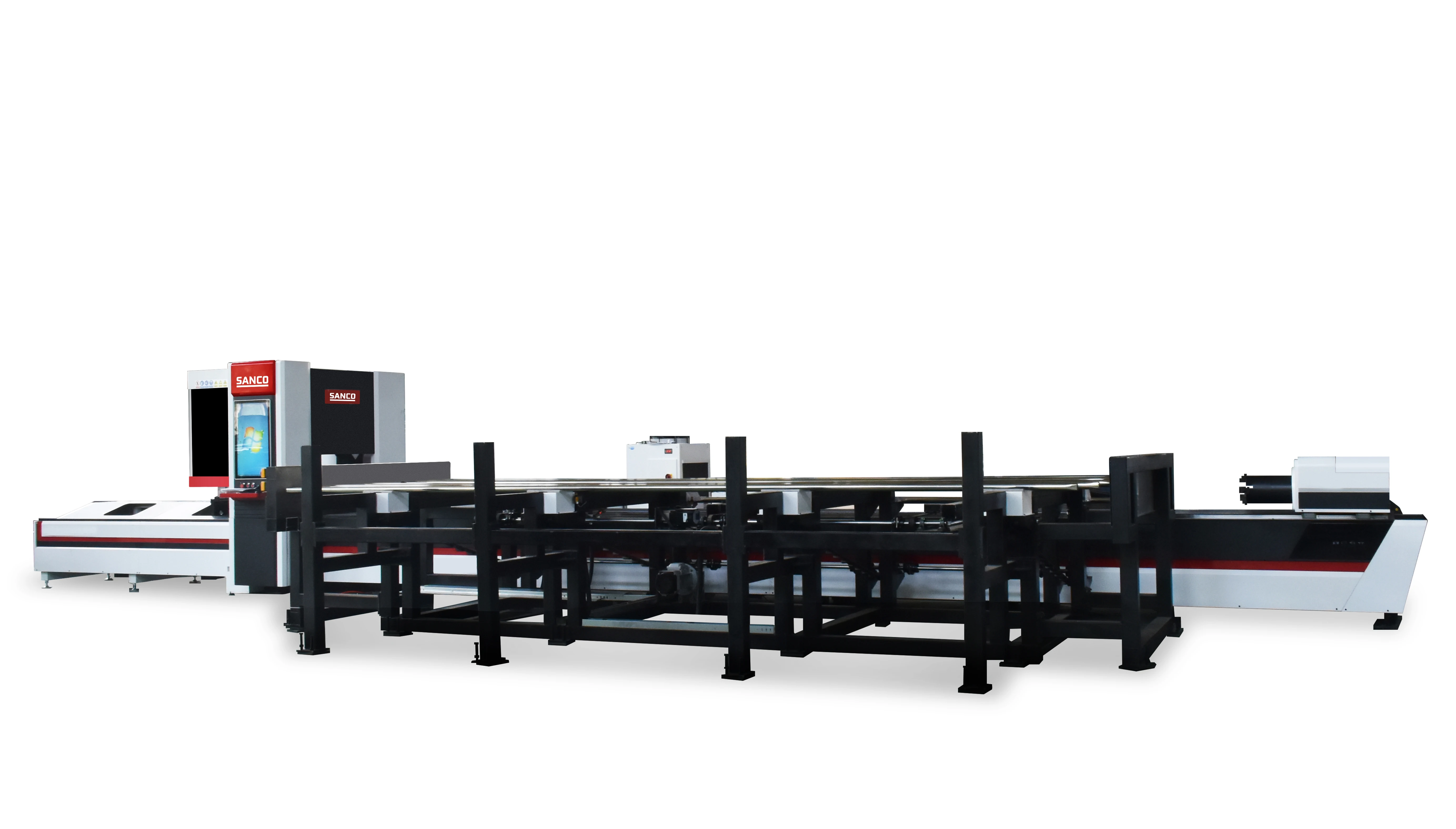

Product Description
Advantage
> Suitable for 16-250mm diameter square, round, rectangular, special shapes of pipes;
> SANCO cloud system, based on the real-time data acquisition of laser cutting equipment, through industrial big data analysis, to achieve processing intelligence;
> Nesting software has the function of three-dimensional simulation, it can show cutting process on the computer,improve artificial efficiency;
> Servo follow-up floating support is able to adjust the height in real time according to the height of pipe rotation to realize perfect support in the cutting process;
> Small tailing cutting; the shortest tailing 65mm, saving production costs;

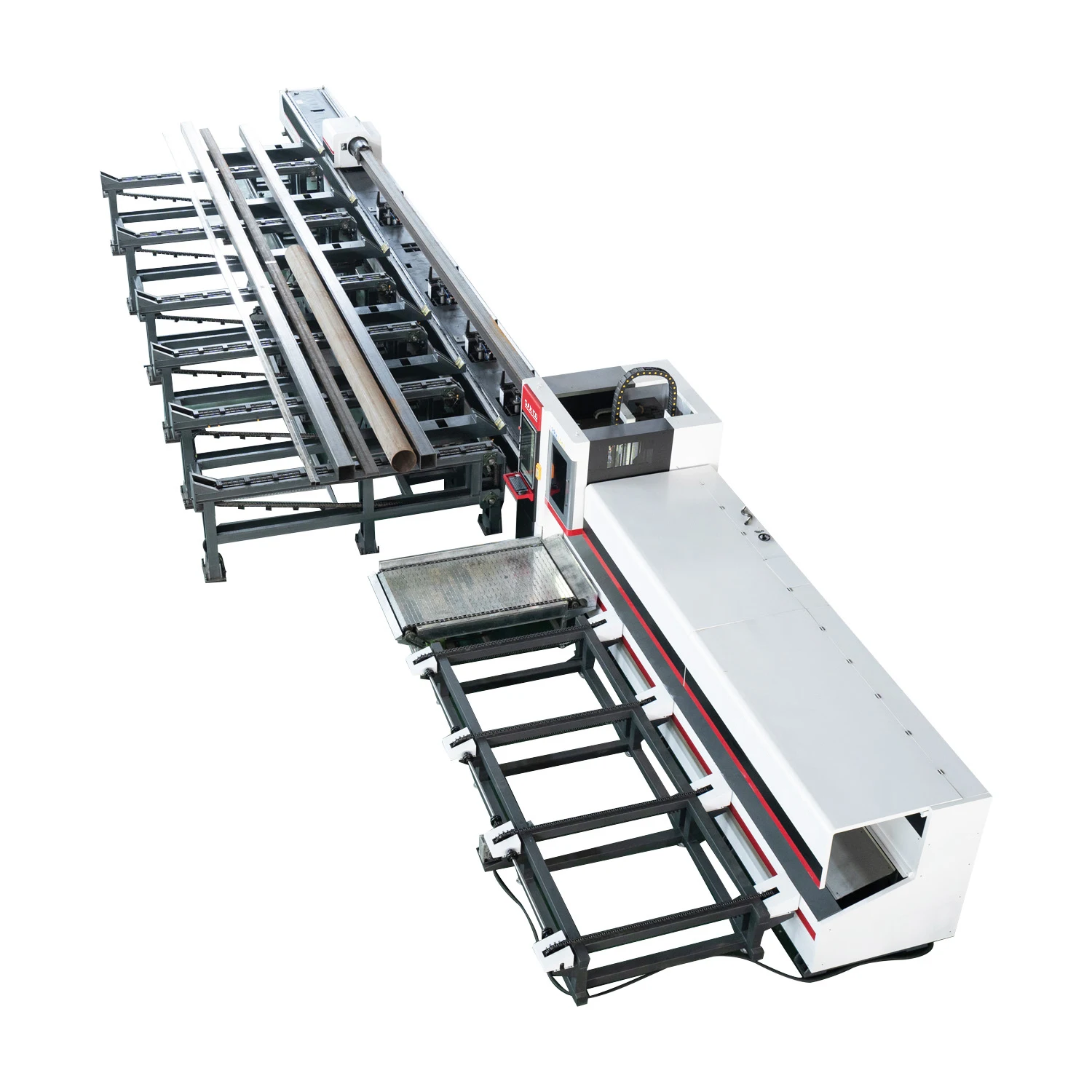

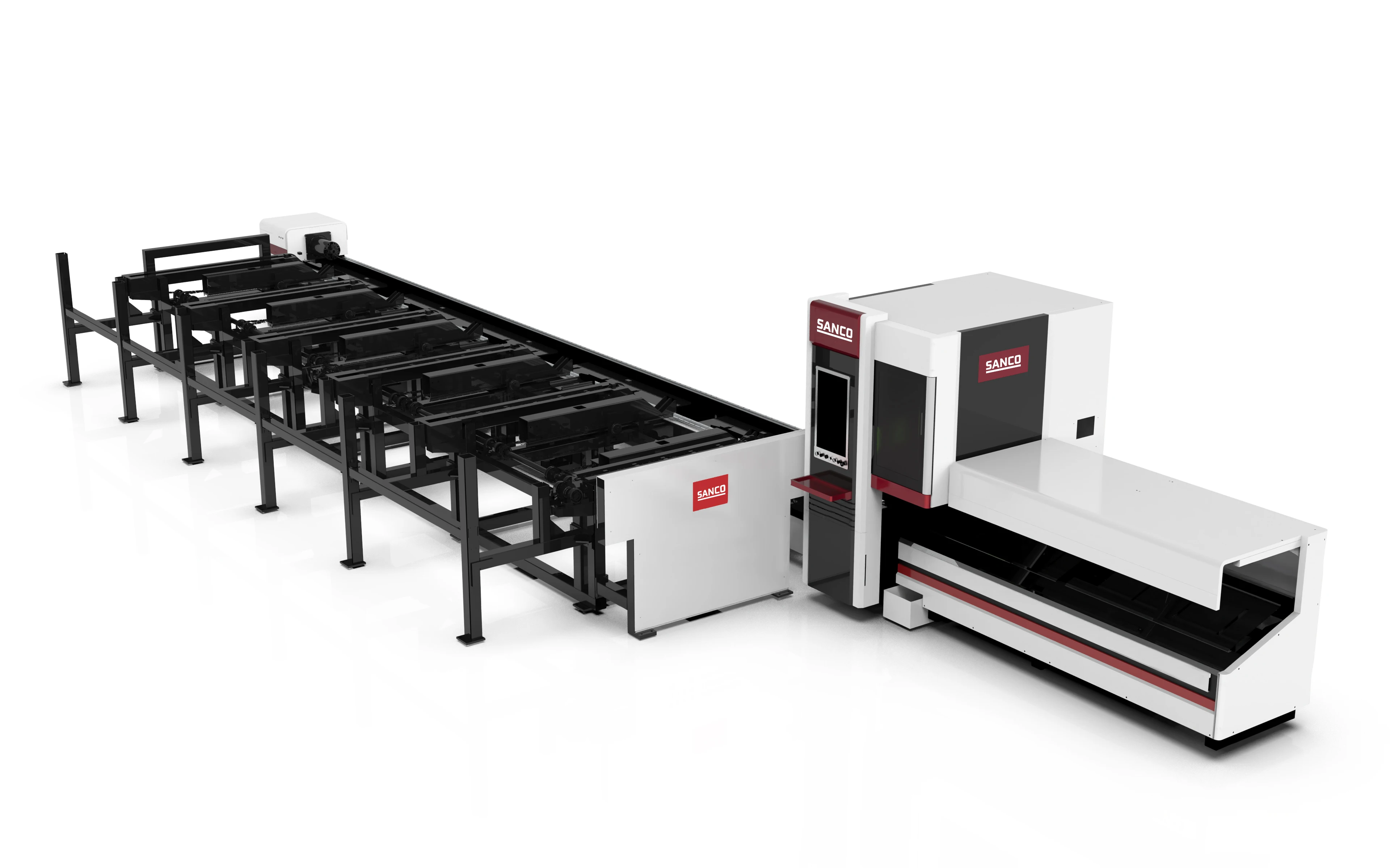

>Automatic feeding system and three chucks can be added to machine , according to the actual needs of customers.
> Self-developed pneumatic chuck with full stroke, intelligent identification and holding of all kinds of pipes, safe and efficient;
> Different type of the tube can be load on same time, the laser head can auto adjust accordingly when cutting.
> SANCO cloud system, based on the real-time data acquisition of laser cutting equipment, through industrial big data analysis, to achieve processing intelligence;
> Nesting software has the function of three-dimensional simulation, it can show cutting process on the computer,improve artificial efficiency;
> Servo follow-up floating support is able to adjust the height in real time according to the height of pipe rotation to realize perfect support in the cutting process;
> Small tailing cutting; the shortest tailing 65mm, saving production costs;
>Automatic feeding system and three chucks can be added to machine , according to the actual needs of customers.
Specification
Product Name | Metal Tube Pipe Fiber Laser Cutting Machine |
Cutting Material | Carbon Steel/ Stainless Steel/ Aluminum/ Alloy/ Copper, etc |
Metal Pipe/ Tube Diameter | 10-120mm/ 170mm/250mm/350mm/450mm diameter optional |
Metal Pipe/ Tube Length | 200mm-6m / 8m /10m /12m optional |
Laser Type | Fiber Laser |
Laser Power | 1000W/1500W/2000W/3000W/4000W/6000W optional |
Fiber Laser Source | IPG/Raycus/Maxphotonics/nLight/RECI optional |
Laser Cutting Head | Precitec/RayTools Auto-focus head |
Cutting Software/ Control System | TubePro / FSCUT or EtherCAT Bus system |
Nesting Software | Tubes T 3D Tube Nesting Software |
Chuck/Rotary Device | Double Pneumatic Chuck Auto Centering |
Servo Motor and Driver | YASKAWA Sigma-7 series/ Panasonic EtherCAT motor |
Reducer/Gear box | SHIMPO Reducer |
Water Chiller | Hanli/Tongfei/S&A |
Liner Guide Rail | HIWIN |
Gear and Rack | YYC |
Lubrication system | Automatic Oil self-lubrication |
Power Supply | 380V, 50 Hz +/-10% or customized |
\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t

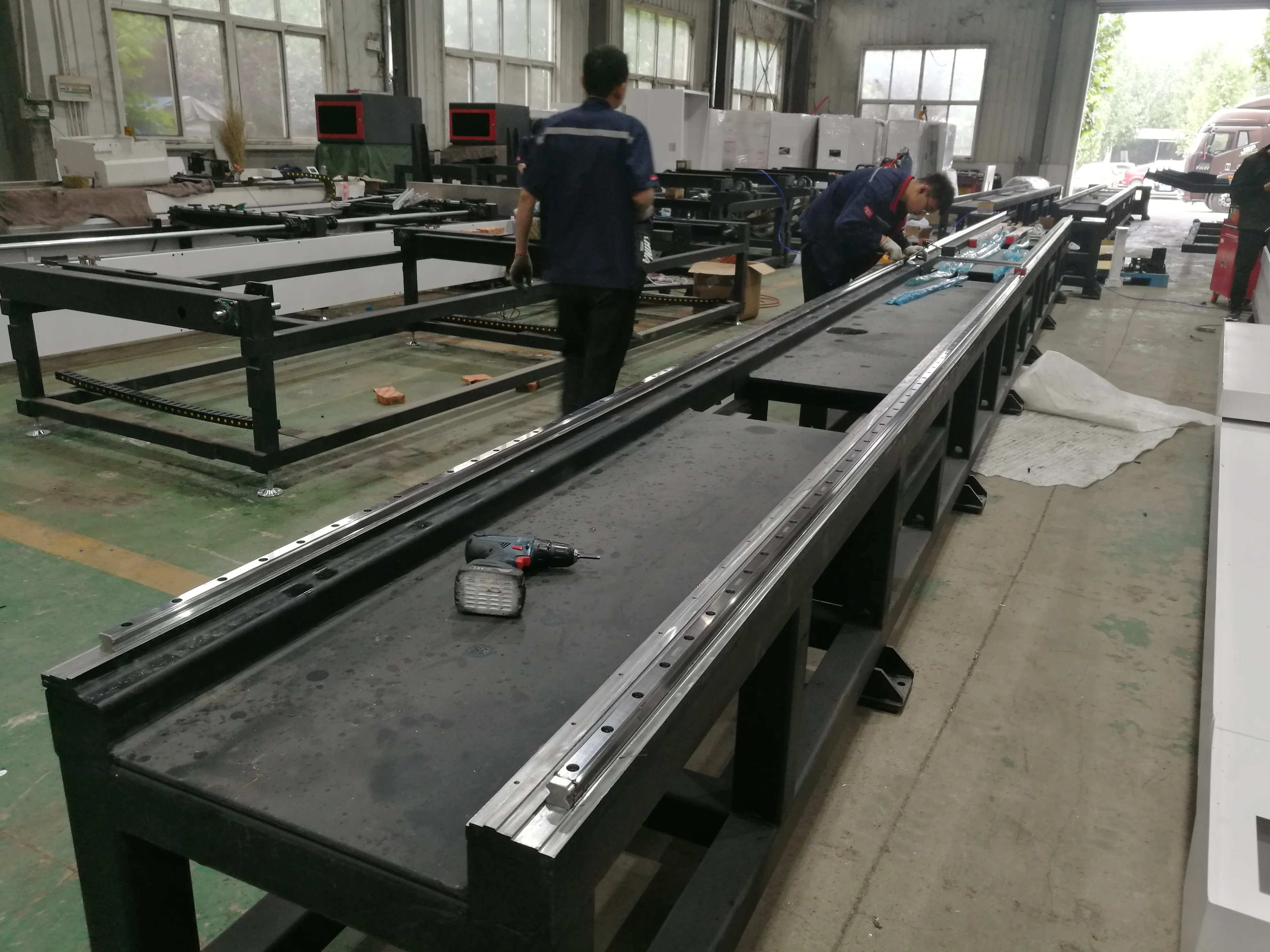

High Quality Carbon Structural Steel Welding Bed
Self-made high quality steel welding bed, milled by Italy COLGAR machining center with high precision, good stability, no deformation. After annealing treatment, eliminate the stress caused by welding and processing, high strength, good rigidity, long time operation of the bed without deformation, improve the processing accuracy.Main components self made, ensures the delivery
time.

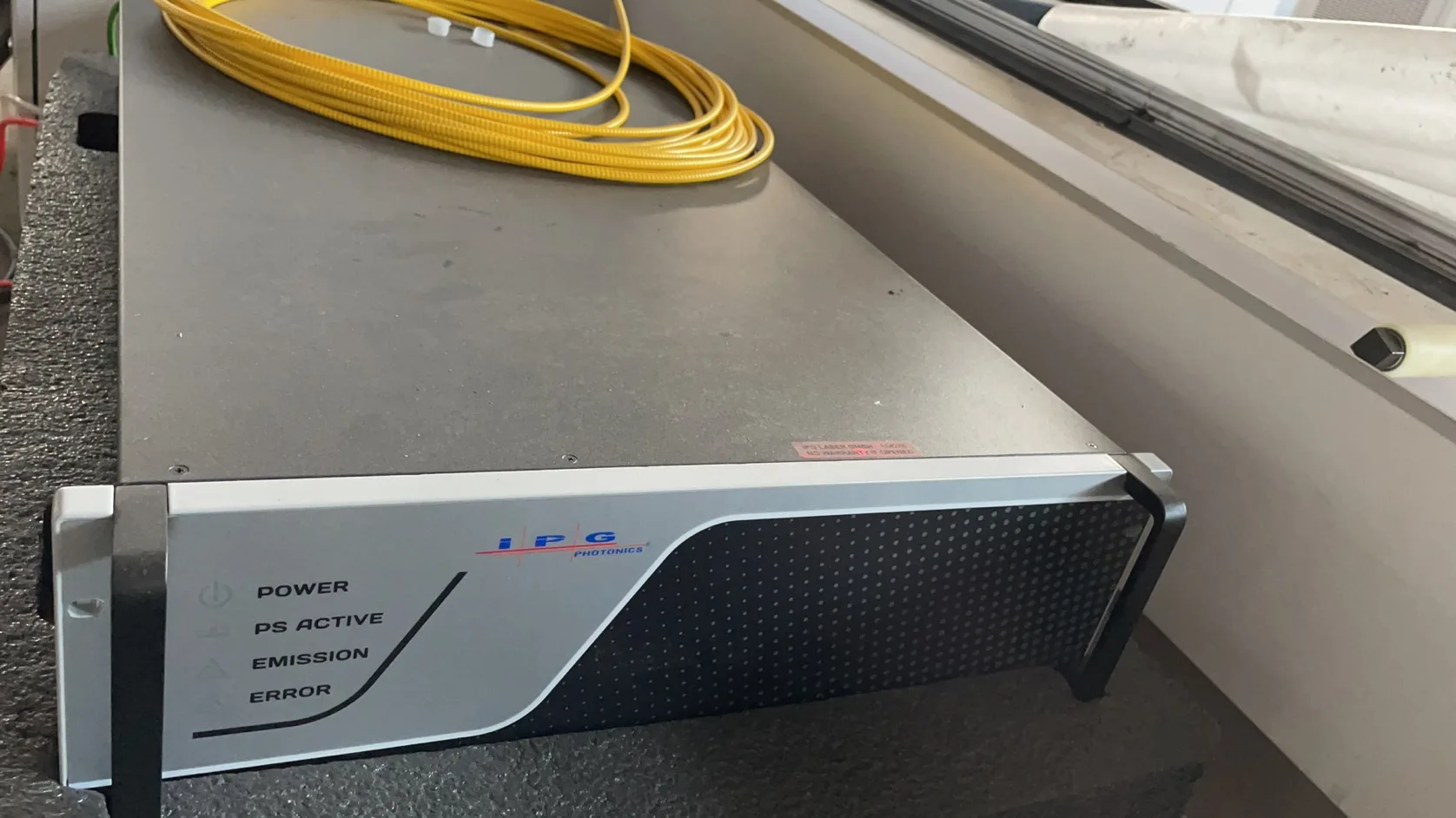

IPG/ RAYCUS/MAXPHOTONICS Laser Source (optional)
Top leader IPG laser source or Chinese famous brand RAYCUS and MAXPHOTONICS can be choosen, stable quality, long life working time and pefect after-sale service.
1)Higher electro-optical conversion efficiency, higher and more stable optical quality, strongeraltitude stress-resisting capacity.
2) More stable and more sophisticated cutting effect in metal sheet or tube cutting.
3)This series of lasers apply to many application scenarios: cutting, holing, machine manufacturing, furniture making, medical device processing, etc.
2) More stable and more sophisticated cutting effect in metal sheet or tube cutting.
3)This series of lasers apply to many application scenarios: cutting, holing, machine manufacturing, furniture making, medical device processing, etc.

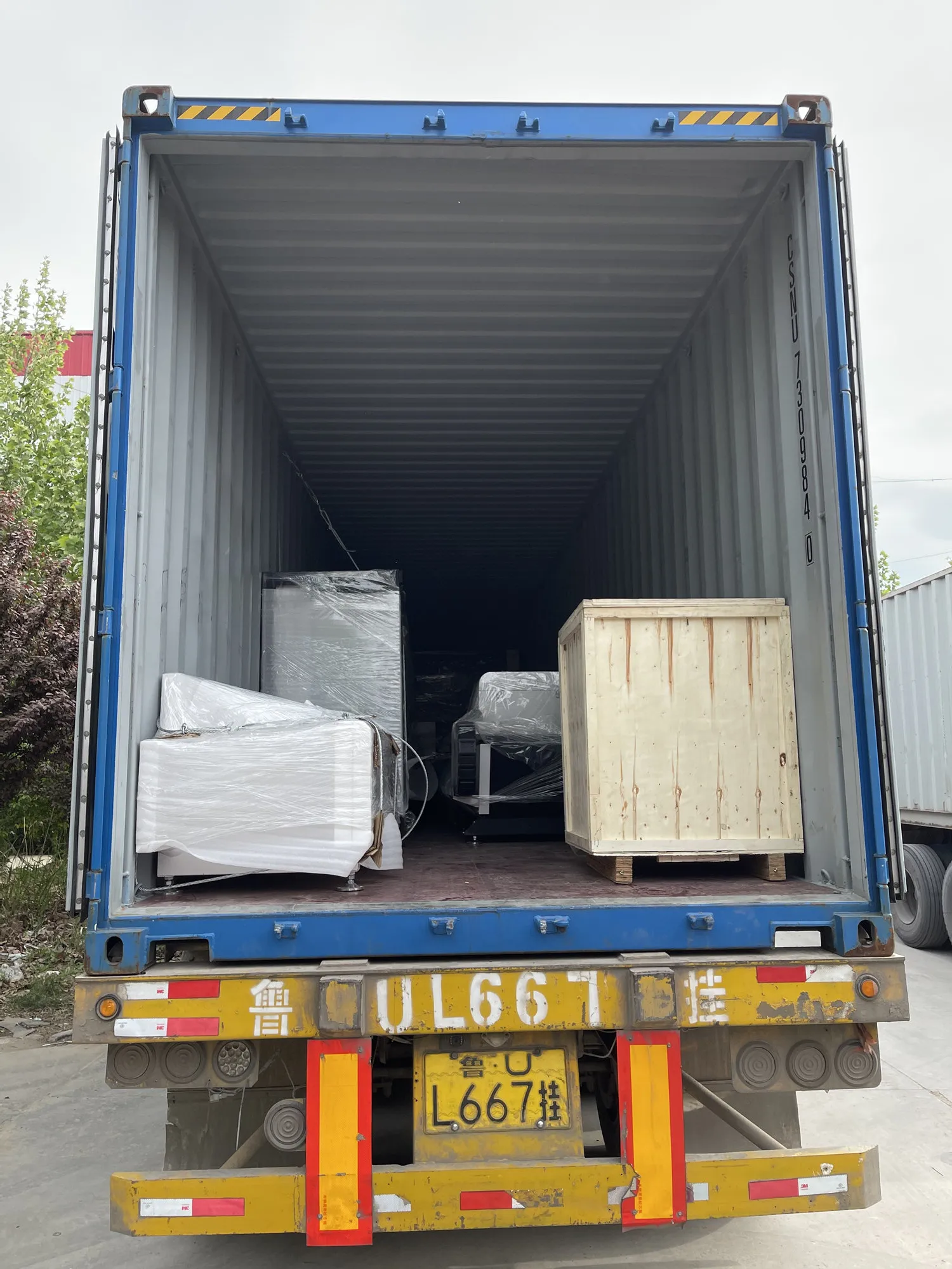

Packing & Delivery
1.Cleaning machine
2.Wrap all the machine and parts with bubble film and plastic film

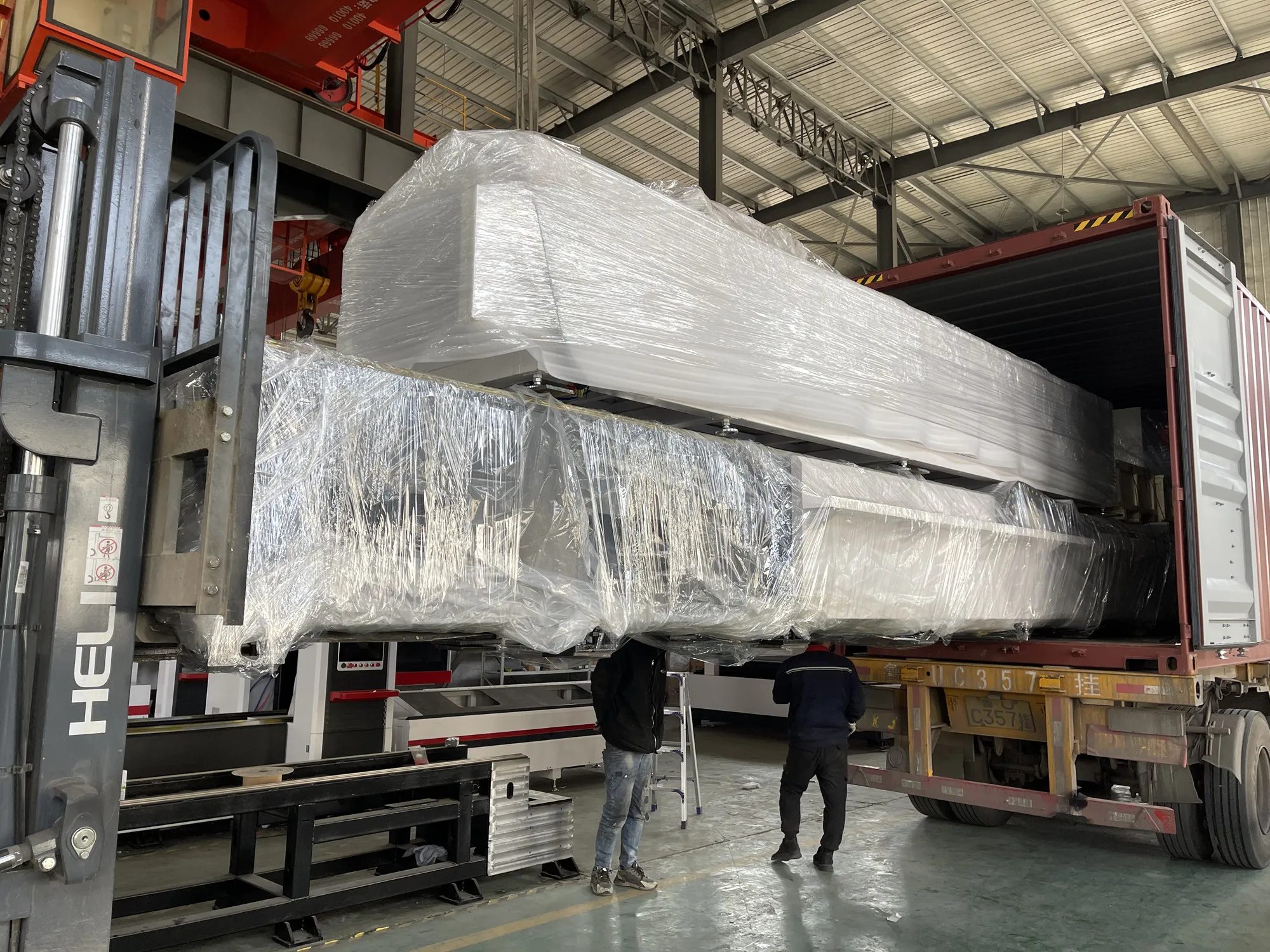

3.Forklift the packed machine to the container.
4.Choose the optimal routes and transpotation mode according to the distance
4.Choose the optimal routes and transpotation mode according to the distance
FAQ
Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, just tell us below information:
1) Your materials
2) Tube diamer and length
3) Max cut thickness and mass production cutting thickness
4) What shape will be your tube? Round,square, rectangle, oval or channel steel, L/H steel,etc
Q: What's material can fiber laser cut?
A: All kinds of metal, such as Stainless Steel, Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, Brass, Copper, etc.
Q: I can't come to China, but I want to see the machine condition, what should I do?
A: We support the production visualization service. You can contact the sales to check the production progress of the machine and send you the pictures or videos of your machine.
Q: This is the first time I use laser cutting machine, is it easy to operate?
A: Yes, it is easy to operate. We will provide operation manual, showing videos and 7*24 hours online service.
A: In order to recommend you the most suitable machine model, just tell us below information:
1) Your materials
2) Tube diamer and length
3) Max cut thickness and mass production cutting thickness
4) What shape will be your tube? Round,square, rectangle, oval or channel steel, L/H steel,etc
Q: What's material can fiber laser cut?
A: All kinds of metal, such as Stainless Steel, Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, Brass, Copper, etc.
Q: I can't come to China, but I want to see the machine condition, what should I do?
A: We support the production visualization service. You can contact the sales to check the production progress of the machine and send you the pictures or videos of your machine.
Q: This is the first time I use laser cutting machine, is it easy to operate?
A: Yes, it is easy to operate. We will provide operation manual, showing videos and 7*24 hours online service.
Q: How long is the warranty time?
A: Warranty of the whole machine is 2 years (except the consumable parts like Nozzle, Lens, Ceramic ring). Warranty counts from the date marked on the label of the laser source and machine.
A: Warranty of the whole machine is 2 years (except the consumable parts like Nozzle, Lens, Ceramic ring). Warranty counts from the date marked on the label of the laser source and machine.
