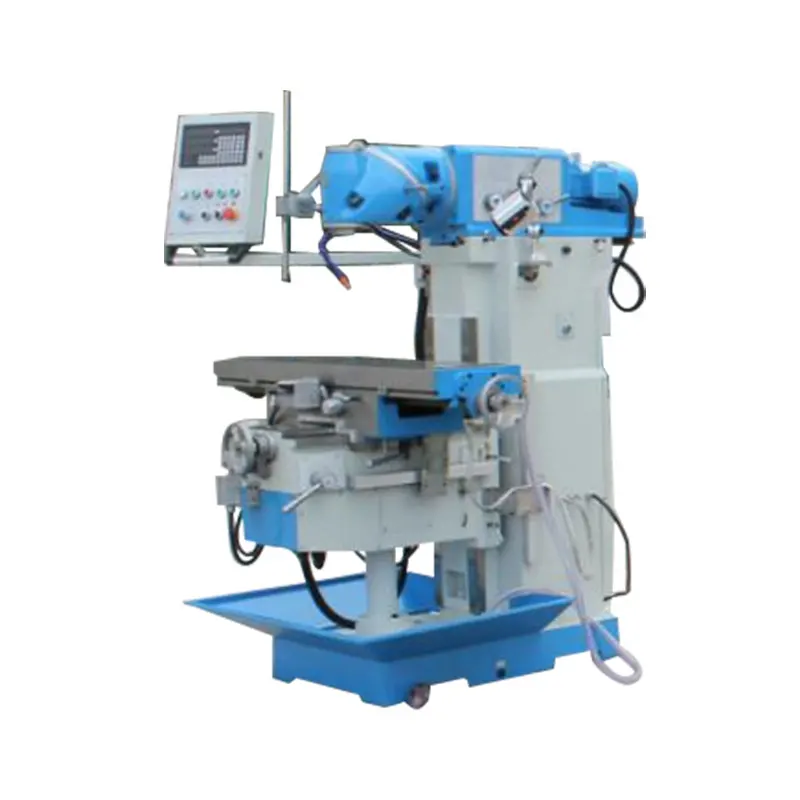

Универсальный металлический фрезерный станок XQ6432A с автоматическим фидером по оси X/Y/Z
Универсальный металлический фрезерный станок XQ6432A с автоматическим фидером по оси X/Y/Z
Универсальный металлический фрезерный станок XQ6432A с автоматическим фидером по оси X/Y/Z

Универсальный металлический фрезерный станок XQ6432A с автоматическим фидером по оси X/Y/Z

Поделиться:


Цена:
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Related Products


ZX7550CW universal milling machine

86% Response Rate

X6330 turret milling machine

90% Response Rate

X6336U universal milling machine

91.8% Response Rate



Product Description




Universal Milling Machine XQ6432C Features
1. Using one servo motor to control work table’s auto feed on XYZ axes, high torque, energy saving and stable.
 2. Full set grind gear guarantee low noise and long service life.
 3. Max table travel can reach 1000*380*400mm，has advantages on the market.


Specification
unit
XQ6432A
XQ6432C
Table size
mm
1370*320
1370*320
X/Y/Z travel
mm
820*300*400
1000*360*400
Max rotary angle of table
°
±45°(Optional )
±45°(Optional )
Max table weight
Kg
300
300
T-slots（NO./width/pitch）
mm
3*14*80
3*14*80
Shaft speed series and range
rpm
V 45-1660（11steps）
H 35-1500 （12steps）
V 45-1660（11steps）
H 35-1500 （12steps）
Arm travel
mm
460
460
Distance between spindle center line -table
mm
75-475
75-475
Distance between spindle nose - table surface
260-660
260-660
Distance between spindle nose and arm
mm
180
180
Spindle taper
7:24 IS040
7:24 IS040
Table rapid speed（X/Y/Z）
MM
1335、1335、1000
1335、1335、1000
Table feed（X/Y/Z）
mm
X、Y：30-830 （8 steps）
Z：23-625 （8 steps）
X、Y：30-830 （8 steps）
Z：23-625 （8 steps）
Main motor power
KW
V：3kw
H：3kw
V：3kw
H：3kw
Feed motor
KW
3 axes using a 15N.m servo motor, auto feed and change speeds variably
3 axes using a 15N.m servo motor, auto feed and change speeds variably
Dimensions
Cm
190*1750*190
190*1750*190
Machine weight
kg
1950
1950

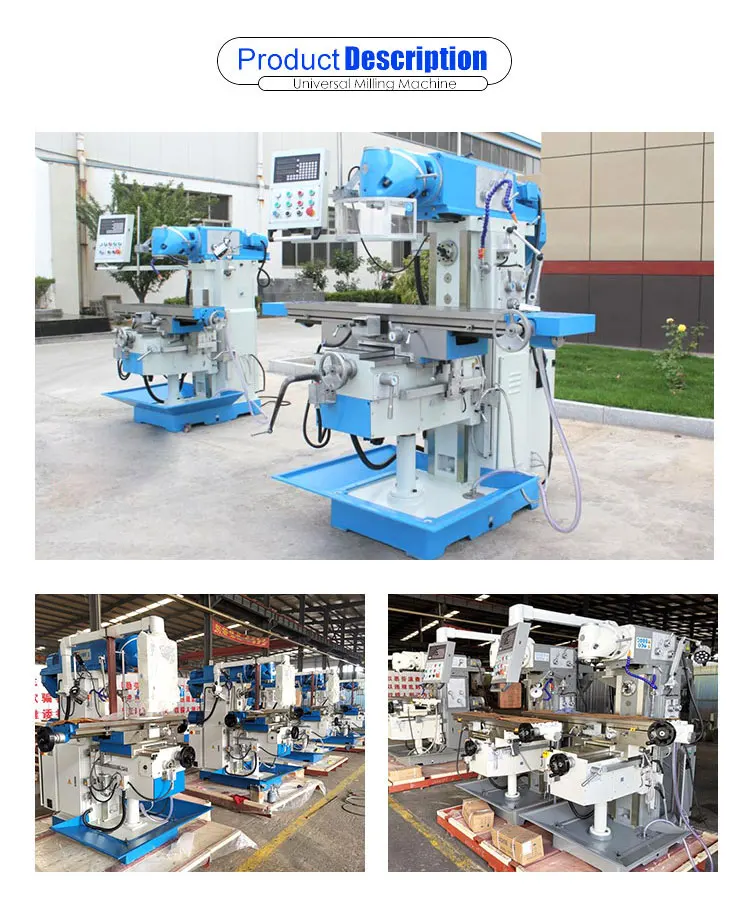

Detailed Images

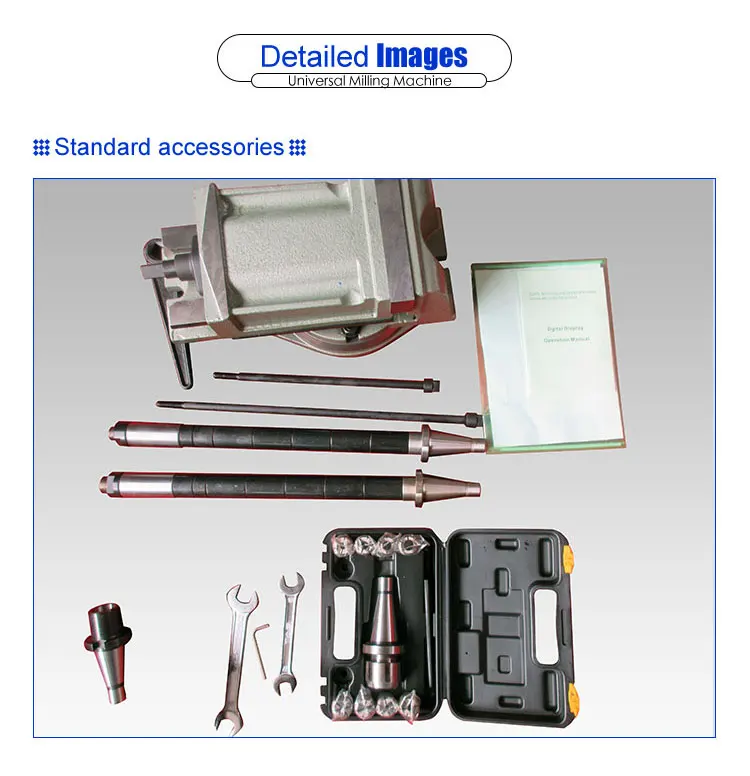

Standard Accessories
Ф27 Milling arbor
Elevating lift
M16 Draw bar
Double end spanner
5,6,10 Allen key
M16 Nut
M16 Washer
Operation manual
EP1C series servo driver manual
Optional Accessories
SINO DRO
Spindle guard
CE Schneider Electric
Aluminum Hang arm
Rotary table ±45°
160 milling vice
ISO40-40mm milling arbor




Company Profile




FAQ


Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?
A4:One set only.

Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
