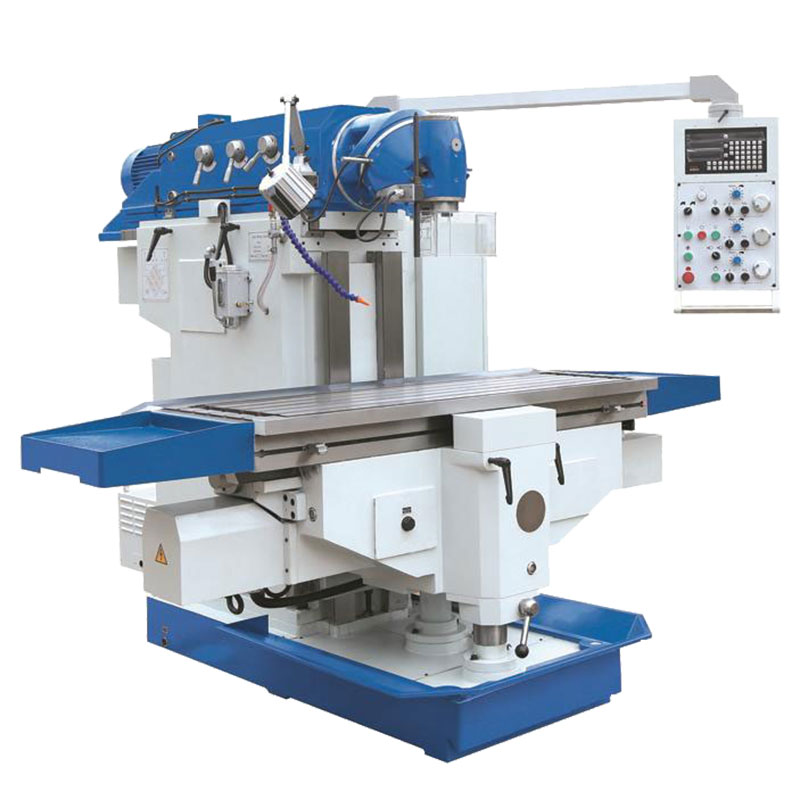

Прямые продажи с завода, высокожесткий металлический фрезерный станок X5746, сделано в Китае
Прямые продажи с завода, высокожесткий металлический фрезерный станок X5746, сделано в Китае
Прямые продажи с завода, высокожесткий металлический фрезерный станок X5746, сделано в Китае
Прямые продажи с завода, высокожесткий металлический фрезерный станок X5746, сделано в Китае
Прямые продажи с завода, высокожесткий металлический фрезерный станок X5746, сделано в Китае
Прямые продажи с завода, высокожесткий металлический фрезерный станок X5746, сделано в Китае
Прямые продажи с завода, высокожесткий металлический фрезерный станок X5746, сделано в Китае

Прямые продажи с завода, высокожесткий металлический фрезерный станок X5746, сделано в Китае

Поделиться:


Цена:
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Related Products


ZX7550CW universal milling machine

86%

Response Rate

X6330 turret milling machine

90%

Response Rate

X6336U universal milling machine

91.8%

Response Rate

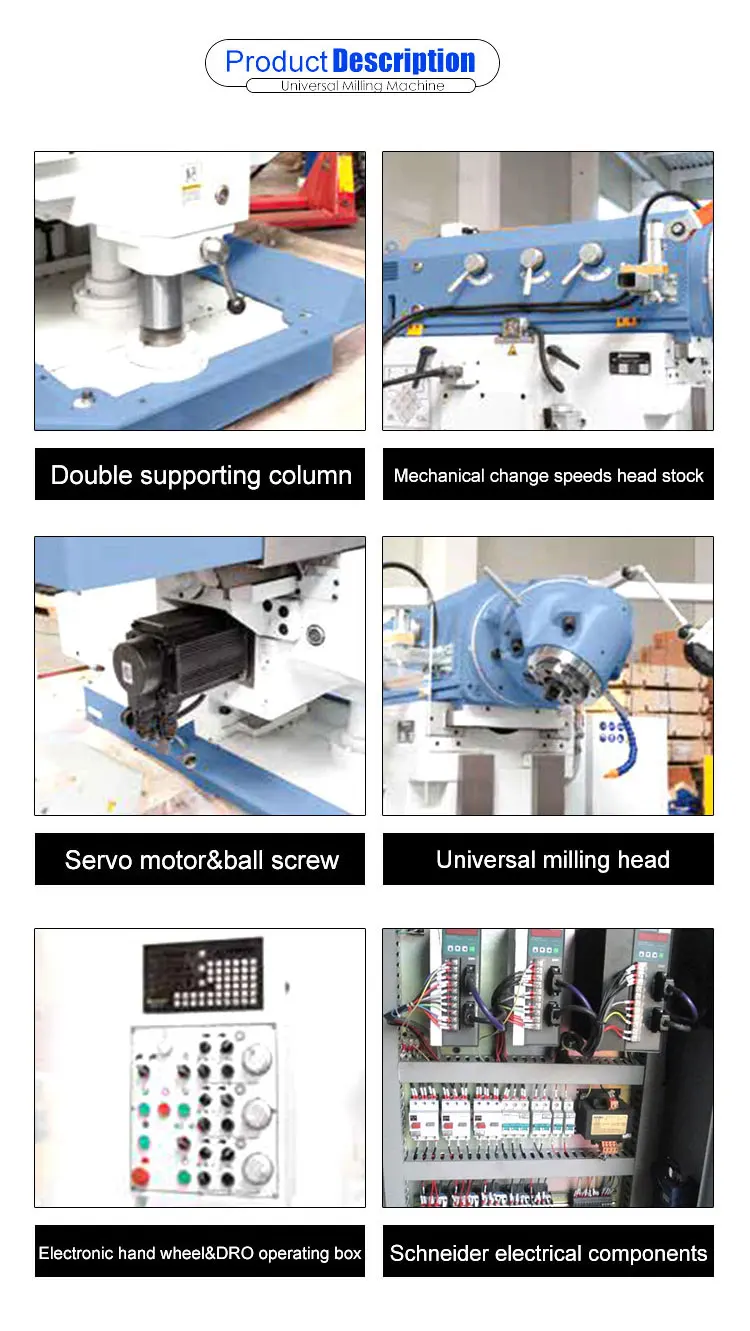

Product Description

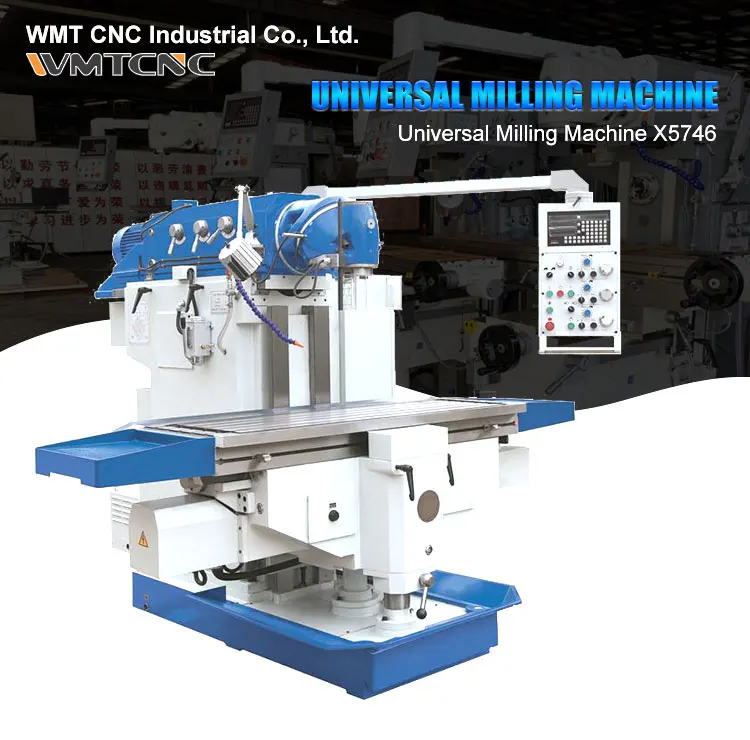

X5746 X5750 Series Milling Machine Main Feature
1. Table 3 axes with ball screws, high precision;
2. Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate;
3. Mechanical change speeds in head stock, powerful milling;
4. Table with an extra supporting column, big load, high accuracy;
5. It can mill any angle surface through front half-sphere by swivelling milling head.


Specifications
Unit
X5746
X5750
X5750A
Table size
mm
460*1235
500*1600
500*2000
T-slots(NO./width/pitch)
mm
5*18*80
Table travel (X/Y/Z)
mm
900*650*450
1200*700*500
1400*700*500
Swivel angle of milling head
-
360°
Spindle taper
-
ISO40
ISO50
ISO50
Spindle speed range
r.p.m
(27) 30-2050
Table feed(X/Y/Z)
mm/min
10-1000/10-1000/6-640
10-1000/10-1000/5-500
Table rapid speed
mm/min
2200/2200/1100
Distance between spindle nose and table surface
mm
50-500
50-550
Distance from spindle center line to column
mm
36-686
45-745
Main motor power
Kw
5.5
7.5
7.5
Feed motor
Kw
AC servo motor X/Y:18NM; Z: 27NM
Max load
Kg
800
1800
Overall size
mm
1835*2362*2090
2625*2460*2080
2625*2860*2080
weight
kg
3600
4200
4500




Detailed Images

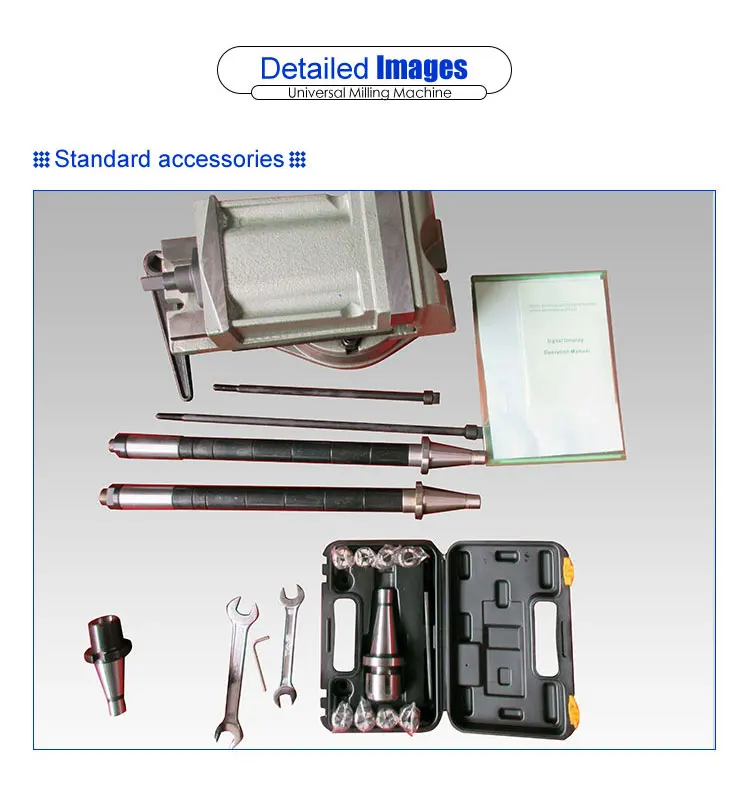

Standard Accessories
Draw bar\t
Machine chuck
ISO40/ISO50
End face milling cutter handle
Double-ended wrench
Allen wrench
Operation manual
Certification
EP1C series servo drive manual
Optional Accessories

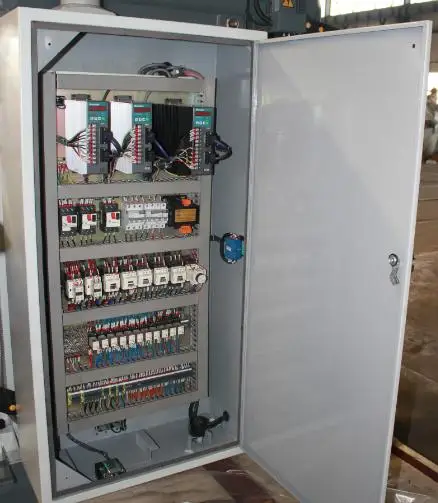

Schneider electric components
Aluminum alloy support arm
3-axis DRO
Spindle cover
Work table cover
LED work lamp
Automatic lubrication pump





Company Profile




FAQ


Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?
A4:One set only.

Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
