Стальная машина для полировки квадратных труб для алюминиевых труб
US $46000-$50000

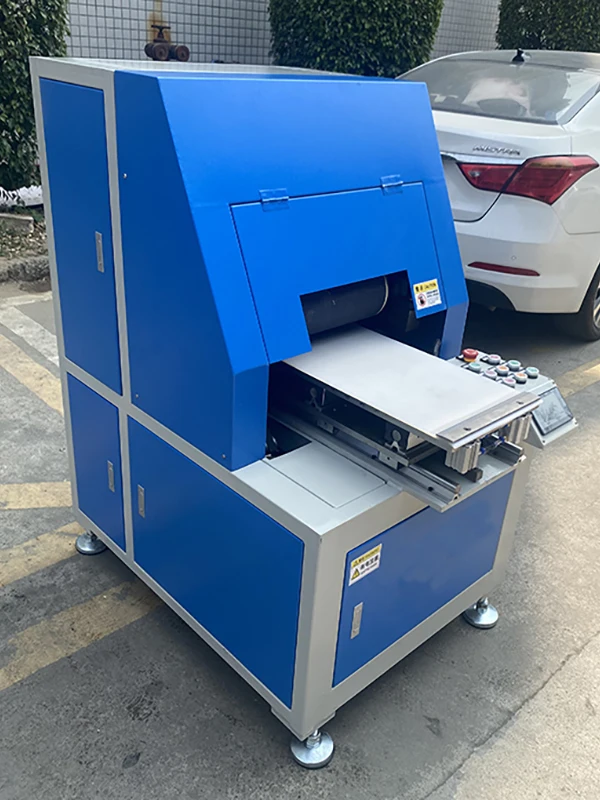

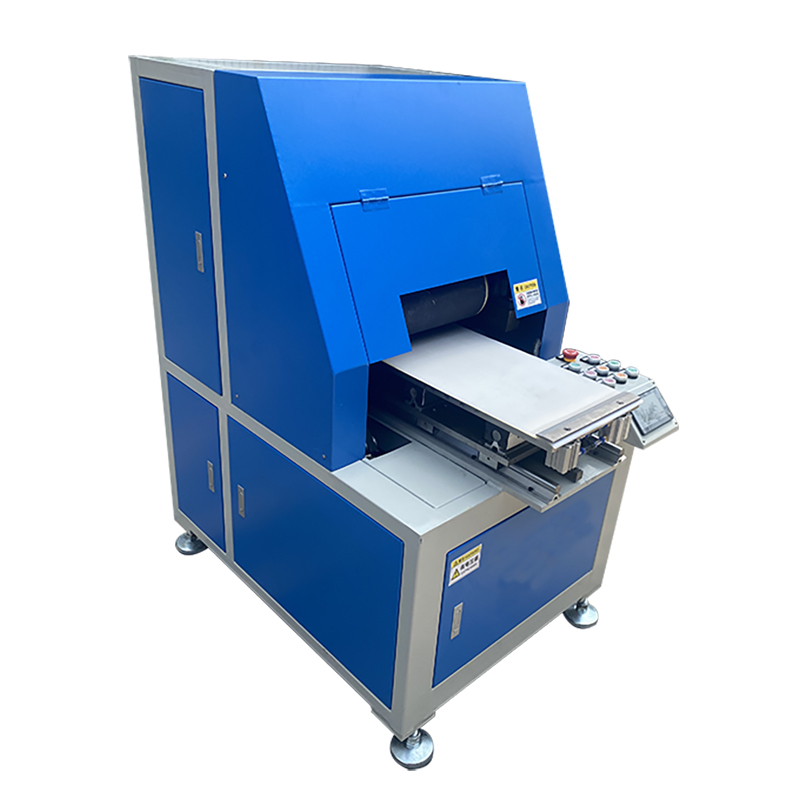

Многофункциональная Автоматическая зеркальная полировальная машина из нержавеющей стали для плоской латуни
- Категория товара: Metal Polishing Machine >>>
- Поставщик (Оптовый магазин): Anhui,Advanced,Grinding,Tools,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Sheet metal mirror polishing machine：
Workbench dimension | 600*600 mm | 600*1000mm | 600*1500mm | ||
Buffing wheel motor power | 11 kw | 15 kw | 20 kw | ||
Buffing wheel size | W=600 mm，D=300 mm/250 mm | ||||
Feeding motor power | 0.37 kw | 0.75 kw | 1.5 kw | ||
Swing motor power | 0.25 kw | 0.5 kw | 1.5 kw | ||
Spindle speed | 1920r/min | ||||
Feeding speed | 3.5 m/min | ||||
Swing frequency | 72 times/min | ||||
Size of machine | 1900*1500*1350 mm | 2200*1500*1350 mm | 2500*1500*1350mm | ||
worktable maximum stroke | 700 mm | 1100 mm | 1600 mm | ||
Weight of machine | 1000kg | 1400 kg | 1800 mm | ||
Main purpose:
This machine is mainly used for grinding and polishing plates.It uses a buffing wheel to get the best finish. At the same time,the installation, operation, and maintenance is simple and convenient, move-aided time is short, and low labor intensity
Working principle of the workbench:
1. Maximum unilateral stroke of the worktable: 600mm
2. The worktable performs reciprocating motion, and the number of reciprocation can be set according to the polishing effect.
3. The reciprocating stroke of the worktable can be adjusted

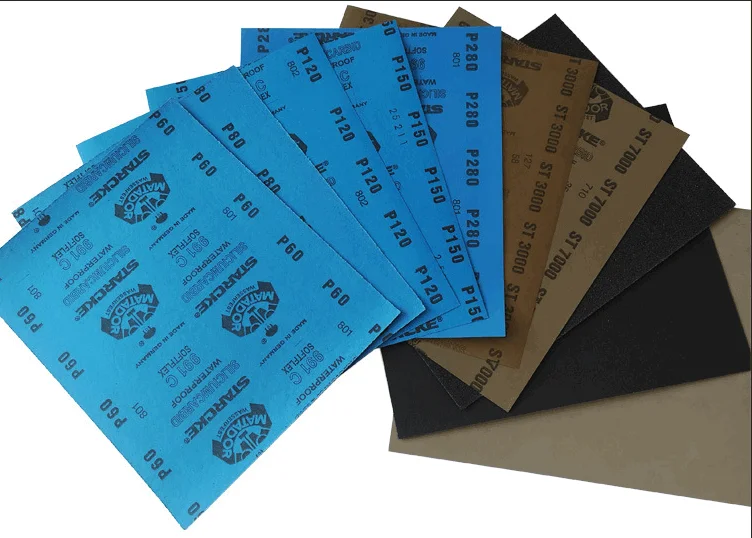

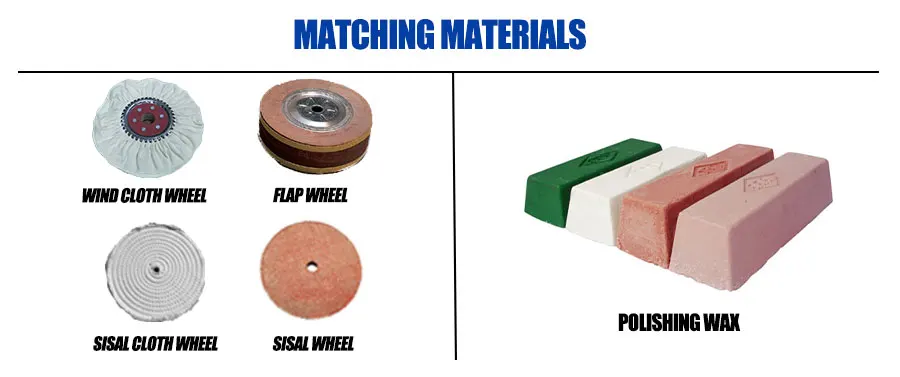

Consumables used: sandpaper, hemp wheel, cloth wheel, nylon wheel, wire drawing wheel
2. The worktable performs reciprocating motion, and the number of reciprocation can be set according to the polishing effect.
3. The reciprocating stroke of the worktable can be adjusted
Consumables used: sandpaper, hemp wheel, cloth wheel, nylon wheel, wire drawing wheel
Details Images

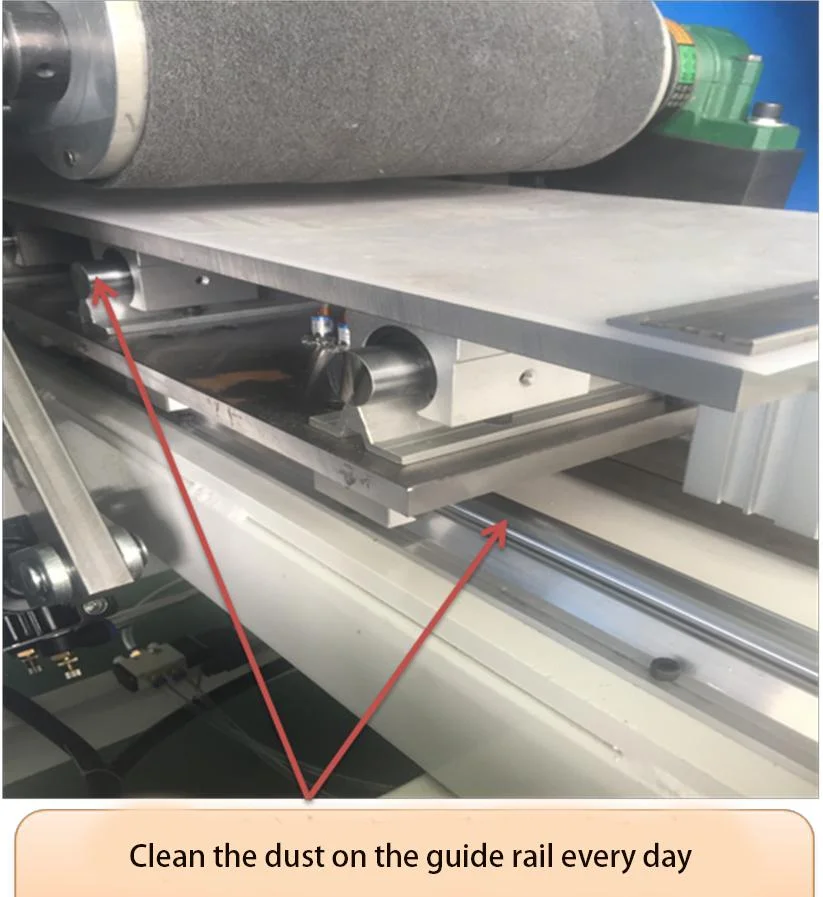

Regularly clean up the dust on the rack, guide rail and find that the rack is dry and greased for maintenance.
Sheet metal deburring machine different combinations：
Company Profile
ADV is a new brand opened in the end of 2018, but the factory already has 25 years of designing and producing deburring machine, grinding machine and polishing machines. The original intention is to create a brand which is most reliable in China and most famous in the world. We made a plan to finish it within 5 years. We will take priority for all products we were and are selling out and best service for each order. We do believe in our original intention and
keep moving to achieve it!
Anhui Advanced Grinding Tools Company has been adhering to the concept of excellent quality and reasonable price. We are committed to optimize the supply chain, strictly control the quality, supervise the production and debugging process of machines, and ensure the delivery of high-quality products to customers. In addition, we have experienced sales and service personnel to provide customers with high-quality pre-sale, after-sales and technical support services.
The company actively explore foreign markets, advocate the business philosophy of integrity management, promote the development of customers is our driving force. Our products are exported to Europe, America and Southeast Asia.
The company actively explore foreign markets, advocate the business philosophy of integrity management, promote the development of customers is our driving force. Our products are exported to Europe, America and Southeast Asia.
Certifications
Exhibition
Packing & Delivery
Ports:
Shanghai Port / Ningbo Port / Customer Demand
Our Services
1, Overseas after-sales service is available.
2, Two years warranty.
3, Foundation drawings, manual book, electric wiring diagram, electric manual book, and maintenance book, etc. provided.
4, We visit each country every year for free technical instructions.
2, Two years warranty.
3, Foundation drawings, manual book, electric wiring diagram, electric manual book, and maintenance book, etc. provided.
4, We visit each country every year for free technical instructions.
Our overseas service photo show:
