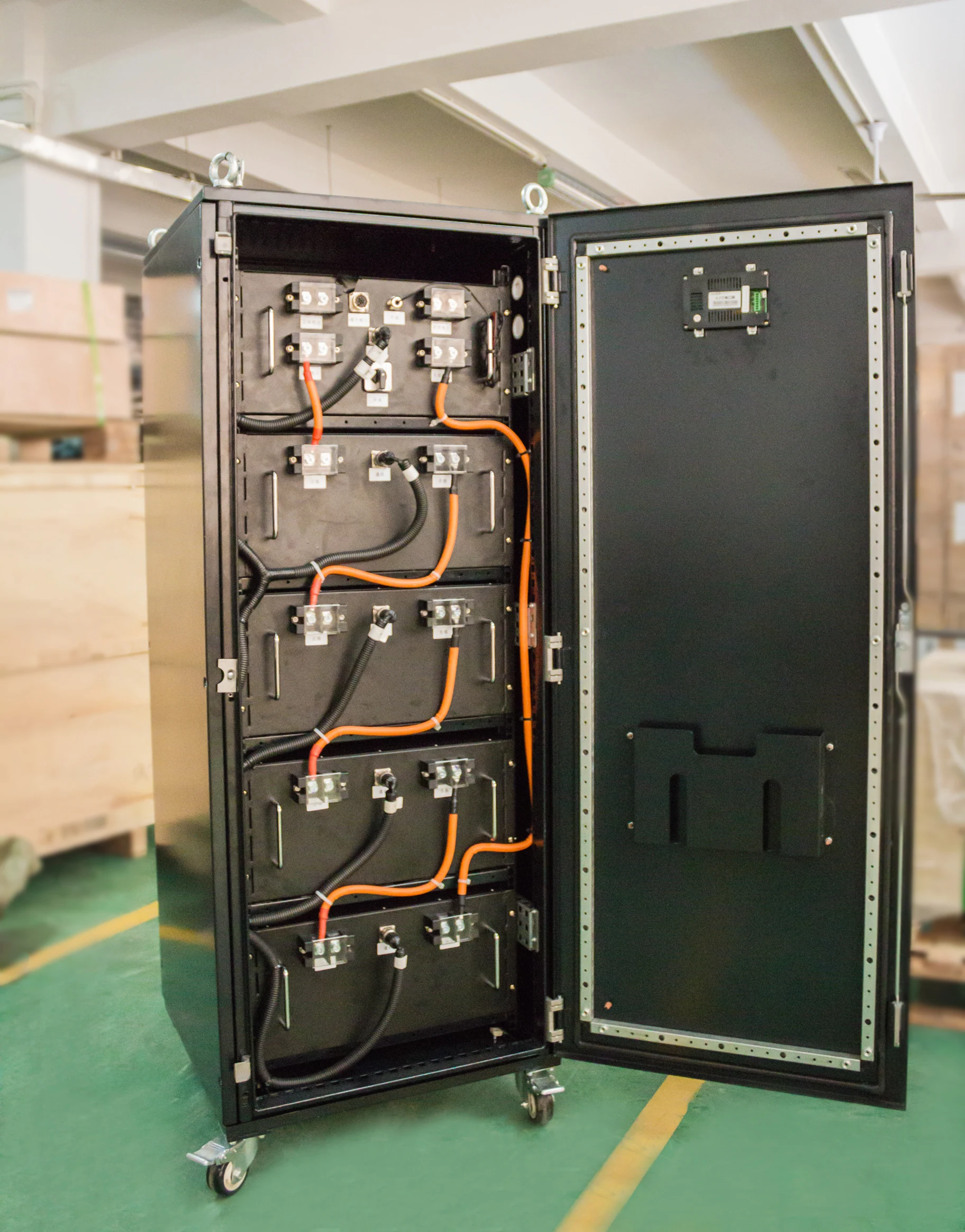

192V 100AH литий-ионный аккумулятор для хранения солнечной энергии системы 20kwh система
- Категория товара: Battery Packs >>>
- Поставщик (Оптовый магазин): Xianghe,Qiangsheng,Electric,Vehicle,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Lifepo4 high voltage li ion battery 192V 100AH Lithium ion battery pack storage energy system 20kwh ESS system
Why use high voltage lithium battery systems?
Let’s give an example for solar lithiun storage battery system field, imagine that when an 8kW hybrid solar inverter is used with a lithium battery, as a low voltage storage system, the battery DC voltage is usually 48V or 51.2V for home solar applications.
Let’s give an example for solar lithiun storage battery system field, imagine that when an 8kW hybrid solar inverter is used with a lithium battery, as a low voltage storage system, the battery DC voltage is usually 48V or 51.2V for home solar applications.
Even if we use a relatively larger nominal current, such as 100A, The maximum power that the battery can provide is 5kW (51.2V x100A = 5.12kW), and this value cannot meet the maximum output power of the inverter. Moreover, there are so many commercial energy storage applications where the power system output power is such as 30kW, 60kW, 100kW or even 500kW power capacity. In these application scenario, we must use a HV lithium battery system to lower down the discharge current.
What is lifepo4 battery ?
What is lifepo4 battery ?
The lithium iron phosphate (Lifepo 4 ) is a type off rechargeable battery based on the orriginal lithium ion chemistry,created by the use of Iron (FE ) as a cathode material . LIFePO4 cells have higher discharge current do not explode underextreme conditions and wegh less but have lower voltage and energy density than normal Li-lion cells
Battery Storage :
1. Lithium battery must be stored at -10℃～45℃ in clean, dry and ventilated room place.
2. The package must be strong enough to avoid the Lithium battery being crushed or crimped.
3. Must be store far away from the fire and heat sources, and from strong magnetic circumstances.
4. Avoid contacting corrosive materials, Keep away from moisture, raining and water.
5. Charge and discharge the battery for 1 cycle every 6 months during storage.
2. The package must be strong enough to avoid the Lithium battery being crushed or crimped.
3. Must be store far away from the fire and heat sources, and from strong magnetic circumstances.
4. Avoid contacting corrosive materials, Keep away from moisture, raining and water.
5. Charge and discharge the battery for 1 cycle every 6 months during storage.
Lithium Ion Battery 100ah high voltage 96V 192V 384v Lifepo4 Battery Spec.
Model | LFPO4-96 | LFPO4-192 | LFPO4-384 | ||
Nominal Voltage | 96V | 192V | 384V | ||
Nominal Capacity | 100AH | 100AH | 100AH | ||
Nominal Energy | 9.6KWh | 19.6KWh | 38.4KWh | ||

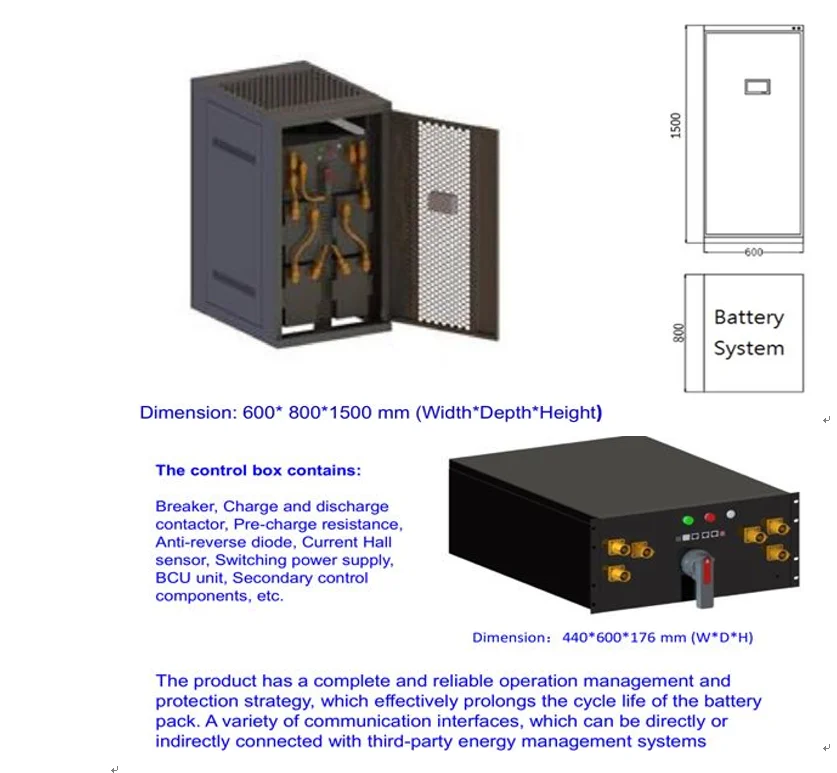

Dimension(W*H*D) | 520*480*230mm | 600*1500*800mm | 600*1800*850mm | ||
Weight (kg) | 150kg | 300kg | 540kg | ||
Internal resistance | ≤200mΩ @1kHz AC | ≤200mΩ @1kHz AC | ≤200mΩ @1kHz AC | ||
DC discharge nominal voltage | 96Vdc (LFP-30S) | 192Vdc (LFP-60S) | 384Vdc (LFP-120S) | ||
Rang of DC discharge voltage | 75-108Vdc | 150~219Vdc | 300~438Vdc | ||
DC normal charge voltage | 108±2.0Vdc | 219±2.0Vdc | 438±2.0Vdc | ||
DC float charge voltage | 104±2.0Vdc | 207±2.0Vdc | 420±2.0Vdc | ||
Allowed MAX charge current | 100Adc | 100Adc | 100Adc | ||
Allowed MAX discharge current | 100Adc | 100Adc | 100Adc | ||
Recommended charge current | ≤50Adc | ≤50Adc | ≤50Adc | ||
communication | Inside with can, BMS with RS485 | Inside with can, BMS with RS485 | Inside with can, BMS with RS485 | ||
IP rating | IP21 | IP21 | IP21 | ||
Operation temperature | Charge：0～50℃ | ||||
Discharge：-20～60℃ | |||||
Cycle life | 3000 Cycles(100%DOD) | ||||
6000 Cycles(80%DOD) | |||||
Storage environment | ≤1month：-20～+60℃、5～75%RH | ||||
≥3month：-10～+45℃、5～75%RH | |||||
Recommend environment：15～35℃、5～75%RH | |||||
Why so many customers always compare the price not the quality of the a lithium ion battery ?you could see the difference of the battery cell
Details Images
When recharging, use the LiFePO4 battery charger specifically for that purpose
Do not strike battery with any sharp edge parts, such as Ni-tabs, pins and needles
Do not immerse the battery in water and seawater
Do not use and leave the battery near a heat source as fire or heater
Do not reverse the position and negative terminals
Do not connect the battery to an electrical outlet
Do not discard the battery in fire or heat it
The battery tabs are not so stubborn especially for aluminum tab. Do not bend tab.
Do not short-circuit the battery by directly connecting the positive and negative terminal with metal object.
Do not transport and store the battery together with metal objects such as necklaces, hairpins etc.
Do not directly solder the battery and pierce the battery with a nail or other sharp object.
Do not strike battery with any sharp edge parts, such as Ni-tabs, pins and needles
Do not immerse the battery in water and seawater
Do not use and leave the battery near a heat source as fire or heater
Do not reverse the position and negative terminals
Do not connect the battery to an electrical outlet
Do not discard the battery in fire or heat it
The battery tabs are not so stubborn especially for aluminum tab. Do not bend tab.
Do not short-circuit the battery by directly connecting the positive and negative terminal with metal object.
Do not transport and store the battery together with metal objects such as necklaces, hairpins etc.
Do not directly solder the battery and pierce the battery with a nail or other sharp object.
Product Usage
Lithium ion battery lifepo4 Product Application
1. Energy Storage: UPS , backup ,power station.
2. EV : Golf trolleys , Electric scooters .Electric Bike ,Electric tricyle ,Electric Motor.
3. Solar System,Wind Energy Storage,Solar/Storage Home System, Solar Street Light.
4. Telecommunications Base Stations.
5.General Energy Storage (Such as: Back-up Power, Miner's lamp, portable power supply, digital products etc.
2. EV : Golf trolleys , Electric scooters .Electric Bike ,Electric tricyle ,Electric Motor.
3. Solar System,Wind Energy Storage,Solar/Storage Home System, Solar Street Light.
4. Telecommunications Base Stations.
5.General Energy Storage (Such as: Back-up Power, Miner's lamp, portable power supply, digital products etc.

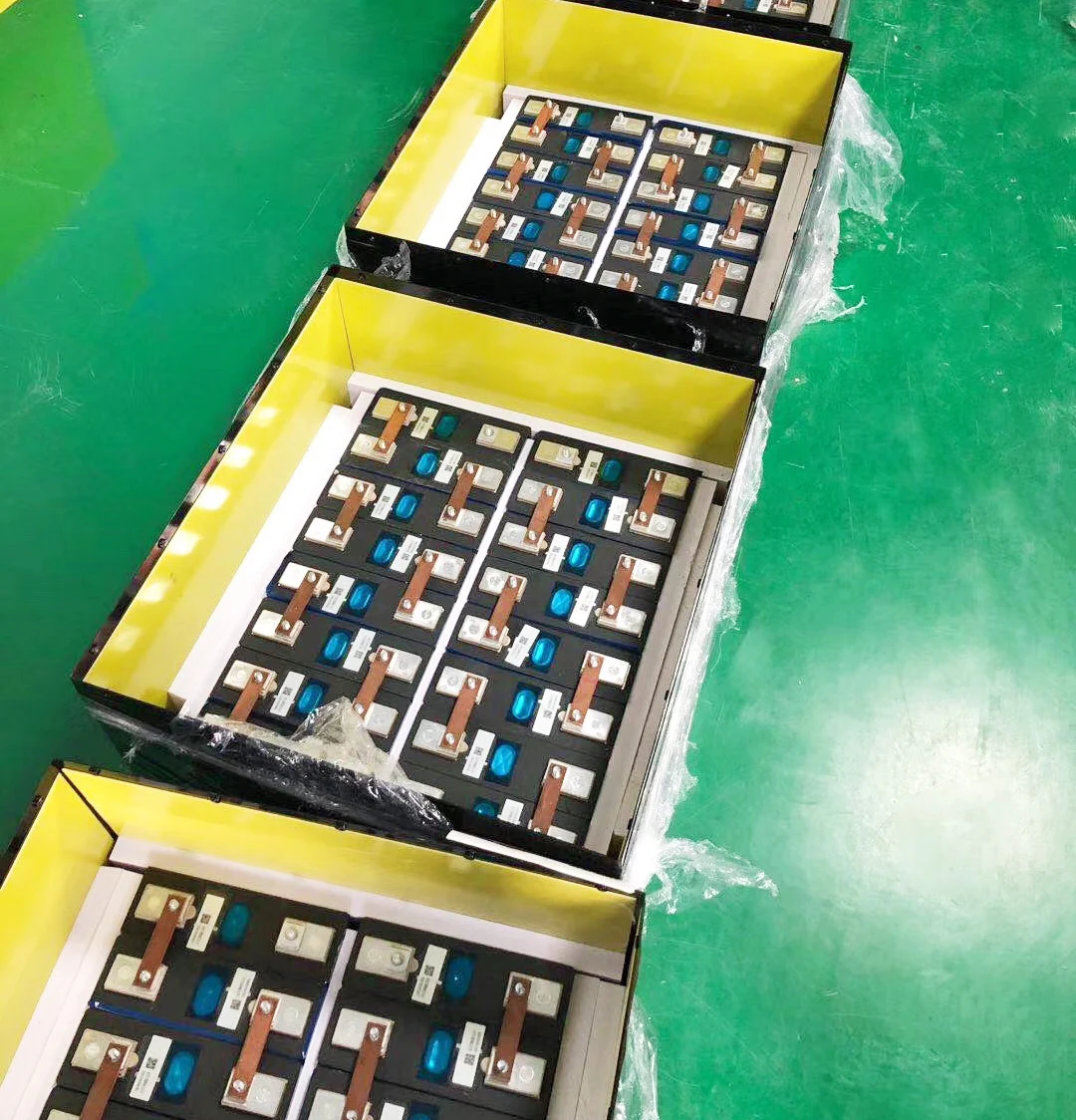

Packing&Shipping
How to pack the lithium ion batteries for customers ?
Lithium battery for solar is packaged in boxes. Each lithium ion solar battery will be pack in one small box or packing as
customer required in case of damage.The solar lithium battery should be stored in its
Lithium battery for solar is packaged in boxes. Each lithium ion solar battery will be pack in one small box or packing as
customer required in case of damage.The solar lithium battery should be stored in its

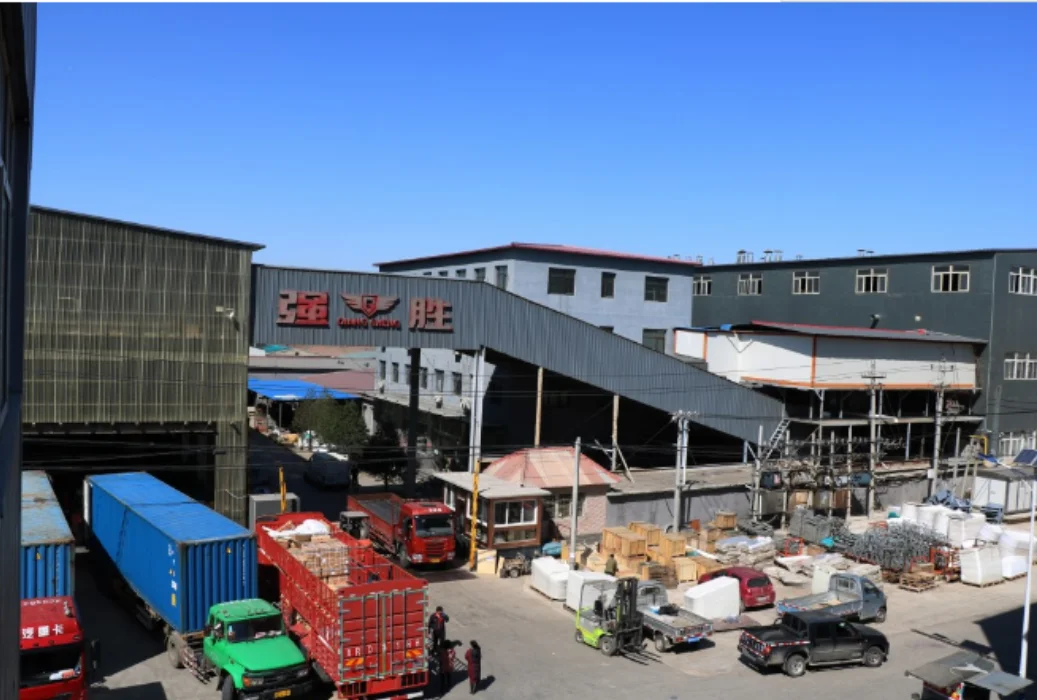

Company Introduction
QSPOWER Co.,LTD was founded in 2018 belonging to Qiangsheng Goup(UK) Co.,Ltd which focus on green energy products since 2012.
QSPOWER has the strong technique support group which has the well-known expert from America and Taiwan. QSPOWER has extensive

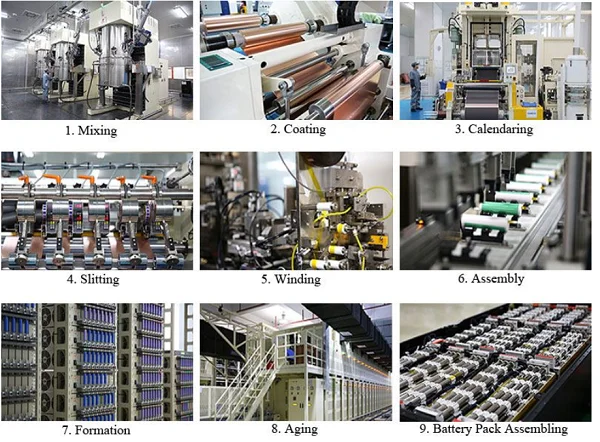

experience with every facet of the design and manufacturing process of batteries.
QSPOWER focus on Green energy solution, such as lithium battery technique R&D, battery testing, battery cell supplying chain,
battery packing and customized green energy solution project.
QSPOWER has the experienced engineers and resources to help ensure a smooth design process and project management to meet delivery
schedules. We are willing to invest together for potential good project and business partner. New developing requirements are always welcome.
QSPOWER has the strong technique support group which has the well-known expert from America and Taiwan. QSPOWER has extensive
experience with every facet of the design and manufacturing process of batteries.
QSPOWER focus on Green energy solution, such as lithium battery technique R&D, battery testing, battery cell supplying chain,
battery packing and customized green energy solution project.
QSPOWER has the experienced engineers and resources to help ensure a smooth design process and project management to meet delivery
schedules. We are willing to invest together for potential good project and business partner. New developing requirements are always welcome.
Our Services & Strength
semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.

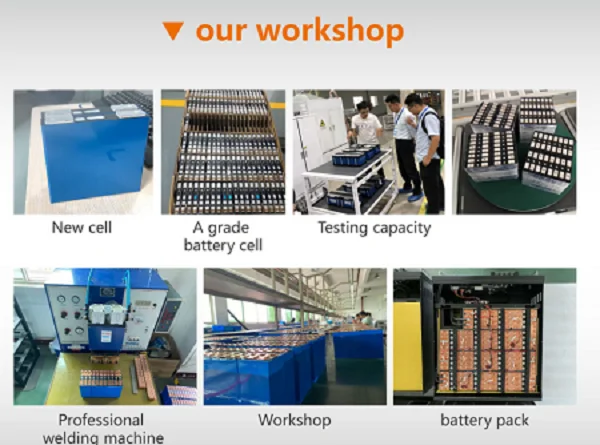

Detection:
We have advanced equipment. "Quality is our culture".
We focus on provide the highest quality products to our customers
Our Team:
We trust our technology, our price, quality and after service will let us to be your good business partner and give yoan edge to over your competitors.
We have advanced equipment. "Quality is our culture".
We focus on provide the highest quality products to our customers
Our Team:
We trust our technology, our price, quality and after service will let us to be your good business partner and give yoan edge to over your competitors.
FAQ
4.Q: Can I have a sample battery order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5,Q: Do you have MOQ limit for the lifepo4 cells or battery pack?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.for examples .forcompletely battery pack the moq is 1 sample is fine for order;for 18650 cylinderical cells moq is 100pcs for order.
6,Q: How about the lead time for both sample order battery 18650 and mass order batteries?
A: Samples will takes 10-15 business days. Mass production will takes 20-25 days. It depends on how many battery quantity you will placed.
7,Q: How about shipping and delivery time for the battery sample and batteries mass order ?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 4-8 business days.for sample and mass order Or DDP service, delivery time is 15-20 business days. Airline and sea shipping also available.
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5,Q: Do you have MOQ limit for the lifepo4 cells or battery pack?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.for examples .forcompletely battery pack the moq is 1 sample is fine for order;for 18650 cylinderical cells moq is 100pcs for order.
6,Q: How about the lead time for both sample order battery 18650 and mass order batteries?
A: Samples will takes 10-15 business days. Mass production will takes 20-25 days. It depends on how many battery quantity you will placed.
7,Q: How about shipping and delivery time for the battery sample and batteries mass order ?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 4-8 business days.for sample and mass order Or DDP service, delivery time is 15-20 business days. Airline and sea shipping also available.
