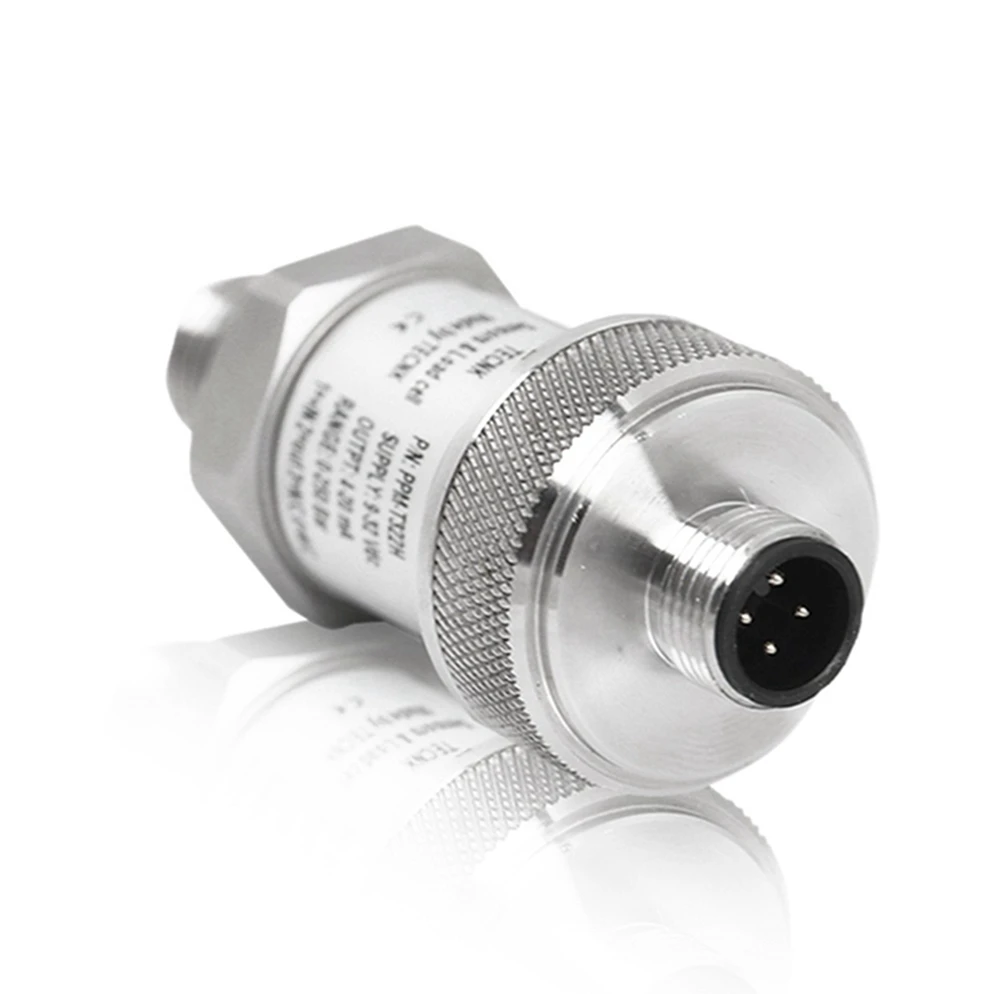

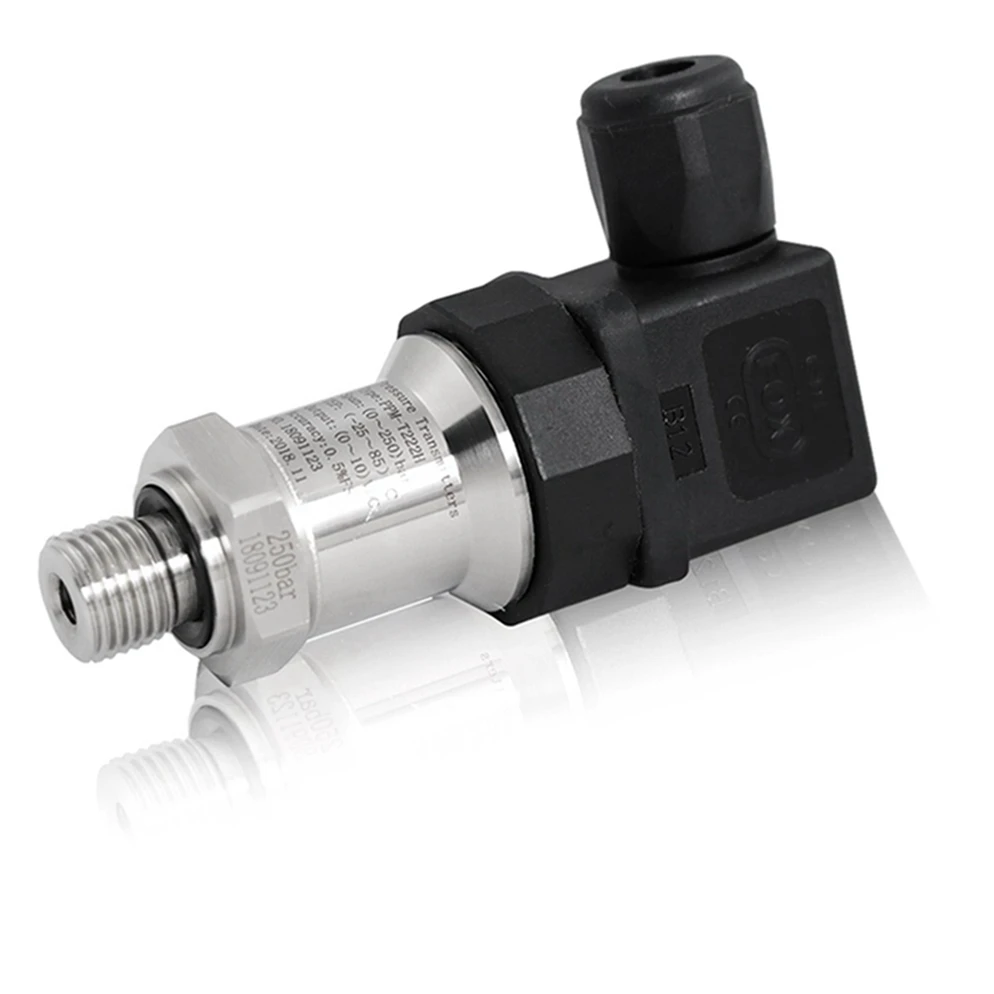

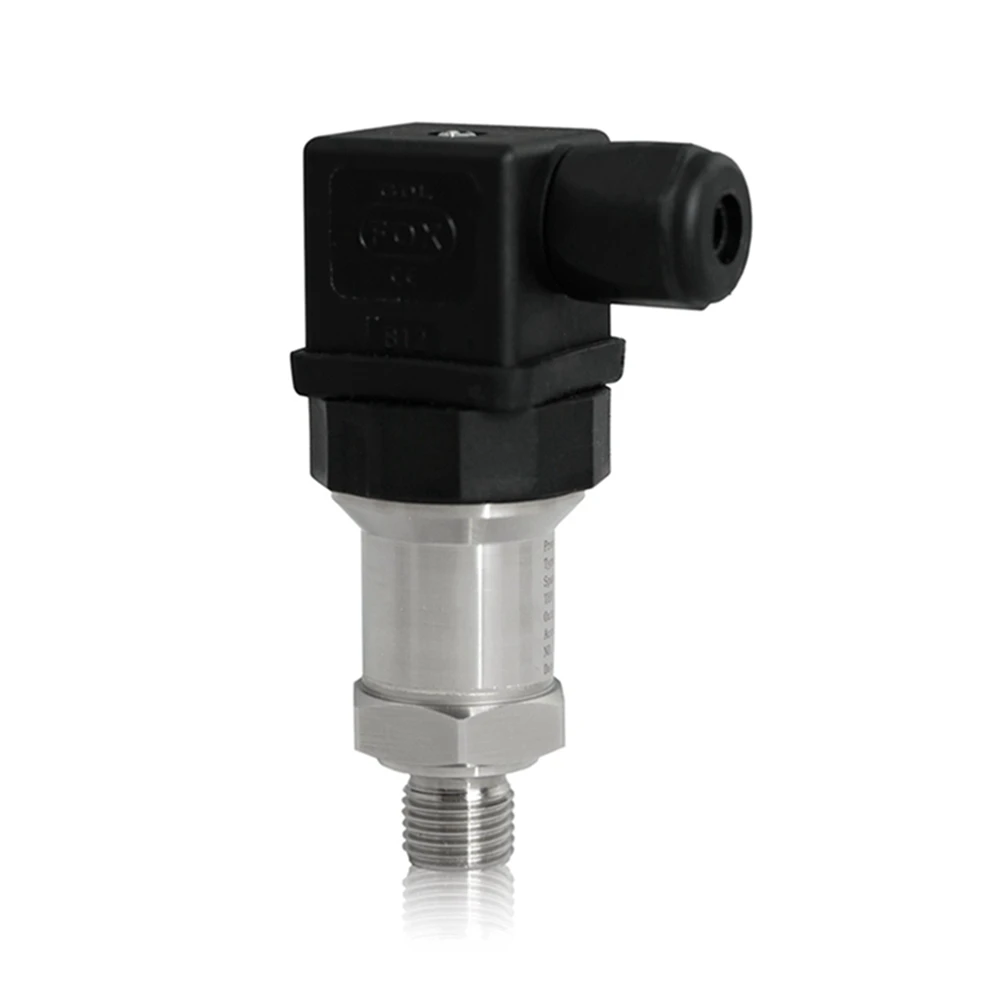

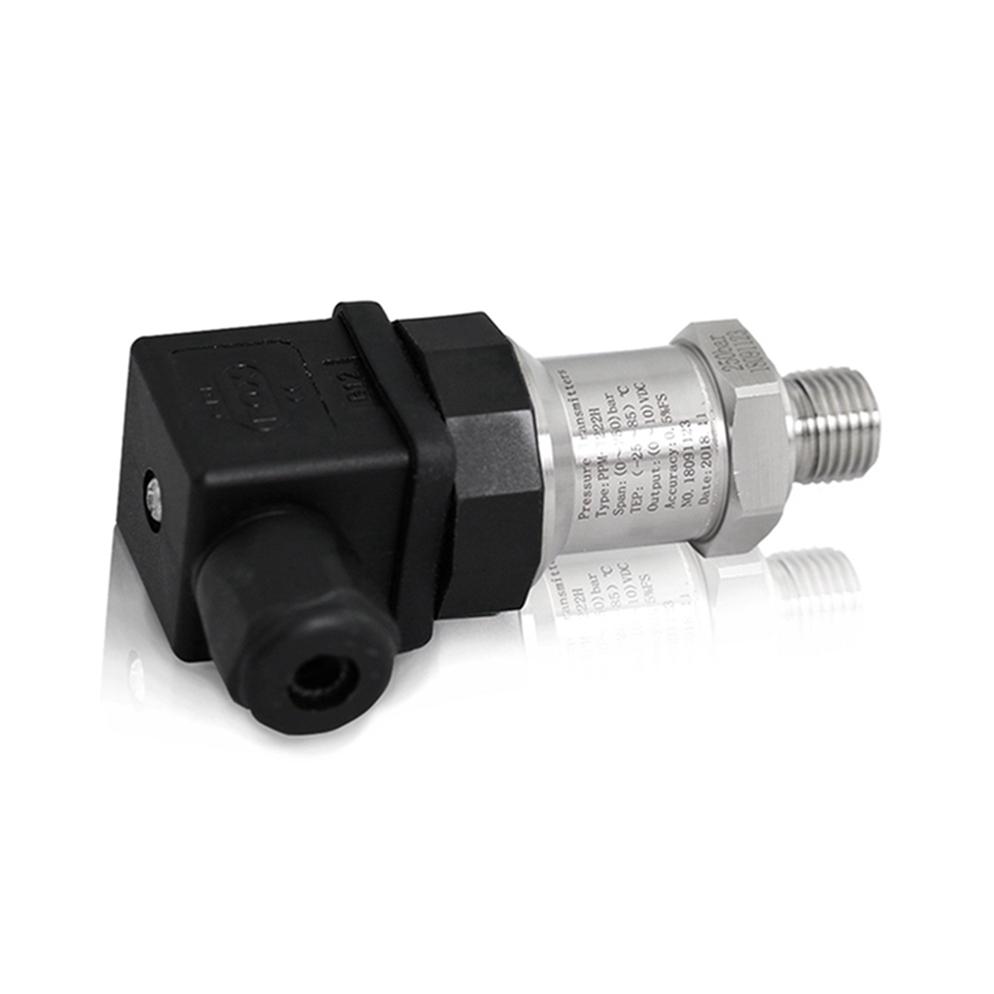

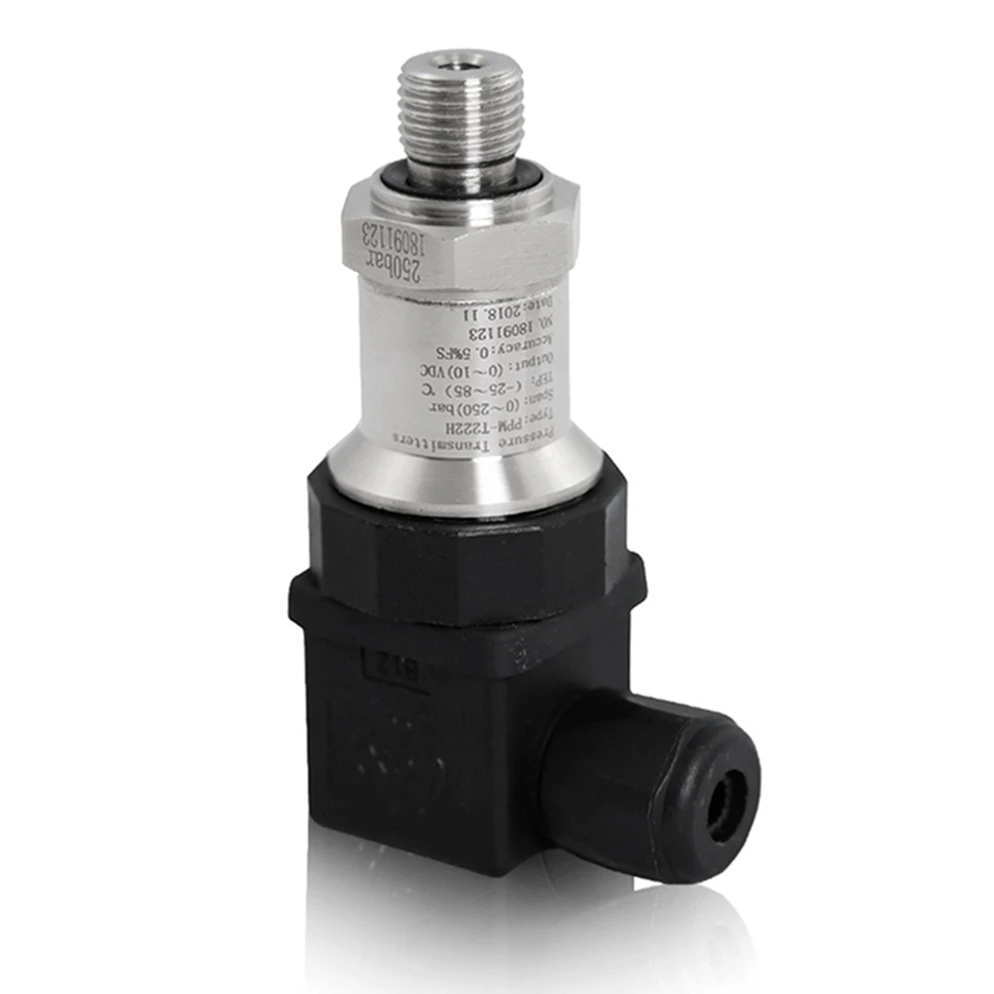

50 бар 100 бар 300 бар Цифровой миниатюрный датчик давления воды

50 бар 100 бар 300 бар Цифровой миниатюрный датчик давления воды

Категория товара: Pressure Sensors >>>
Поставщик (Оптовый магазин): Changsha,Taihe,Electronic,Equipment,Co.,Ltd.

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

0-10V 4-20Ma Static Oil Fuel Air Gas Water Pressure Sensor Transducer 0 To 10 Bar

Application

Mechanical engineering Industry

Industrial automation measuring

Hydraulic and level measurement

Gas tank pressure monitoring

Industrial test and control

Other industrial applications

Special Feature

Widely pressure range from 0~10bar~16bar~25bar~40bar~60bar~160bar~250bar~

350bar~400bar~600bar~700bar~800bar~1000bar

Various electrical connectors available: can be OEM custom various parameters

Various industrial standard signal output:4~20Ma,0~10V,0~5V,1~5V,0.5~4.5V optional

Wide temperature range: -40 ~ 125℃, autocorrection temperature drift

Moisture-proof design: Stable performance in very humid environment

Harsh working environment without delay: Response time ≤1ms

Compact dimension design

Description

PPM-T222H Series standard pressure transmitter adopts Classical diaphragm technology. It designed with widely pressure range, compound output signals optional. It is suitable for both civil and industrial use. Multiply construct available, it can make sure the batch requirement of the client, we also can supply the special design.

Specifications

Measuring medium	Gas, liquid
Pressure type	Gauge pressure(G), Sealed pressure(S)
Pressure range	0~160bar,250bar,400bar,600bar,700bar,1000bar
Power supply	9-32VDC
Output signal	4~20mA ,0~10VDC,0~5VDC
Nonlinearity	≤0.2
Non-repeatability	≤0.2% FS
Accuracy	0.5%FS
Long-term stability	0.25%FS/year
Medium temp	-40~+85℃
Operation temp	-40~+85℃
Zero temp. drift	≤0.03%FS/℃
FS temp. drift	≤0.03%FS/℃
Response time	≤1ms(10%~90%)
Insulation resistance	≥1000 MΩ/100V
Overpressure	150%FS (1.5 times FS)
Damage pressure	500%FS (5 times FS)
Vibration resistance	5~1000Hz
Shock resistance	50g, 20ms
Process connections	G1/4, M14×1.5, or other process connections on request
Materials	Wetted parts: 17-4PH, non-wetted parts: stainless steel 304
Ingress protection	IP67
Electrical connections	Circular connector M12 x 1,L-connector DIN43650

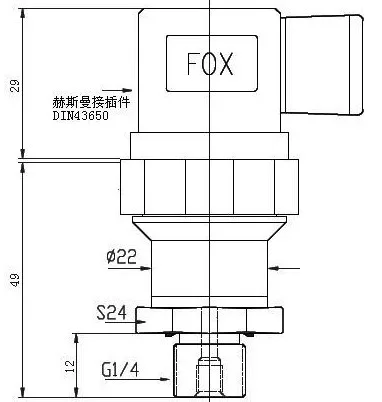

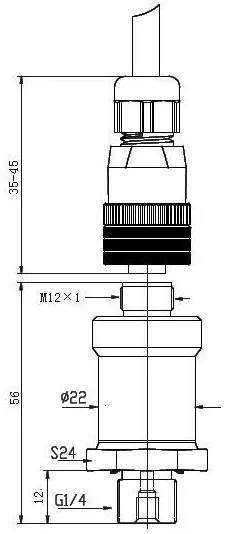

Dimensions in mm

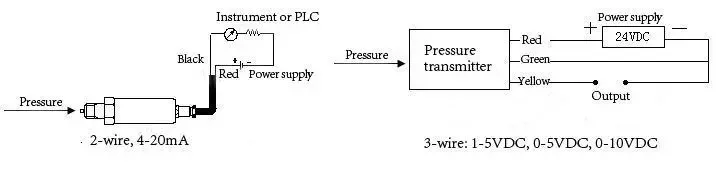

Wiring Diagram

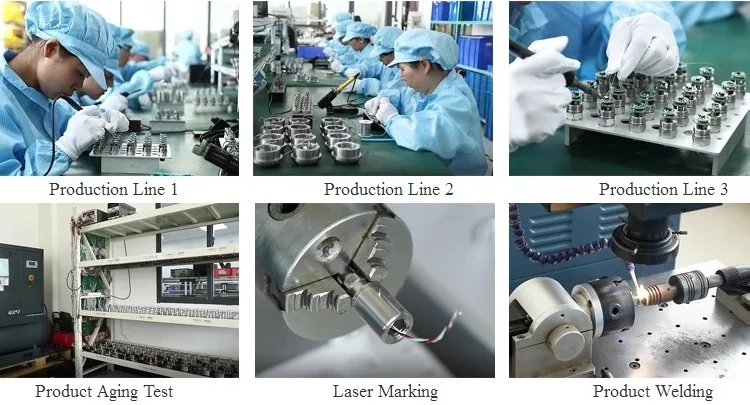

Company Information

Our Services

1, MOQ: One sample order is acceptable.
2, Price term : EXW, FOB Changsha.
3, Payment: Western union, Paypal for samples order; T/T 30% deposit, 70% T/T before shipment for order.
4, Packing: Standard export packing, including instructions and certificate.
5, Leading time : 5-10days for samples, 10-30 days for mass production.
6, OEM/ODM is available.
7, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
8, Warranty: One year free repair for quality warranty, and lifetime free online after-service.

FAQ

Q: How long will you give me the reply?
A: we will contact you as soon as we can.
Q:Could I visit your factory?
A: Sincerely welcome you to visit our factory.
Q: Do you provide samples ?
A: Yes, we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you .
Q: What is the warranty for your product ?
A: Warranty: 1 years, and lifetime maintenance online after-service.
