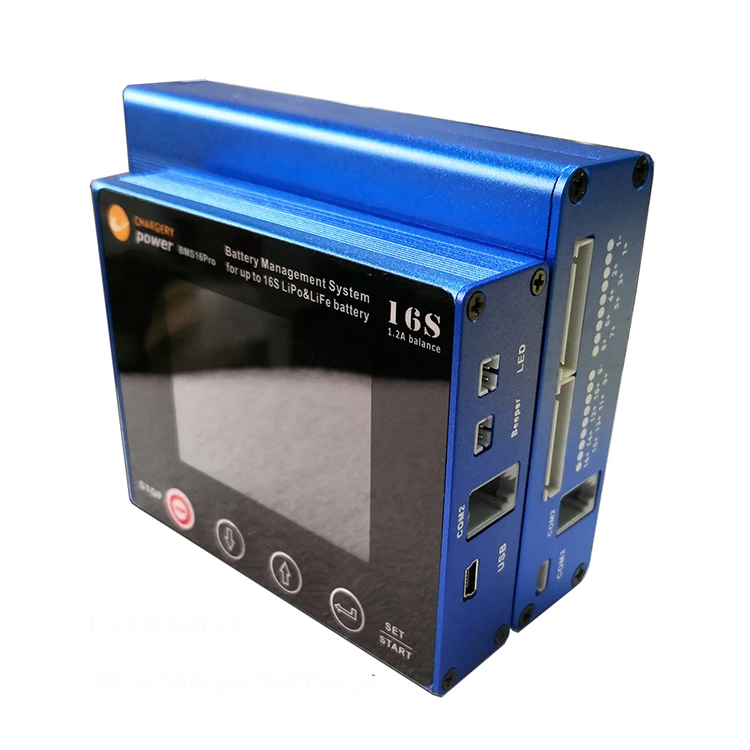

Контактор постоянного тока 300A BMS16T 300A 8S-16S, система управления литий-ионной батареей BMS
- Категория товара: >>>
- Поставщик (Оптовый магазин): Shenzhen,Deriy,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Two core technology
High power and high efficiency charger and power supply adopt ZVS/ZCS and Synchronous Rectification realize 94% of high efficiency, output voltage and current control by MCU make all charge parameters can be programmed.
High accuracy BMS adopt 12 bit or 16 bit ADC measure cell voltage, charge and discharge current and battery temperature.
Chargery BMS and Charger communicate each other, avoid cutting off charging by Open DCC or relay, this feature can save charging time and extend battery life, at the same time don't need install DCC or relay to cut off charging when any cell reach the highest voltage.
High power and high efficiency charger and power supply adopt ZVS/ZCS and Synchronous Rectification realize 94% of high efficiency, output voltage and current control by MCU make all charge parameters can be programmed.
High accuracy BMS adopt 12 bit or 16 bit ADC measure cell voltage, charge and discharge current and battery temperature.
Chargery BMS and Charger communicate each other, avoid cutting off charging by Open DCC or relay, this feature can save charging time and extend battery life, at the same time don't need install DCC or relay to cut off charging when any cell reach the highest voltage.
Chargery Profile
CHARGERY is almost unique company in the UAV (RC model, big drones) and EV (e-bike, e-motocycle, e-scooter) market, we developed high power AC charger and BMS at same time.
From 2006, we focus on developing high power (up to 60A 3000W) charger, balance charger (AC input, DC input and AC/DC dual input) and 800A BMS for up to 24S LiPo/LiFe/ LiTO battery.
Chargery charger can charge any chemical battery including LiPo, LiFe, Li-ion, LiTo, NiMh, NiCD and Pb (Lead acid, VRLA battery), cell count, charge current, end voltage and end current can be programmed. and realize anti-spark and reverse polarity protection when high voltage battery connect to charger or inverter(loader).
Chargery BMS can handle up to 800A charge and discharge current, special designed DCC (DC contactor) is built-in surge suppressing circuit
CHARGERY is almost unique company in the UAV (RC model, big drones) and EV (e-bike, e-motocycle, e-scooter) market, we developed high power AC charger and BMS at same time.
From 2006, we focus on developing high power (up to 60A 3000W) charger, balance charger (AC input, DC input and AC/DC dual input) and 800A BMS for up to 24S LiPo/LiFe/ LiTO battery.
Chargery charger can charge any chemical battery including LiPo, LiFe, Li-ion, LiTo, NiMh, NiCD and Pb (Lead acid, VRLA battery), cell count, charge current, end voltage and end current can be programmed. and realize anti-spark and reverse polarity protection when high voltage battery connect to charger or inverter(loader).
Chargery BMS can handle up to 800A charge and discharge current, special designed DCC (DC contactor) is built-in surge suppressing circuit
Products Description
Video
BMS update video: https://www.youtube.com/watch?v=4nrYUm1uhAs
BMS installation video: https://www.youtube.com/watch?v=ic_Ulh8DOlk
current calibration video: https://www.youtube.com/watch?v=bCM_cau0TD0
BMS update video: https://www.youtube.com/watch?v=4nrYUm1uhAs
BMS installation video: https://www.youtube.com/watch?v=ic_Ulh8DOlk
current calibration video: https://www.youtube.com/watch?v=bCM_cau0TD0
BMS24T manual: http://chargery.com/doc/Chargery_BMS24T_specification_V4.2.pdf
BMS16T manual: http://chargery.com/doc/Chargery_BMS16T_specification_V4.2.pdf
BMS8T manual: http://chargery.com/doc/Chargery_BMS8T_specification_V4.2.pdf
DC Contactor manual: http://chargery.com/doc/Chargery%20DC%20contactor%20manual%20V1.1.pdf
C10325 charger manual: http://chargery.com/doc/Chargery%20C10325%20manual%20V1.1.pdf
C3060 charger manual: http://chargery.com/doc/Chargery%20C3060%20charger%20manual%20V1.0.pdf
C4012B charger manual: http://chargery.com/doc/Chargery_C4012B_specification_V1.30.pdf
BMS update instructions: http://chargery.com/uploadFiles/Chargery%20BMS%20V4.0%20update%20instructions.pdf
Update tool and firmware: http://chargery.com/update.asp
Features:
1. The BMS16T uses advanced ADC measurement technology, high accuracy, high voltage and high current detection circuit. The maximum voltage measurements tolerance is within 8mV at up to 16S LiPo battery.
2. Supports regenerative braking, during braking operation it can charge the battery pack and the discharge power (Wh) will increase in response to the braking power.
3. Charge/discharge current up to 600A. Larger current support can be custom ordered.
4. 1.2A per cell balance current is very useful for large capacity battery pack, this feature can restore all cell voltage balance in the shortest time. Over temperature protection ensures the system safety during balancing.
5. BMS16T calculates and displays the charge and discharge power (Wh), generally the battery rated power is rated voltage multiplied by rated battery capacity.
6. TFT LCD screen provides rich information including current, voltage, power, capacity, battery status, SOC and temperature and so on.
7. BMS16T features maximum safety protections, within the range parameters that can be setup, BMS16T will alarm and cutoff charge or discharge according to users’ setup, out of range parameters and triggered absolute maximum settings BMS16T will force cutoff charge / discharge to protect the battery.
8. Minimize the power consumption by draw current from all cells or external power supply.
9. Dual power design, the unit can be powered by all the cells or an external power supply.
10. Detect cell count at any time, and compare with the count detected when switched on first time. If inconsistent, the device will alarm and cutoff charge or discharge according to user setup, this is a safety feature is if a cell becomes loose.
11. Sound alarm and LED alarm will be triggered if any warning events occur, it will wait several seconds, then disconnect charge / discharge if required. The delay time can be programmed.
12. The Charge and Discharge relays are controlled independently.
13. Two temperature sensors monitor battery temperature for different positions on the pack.
14. Supports upgrading the firmware program by USB port.

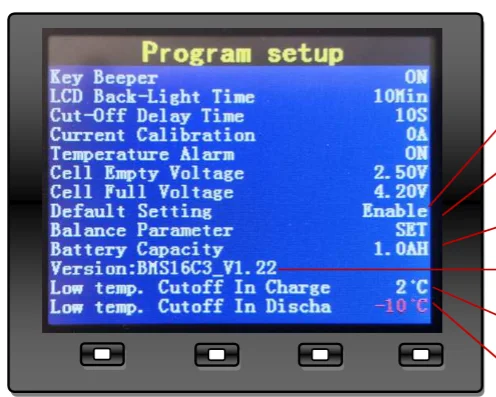

15. BMS16T provide users the maximum flexibility, key parameters can be programmed.

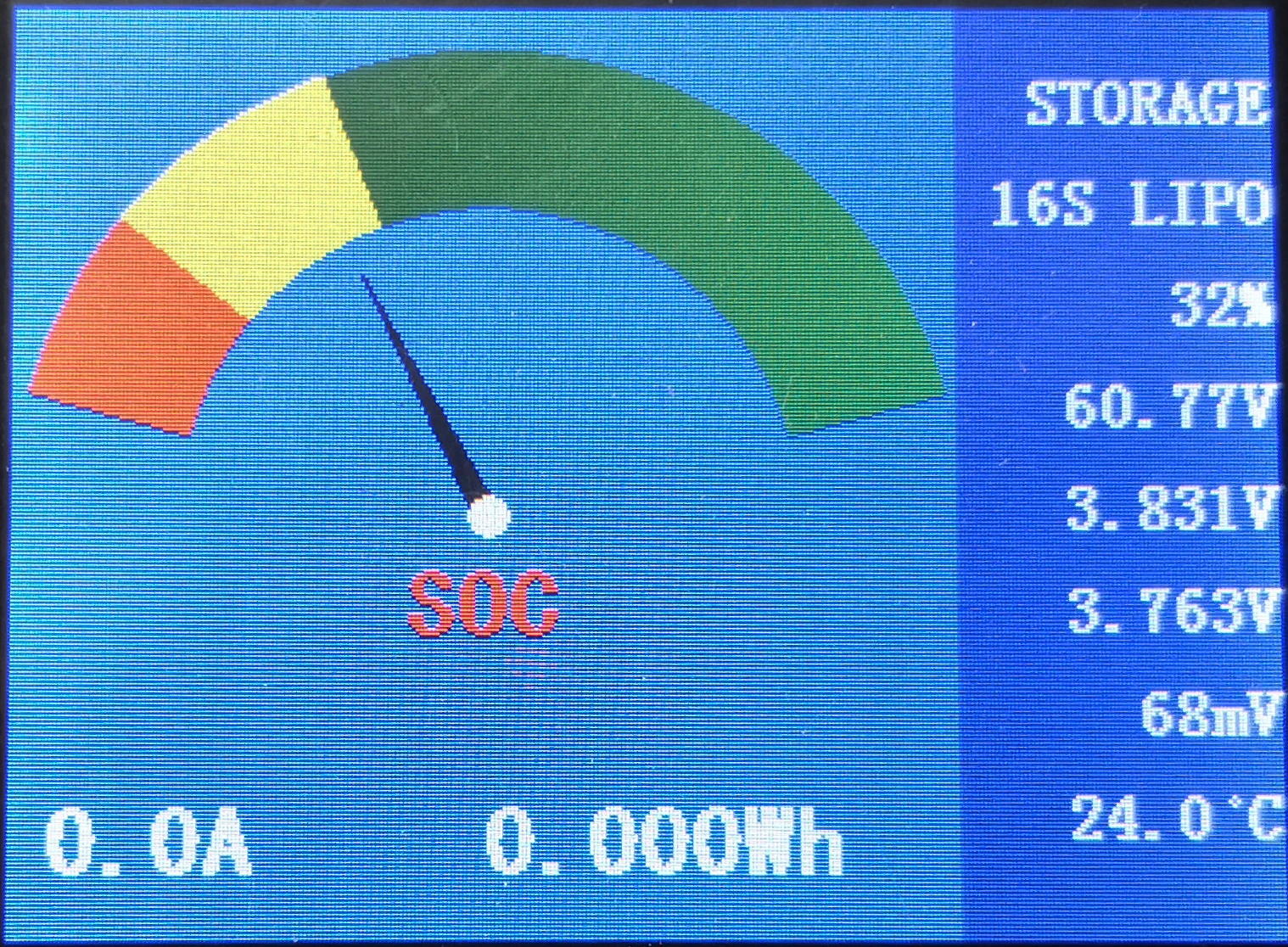

16. BMS16T displays battery SOC as a dial gauge. Cell count, battery pack voltage and battery gauge (%) temperature is displayed simultaneously.
17. In case the battery pack is not to be charged / discharged and put into storage mode, Press STOP button enter into Sleep Mode to save energy consumption, Charge / Discharge are disabled and the LCD back light is turned off. Press any key to resume normal work mode.
18. LCD back light ON time can be programmed to save energy, when it is OFF, press any key to activate.

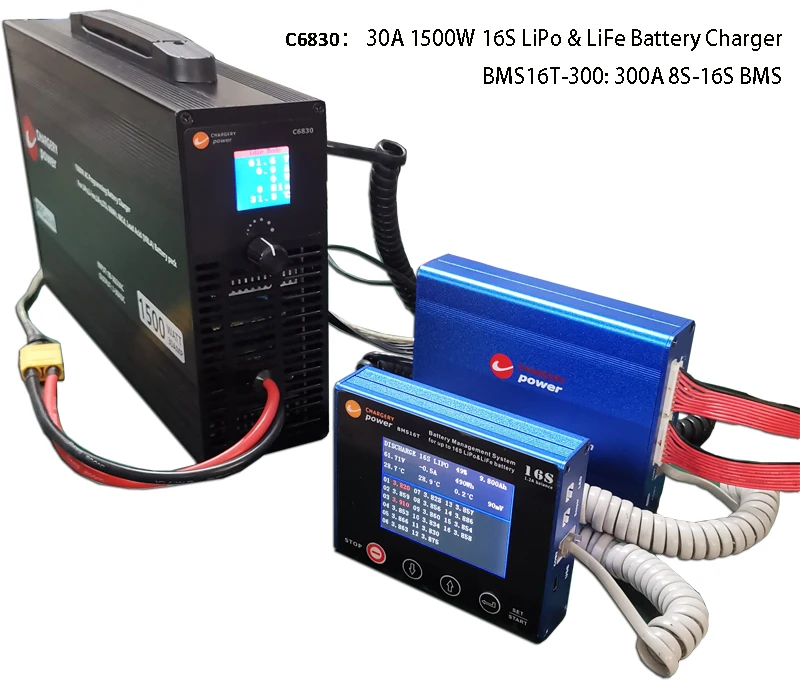

19. Communicate with CHARGRY charger, don't need install any relay to cut off charging
20. Communicate with external device with integrated RS232, RS485, or CAN

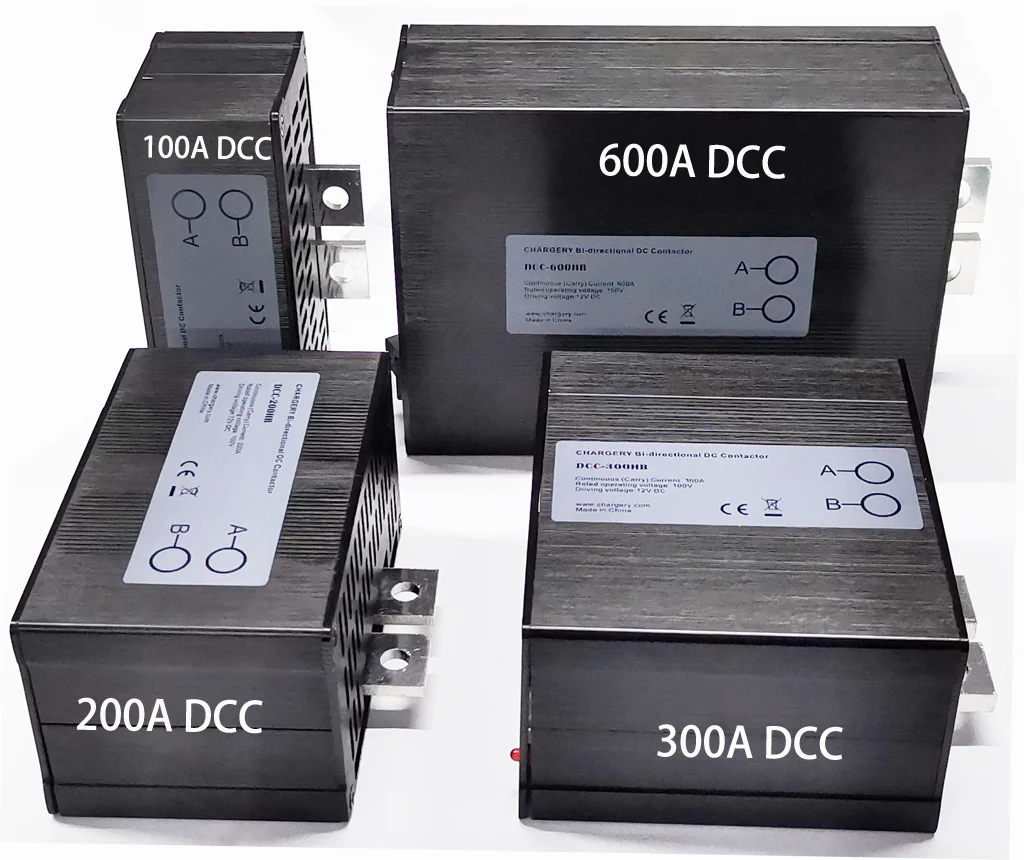

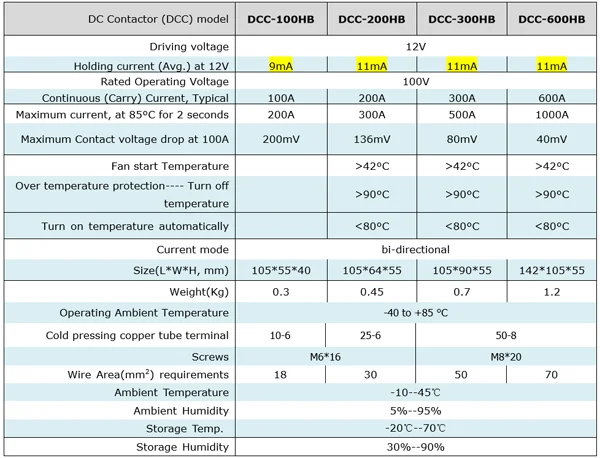

DC contactor
Optional DCC Contactor----delivery default here is DCC on common port and with ISO Board. if need DCC on separate port, please buy on DCC contactor detail pages.
* Bi-directional connection, one DCC can be used in a Common port such as a Solar system, instead of two SSR's (Solid State Relays) or conventional relays.
* The DCC has a Built-in the surge suppressing circuit, thereby eliminating the need for the additional Relay Delay Time board which is used to avoid a surge current when starting to charge or discharge. For other SSR's or mechanical relay, please consider the surge current potentials seriously and make a suitable plan for using a delay board as applicable.
* Over temperature protection. If internal temperatures over heat, the contactor will shut off.
* One Intelligent cooling fans turned on automatically
Optional DCC Contactor----delivery default here is DCC on common port and with ISO Board. if need DCC on separate port, please buy on DCC contactor detail pages.
* Bi-directional connection, one DCC can be used in a Common port such as a Solar system, instead of two SSR's (Solid State Relays) or conventional relays.
* The DCC has a Built-in the surge suppressing circuit, thereby eliminating the need for the additional Relay Delay Time board which is used to avoid a surge current when starting to charge or discharge. For other SSR's or mechanical relay, please consider the surge current potentials seriously and make a suitable plan for using a delay board as applicable.
* Over temperature protection. If internal temperatures over heat, the contactor will shut off.
* One Intelligent cooling fans turned on automatically
Specification
BMS Main module size: | 124×95×30 (L×W×T, mm) or 4.88×3.7×1.18 (L×W×T, inch) |
BMS Display module size: | 96×80×24 (L×W×T, mm) or 3.8×3.2×0.95 (L×W×T, inch) |
BMS Main module weight: | 365 g excluding accessories |
BMS Display module weight: | 130 g excluding accessories |
Mental enclosure: | oxidized aluminum alloy shell |
Max charge / discharge current: | up to 300A |
Model | BMS16T-100 | BMS16T-300 | BMS16T-600 |
Maximum charge/discharge current | 100A | 300A | 600A |
Package information
* BMS main unit: 1pcs
* BMS LCD unit: 1pcs

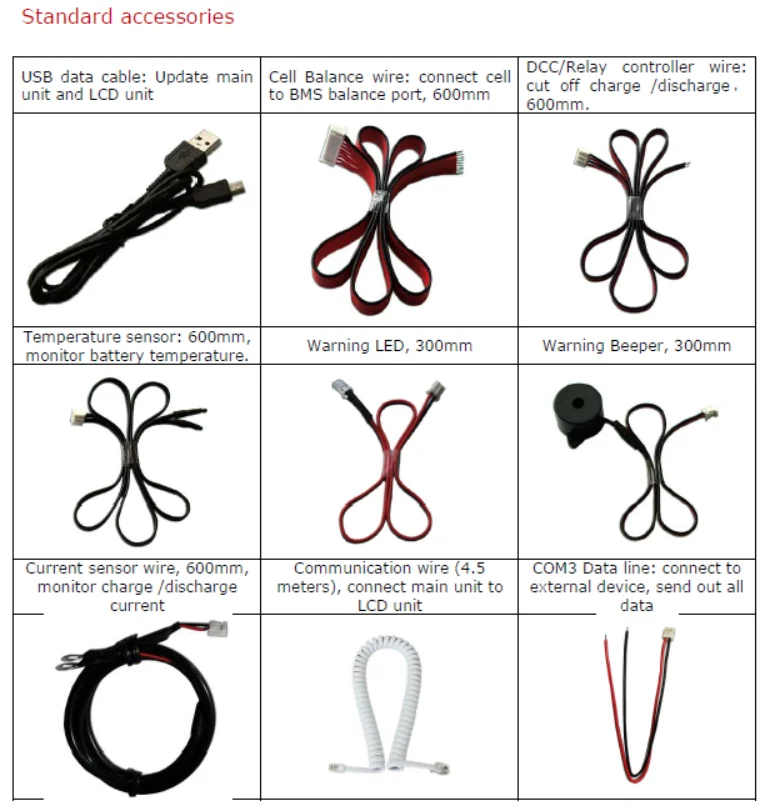

* Standard accessories: 1 set

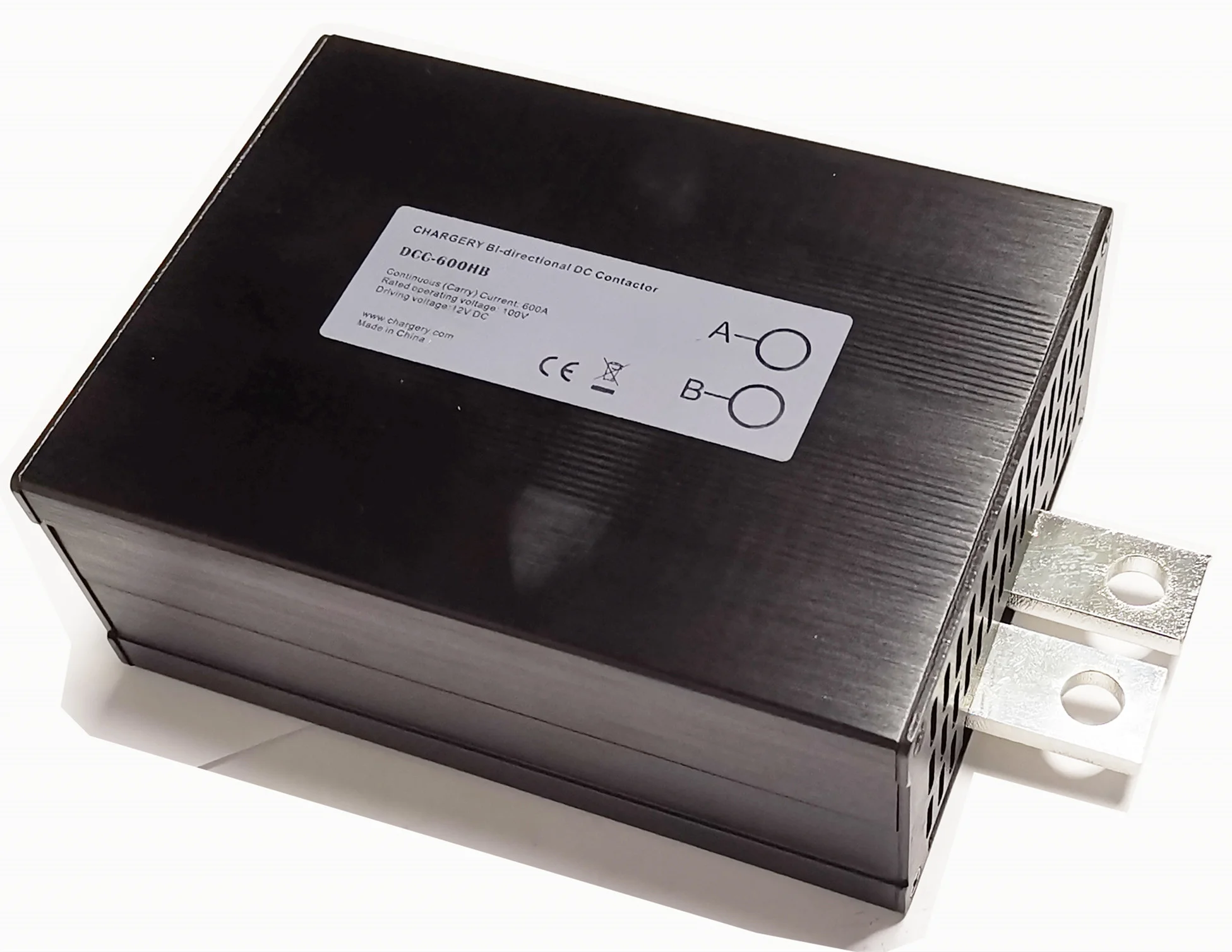

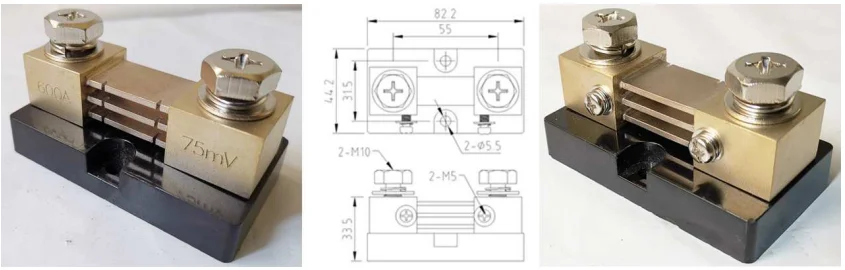

* Current shunt: 1pcs * DCC-600HB including ISO board: 1pcs
* Standard accessories: 1 set
* Cables: BMS to DCC, BMS to charger, and so on.
Important information
* Shunt is calibrated before delivery
* Each cell volatage is calibrated before delivery
* Watch video before installation
* Read Owner manual carefully before operation
* SOC must be calibrated after setup AH and WH.
* BMS main unit: 1pcs
* BMS LCD unit: 1pcs
* Standard accessories: 1 set
* Current shunt: 1pcs * DCC-600HB including ISO board: 1pcs
* Standard accessories: 1 set
* Cables: BMS to DCC, BMS to charger, and so on.
Important information
* Shunt is calibrated before delivery
* Each cell volatage is calibrated before delivery
* Watch video before installation
* Read Owner manual carefully before operation
* SOC must be calibrated after setup AH and WH.

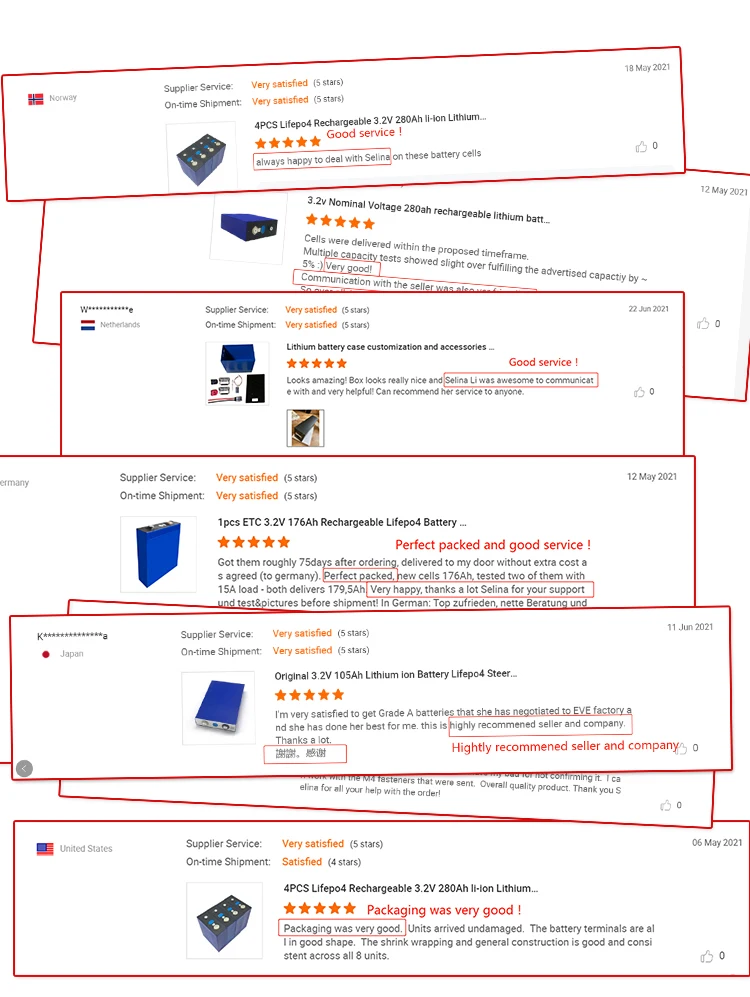

Customer's Feedbacks
