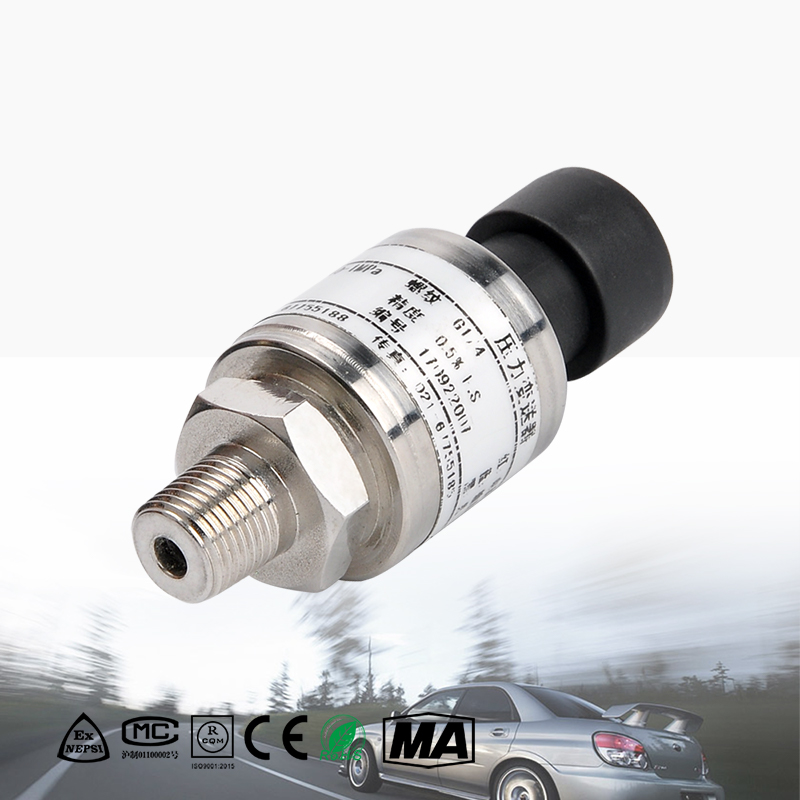

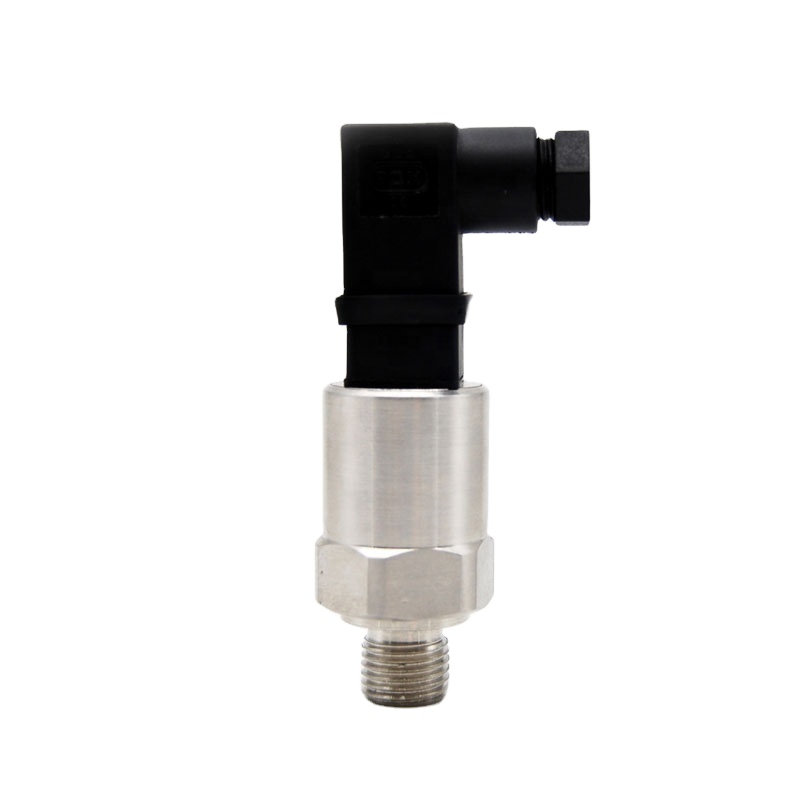

Compressor Field Small Size Pressure Transmitter 4-20ma

Specification of T428B Sensor Pressure Pressure Transmitter 4-20ma

Measuring medium	Gas, liquid
Pressure type	Gauge pressure(G), Sealed pressure(S)
Pressure range	0~10Bar, 0~16Bar, 0~40Bar
Power supply	9-32VDC
Output signal	4~20mA ,0.5~4.5V
Nonlinearity	≤0.2%FS
Repeatability	≤0.2% FS
Accuracy	5%FS
Long-term stability	0.25%FS/year
Medium temp	-40~+85ºC
Operation temp	-40~+85ºC
Zero temp. drift	≤0.03%FS/ºC
FS temp. drift	≤0.03%FS/ºC
Response time	≤1ms(10%~90%)
Insulation resistance	≥1000 MΩ/100V
Overpressure	150%FS (1.5 times FS)
Damage pressure	500%FS (5 times FS)
Vibration resistance	5~1000Hz
Shock resistance	50g
Process connections	1/4NPT,G1/4, G1/2,M14×1.5, or other process connections on request
Materials	Wetted parts: 17-4PH, non-wetted parts: stainless steel 304
Ingress protection	IP65
Electrical connections	Circular connector M12 x 1,L-connector DIN43650

Description of T428B Sensor Pressure Pressure Transmitter 4-20ma

The model PPM-T428B Pressure Transmitter adapts sensitive components imported from Germany.

The imported sensitive components was precisely packaged in stainless steel housing. It features high

accuracy, high sensitivity, long working life. The PPM-T428 is especially designed for gas and water

pressure measurement, it is widely applied in water supply,environmental protection equipment,

air conditioning.

Features of T428B Sensor Pressure Pressure Transmitter 4-20ma

1. Measuring range from 0-16Bar .

2. Output signal : 0.5~4.5V

3. Process connection: G1/4

4. Good Shock and Vibration resistance.

5. Power Supply: 9-32VDC

6. Accuracy: 0.5%FS

Remarks: The price is based on the above specification .

For this model other specification please contact us .

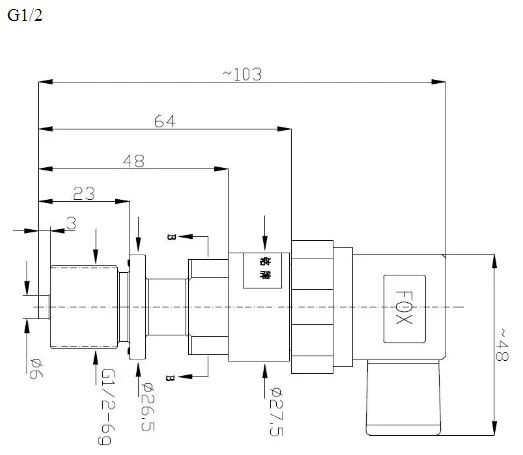

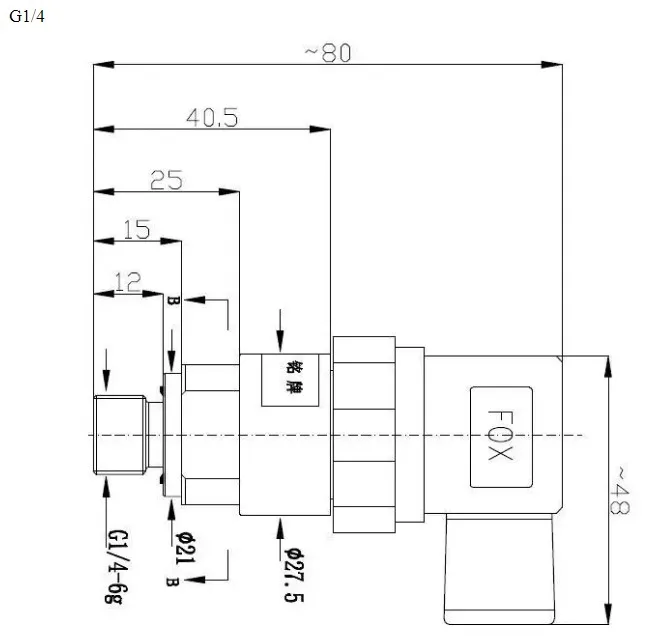

Dimensions in mm of T428B Sensor Pressure Pressure Transmitter 4-20ma

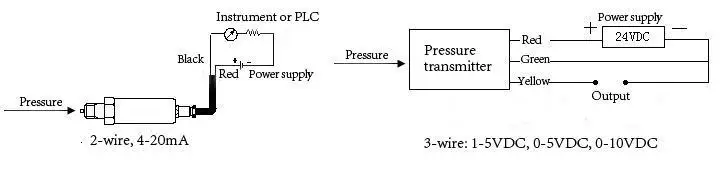

Wiring diagram of T428B Sensor Pressure Pressure Transmitter 4-20ma

Product Series

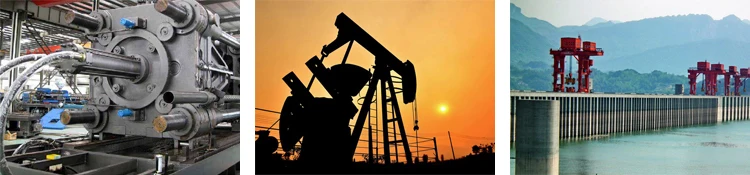

Application

Chemical-industry Energy-industry Hydraulic control system

Machine-engineering Oil-Gas Water treatment

Applications of T428B Sensor Pressure Pressure Transmitter 4-20ma
1. Level measurement in rivers and lakes.
2. Level measurement in vessel and storage.
3. Control of sewage discharge and pumping stations.
4. Level measurement in cistern and coolant reservoir
