Products Description

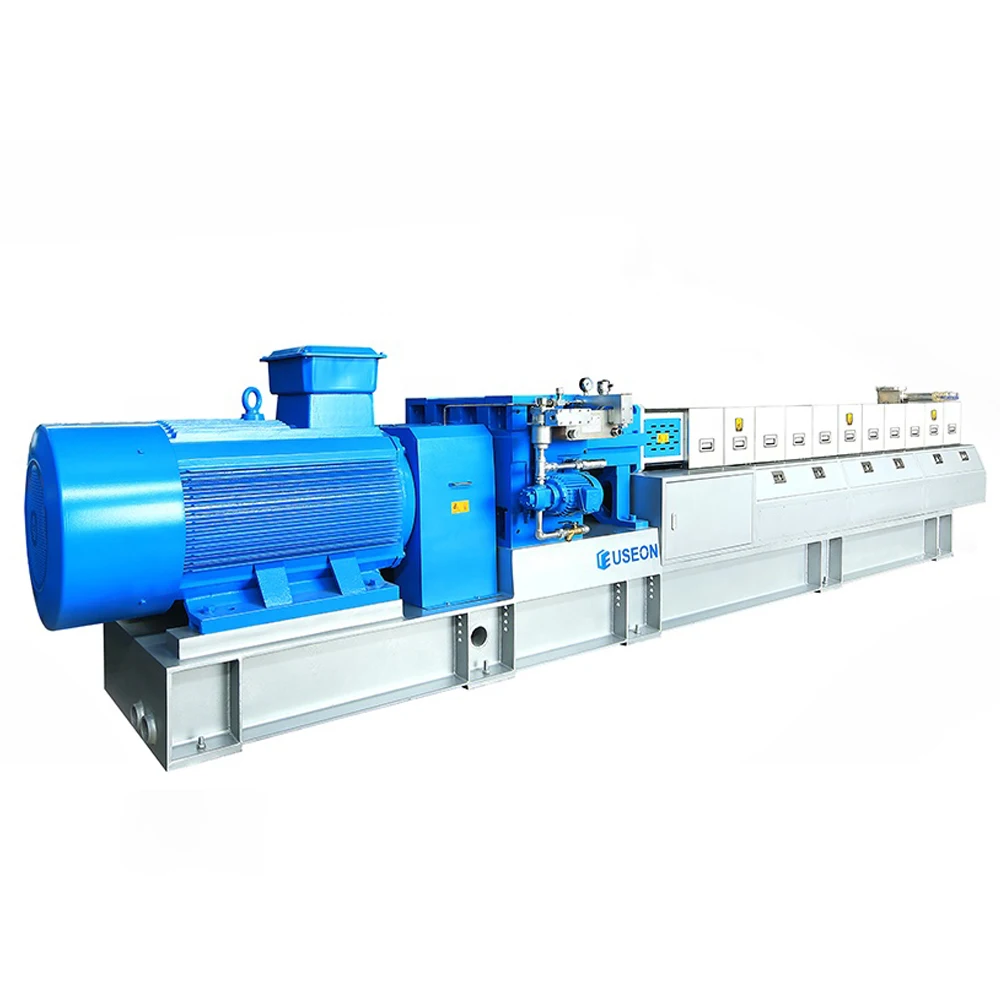

Our twin screw compounder can be widely used for:
Filler Masterbatch, Color Masterbatch, Additive Masterbatch, Biodegradable Plastic, Cable Compounding, Engineering Plastics Reinforcing (GF),PVC Compounding, Polyolefin Compounding, Reacting Direct Extrusion, Thermoplastic Elastomers,PET pelletizing and other plastic such as PE, XLPE, WPC.
Model | Diameter (mm） | Max. Speed (rpm) | Motor (kW) | Throughput (kg/h) | Screw Type |
SAT40 | 41 | 800 | 75 | 150-250 | Twin-screw |
SAT52 | 51.4 | 600 | 132 | 350-500 | Twin-screw |
SAT65 | 62.4 | 600 | 220 | 500-900 | Twin-screw |
SAT75 | 71 | 600 | 280 | 700-1200 | Twin-screw |
SAT95 | 93 | 330 | 600 | 1300-2400 | Twin-screw |
SAT110 | 110 | 330 | 650 | 1800-3000 | Twin-screw |
SAT135 | 130 | 330 | 1000 | 2500-3500 | Twin-screw |
EC40 | 41 | 600 | 30 | 70-120 | Twin-screw |
EC52 | 51.4 | 600 | 55 | 130-220 | Twin-screw |
EC65 | 62.4 | 600 | 90 | 200-350 | Twin-screw |
EC75 | 71 | 600 | 132 | 400-600 | Twin-screw |
EC95 | 93 | 330 | 315 | 700-1000 | Twin-screw |
EC110 | 108 | 330 | 355 | 900-1200 | Twin-screw |
TDY40 | 41 | 600 | 30 | 70-120 | Twin-screw |
TDY52 | 51.4 | 600 | 55 | 130-220 | Twin-screw |
TDY65 | 62.4 | 600 | 90 | 200-350 | Twin-screw |
TDY75 | 71 | 600 | 132 | 400-600 | Twin-screw |
TDY95 | 93 | 600 | 315 | 700-1000 | Twin-screw |
TDY110 | 108 | 400 | 355 | 900-1200 | Twin-screw |
Lab-20 | 22 | 720 | 7.5 | 5-20 | Twin-screw |
Lab-30 | 30 | 600 | 18.5 | 15-40 | Twin-screw |
TDD20 | 20 | 93 | 3 | 5-10 | Single-screw |
TDD65 | 65 | 93 | 30 | 80-100 | Single-screw |
TDD120 | 120 | 93 | 160 | 500-600 | Single-screw |
TDD150 | 150 | 93 | 200 | 700-900 | Single-screw |
TDD180 | 180 | 93 | 280 | 800-1300 | Single-screw |
TDD200 | 200 | 93 | 355 | 1200-1500 | Single-screw |
TDD240 | 240 | 93 | 455 | 1500-2000 | Single-screw |
SAT-T52 | 51.4 | 600 | 110 | 300-400 | Triple-screw |
SAT-T65 | 62.4 | 600 | 160 | 500-700 | Triple-screw |
SAT-T75 | 71 | 600 | 250 | 800-1200 | Triple-screw |
Screw Elements
Barrels/Liners

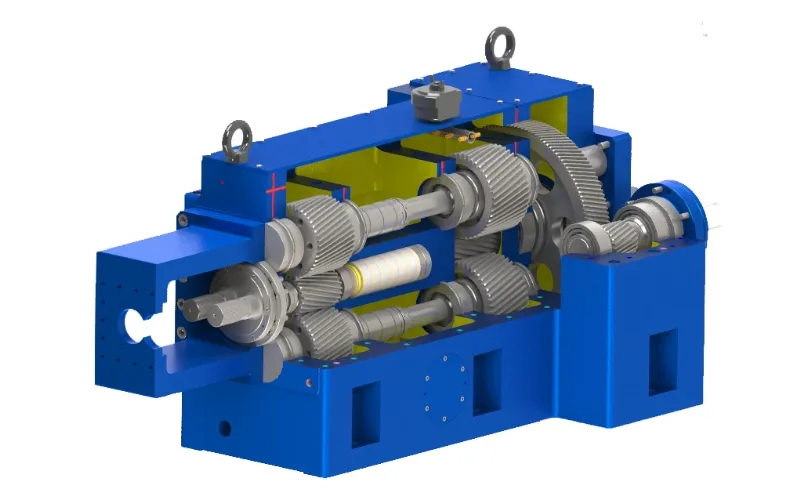

High Torque Gearbox

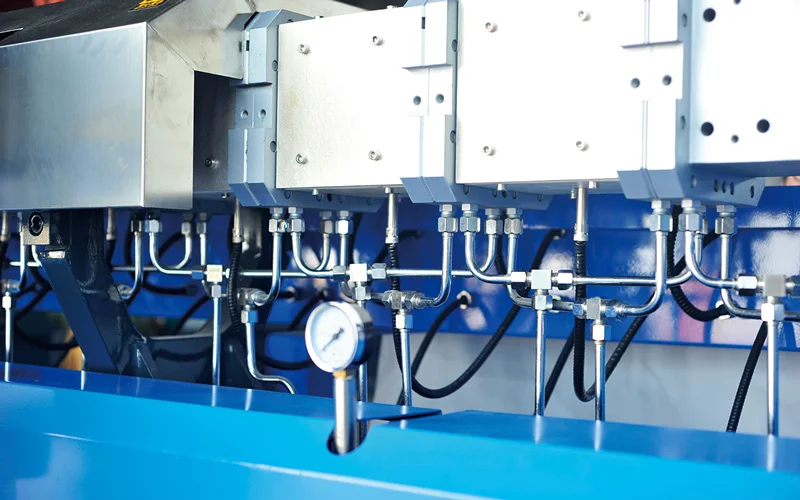

Heating System
Cooling System
Safty Production
Dewater system
Classifier
Control System with Remote Control
Pelletizing System
Water Cooling Strand Pelletizing System
It is suitable for most polymer compounding production, which features simple structure,easy operation and convenient maintenance.This system consists of strand die, water batch, air knife,strand pelletizer and vibrating classifier.
Air Cooling Strand Pelleizing System
This system incorporates with single stage extruder. It is suitable for certain recipes,such as PP base filler degradable and WPC,which is to sticky to be cut by air cooling die face pelletizer.The other merit of this system is that lets the material avoid contracting with water. This system includes die head, air cooling belt conveyor, strand pelletizer and vibrating classifier.
Under Water Strand Pelletizing System
It is suitable for plastic recycling which needs to change the filter frequently. The strands go into the pelletizer automatically by the water flow,even the strands break during changing the filter.So there wll be almost no waste during the manufacturing process. This system consists of strand die, water bath, strand pelletizer, centrifugal dewater and vibrating classifier.
Air Cooling Die Face Pelletizing System
This system incorporates with tandem compounder.It is suitable for certain recipes, such as PVC, LLDPE, high filling masterbatch,degradable masterbatch, HFFR, WPC etc. Which has ring type and centrifuge type as per the property of the raw material.The meri of this system is that lets the material avoid contacting with water. This system includes die head,air cooling pelletizer,air cooling conveyor and vibrating classifier.
Water Ring Pelletizing System
This system incorporates with tandem compounder.It is suitable for certain recipes, such as PVC, LLDPE, high filling masterbatch,degradable masterbatch, HFFR, WPC etc. Which has ring type and centrifuge type as per the property of the raw material.The meri of this system is that lets the material avoid contacting with water. This system includes die head,air cooling pelletizer,air cooling conveyor and vibrating classifier.
Underwater Pelletizing System
Underwater pelletizing system is good for most of polymers. Especially for TPU and TPV or similar elastomer, its advantage plays well. This system consists of die head, underwater pelletizer, water circulating system,and dewater system. It can incorporate with auto-packaging system.
Application

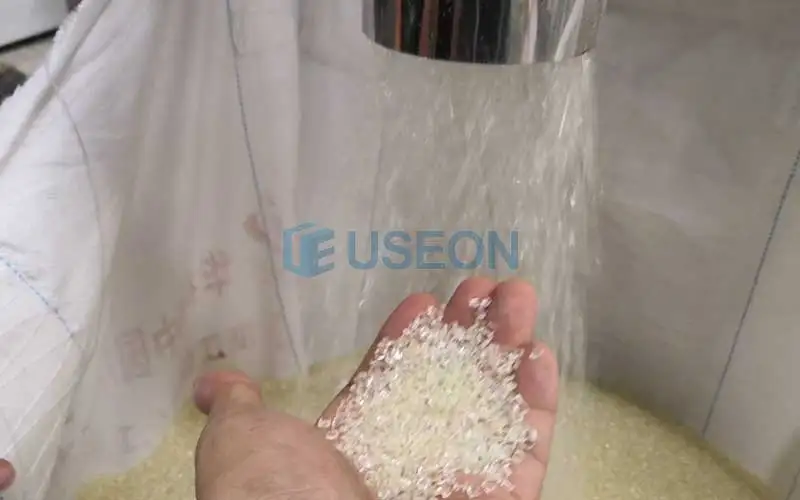

Given the material and recipes, USEON can offer an array of compounding systems with options for compressing or molding a material into pellet form.These pellet are used as follows：
Filler Masterbatch
Filler Masterbatch are concentrates of CaCO3 or Talc or BaSO4 in a polymer base.
Color Masterbatch
Color masterbatch is used for any polymer and all kinds of product.
Additive Masterbatch
Additive Masterbatch are used in a wide variety of application.
Engineering Plastic
USEON SAT-X serial Extruder with high torque gearbox is special designed for this application.
Biodegradable Plastic
Given its durability and longevity, plastic waste becomes a huge challenge for a greener, better world.
Cable Compounding
USEON is committed to providing advanced extruder for all kind of cable compounding
Thermoplastic Elastomers (TPE)
It is a class of copolymers or a physical mix of polymers that consist of materials with both thermoplastic and elastomeric properties.
PVC Compounding
PVC is durable, cheap, and easily worked. Before PVC can be made into finished products, it always requires conversion into a compound by the incorporation of additives.
3D Printer Filament
It is a thermoplastic material used in 3D printers.The materials that can be used in our production line are: ABS, PLA, PET, HIPS, PVA etc. compounding with color masterbatch.
Recommend Products
Company Strength
Established in 2006, Useon has been focusing on polymer extrusion equipment and process technology. Our professional and aspiring team has made a number of milestones in designing machines for plastic processing.We are committed to providing advanced polymer extrusion equipment and total solutions for our customers. As the most qualified Chinese partner in polymer extrusion equipment,Useon continues to serve many Fortune 500 international group's. Assisting by educating our clients and averting potential troubles through our experience we can help in many facets.We can be reached via email, telephone, and fax. We are bilingual,easily accessible and readily available. Always glad to help you in your endeavors.
Certifications & Exhibition
Product packaging
FAQ
Q1：Why choose us?
A1：15 years experience of machinery.
Q1：How long is the warranty?
A1：We can offer one-year warranty for the whole machine.
Q1：Is your product can be assured ?
A1：We can offer one-year warranty for the whole machine.
Q1：What makes you different with others?
A1：We have global branch offices, we can offer local service.
Q1：If we show you our layout of factory, can you help to design the whole process line?
A1：Yes, our professional engineers and technical employee can help you to arrange the layout and installation of
whole process line based on your requirement.
Q1：How long is the warranty?
A1：We can offer one-year warranty for the whole machine.
Q1：Is your product can be assured ?
A1：We can offer one-year warranty for the whole machine.
Q1：What makes you different with others?
A1：We have global branch offices, we can offer local service.
Q1：If we show you our layout of factory, can you help to design the whole process line?
A1：Yes, our professional engineers and technical employee can help you to arrange the layout and installation of
whole process line based on your requirement.
