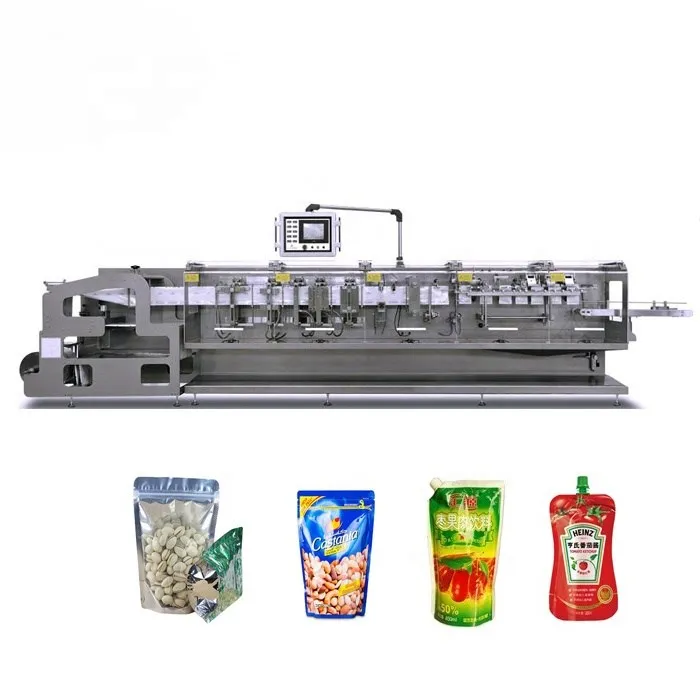

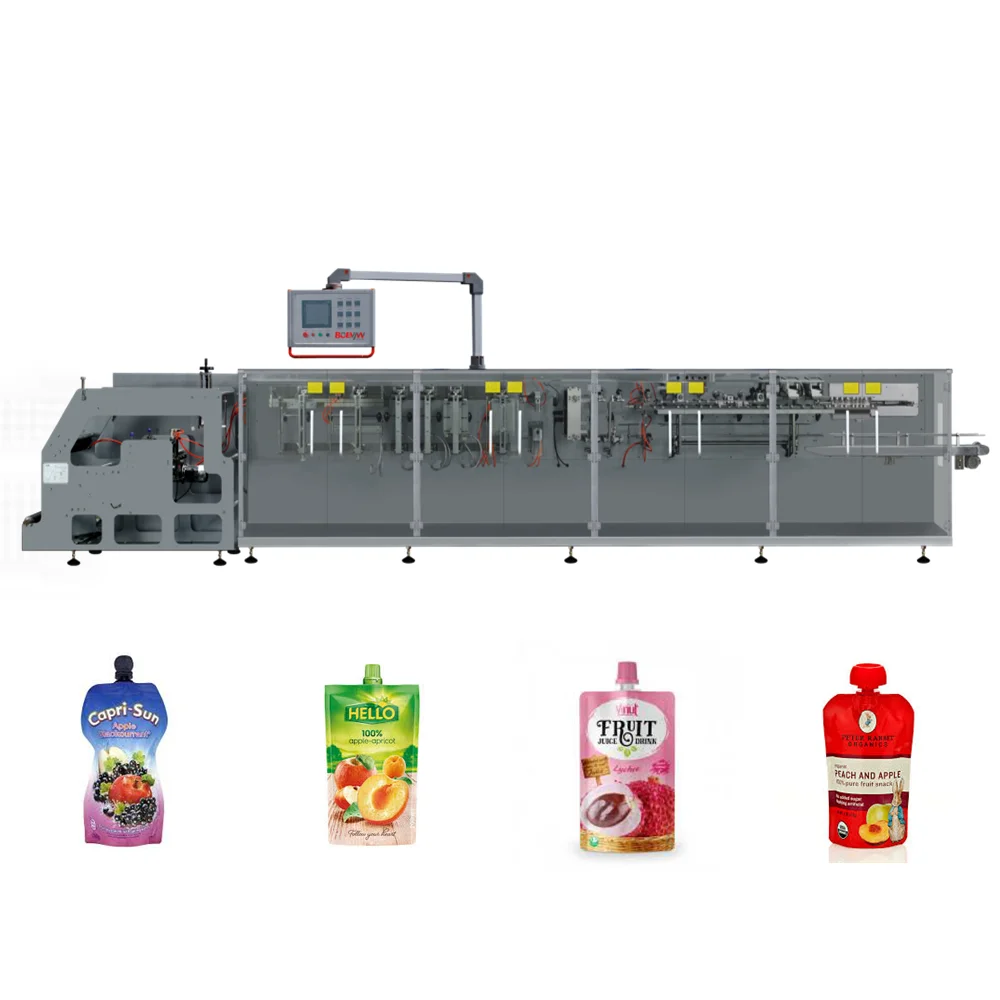

Автоматическая жидкостная пакеты с устойчивым дном из сока упаковочный аппарат для соуса дой-Пак разливочная машина упаковочная машина для жидкостей
- Категория товара: Packaging Machines >>>
- Поставщик (Оптовый магазин): Sinoped,International,(Liaoning),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Machine working theory for Horizontal Full-automatic Stand-pouch packing Line
The PLC control frequency converter's output, which can make motor drive transmission shaft rotate according to requirements, then the mechanical cams on the shaft will transform ROTATION MOTION to various LINERA MOTION, firstly fold the film roll to requested shape, then make bags by heat, and cut into sole bags, then mechanical hand will open bags, then fill into the liquid and heat-sealed for finishing process. All of the motions are Horizontal Motions.
FEATURES
Multi-application---Separated-type feeding system, can meet many various kinds of materials(powder, liquid or paste etc.)
Multi-shapes bags---After simple adjustment, one machine can meet many different kinds of bags(3-sides seal, 4-sides seal,stand-up pouch(doypack),zipper bag,nozzle bag etc. )
Multi-materials---Particular feeding system, have overcome the shortcomings of general packing machines sole materials, it can meet many kinds of different materials mixtures, and precise proportion(e.g. with oil,water or others etc.)
Operation Stability---Adopting cam for transmission, pure mechanical motions, simple structure.
Easy to maintenance---Simple mechanical structure, easy to maintenance
Low Failure Rate---In compared to Pure Mechanical Packing Machine, no very many control element and test elements, which can avoid electronic errors.
Beautiful Outlook--Unique,Advanced and Mature technology,finished bags flat, without leakage.
Reducing Loss--High precise packing, can reduce materials loss
Good Reliability---All of the ELECTRIC ELEMENTS are international famous brand, good quality&reliability
Easy to maintenance---Simple mechanical structure, easy to maintenance
Low Failure Rate---In compared to Pure Mechanical Packing Machine, no very many control element and test elements, which can avoid electronic errors.
Beautiful Outlook--Unique,Advanced and Mature technology,finished bags flat, without leakage.
Reducing Loss--High precise packing, can reduce materials loss
Good Reliability---All of the ELECTRIC ELEMENTS are international famous brand, good quality&reliability

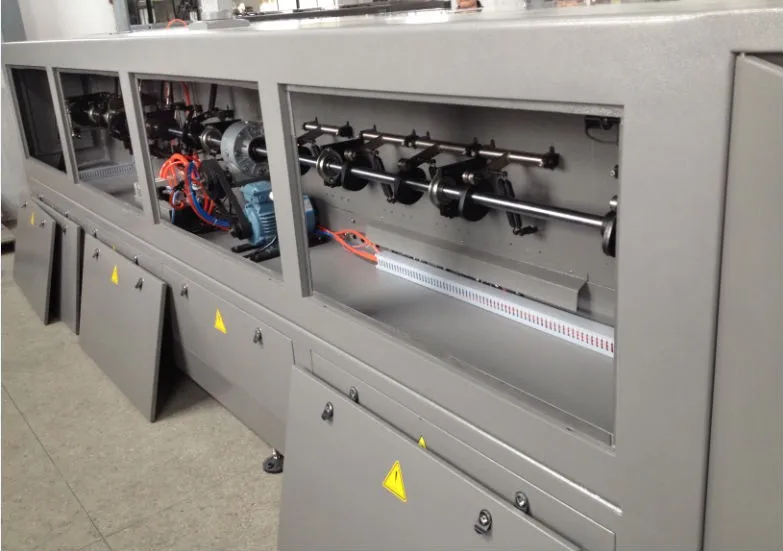

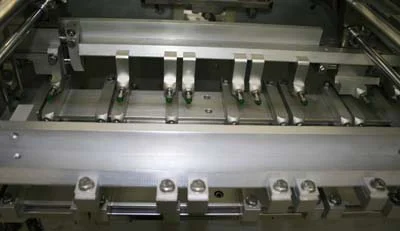

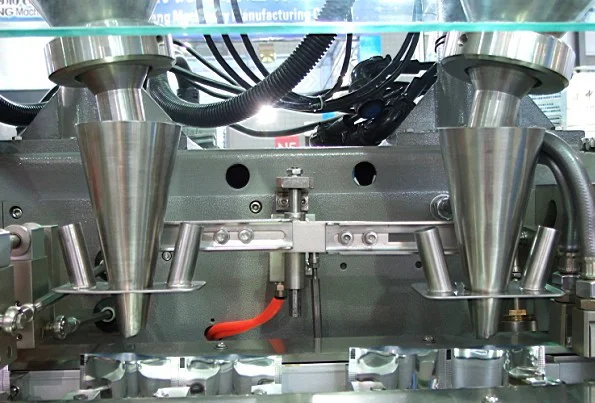

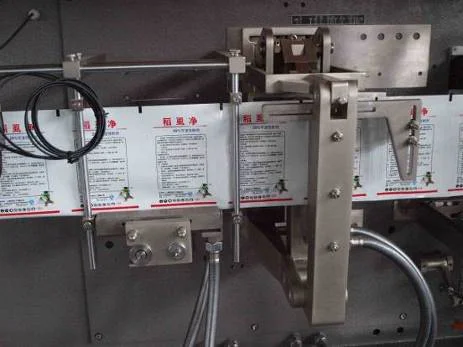

Detailed Images

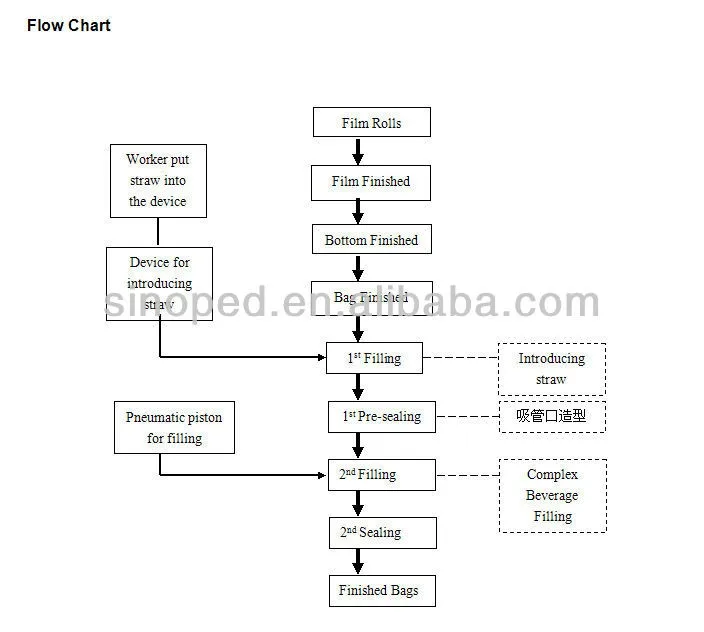

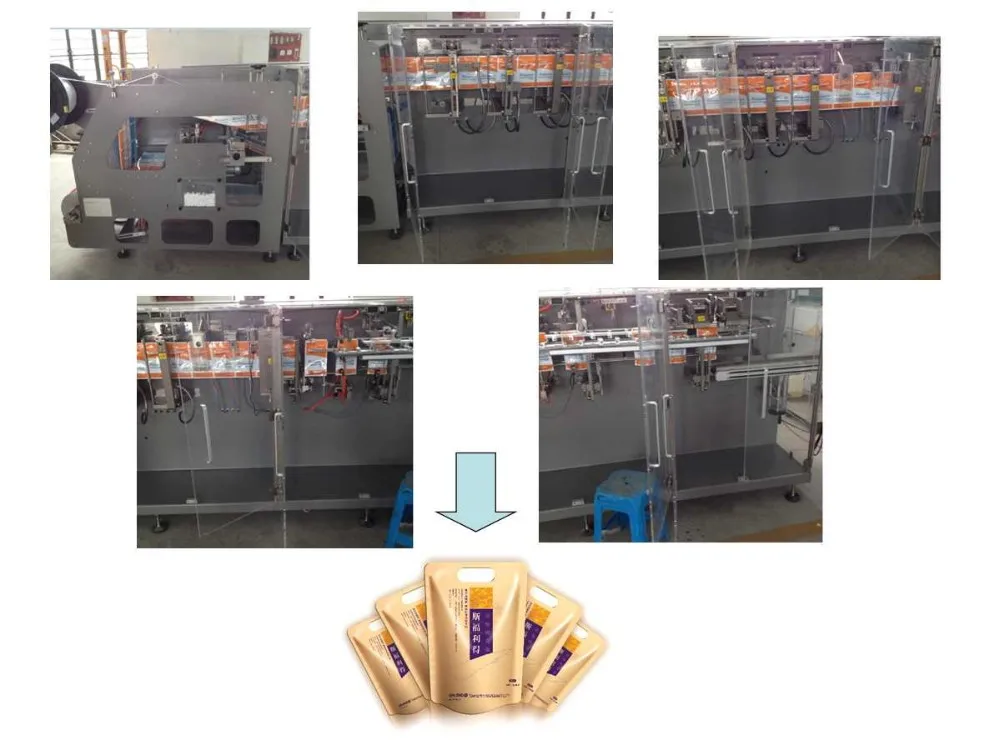

WORK PROCESS

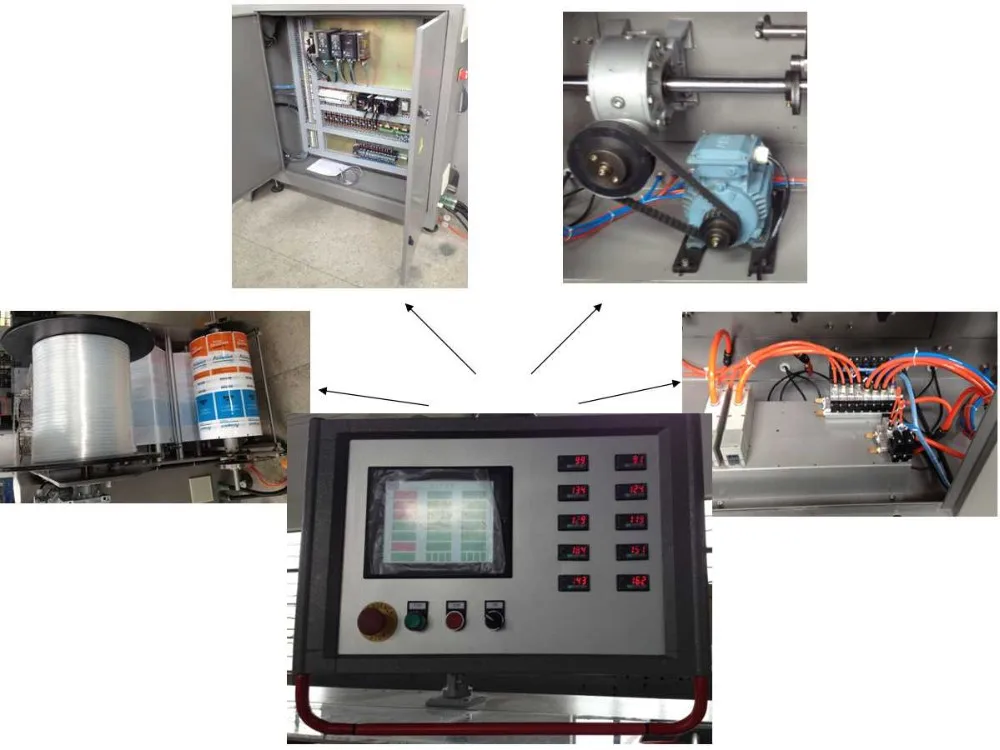

CONTROL SYSTEM
Technical Parameter
Item | Parameter | ||
Packing | Pouch Width | 60mm-80mm | |
Pouch Length | 180mm-225mm | ||
Packing Capacity | 800ml | ||
Packing Speed | 70-140bags/min | ||
Specification | Overall Size | 7800 (L) X1000 (W) X 1500 (H)mm(approx.) | |
Total Weight | 2000Kg | ||
Working Environment | Environment Temp. | -10°C-+55°C | |
Related Humidity | <85%(No condensation state) | ||
Power Supply | AC380V,50Hz | ||
Output Power | 6.5Kw | ||
Working Pressure | 0.5MPa | ||
Compressed-air Consumption | 0.6m3/min | ||
There will no further notification if the appearance or parameters of our products are modified. Thanks.
Related Products
Our Company
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, we have made great achievements in the past years.
We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
Other Products
Packing & Delivery
Our Service & FAQ
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
