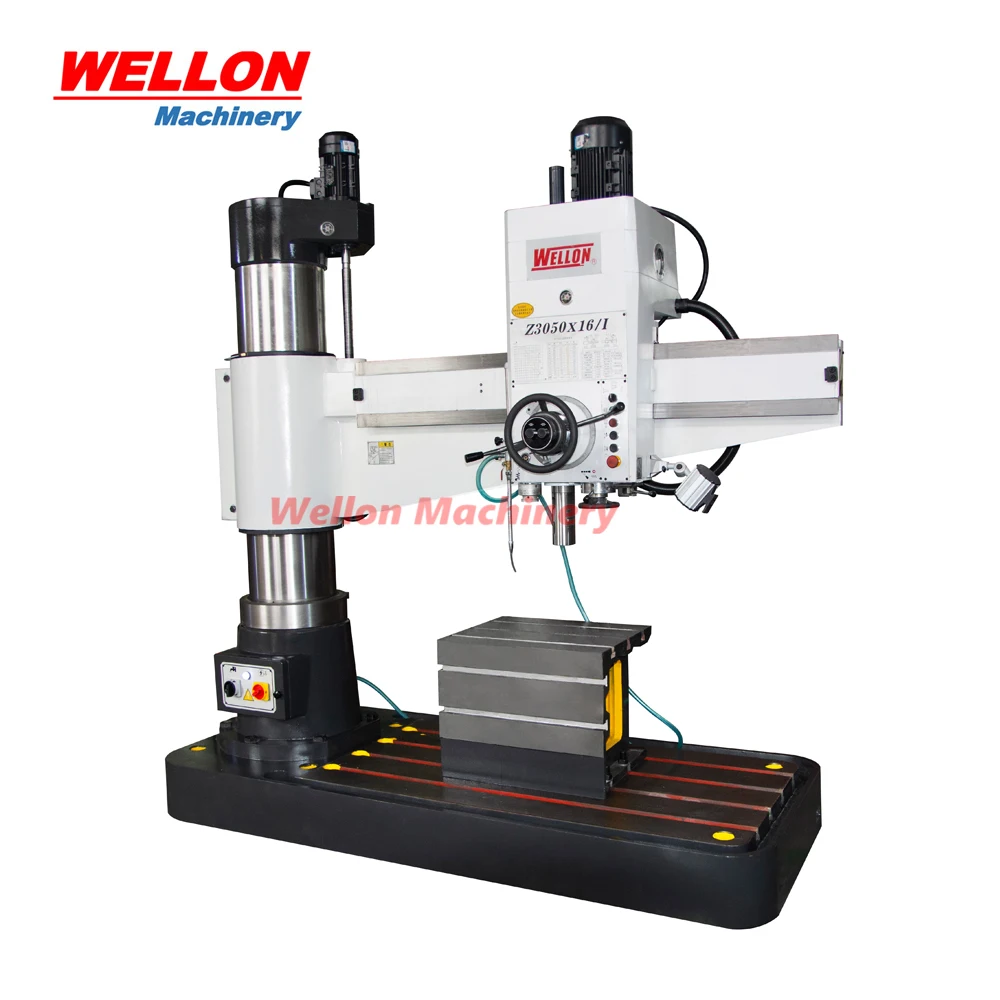

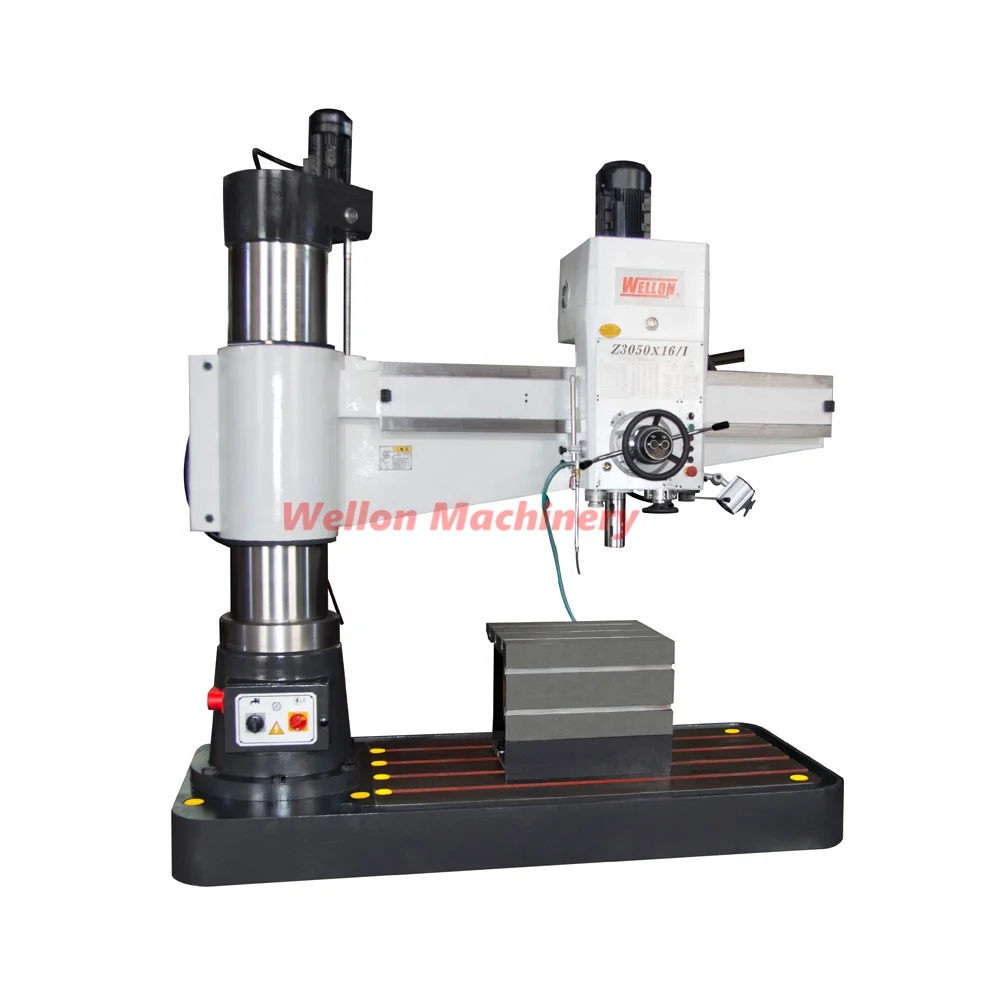

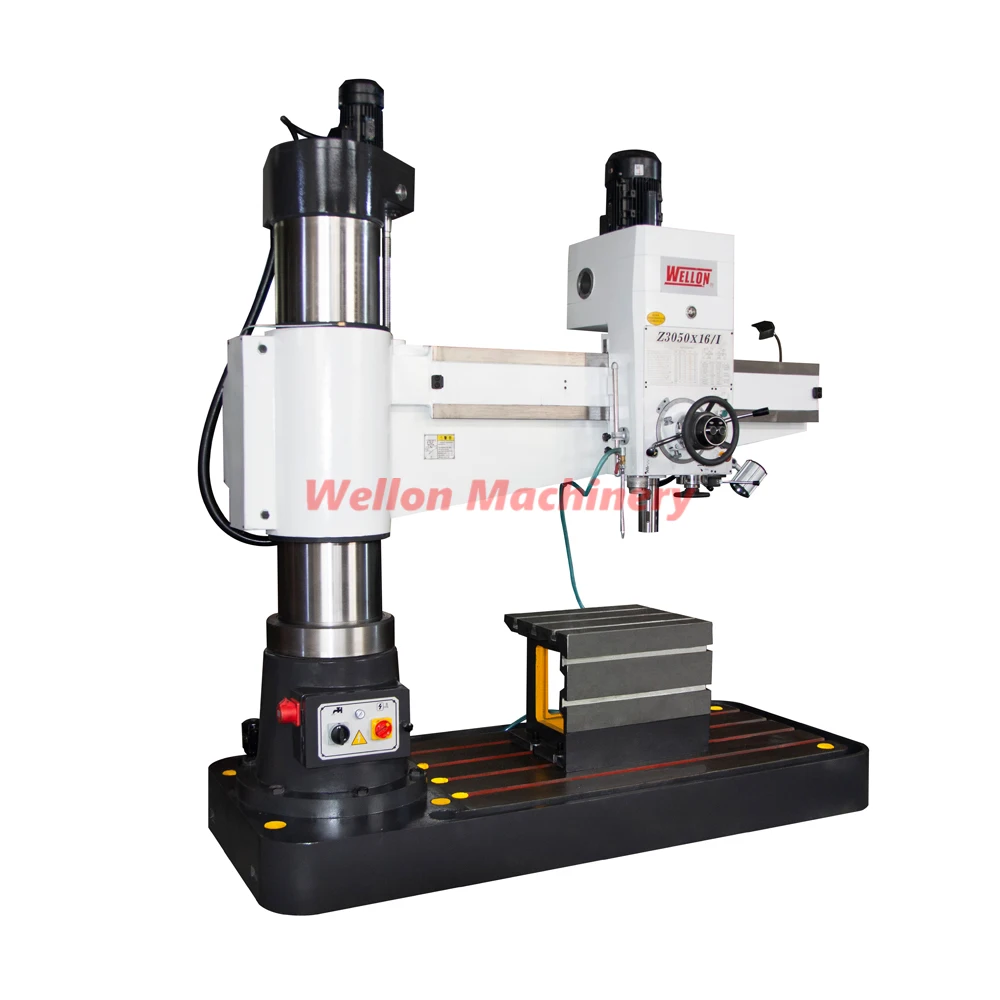

Гидравлический радиальный сверлильный станок Z3050X16/1/гидравлический сверлильный станок
- Категория товара: Drilling Machines >>>
- Поставщик (Оптовый магазин): Tengzhou,Wellon,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Features:
Gather mechanical-electrical-hydraulic functions, use extensively.
With wide range of speed and feed, with manual,power and fine feeds.
The feed of machines are very easily engaged and disengaged at any time.
With safe and reliable feed safety machine, all parts easy operation and change.
All controls centralized on the head stock easy operation and change.
Clamping for assemblies and speed change of spindle achieved by hydraulic power.
Main parts are made by machine center with high precision and efficiency, ensuring reliability and high quality.
Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
Spindle parts are made by special high quality steel heat treatment ensuring high strength and durability.
Main gears are all precision grind, ensuring high precision and low noise.
Technical Parameter :
Model | Z3050×16/1 |
Max.drilling dia (mm) | 50 |
Distance from spindle nose to base (mm) | 320-1220 |
Distance from spindle axis to column (mm) | 350-1600 |
Column diameter (mm) | 350 |
Spindle travel (mm) | 315 |
Spindle taper | MT5 |
Spindle speeds range(r.p.m) | 25-2000 |
Spindle speed step | 16 |
Spindle feeding rate(mm/min) | 0.04-3.2 |
Spindle feeding step | 16 |
Worktable dimensions (mm) | 630x500x500 |
Base dimensions (mm) | 2400x1000x200 |
Rocker rotary angle | 360 degree |
Main motor power (kw) | 4 |
Lifting motor power (kw) | 1.1 |
Weight (kg) | 3500 |
Overall dimensions (cm) | 260×112×260 |
Company Information
Packaging & Shipping
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
