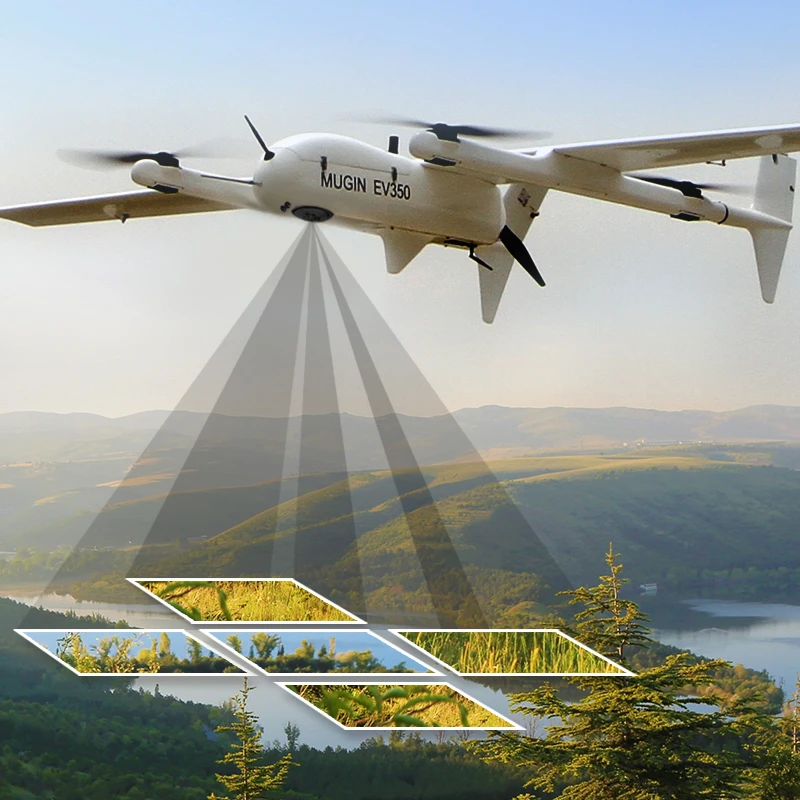

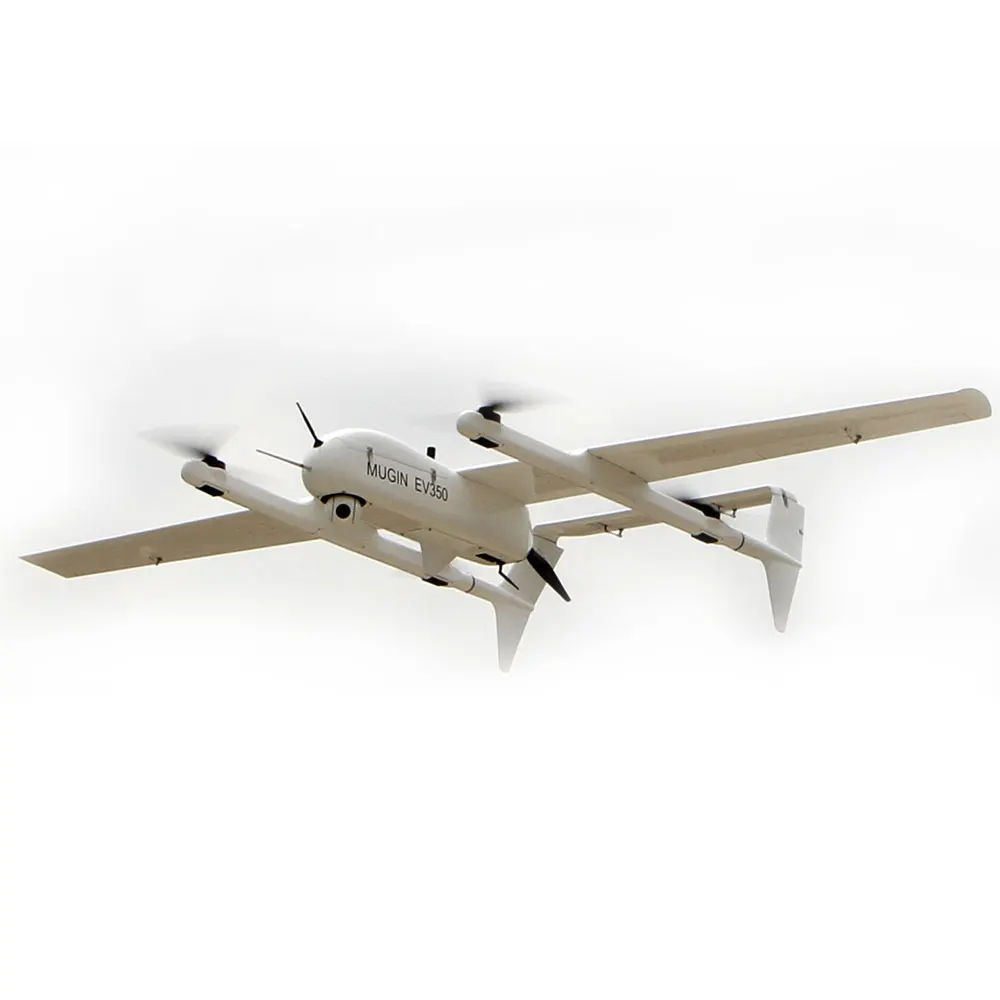

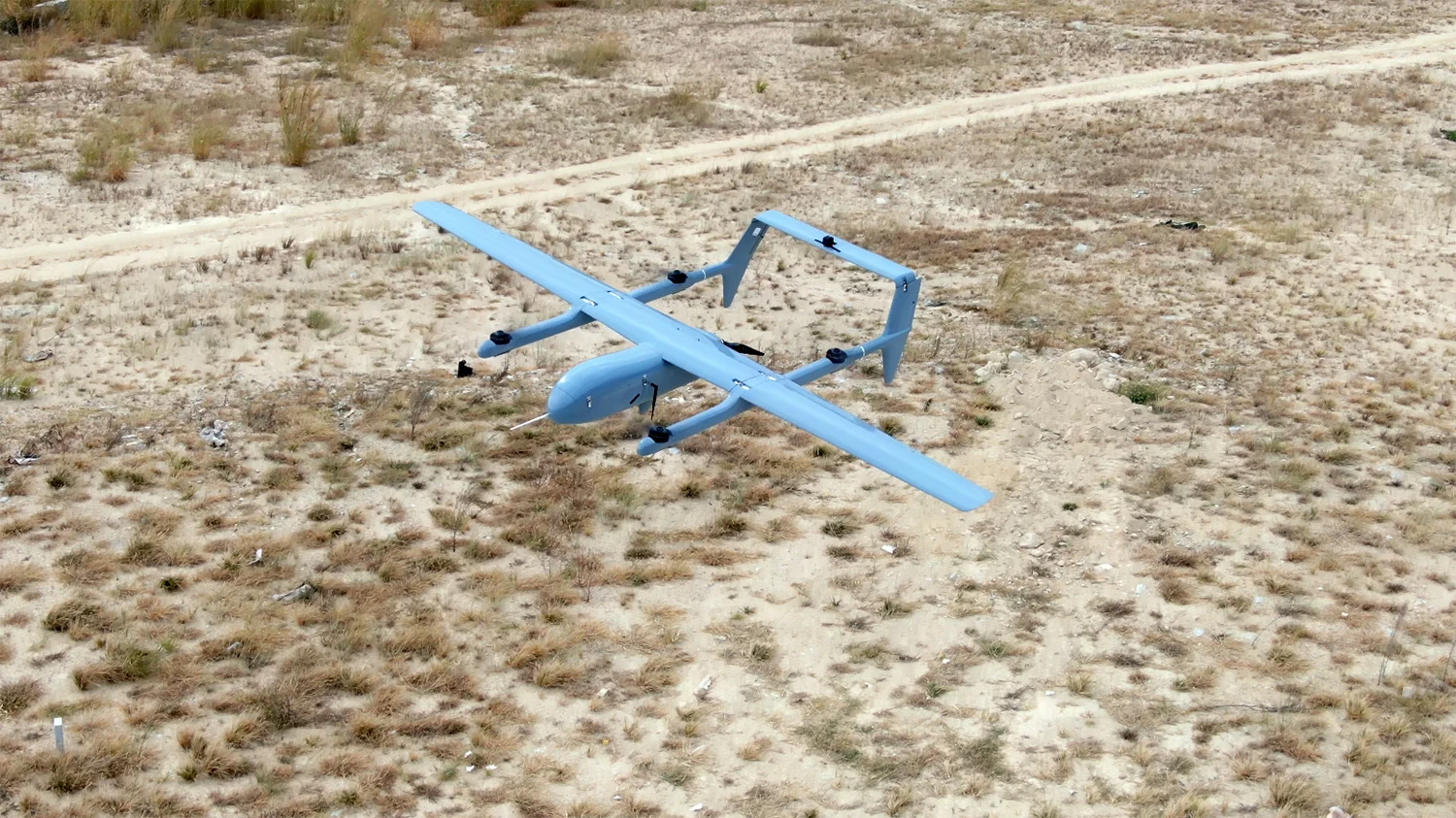

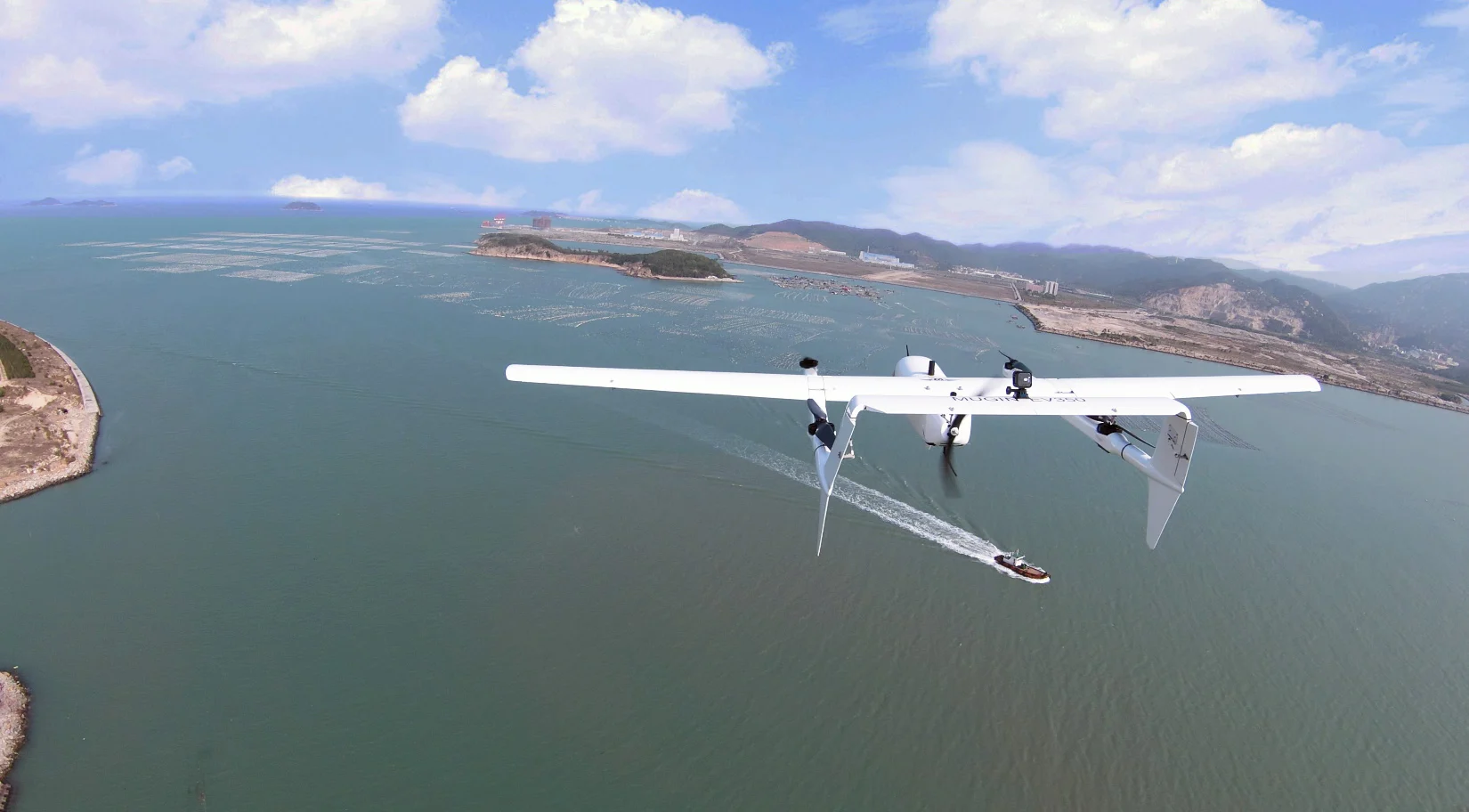

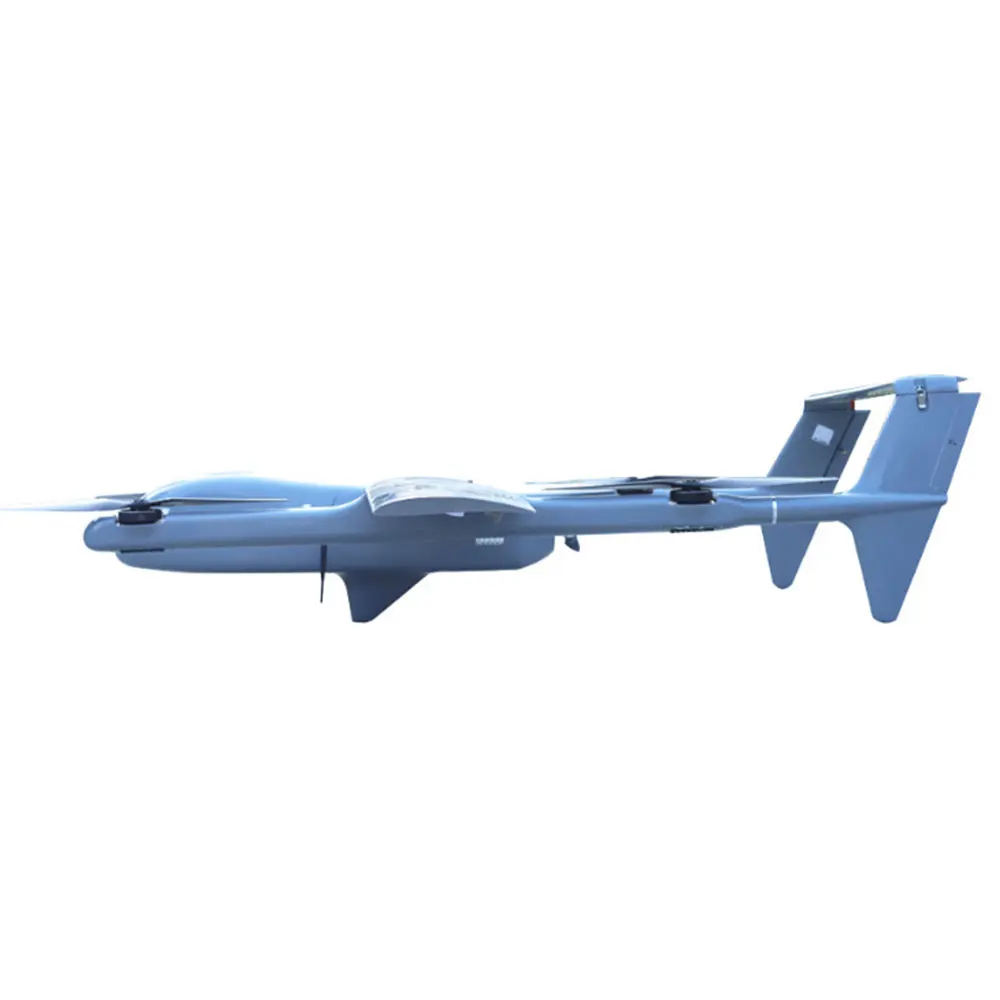

Квадрокоптер Mugin EV350 VTOL из углеродного волокна, с электроприводом, Доставка груза, беспилотный летательный аппарат VTOL
- Категория товара: Aircraft >>>
- Поставщик (Оптовый магазин): Xiamen,Mugin,Tech.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Brand | MuginUAV |
Product Description | Mugin EV350 Full Electric VTOL UAV AIRFRAME |
Material | Carbon Fiber |
Wingspan | 3500mm |
Length | 1860mm |
Empty Weight | 6.2kg |
Maximum Take-off Weight | 22kg |
Payload | 4kg |
Flight Time | 3 hours |
Cruise Speed | 90km/h |
Max. Speed | 120km/h |

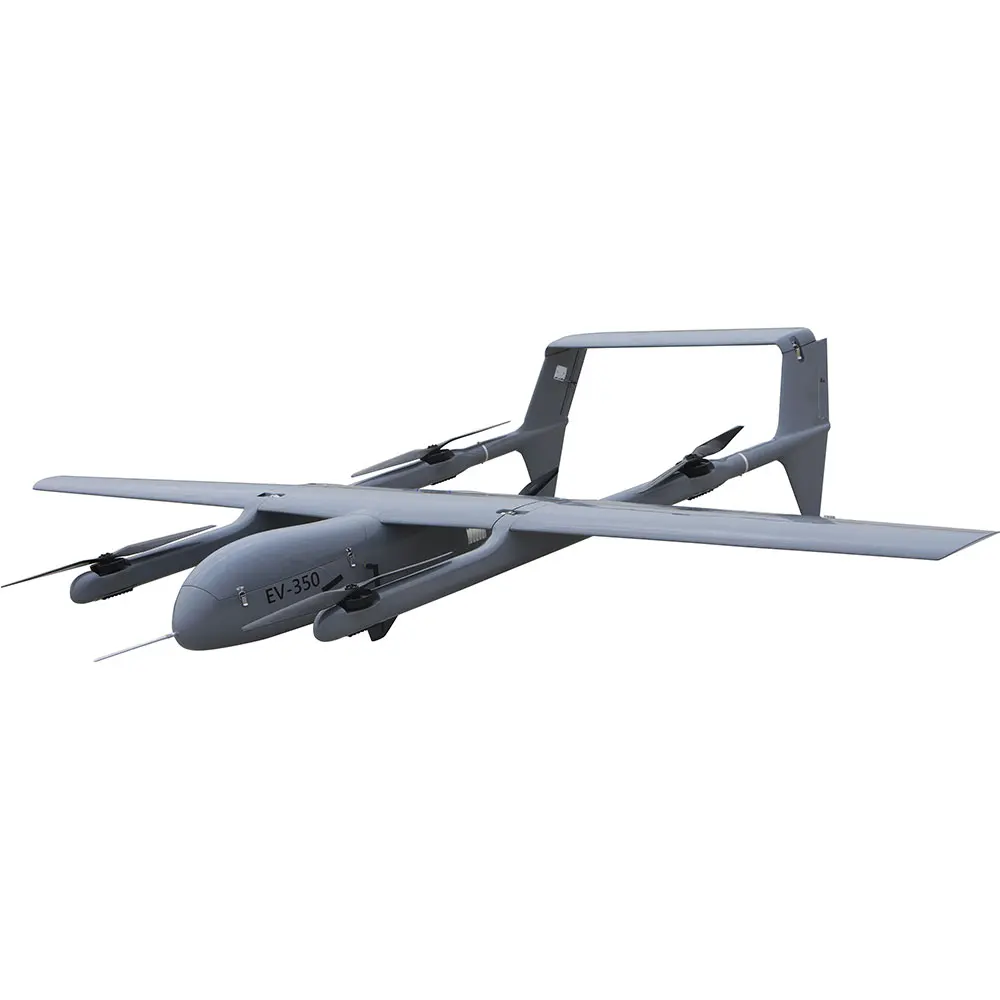

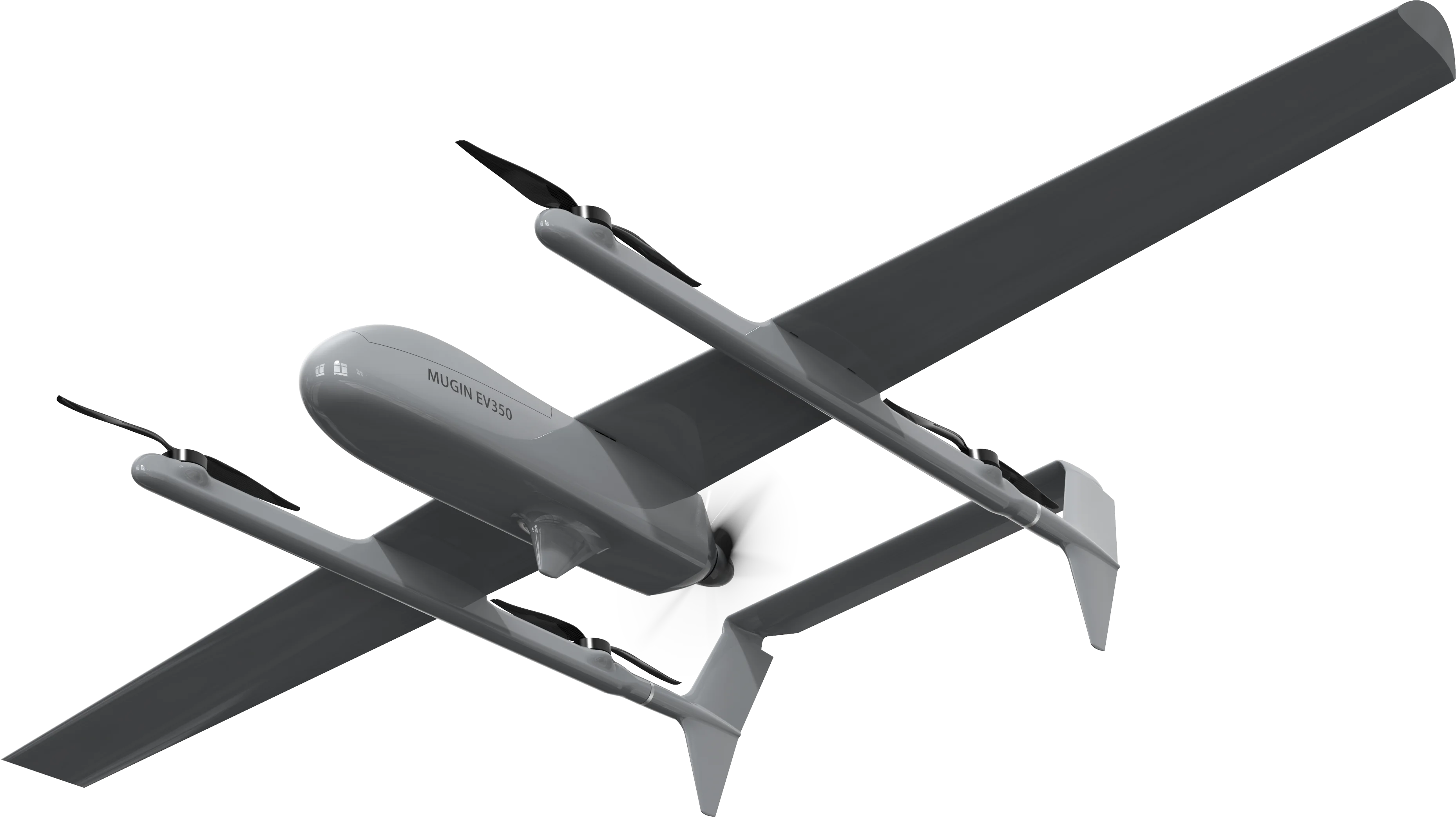

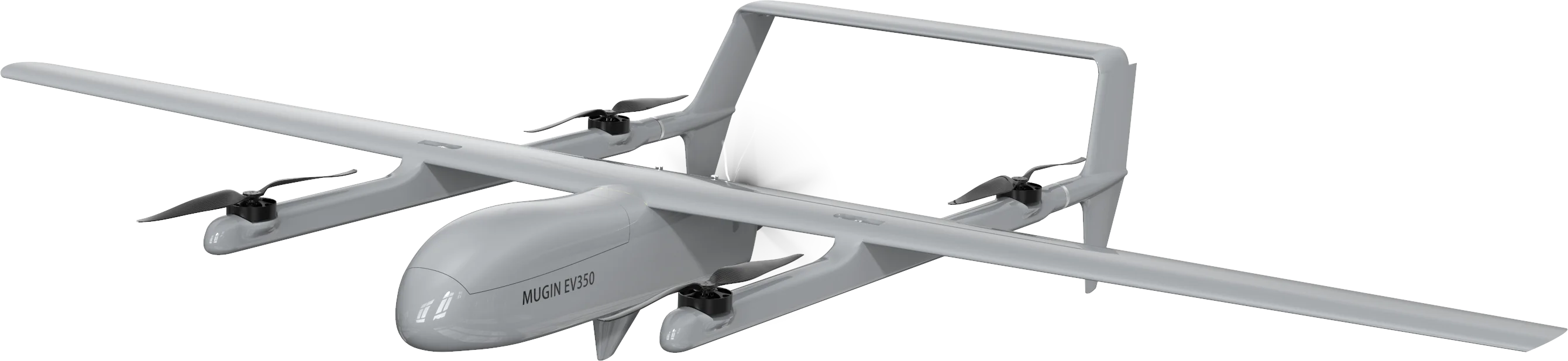

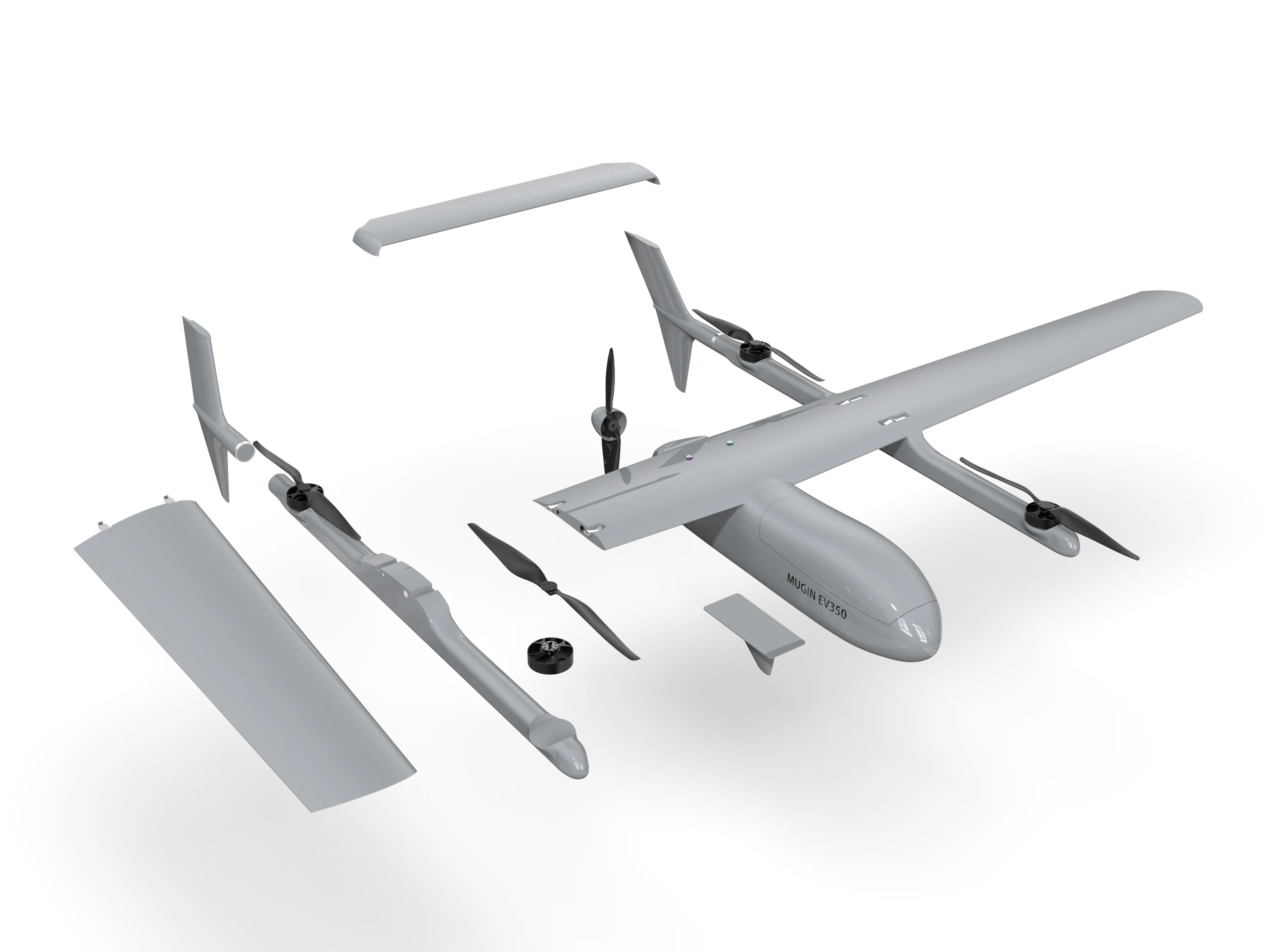

Mugin EV350 is a new full electric VTOL with a wingspan of 3500mm. The airframe is made of full carbon fiber which is lighter and more durable than other airframes that made of fiberglass or composite materials.The new VTOL features the quick-detach design which is easy to assemble and disasemble. It also features in the aerodynamic design
of landing gear. The airframe comes with only 3 landing feet, save the space and weight, but still very stable while taking off or landing.
of landing gear. The airframe comes with only 3 landing feet, save the space and weight, but still very stable while taking off or landing.

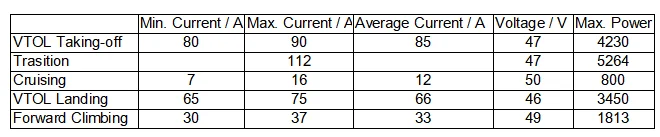

As per our internal tests with two Tattu HV 32000mAh 6S 10C lipos, the flight time can be up to 3 hours with full electric setup:
Zero Payload: 2:58 Hours
1kg Payload: 2:45 Hours
2kg Payload: 2:30 Hours
3kg Payload: 2:15 Hours

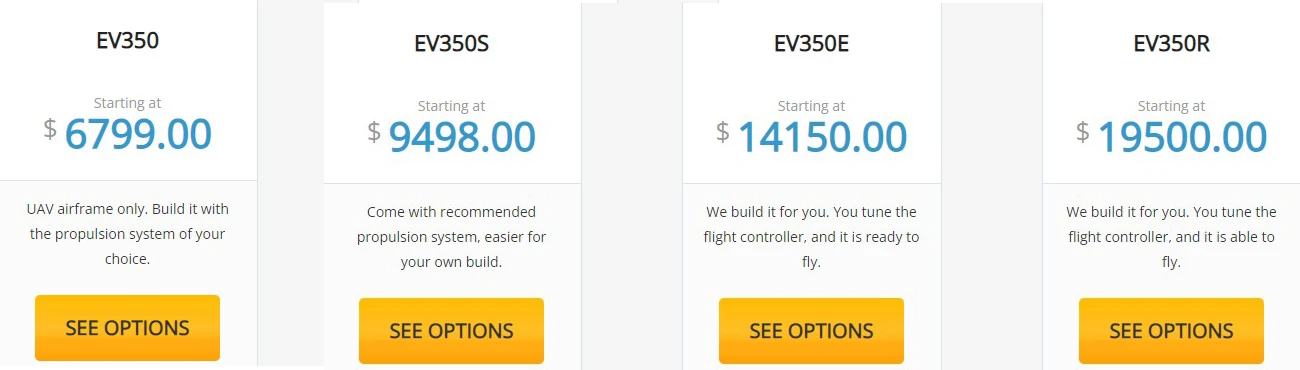

Price for empty airframe only. It does not contain the motors, ESCs, props, servos and others that showed in the product pictures.
Zero Payload: 2:58 Hours
1kg Payload: 2:45 Hours
2kg Payload: 2:30 Hours
3kg Payload: 2:15 Hours
Price for empty airframe only. It does not contain the motors, ESCs, props, servos and others that showed in the product pictures.
Specifications:
* Wingspan: 3500mm
* Length: 1860mm
* Height: 590mm
* Fuselage Dimensions: 1120mm x 225mm x 206mm
* Wing Are: 100d㎡
* Empty Weight: 6.2kg
* Maximum Take-off Weight: 22kg
* Cruise Speed: 21m/s
* Maximum Speed: 30m/s
* Stall Speed: 15m/s
* Flight Time: 2 to 3 Hours, depending on the payload
* Flight Range: 180km
* Maximum Payload: 3kg
* Packing dimensions: 1500mm x 545mm x 610mm
* Wind Resistance: grade 6

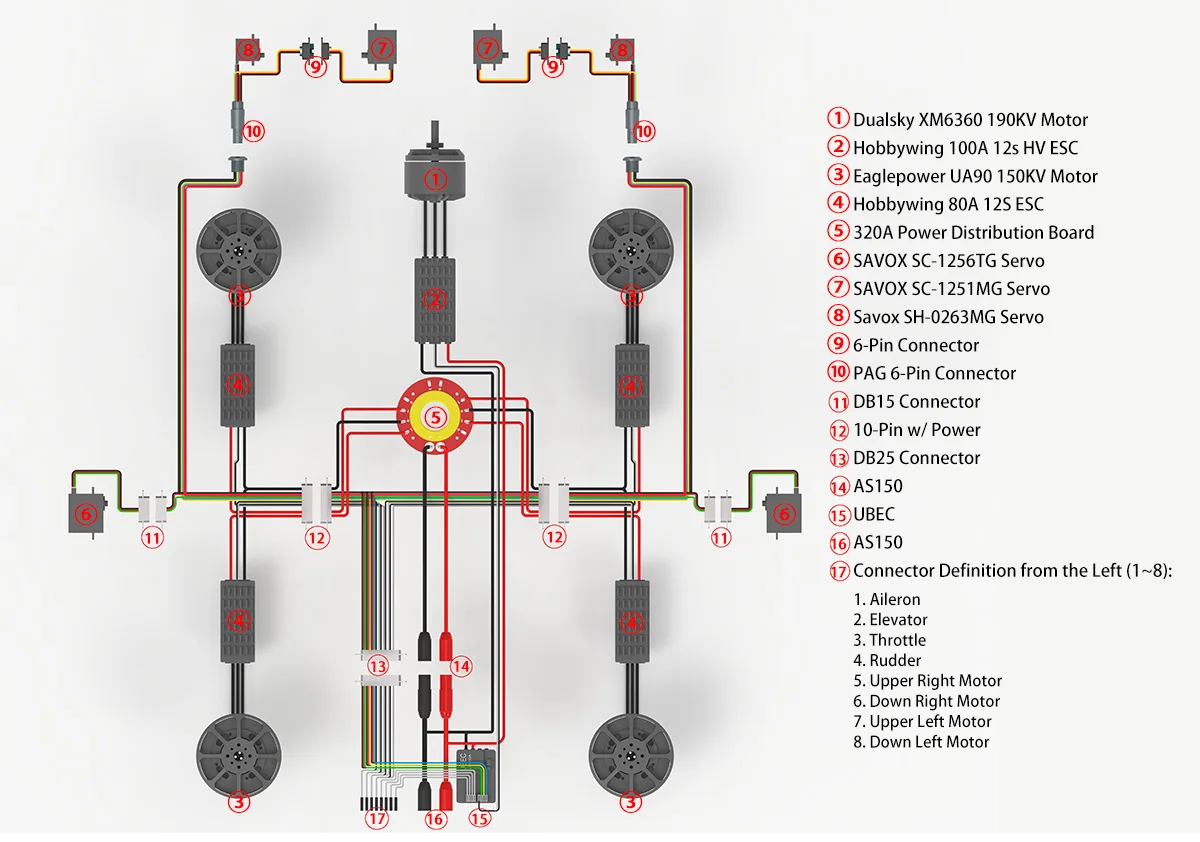

Recommended setup (Not included, Extra Charged):
* Forward Motor: Dualsky XM6360 190KV x 1
* Forward ESC: Hobbywing 100A 12s HV x 1
* Forward Propeller: 21″ x 1
* VTOL Motor: Eaglepower UA90 150KV x 4
* VTOL ESC: Hobbywing 80A 12S ESC x 4
* VTOL Propeller: Eaglepower UC2480L 24″ Propeller x 4
* Savox SC-1256TG Servo x 2
* Savox SV-1250MG Servo x 2
* Savox SH-0263MG Servo x 2
* Lipo Battery: Hongdian 30000mAh 660wh Lipo or Tattu HV 32000mAh 6S 10C x 2
*The items listed above might have a slight change due to the change of stock availability without prior notification. Click to Buy the EV350 Power Pack.
* Wingspan: 3500mm
* Length: 1860mm
* Height: 590mm
* Fuselage Dimensions: 1120mm x 225mm x 206mm
* Wing Are: 100d㎡
* Empty Weight: 6.2kg
* Maximum Take-off Weight: 22kg
* Cruise Speed: 21m/s
* Maximum Speed: 30m/s
* Stall Speed: 15m/s
* Flight Time: 2 to 3 Hours, depending on the payload
* Flight Range: 180km
* Maximum Payload: 3kg
* Packing dimensions: 1500mm x 545mm x 610mm
* Wind Resistance: grade 6
Recommended setup (Not included, Extra Charged):
* Forward Motor: Dualsky XM6360 190KV x 1
* Forward ESC: Hobbywing 100A 12s HV x 1
* Forward Propeller: 21″ x 1
* VTOL Motor: Eaglepower UA90 150KV x 4
* VTOL ESC: Hobbywing 80A 12S ESC x 4
* VTOL Propeller: Eaglepower UC2480L 24″ Propeller x 4
* Savox SC-1256TG Servo x 2
* Savox SV-1250MG Servo x 2
* Savox SH-0263MG Servo x 2
* Lipo Battery: Hongdian 30000mAh 660wh Lipo or Tattu HV 32000mAh 6S 10C x 2
*The items listed above might have a slight change due to the change of stock availability without prior notification. Click to Buy the EV350 Power Pack.
