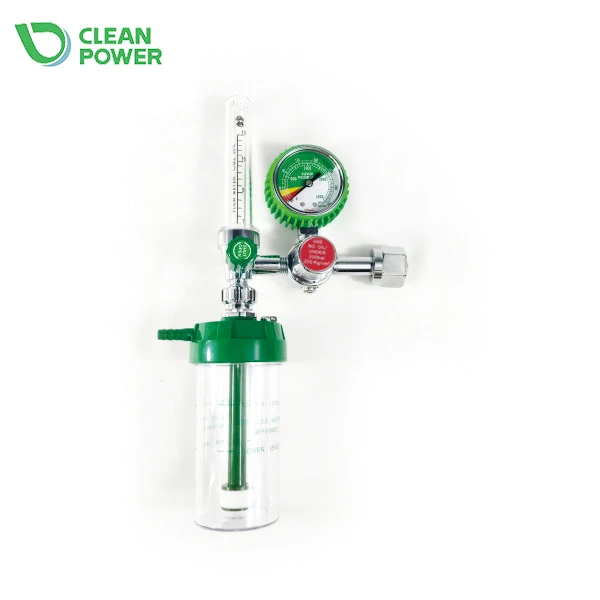

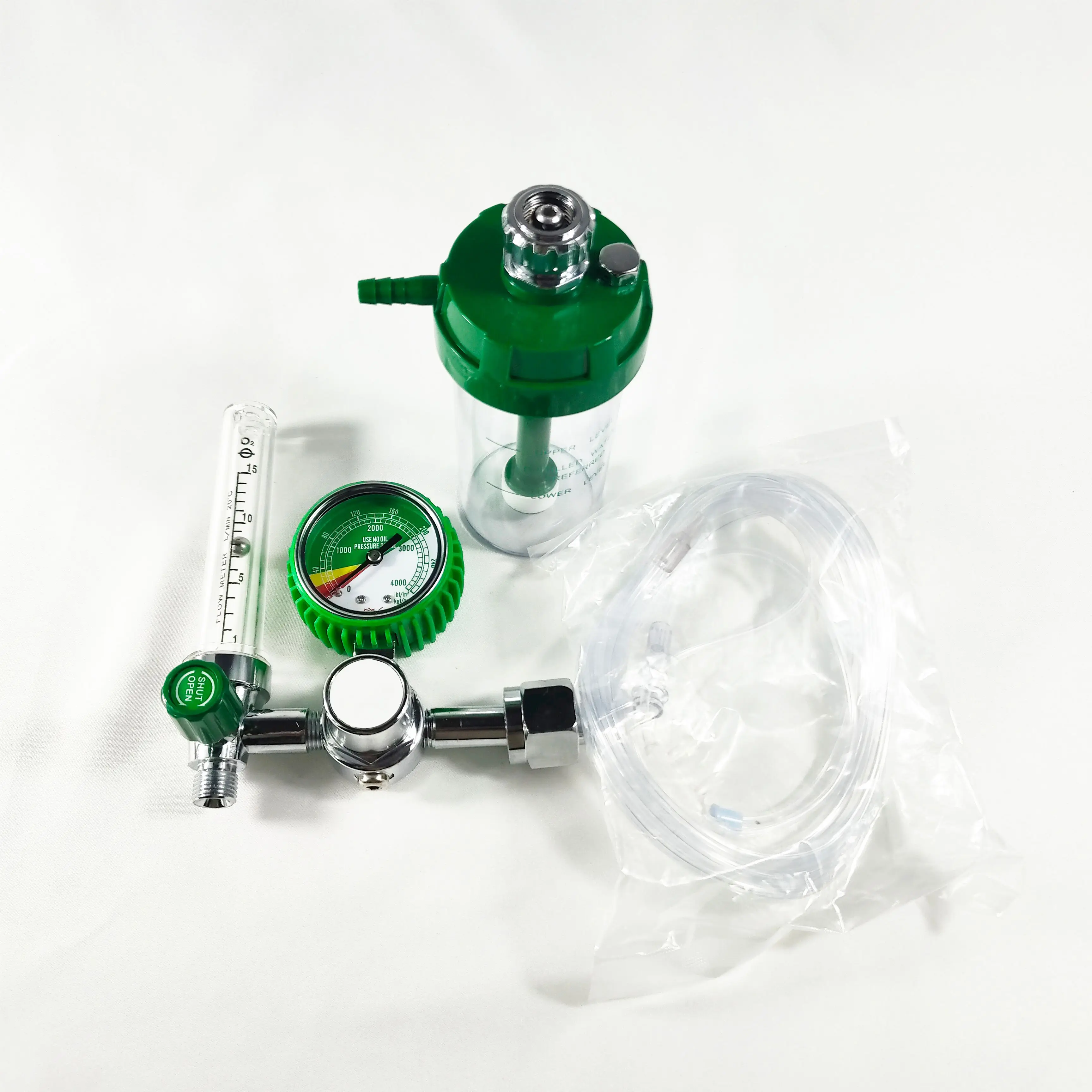

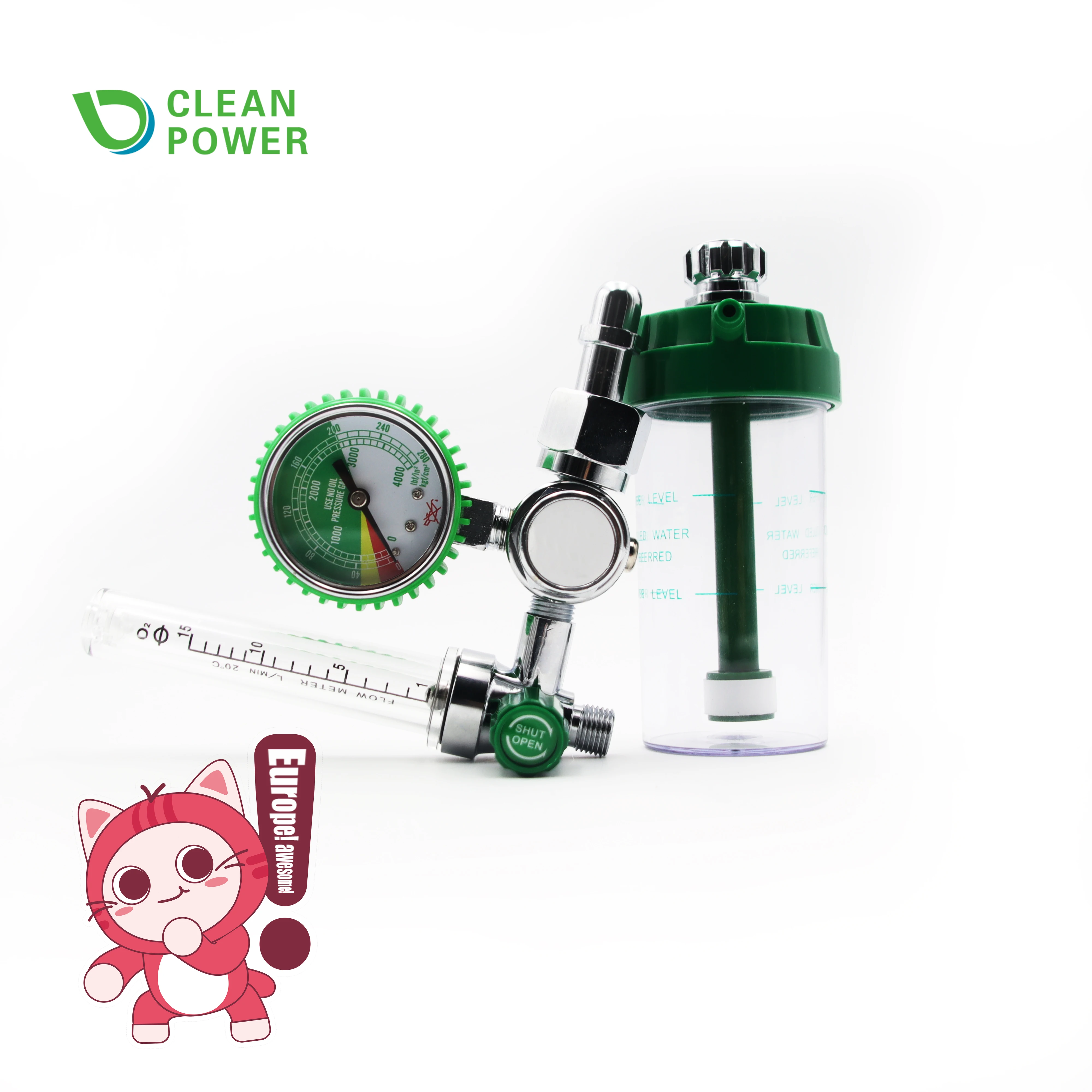

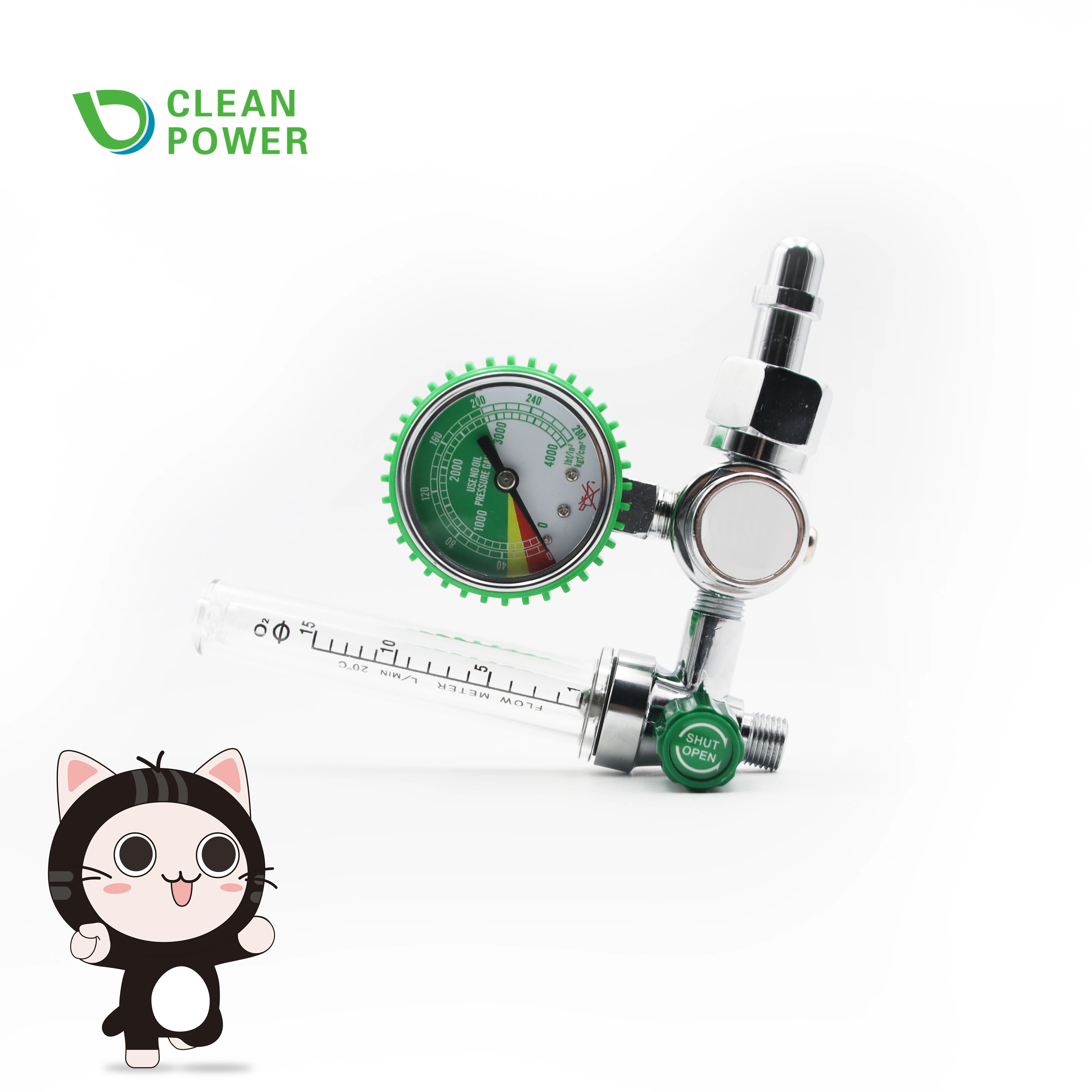

Медицинский кислородный регулятор LD, медицинский кислородный регулятор, расходомер для кислородного баллона
- Категория товара: Pressure Measuring Instruments >>>
- Поставщик (Оптовый магазин): Anhui,Clean,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

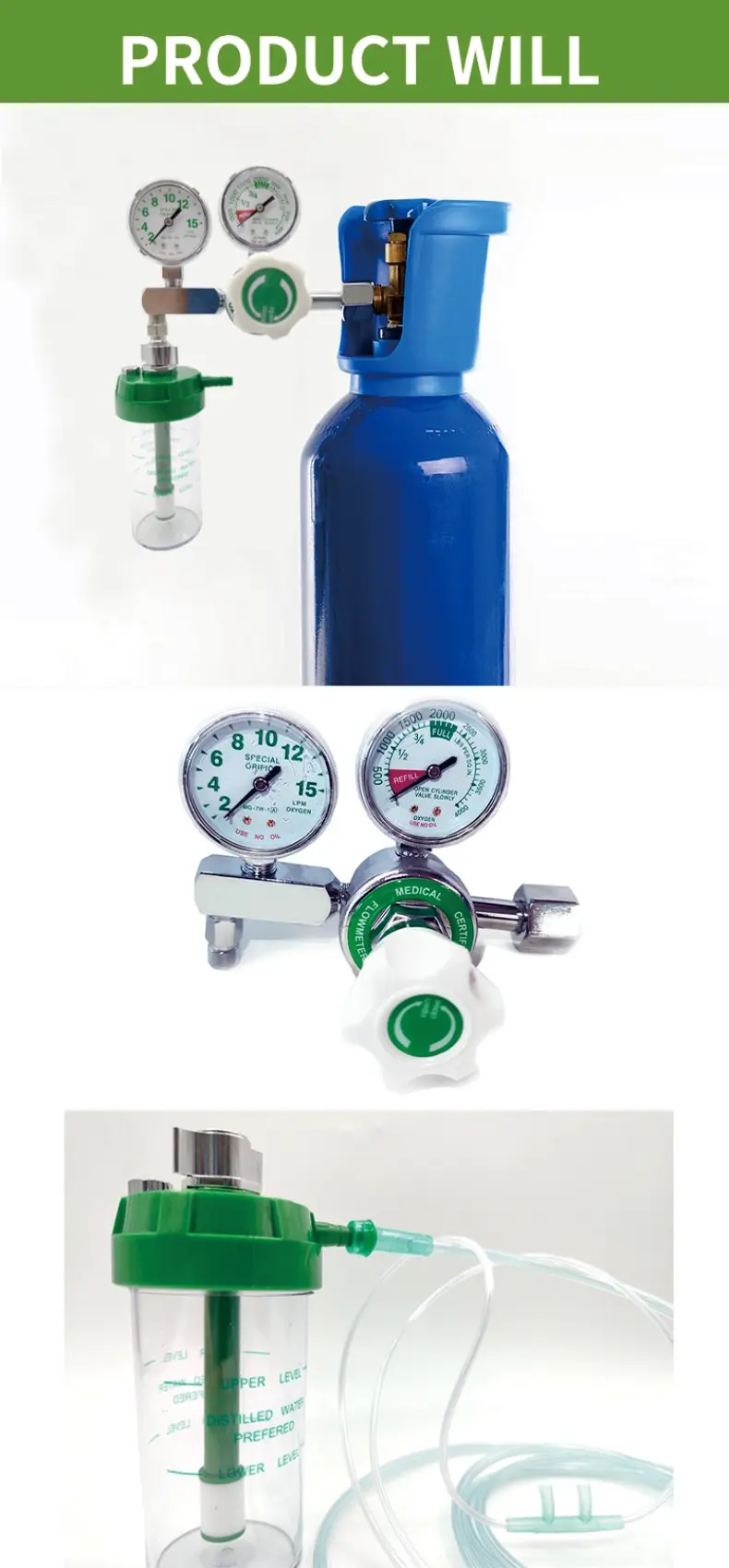

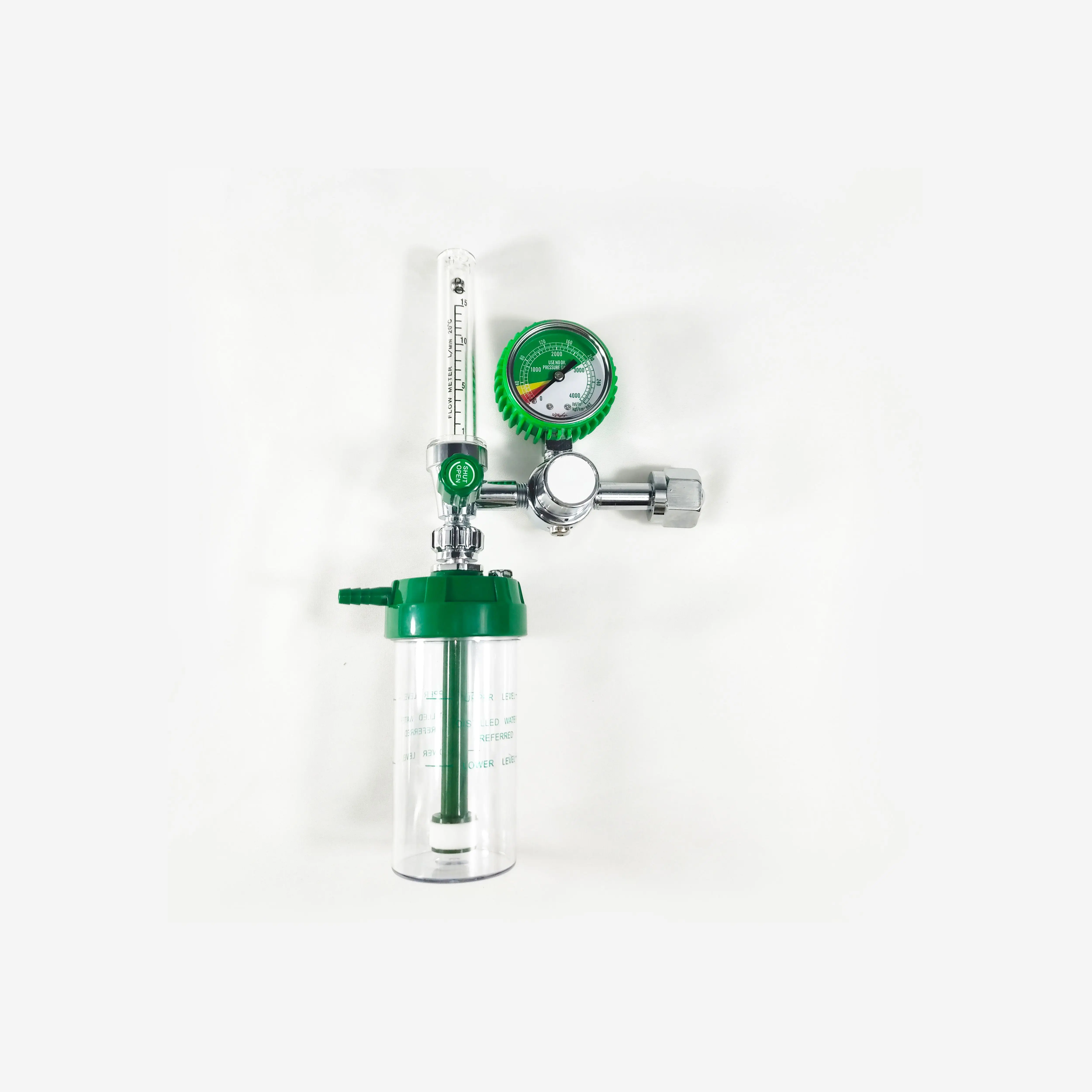

Medical oxygen regulator is used for oxygen breathing in hospital or home and meant to be connected on high pressure medical gas cylinder to decrease the outlet pressure and supply a stable low pressure for use. The pressure gauge indicates the pressure level of the gas cylinder.

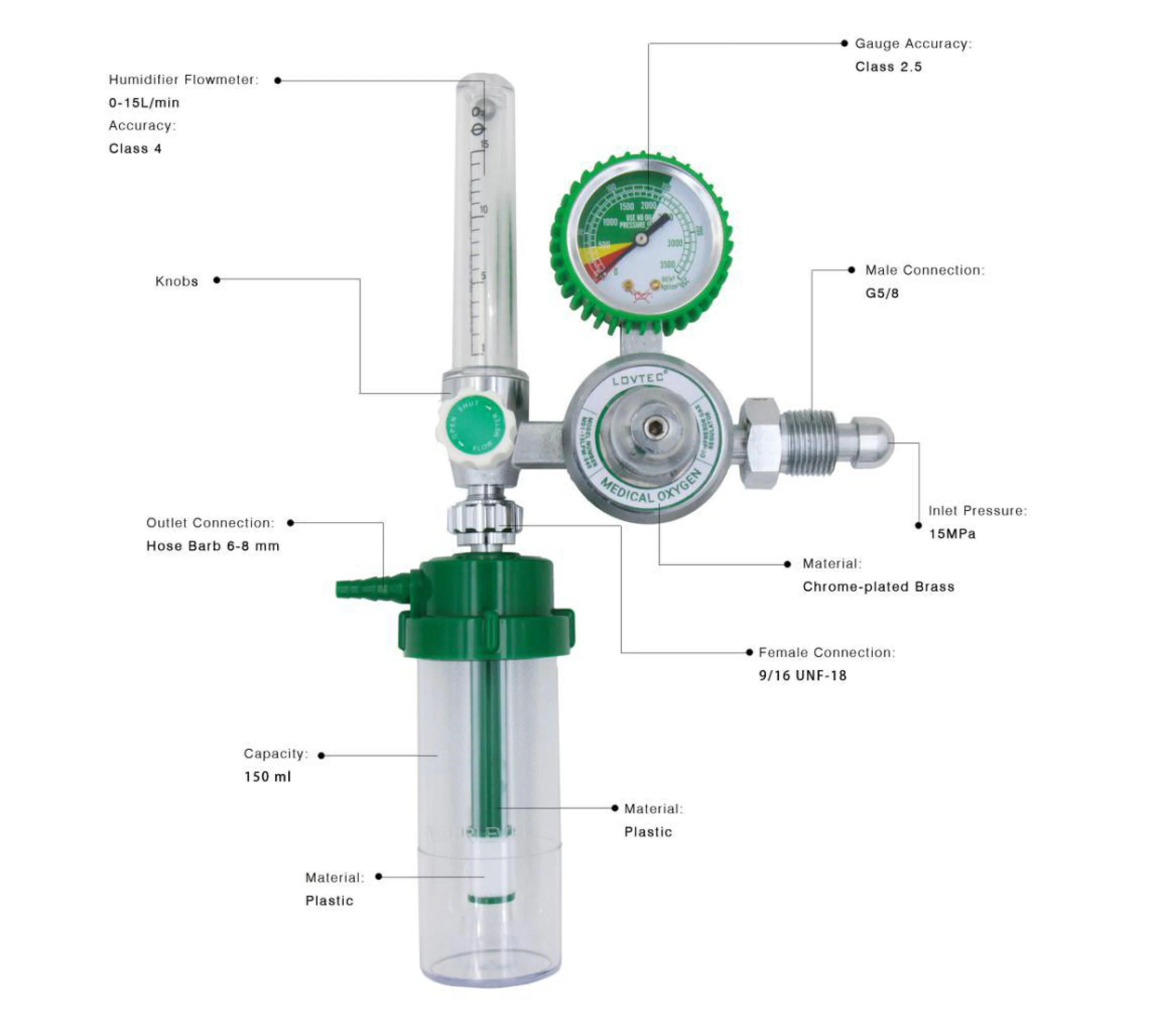

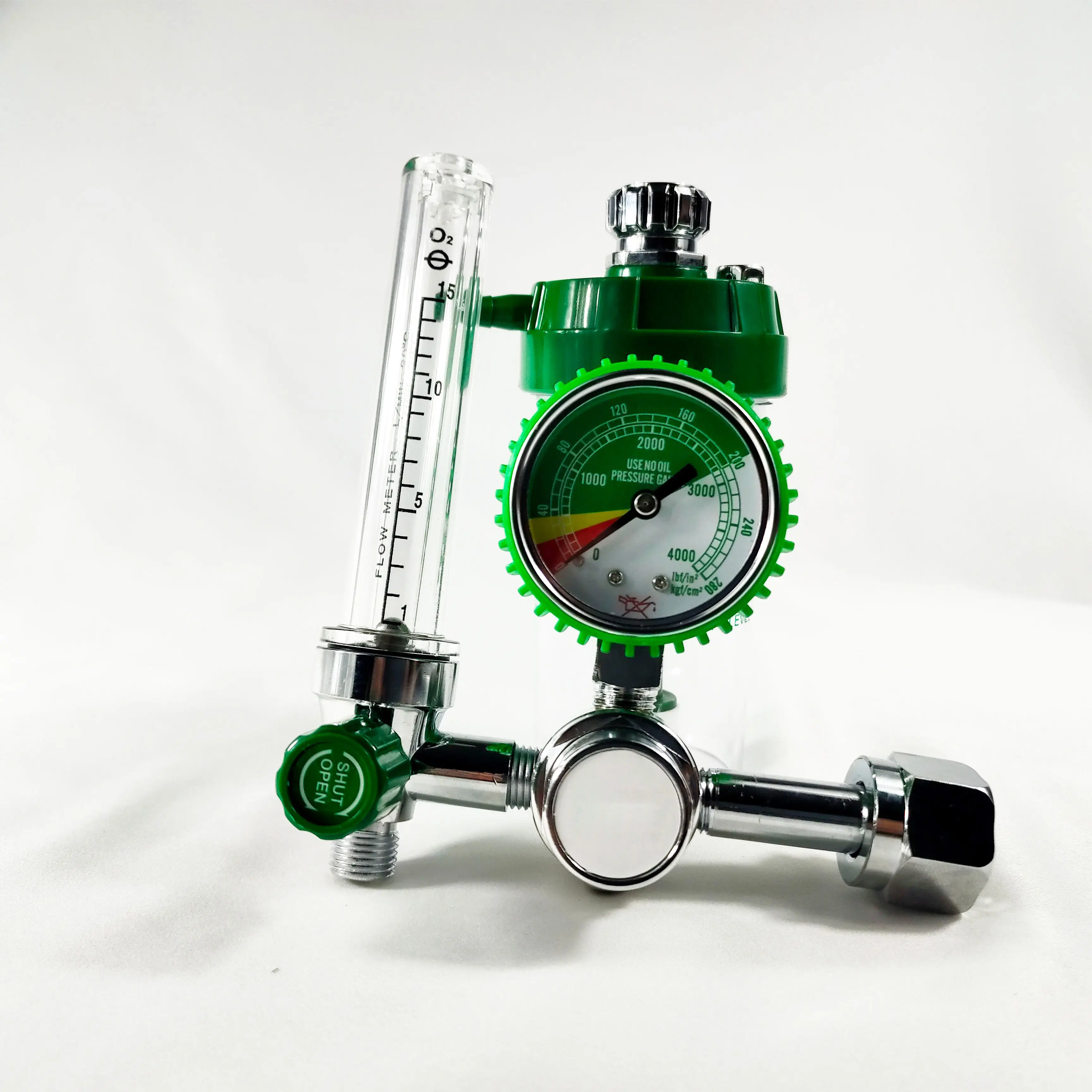

Medical Oxygen Regulators Manometer Oxygen Pressure Regulator With Humidifier

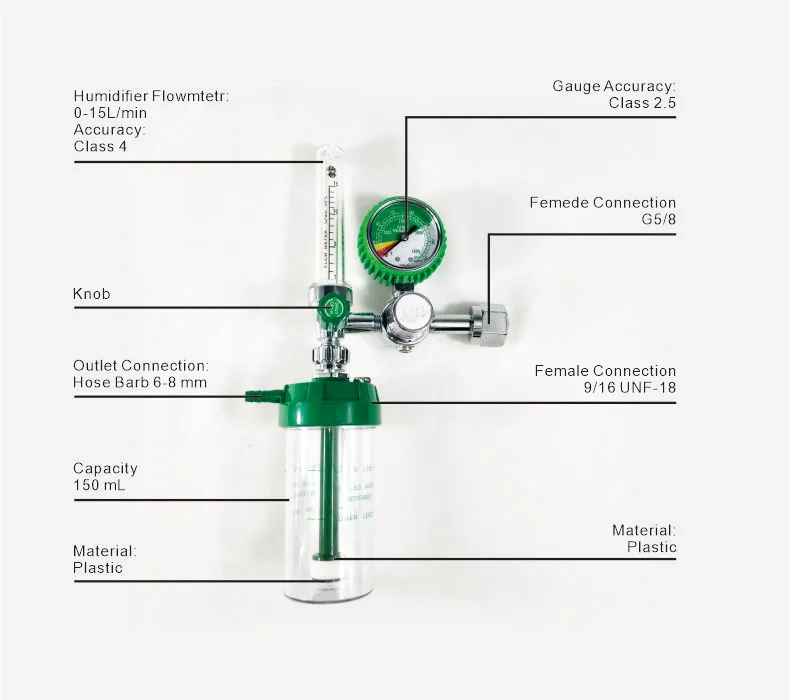

1) metering range (L/min): 1-10, 1-15;
2) accuracy: grade 4;
3) entrance Pressure(MPa): 12MPa 15MPa;
4) exit pressure(MPa): 0.2-0.3MPa;
5) entrance connection screw thread: G5/8-14-RH; CGA540-RH; G3/4-14-RH;
6) output connection screw thread: 8mm
1) metering range (L/min): 1-10, 1-15;
2) accuracy: grade 4;
3) entrance Pressure(MPa): 12MPa 15MPa;
4) exit pressure(MPa): 0.2-0.3MPa;
5) entrance connection screw thread: G5/8-14-RH; CGA540-RH; G3/4-14-RH;
6) output connection screw thread: 8mm
1. Gas regulators used in hospitals, clinics, homes and emergency medical care.
2. The valve body and lining are made of brass forging to ensure high strength and high safety. The chrome-plated valve body is easy to clean.
3. The preset outlet pressure of the regulator is 3.5 Bar.4. Suitable for oxygen and mixed gas.
6. The external safety valve ensures safe use.
5. The front cover of the meter, the tube of the flow meter and the humidifying cup are all made of high-grade shatterproof PC.
Company Profile
Welcome to Anhui Clean Energy Co. Ltd.
specializes in manufacturing seamless steel gas cylinders and composite gas cylinders of B 1 and B 3 class under the approval from the General Administration of Quality Supervision Inspection and Quarantine of the People's Republic of China. Our factory is located in Anqing city, Anhui province, China and covers an area of 160,000 square meters.

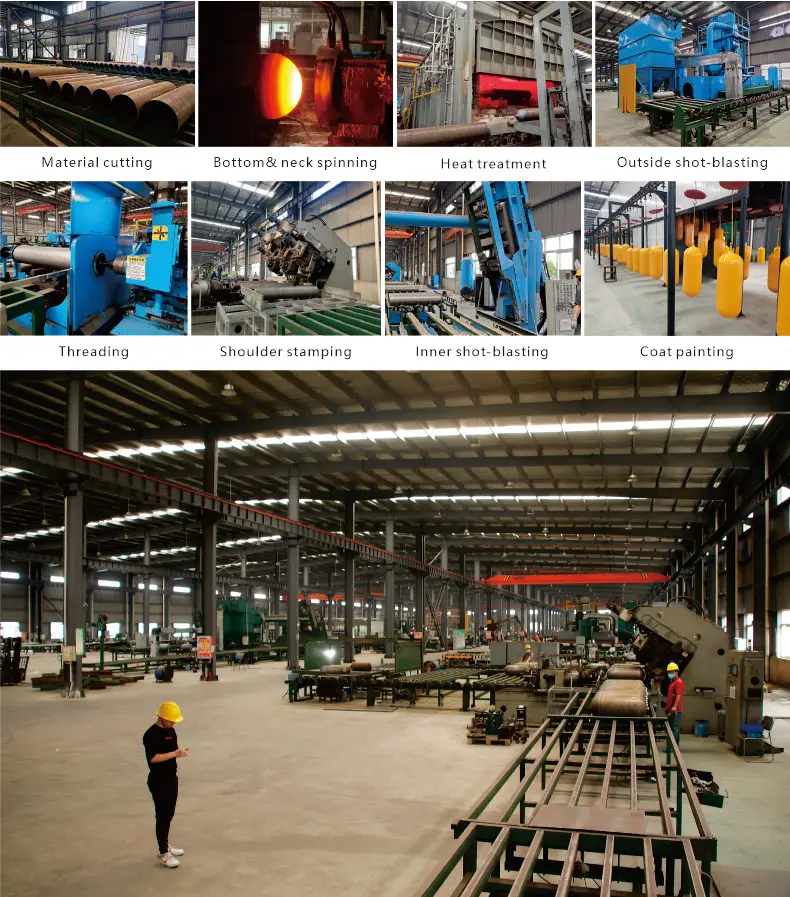

Our factory
During Anhui Clean Energy Co. Ltd is equipped with abundant technical strength, superior machinery and completed inspection system. At present, our production capacity reaches 350,000 units per year, and it is scheduled to be doubled within one year. Our product range includes seamless steel gas cylinders; composite LPG cylinder; composite breathing gas cylinder; fire-fighting system gas cylinders; CNG type one, CNG type two, CNG type three, CNG type four cylinders and more.
To secure and remain to be competitive on the market, we manufacture our entire products following the requirements of I S O 1 1 4 3 9, I S O 9 8 0 9, E C E R 1 1 0 and T P E D approval from TUV Germany. This ensures that Anhui Clean Energy is capable of offering the right cylinder at a price that best fits the needs of customers. We supply our products and services to both domestic and overseas markets. we are looking forward to your visit. Thank you for your watching.

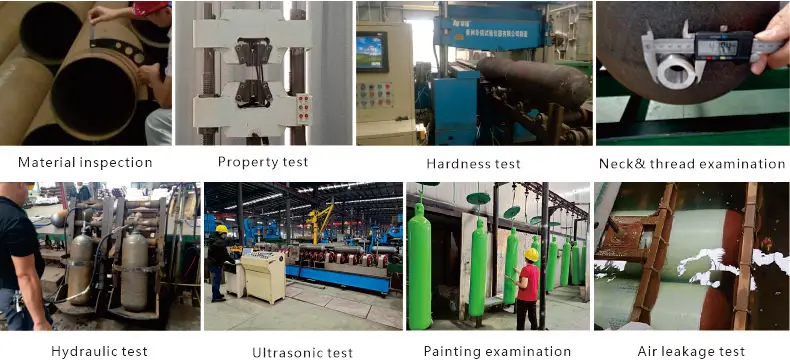

Quality Control
Our steel cylinders are produced from seamless steel tubes by applying advanced rotary forming(Hot Spinning) technologywith this technology we can gaurantee the cylinder length torlerance within 10mm.
Every cylinder we produced shall be Magnetic Test and Ultrasonic Inspection for 100% NDE check. Hydraulic and Airleakage Test are also 100% guaranteed.
Related certificates
QMS:ISO9001、IATF16949
PRODUCT CERTIFICATES& APPROVALS:
SEAMLESS STEEL CYLINDER:ISO9809-1(TPED),UNISO9809-1,GB/T5099.1
CNG TYPE-1:ISO11439、ECE R110;
CNG TYPE-2:GB24160、ISO11439、ECE R110;
CNG TYPE-3:Q/LD003-2019、ISO11439;
CNG TYPE-4:ISO11439、ECE R110;
LPG COMPOSITE CYLINDER:EN12245:2009、ISO11119
BREATHING AIR COMPOSITE CYLINDER:EN12245:2009
R&D and patents
Anhui Clean Energy had lunched research and development program of Type-4(Plastic liner with carbon fiber full-wrapped) cylinders from 2013. With hard working of our technicians, by end of 2018 we had passed all the test procedures and became the first manufacturer of Type-4 cylinder in China.In 2019, we established the first modern standard 6S workshop for Type-4 cylinders among our competitors.At the same time, we have developed full technology of producing LPG composite cylinders in 2019 and 2020.
Exhibitions
We arrange to participate in different exhibitions all around the world every year, including FIGAS&VEHIGAS(Peru), ALTFUELS MEXICO(Mexico), GAS FORUM(Russia Federation), GASSUF(Russian Federation), INSTITUCION FERIAL DE MADRID MADRID(Spain), International NGVS Exhibition& Forum(China)
Package & Logistics
We can provide a series of package and logistics solutions according to the customer’s requirements, to ensure our goods reach our customers on time and safely
Contact Us
Tel: 0086-556-5129993
Fax: 0086-556-5129994Add: No. 318,Guanyin Rd. of Economic Development Zone of Taihu County, Anqing, Anhui Province, China.
Http: www.cpte.cn
Our Product

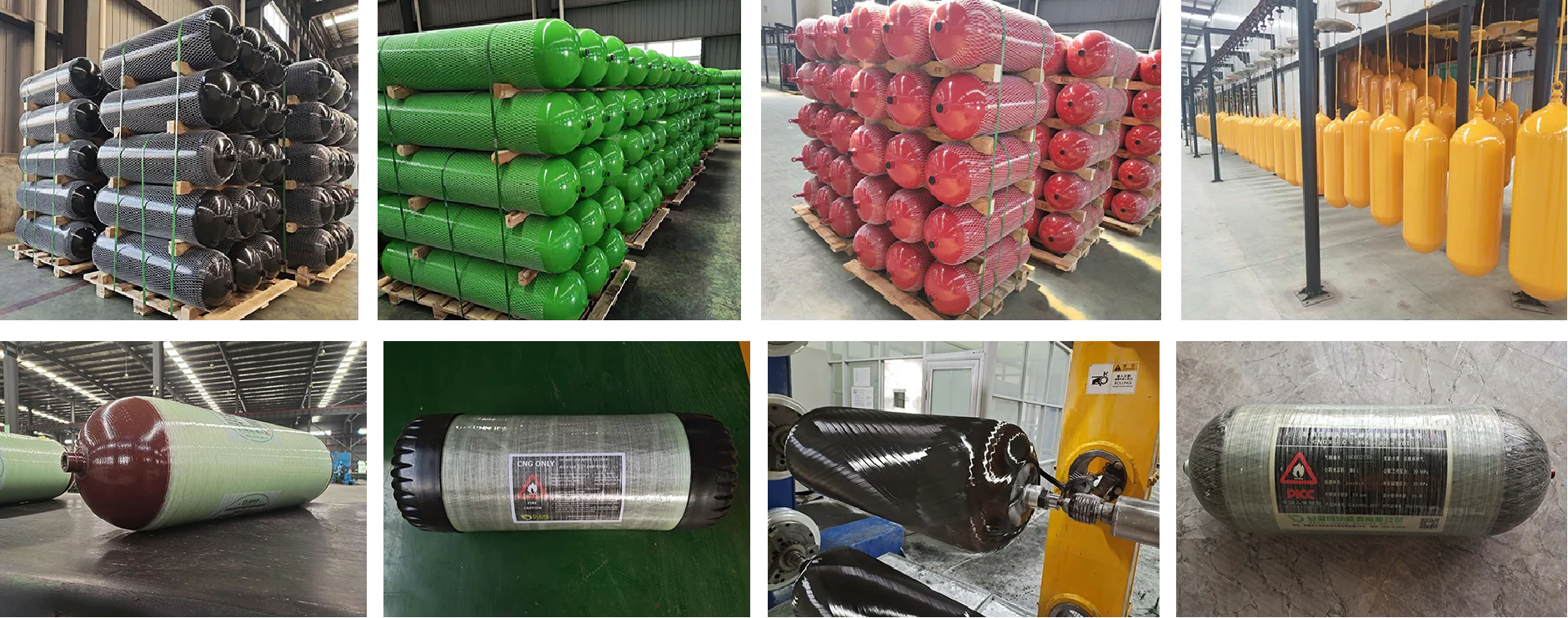

CNG CYLINDER

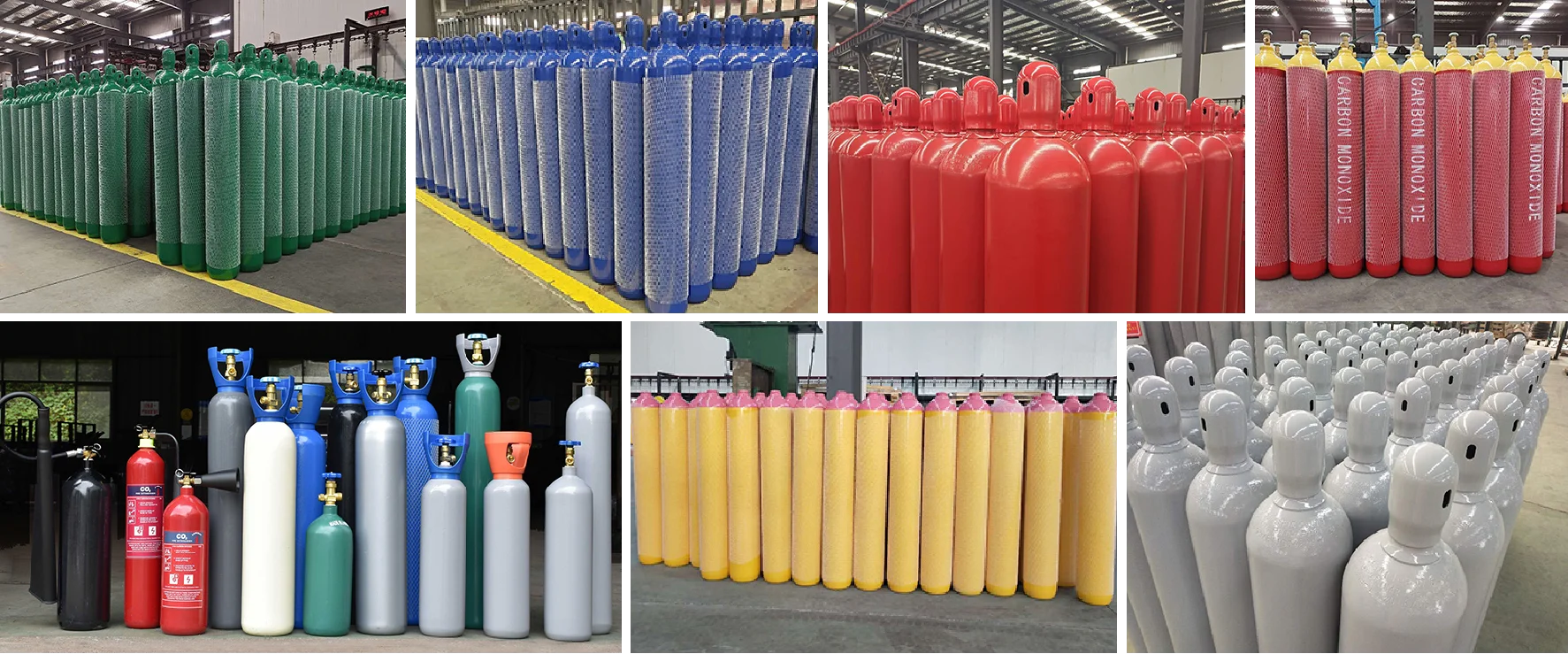

Seamless Steel Cylinder
Industrial gas cylinder medical gas cylinder CO2 GAS CYLINDER Fire extinguisher
New Products

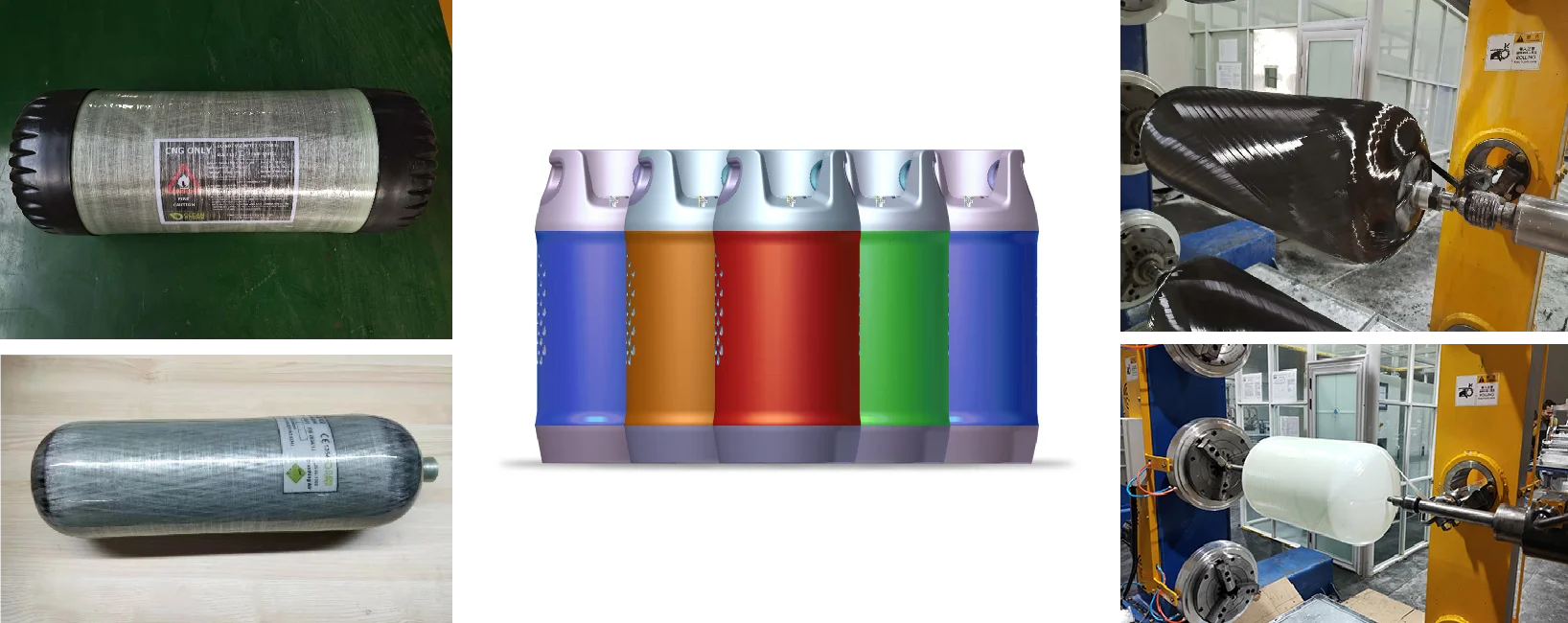

We have been committed to researching composite products, and in 2019 we became the first company to successfully launch CNG4 composite gas cylinders in China.
FAQ
Q1: Are you manufacturer or trade company?
A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 10 years. Our company brand is “LD”.
Q2: What is your daily production capacity?
A2: Our production capacity everyday is 800~1000 units.
Q3: What is your delivery time?
A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials.
Q4: What certificates do you have?
A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval.
Q5: Do you accept OEM production?
A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia, DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality.
Q6: Can you provide samples to us?
A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly.
Q7: Can you customize the products?
A7: Yes, we can provide you with various customized products. For example, your company brand/logo, different accessories and your
favorite colors.
A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 10 years. Our company brand is “LD”.
Q2: What is your daily production capacity?
A2: Our production capacity everyday is 800~1000 units.
Q3: What is your delivery time?
A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials.
Q4: What certificates do you have?
A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval.
Q5: Do you accept OEM production?
A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia, DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality.
Q6: Can you provide samples to us?
A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly.
Q7: Can you customize the products?
A7: Yes, we can provide you with various customized products. For example, your company brand/logo, different accessories and your
favorite colors.
