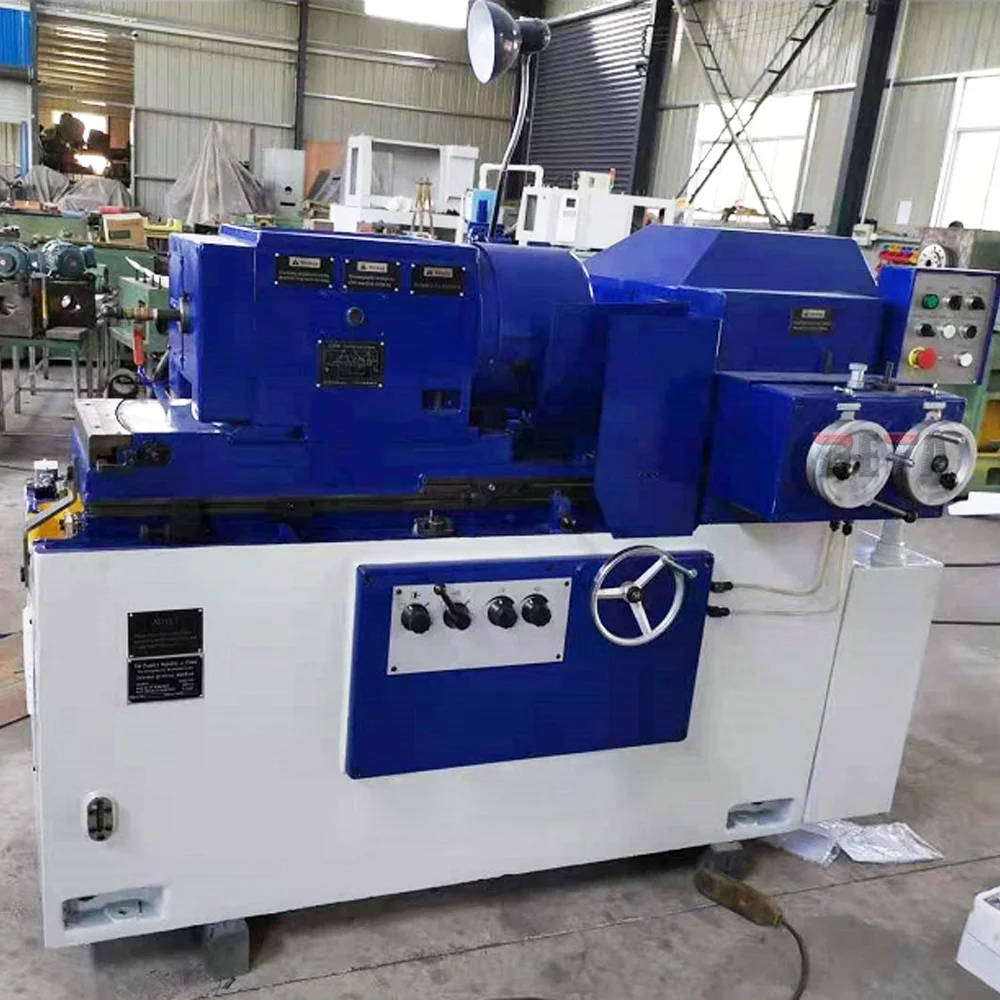

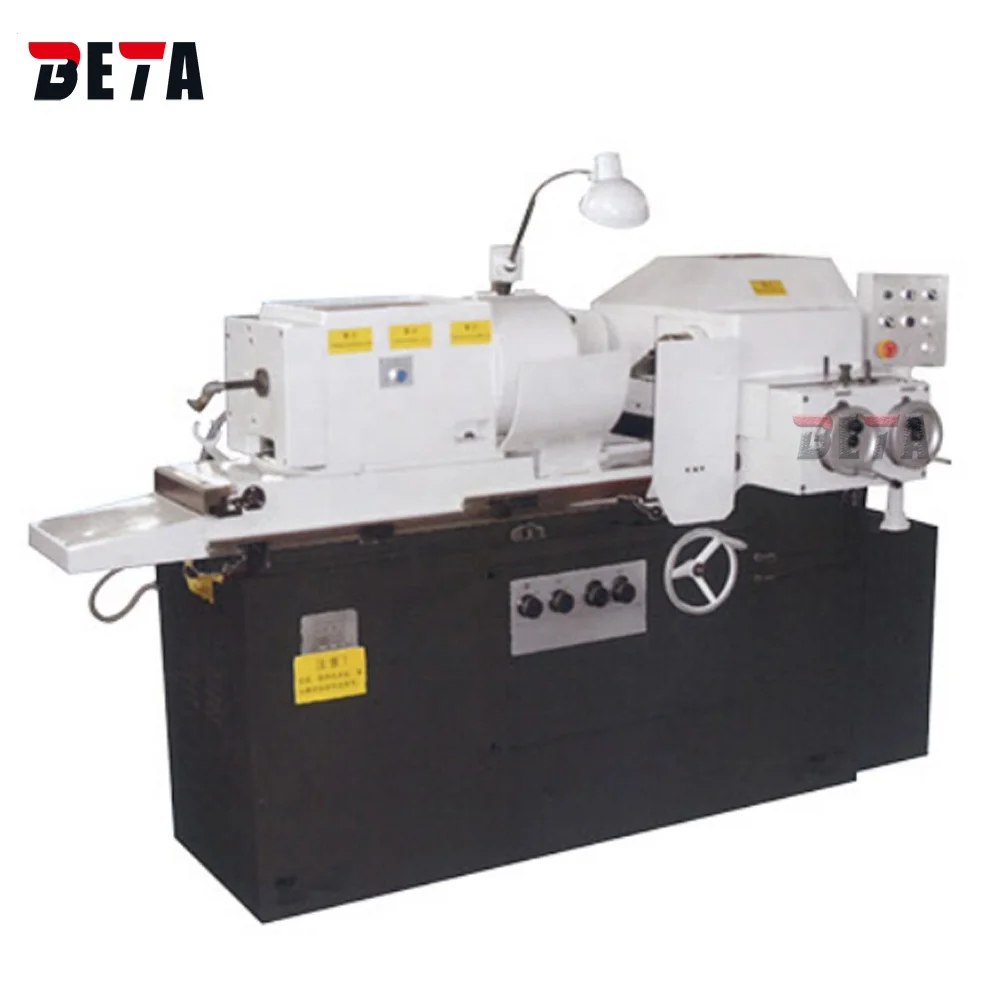

Горячая Распродажа китайская фабрика M2110C MD2110C внутренний шлифовальный станок
- Категория товара: Internal Grinding Machines >>>
- Поставщик (Оптовый магазин): Tengzhou,Beta,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Hot Sale China Factory M2110C MD2110C End Face Internal Grinding Machine
Product Parameters
Model | Unit | MD2110C | |
General Capacity | |||
Max. grinding diameter | mm | 100 | |
Min. grinding diameter | mm | 6 | |
Max. depth of grinding | mm | When bore diameter 6mm---Max. Depth 9mm When bore diameter 100mm--Max. Depth 150mm | |
Max. swing of workpiece | mm | Inside the shell 260mm Outside the shell 300mm | |
Max. Working length | mm | 150 | |
Max.travel of worktable | mm | 550 | |
Max. Loading weight (with clamping device) | kg | 50 | |
Swivel angle of workhead | ° | 20° | |
Spindle speed | r/min | 180,250,355,500 | |
Wheel speed | r/min | 8000,18000 | |
Working speed of table | m/min | 0.1-5 stepless | |
Maximum lateral movement of grinding wheel | mm | 80 | |
Total feed of grinding wheel | mm | 0.56 | |
Total power of machine tool | kW | 5 | |
Allowance in diameter direction of inner hole. | mm | ≤0.25 | |
Work motor power | kW | 0.45/0.75 | |
Wheel motor power | kW | 2.2 | |
Machining accuracy | |||
Roundness | mm | ≤0.002 | |
Cylindricity | mm | ≤0.004 | |
Roughness | mm | ≤Ra0.32 | |
Gross weight | kg | 2000 | |
Overall size | mm | 2365x1260x1310 | |
Details Images
1. The machine bed is integrally cast with castings, with stable structure and strong rigidity.
2. The machine tool adopts a layout pattern where the headbox is placed on the worktable for reciprocating movement, and the grinding head is placed on the feed slide plate for feed movement. The headstock spindle bearing adopts Harbin shaft, and the workpiece chuck is equipped with a three-jaw chuck with an outer diameter of 150mm
3. The machine tool is equipped with a set of high-precision mechanical spindles, the model is ST1025/1, the internal bearing structure of the spindle is changed to reliable end face function, and it is equipped with 2 special grinding wheel extension rods.
4. The feed and compensation of the machine tool are executed by two transmission mechanisms that do not interfere with each other. The feed can be manual or hydraulic.
5. The machine tool is equipped with jump-in and jump-out mechanisms, so there is no need to manually set the tool again after exiting the grinding wheel for measuring dressing.
6. The workbench is equipped with a mid-stop device for rewinding, and the rewinding distance can be adjusted as needed to reduce auxiliary time.
7. The workbench start handle is equipped with a safety interlock device to ensure the safety of loading and unloading and measuring work.
2. The machine tool adopts a layout pattern where the headbox is placed on the worktable for reciprocating movement, and the grinding head is placed on the feed slide plate for feed movement. The headstock spindle bearing adopts Harbin shaft, and the workpiece chuck is equipped with a three-jaw chuck with an outer diameter of 150mm
3. The machine tool is equipped with a set of high-precision mechanical spindles, the model is ST1025/1, the internal bearing structure of the spindle is changed to reliable end face function, and it is equipped with 2 special grinding wheel extension rods.
4. The feed and compensation of the machine tool are executed by two transmission mechanisms that do not interfere with each other. The feed can be manual or hydraulic.
5. The machine tool is equipped with jump-in and jump-out mechanisms, so there is no need to manually set the tool again after exiting the grinding wheel for measuring dressing.
6. The workbench is equipped with a mid-stop device for rewinding, and the rewinding distance can be adjusted as needed to reduce auxiliary time.
7. The workbench start handle is equipped with a safety interlock device to ensure the safety of loading and unloading and measuring work.
Beta - We are the key guy who want to let your grinder and ours getting better!
