automatic bottle placing fermented bean curd bottle receiving are completed labeling machine
- Категория товара: Labeling Machines >>>
- Поставщик (Оптовый магазин): ZHEJIANG,LEADTOP,PHARMACEUTICAL,MACHINERY,CO.,LTD
Поделиться:
Описание и отзывы
Характеристики
Product introduction

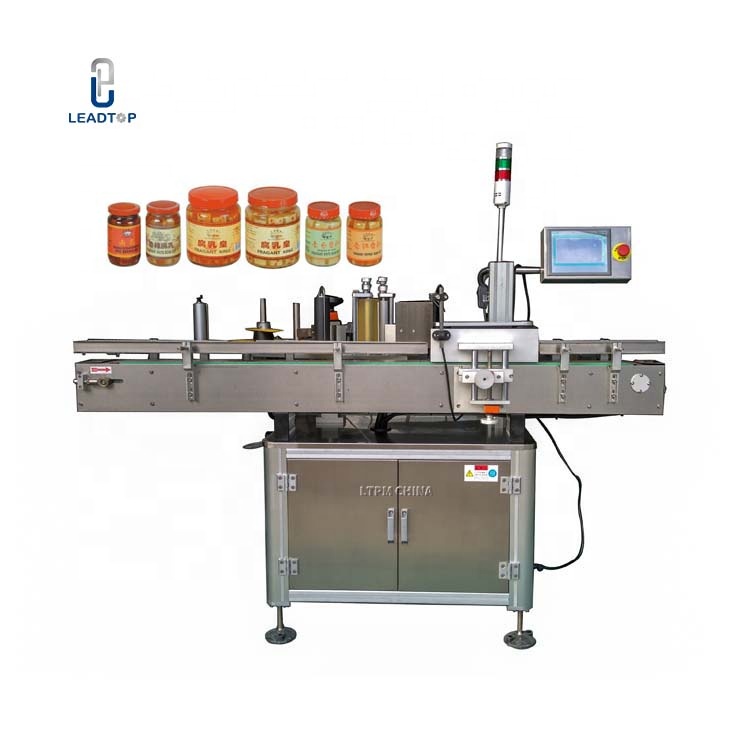

Automatic round bottle labeling machine
- Mt-200 vertical round bottle labeling machine adopts self-adhesive roll labeling paper. The labeling adopts roll labeling method. The procedures of bottle placing, labeling and bottle receiving are completed at one time. The labeling standard is accurate, and the label is flat and wrinkle free.
- Largely improve the labeling production efficiency and reduce equipment investment costs
- It widely used in cosmetics, food, toys, daily chemical,electronics, pharmaceutical, plastics, printing and other industries.
- It widely used in cosmetics, food, toys, daily chemical,electronics, pharmaceutical, plastics, printing and other industries.
Data
Model | MT-130 | MT-200 | MT-300 | MT-600 | |||
Driver Motor | Stepping motor | ||||||
Operation | Right or left | ||||||
Running speed (PCS/min) | 10-130 | 10-200 | 30-120 | 300-600 | |||
Maximum diameter of label | 300mm | 350mm | 350mm | 350mm | |||
Coil diameter | 75mm label | 75mm label | 76mm label | 76mm label | |||
Weight | 200kg | 200kg | 280kg | 300kg | |||
Power supply | AC220V 0.5Kw 60HZ | ||||||
Overall Size（mm） | 2000*1300*1500 | 2000*1300*1500 | 2400*1300*1500 | 2780*1270*1500 | |||
Product Details
01.
- PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand.
02.
- The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working.
- The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.
- The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.
03.
- The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional)
04.
- Whole body stainless steel 304 with T6 Aluminum Alloy meets GMP Standard.
- The position of height and backwards or forwards are adjustable.
- The position of height and backwards or forwards are adjustable.
05.
- Machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
Warm hint
1 -- Because the exchange rate is changing, the specific price of the machine will also change.
2 -- Our machines can be customized according to your requirements, we also provide you with complete packaging line design services. Each of your products has its own optional solution.
3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or "send inquiry" to contact us.
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand

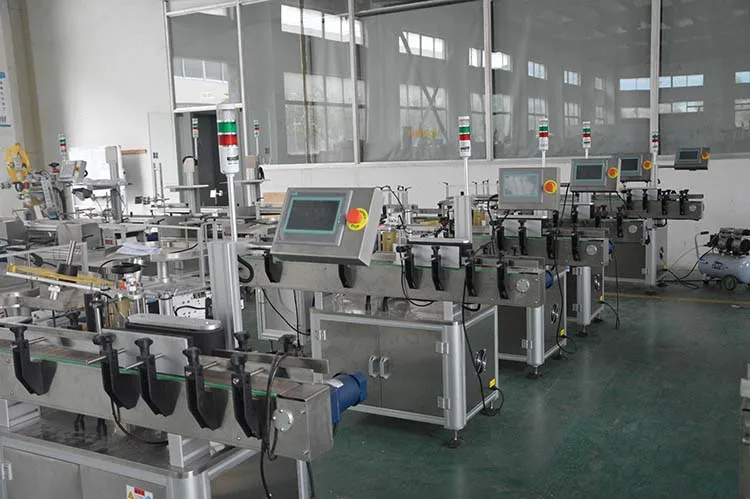

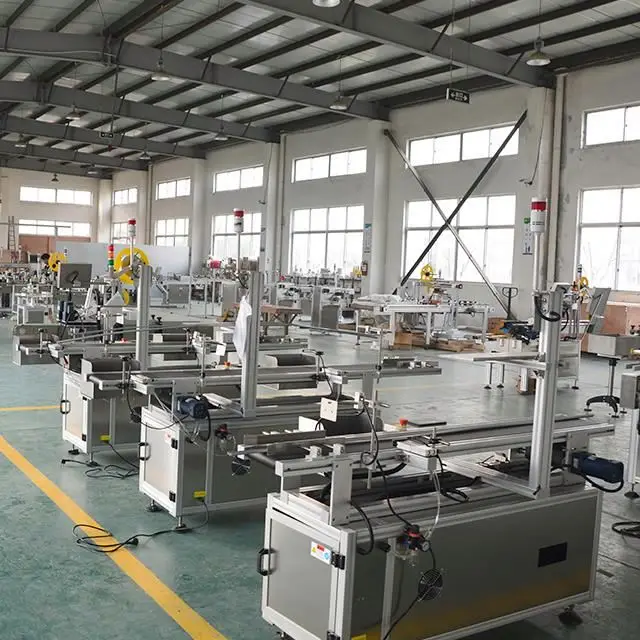

Our Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Team
Our Customers
Orders from Alibaba

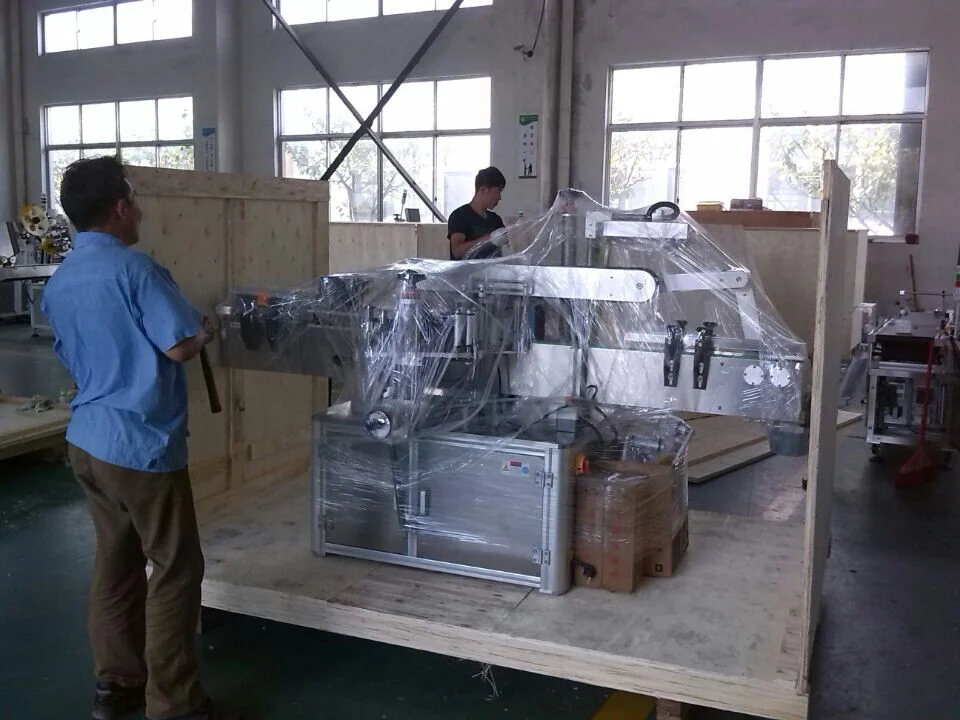

Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
A: 5 years free warranty.
Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.
Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.
Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.
Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
