Product Description
M1320H cylindrical grinder is drawn in the Shanghai Machine Tool Works.LTD. production MQ1320,cylindrical grinding machine ,based on the advantages of the major grinder professional manufacturing units ,to improve to improve new product with high performance and price ratio.
This machine is used for grinding a variety of small parts cylinder ,the conical inside and outside the circle and outside the circle and the end surface.
Specification |
|
|
|
Description Model | unit | M1320X500 | M1320X800 |
External grinding diameters | mm | φ8~200 | φ8~200 |
Center height | mm | 135 | 135 |
Max. worktable traverse | mm | 600 | 900 |
Hydraulic travel speed | m/min | 0.1~4 | 0.1~4 |
Max.work piece weight | kg | 50 | 50 |
Grinding length External | mm | 500 | 800 |
Swivel range of worktable | ° | -5~+7° | -3~+6° |
Max.wheel peripheral speed | m/s | 35 |
|
External wheel size | mm | Max.φ400x50xφ203 Minφ280x50xφ203 |
|
Head stock and tail stock center | morse | NO.4 |
|
Total motor power | kw | 5.625 |
|
Machine overall dimension(LxWxH) | mm | 2500x1600x1000 | 3100x1600x1700 |
Machine weight | kg | 2500 | 3000 |
|
|
|
|
Working Accuracy |
|
|
|
Roundness(O.D) |
| 1.5μm(O.D) | |
Uniformity of dia.in longitudinal section(O.D) | 5μm(O.D) | ||
Surface roughness(O.D) |
| Ra0.32μm(O.D) | |
|
|
|
|
Mail Accessories |
|
|
|
Coolant tank | set | 1 |
|
Grinding wheel dresser | set | 1 |
|
Wheel hub | set | 2 |
|
Wheel balancing mandrel | set | 1 |
|
Open-type steady-rest | set | 1 |
|
Driving dog | set | 1 |
|
Carbide-tipped center | pcs | 2 |
|
Leveling wedge | set | 1 |
|
|
|
|
|
Special Accessories |
|
|
|
Wheel balancing stand | set | 1 |
|
Radius dresser | set | 1 | |

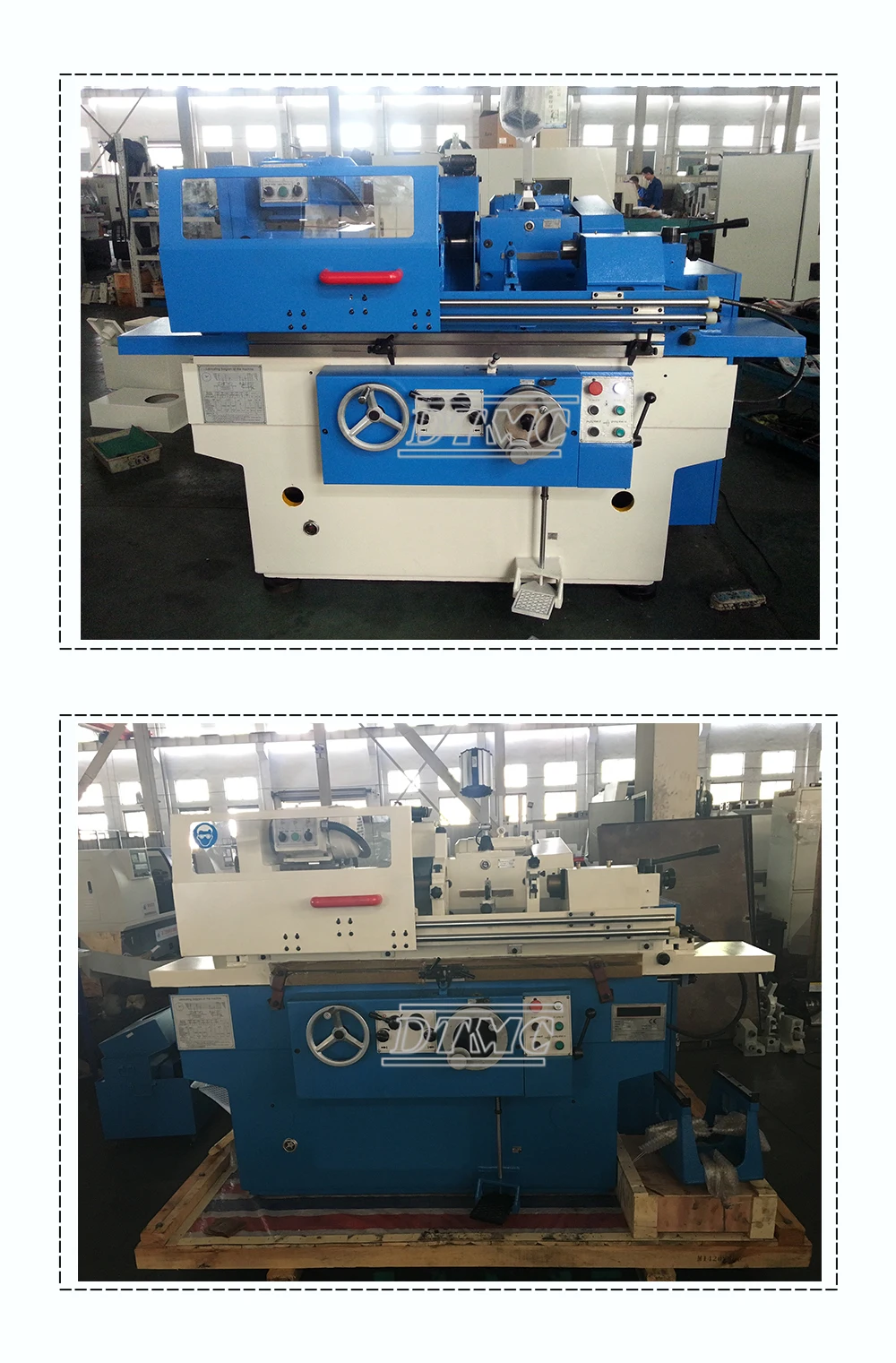

Product show
Company Information
Tengzhou Datong Machine Tool Co., LTD (DTMC) is a joint stock enterprise founded in 2000, we are the integration company in R&D, manufacture and export machinery. Our main products lines are 1) CNC machine tools, 2) Precision metal cutting band saws, 3) Precision sheet metalworking machines,4) Lathe Machine, 5)Milling Machine 6) Drilling Machine 7)Grinding Machine,8)Drilling Machine; total eight lines and we can provide more than 600 types products.
Our Factory is located in No.566 Tengfeixi Road,Tengzhou Industrial area.Head office is located in Rm. 805, Floor 10, Wentian Plaza, Tengzhou city, Shandong Province.We are grouped by eight branch factories with around 270,000 square meter workshops and 800 employees (including 220 technicians and management people). We established complete manufacturing systems, covering the casting, punching&pressing, CNC machining, painting and assembling. The advanced casting technology and complete production-chain, give our company very strong competitive ability.
We has approved the ISO9001:2008 Quality management system, ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system and Social Accountability 8000 (SA8000). Most products of ours have been approved the Europe and American safety standard, including CE, GS, EMC & UL. In 2009, the company finished turnover of more than 10 billion US dollars. 90% products were exported to more than 60 countries and regions around the world, especially to Europe and Amercia market and win high reputation always.
With the principle of "Quality First, Credits Foremost", DTMC provides the customers of domestic and abroad with superior products and professional services. We sincerely welcome you to visit our company, to establish business relationship on mutual benefit with us for mutual development !
