Ультразвуковой умный счетчик воды NB с пластиковой
- Категория товара: Water Meters >>>
- Поставщик (Оптовый магазин): Wuxi,Zhongyi,Smart,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Introduction：
Ultrasonic water meter is an intelligent flow meter, which can accurately measure the flow.The products are characterized by beautiful appearance, convenient installation, accurate measurement, stable operation, strong anti-pollution and anti-corrosion ability, long service life, small pressure loss, economic and practical, etc., suitable for domestic water, central air conditioning system water flow metering charges.
Product Appearance：

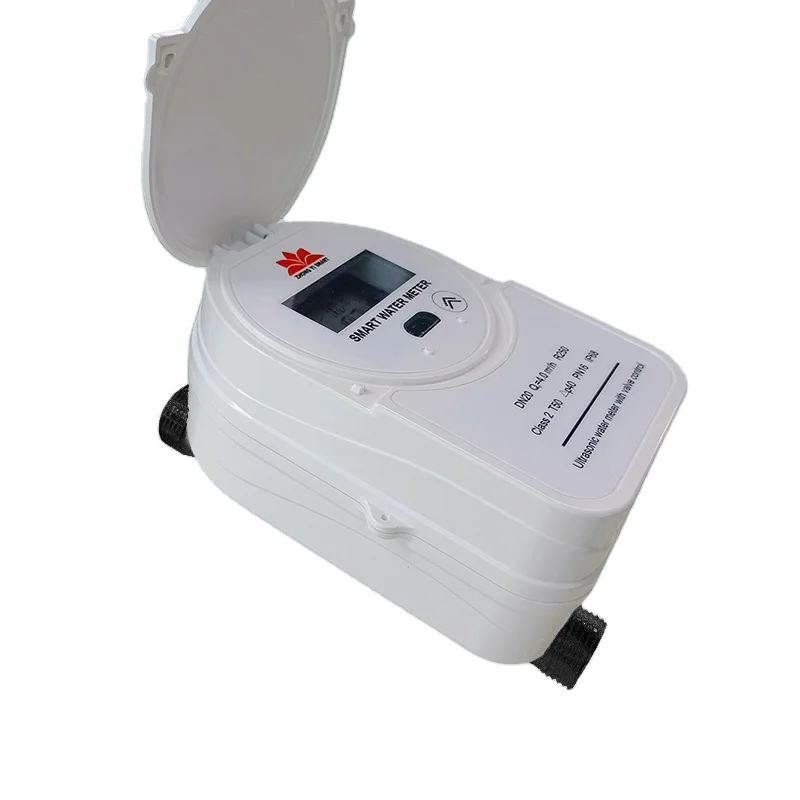

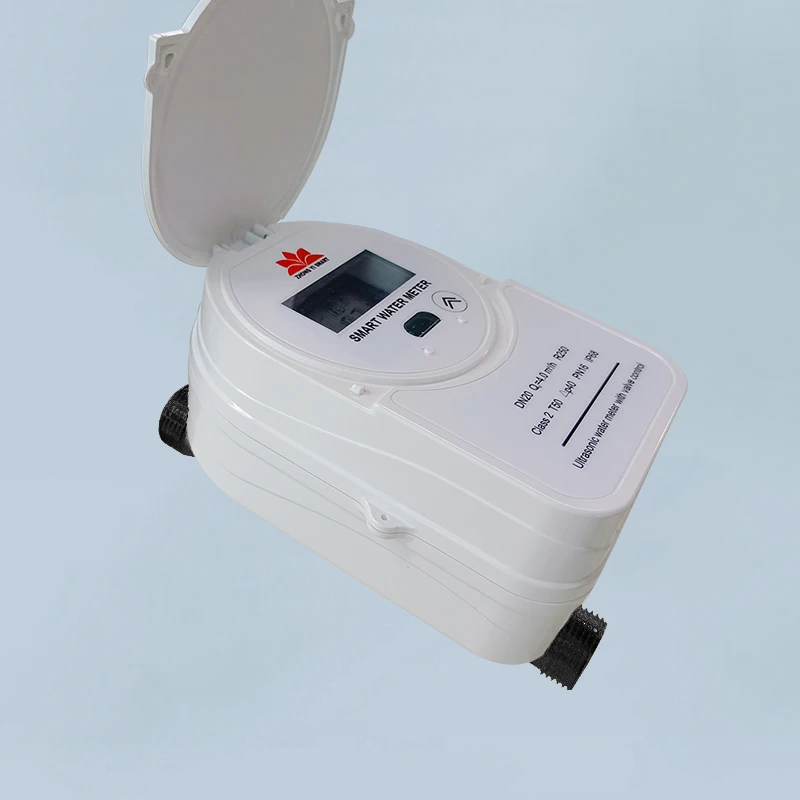

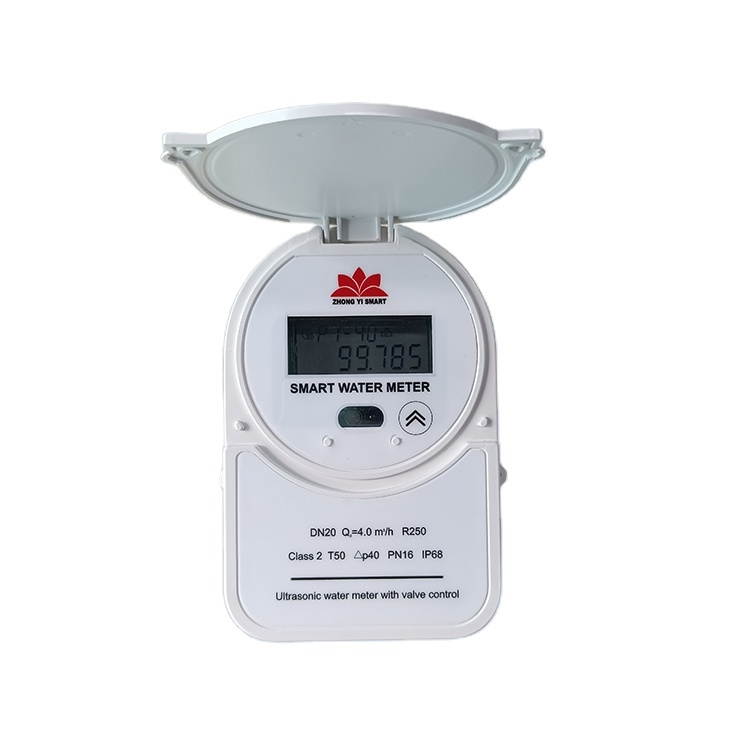

（valve controlled small diameter ultrasonic smart meter）
Principle of Ultrasonic Water Meter：
It mainly consists of temperature sensor, flow sensor and calculator.The temperature sensor measures the temperature of water, and the flow sensor measures the volume of water flowing through the pipeline through the time difference. These two data are collected and sent to the integral calculator to calculate the amount of water used, store and display.
Technical Parameters：
Nominal diameter（mm） | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | ||||||||
maximum flow Q4(m3/h) | 3.1 | 5 | 7.87 | 12.5 | 20 | 31.25 | 50 | 78.75 | 125 | ||||||||
Commonlyflow Q3(m³/h) | 2.5 | 4 | 6.3 | 10 | 16 | 25 | 40 | 63 | 100 | ||||||||
Boundary flow Q2(m3/h) | 0.02 | 0.03 | 0.05 | 0.08 | 0.128 | 0.2 | 0.32 | 0.504 | 0.8 | ||||||||
minimum flow Q1(m3/h) | 0.012 | 0.02 | 0.032 | 0.05 | 0.08 | 0.125 | 0.2 | 0.315 | 0.5 | ||||||||
Maximum flow reading (m3) | XXXXXXX．X | ||||||||||||||||
accuracy class | 2 | ||||||||||||||||
pressure loss | ≦0.063MPa | ||||||||||||||||
MWP(maximum working pressure) | 1.6MPa | ||||||||||||||||
temperature | T30 | ||||||||||||||||
temperature resolution | 0.01℃ | ||||||||||||||||
environment type | B class(Inside) | ||||||||||||||||
battery life | >5+1 years | ||||||||||||||||
Product Feature：
Low starting flow rate, wide measuring range, high measurement accuracy, stable work, no internal moving parts, open flow components, free from the influence of impurities in water, long service life, good communication.
Communication introduction
NB-IOT
The main chip of NB-IOT communication module adopts the high-performance embedded ARM cortex-m3 32-bit RISC controller, which
ensures the stability of the device with multilevel software detection and multiple hardware protection mechanisms.It is composed
of the powerful ARM cortex-m3 32-bit RISC microcontroller and NB-IOT wireless spread spectrum chip .
Product features are as follows:
（1） nb-iot module adopts LGA package, small in size, compact in structure and easy for embedded product application;
（2）wide voltage supply design, suitable for more applications;
（3） integrated TCP/UDP and other data transmission protocols and embedded rich network service protocols, easy to design and
upgrade products;
（4）passed the high and low temperature test, in line with the industrial environment;
（5）provide upper computer software to realize on-site test equipment and compatibility with existing equipment;
（6） deep coverage: 100 times more coverage than GSM;
（7） mass connection: each community can provide 50,000-100,000 connections;
Low power consumption: the useful life of terminal battery is over 6 years;
The main chip of NB-IOT communication module adopts the high-performance embedded ARM cortex-m3 32-bit RISC controller, which
ensures the stability of the device with multilevel software detection and multiple hardware protection mechanisms.It is composed
of the powerful ARM cortex-m3 32-bit RISC microcontroller and NB-IOT wireless spread spectrum chip .
Product features are as follows:
（1） nb-iot module adopts LGA package, small in size, compact in structure and easy for embedded product application;
（2）wide voltage supply design, suitable for more applications;
（3） integrated TCP/UDP and other data transmission protocols and embedded rich network service protocols, easy to design and
upgrade products;
（4）passed the high and low temperature test, in line with the industrial environment;
（5）provide upper computer software to realize on-site test equipment and compatibility with existing equipment;
（6） deep coverage: 100 times more coverage than GSM;
（7） mass connection: each community can provide 50,000-100,000 connections;
Low power consumption: the useful life of terminal battery is over 6 years;
After the communication module is superimposed, if combined with the integrated energy
control platform software independently developed by the company，It can realize：
control platform software independently developed by the company，It can realize：
* Unmanned, reduced manpower.
●automatic data logging.
●Industrial-grade communication equipment ensures the safety and reliability of meter reading.
●Complete system log traceability is available.
●Visual graphics, data statistics.
●Meter status alarm；When low-power and low-volume magnetic attack sampling fault leakage alarm (external leakage alarm) occurs,
real-time alarm information is uploaded to the background application platform.
●Control the gasmeter valve switch through background application software (desktop WEB and mobile APP).
●When the meteris removed or attacked by external forces, the information will be transmitted to the background application
platform in real time
●The stability of data transmission can be monitored.
●automatic data logging.
●Industrial-grade communication equipment ensures the safety and reliability of meter reading.
●Complete system log traceability is available.
●Visual graphics, data statistics.
●Meter status alarm；When low-power and low-volume magnetic attack sampling fault leakage alarm (external leakage alarm) occurs,
real-time alarm information is uploaded to the background application platform.
●Control the gasmeter valve switch through background application software (desktop WEB and mobile APP).
●When the meteris removed or attacked by external forces, the information will be transmitted to the background application
platform in real time
●The stability of data transmission can be monitored.
Application：
Factory environment
Qualification：
Packing and delivery：
