INTRODUCTION

Sing for the moment! The DFPlayer Mini is a small and low-cost MP3 module player with a simplified output directly to the speaker. The DFPlayer mini standalone can be used as a stand-alone module with an attached battery, speaker, and push buttons or used in combination with RX/TX capabilities.

This dfrobot mp3 player perfectly integrates the hard decoding module, which supports common audio formats such as MP3, WAV, and WMA. Besides, the dfplayer mini mp3 player module also supports TF card with FAT16, FAT32 file system. Through a simple serial port, you can play the designated music without any other tedious underlying operations.

Build a talking Alarm Clock synced to Google calendars

FEATURES

1. Small size

2. Support IO, serial port and ADKEY control

3. Maximum support 32G of the TF card, suitable for occasions in need of abundant audio files

SPECIFICATION

*  Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48

*  24 -bit DAC output, support for dynamic range 90dB, SNR support 85dB

*  Fully supports FAT16, FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NOR FLASH

*  A variety of control modes, I/O control mode, serial mode, AD button control mode

*  Advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play

*  Audio data sorted by folder supports up to 100 folders, every folder can hold up to 255 songs

*  30 level adjustable volume, 6 -level EQ adjustable

APPLICATIONS

*  Car navigation voice broadcast;

*  Road transport inspectors, toll stations voice prompts;

*  Railway station, bus safety inspection voice prompts;

*  Electricity, communications, financial business hall voice prompts;

*  Vehicle into and out of the channel verify that the voice prompts;

*  The public security border control channel voice prompts;

*  Multi-channel voice alarm or equipment operating guide voice;

*  The electric tourist car safe driving voice notices;

*  Electromechanical equipment failure alarm;

*  Fire alarm voice prompts;

*  The automatic broadcast equipment, regular broadcast.

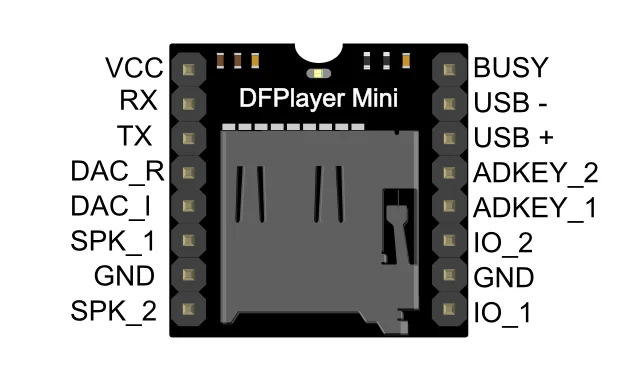

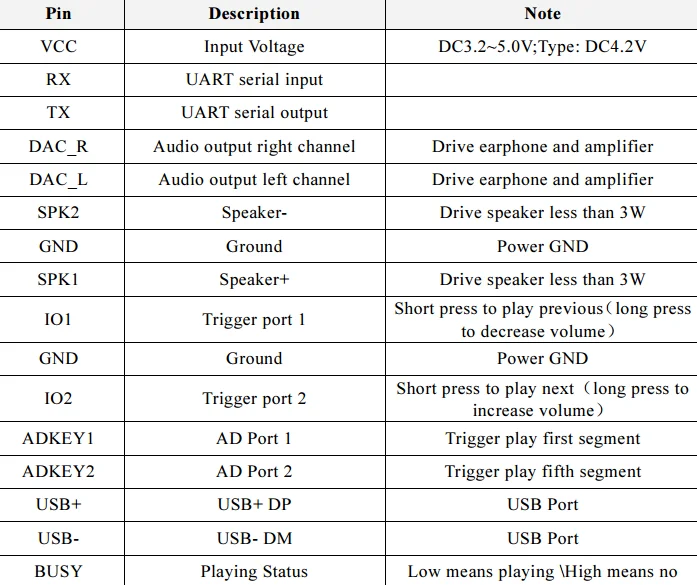

PIN MAP

CONNECTION DIAGRAM

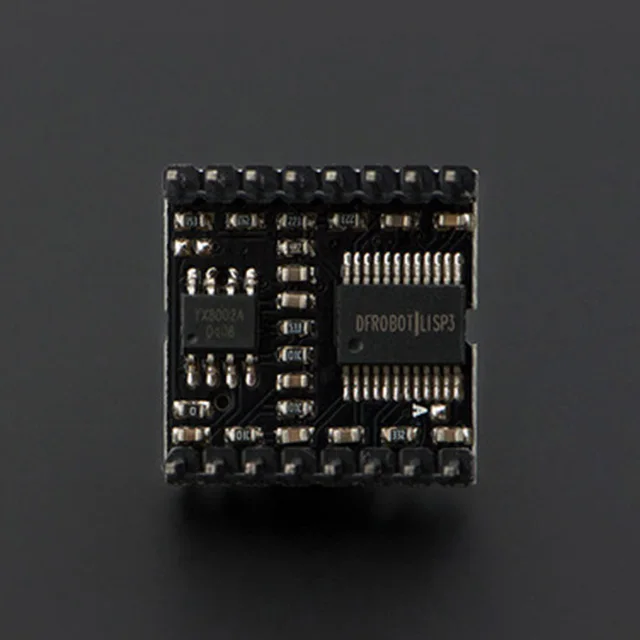

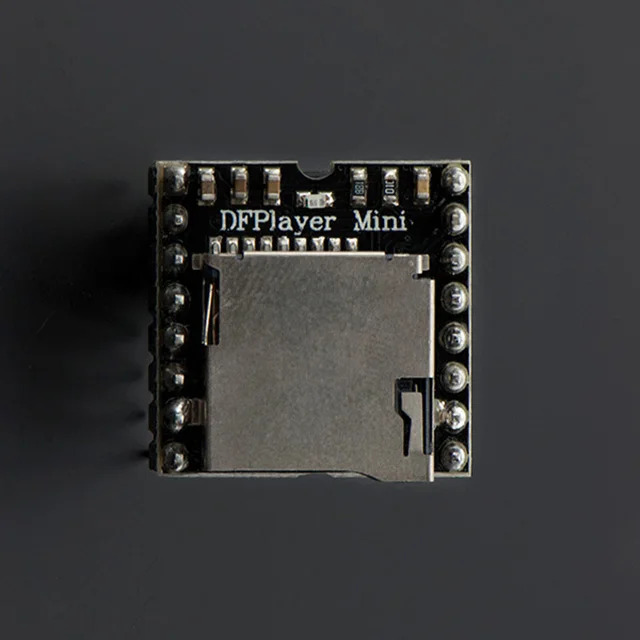

PICTURES SHOW
