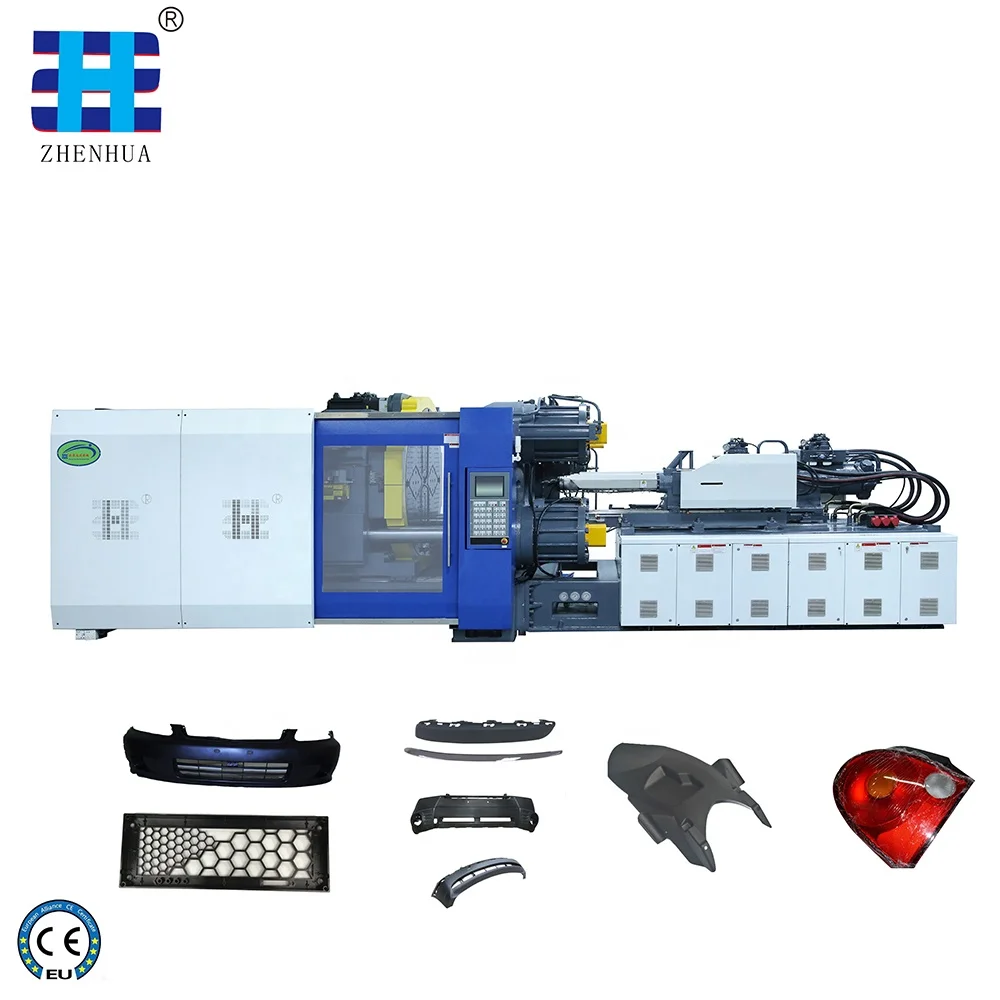

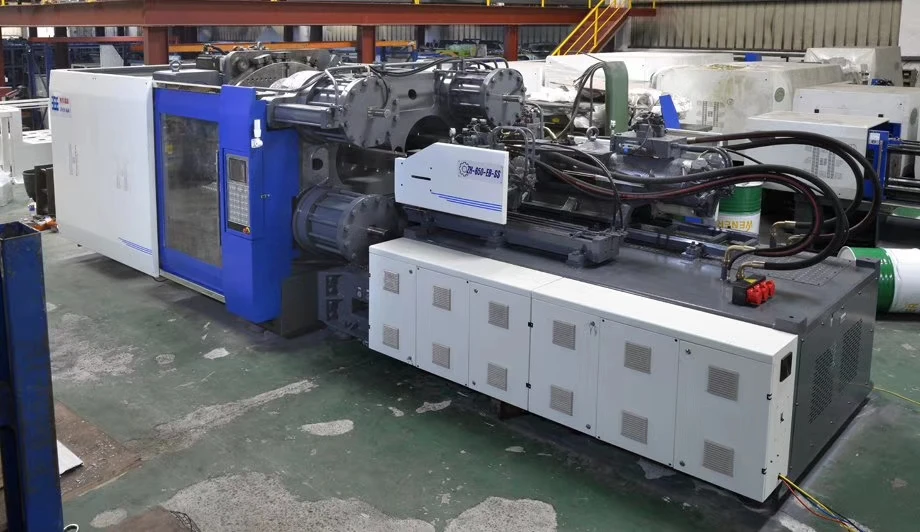

ZHENHUA 800ton большой пластиковый пресс для литья под давлением с двумя пластинами с сертификатом CE для автозапчастей бампер для автомобильных ключей
- Категория товара: Injection Molding Machines >>>
- Поставщик (Оптовый магазин): Dongguan,Chenjia,Plastic,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
All kinds of machine series
Specification
Technical Parameter | Unit | ZH-800T | ||||||
A | B | C | ||||||
Clamping Unit | Screw Diameter | mm | 90 | 100 | 110 | |||
Theoretical Injection Volume | OZ | 94 | 116 | 140 | ||||
Injection Energy | g | 2680 | 3306 | 4003 | ||||
Injection Pressure | Mpa | 228 | 184 | 152 | ||||
Screw Speed | rpm | 0-110 | ||||||
Clamping Unit | Clamping Force | KN | 8000 | |||||
Mode-shifting Trip | mm | 980 | ||||||
Space Between Ti-bars | mm | 960*960 | ||||||
Max.mould Height | mm | 1000 | ||||||
Min.Mold Thickness | mm | 400 | ||||||
Ejector Stroke | mm | 260 | ||||||
Ejector Force | KN | 186 | ||||||
Thimble Root Number | PC | 13 | ||||||
Others | Maximum Oil Pump Pressure | Mpa | 17 | |||||
Pump Motor Power | KW | 37+30 | ||||||
Electrothermal Power | KW | 58 | ||||||
Machine Dimesions(LxWxH) | M | 11*2.6*3.8 | ||||||
Machine Weight | T | 46 | ||||||

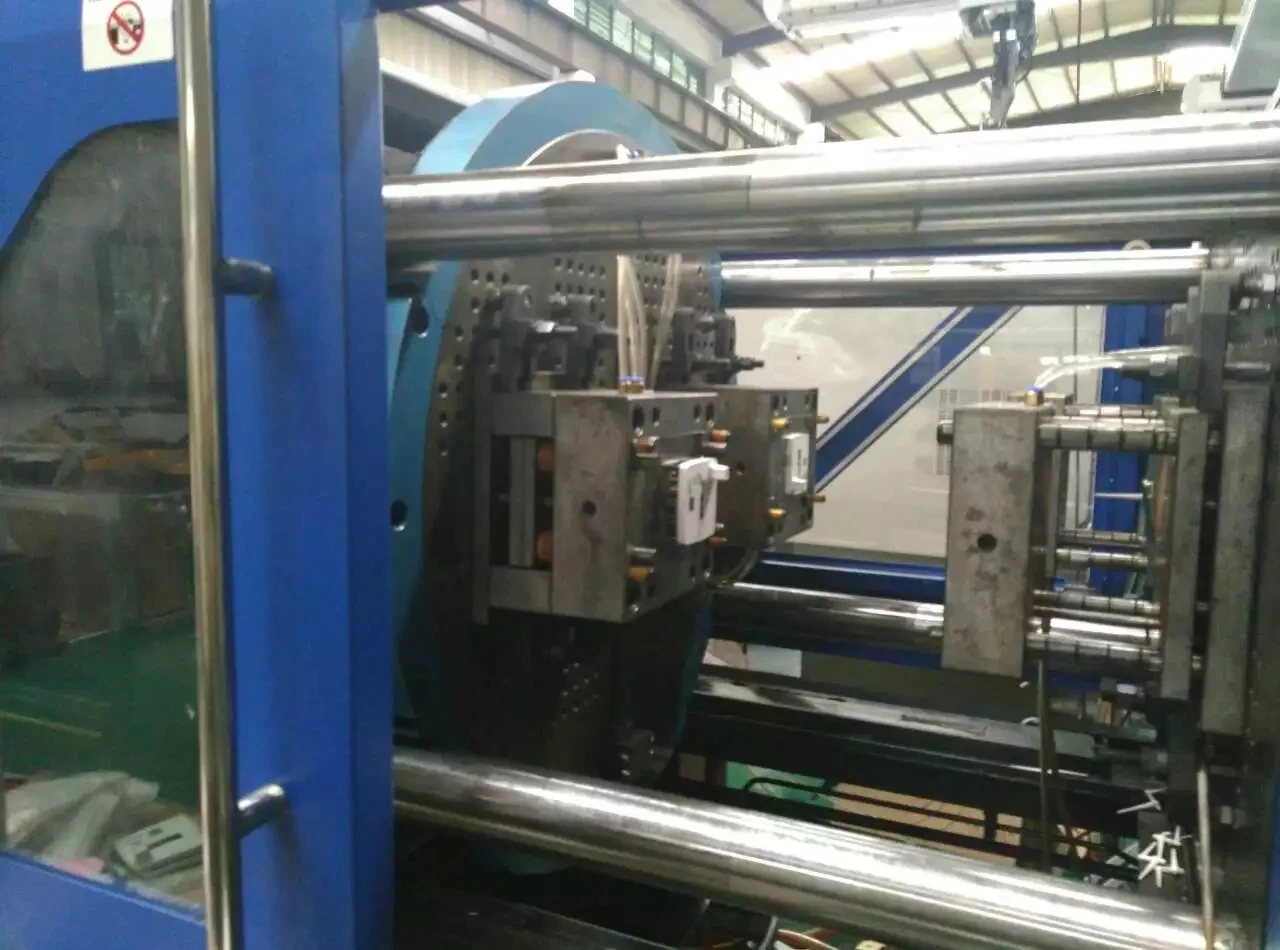

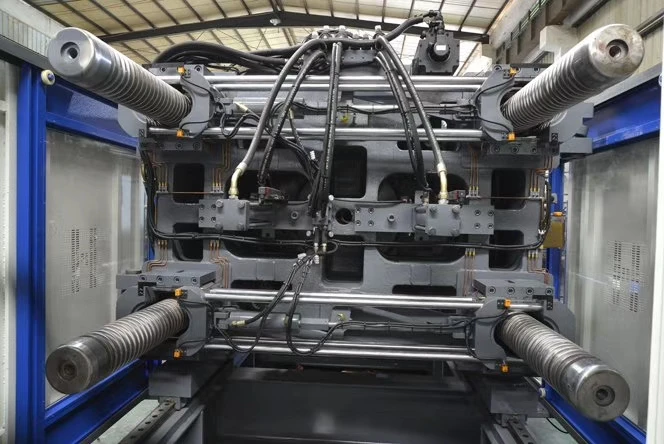

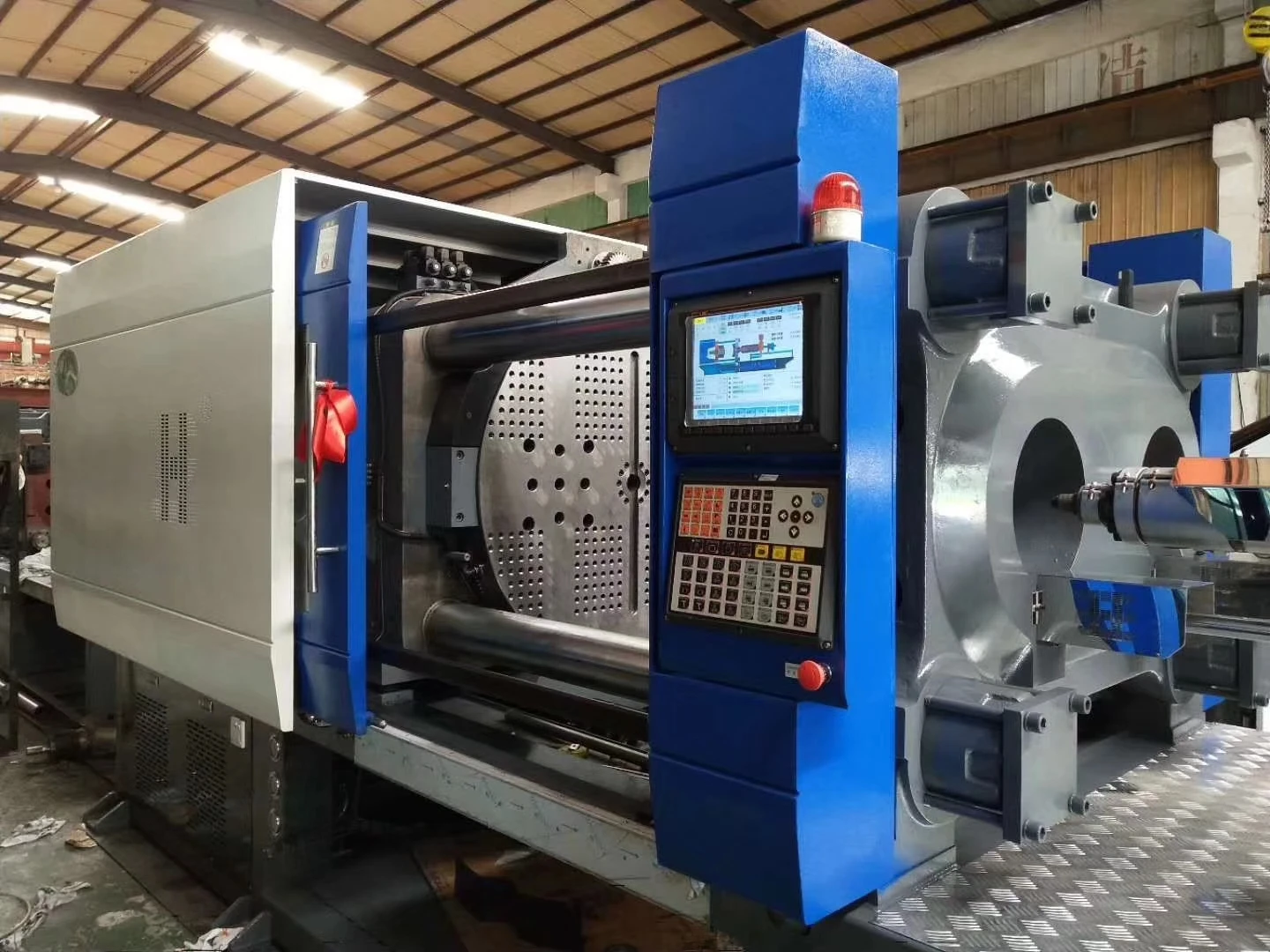

Machine Details:
Advantage: Strong Technical design ability, Stable quality, and large production capability, Famous brand.
ZHENHUA servo energy saving Injection Molding Machine, equipped with high performance servo motor controlling system, the machine's
output power can vary in accordance with the loading changes,which
reduce energy consumption and noise. The motor rotates at lower speed in holding pressure stage, and doesn't work in cooling time.
The Performance of servo energy-saving molding machine:
- Servo motor can optimize the match of energy demand and realize automatic adjustments.
- Improve injection precision
- Greatly save power and water, resulting in environment-protection and energy-saving
- Quick response and low noise.
ZHENHUA servo energy saving Injection Molding Machine, equipped with high performance servo motor controlling system, the machine's
output power can vary in accordance with the loading changes,which
reduce energy consumption and noise. The motor rotates at lower speed in holding pressure stage, and doesn't work in cooling time.
The Performance of servo energy-saving molding machine:
- Servo motor can optimize the match of energy demand and realize automatic adjustments.
- Improve injection precision
- Greatly save power and water, resulting in environment-protection and energy-saving
- Quick response and low noise.
Famous brand control system ensure the fast response and stable output
High-efficient and energy-saving servo control system.
Ensure the precision
Imported famous oil pump
Precision and stable hydraulic power unit.
Durable, maintain precision and speed even under long-term and high-intensity work
Superior Hydraulic components
The hydraulic system adopts imported famous brand hydraulic components, and adopts the oil circuit combining the plug-in and the
slide valve to effectively improve the response speed of the system.
slide valve to effectively improve the response speed of the system.

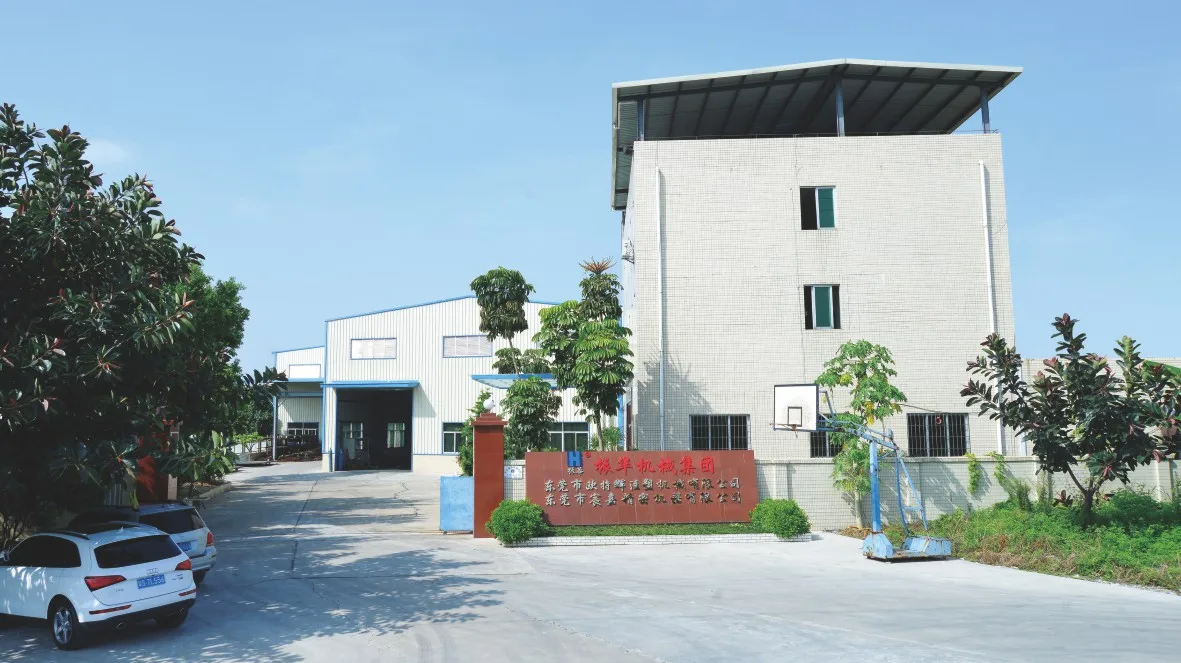

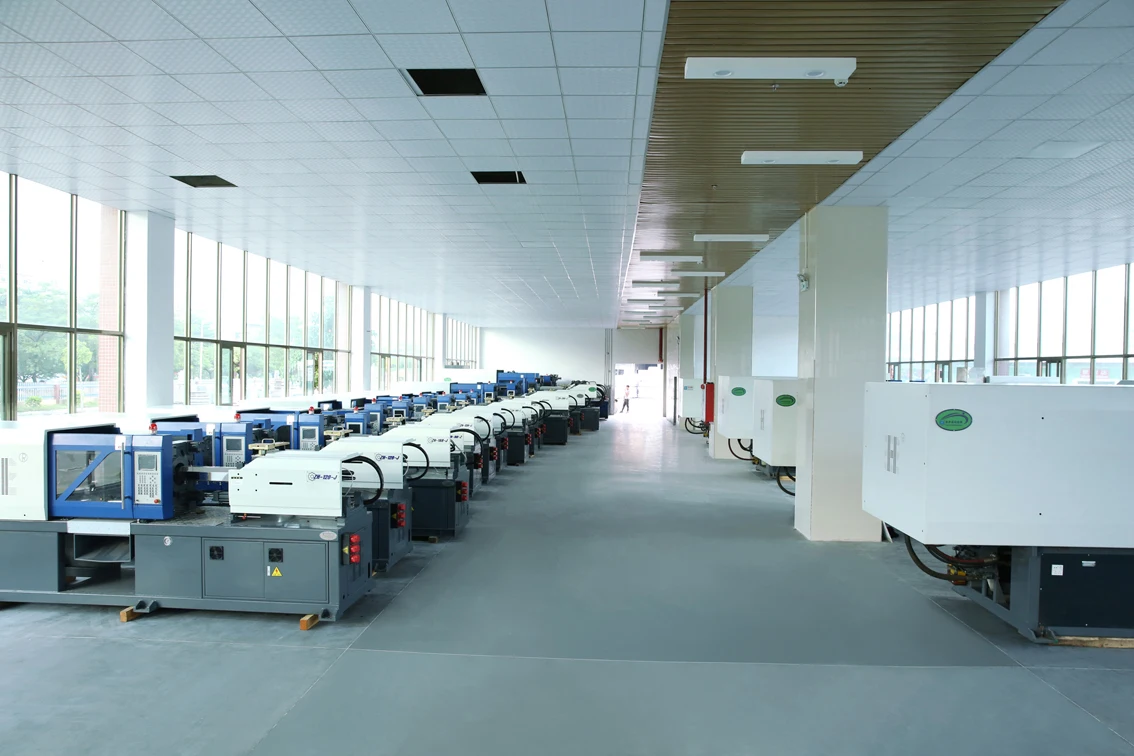

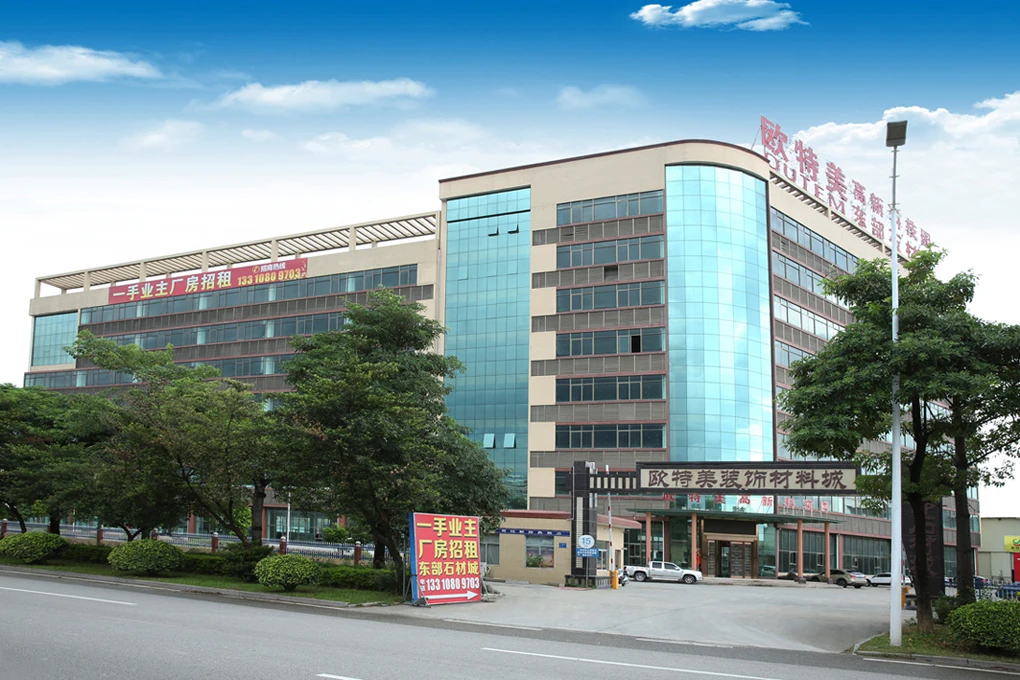

Company Profile
Shenzhen zhenhua precision machinery CO., Ltd was established in 1997 as one of the pioneering manufacturers of injection molding machine. Zhenhua people inherit the craftsmanship spirit of continuous improvement and independent innovation. With the unremitting efforts of all the staff of the company, great progress and rapid development have been made.
Shenzhen zhenhua precision machinery CO., Ltd was established in 1997 as one of the pioneering manufacturers of injection molding machine. Zhenhua people inherit the craftsmanship spirit of continuous improvement and independent innovation. With the unremitting efforts of all the staff of the company, great progress and rapid development have been made.
Shenzhen zhenhua precision machinery CO., Ltd was established in 1997 as one of the pioneering manufacturers of injection molding machine. Zhenhua people inherit the craftsmanship spirit of continuous improvement and independent innovation. With the unremitting efforts of all the staff of the company, great progress and rapid development have been made.
China Central Television interviewed our chief engineer
Pan is our chief engineer:
--more than 30 years experiences in injection molding machine
--Solved countless production problems for customers
--Help customer improved about 20% efficiency in production
China National Hi-tech Enterprise Certificate
National high-tech enterprises refers to the continuous research and development and the transformation of technological
achievements within the "High-tech Fields Supported by the State" to form the core independent intellectual property rights of the
enterprise
achievements within the "High-tech Fields Supported by the State" to form the core independent intellectual property rights of the
enterprise
FAQ
1: Can we visit your factory?
Sure. We located in Dongguan city which is very near Guangzhou and Shenzhen. For overseas customers,
you can fly to Guangzhou Baiyun or Shenzhen Baoan International Airport. We can pick you up in the Airport. We also provide visit online by video.
you can fly to Guangzhou Baiyun or Shenzhen Baoan International Airport. We can pick you up in the Airport. We also provide visit online by video.
2: Can you open mould for me?
Yes, we have a experienced mould department especially for the mould research and produce.
3: How can we get the exact price of plastic machine?
3: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
4: Do you provide any spare parts with machine?
4: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packingnlist )
5. What after-sale service can we provide?
--One year guarantee for the main parts.
--training customers' technical staff.
--24 HRS online support, video technical support
--On-site commissioning of the machine
6: Do you provide customized machines?
5. What after-sale service can we provide?
--One year guarantee for the main parts.
--training customers' technical staff.
--24 HRS online support, video technical support
--On-site commissioning of the machine
6: Do you provide customized machines?
Most of our machines are customized. Our goal is to solve customer's production problem and material problems to i mprove the production efficiency. We design the machines according to customers products to meet customer' needs.

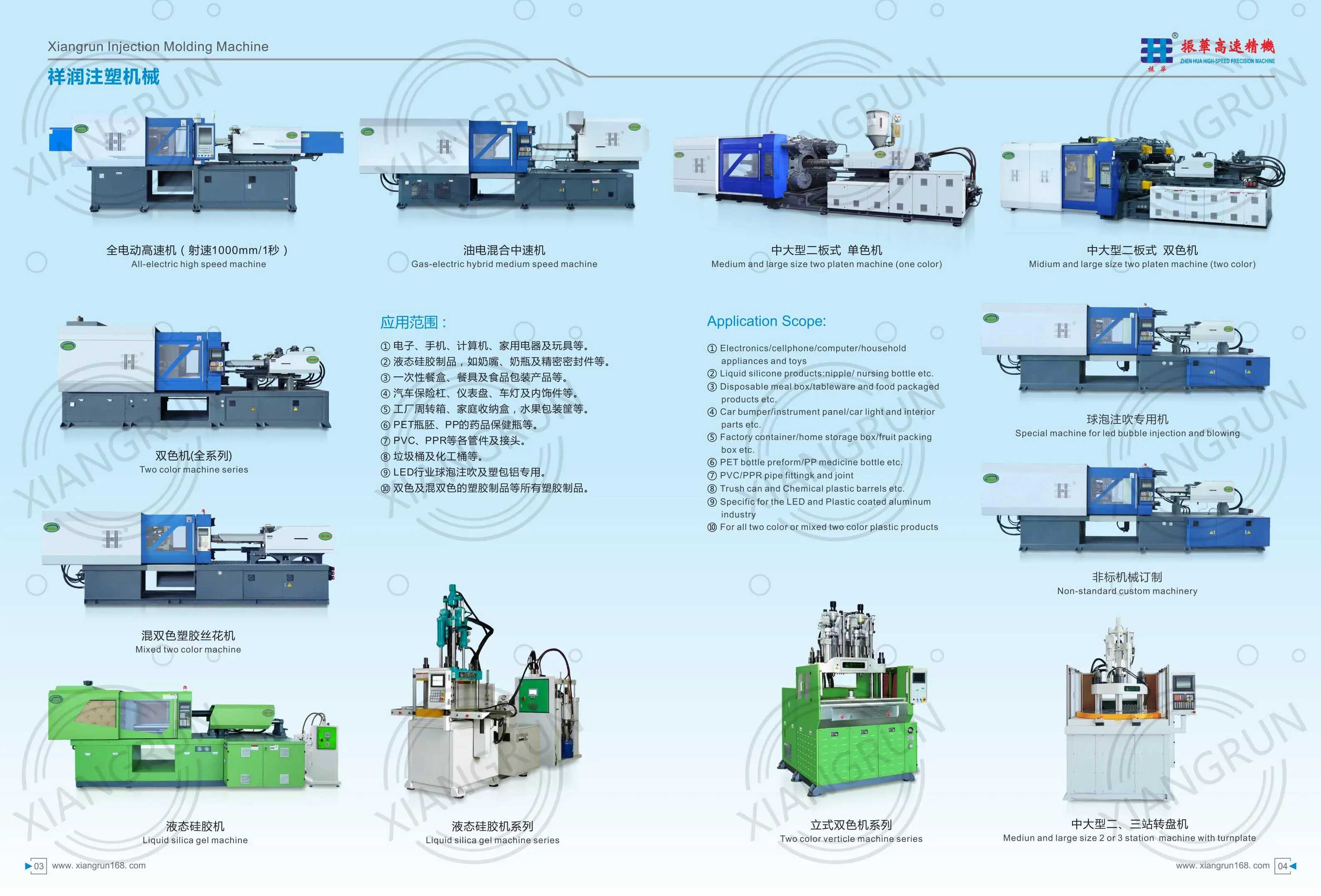

7. what kind of machine can you buy from us?
Many series machine: all electric machine, two color machine, one color machine, mixed two color machine, two plate big tonnage machine, standard one color machine, injection and blow machine, plastic coated aluminum machine, liquid
silica gel machine, vertical LSR machine, vertical multi-color/material machine. we are specialized in customized machine for special products.
7. what kind of machine can you buy from us?
Many series machine: all electric machine, two color machine, one color machine, mixed two color machine, two plate big tonnage machine, standard one color machine, injection and blow machine, plastic coated aluminum machine, liquid
silica gel machine, vertical LSR machine, vertical multi-color/material machine. we are specialized in customized machine for special products.
8. How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
