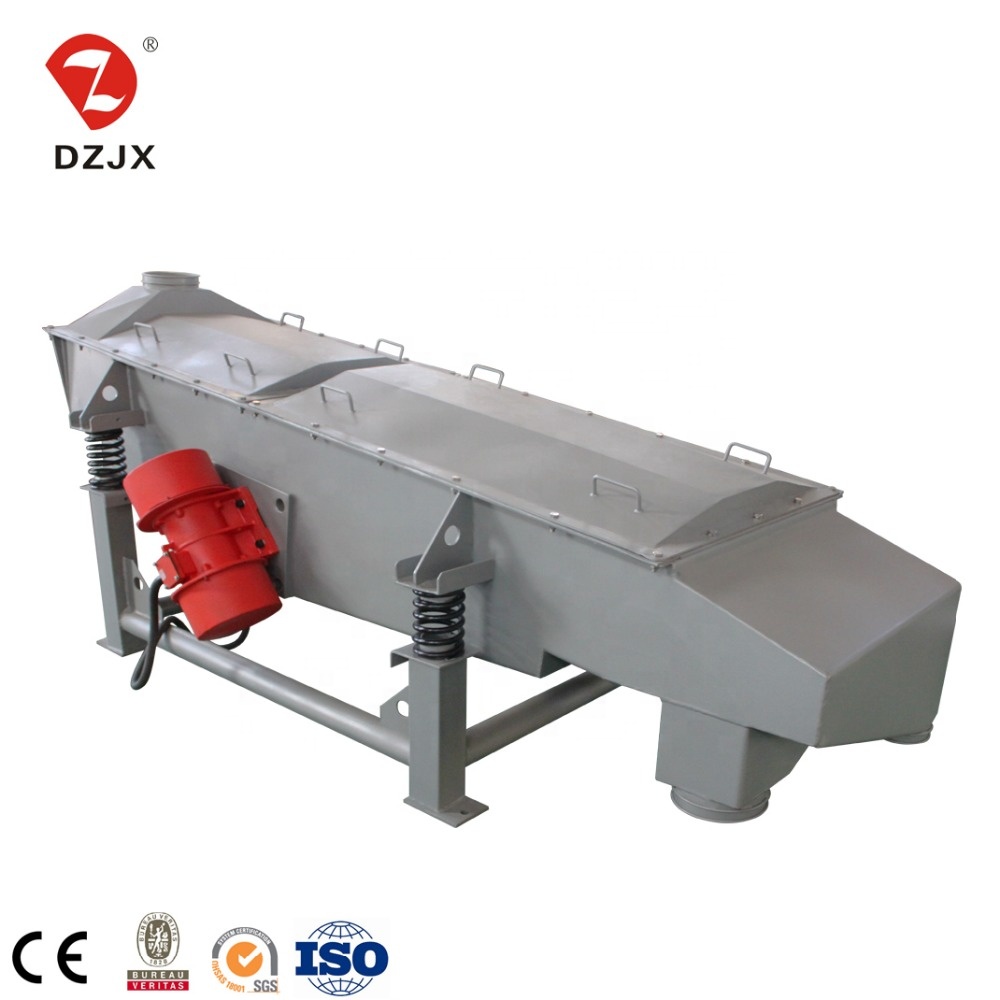

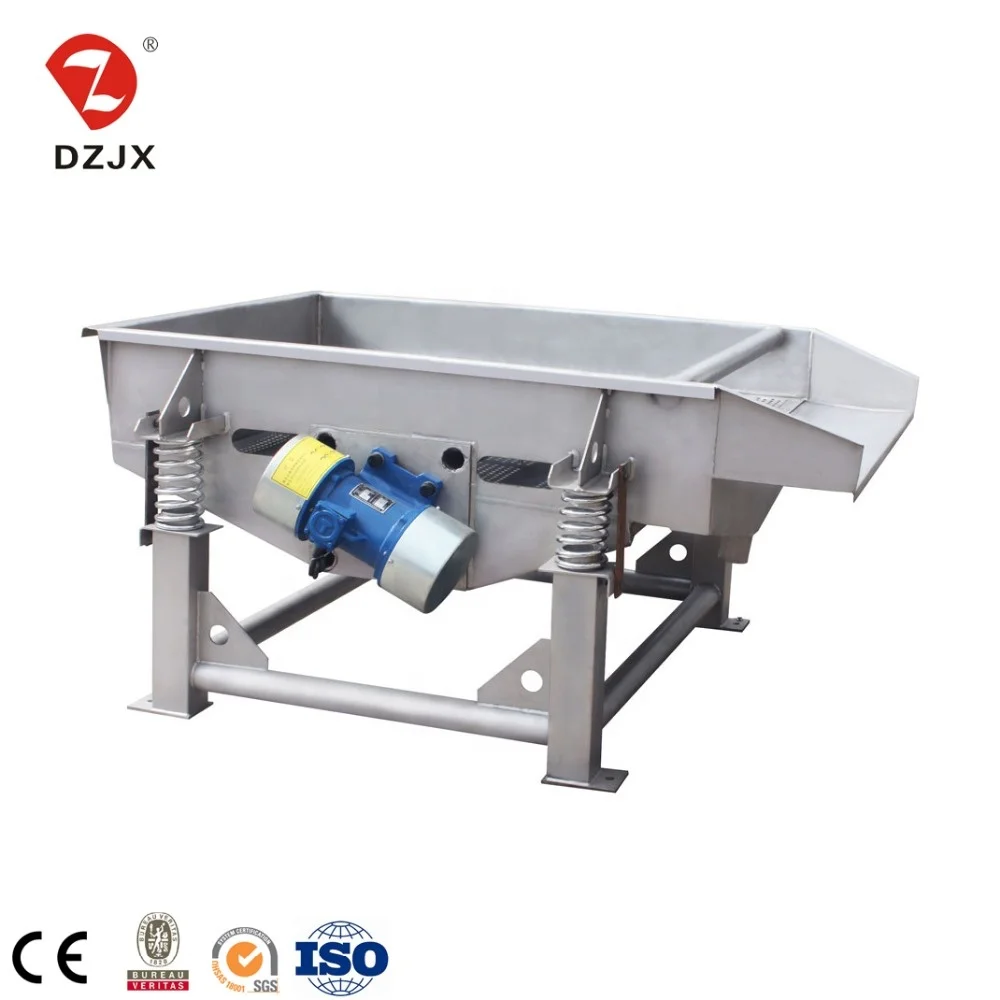

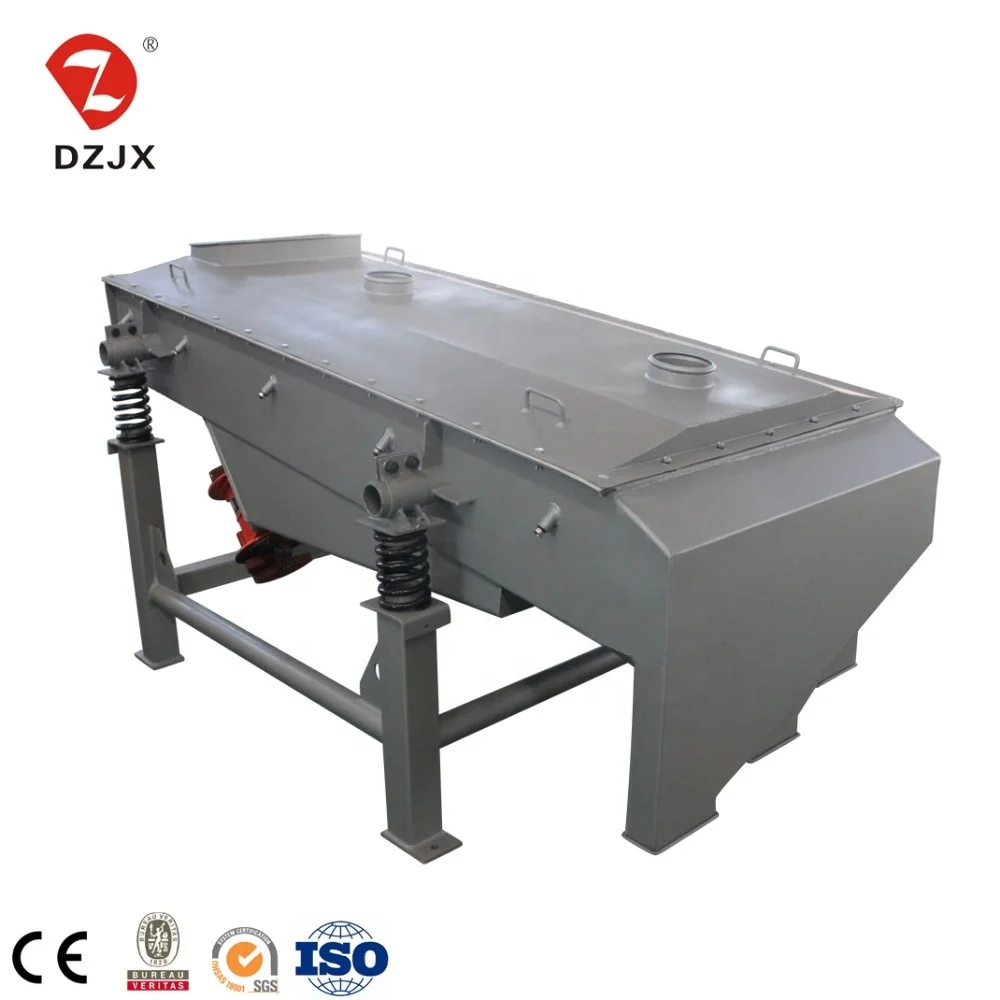

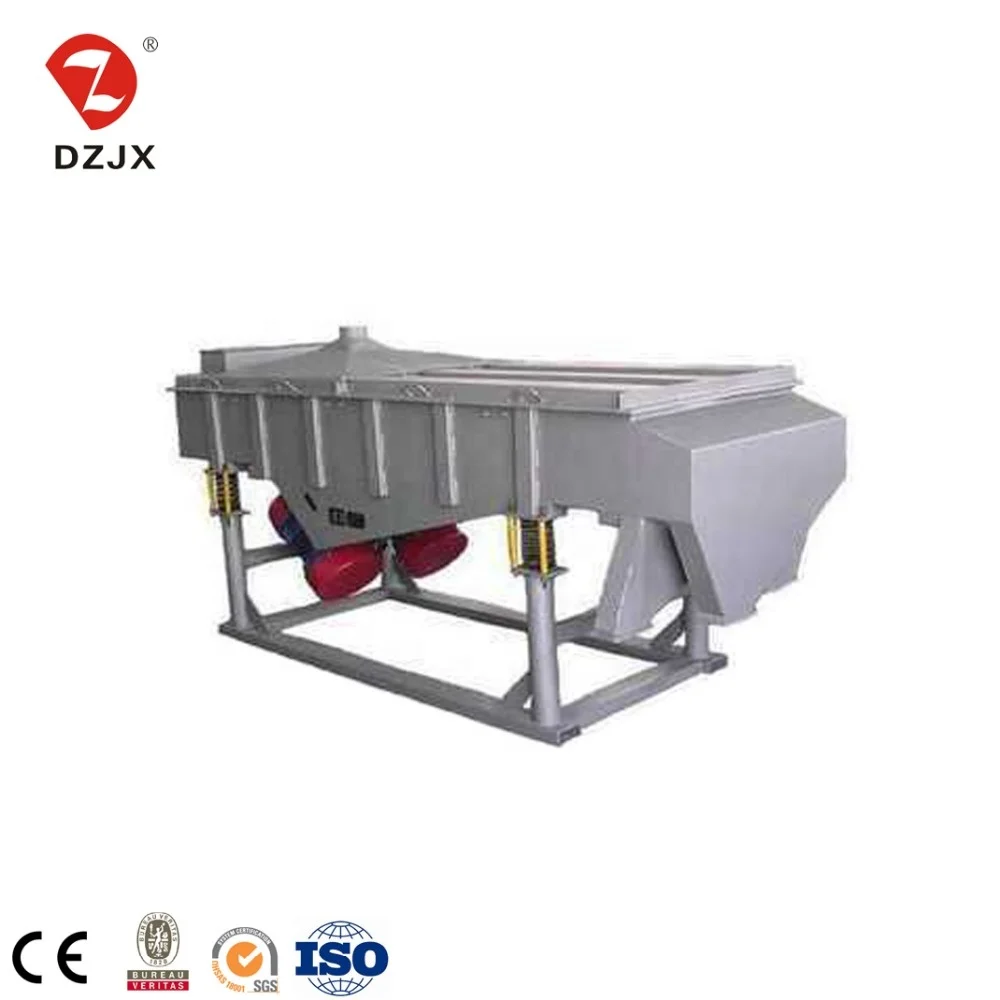

Многофункциональный линейный вибрационный сепаратор сита, табачная просеивающая машина для миндаля, льна, семян, руды, карьера, пыли, морских водорослей
- Категория товара: Cigarette Manufacturing Machinery >>>
- Поставщик (Оптовый магазин): Xinxiang,Dongzhen,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

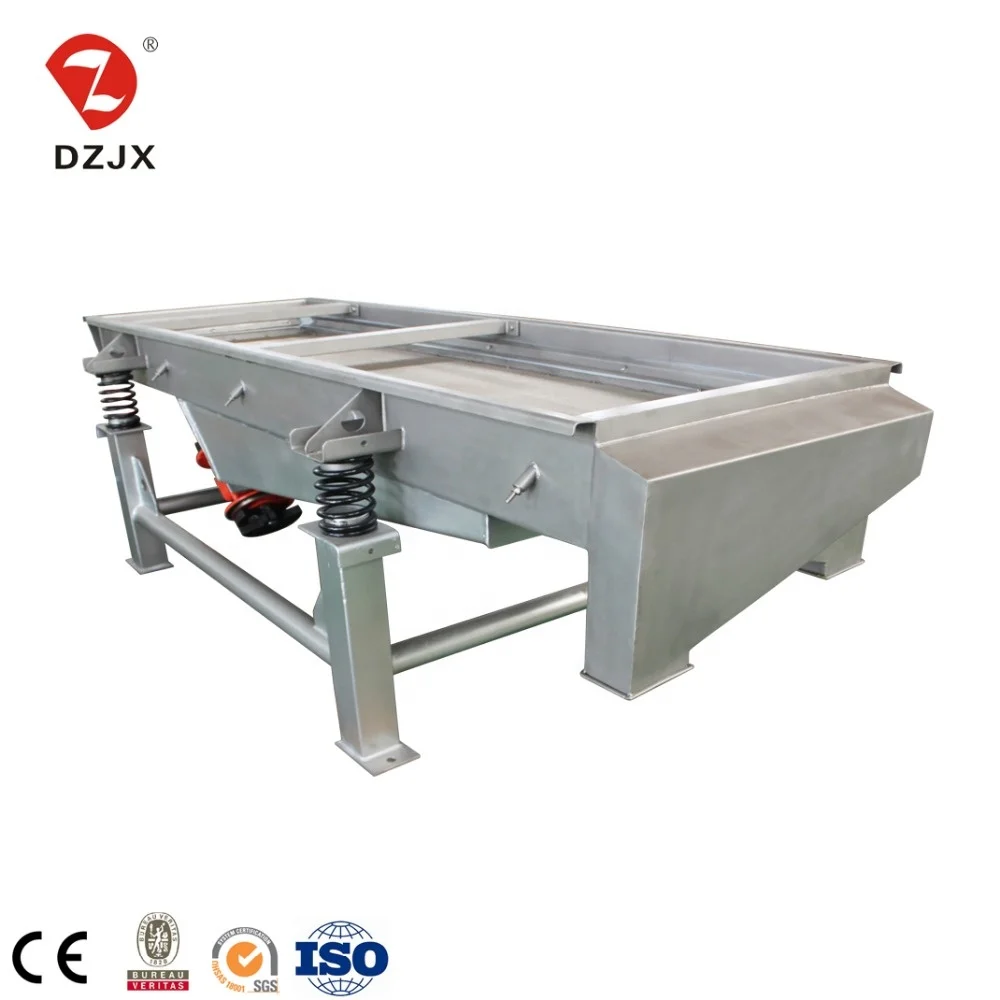

1.DZ ZSQ Series Linear Vibrating Screen is a kindly of stadard and universal screening machine. It consists of screen frame(screen box), supporting or hanging device, driving device, vibration isloation and other parts.

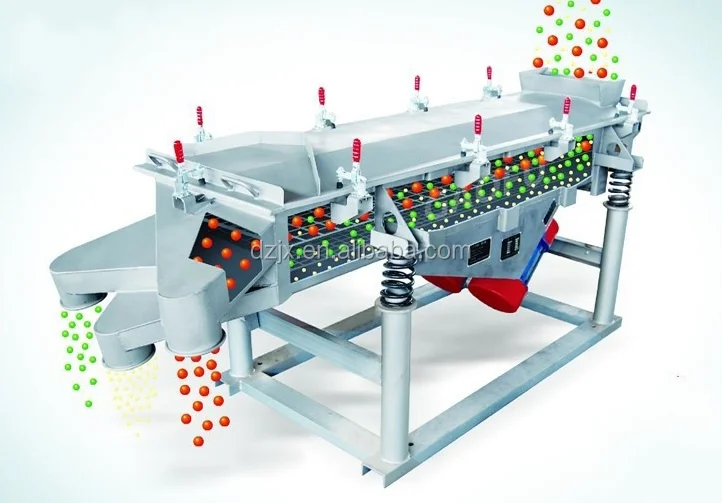

2.With two vibrating motors mounted on both sides of the machine body, or mounted on the bottom base of the machine body, this make the materials running a straight trace on the sieve to finish the screening work.
3.Special custom-made service are available, you just need to tell us your detailed requirements, such as type of material, required processing capacity, mesh size, your local power voltage, Hz, Phase ec.
4.Spare parts for free within 12 months warranty period. Our engineers and sales also provide online realtime supports through Skype, MSN etc.

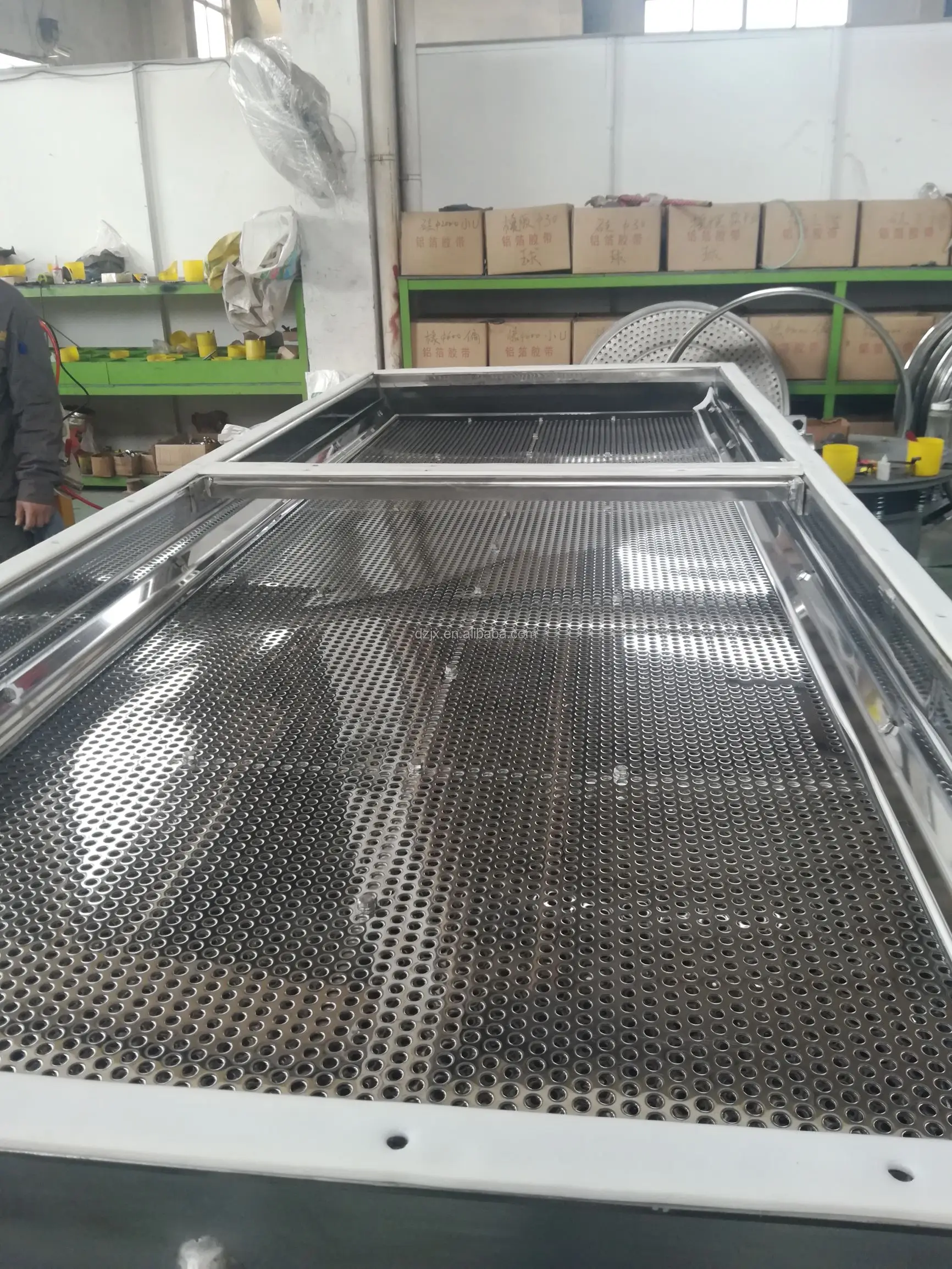

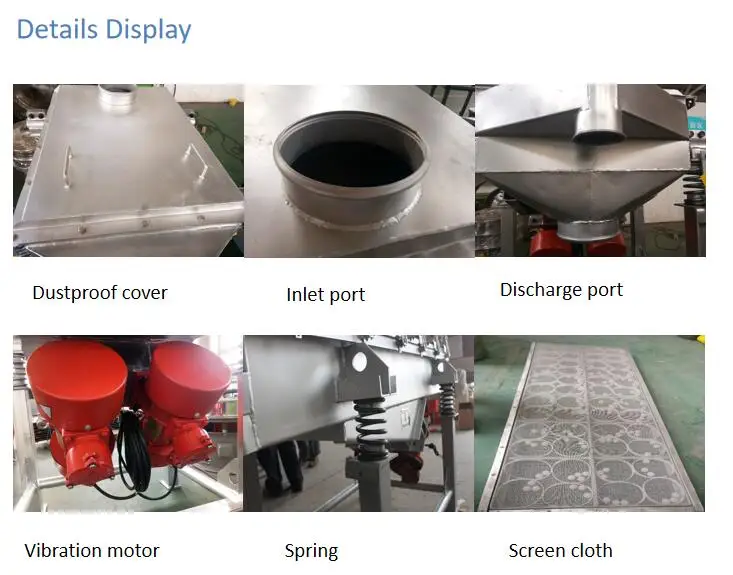

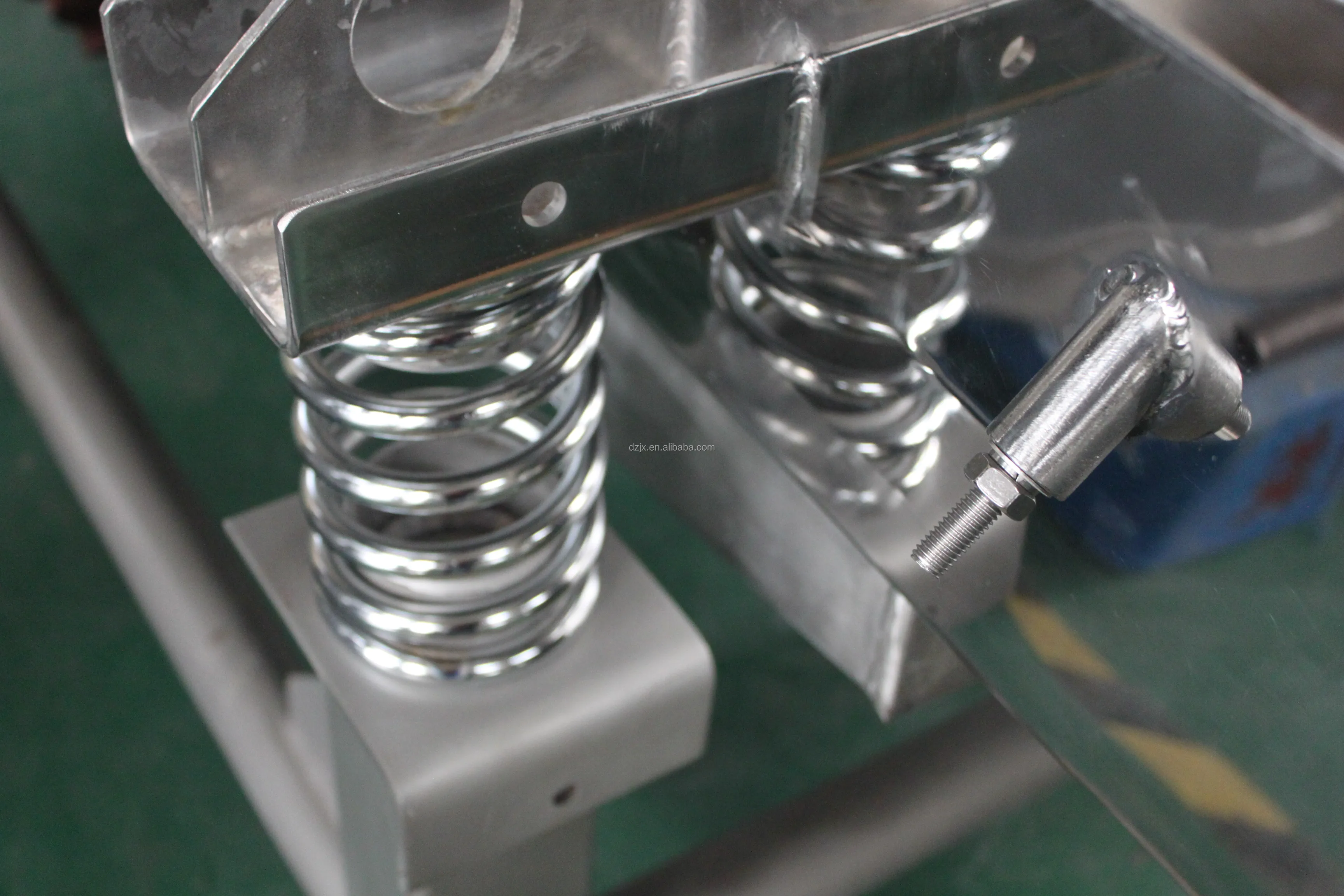

Details Images

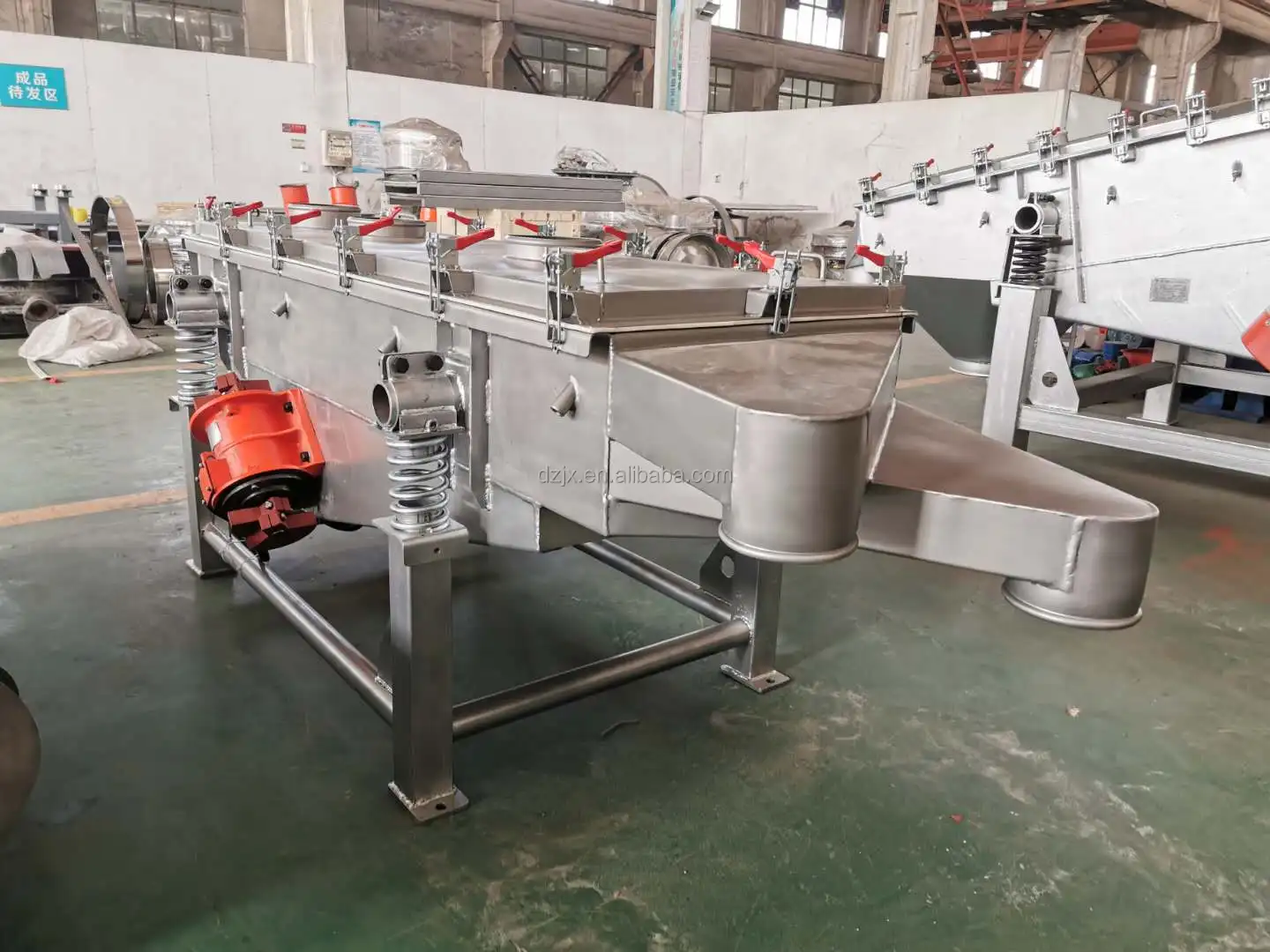

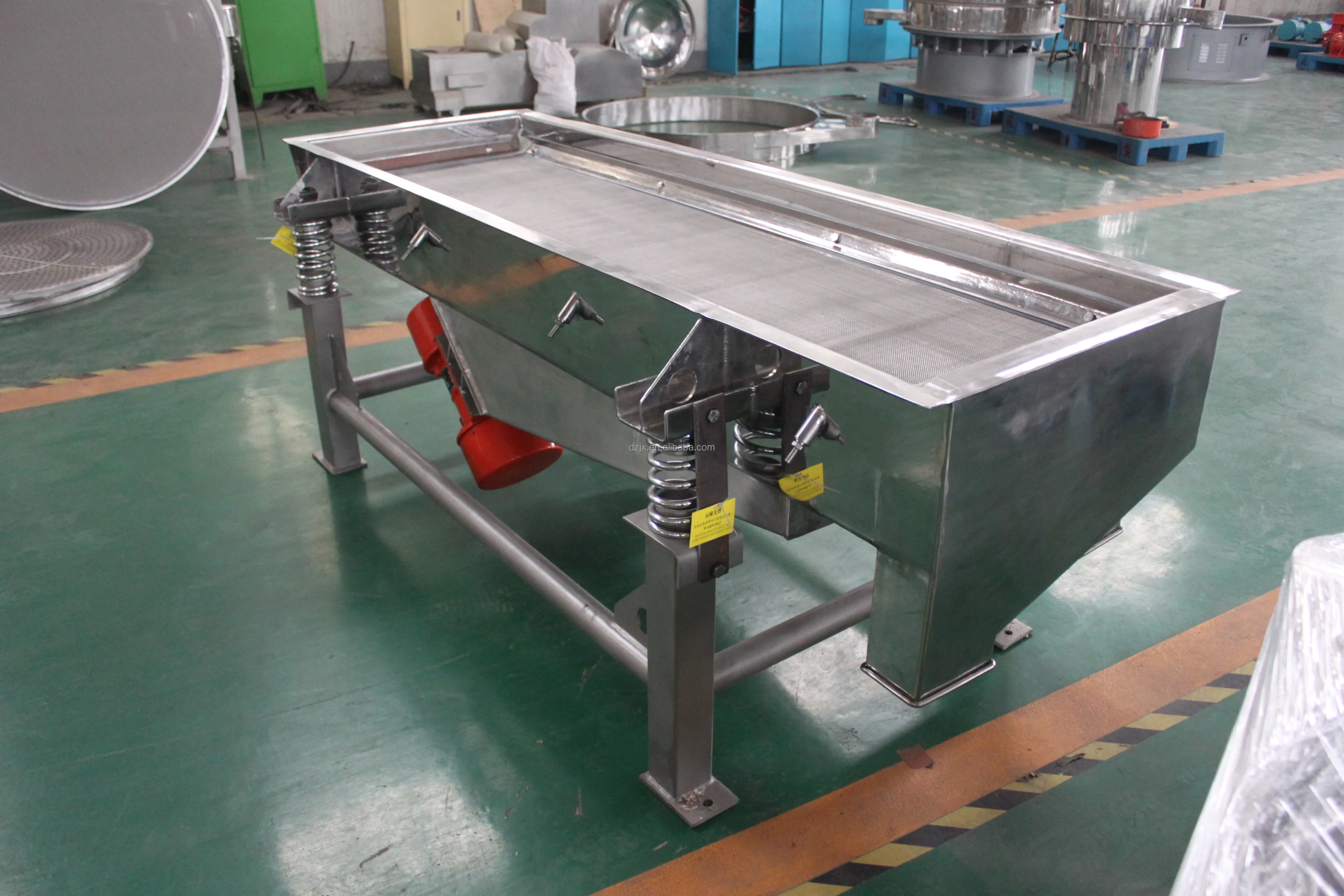

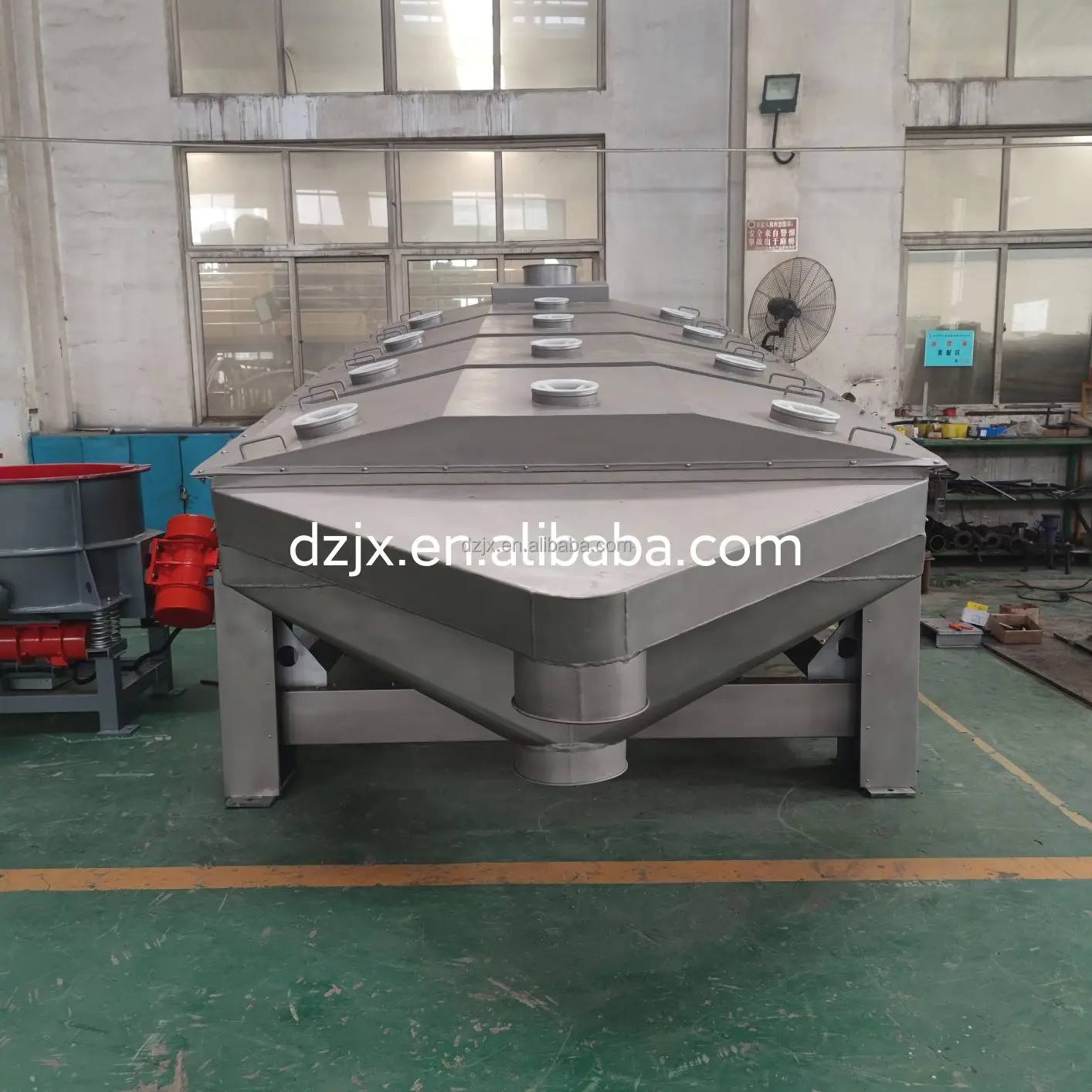

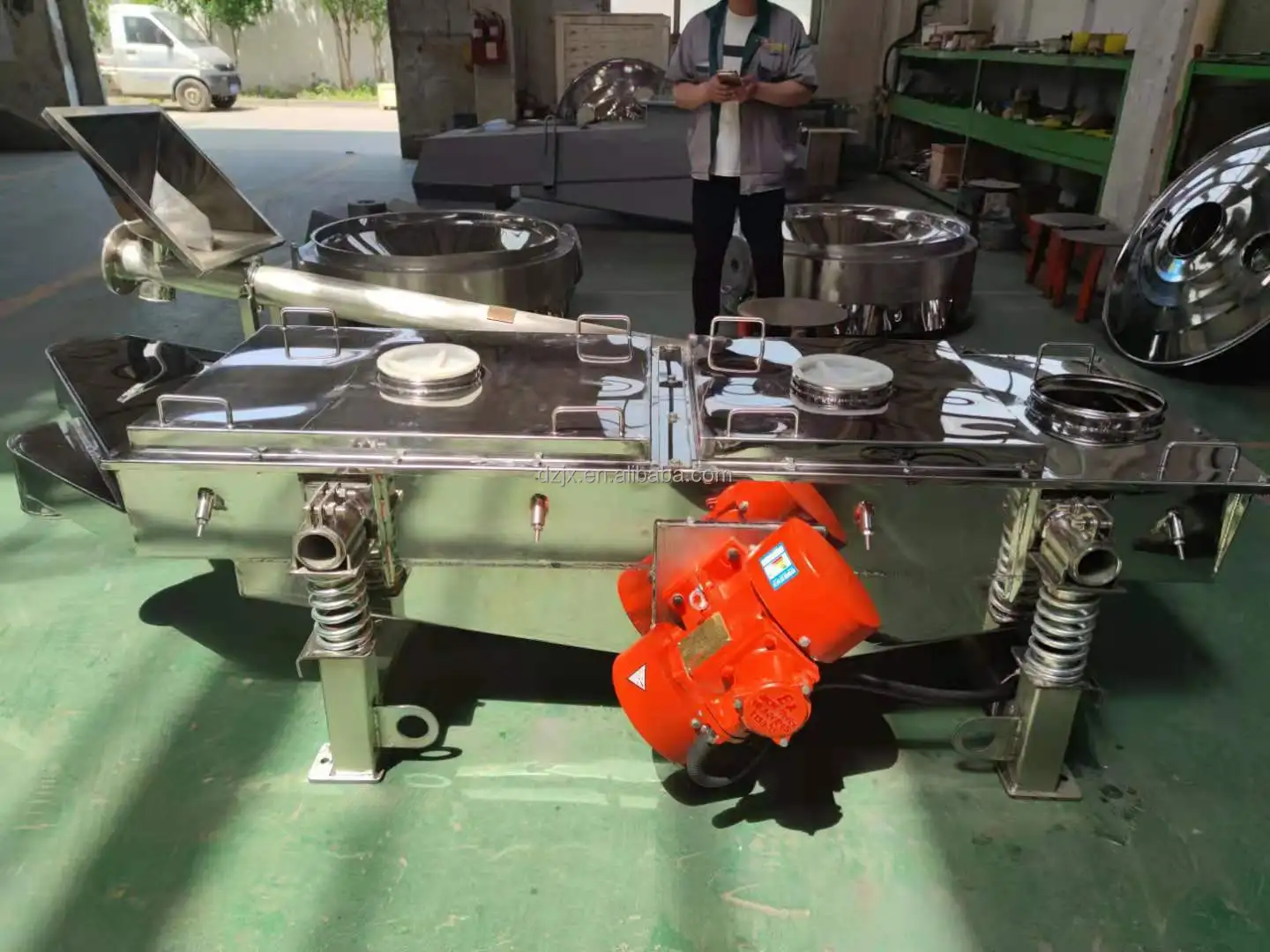

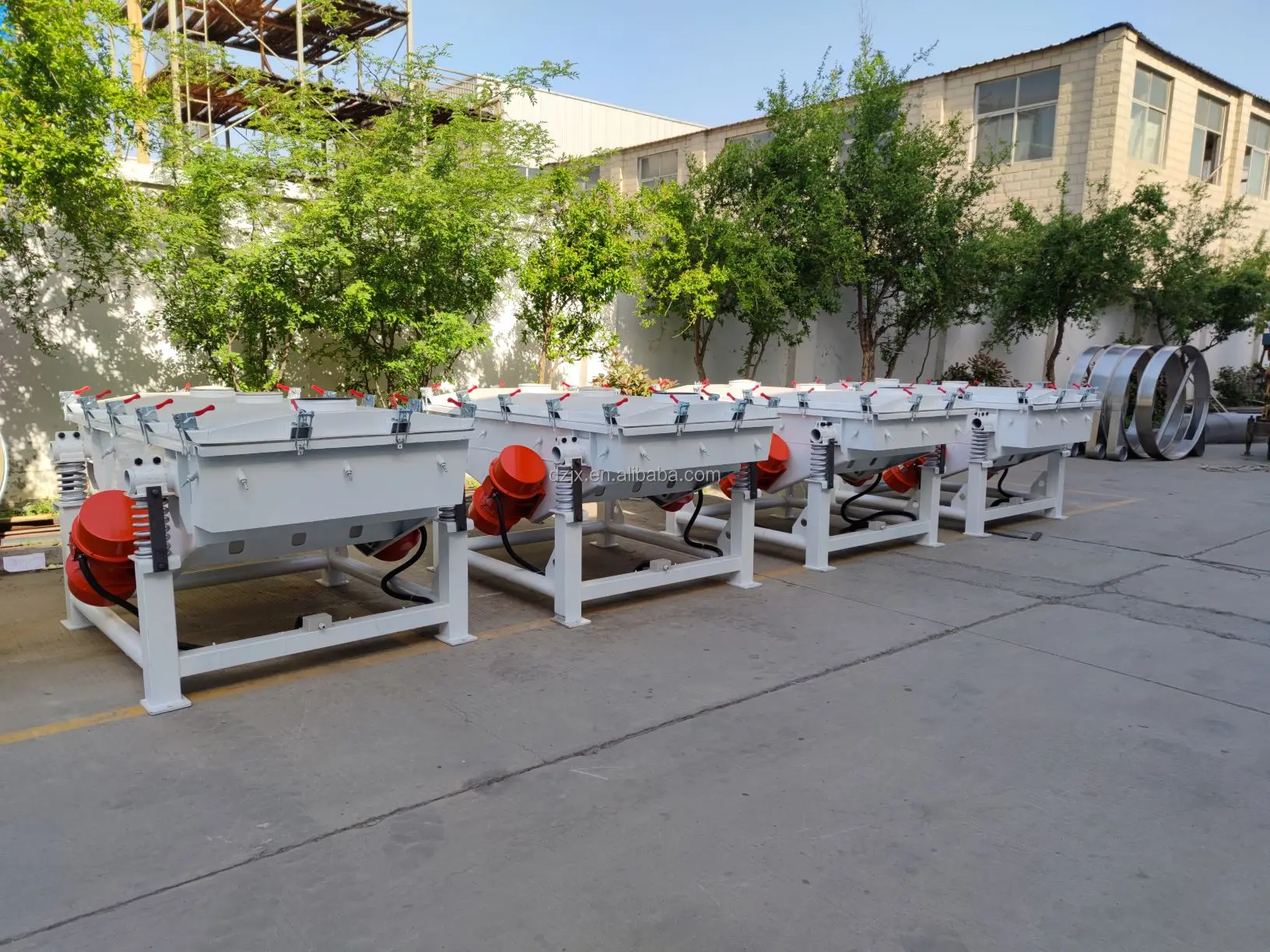

Products Show

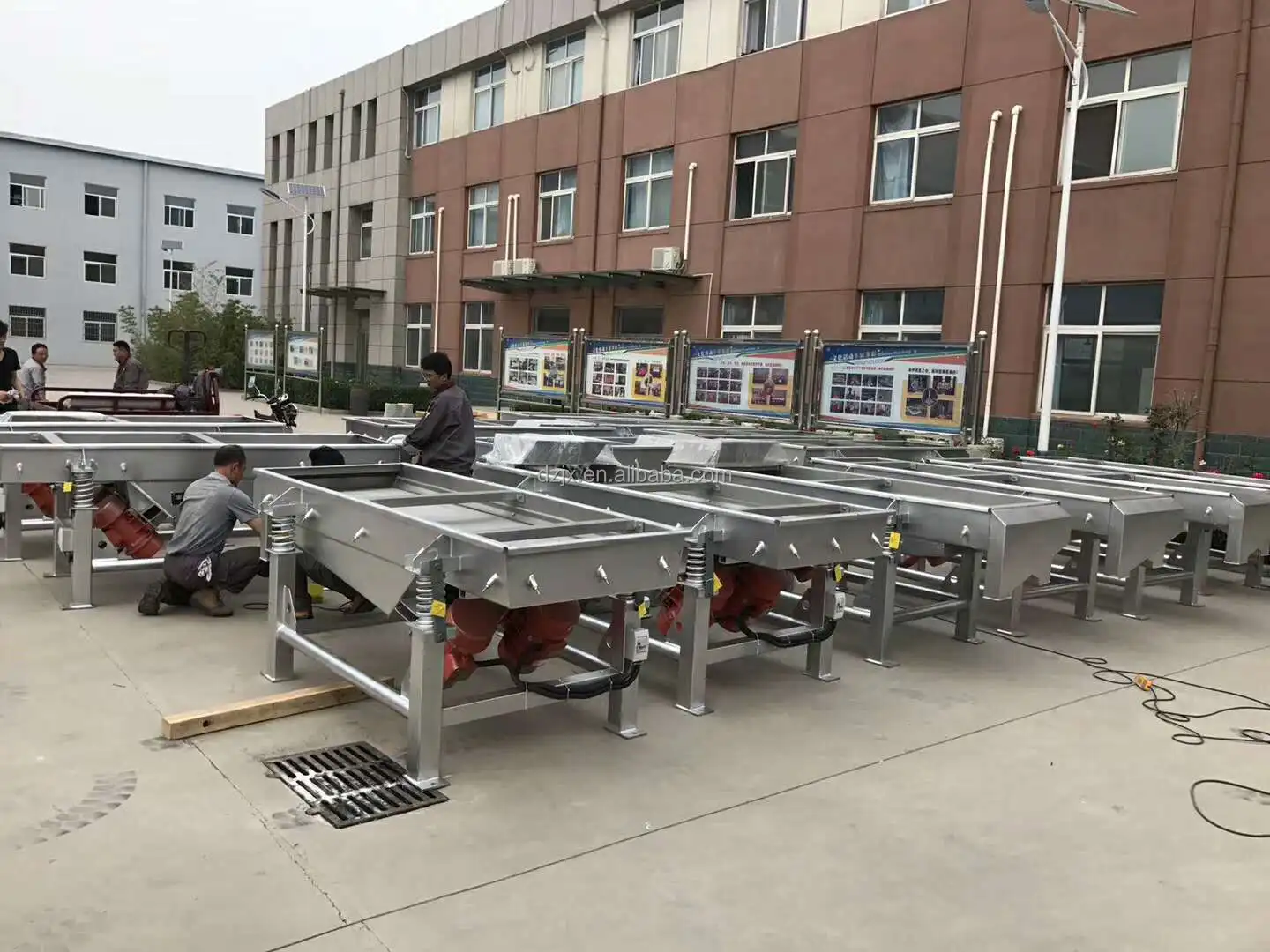

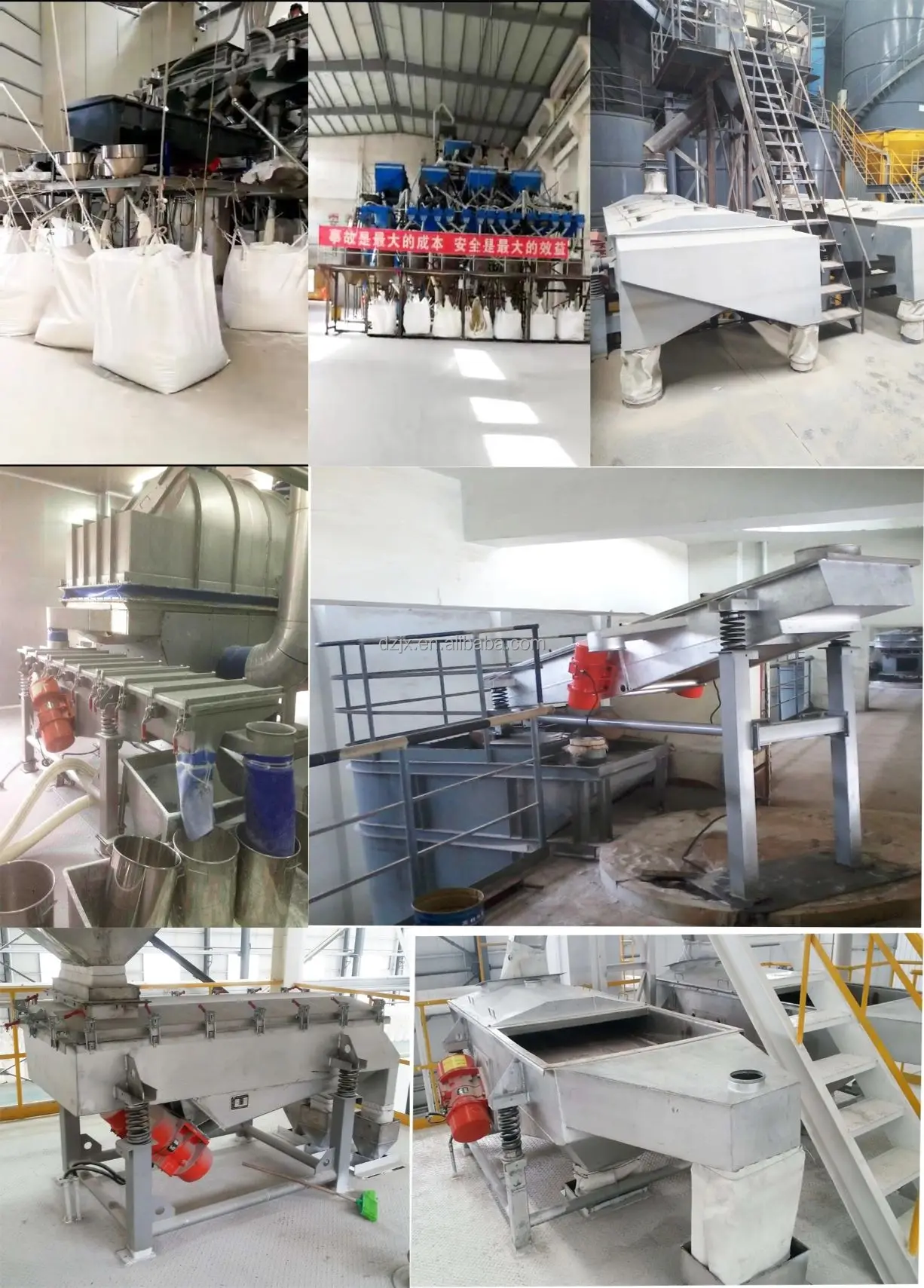

Customer site
Application
Technical Parameter
Model | Effective screening area | Granularity size | Deck | Power(kw) | Speed(r/min) | Amplitude(mm) |
ZSQ-520 | 500*2000 | 0.074-60 | 1-4 | 2*0.75 | 960 | 4-8 |
ZSQ-840 | 800*4000 | 0.074-60 | 1-4 | 2*1.5 | 960 | 4-8 |
ZSQ-1030 | 1000*3000 | 0.074-60 | 1-4 | 2*1.9 | 960 | 4-8 |
ZSQ-1255 | 1200*5500 | 0.074-60 | 1-4 | 2*2.2 | 960 | 4-8 |
ZSQ-1650 | 1600*5000 | 0.074-60 | 1-4 | 2*3.0 | 960 | 4-8 |
