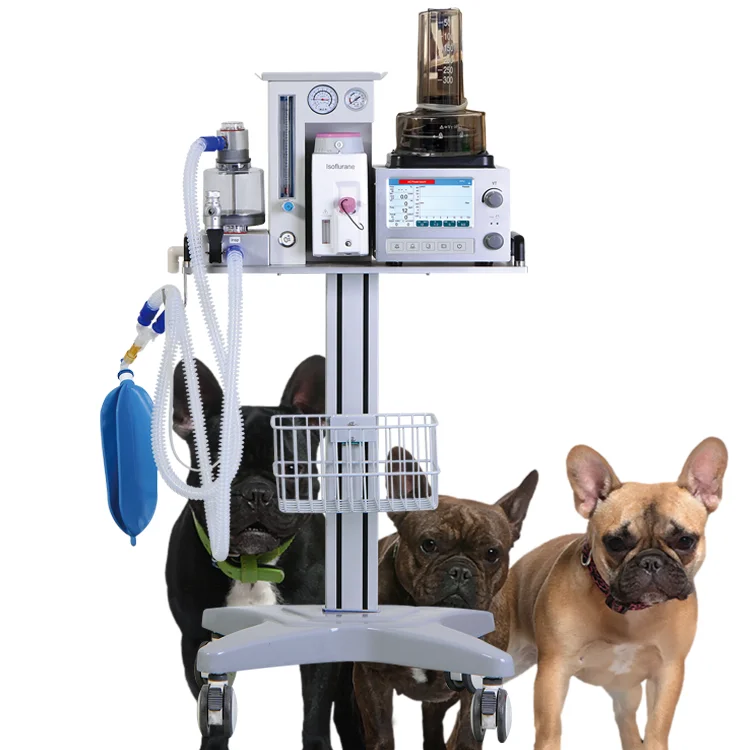

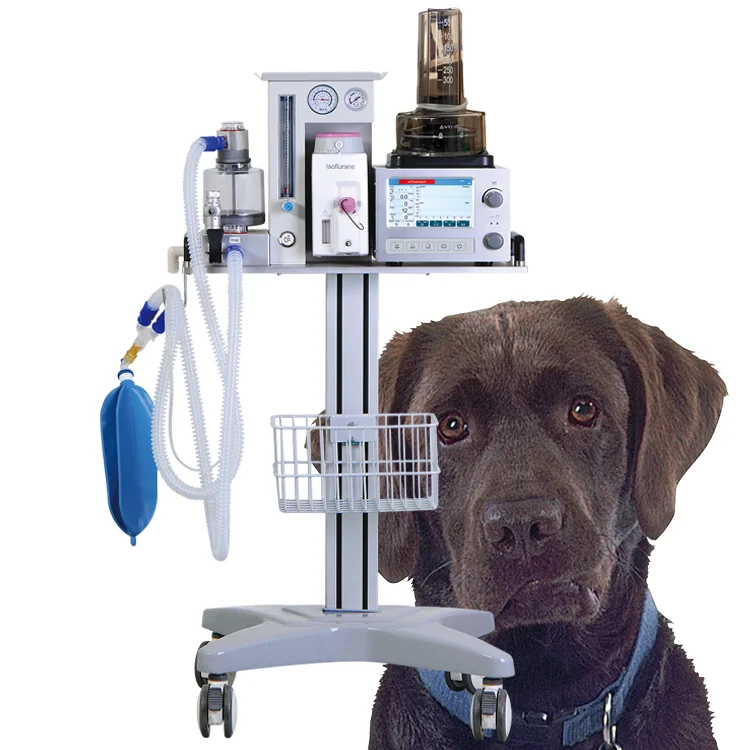

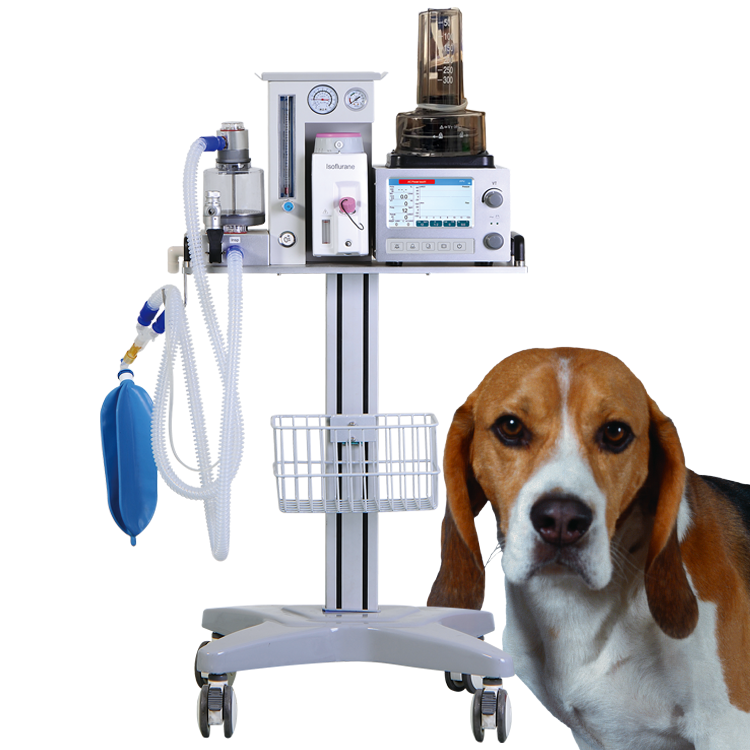

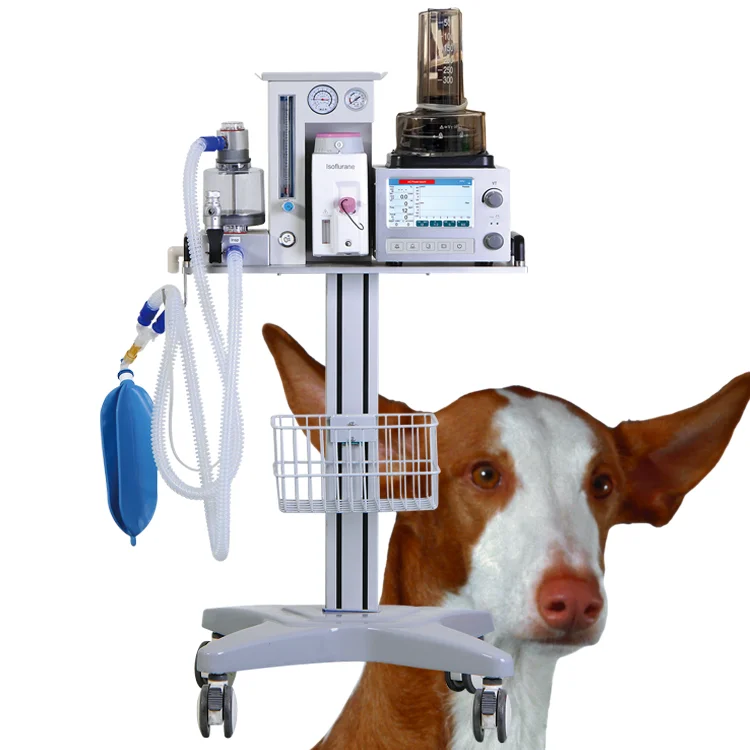

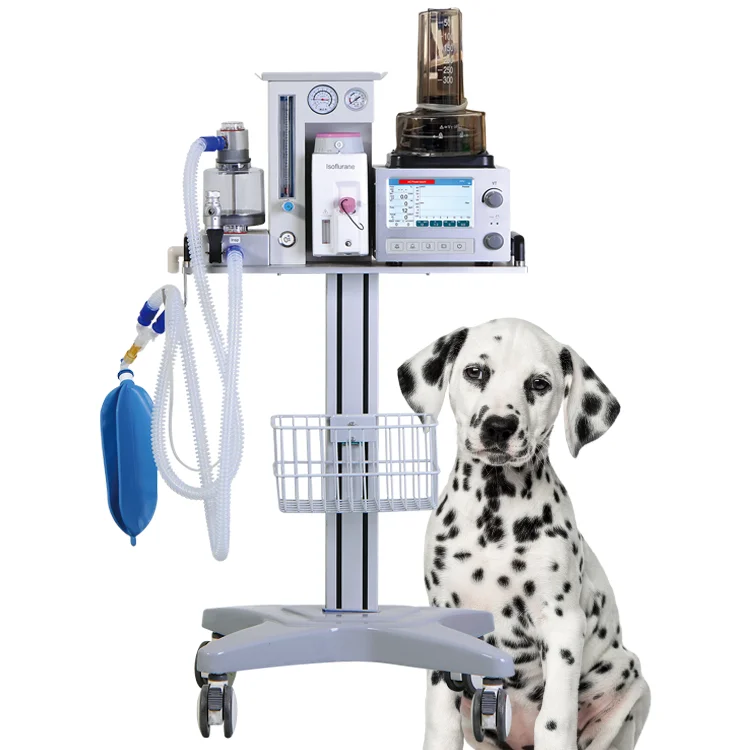

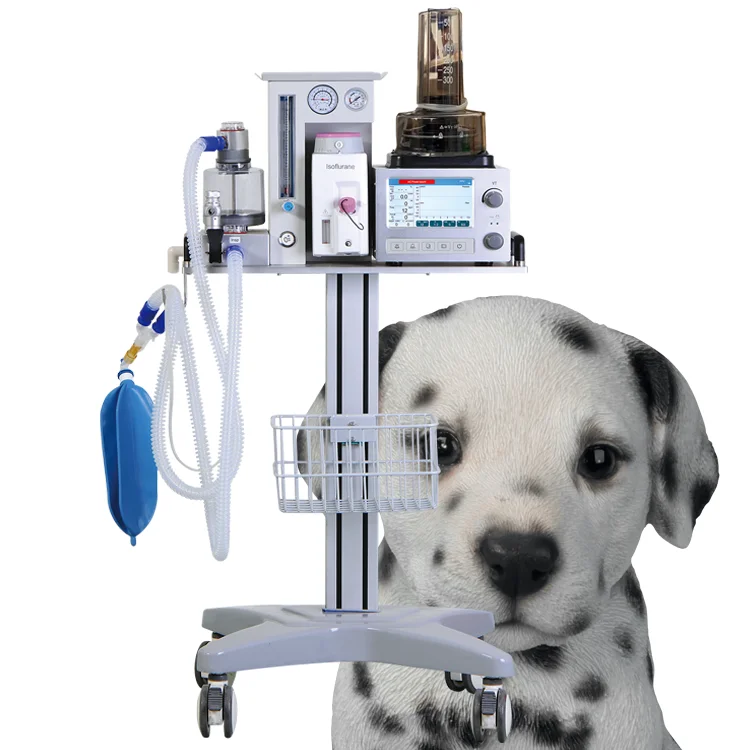

Ветеринарный аппарат для анестезии с испарителем isoflurane
US $1300-$1800
Мощная надежная трехуровневая система сигнализации, система ветеринарной анестезии
- Категория товара: >>>
- Поставщик (Оптовый магазин): All,In,One,Medical,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Recommend Products
Product Photos
Powerful Reliable Three Level Alarm System Safety Veterinary Anesthesia System
Ventilation Mode: | IPPV, A/C, SIMV, SIGH, MANUAL | |
Ventilator Parameter Range | ||
Flowmeter: | O2 (0～5L/min) | |
Rapid oxygen supply: | 25L/min～75L/min | |
Tidal volume (Vt): | 0, 20 mL ～ 1500 mL | |
Frequence（Freq): | 1/min～100/min | |
I:E: | 2:1～1:6 | |
Pressure triggering sensitivity (Ptr): | -20 cmH2O～0 cmH2O(Based on PEEP） | |
Flow trigger sensitivity (Ftr): | 0.5 L/min ～ 30 L/min | |
SIGH: | 0(off) 1/100 ～ 5/100 | |
Apnea ventilation: | OFF，5 s ～ 60 s | |
Pressure Limit: | 20 cmH2O ～ 100 cmH2O | |
Monitoring Parameter | ||
Frequence（Freq): | 0 /min ～ 100 /min | |
Tidal volume (Vt): | 0 mL ～ 2000 mL | |
MV: | 0 L/min ～ 100 L/min | |
Alarm and Protection | ||
The AC Power Failure Alarm: | Power failure or no connection | |
Low Voltage Alarm for Back Up Battery: | ＜11.3±0.3V | |
No Tidal Volume: | ≤5mL within 6s | |
High Oxygen Concentration Alarm: | 19%-100% | |
Low Oxygen Concentration Alarm: | 18%-99% | |
High Airway Pressure Alarm: | 20cmH2O-100cmH2O | |
Low Airway Pressure Alarm: | 0cmH2O-20cmH2O | |
High Minute Volume Alarm: | Adult (5L/min-20L/min) | |
Low Minute Volume Alarm: | Paediatric (1L/min-15L/min) (0-10L/min) | |
Continuous Pressure Alarm: | (PEEP+1.5kPa) over 16s | |
Suffocation Warning: | 5s-60s no spontaneous ventilation | |
The Maximum limited Pressure: | ＜12.5 kPa | |
Fan Error: | Show on screen | |
Oxygen Deficit: | Show on screen | |
Working Condition | ||
Gas Source: | O2 | |
Pressure: | 280kPa-600kPa | |
Voltage: | 100-240V | |
Power Frequency: | 50/60Hz | |
Oscillogram: | P-T (pressure – time), F-T (flow – time) | |
Packing | ||
Main Component Packing: | Size: L 680*W 840*H 695mm G.W.: 59KG N.W.: 30KG | |
Accessary Packing: | Size: L 650*W 690*H 520mm G.W.: 31KG N.W.: 11KG | |
Total CBM: | 0.633m³ | |
