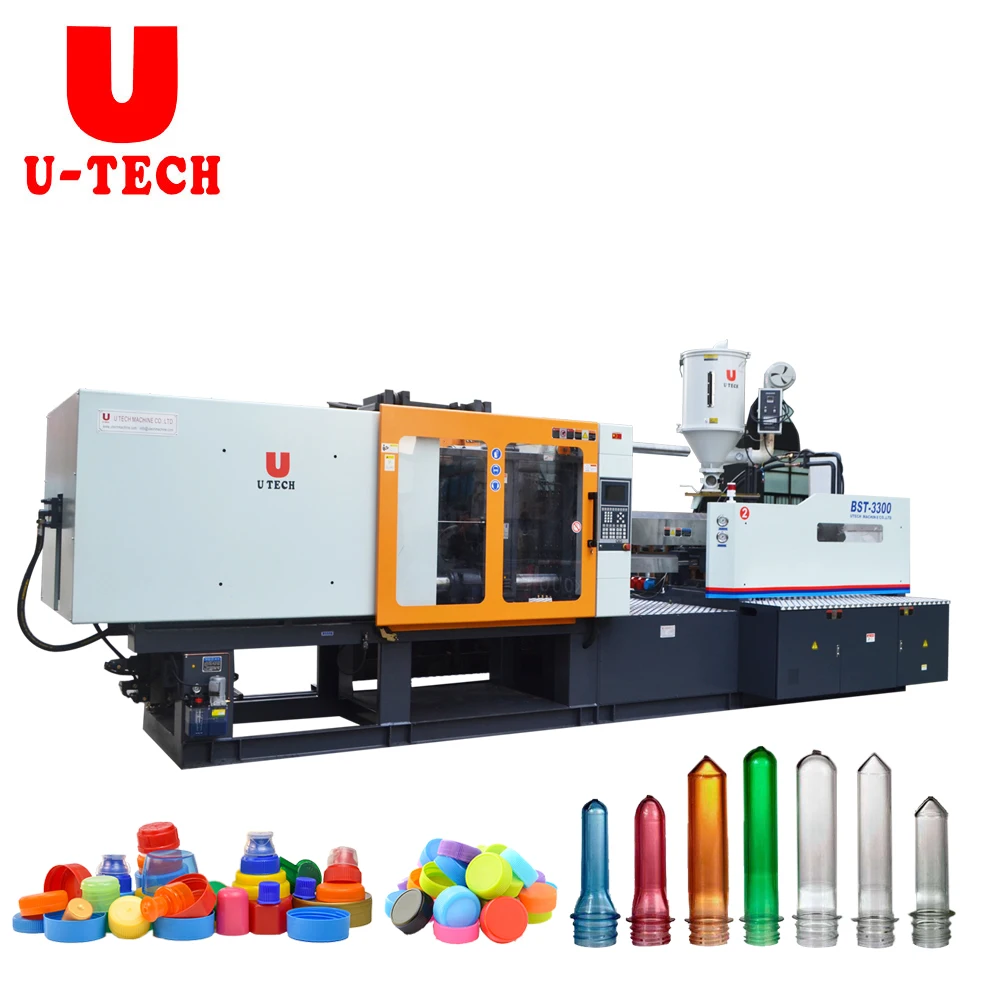

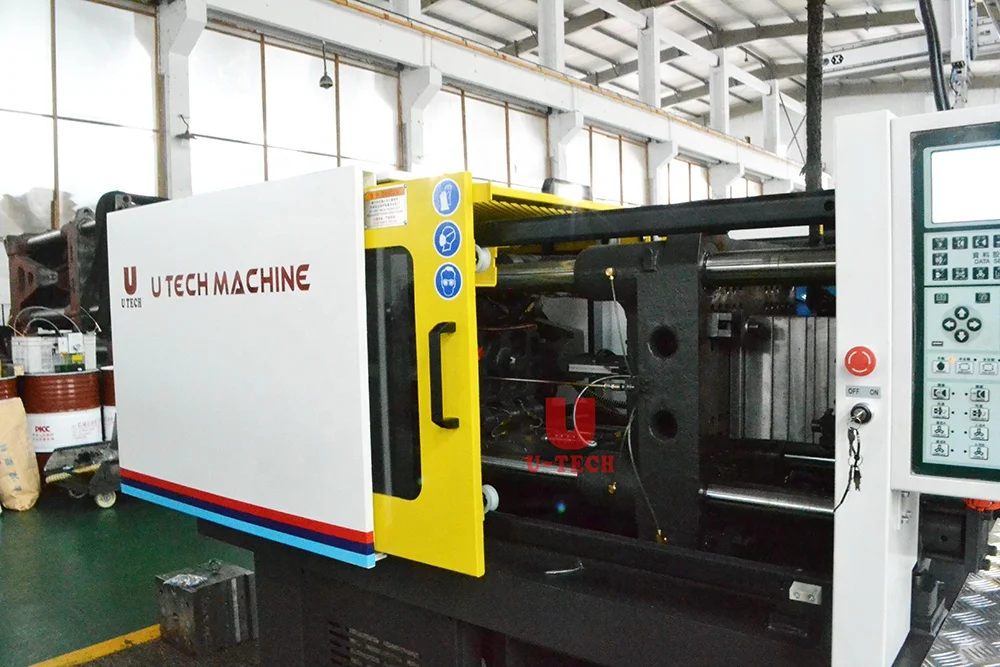

130 тонн, маленький пластиковый мини-контейнер для красок из ПЭТ, литьевая машина для литья под давлением
- Категория товара: Injection Molding Machine >>>
- Поставщик (Оптовый магазин): Zhangjiagang,U,Tech,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Introduction
222
The molding process of general screw injection molding machine is: firstly, the granular or powdery plastic is added into the barrel, and the plastic becomes molten through the rotation of the screw and the heating of the barrel outer wall. Then, the machine closes the mold and moves the injection seat forward to make the nozzle close to the gate of the mold. Then, the injection cylinder is filled with pressure oil to make the screw move forward, so that the screw can be pushed forward with high pressure and speed After a certain period of time and pressure holding and cooling, the product can be opened to take out the product.
Our Advantages
1.Strengthen locking structure
Optimized special locking system to reach efficient and fast production
2.Centralized lubrication, reliable protection
Configuring rational centralized lubrication, providing more professional, better lubrication to make machine more cleaner.
3.Professional templates optimized design
Template by advanced finite element analysis software to optimize design, high rigidity, high strength, to meet the rapid impact conditions demand.
4.Powerful, friendly control system
1.Strengthen locking structure
Optimized special locking system to reach efficient and fast production
2.Centralized lubrication, reliable protection
Configuring rational centralized lubrication, providing more professional, better lubrication to make machine more cleaner.
3.Professional templates optimized design
Template by advanced finite element analysis software to optimize design, high rigidity, high strength, to meet the rapid impact conditions demand.
4.Powerful, friendly control system
Adopts professional controller and friendly interface, easy and fast operation, with good reliability.
5.New type screw driving system
Spline connection for screw and oil motor, smooth and reliable transmission, big transfer torque, easy disassembly.
6.Excellent injection performance
Double cylinder injection, entire floor-guided, reliable and stable.
7.Superior clamping system
Adopts optimized connection rod structure, faster and smoother operation.
8.New frame structure
Simple and generous appearance, machine body force reasonable and stronger.
9.Professional plasticizing system
Suitable for different types of plastic raw material with professional plasticizing and heating system, good plasticizing performance.
10.High efficient powerful servo system optional
Power system adopts high pressure gear box and servo motor, rotary encoder, pressure transducer and servo amplifier to get system closed-loop control.
5.New type screw driving system
Spline connection for screw and oil motor, smooth and reliable transmission, big transfer torque, easy disassembly.
6.Excellent injection performance
Double cylinder injection, entire floor-guided, reliable and stable.
7.Superior clamping system
Adopts optimized connection rod structure, faster and smoother operation.
8.New frame structure
Simple and generous appearance, machine body force reasonable and stronger.
9.Professional plasticizing system
Suitable for different types of plastic raw material with professional plasticizing and heating system, good plasticizing performance.
10.High efficient powerful servo system optional
Power system adopts high pressure gear box and servo motor, rotary encoder, pressure transducer and servo amplifier to get system closed-loop control.
Technical Parameters
Specification | Clamping force | Max. Plasticising weight(PS)g | Space between tie bars (mm×mm) |
UT-700 | 70 | 101 | 320×320 |
UT-950A | 95 | 183 | 360×360 |

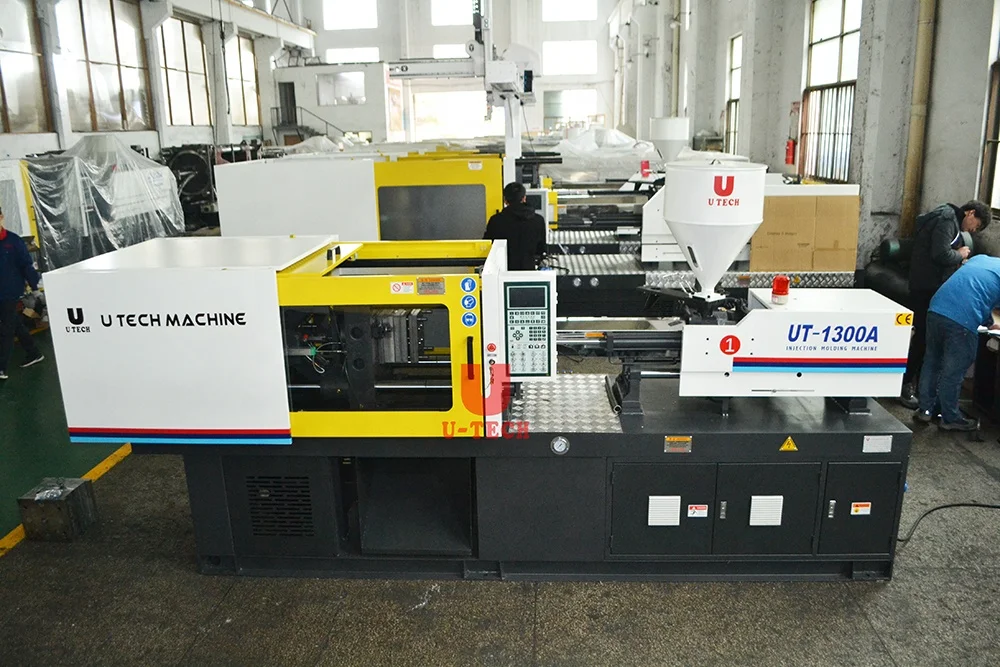

UT-1300A | 130 | 260 | 420×420 |

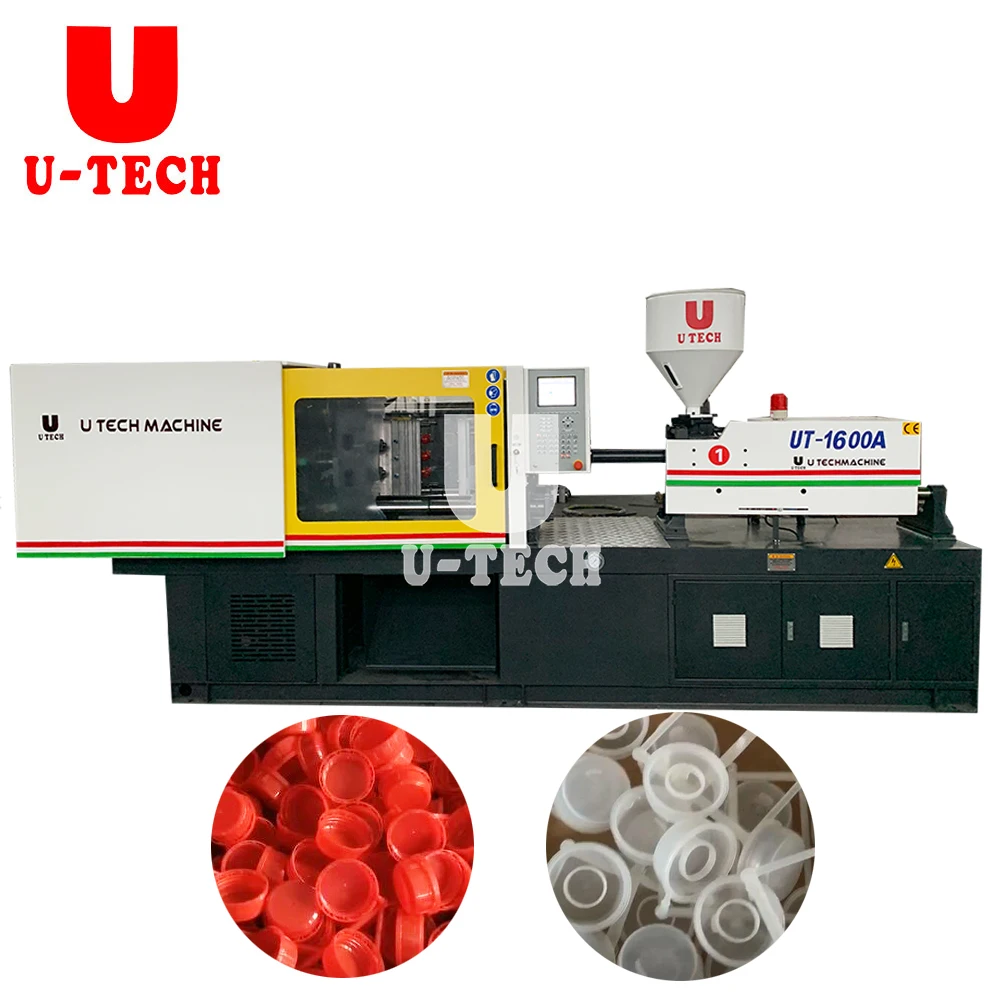

UT-1600A | 160 | 486 | 480×480 |
UT-2000A | 200 | 643 | 505×505 |
UT-2400A | 240 | 845 | 555×555 |
UT-3000A | 300 | 1050 | 600×600 |
UT-3800A | 380 | 1286 | 680×680 |
UT-4800A | 480 | 1600 | 760×760 |
UT-5500A | 550 | 2466 | 810×810 |
UT-6500A | 650 | 2895 | 850×850 |
UT-7500A | 750 | 3543 | 950×950 |
UT-10000A | 1000 | 6280 | 1110×1110 |
Details Images

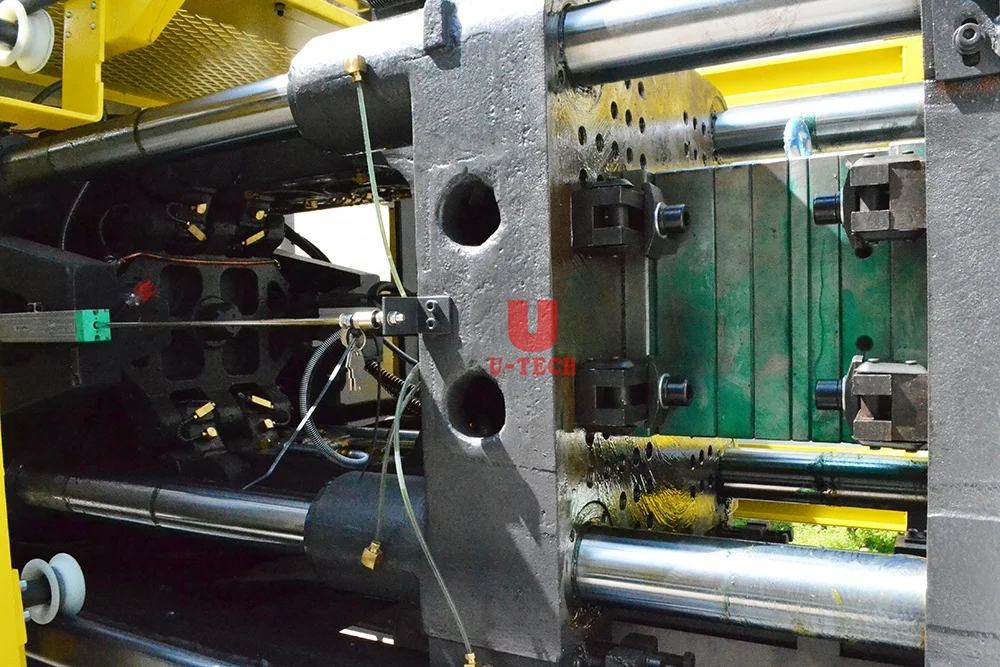

Clamping Unit
Tie bars are made of imported Japanese high tensile steel with specially-hardened, chrome-plated surface; Diameter is lengthened to minimize wear-out and maximize durability. Robust in-house manufactured ductile iron-casted platens guarantee durability and minimize platen deformation. Multi-stage clamping speed and pressure control Automatic setting for high pressure clamping position Central electric fixed-dosage lubrication system Ejector speed and pressure adjustable and does not need to full retract during vibration which shortens cycle time

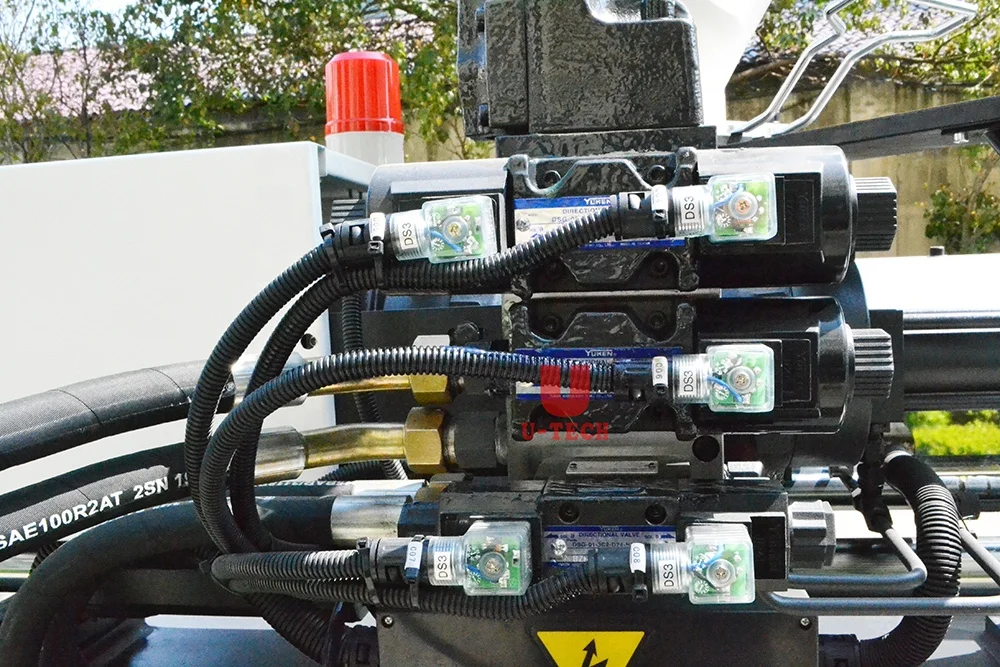

Injection Unit
Injection speed ,pressure and holding in five levels PID barrel temperature control with auto-tuning and ;1℃ accuracy
High torque and high precision hydraulic motor with 99-step speed control for optimal melt environment
Cold-prevention starting device with low temperature alarm to prevent damage of the injection unit caused by low temperature Decompression device to prevent nozzle from drooling
High torque and high precision hydraulic motor with 99-step speed control for optimal melt environment
Cold-prevention starting device with low temperature alarm to prevent damage of the injection unit caused by low temperature Decompression device to prevent nozzle from drooling
Cleanliness
Equipped with a high-performance oil fitler,hydraulic oil is repeatedly filtered and cleaned during normal machine operation.It reaches NAS8(USA)standard,which means the oil can be cleaner then new oil.This greatlyenhances the useable life of hydraulic system. Noise is also minimized during operation

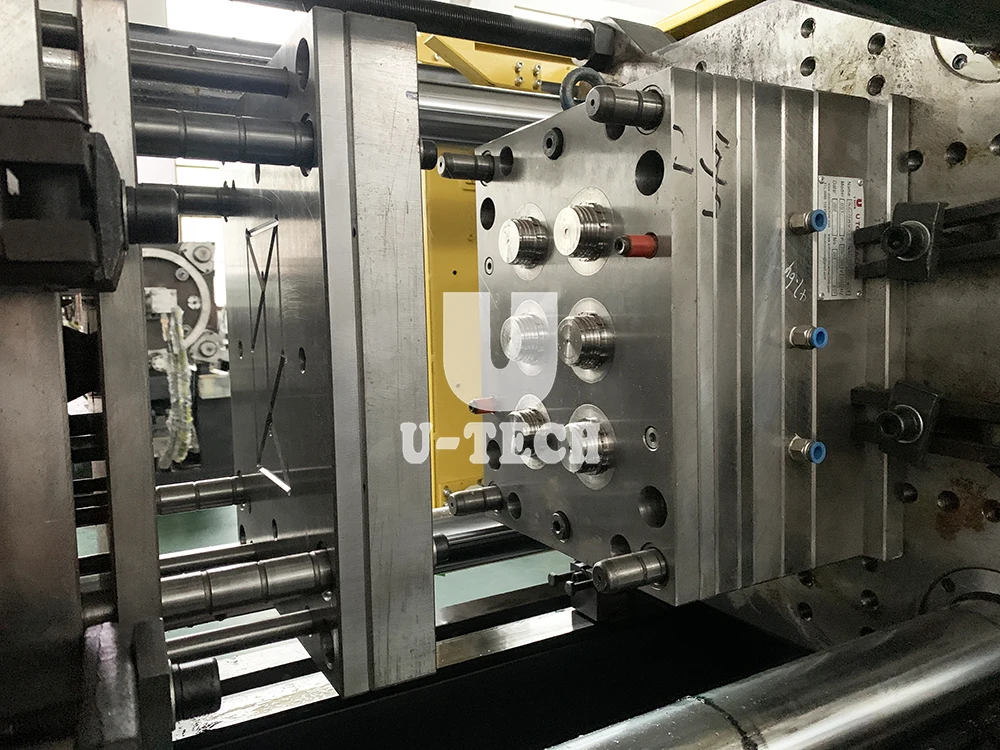

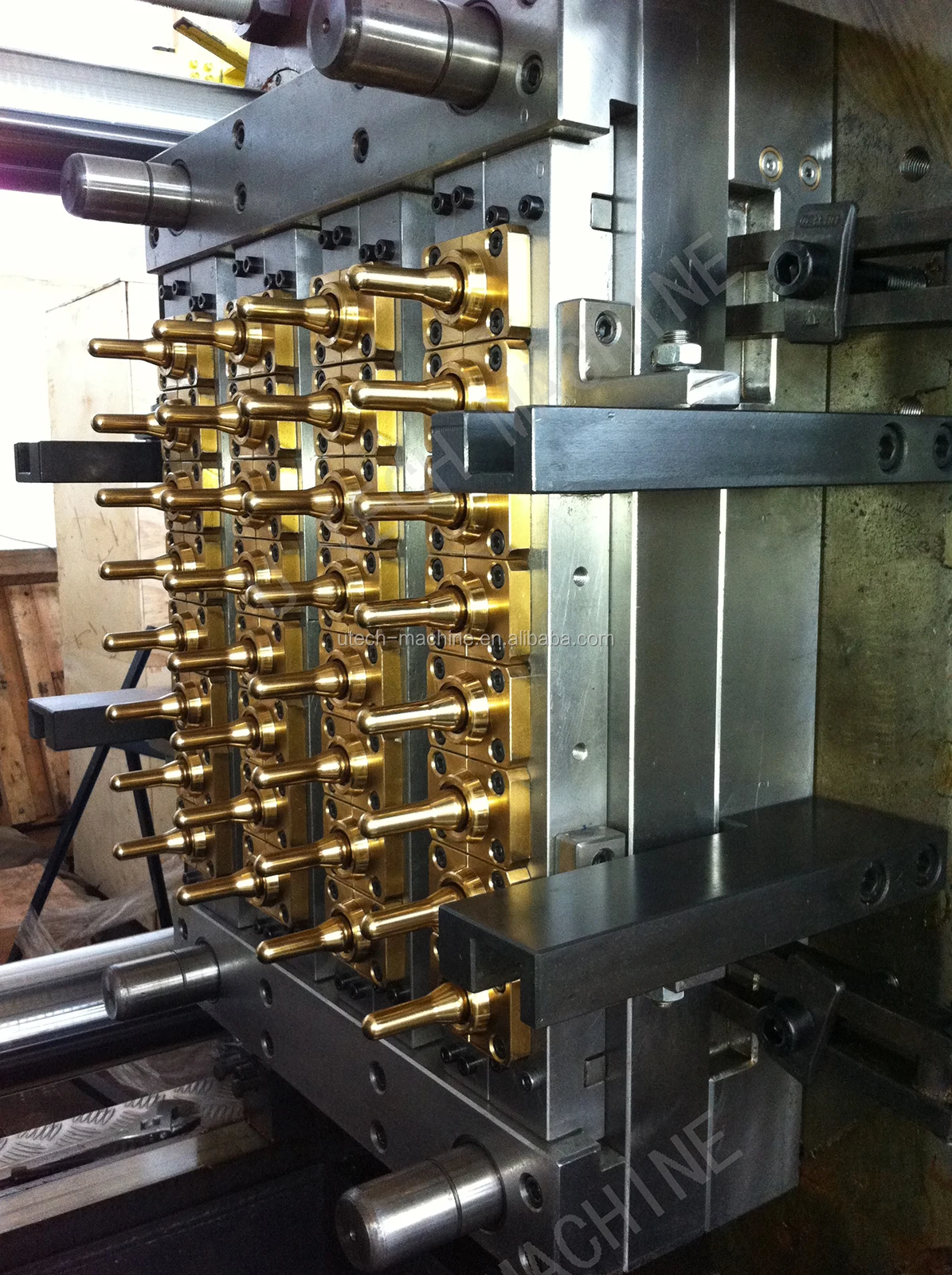

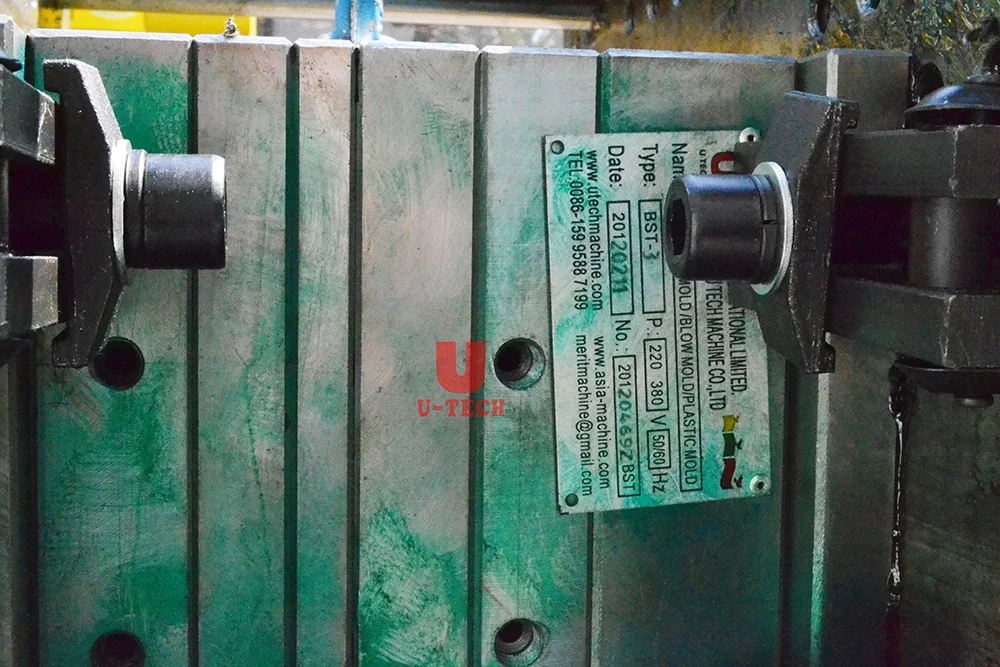

Mold

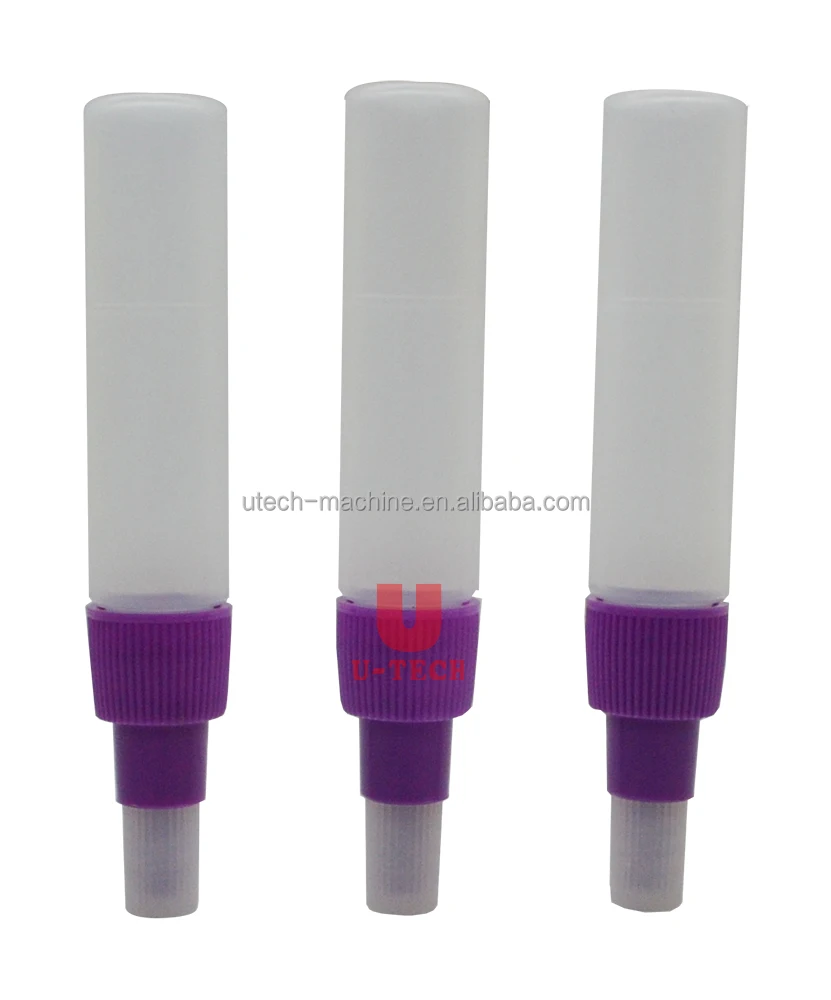

Application
Performance
1) Servo motor can optimize the match of energy demand and realize automatic adjustments.
2) It can improve injection precision
3) It can greatly save power and water, resulting in environment-protection and energy-saving
4) Quick response and low noise.
2) It can improve injection precision
3) It can greatly save power and water, resulting in environment-protection and energy-saving
4) Quick response and low noise.

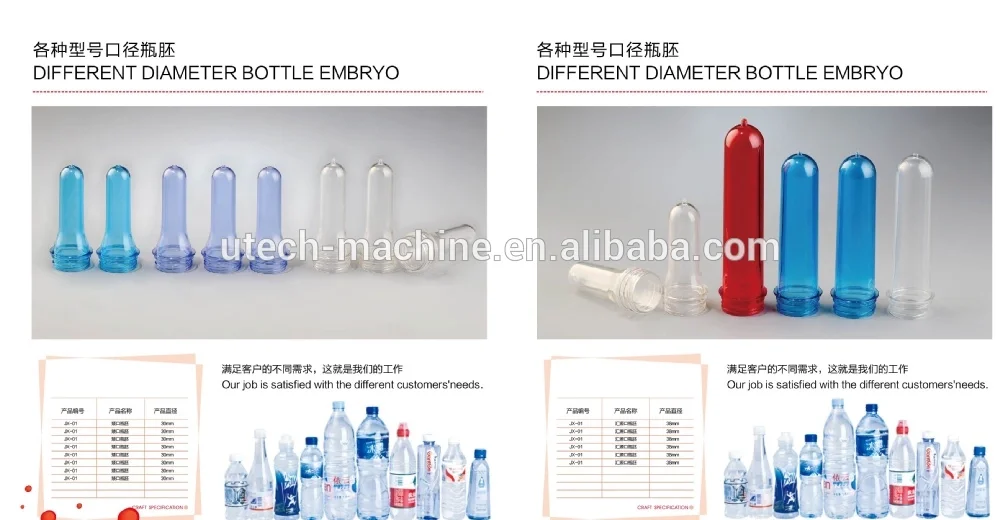

Preforms

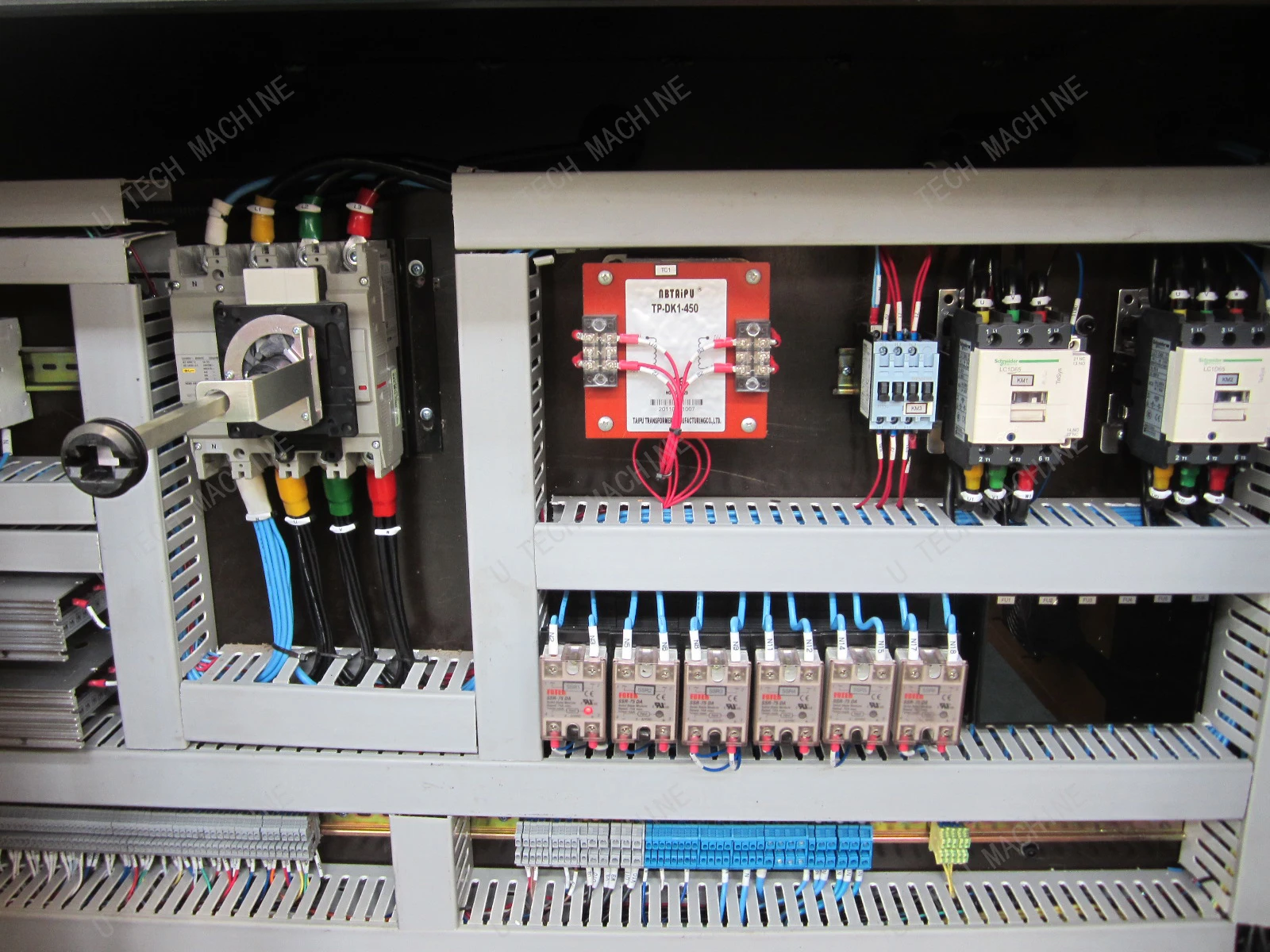

Control System
S/N | Name | Brand | country |
1 | Main motor | ABB | Switzerland |
2 | Inverter | MITSUBISHI | Japan |
3 | PLC | OMRON | Japan |
4 | Touch screen | MITSUBISHI | Japan |
5 | Contactor | SCHNEIDER | France |
6 | Thermo- relay | SCHNEIDER | France |
7 | Air-break switch | SCHNEIDER | France |
8 | Proximity switch | TURCK | USA |
9 | Photoelectric switch | BANNER | USA |
10 | Air circuit system | SMC | Japan |
11 | Water pump | Southern | China |
