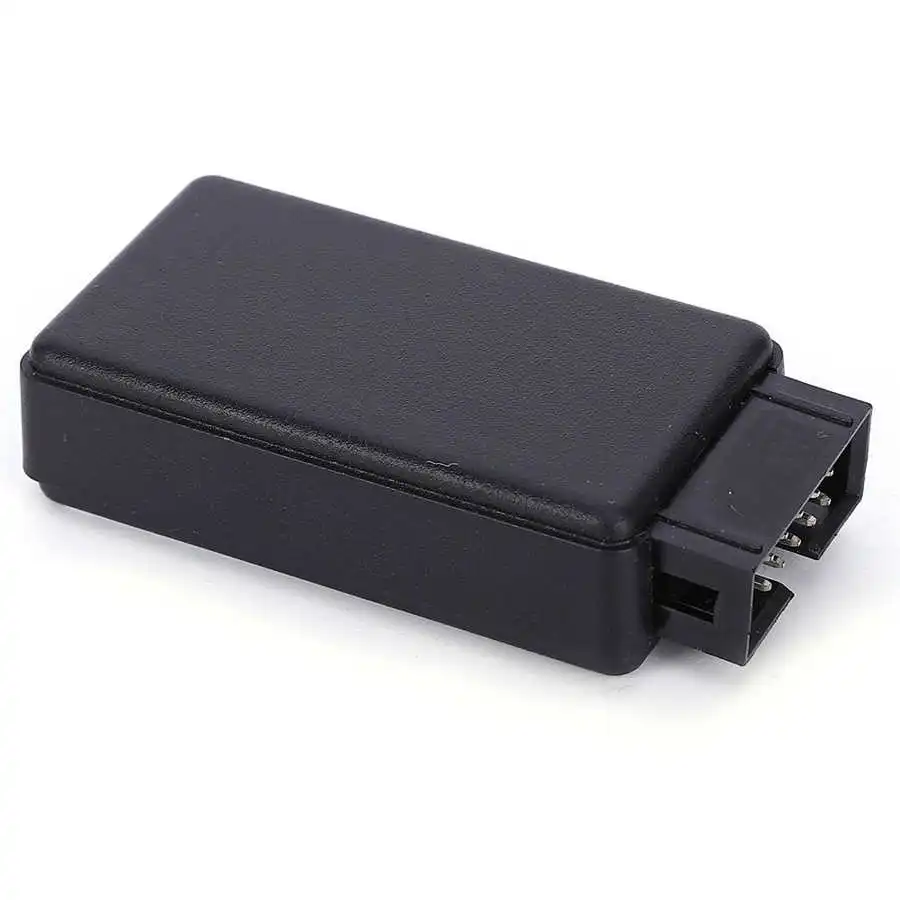

Network Analyzer LA1002 Mini Portable USB 5MHz 24M 8 Channel Logic Analyzer Device Set with Cables Network Analyzing Tool
Product Description
Feature:

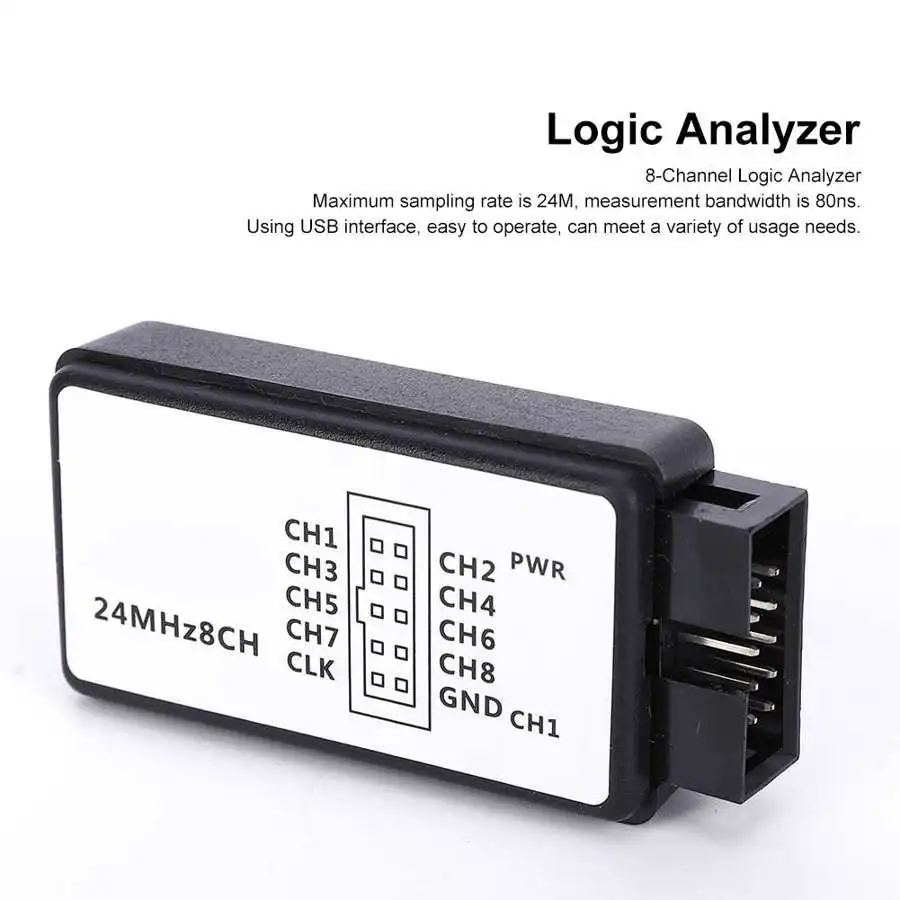

1. 8-channel logic analyzer with a maximum sampling rate of 24M and a measurement bandwidth of 80ns.
2. Using USB interface, the installation and use method is simple, the operation is convenient, and it can meet a variety of usage needs.
3. Mini logic analyzer, made of high-quality materials, has good durability and stability.
4. Small size, widely used in automotive electronics, communications, power, computers and other industries.
5. Professional manufacturing, stable performance, can provide convenient, intuitive and powerful analysis functions.
2. Using USB interface, the installation and use method is simple, the operation is convenient, and it can meet a variety of usage needs.
3. Mini logic analyzer, made of high-quality materials, has good durability and stability.
4. Small size, widely used in automotive electronics, communications, power, computers and other industries.
5. Professional manufacturing, stable performance, can provide convenient, intuitive and powerful analysis functions.
Specification:
Condition: 100% Brand New
Item Type: Logic Analyzer
Material: ABS
Weight: Approx. 43g / 1.5oz
Item Type: Logic Analyzer
Material: ABS
Weight: Approx. 43g / 1.5oz
Product Number | LA1002 | |
Measurement Input Parameters | Number of Channels | 8 |
Maximum Sampling Rate | 24M at 8CH | |
Measurement Bandwidth | 5MHz | |
Minimum Captureable Pulse Width | 80ns | |
Maximum Sampling Depth | 10G/Channel | |
Input Voltage Range | 0V - +5V | |
Equivalent Input Impedance | 12kΩ, 12PF | |
Threshold Voltage | ≤S1.0V Low Level, ≥22.0V High Level | |
PWM Output Parameters | Number of Channels | No |
Output Frequency Range | No | |
Cycle Adjustment Step | No | |
Pulse Adjustment Step | No | |
The Output Voltage | No | |
Output Impedance | No | |
Power Supply Parameters | Power Supply Interface | USB2.0/3.0 |
Stand-By Current | 50mA | |
Maximum Working Current | 80mA | |
Computer Software | Supporting Agreement | Support for UART/RS-232/485, for I2C, for SPI, for CAN, for DMX512, for HDMI CEC, |
Support Operating System | Support for Windows XP/7/8/10 (32bit/64bit), for Vista, for OS, for Linux and other operating system | |

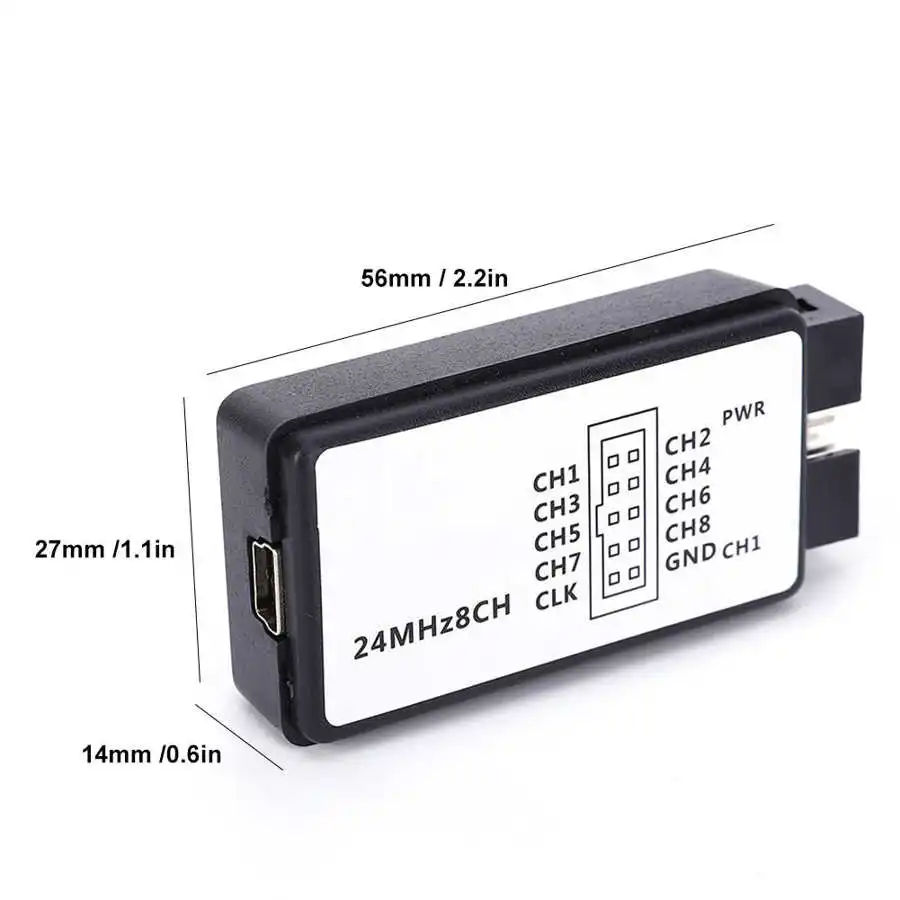

Product Size | 56x27x14mm / 2.2x1.1x0.6in | |

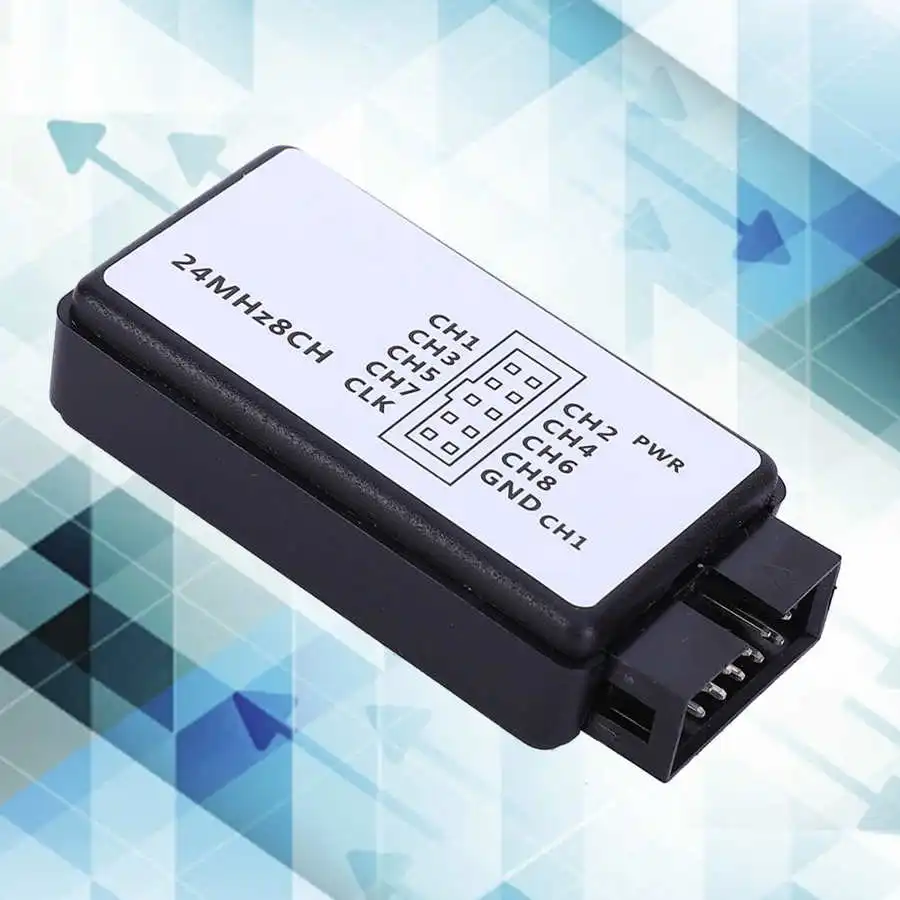

Detailed Images

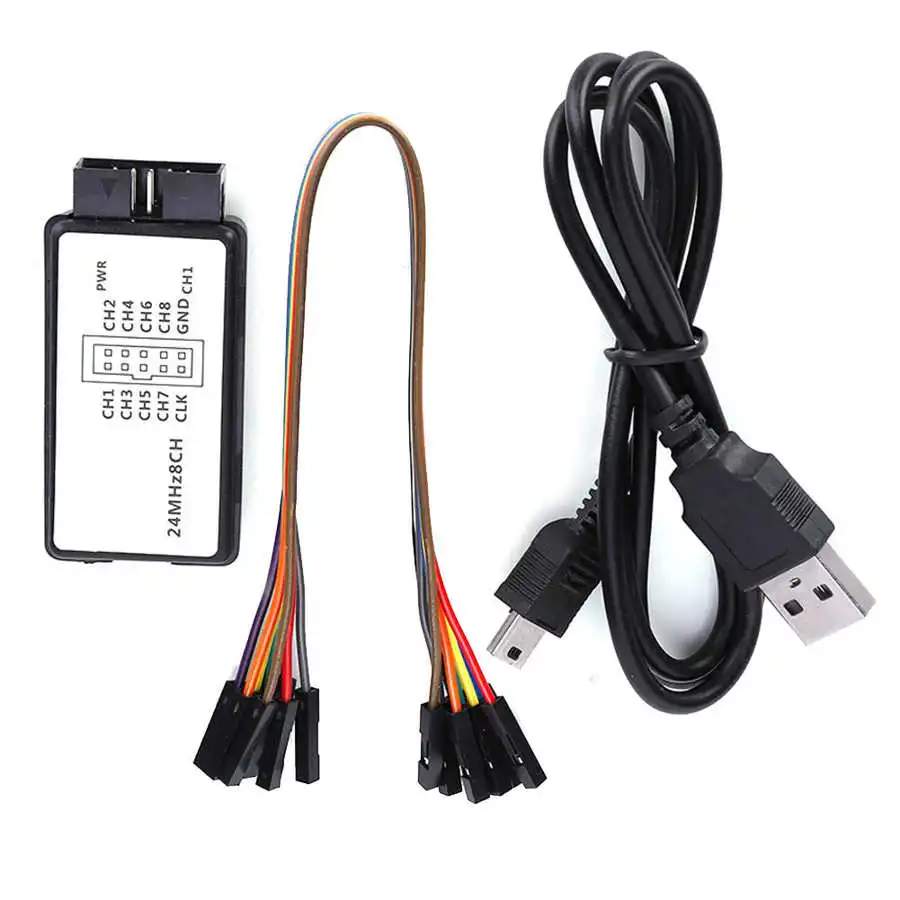

Package Contents

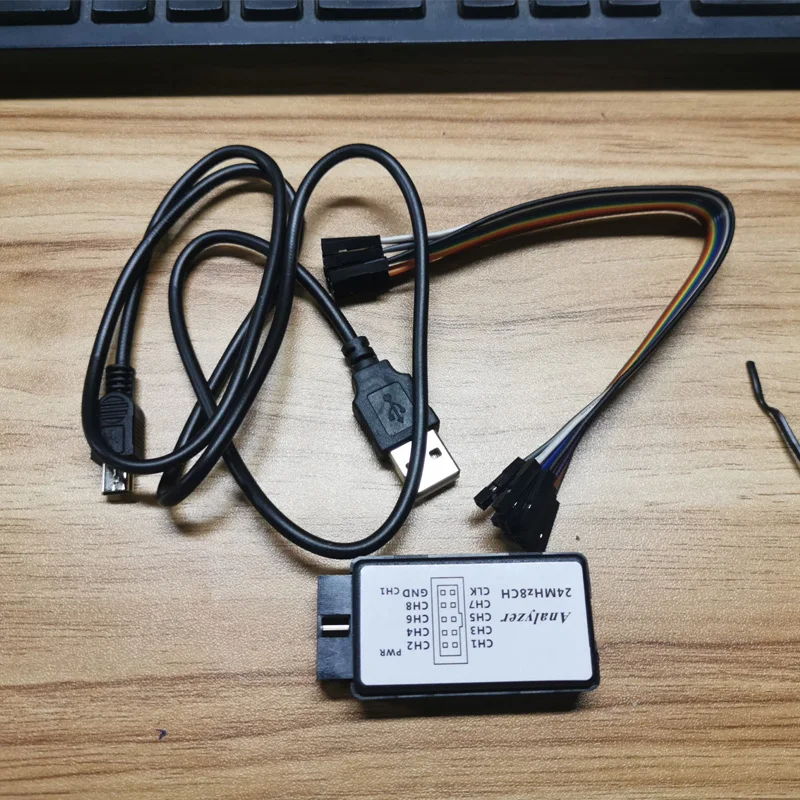

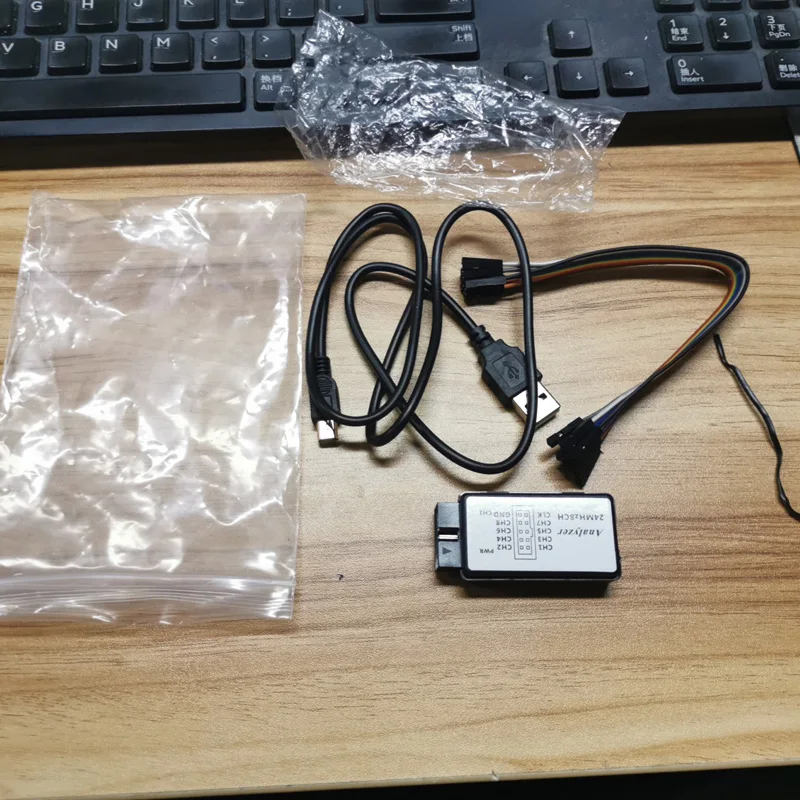

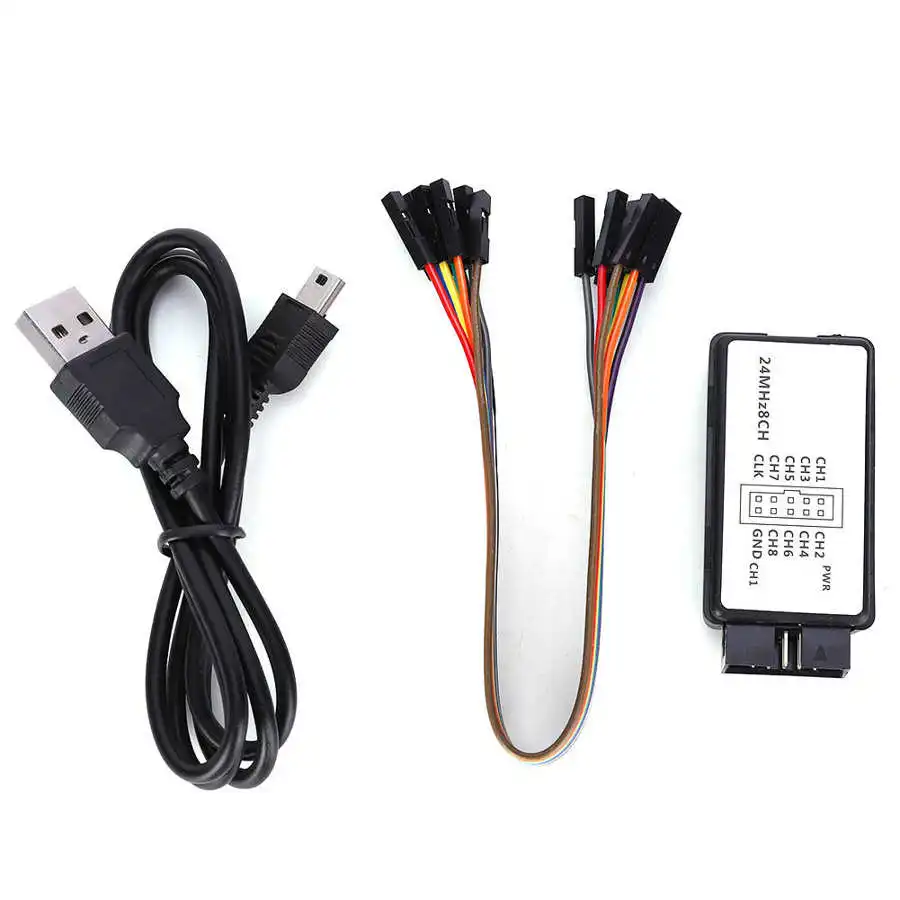

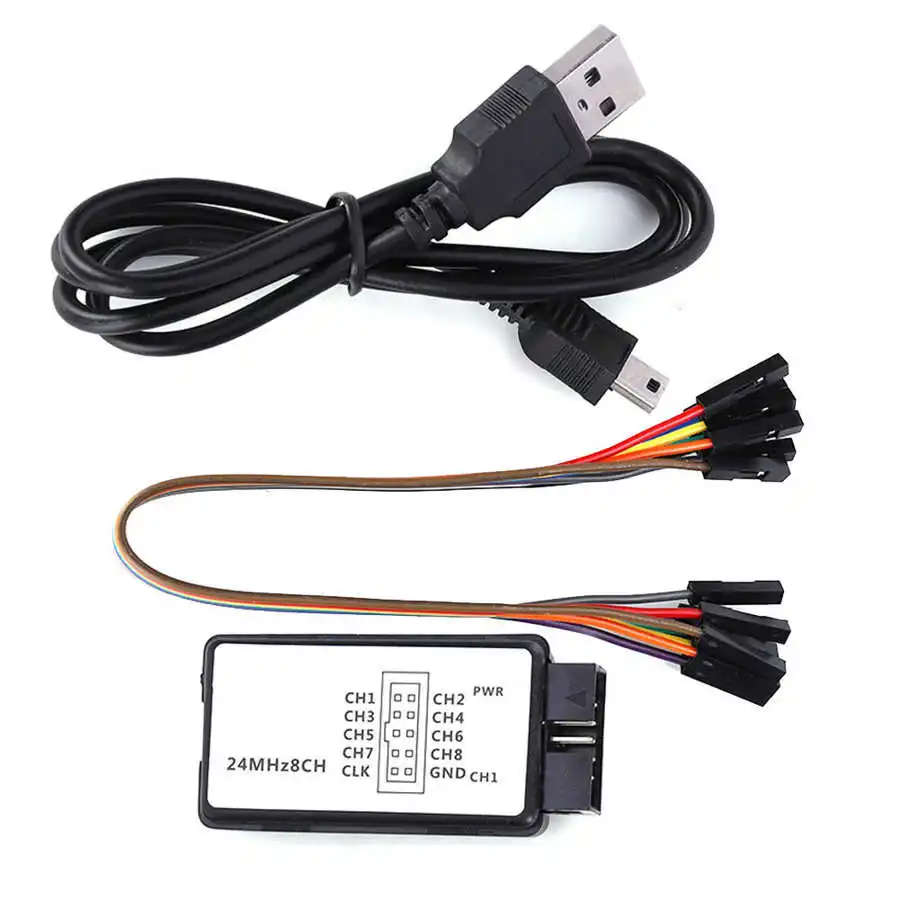

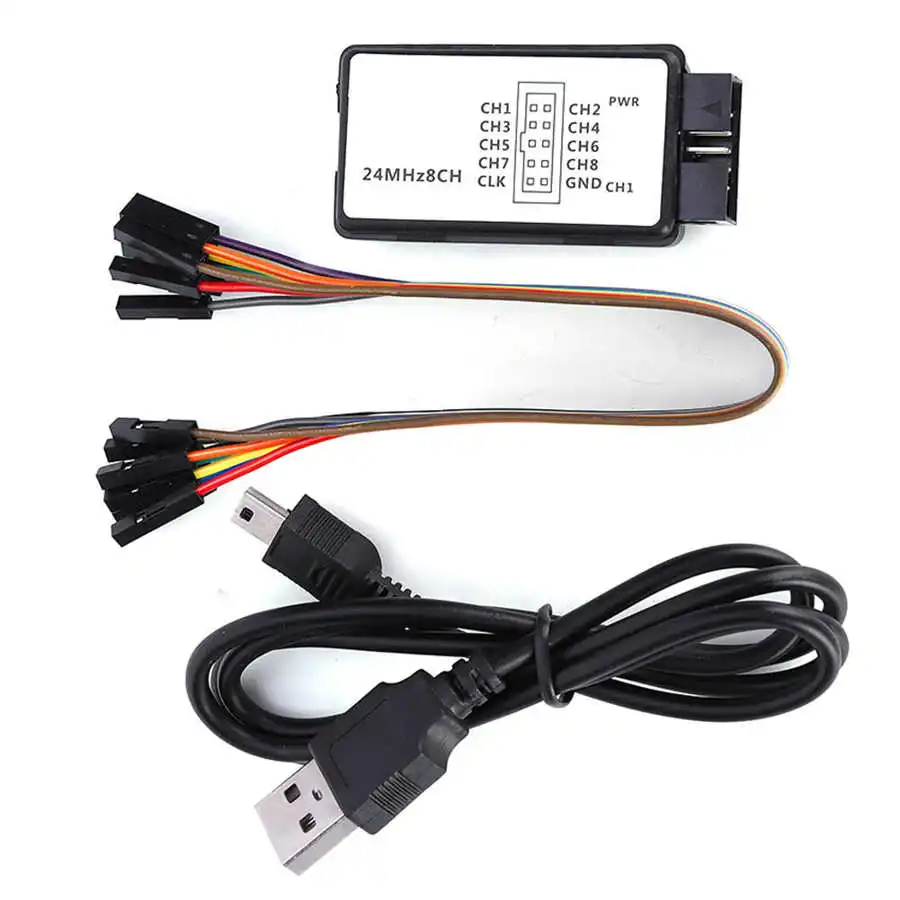

Package List:
1 x Logic Analyzer

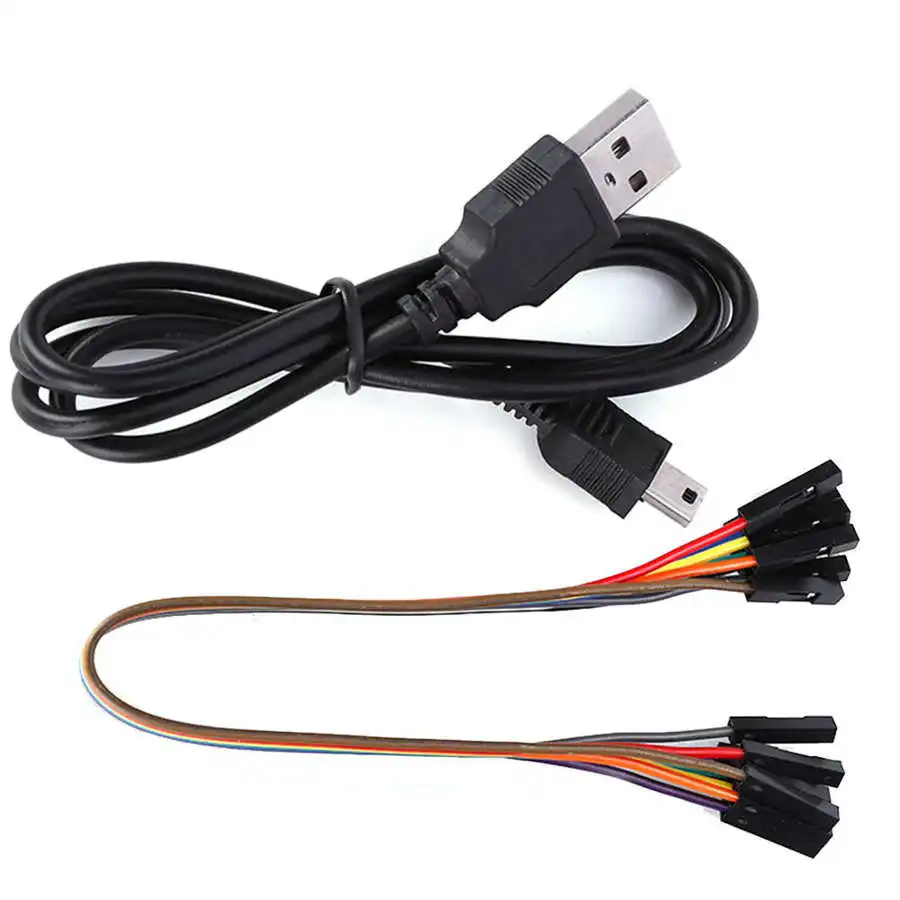

1 x USB Cable
1 x Jumper Wire
