Фабрика электромагнитных сточных вод жидкости расходомер
US $240.00-$320.00

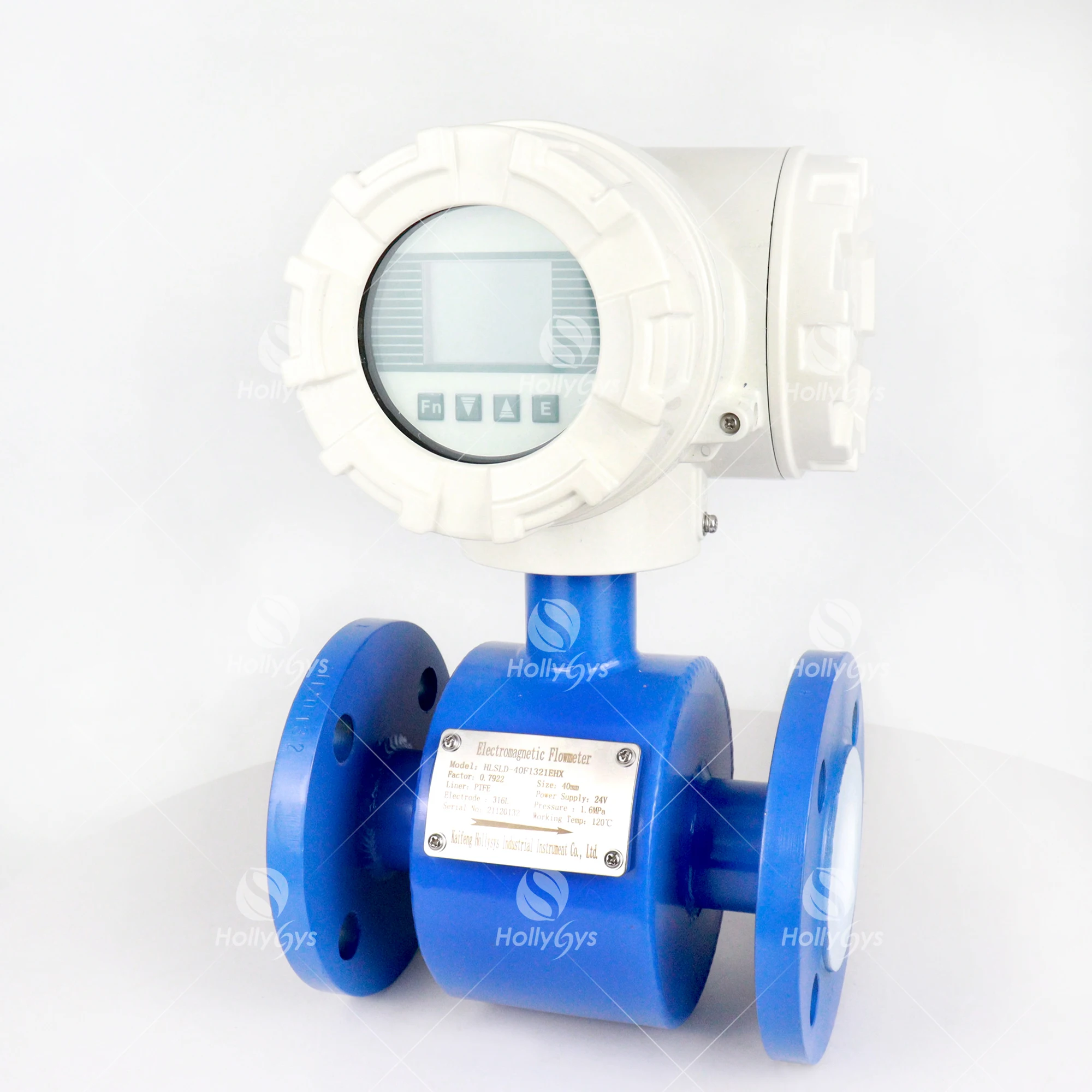

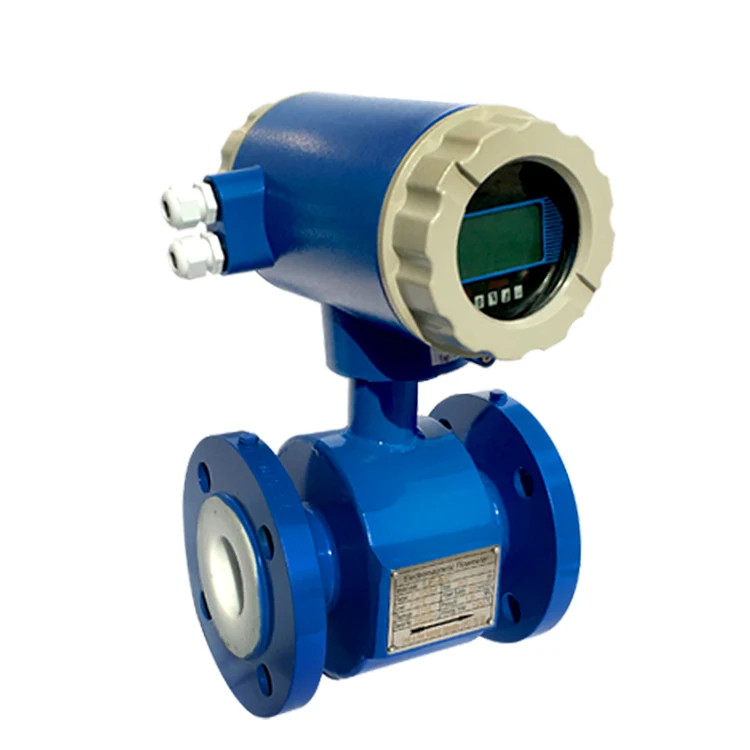

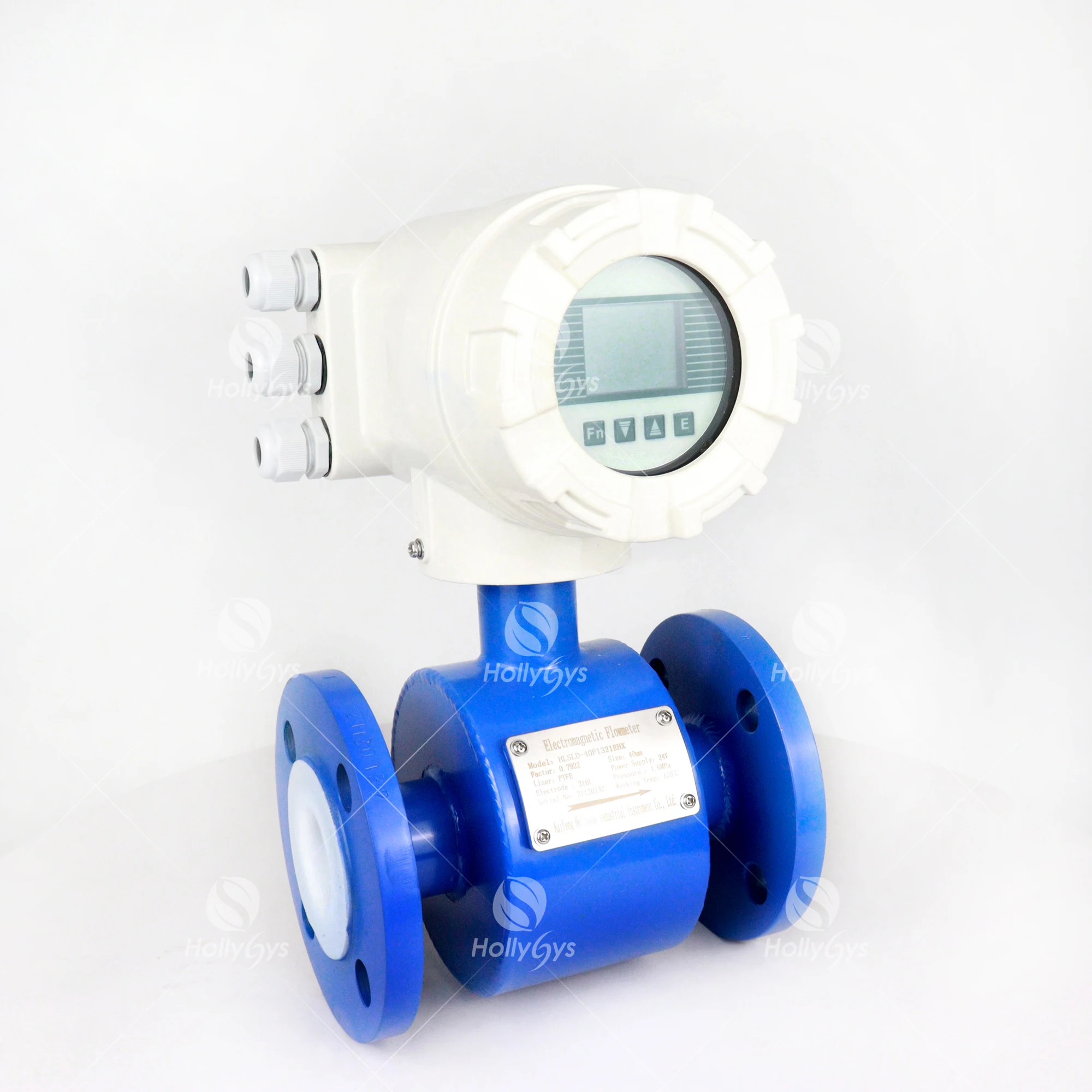

2 дюйма 304SUS электромагнитный расходомер для сточных вод химический проект загрязненной воды расходомер
- Категория товара: Flow Sensors >>>
- Поставщик (Оптовый магазин): Kaifeng,Hollysys,Industrial,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
RS485 Remote Type Electromagnetic Flowmeter With Ratio Electromagnetic Flowmeter Converter product descriptions
Product Description
HDF-DC electromagnetic flowmeter can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and waste water, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry, etc. |
When the conductive fluid flows through the measuring tube of the sensor, the voltage signal in direct proportion to the average flow velocity of the fluid will be inducted on the electrodes. The signal is amplified and treated by the transmitter to realize various display functions. |

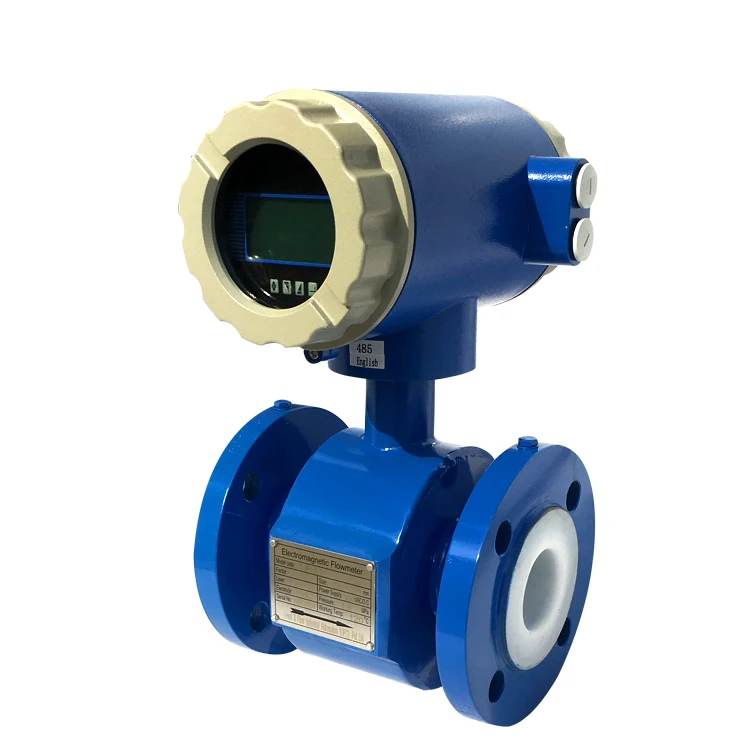

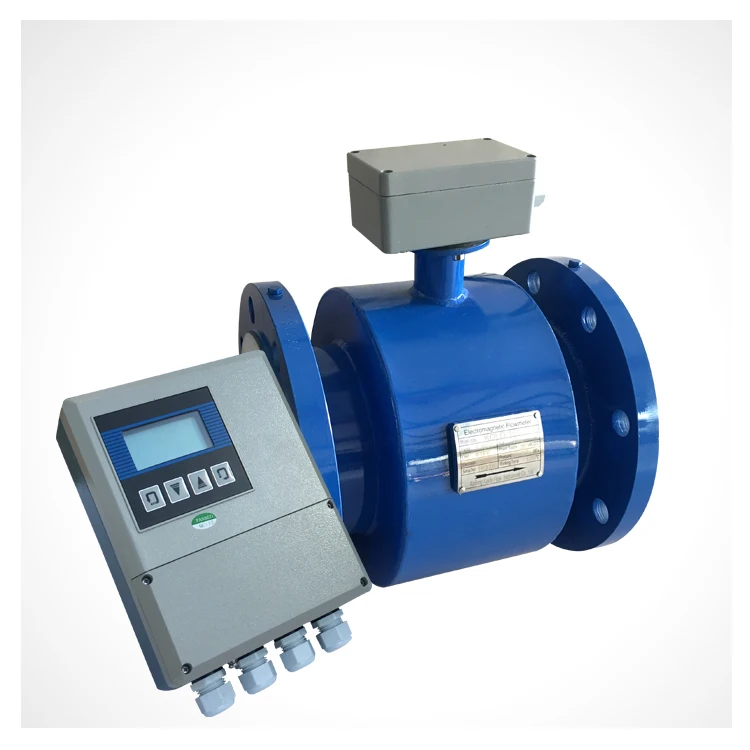

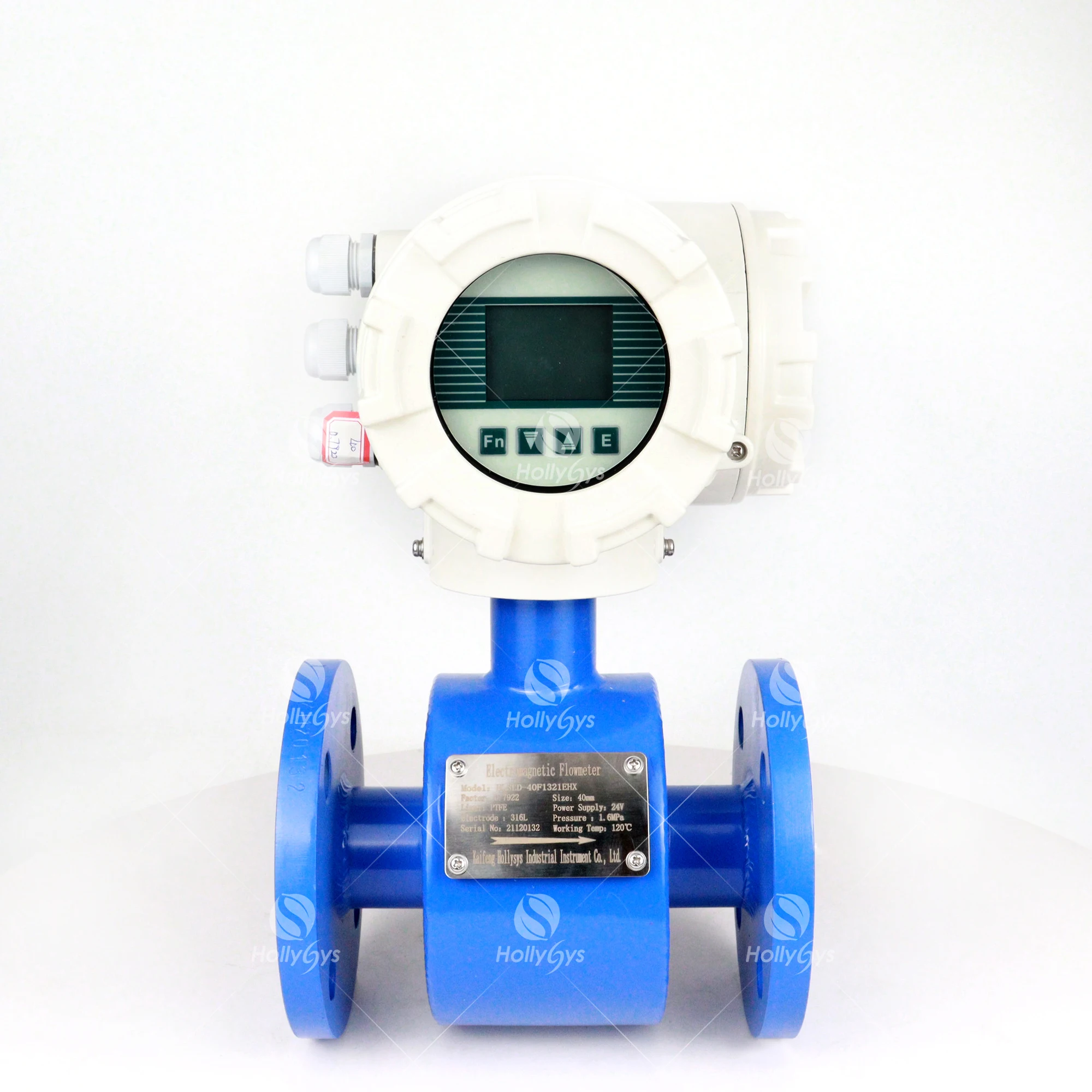

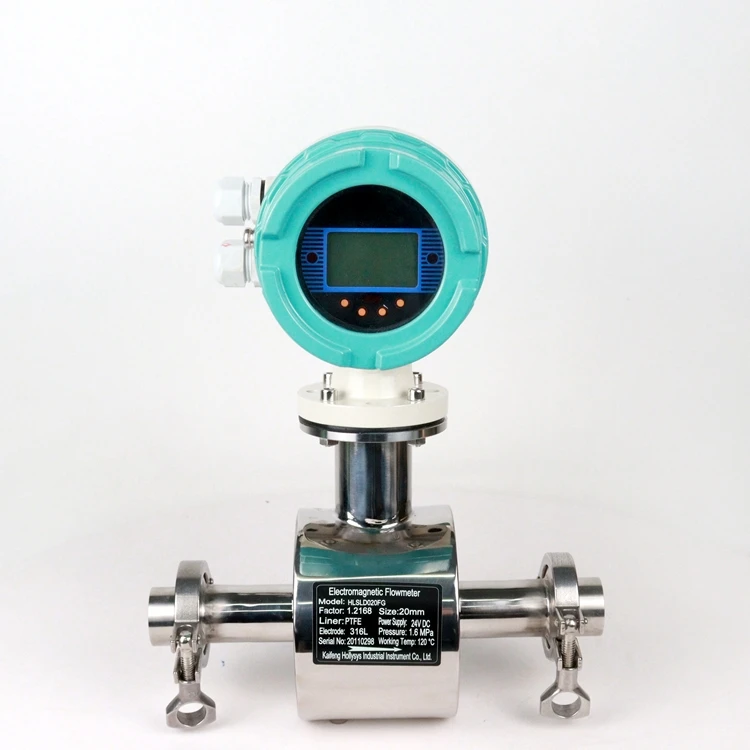

Flange Type Tri-clamp Type Remote Type Insertion Type |

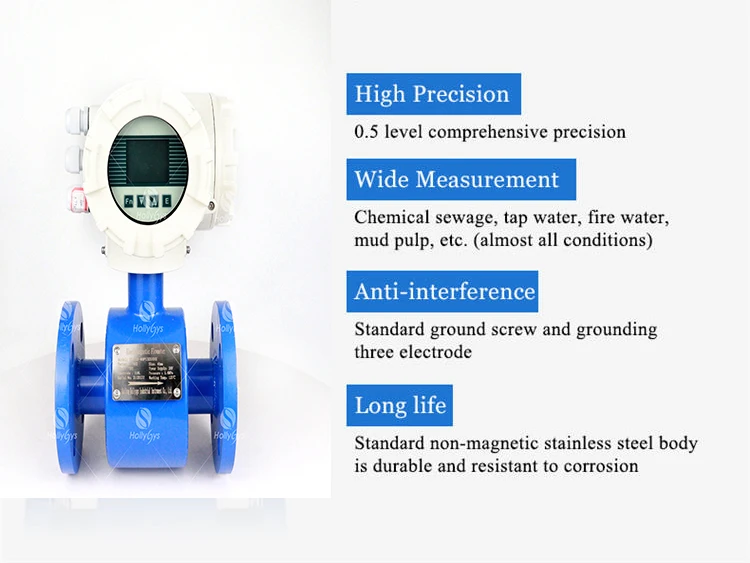

Main Features
High Accuracy Milk Electromagnetic Flow Meter Flange Insertion Clamp On Flow Meter Food Grade main features
1) DN 6 to DN2000 covers a wide range of pipe size. |
2) No obstacle in the pipe, no pressure-loss and lower requirement for straight pipeline. |
3) RS485 or RS232 interface supports digital communication. |
4) A variety of liners and electrodes are available to satisfy different flow characteristic |
5) Easy to install and maintain |
6) Flexible connection to flow instruments for flow control |
7) Wide variety of process connections |
8) Programmable low frequency square wave field excitation, improving measurement stability and reducing power consumption. |

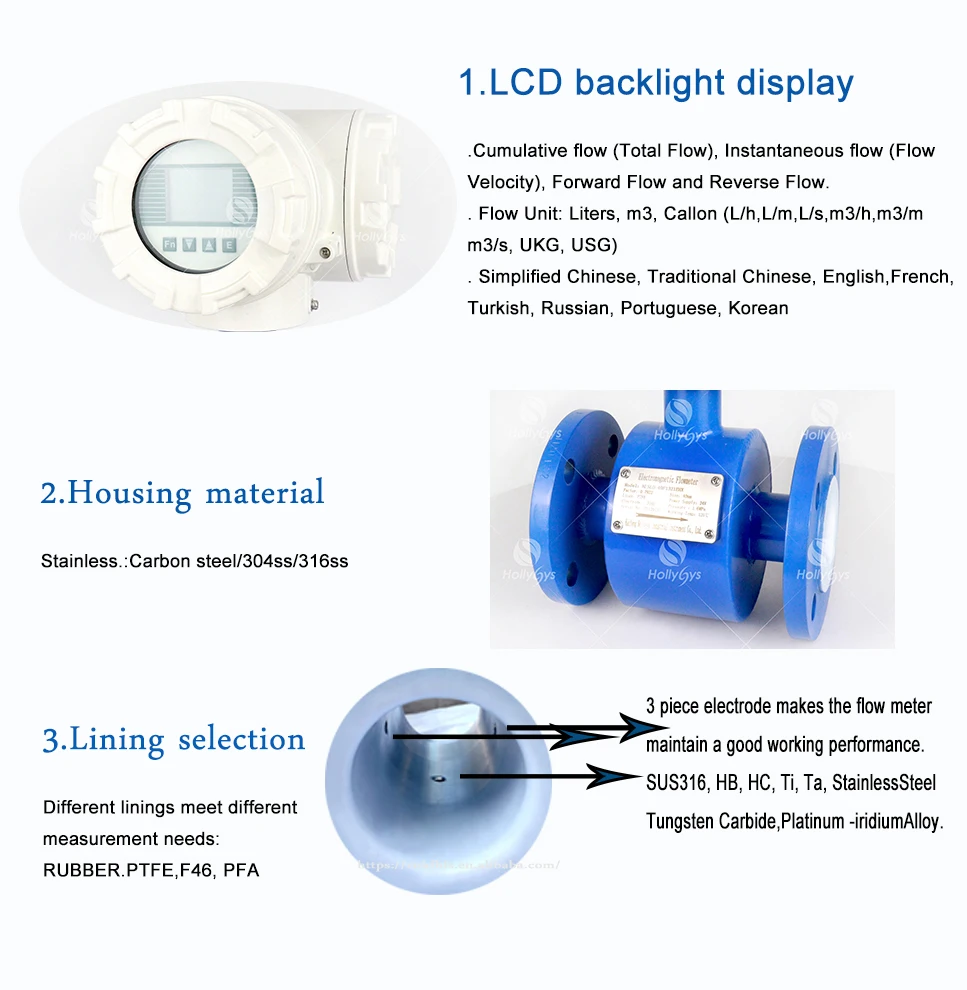

9) High definition LCD display with backlight. |
Technical parameter
Factory supply electromagnetic flowmeter ANSI flange pipeline DN50 flowmeter technical parameters
Product name | Electromagnetic flow meter |
Nominal Diameter(mm) | DN10-DN2000mm |
Medium | Conductive fluids |
Accuracy Class | 0.5%F.S |
Electrode material | SS316L, Hastelloy B, Hastelloy C, Titanium, Tantalum and platinum-iridium alloy,etc. |
Medium Temperature | Medium:-20~150 C |
Connection | Insertion, Flange, Tri-clamp,Remoter |
Signal Output | 4-20mA or pulse output, RS485 |
Supply Power | AC220V, DC12-24V or Lithium cell Batery |
Fluid conductivity | ≥ 5 uS/cm |
Explode-proof Class | ExdIIBT4 |
Protection Class | IP65,IP68 |
Keywords | flow meter for milk |
Why Choose Hollysys
1. Instruments has been exported to over 50 countries. |
2.100% QC inspection Before Shippment. |
3.ISO, CE, SGS standard and factory price. |
4. All instruments has been 100% recognized by the Bureau of National Metrology. |
5.Excellent product quality and strong technical support capability. |
Scope of application
Factory Direct Price Magnetic Electromagnetic Flowmeter Transmitter For Promotion applications
Friendly reminder
How to select right Electromagnetic Flow Meter ? |
The key questions which need to be answered before selecting Electromagnetic Flow Meter are: |
1.what's the fluid ? |

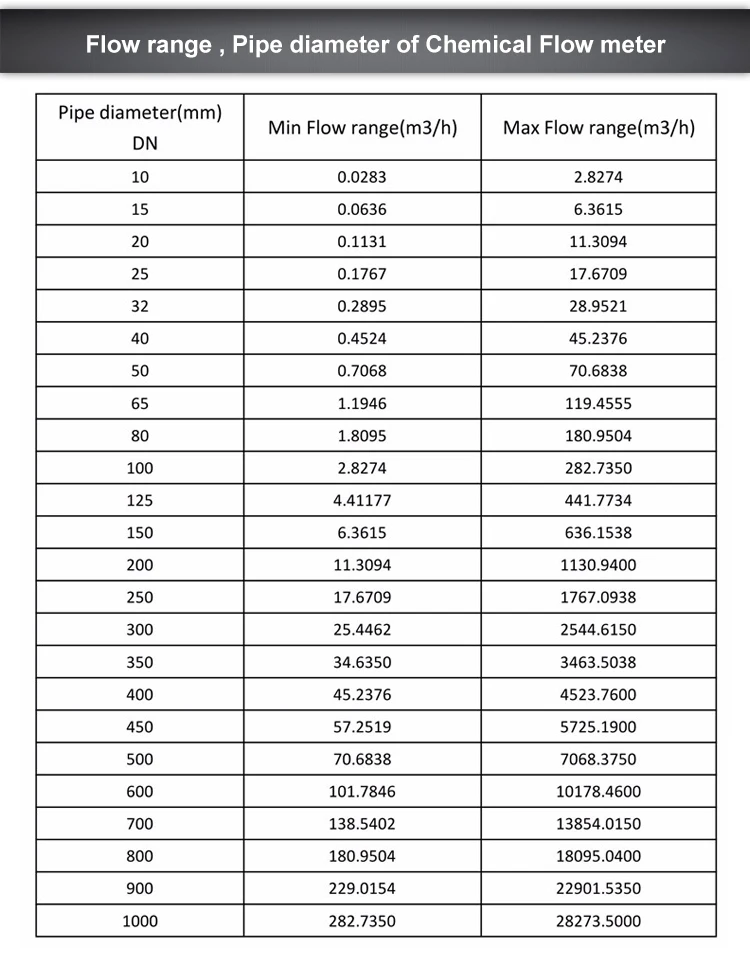

2.what's the flow range? and pipe size? |
3.what's the working pressure? |
4.what's the working temperature? |
