Product Description
Bakery Food Flat Bottom Shopping Bag Biodegradable Fully Automatic Kraft Paper Bag Making Machine

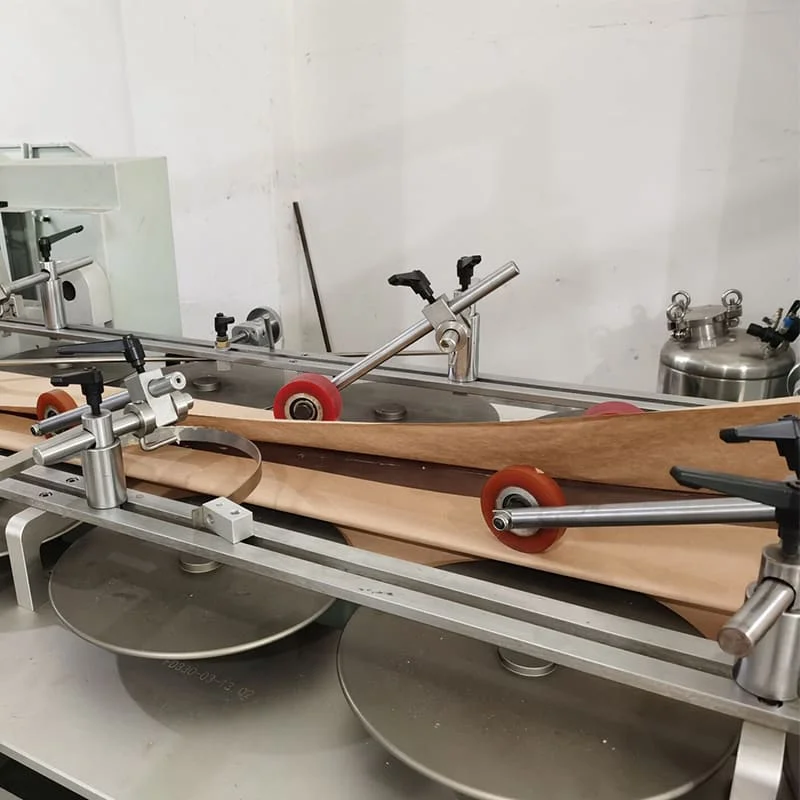

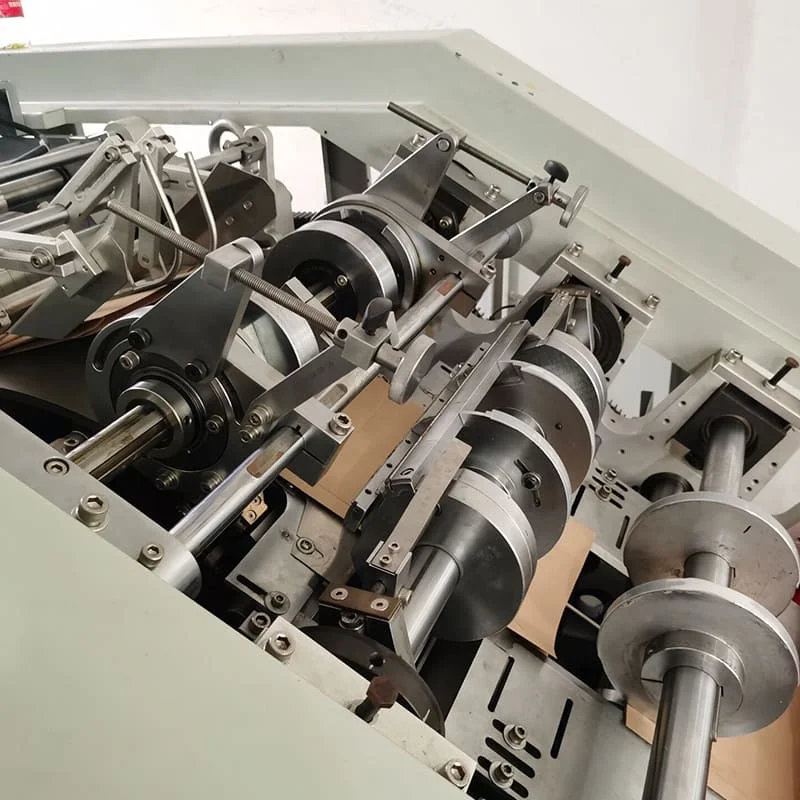

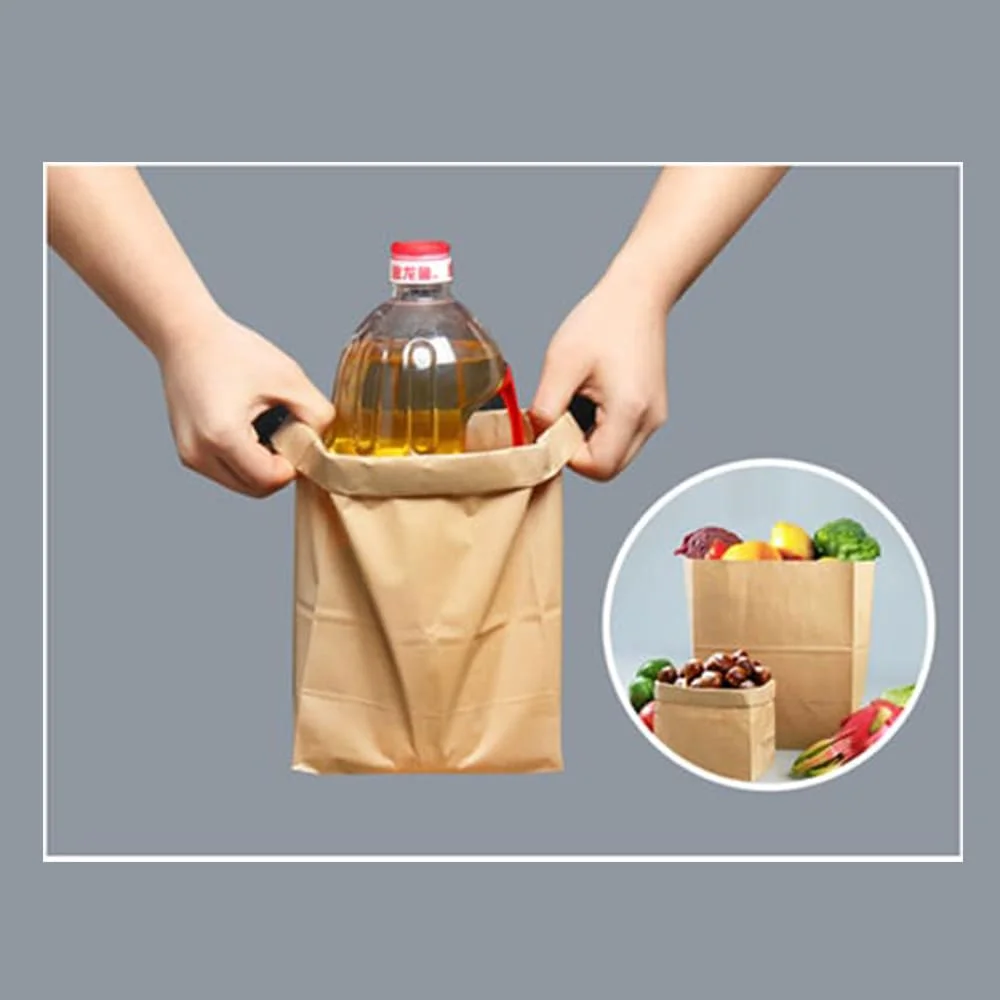

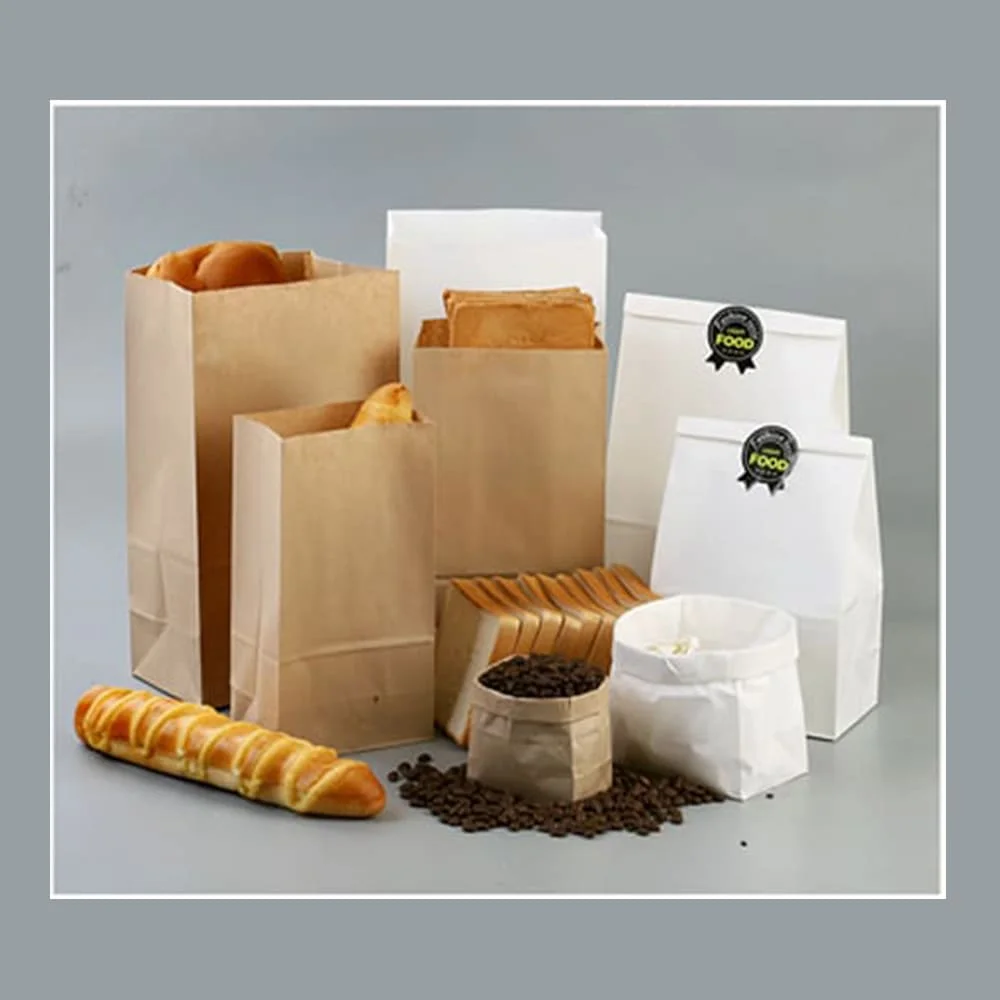

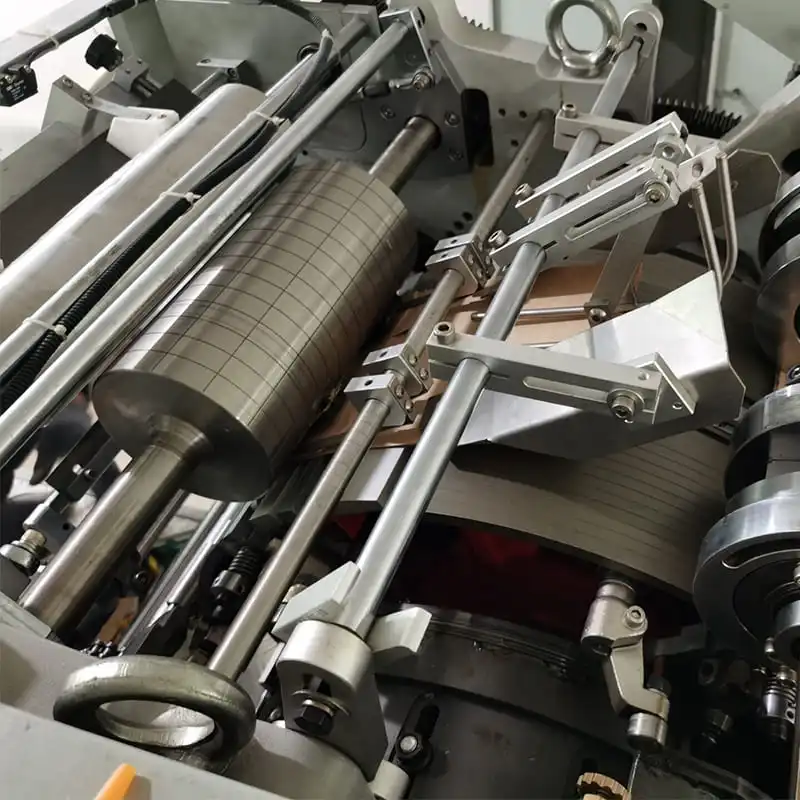

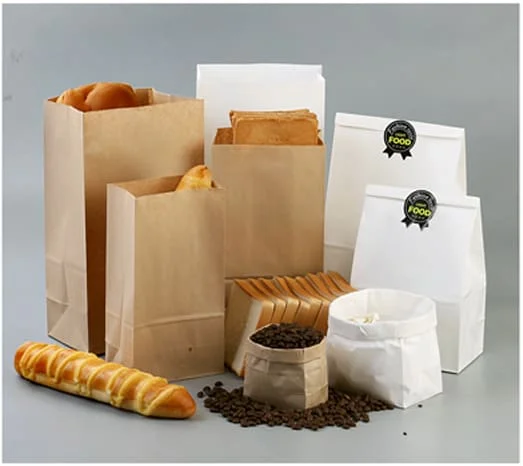

This is the machine used to make square bottom paper bag with paper roll. The machine with gluing, folding, photo tracing, length setting and cutting, bottom shaping, finished bag collection.It’s a fully automatic machine. Widely used to make different kinds paper bag, as shopping bag, bread bag, and dried fruit bag. It is an ideal machine for producing food bag, shopping handles bag.
Machine | Paper Bag Making Machine |
Model | GP-ZD-02 |
Paper bag length | 270-530mm |
Paper bag width | 120-330mm |
Paper bag bottom width | 60-180mm |
Paper thickness | 60-150g/㎡ |
Machine Speed | 30-220pcs/min |
Paper bag speed | 30-180 pcs/min |
Paper roll width | 380-1050mm |
Roll paper diameter | Φ1200mm |
Inner diameter of paper | Φ76mm |
Machine power | 3ph 4 line 380V 19.5kw |
Machine weight | 8500kg |
Machine size | 10000x3700x1900mm |
More machine details | Please contact us |
Machine Advantages
Machine feature
1. Machine adopt touch screen and plc to control, easy to operate and learn.
1. Machine adopt touch screen and plc to control, easy to operate and learn.

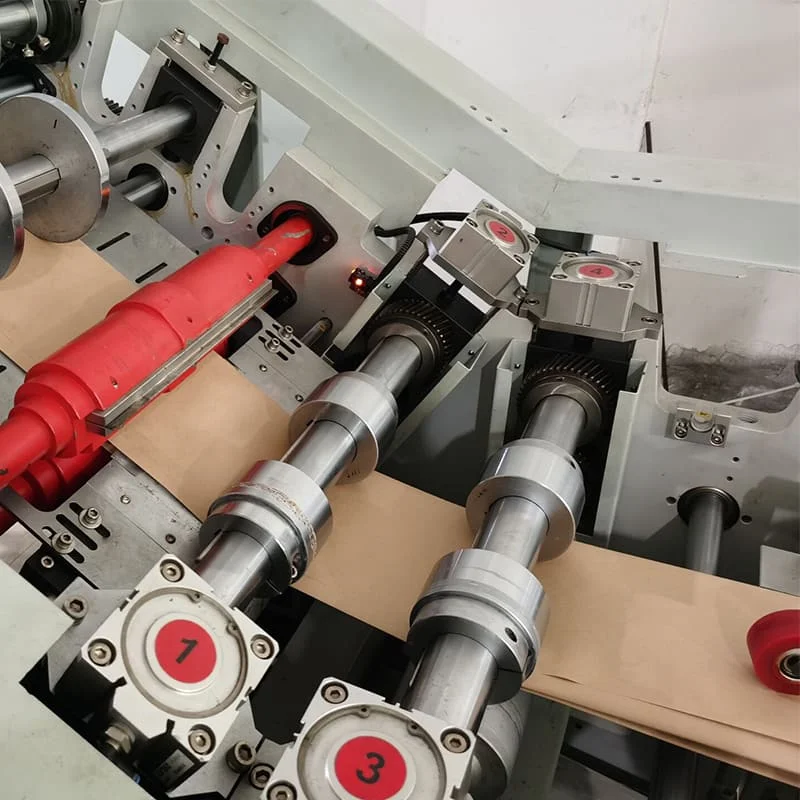

2. Servo controlled machine, running stable and fast.
3. with good photocell, machine is of accuracy tracing with printing roll.
3. with good photocell, machine is of accuracy tracing with printing roll.
4. Hydraulic lifting system, easy to load material, save lots man power.

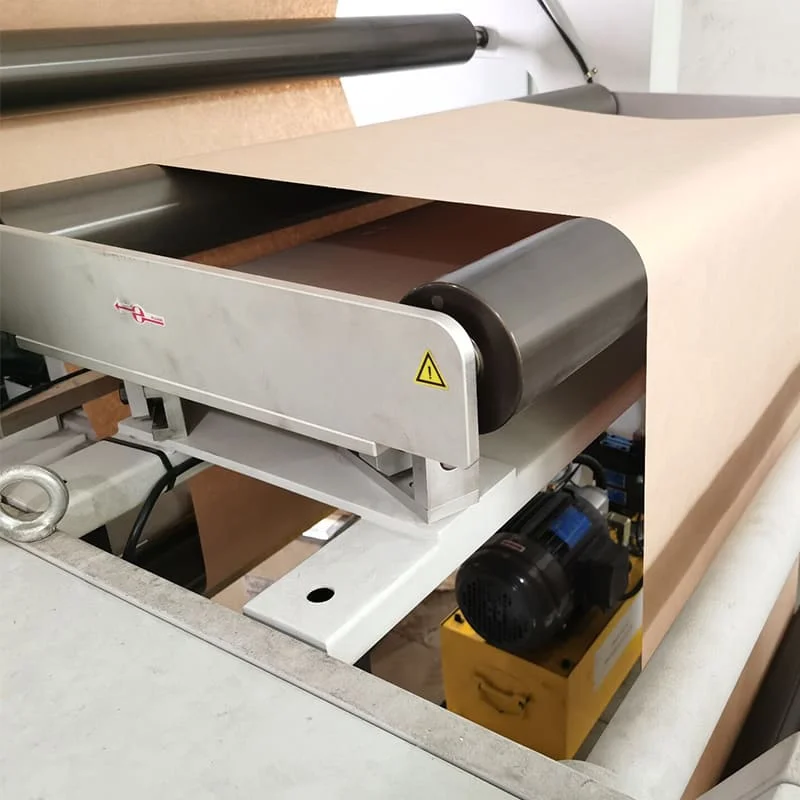

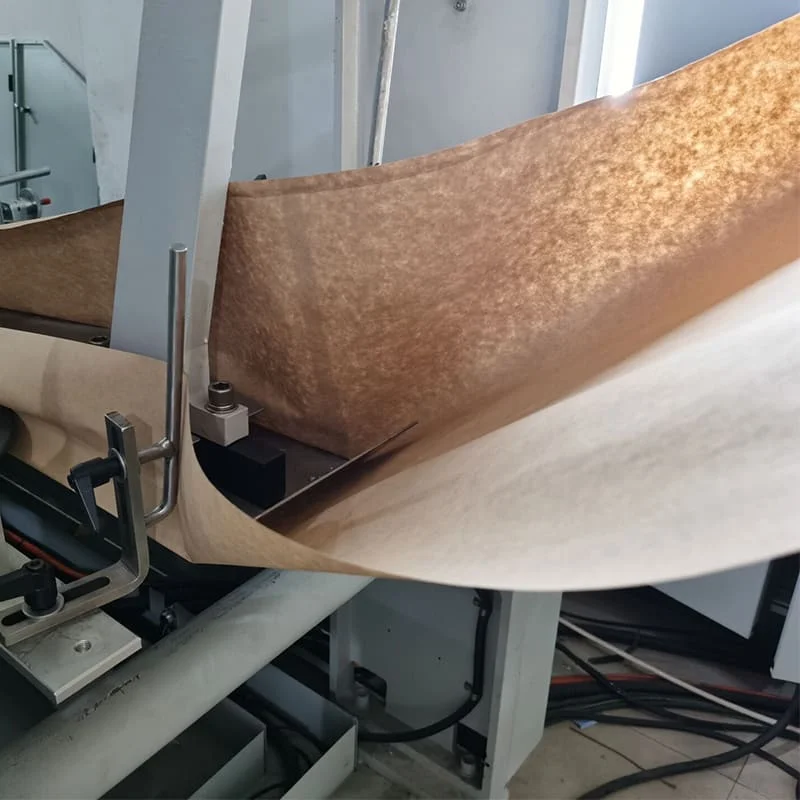

5. With Epc, paper roll feed in balance. Save lots time in adjustment.
6. Tension controller ensure the tension of paper roll feeding.
Certification
Packing and Shipping
FAQ
For more details on paper bag making machine please consult us
