Product name | |
brand | SDM |
Color | Dark Blue/Light Blue/Translucent /Custom |
Service life | About 10 years |
Application | |

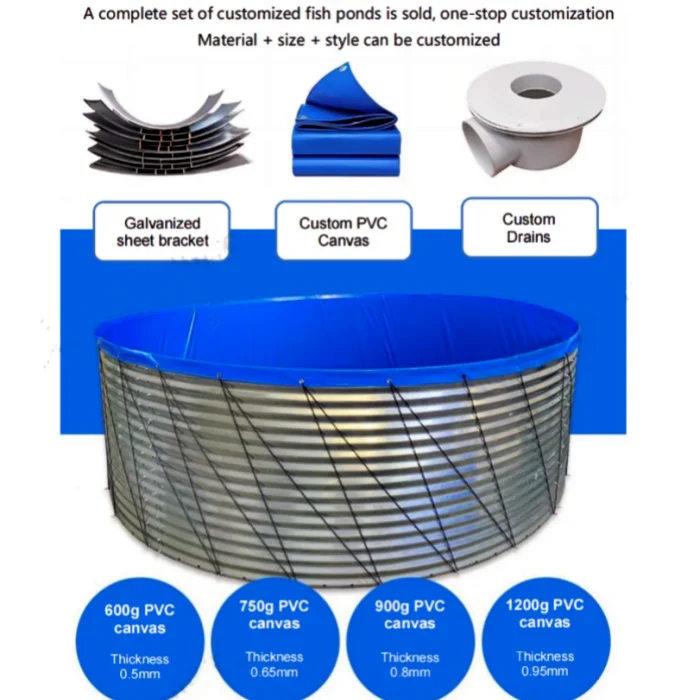

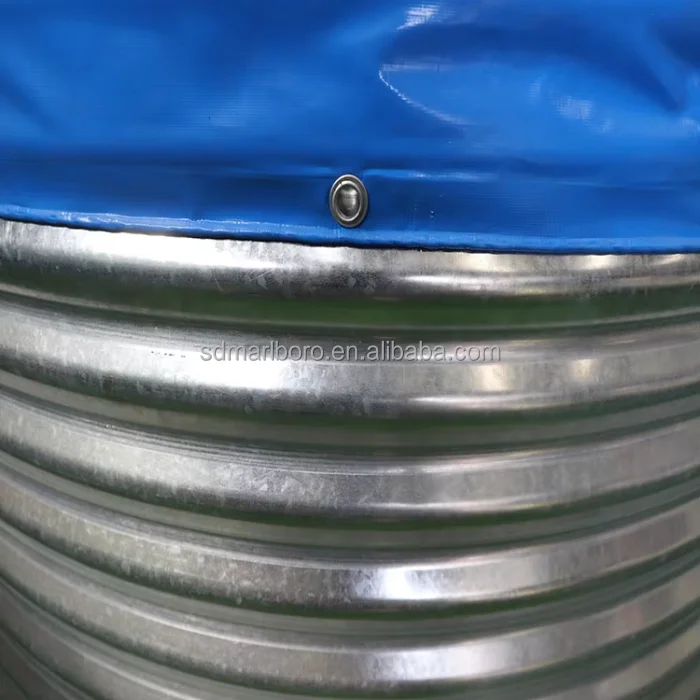

External bracing | Hot dip galvanized steel plate 1.0mm(Large tanks can be made in other thicknesses according to size and capacity) |
lining | |
diameter | 2 m -30 m (larger diameter can be customized upon request) |
high | 1.15m / 1.45m (other heights can be made upon request) |
Services | |
Product characteristics |
No. (Unit) | Covers area (㎡) | Capacity (Liter) | Diameter (m) | Height (m) | N.W. (≈kg/set) | Packing size (≈cm/set) | CBM (≈m³/pallet) | |
1 | 9 | 8000 | 3 | 1.15 | 93 | 324*120*60 | 33 | 2.33 |
2 | 16 | 15000 | 4 | 1.15 | 124 | 324*120*60 | 25 | 2.33 |
3 | 25 | 24000 | 5 | 1.15 | 155 | 324*120*60 | 20 | 2.33 |
4 | 36 | 34000 | 6 | 1.15 | 186 | 324*120*60 | 17 | 2.33 |
5 | 64 | 60000 | 8 | 1.15 | 248 | 324*120*60 | 13 | 2.33 |
6 | 100 | 94000 | 10 | 1.15 | 310 | 324*120*60 | 10 | 2.33 |
7 | 144 | 136000 | 12 | 1.15 | 372 | 324*120*60 | 8 | 2.33 |
8 | 9 | 10000 | 3 | 1.45 | 114 | 324*150*65 | 20 | 3.16 |
9 | 16 | 18000 | 4 | 1.45 | 152 | 324*150*65 | 15 | 3.16 |
10 | 25 | 28000 | 5 | 1.45 | 190 | 324*150*65 | 8 | 3.16 |
11 | 36 | 41000 | 6 | 1.45 | 228 | 324*150*65 | 7 | 3.16 |
12 | 64 | 73000 | 8 | 1.45 | 304 | 324*150*65 | 8 | 3.16 |
13 | 100 | 114000 | 10 | 1.45 | 380 | 324*150*65 | 6 | 3.16 |
14 | 144 | 164000 | 12 | 1.45 | 456 | 324*150*65 | 5 | 3.16 |
