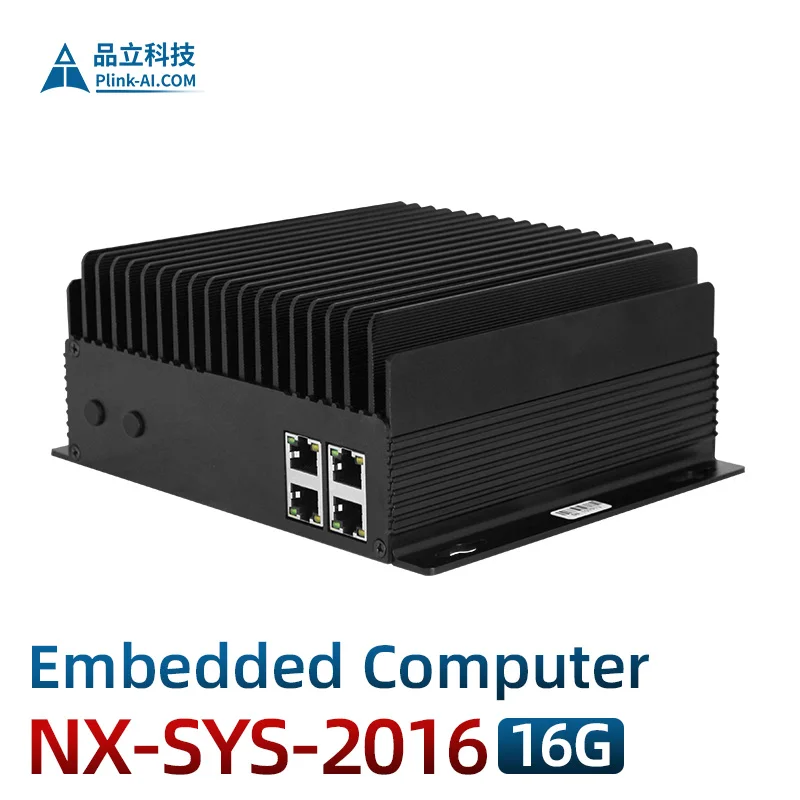

NVIDIA JETSON XAVIER NX(16 Гб)-SYS-2016 Встраиваемый компьютер комплект разработчика
- Категория товара: Industrial Computer & Accessories >>>
- Поставщик (Оптовый магазин): Beijing,Plink,AI,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики

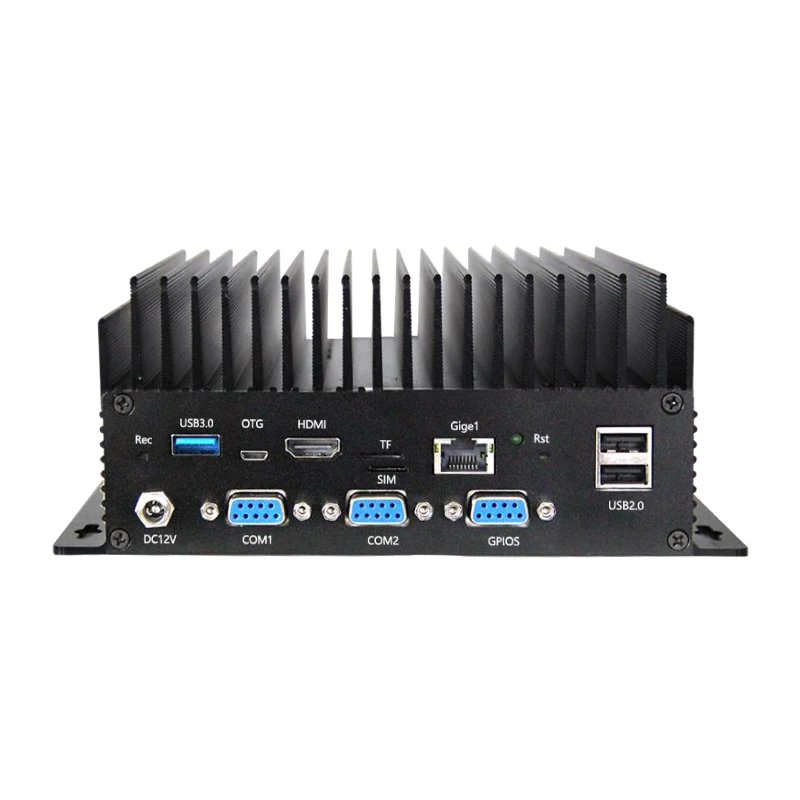

➢ Factory pre-installed Xavier NX module
➢ One USB 3.1Type-A Connector
➢ Two USB 2.0 Type-A Connector
➢ One Micro USB Connector
➢ Chose 1/3/5 Gigabit Ethernet(10/100/1000 BASE-T)RJ45 Connector
➢ Two USB 2.0 Type-A Connector
➢ One Micro USB Connector
➢ Chose 1/3/5 Gigabit Ethernet(10/100/1000 BASE-T)RJ45 Connector
➢ One HDMI 2.0 Interface (MAX 6Gbps，24bpp，4096x2160@60Hz)
➢ 32GB ~ 1TB SSD Extended storage
➢ 32GB ~ 1TB SSD Extended storage
➢ One micro TF Card Slot
➢ One Nano SIM Card Slot
➢ Standard single network port
➢ Automatically turn on after power on
➢ Standard single network port
➢ Automatically turn on after power on
➢ Board Reset、Recovery button
➢ One Board Receiving transmitter CAN bus interface
➢ Two RS-232 level serial port
➢ Three 3.3V Programmable GPIO，One 3.3V Strong driving ability Programmable GPO
➢ One Board Receiving transmitter CAN bus interface
➢ Two RS-232 level serial port
➢ Three 3.3V Programmable GPIO，One 3.3V Strong driving ability Programmable GPO
➢ Size:190mm × 160mm × 76.3mm
➢ Power:DC +9V~+24V
➢ Working temperature:-25~+65°C
➢ Working temperature:-25~+65°C
Xavier NX Technical Specifications
Jetson Xavier NX 16GB | Jetson Xavier NX 8GB | |||
AI Performance | 21 TOPS | |||
GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores | |||
CPU | 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3 | |||
Memory | 16 GB 128-bit LPDDR4x 59.7GB/s | 8 GB 128-bit LPDDR4x 59.7GB/s | ||
Storage | 16 GB eMMC 5.1 | |||
Power | 10 W | 15 W | 20 W | |||
PCIe | 1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s* | |||
CSI Camera | Up to 6 cameras (24 via virtual channels) 14 lanes (3x4 or 6x2) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) | |||
Video Encode | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264) | |||
Video Decode | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) | |||
Display | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 | |||
DL Accelerator | 2x NVDLA Engines | |||
* Please refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features | ||||

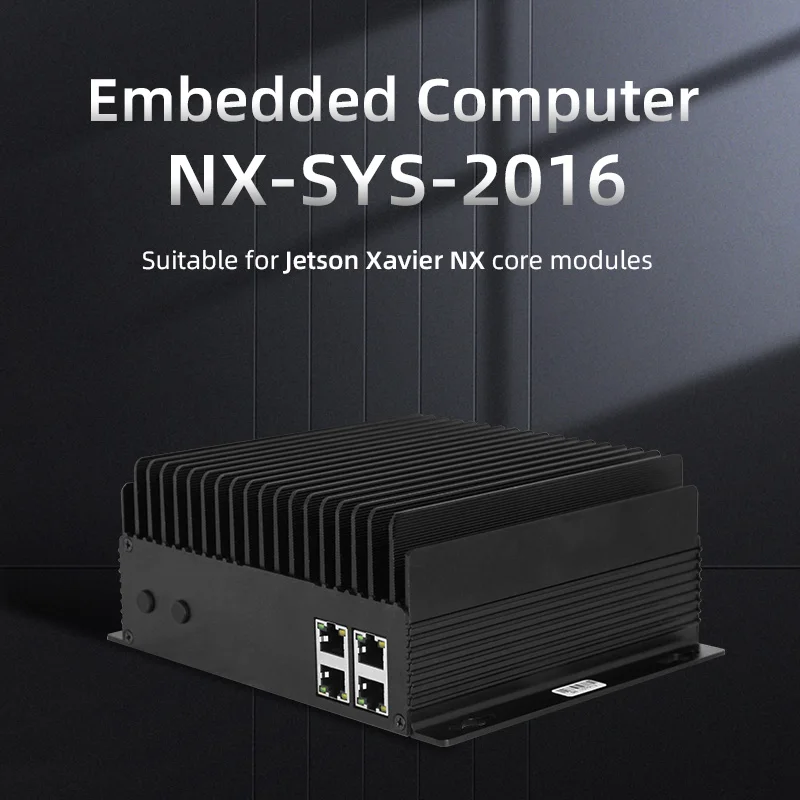

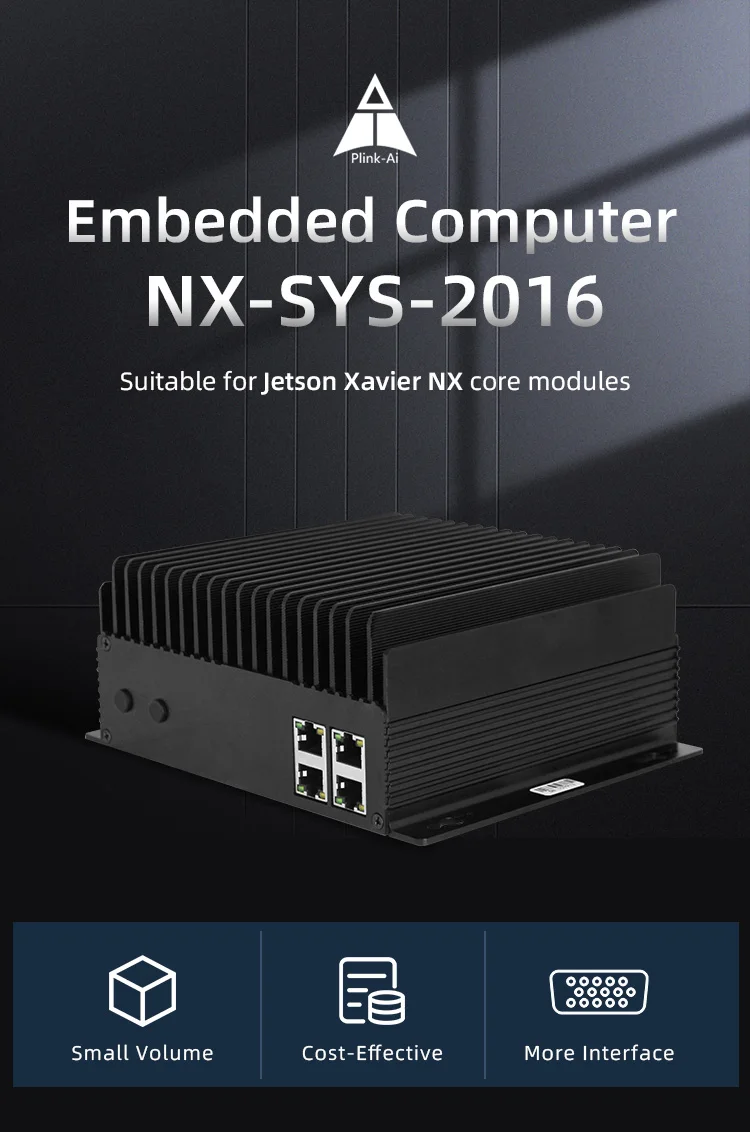

Model | NX-SYS-2016 |
Function | NVIDIA® JetsonTM Xavier NX series module Compact AI embedded Industrial computer |
Type | Embedded Computer |
Brand Name | Plink |
Place of Origin | China |
Smart Cities
Traffic management, parking management, transportation hub operation, public safety, and more
Healthcare
Patient monitoring, social distancing, mask detection, contact tracing, and more
Agriculture
Autonomous planting and harvesting, precision farming, yield management, and more
Construction
Mapping/planning, autonomous operation, preventive maintenance, work safety, and more
Industrial
Optical Inspection for quality control, predictive maintenance, robotic arms, and more
Retail
Asset protection, automated checkout, intelligent store analytics, digital signage, and more
Energy & Mining
Optical inspection, autonomous operation, preventive maintenance, safety, and more
Robotics & Logistics
Robots for warehouse & factory, first/last mile delivery, collaboration, service, and more
Founded in 2009, Plink-AI technology focuses on GPU solutions. It is the general agent in North China of Leadtek technology, a world-famous brand. It has been invited to become a NVIDIA partner with a full stack of NVIDIA products solutions.
Plink-AI technology takes the game graphics card, professional graphics card, GPU server, embedded AI integrated machine scheme as the main product line, serves the data center, cloud service, independent machine, medical instrument, intelligent agriculture, intelligent logistics, intelligent city, security, vehicle road coordination, industrial automation, education and scientific research and other industries, and has accumulated a large number of implementable programs, while in-depth learning DLI training On the basis of that, we will export AI professionals for the society.
Plink-AI technology adheres to the tenet of serving customers, strives for survival with quality, and provides GPU one-stop solution for customers.
Plink-AI technology takes the game graphics card, professional graphics card, GPU server, embedded AI integrated machine scheme as the main product line, serves the data center, cloud service, independent machine, medical instrument, intelligent agriculture, intelligent logistics, intelligent city, security, vehicle road coordination, industrial automation, education and scientific research and other industries, and has accumulated a large number of implementable programs, while in-depth learning DLI training On the basis of that, we will export AI professionals for the society.
Plink-AI technology adheres to the tenet of serving customers, strives for survival with quality, and provides GPU one-stop solution for customers.
How can I get the price?
We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are very anxious to get the price, please email us (dlj@plink-ai.com, lyl@plink-ai.com, zjy@plink-ai.com) or contact us by other means so that we can help you provide pricing.
Can I place an order for samples?
Yes. Please feel free to contact us.
What is your delivery time?
It depends on the number of orders and the season in which you placed your order. Usually we can ship within 7-15 days, small quantity shipment, about 30 days.
What is your payment term?
T/T, Western Union, MoneyGram and Paypal. This is negotiable.
What is the mode of transportation?
It can be transported by sea, air or express (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
Can the product be customized?
Our company has a professional R&D team and factory, which can meet the needs of customers to customize products, please email us for specific matters.
