Производственная машина HWAHSI CNC для кухонной раковины из нержавеющей стали
- Категория товара: Seam Welders >>>
- Поставщик (Оптовый магазин): Guangdong,Hwashi,Technology,Inc.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
DETAILED DESCRIPTION

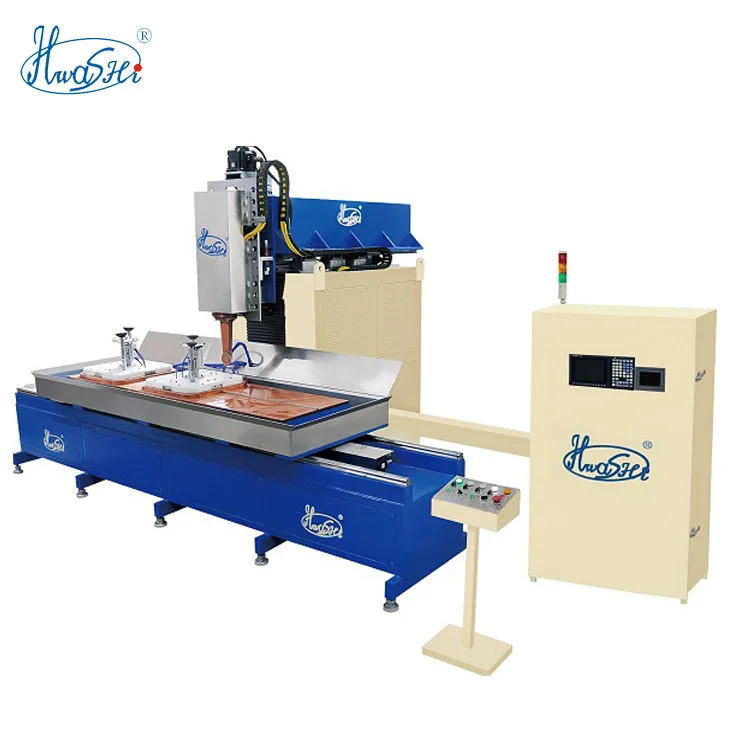

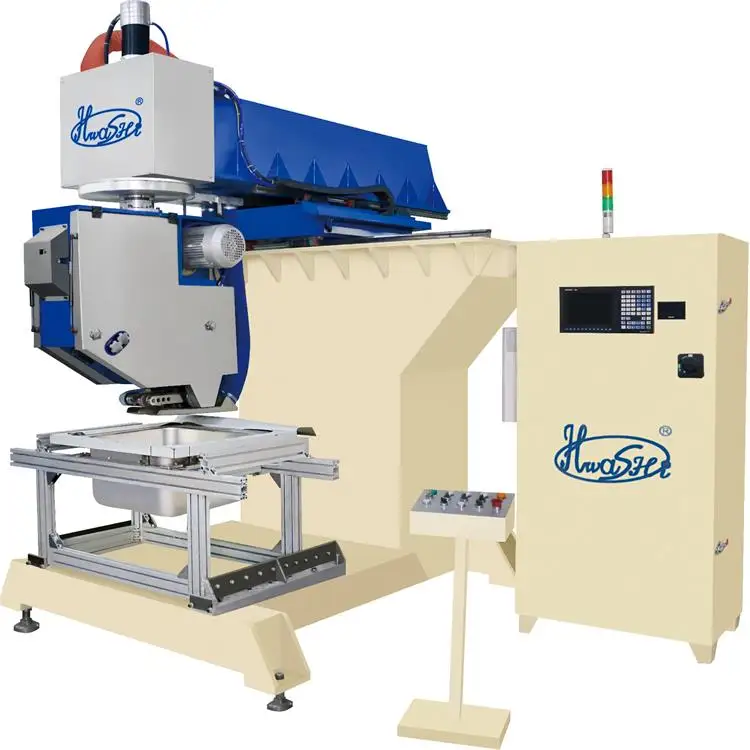

HWASHI CNC stainless steel kitchen sink manufacturing machine
Adopt resistance seam welding as the manufacturing technology.
The distance between welding spots will be reduced which will make the nugget overlap with each other. When the interlap degree exceed 1/3 of the diameter of the nugget, then a certain degree of air tightness welding will occur.
Medium frequency inverter power source. Adopt the professional automatic control system from SIEMENS.
Use the servo motor to drive axis X (locate mould) and axis Y (welding electrode) to operate under the preset procedure of PLC data.
It could store 15 sets of welding models at most (be able to store 15 sets of welding position and welding current of product).
Adopt resistance seam welding as the manufacturing technology.
The distance between welding spots will be reduced which will make the nugget overlap with each other. When the interlap degree exceed 1/3 of the diameter of the nugget, then a certain degree of air tightness welding will occur.
Medium frequency inverter power source. Adopt the professional automatic control system from SIEMENS.
Use the servo motor to drive axis X (locate mould) and axis Y (welding electrode) to operate under the preset procedure of PLC data.
It could store 15 sets of welding models at most (be able to store 15 sets of welding position and welding current of product).
APPLICABLE AREAS

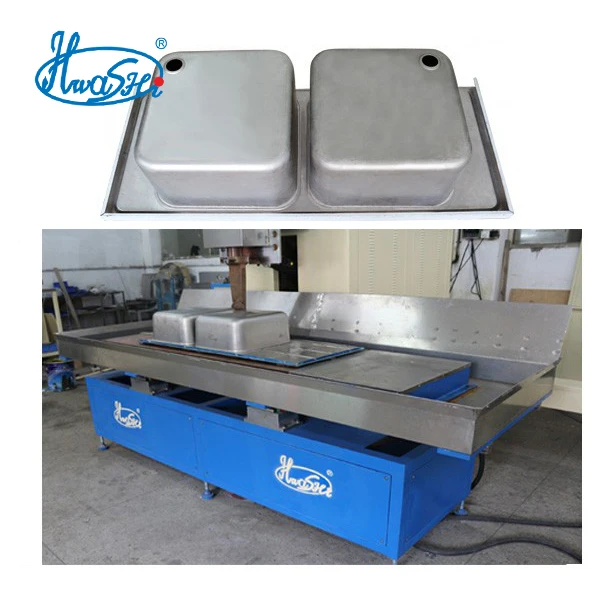

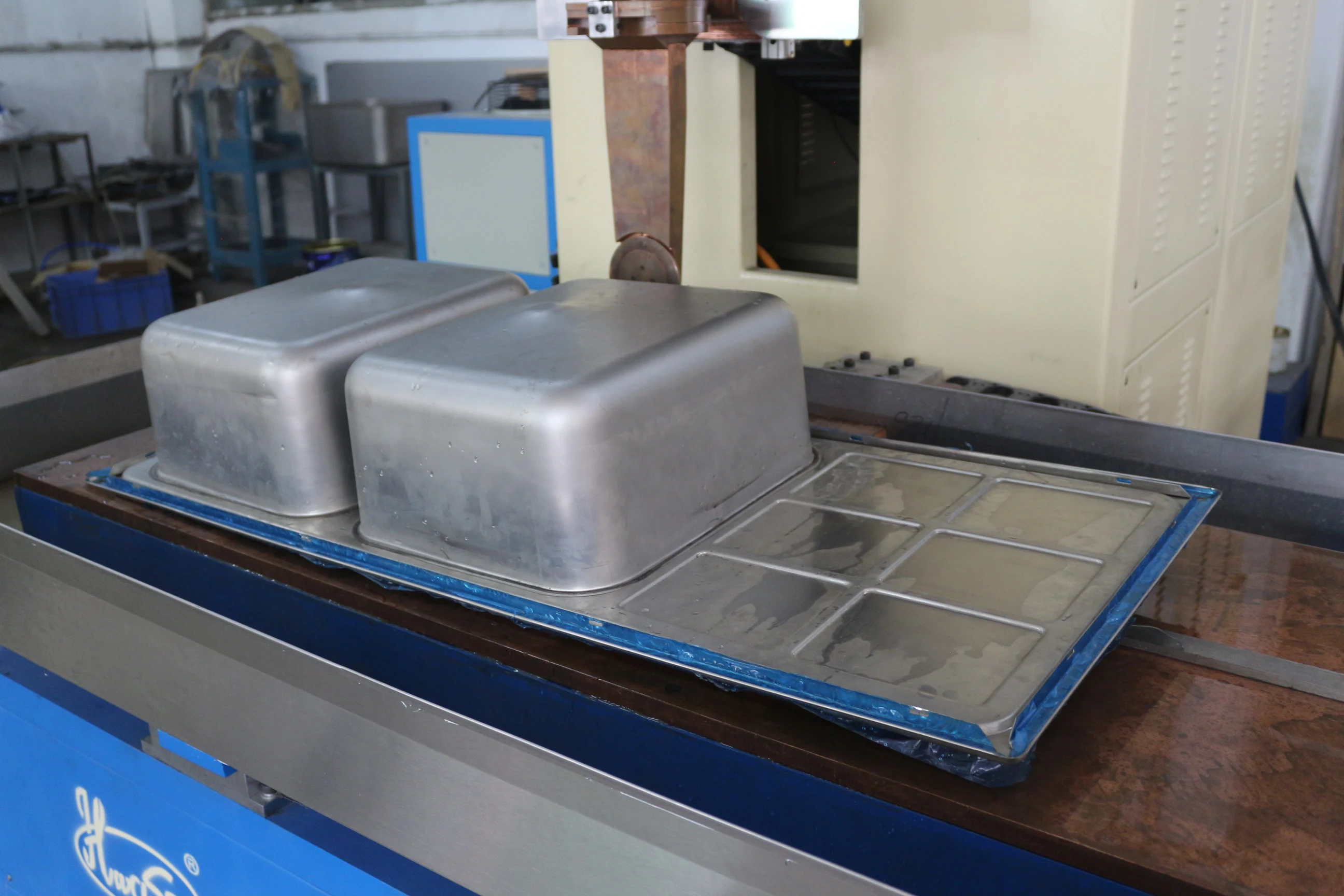

Suitable for stainless steel kitchen sink welding,sink material can be stainless steel,copper,aluminum,alloy,etc.All kind of kitchen sinks in different shapes are applicable,like semi circle,rectangle,circle,etc.The best choice for sink manufacturer.
This WL-AMF-160K sink manufacturing machine is a kind of seam welding machine,so it's also suitable for other seam welding in all kinds of industries.
This WL-AMF-160K sink manufacturing machine is a kind of seam welding machine,so it's also suitable for other seam welding in all kinds of industries.
Product Paramenters
Model | WL-AMF-160K Stainless steel kitchen sink manufacturing machine |
Input Power | Single-phase 380V±10% 50Hz |
Rated Capacity | 160kVA |
Rated Duty Cycle | 25% |
Maximum Secondary Floating Voltage | 9.5VAC |
Max Secondary Short Circuit Current | 38000A |
Insulation Grade of Welding Transformer | Grade F |
Control Program Segment | Pressurize, increase by degrees, preheat, quench, welding, quench, temper, hold, stop, welding pulse number. |
Time Adjustment Range of Program Segment | 0~99 circle, Zero error |
Control Heat Adjustment Range | 15%~99% |
Network Voltage Fluctuation Compensation | When the rated value of network voltage fluctuates within the range of ±10%, the secondary voltage fluctuates within the range of ±3% |
Diameter of Welding Wheel | 100-120mm |
Width of of Welding Wheel | 3-5mm |
Revolving Speed of Welding Wheel | 1800-4000mm/min Adjustable |
Moving Range of Axis X | ≥1600mm |
Moving Range of Axis Y | ≥600mm |
Moving Range of Axis Z | ≥350mm |
Rated Bleed Pressure | 0.8MPa |
Consumption of Gas | 1m3/h |
Pressure of Source of Water | 0.2Mpa |
Temperature of Source of Water | 10-20°C |
Consumption of Cooling Water | 1000L/H |
Company Profile

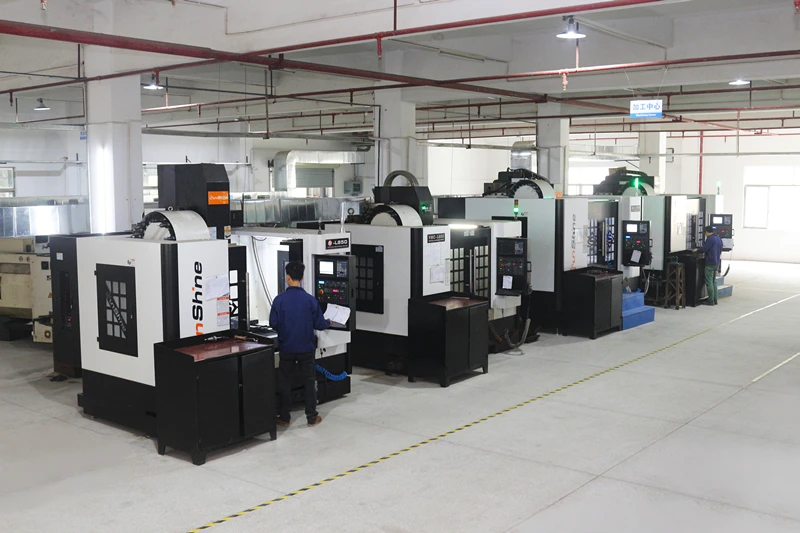

We have professional production team, production line, experienced technical experts who engaged in this industry for more than 20 years. The main products of our company include capacitor discharge spot welder, pneumatic AC pulse spot welder, three-phase secondary rectifying spot welder, medium frequency inverter spot welder, precision micro spot welder and high degree of automatic welding machine.
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale,competitive price. 2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
