Герметичный 16 мм металлический корпус автомобильный трехцветный переключатель с подсветкой тумблер 12 В постоянного тока автомобильные морские переключатели
- Категория товара: Toggle Switches >>>
- Поставщик (Оптовый магазин): Yueqing,Daier,Electron,Co.,LTD
Поделиться:
Описание и отзывы
Характеристики
Product Description
Item | 16mm Round Type IP67 Waterproof SPST ON ON Latching 12V RGB Ring Illuminated Metal Toggle Switch With Hardness for Car Boat |
Function | ON-ON SPST |
Cut-Out Size | 16mm |
Rating | 20A 12VDC;15A 125VAC |
Terminal options | Solder Terminal with Hardness |
Housing Material | Metal |
LED Color | RGB |
LED Type | 12V Ring Light |
Panel Thickness | 8mm Max |
Operating temperature | -25°C--+85°C |
Product Show
* This is a unique SPST ON/ON Lighted Toggle switch(Push Button Style) developed specifically for the pursuit of individualityand perfection in you.
* 16mm panel mounting hole diameter design to achieve the most beautiful Style, The chrome-plated Bezel and Actuator makes itshine.

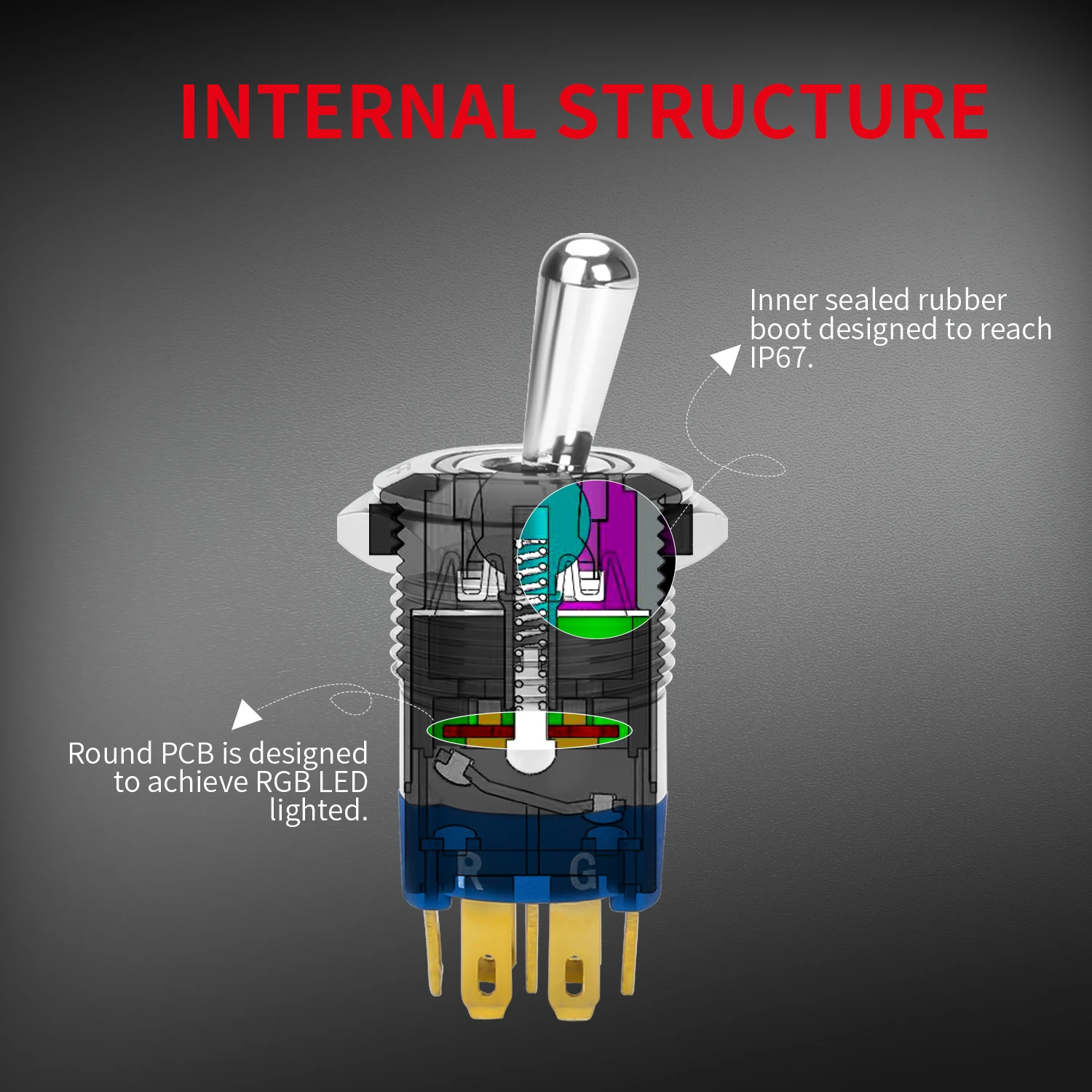

* No need to cover a waterproof rubber boot, this LED toggle switch can reach IP67 waterproof.
* This spst toggle switch with 12V~24V RGB Triple LED designed. Red, Green, Blue, Red+Green, Red+Blue, Green+Blue or
Red+Green+Blue LED Colors for your choice.
* Full gold plated terminals provide the best contact performance for the toggle switch, 20A 12VDC;15A 125VAC rating with 2 years Guarantee.
* 16mm panel mounting hole diameter design to achieve the most beautiful Style, The chrome-plated Bezel and Actuator makes itshine.
* No need to cover a waterproof rubber boot, this LED toggle switch can reach IP67 waterproof.
* This spst toggle switch with 12V~24V RGB Triple LED designed. Red, Green, Blue, Red+Green, Red+Blue, Green+Blue or
Red+Green+Blue LED Colors for your choice.
* Full gold plated terminals provide the best contact performance for the toggle switch, 20A 12VDC;15A 125VAC rating with 2 years Guarantee.

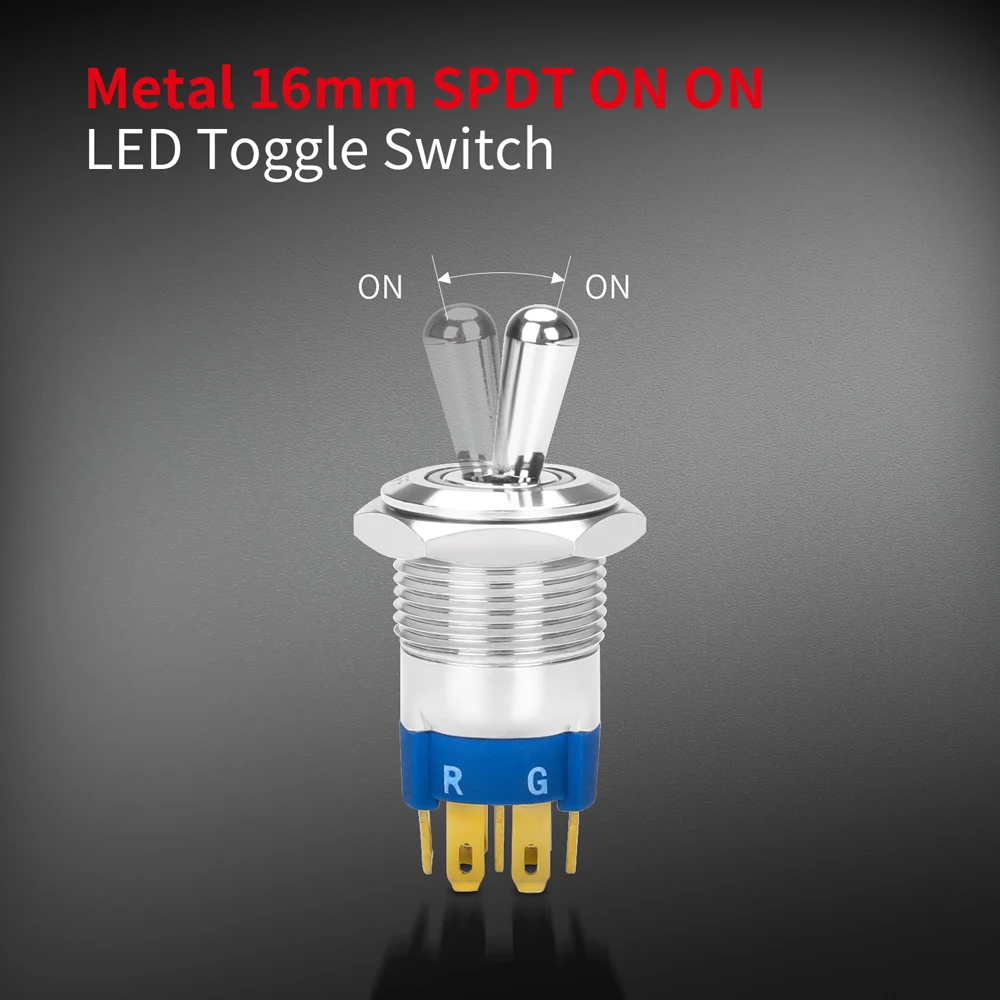

16mm Waterproof ON ON SPDT 7 PinsTricolor RBG Illuminated Marine Push Button Automotive Toggle Switch With 12V LED For Auto Car
Installation Method

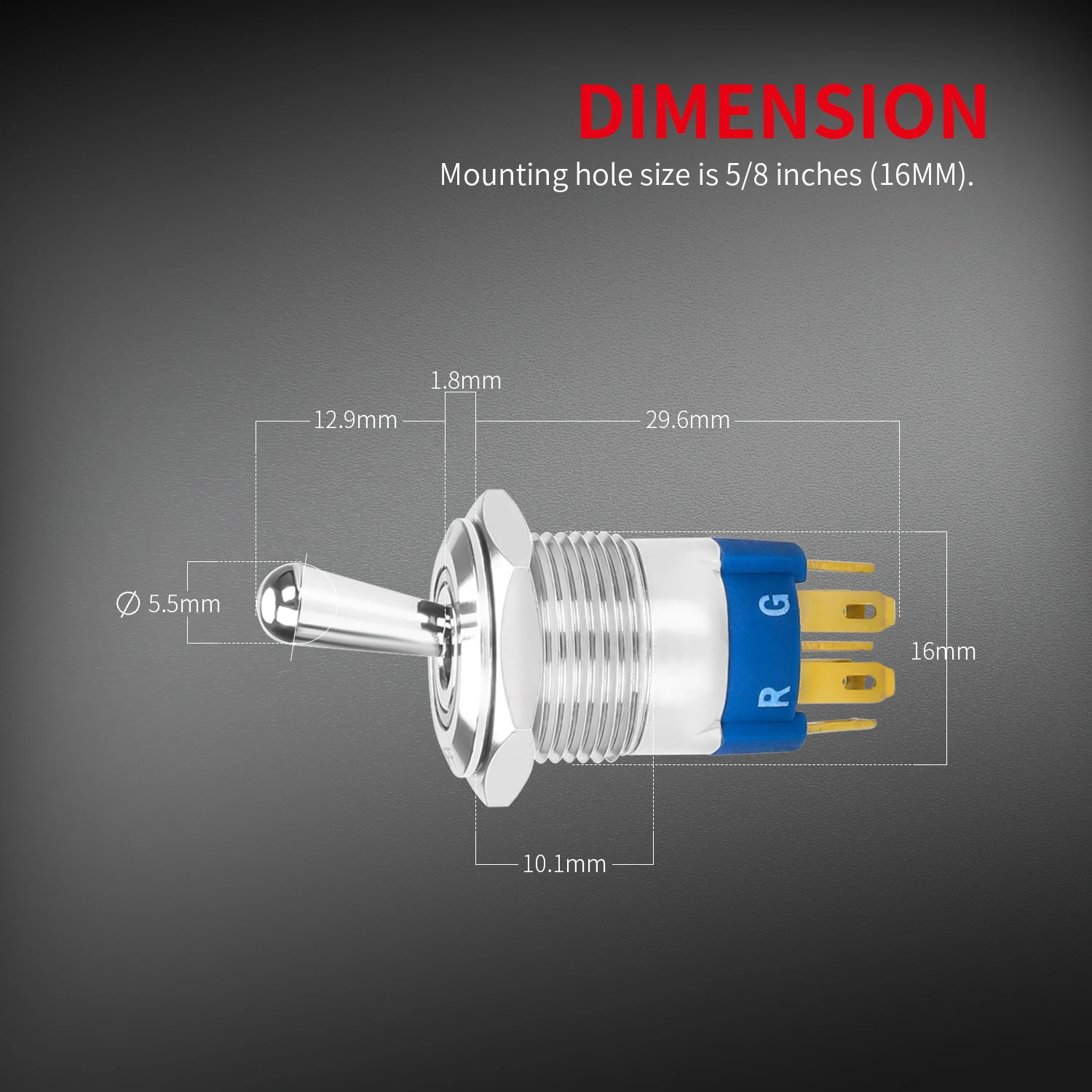

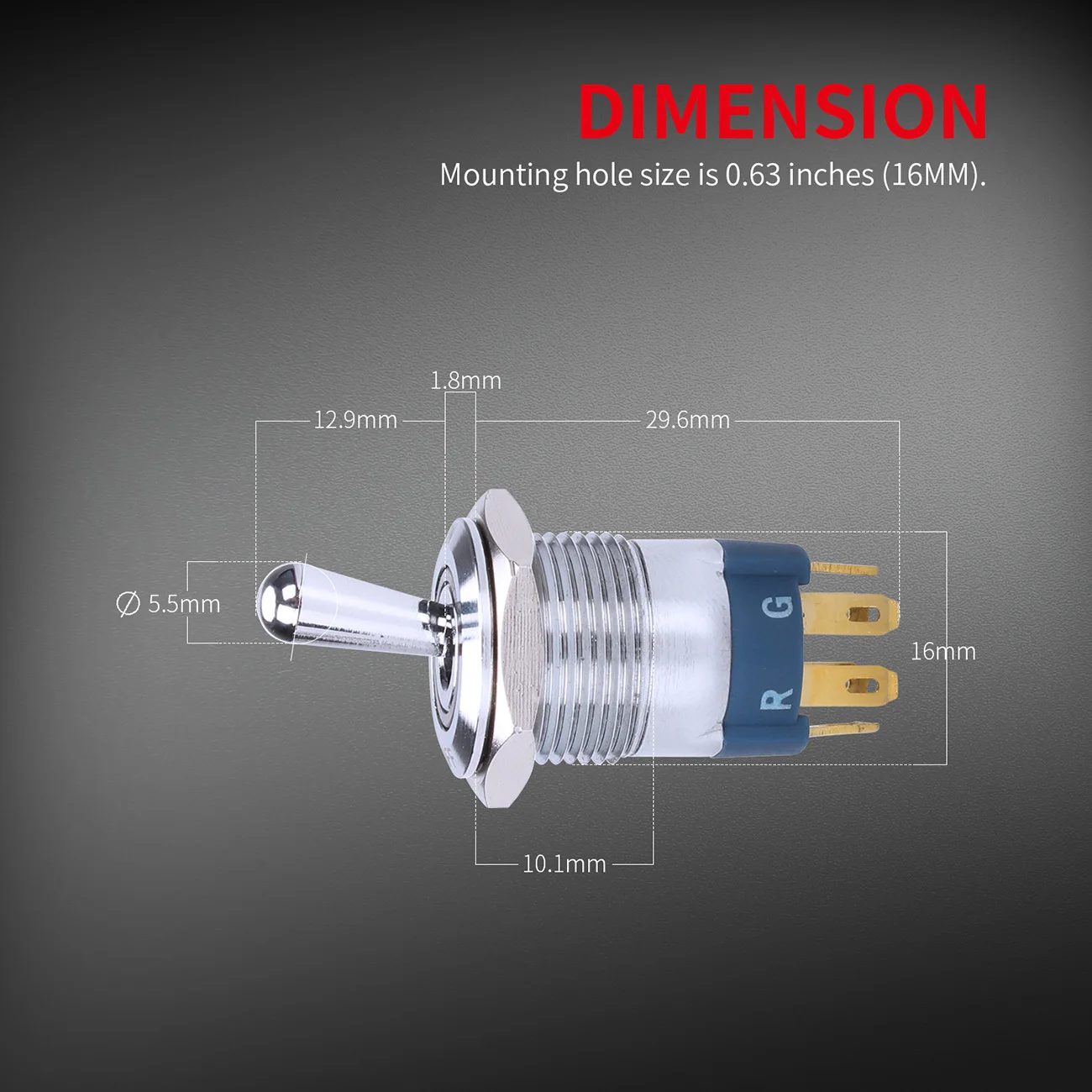

16mm panel mounting hole diameter design to achieve the most beautiful Style, The chrome plated Bezel and Actuator makes it shine.The nut of the new toggle switch is mounted on the back of the panel for better appearance, and easy cleaning.

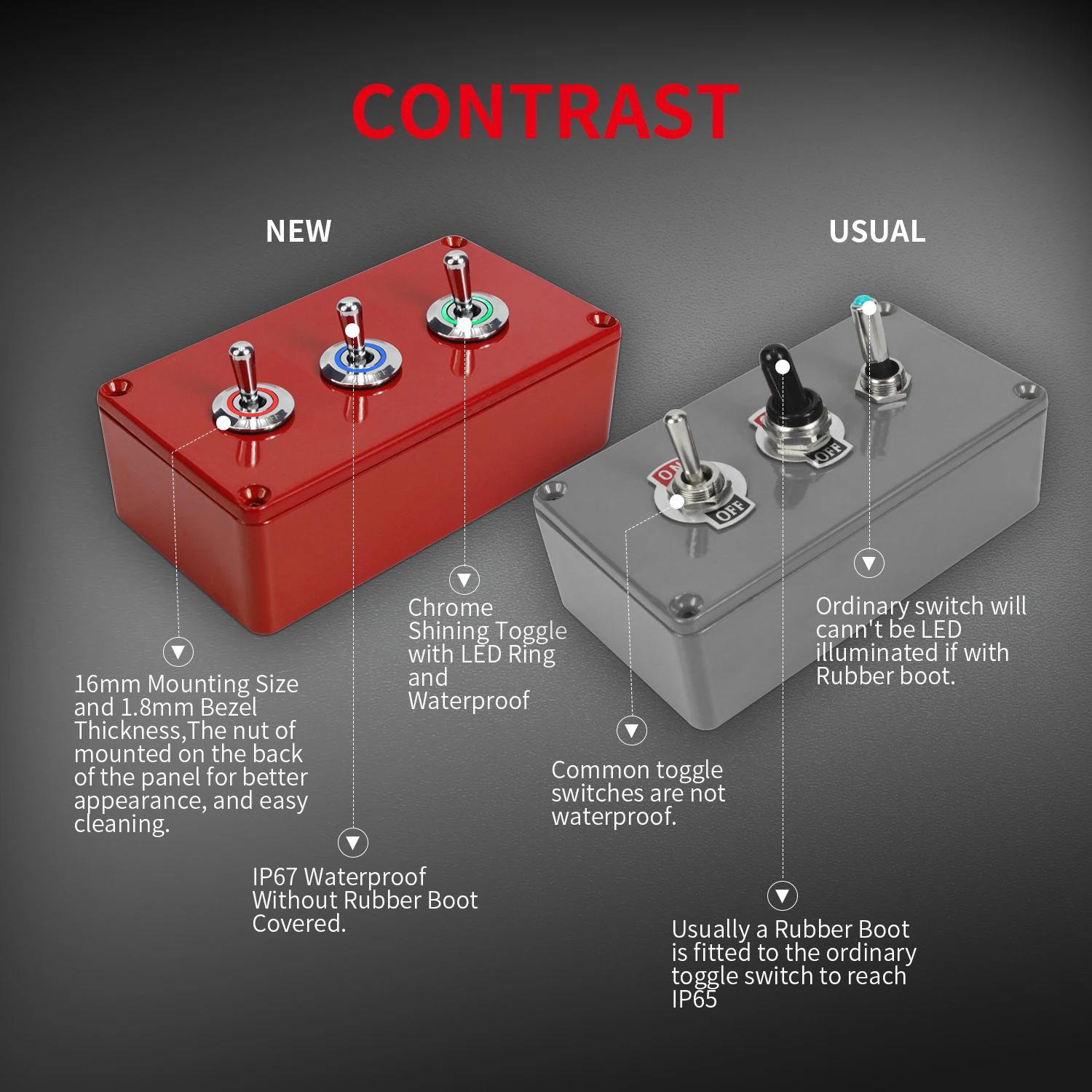

Function Selection
Ordinary switch will cann't be LED illuminated if with Rubber boot. New toggle switch can have both IP67 waterproof and LED
lights.
lights.
Waterproof Design
Usually a Rubber Boot is fitted to the ordinary toggle switch to reach IP65, but new toggle switch is designed to IP67 without waterproof boot.
Installation is simpler and more convenient.
Wiring Diagram A
1. The Dual colors of LED show the status of Device.
Switch OFF, Red light ON;
Switch ON, Blue light ON, Device ON.
Wiring Diagram B
2.Take Blue Light as an example,
Switch OFF, Light OFF, Device OFF;
Switch ON, Blue Light ON, Device ON.
Switch OFF, Light OFF, Device OFF;
Switch ON, Blue Light ON, Device ON.
Wiring Diagram C
3.Take Blue Light as an example,
Switch OFF, Light ON, Device OFF;
Switch ON, Blue Light OFF, Device ON.
Switch OFF, Light ON, Device OFF;
Switch ON, Blue Light OFF, Device ON.
