Product Description

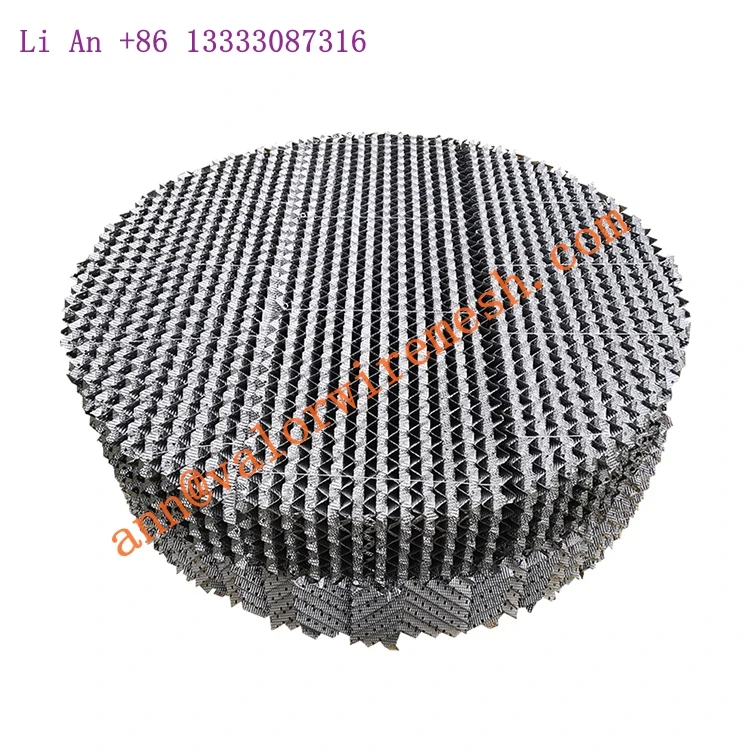

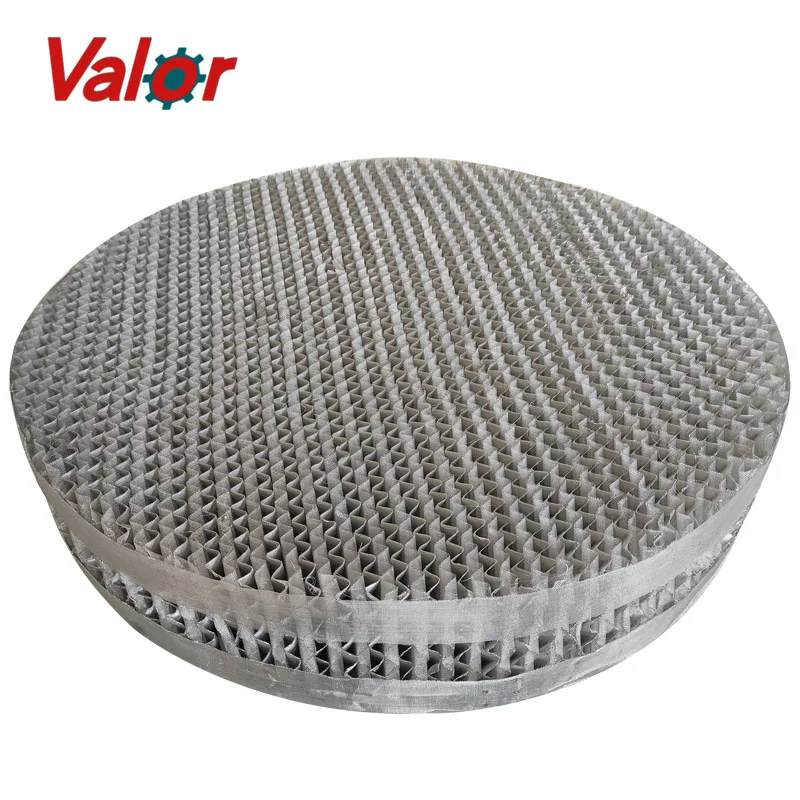

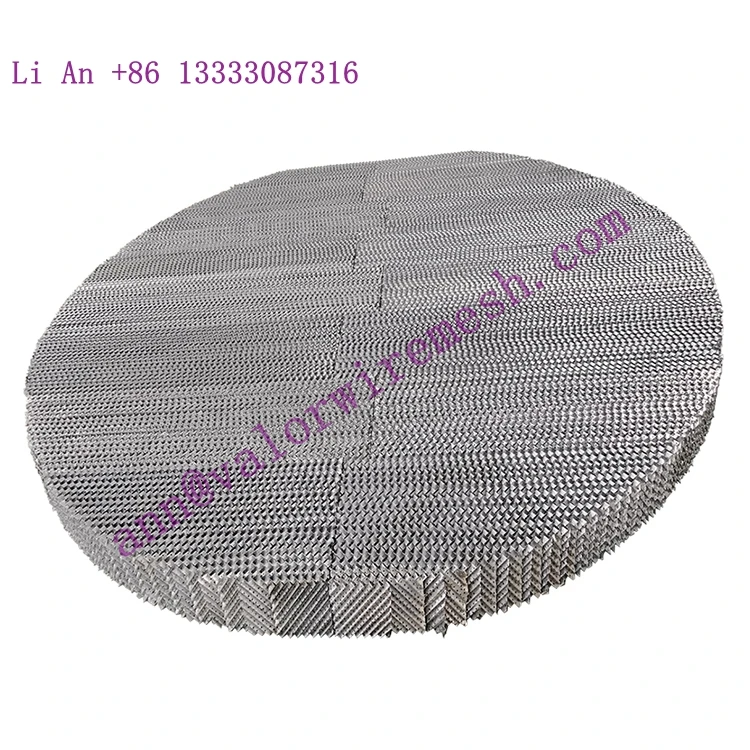

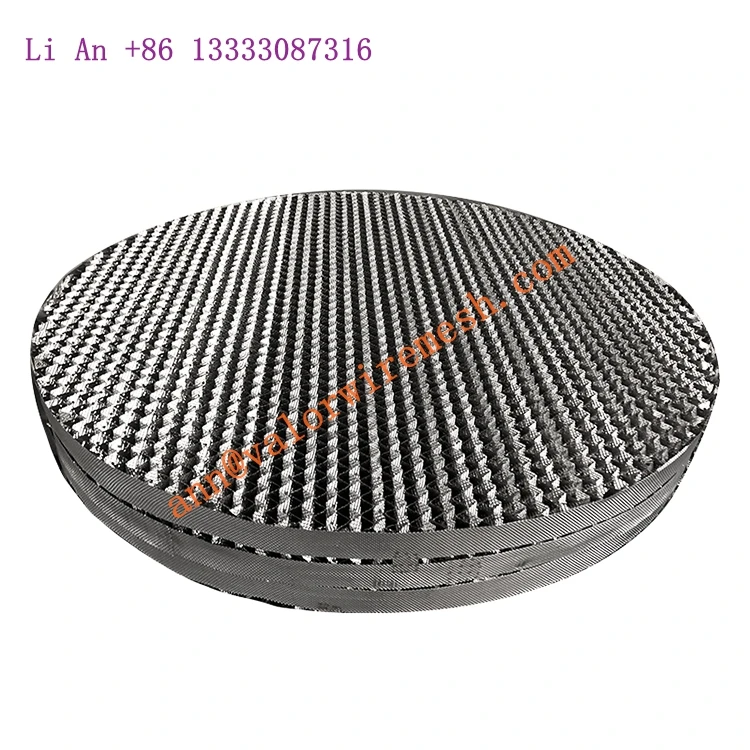

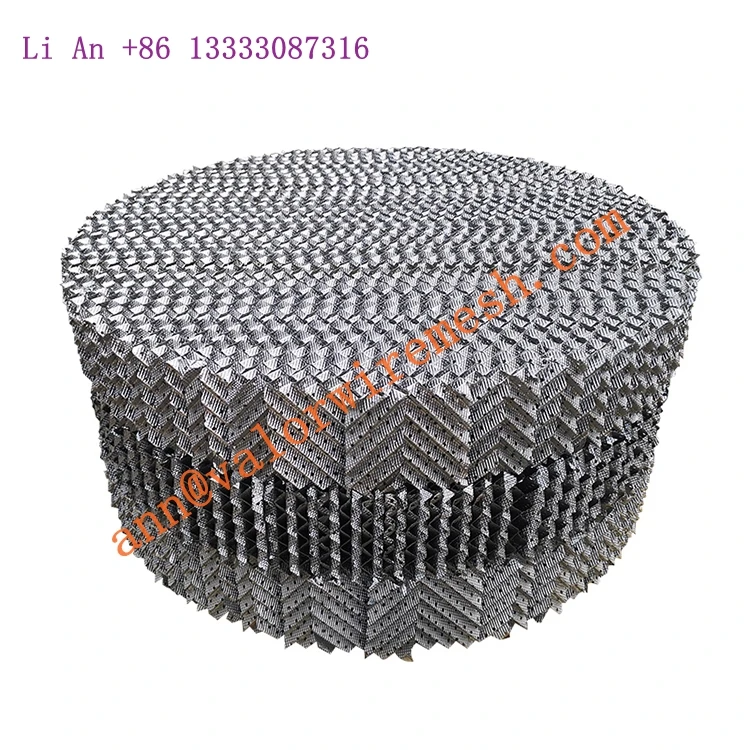

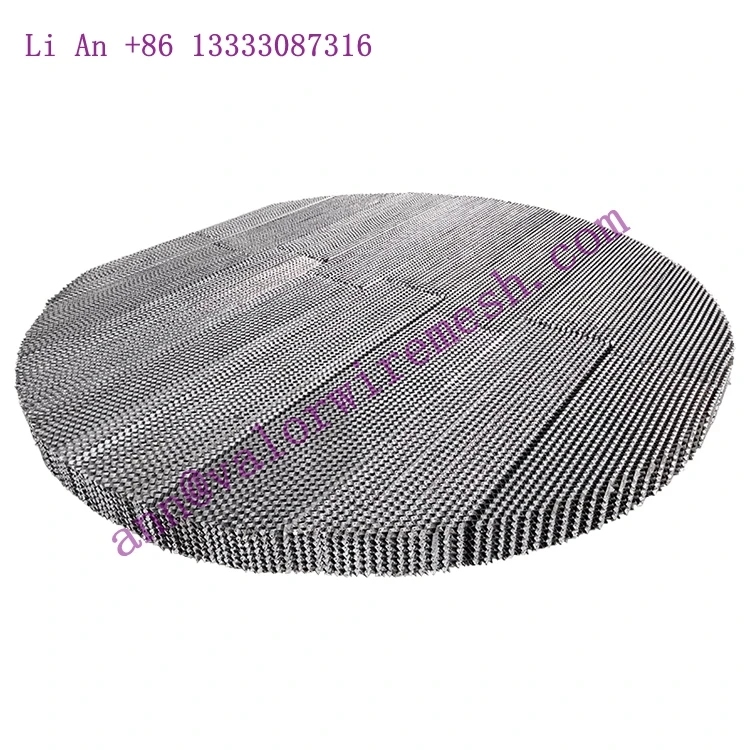

Corrugated Orifice Plate Structured Packing

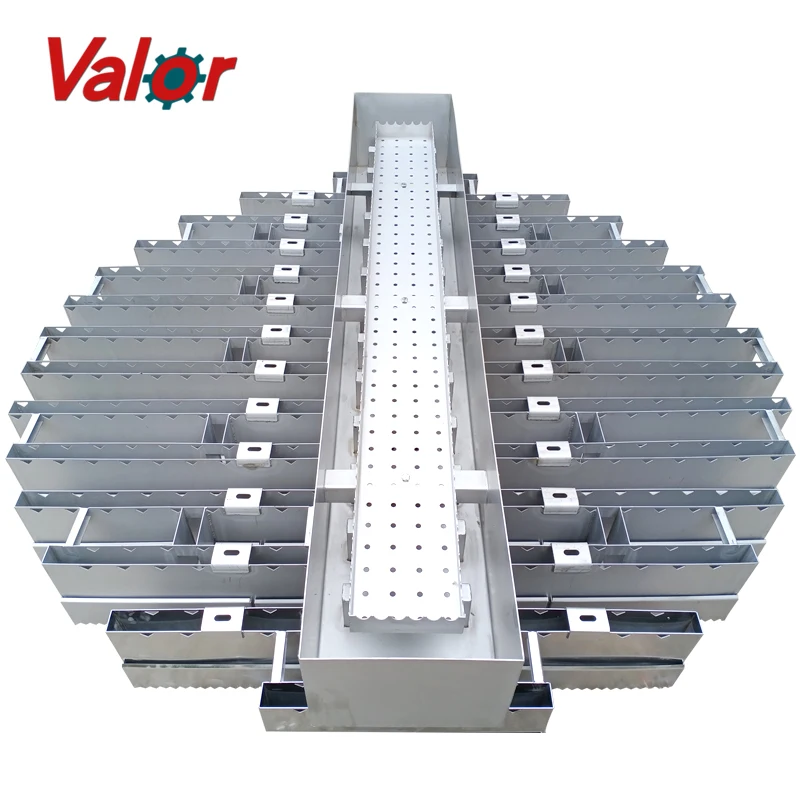

Structured packing is a kind of packing arranged and stacked in accordance with uniform geometry in the tower. The geometry of the whole tower section is regular, symmetrical and uniform, and the gas-liquid flow path is specified, which reduces the phenomenon of channel flow and wall flow, and the pressure drop can be very small. Under the same energy cost and pressure drop, it can provide more specific surface area than random packing, and achieve higher mass transfer and heat transfer efficiency in the same volume. At the same time, due to the uniformity, regularity and symmetry of its structure, when it has the same specific surface area as random packing, its void ratio and flux is larger, and its comprehensive processing capacity is much larger than tray tower and random packing tower. After careful design, manufacture, installation and operation of tower internals (such as gas-liquid distributor), the industrial amplification effect is not obvious. In recent decades, structured packing has been widely used in many towers in fine chemical industry, perfume industry, oil refining, fertilizer, petrochemical industry and other fields.
Our company mainly produces and supplies two kinds of metal structured packing, corrugated orifice plate structured packing and wire mesh structured packing.
Our company mainly produces and supplies two kinds of metal structured packing, corrugated orifice plate structured packing and wire mesh structured packing.
Corrugated orifice plate structured packing has the advantages of large flux, small resistance, high efficiency, low cost and strong anti plugging ability. 250 type corrugated packing is the first one developed and applied in industrial production, which reflects the excellent performance of corrugated packing. It has good separation ability and wide operation range. It can replace the general tower and revamp the old tower to extend the service life. 250 type packing is widely used in many towers of chemical industry, oil refining, gas purification and other industries (such as ethylbenzene, styrene, aromatics, tall oil, methanol, ethanol, quench tower, atmospheric and vacuum distillation tower, natural gas drying, carbon dioxide and hydrogen sulfide absorption and analysis tower, ethylene oxide absorption and analysis tower, acrylonitrile absorption tower, etc.).
Product Parameters
Type | 125 X/Y |
Surface Area / m2/m3 | 125 |
Wave Height / mm | 25.4 |
Theorectical Plate Number / m-1 | 1 - 2 |
Max.F-factor / m/s.(kg/m3)0.5 | 3 |
Inclination of Corrugation | X: 30° Y: 45° |
Type | 250 X/Y |
Surface Area / m2/m3 | 250 |
Wave Height / mm | 12.5 |
Theorectical Plate Number / m-1 | 2 - 3 |
Max.F-factor / m/s.(kg/m3)0.5 | 2.6 |
Inclination of Corrugation | X: 30° Y: 45° |
Type | 350 X/Y |
Surface Area / m2/m3 | 350 |
Wave Height / mm | 9 |
Theorectical Plate Number / m-1 | 3.0 - 3.5 |
Max.F-factor / m/s.(kg/m3)0.5 | 2 |
Inclination of Corrugation | X: 30° Y: 45° |
Type | 500 X/Y |
Surface Area / m2/m3 | 500 |
Wave Height / mm | 6.3 |
Theorectical Plate Number / m-1 | 4 - 5 |
Max.F-factor / m/s.(kg/m3)0.5 | 1.8 |
Inclination of Corrugation | X: 30° Y: 45° |
Type | 700 X/Y |
Surface Area / m2/m3 | 700 |
Wave Height / mm | 4.5 |
Theorectical Plate Number / m-1 | 5 - 7 |
Max.F-factor / m/s.(kg/m3)0.5 | 1.6 |
Inclination of Corrugation | X: 30° Y: 45° |
452 Y high capacity structured packing
252 Y high capacity structured packing
Installation Instructions
It is a very basic and simple procedure. Once we have optimized the dimensions of the packing we must ensure that the inside of the column is clean and has no weld joints or bulges to obstruct the installation. The supporting structure can be made of two cross bars at 90 degrees to each other and in larger columns the same construction must be repeated at a pitch of 150mm.
Once the support is in place, successive modules of Hualai structured packing must be inserted from the top – down. Normally a wooden disc (having a slightly small diameter than the packing) is mounted on a pole and used to push each segment down to their position due to the very narrow diameter of the column.
Once the support is in place, successive modules of Hualai structured packing must be inserted from the top – down. Normally a wooden disc (having a slightly small diameter than the packing) is mounted on a pole and used to push each segment down to their position due to the very narrow diameter of the column.

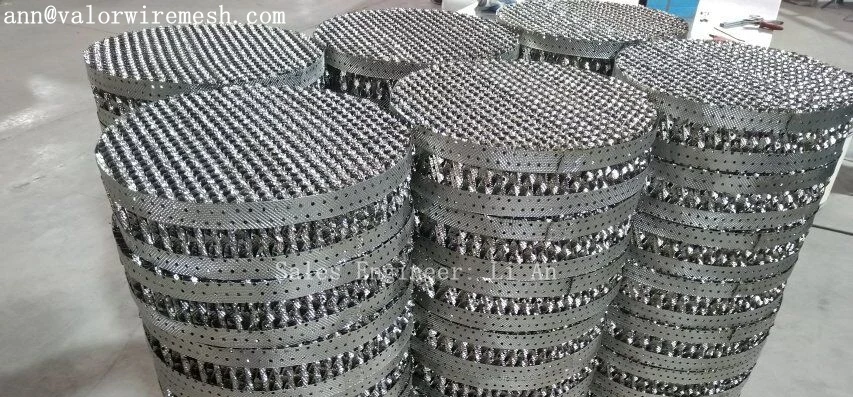

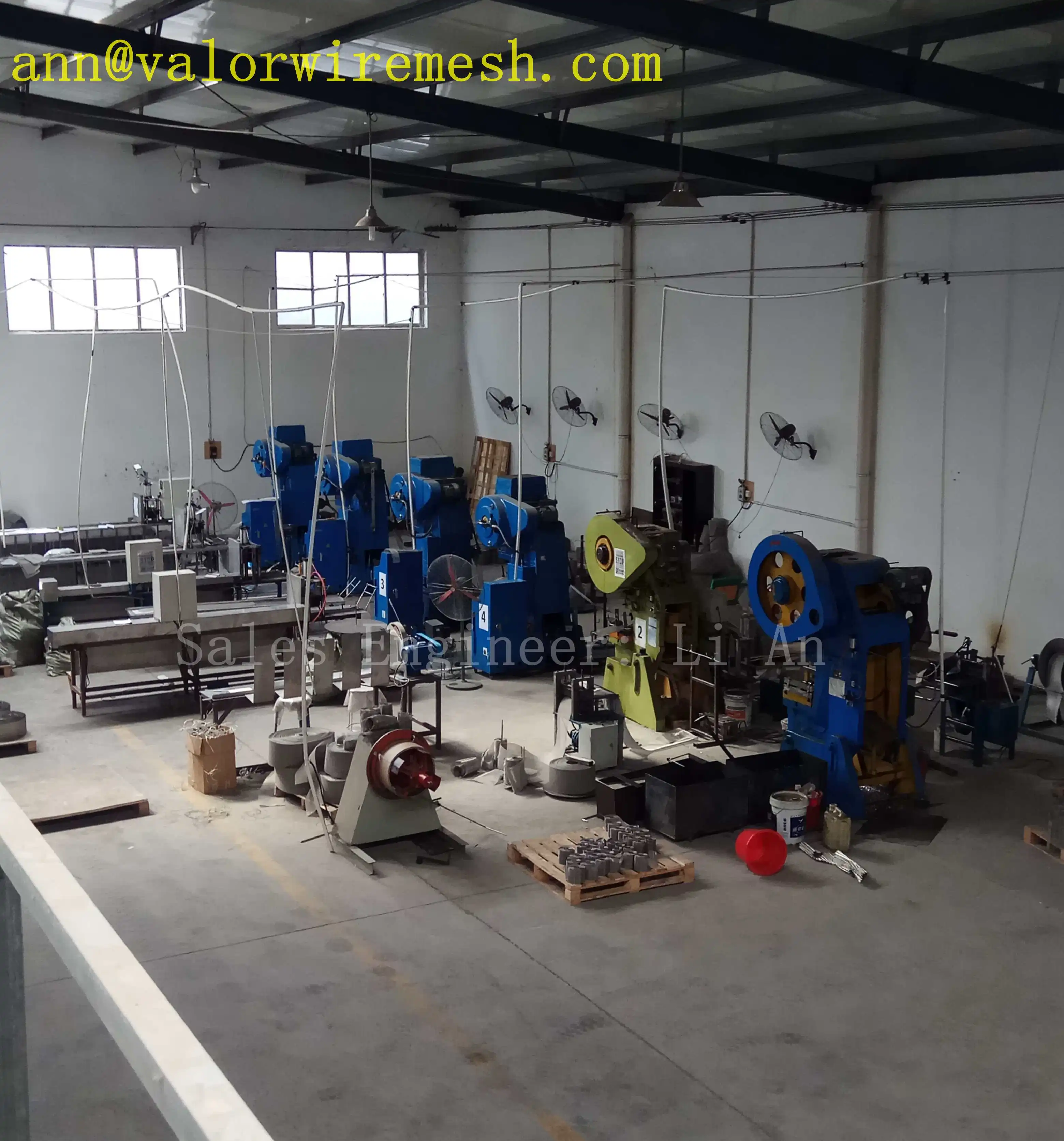

Workshop & Product Packaging
Why Choose Us
We are in continuous progress of providing more professional, more considering, more competitive products. We have:
1.More than 12 years’ development and market leading position;
2.Close cooperation with universities and professional designing institutes;
3.Experienced engineers in both designing and manufacturing;
4.Skilled welders, devoted workers and enthusiastic sales team;
5.Advanced laser cutting, plate bending, punching and welding machines.
Warmly welcome your inquiry!
