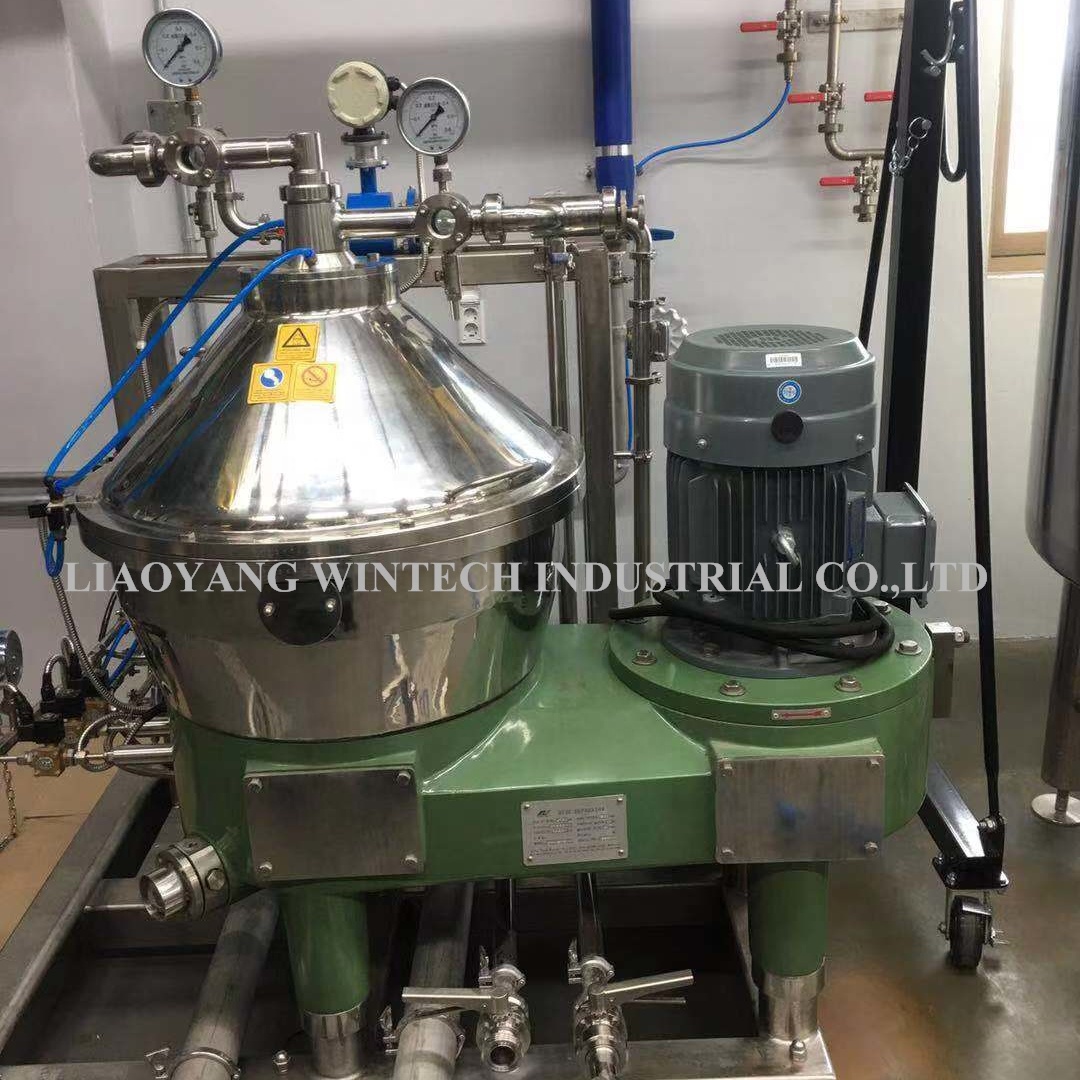

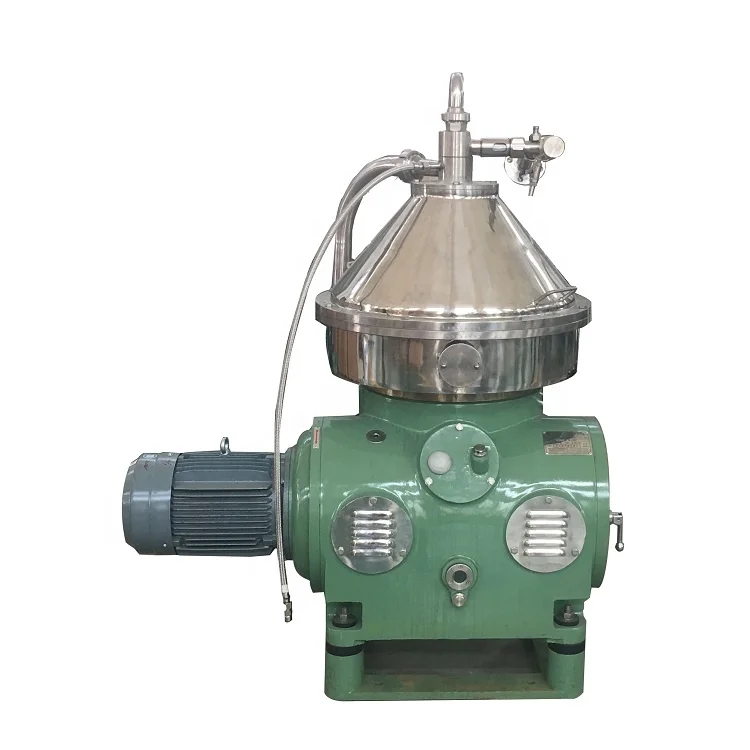

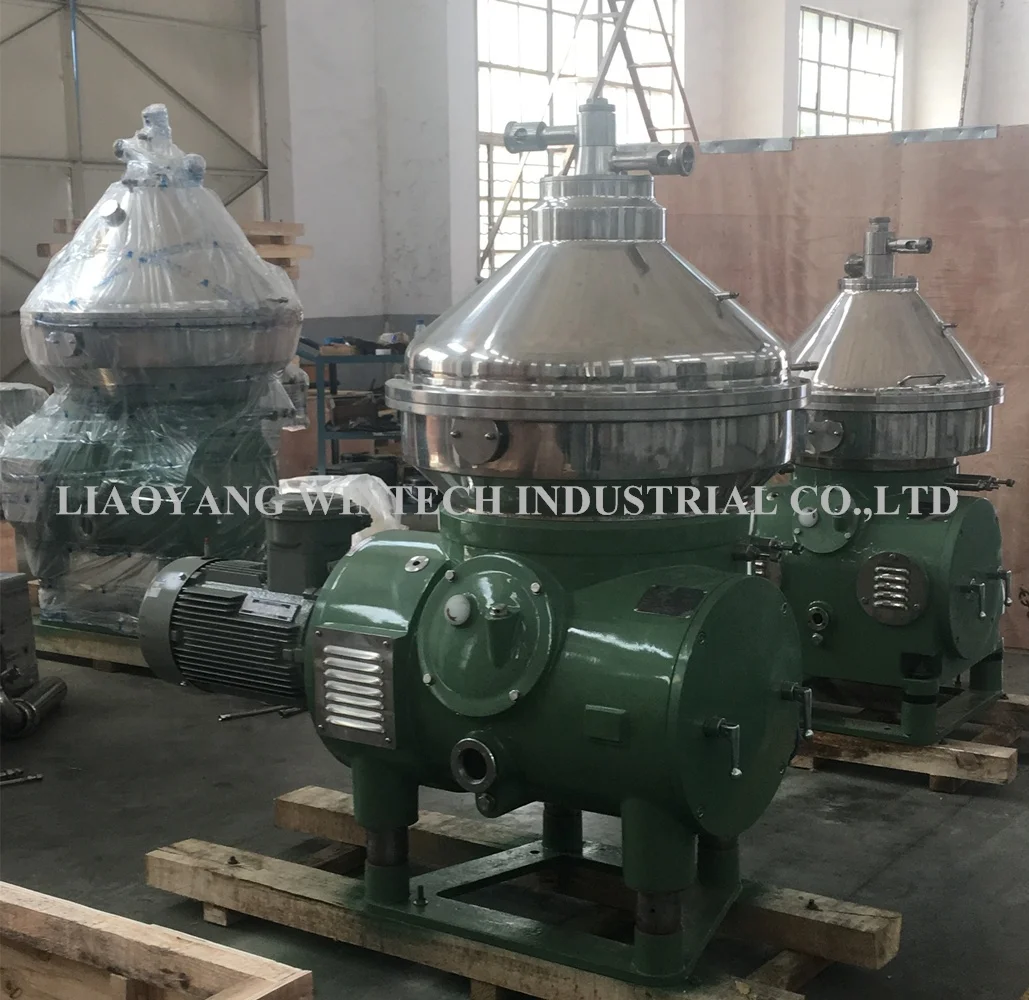

Взрывозащищенный дисковый центрифужный сепаратор для извлечения этанола
- Категория товара: Separation Equipment >>>
- Поставщик (Оптовый магазин): Liaoyang,Wintech,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

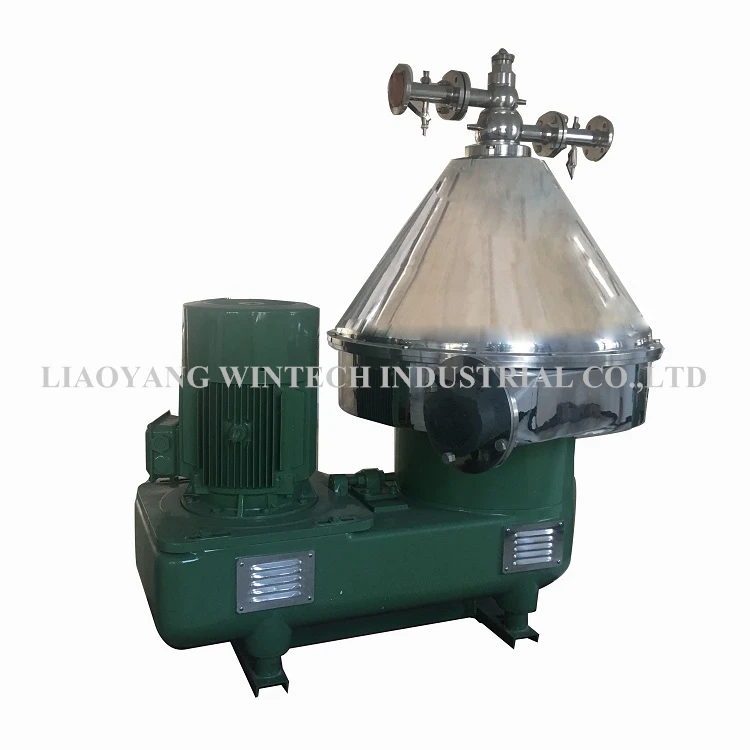

Disc stack centrifuge
The disc separator is specially used for the two-phase and three- phase separation. The two-phase separation is to separate the
suspended solid from liquid or two liquids which have the different specific gravity and are immiscible. The three-phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time.
The disc can shorten the settling distance of solid particles (or droplets) and expand the settling area of the drum. The disc installed in the drum greatly improves the production capacity of the separator.
suspended solid from liquid or two liquids which have the different specific gravity and are immiscible. The three-phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time.
The disc can shorten the settling distance of solid particles (or droplets) and expand the settling area of the drum. The disc installed in the drum greatly improves the production capacity of the separator.
Application Field
1. Dairy beverage clarification
2. Whey protein,starch and food powder separation
3. Beer wine yeast separation
4. Biology pharmaceutical extract separation5. Syrup clarification
6. Waste oil separation
7.Biodiesel separation
8.Chemical separation
9.Marine vessel application
2. Whey protein,starch and food powder separation
3. Beer wine yeast separation
4. Biology pharmaceutical extract separation5. Syrup clarification
6. Waste oil separation
7.Biodiesel separation
8.Chemical separation
9.Marine vessel application

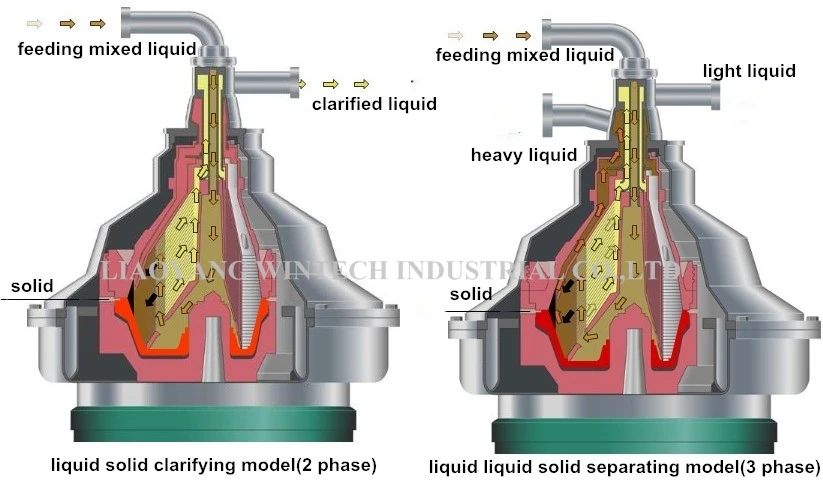

Working Principle
The bowl rotates at a high speed around the main axis, driven by a motor through hydraulic coupling and screw gear pair. Liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. With the action of centrifugal force , heavy liquid flows along the inner wall of discs to the inner wall of the bowl, then it will be discharged by the heavy liquid pump, the light liquid will be discharged by the light liquid pump, which flows along the inner wall of discs into center pipe and then up to high liquid outlet,the larger solid phase particles left will sediment on the bowl's wall and then will be discharged by the sliding bowl through the sediment outlet.
Product Parameters
Mode | Treatment capacity(L/H) | Inlet pressure (Mpa) | Outlet pressure (Mpa) | Motor power (kw) | Weight (kg) | Outline dimension (mm) |
DHNY400 | 2000-5000 | 0.05 | 0.3 | 7.5 | 1500 | 1600x1300x1600 |
DHNY500 | 5000-10000 | 0.05 | 0.4 | 15 | 1800 | 1800x1300x1800 |
DHNY550 | 10000-20000 | 0.05 | 0.4 | 22 | 2500 | 2050x1600x2050 |
DHNY700 | 25000-35000 | 0.05 | 0.3 | 37 | 3000 | 2200x1800x2000 |
DHYZ204 | 1000-1500 | 0.05 | 0.2 | 4 | 600 | 900x850x1400 |
DHYZ400 | 1000-3000 | 0.05 | 0.3 | 7.5 | 1500 | 1600x1300x1600 |
DHYZ500 | 3000-7000 | 0.05 | 0.4 | 15 | 1850 | 1800x1300x2030 |
DHYZ550 | 5000-10000 | 0.05 | 0.4 | 22 | 2550 | 2050x1600x2050 |
DHY400 | 1200-3000 | 0.05 | 0.3 | 7.5 | 1500 | 1600x1300x1600 |
DHY500 | 2500-8000 | 0.05 | 0.4 | 15 | 1800 | 1800x1300x1800 |
DHY550 | 6000-15000 | 0.05 | 0.4 | 22 | 2500 | 2050x1600x2050 |
DHY700 | 15000-35000 | 0.05 | 0.3 | 37 | 3000 | 2200x1800x2000 |

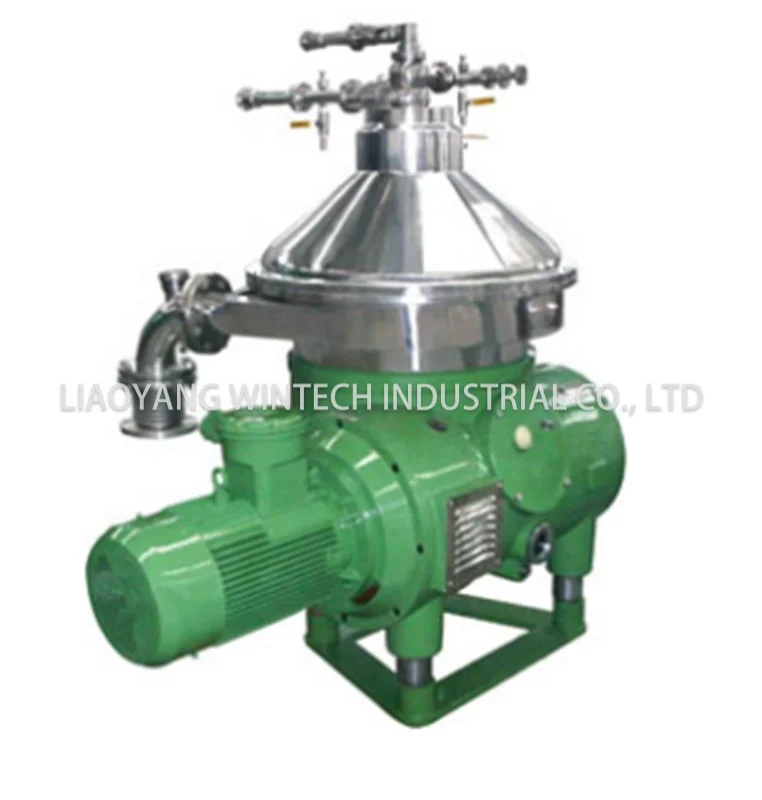

Product More Pictures
Our Honors
We focus on providing good quality products and professional service for our clients.

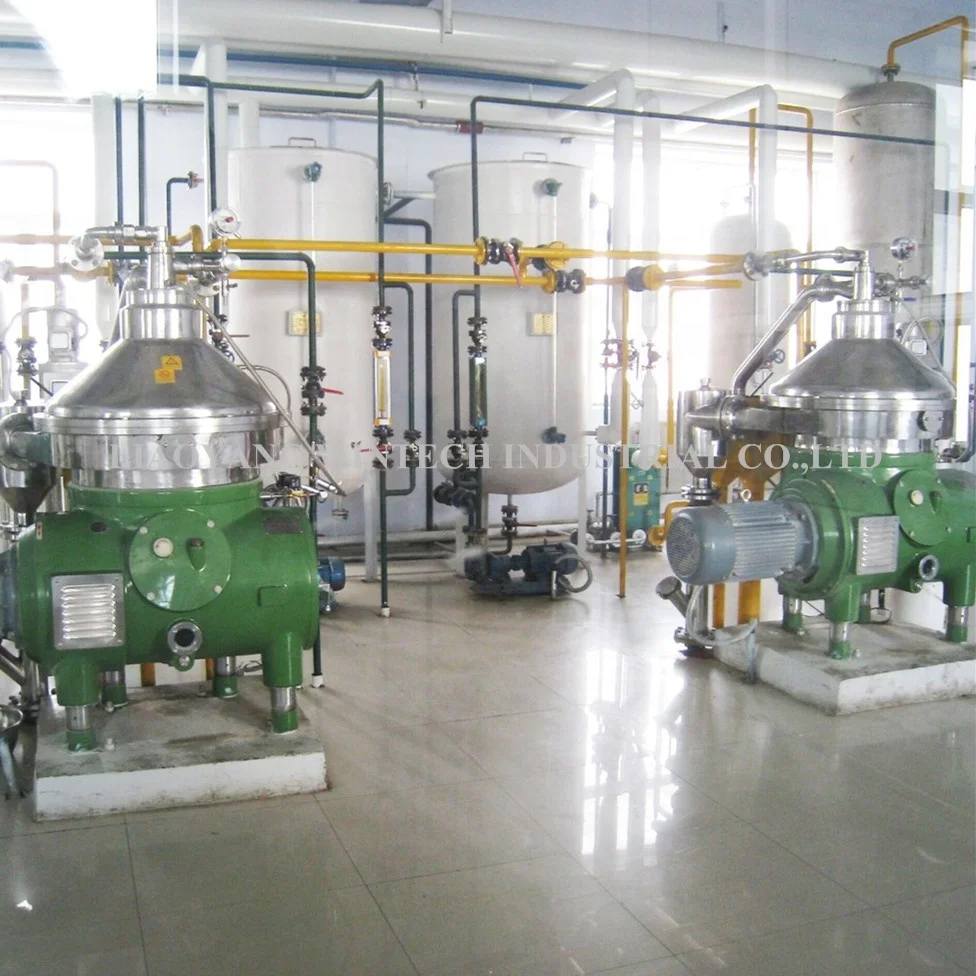

Customer Photos
Company Profile
LIAOYANG WINTECH INDUSTRIAL CO., LTD is a Centrifugal Filter Equipment processing and manufacturing as the main industry, the main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, and corresponding supporting equipments, eg. food line, pharmaceutical line, chemical line. At the same time to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future
