Product Description

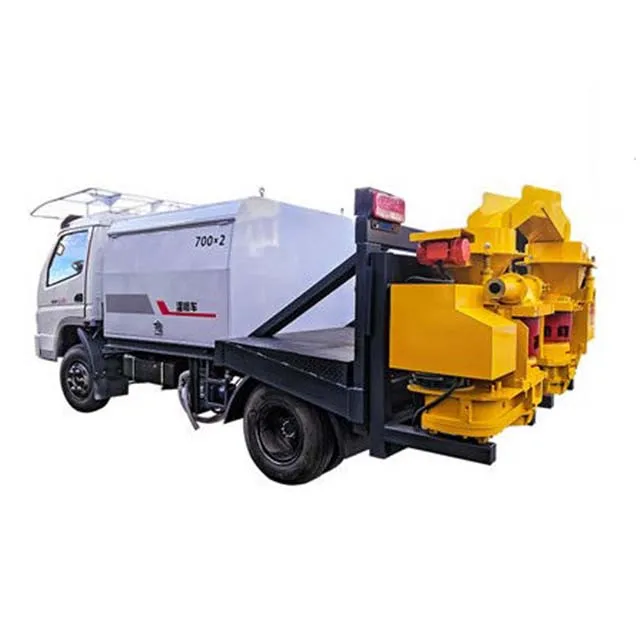

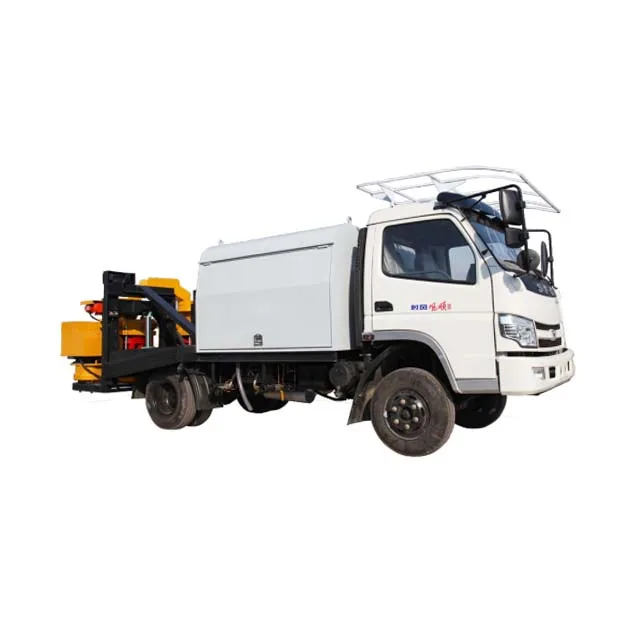

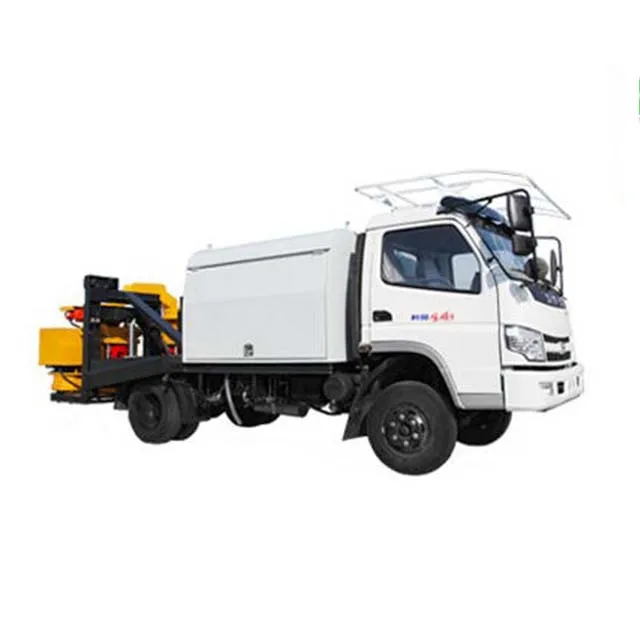

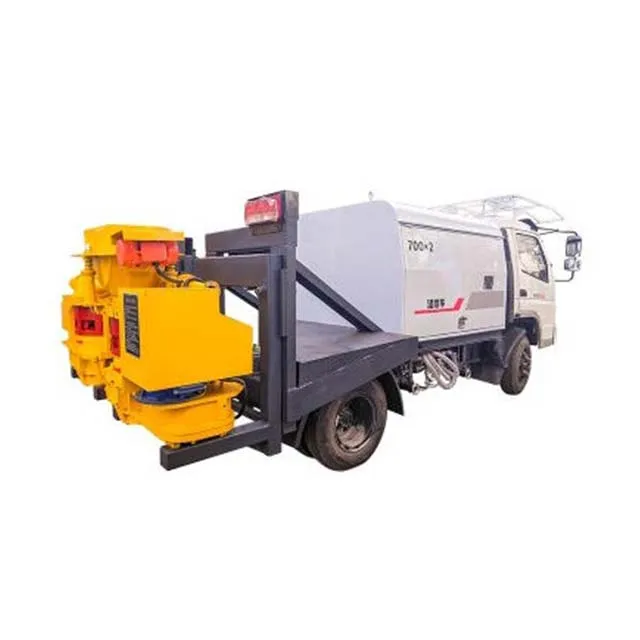

Description of Truck-mounted Double 5-14m3/h Shotcrete Machine Concrete Shotcreting Sprayer
It consists of concrete spraying system, carrier, frame device, feeding system, hydraulic system, accelerating dosing system, electrical control system and high pressure cleaning system. Three main features are as follows:

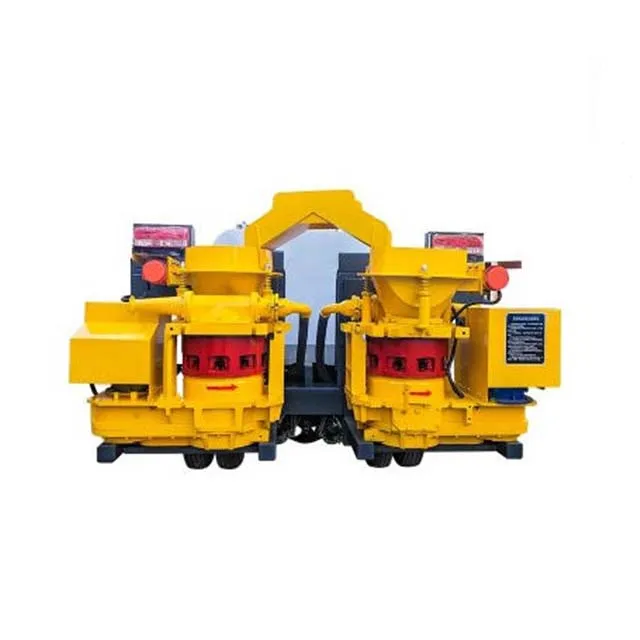

1.Two HS600/700 concrete spraying machines are installed the rear of a standard truck, easy to move and operate ;
2.High-power and adjustable screw conveying device automatically distributes mixed concrete to these two concrete spraying machines. It is convenient, reliable and cost-effective
3.The truck is equipped with an accelerator tank, a water tank, a high pressure washing pump and a set of hydraulic system. Two concrete spraying machines can be freely raised and lowered through hydraulic system of the truck.
Product Parameters
Parameters of Truck-mounted Double 5-14m3/h Shotcrete Machine Concrete Shotcreting Sprayer
Technical Parameters | Data | Technical Parameter | Data |
Production capacity(m³/h) | 5-14 | Pump pressure(Mpa) | 20 |
Shotcrete machine motor(kw) | 7.5×2 | Tyre specifications | 7.0(Front)/7.5(Rear) |
Maximum convey distance(m) | 30(Horizontal)/ 20(Vertical) | Driving speed(kw/h) | ≤20 |
Maximum grain size(mm) | 15 | Dimensions (LxWxH)mm | 6500×2700×2200 |
Working wind pressure (Mpa) | 0.4-0.6 | weight(kg) | 6500 |
Air consumption(m³/min) | ≥24 | Diesel(kw) | 65/ Wuxi diesel490 |
Voltage(v) | 380 | Total motor power (kw) | 23.5 |

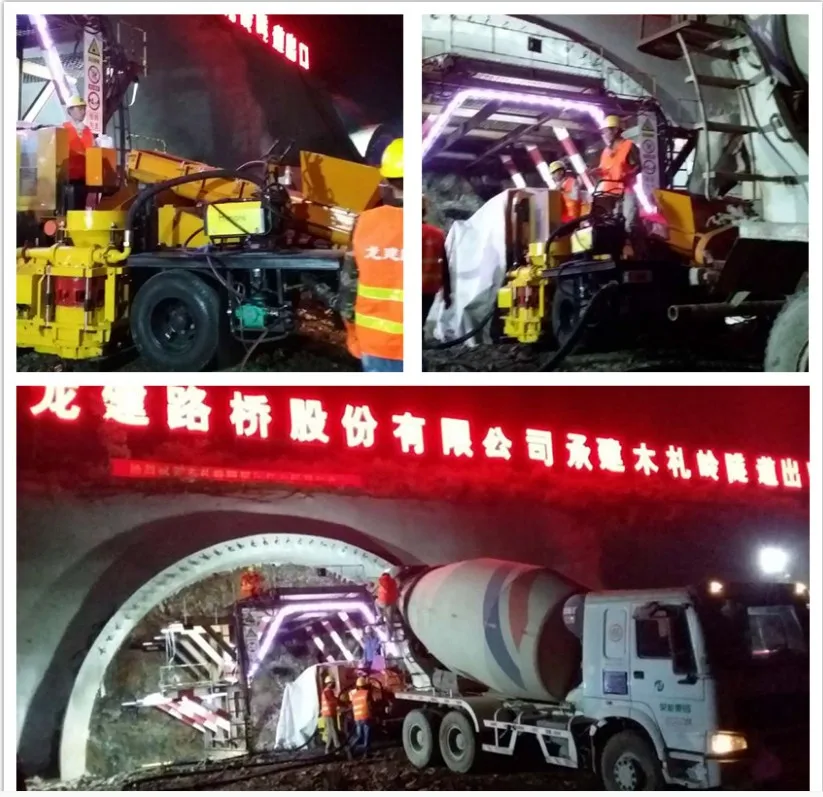

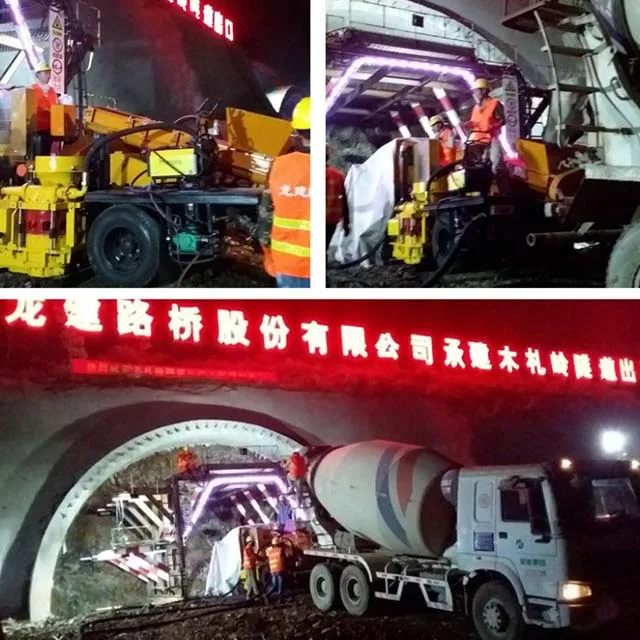

Construction Site
Photos of Truck-mounted Double 5-14m3/h Shotcrete Machine Concrete Shotcreting Sprayer
Certifications
FAQ
How to get accurate quotation? Please kindly let us know following details:
1. What project do you need the machine for?
2. What material do you want to process? Wet or dry? What's the material size?
3. What's the output per hour?
4. What's the Drive type? electric motor, pneumatic motor or diesel engine?
Q1.Are you manufacturer or trading company?
A:We are manufacturer.We have our own factory.
Q2.How to pay for this order?
A: TT, 30% deposit 70% before shipment;
L/C 100% at sight
Q3. What is the lead time?
A: It will take about 10 working days.
Q4: How to pack my machine?
A: Your machine will be well rapped by plastic film and then packed by fumigation-free wooden case.
Q5.Do you test all your goods before delivery?
A:Yes, we 100% will test machine before delivery.
Q6.Can you produce according to my samples?
A:Yes,we can produce by your samples or technical drawings.
Q7.Can I get help when the machine don't work?
A:Yes,we provide help until your machine can work normally.
Q8. Any question, please just fell free to ask!!!
