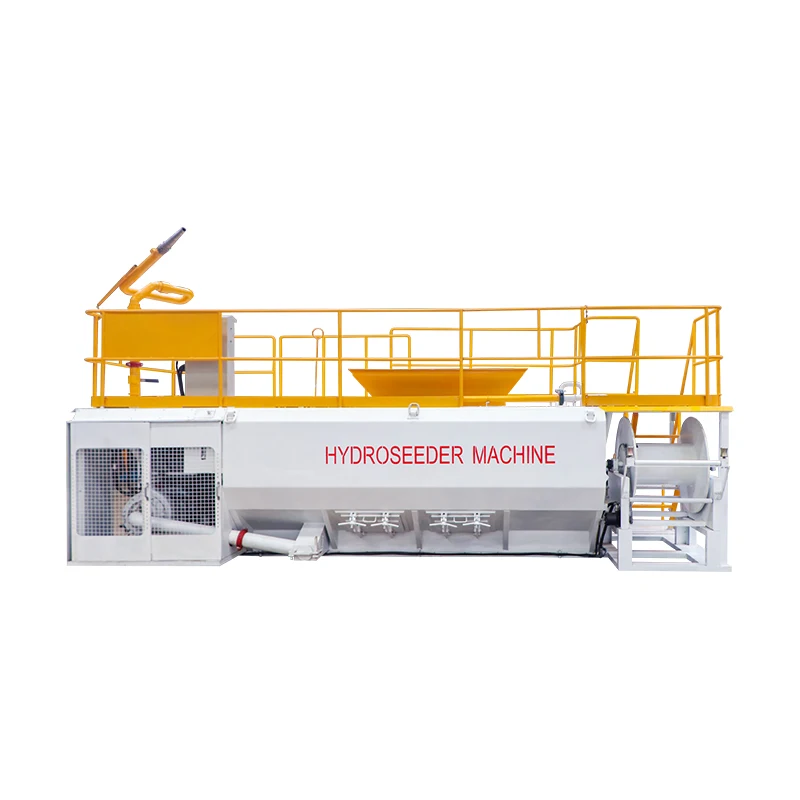

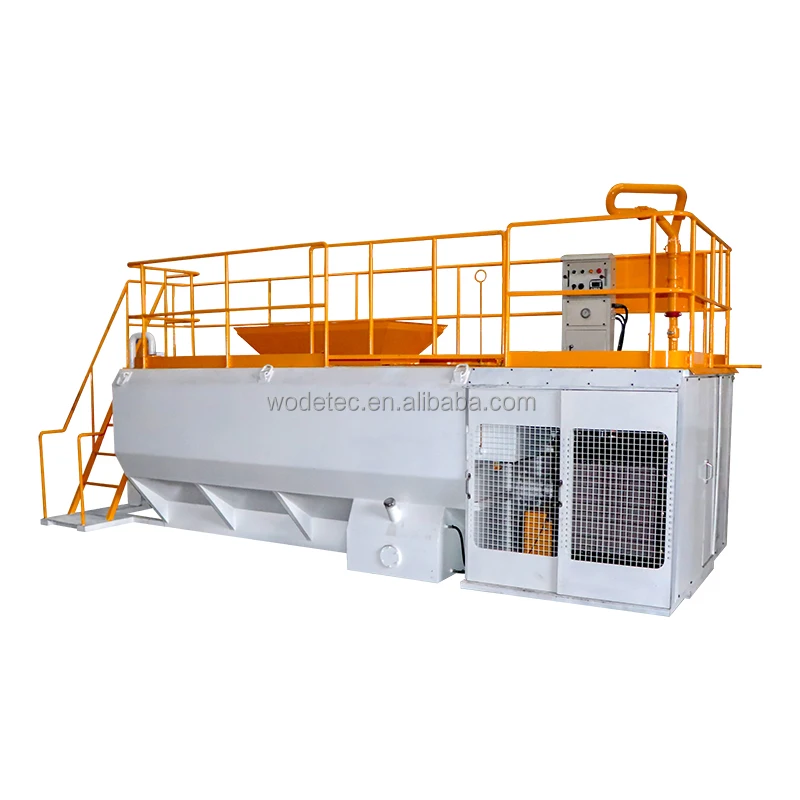

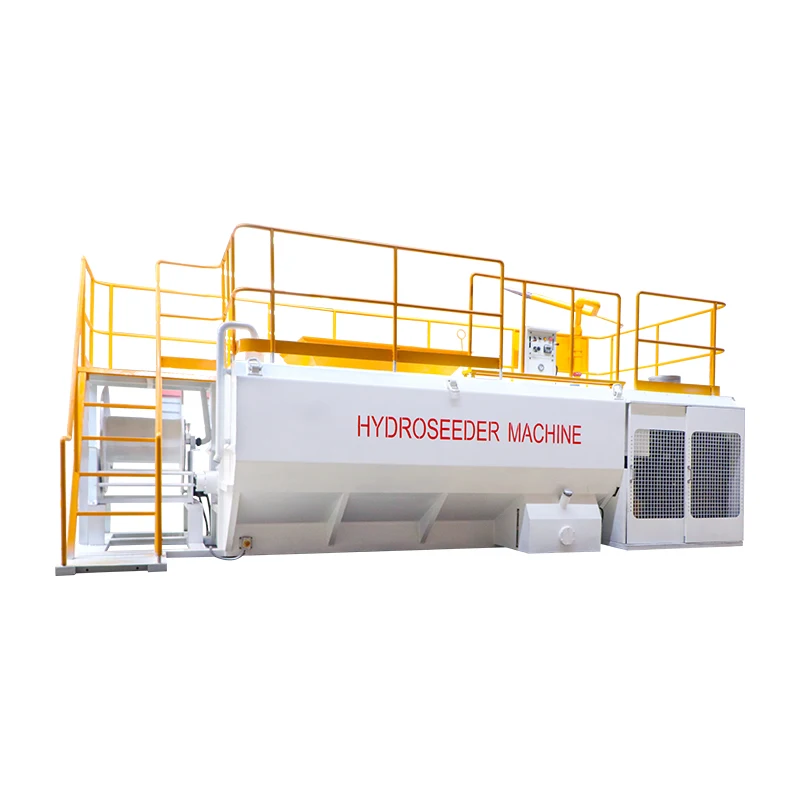

Product Description

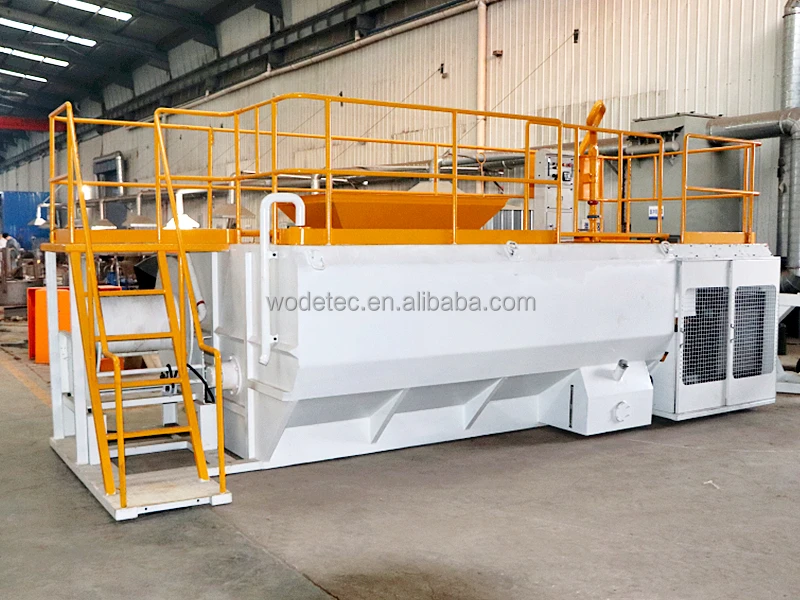

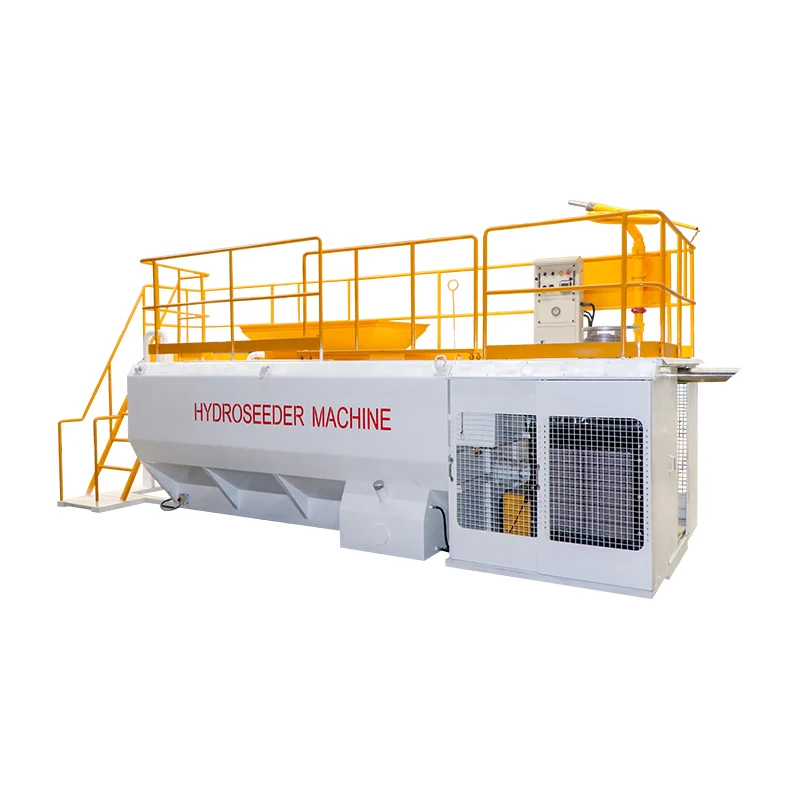

WHS08100 and WHS06100 are designed for mid to larger-sized hydroseeding projects. From large residential and commercial properties, highway roadsides, industrial parks, sports fields, mine reclamation sites and more, the two types are an economical choice for performance and production.
Product Paramenters
Model | WHS08100 | WHS06100 | |
Power | 100KW, Cummins engine, water-cooled | ||
Tank Size | Liquid capacity: 8000L Working capacity: 7300L | Liquid capacity: 6000L Working capacity: 5500L | |
Pump | Centrifugal pump:5’’x3’’ (12.6X7.6cm),100m³/h@11bar, 20mm solid clearance | ||
Agitation | mechanical agitator with helical paddle orientation and liquid recirculation | ||
Rotating speed of mixer shaft | 0-110rpm | ||
Maximum horizontal conveying distance | 70m | ||
Spraying guns type | fixed standing gun and pipe gun | ||
Height of fence | 1100mm | ||
Dimensions | 5800x2150x2750mm | ||
Weight | 5000kg | 4500kg | |
Options | Stainless steel material for whole unit, Hose Reel with hose, Remote control unit | ||
Features
- More horsepower with high efficiency: 100kw Cummins diesel engine, Industrial grade Air-controlled large torque clutch;
- With engine protection door and ventilation;
- Specially design centrifugal pump: 5''x2.5'', capacity 100m3 /h;
- Spraying distance of up to 70m from cannon;
- Swivelable hydraulic hose reel with reel in and reel out functionality;
- Agitator with helical paddle orientation and liquid recirculation;
- With ground level control box with start and stop controls;
- With emergency stop button on top and ground level to shutdown engine in emergency;
- With 100L clean water flush tank.
- With engine protection door and ventilation;
- Specially design centrifugal pump: 5''x2.5'', capacity 100m3 /h;
- Spraying distance of up to 70m from cannon;
- Swivelable hydraulic hose reel with reel in and reel out functionality;
- Agitator with helical paddle orientation and liquid recirculation;
- With ground level control box with start and stop controls;
- With emergency stop button on top and ground level to shutdown engine in emergency;
- With 100L clean water flush tank.
Product Details

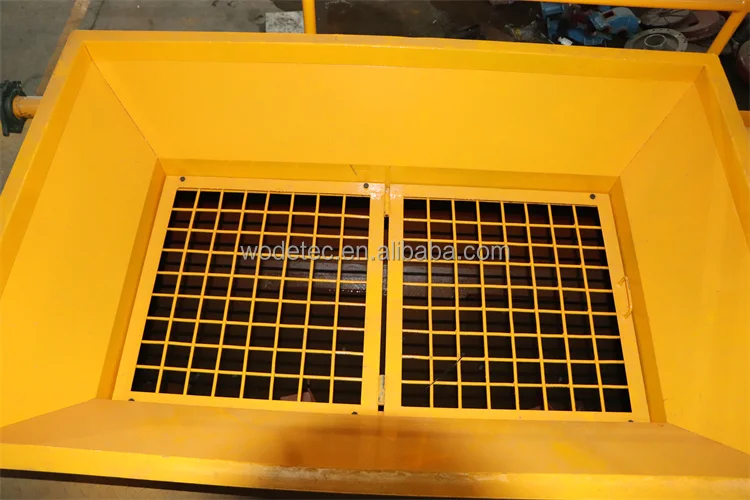

INLET
Special type mud centrifugal pump,
wear-resistant, long service life

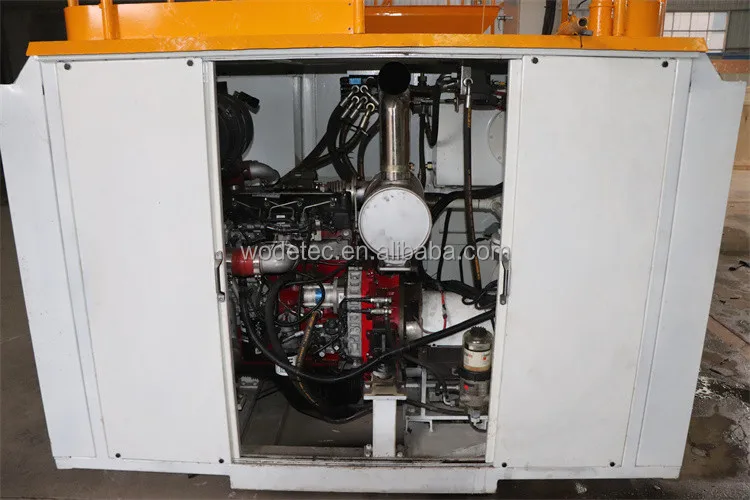

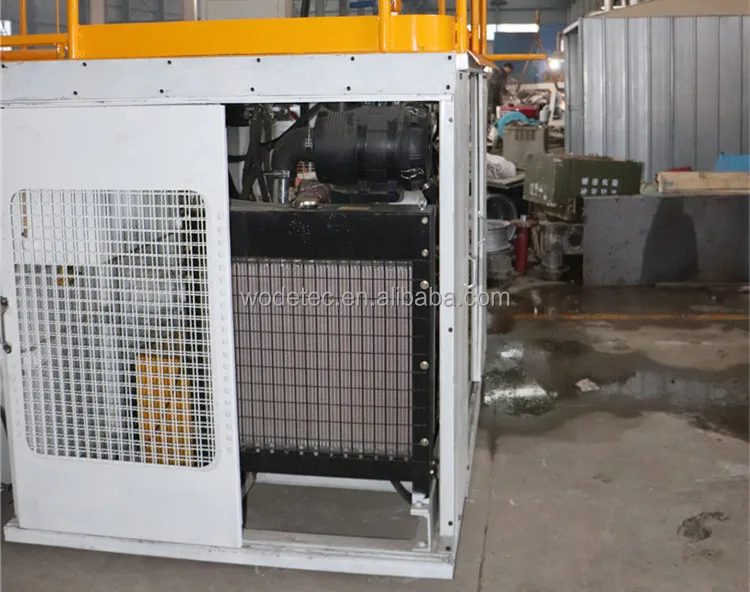

POWER SYSTEM
Dual generation, full power, long range

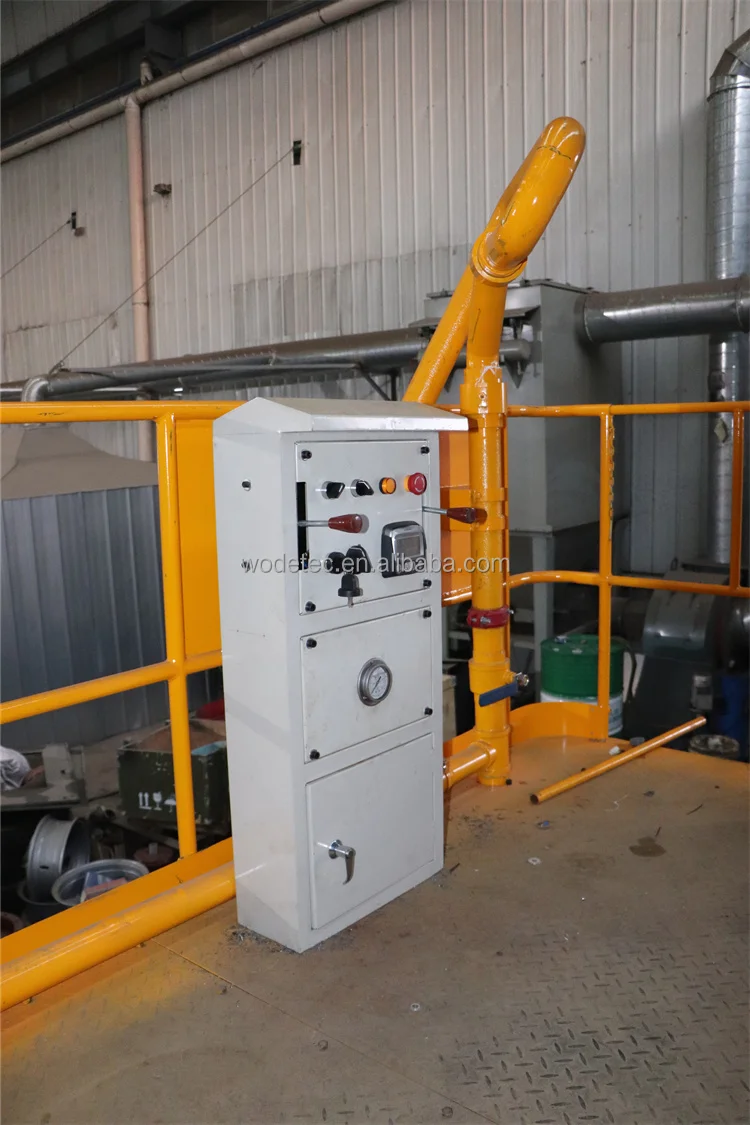

OPERATING PLATFORM
Wide operating platform, raised guard rail, safe and convenient
CENTRIFUGAL PUMP
Special type mud centrifugal pump,
wear-resistant, long service life

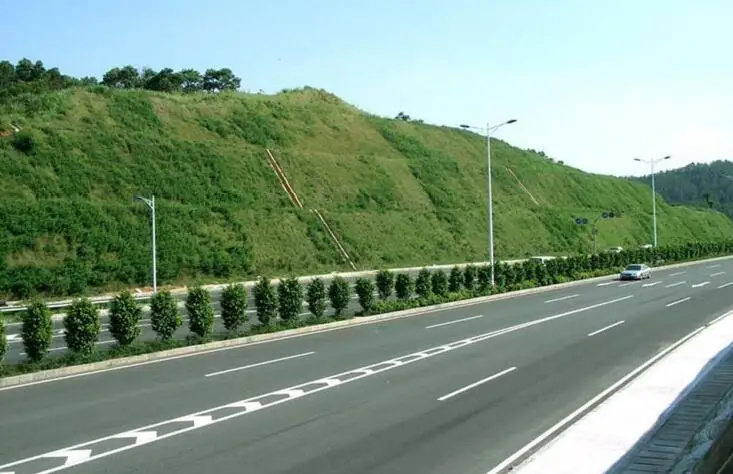

Product Application
WHS Series hydroseeding machine is more and more applied in road greening, expressway slope greening, erosion control, landfill cover, mine reclamation, dust control, landscaping projects and also involves in planting permanent vegetation, spraying slurry, slope protection, grassing and erosion prevention.
Related Product
Company Profile
Zhengzhou Wode Heavy Industry Co.Ltd ("wodetec") is a set of production, sales and export in one of the machinery manufacturing and research and development of high-tech enterprises. The company is located in the transportation hub city -Zhengzhou City, relying on the transportation routes of Zhengzhou City to transport the company's machinery and equipment to various places. The company mainly develops, produces and sells construction engineering equipment.
Compared with other hydroseeders, WHS hydroseeding machine with following outstanding features:
➢Powerful diesel engine: Cummins or Yuchai etc. famous brand diesel engine. Powerful, low fuel consumption, low maintenance cost. Powerful engine, ensure an evenly mixing and also improves the spraying efficiency.
➢Powerful mixing shaft: Strong mixer shaft, also suitable for thick material.
➢High configurations: 13000L or bigger hydroseeders with twin agitators, twin cannons etc.
➢High production: Wear-resisting centrifugal pump, most efficient during working.
➢High density material: Soil substrate, green grass seed, water retention agent, binder, fertilizer and water. The solids could up to 60%.
➢Long distance of spraying: suitable for long and high spraying distance. Solids up to 60%, level distance could up to 100m by hose.
➢Hydraulic hose reel: customize according to demands.
➢Extreme Efficiency: Simple control panel, easy operation.
➢High quality structural steel: More durable, a longer working life. Also have stainless steel tank and pipeline for option.
